Stop Thread Nests Fast: Cleaning the Brother SE400 Bobbin Race the Right Way (and Putting It Back Without Guesswork)

If you’ve ever heard that sickening crunch followed by your machine grinding to a halt, you know the panic of a “bird nest.” You lift the hoop, and there it is: a chaotic, knotted ball of thread underneath your fabric.

Most beginners internalize this failure. You assume you threaded it wrong or that you are simply “bad at embroidery.”

Here is the industry reality: Embroidery is a game of friction and tension. On a combo machine like the Brother SE400, the margin for error is microscopic. A single piece of lint the size of a grain of rice lodged in the bobbin race can change the tension by 20-30%, causing loops to form. You aren’t fighting a lack of skill; you are fighting physics.

This guide reconstructs the cleaning routine from a professional technician's perspective. We won’t just tell you what to do; we will explain how it should feel and sound when done correctly, ensuring your machine runs like the precision instrument it is.

The Calm-Down Moment: What “Bird Nesting” Actually Means

When the bobbin thread tangles under the fabric, it is almost always a top tension failure. The top thread isn’t being pulled tight enough against the fabric, so it pools underneath.

Why does this happen on a well-threaded machine? Debris displaces the bobbin case. If lint pushes the bobbin case up by even 0.5mm, the top thread cannot slide over the case smoothly. It catches, loops, and knots.

If you own a brother embroidery machine for beginners, mastering this cleaning routine is not optional maintenance; it is your primary defense against downtime. A 5-minute clean saves you a $100 service fee.

Warning: Physical Safety First. Always power off the machine or engage the "Lock" mode before placing your fingers near the needle plate. A machine that accidentally cycles while you are cleaning can drive a needle through your fingernail or finger bone instantly.

The “Hidden” Prep Pros Do First: Clear Space, Remove the Foot, and Protect the Tiny Screws

Most tutorials rush straight to the screws. This is a mistake. You need visibility and dexterity. If you are fighting the presser foot while trying to turn a screw, you will strip the screw head.

The Professional Sequence:

1. Remove the Bobbin Cover: Slide the plastic tab and set it aside.
2. Remove the Needle: Unscrew the needle clamp. This prevents you from stabbing your hand and gives you visual access to the feed dogs.
3. Remove the Entire Presser Foot Holder: Don’t just snap off the foot; unscrew the thumb screw on the left and remove the entire metal ankle.

Why remove the ankle? It opens up the "theater of operation." You can now see the shadows where lint hides.

Hidden Consumable Alert: Have a magnetic dish or a piece of tape ready. The screws on the SE400 are notoriously small and vanish into carpet fibers instantly. If you lose one, your machine is down for days.

Phase 1: Prep Checklist (Do Not Skip)

• Machine powered off or locked.
• Needle removed (Inspect it: is it bent? If so, discard immediately).
• Presser foot and metal holder removed.
• Magnetic dish or tape placed nearby for screws.
• Lighting Check: Use your phone flashlight to illuminate the dark gaps around the feed dogs.


The Two Needle Plate Screws: The “Click” of Release

The Brother SE400 needle plate is held by two screws. They are often tightened aggressively at the factory.

The Tool: Use the short, disc-shaped screwdriver that came with your machine. The Technique: Press down firmly with the palm of your hand while twisting. You want maximum downward pressure to prevent cam-out (slipping).

The "Dime Hack": The host in the video suggests using a dime.

• Expert Note: This works in a pinch, but be careful. Coins are harder than the screw metal. If you slip, you will burr the screw slot, creating a sharp edge that can snag delicate fabrics later. If you use a coin, ensure it fills the entire slot width.

Sensory Check: When the screw breaks free, you should feel a distinct "pop" or release of tension. If it feels mushy or the tool is sliding out, STOP. Re-align your tool.

Separating the Plate: The “Tabs Not Torque” Rule

Once screws are out, the plate doesn't just fly off. The metal plate and the plastic bobbin cover are interlocked.

1. Lift the Metal Plate: Lift from the back. It is hinged into the plastic part.
2. Separate the Plastic Cover: Gently wiggle the plastic cover; it has tabs that snap into the machine body.

Crucial Tip: Do not force the plastic. If you snap a tab on the plastic cover, the plate will never sit flat again, causing the bobbin case to wobble. Wiggle it gently until it releases naturally.

If you are researching a brother sewing and embroidery machine, understanding these delicate plastic tolerances is key to longevity.

The Bobbin Case: Inspect Like a Forensic Scientist

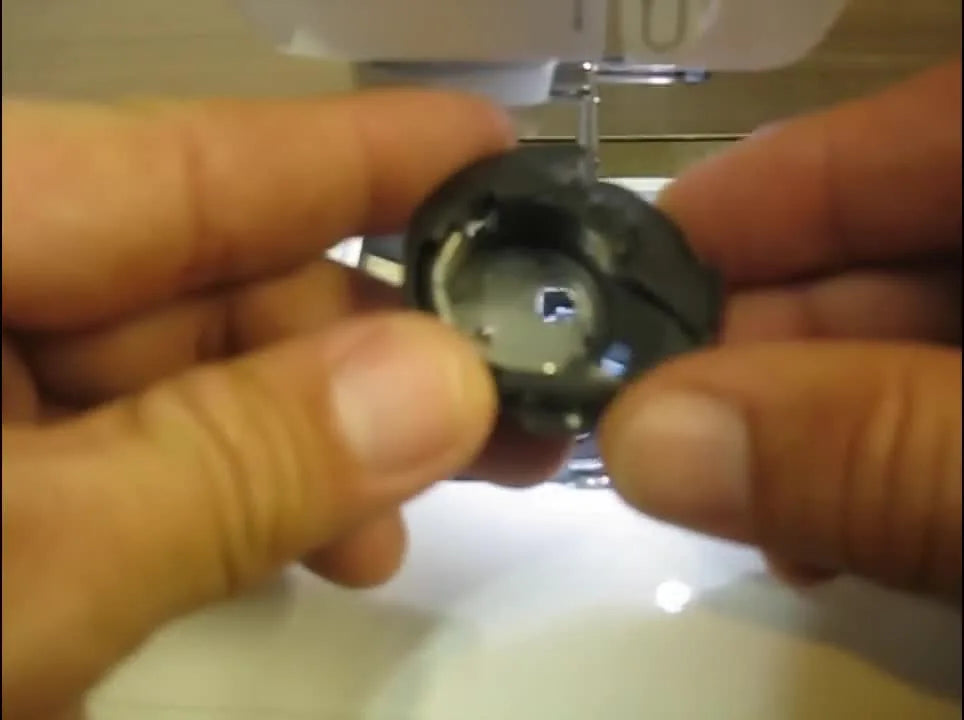

Lift the black plastic bobbin case (the "basket") straight up. This is the most critical component in the entire machine.

The Fingernail Test (Sensory Inspection): Visual inspection isn't enough. Run your fingernail along the edge of the plastic case where the needle drops and along the metal tension spring.

• Smooth: Good.
• Catch/Click: If your nail catches on a burr or scratch, that is your problem. A burr here will snag thread every time the machine runs at high speed.

The Decision:

• Light scratch: Polish gently with 2000-grit sandpaper (experts only).
• Deep gouge: Replace the bobbin case ($25-$40). Do not try to save it.


The Clean: Excavating the “Felted” Lint

You will see the "Race" (the round metal area) and the "Feed Dogs" (the teeth).

The Brush Technique: Use the provided white brush. Do not just stroke the dust; dig gently.

• Target Zone 1: The Feed Dog Valleys. Lint gets packed between the metal teeth. This compressed lint lifts the needle plate, throwing off stitch formation.
• Target Zone 2: The Thread Cutter Sensor. On the left side, look for a small glass/plastic eye or gap. Lint here causes "Check Upper Thread" errors.

What you are looking for: You aren't looking for loose dust. You are looking for "felted lint"—dust that has compressed into a hard, fabric-like substance. It often looks like a grey washer or gasket. It needs to be pried out.

The Physics of Air: Compressed Air vs. Vacuum

The video mentions using an air compressor. This is a contentious topic in the industry.

The Risk: Blowing high-pressure air can drive lint deeper into the machine’s greased gears and sensors, turning a cleaning job into a repair job.

The Safe Protocol:

1. Vacuum First: Use a micro-attachment to suck out loose debris. This is the safest method.
2. Brush Second: Loosen the stuck/grease-bound lint.
3. Air Last (Optional): If you use canned air, hold the nozzle at an angle to blow debris out, not in. Short bursts only.


The "Holy Grail" of Alignment: Arrow to Dot

This step is where 90% of users fail.

Hold the bobbin case. Locate the White Triangle (Arrow) painted on the top rim. Look at the metal machine race. Locate the White Dot.

The Alignment: Drop the case in so the Arrow points directly at the Dot.

The sensory "Wiggle Test": Once dropped in, place your finger lightly on the center of the case and wiggle it left and right.

• Correct: It should rotate slightly (about 2-3mm) against a springy resistance and bounce back. It should feel "cushioned."
• Incorrect: It spins freely or feels jammed tight.

If you don't get this alignment right, the needle will strike the bobbin case on the very first stitch, likely destroying both. For any brother embroidery sewing machine, this geometric alignment is the single most important setup step.

Reassembly: Reverse Engineering

1. Metal Plate First: Insert the right-side "ear" of the metal plate under the machine housing tab.
2. Plastic Cover: Snap the plastic cover tabs into place.
3. Screws: Insert screws by hand first.
   • Pro Tip: Turn the screw counter-clockwise until you feel a "click." That means the threads are aligned. Then turn clockwise to tighten. This prevents cross-threading.


Phase 2: Setup Checklist (The "Pre-Flight" Check)

• Bobbin case "Arrow" aligns with Race "Dot."
• Bobbin case passes the "Wiggle Test" (bounces against the stopper).
• Needle plate is flush; no corners sticking up.
• Screws are tight, but not stripped.
• Fresh Needle Installed: Never put the old needle back in after a jam. Use a fresh 75/11 embroidery needle.

The "Why It Works" Insight: Friction Management

Why does this clean fix the "bird nest"? Embroidery thread travels at 400-800 stitches per minute. It requires a precise "loop" to slip over the bobbin case.

• Dirty Machine: Friction is high. The loop drags, slows down, and doesn't clear the case before the needle comes down again. Result: Knot.
• Clean Machine: Friction is low. The loop slips effortlessly over the smooth plastic. Result: Perfect stitch.

The Oiling Question: To Oil or Not to Oil?

The Brother SE400 manual often says "No Oiling Required." The confusion in the comments is real.

• The Consensus: The SE400 uses self-lubricating bronze bushings (sintered metal). However, over years, they dry out.
• The Safe Rule: Do NOT put oil in the plastic bobbin cup. It will attract lint and create a sludge that ruins your tension.
• The Exception: If—and only if—you hear a metallic "squeak," put one tiny drop of high-quality clear sewing oil on the center metal post of the race (the wick). If you are unsure, don't do it. It's safer to run dry than to run gummy.

Troubleshooting: From Symptoms to Solutions

If cleaning didn't fix it, use this logic flow. Always fix the cheapest thing first.

Decision Tree: Intelligent Stabilizer & Consumable Choice

Cleaning prevents mechanical failure, but Stabilizers prevent physics failure. Using the wrong backing generates excessive lint, forcing you to clean more often.

The "Lint-Reduction" Decision Matrix:

1. Are you stitching on a T-Shirt (Knits)?
   • Bad: Tearaway (Shreds, creates dust, design distorts).
   • Good: Cutaway (Mesh) Stabilizer + Ballpoint 75/11 Needle.
   • Result: Less fiber cutting = less lint in the race.
2. Are you stitching on Towels (Terry Cloth)?
   • Requirement: You MUST use a Water Soluble Topper.
   • Why: Without it, the foot grinds the towel loops, creating massive dust bunnies that fall into the bobbin area.

Hidden Consumables you need:

• Organ or Schmetz 75/11 Embroidery Needles (Buy in bulk; change every 8 hours/40,000 stitches).
• Temporary Spray Adhesive (ODIF 505) (Prevents fabric shifting, which causes needle deflection).

The Upgrade Path: When Tools Limit Your Talent

There comes a point where "cleaning and patience" stops being virtuosity and starts being a bottleneck. If you are cleaning your machine three times a day because you are pushing it beyond its design limits, you have a workflow problem, not a maintenance problem.

Here is how to diagnose if you need an upgrade:

Level 1: The "Hoop Burn" & Wrist Pain Trigger

• The Pain: You struggle to hoop thick items (hoodies, towels). You get "hoop burn" marks on delicate fabrics. Your wrists hurt from tightening screws.
• The Solution: Magnetic Hoops.
• Why: A magnetic embroidery hoop uses magnetic force to clamp fabric instantly without friction/screwing. It is gentle on velvet but strong on sweatshirts.
• Compatibility: Check specifically for magnetic embroidery hoops for brother SE400 compatibility to ensure the connector arm fits your carriage.

Warning: Magnet Safety. Magnetic hoops use industrial neodymium magnets. They can pinch skin severely (blood blister risk) and can interfere with pacemakers. Keep them at least 6 inches away from medical devices and credit cards.

Level 2: The "Baby Lock" Scenario

• The Situation: You are looking for more robust features but prefer the Brother interface.
• The Context: Brother manufactures many Baby Lock machines. A baby lock sewing and embroidery machine often shares the exact same needle plate architecture as the Brother, so this cleaning guide applies to both.

Level 3: The Production Trigger (Scale & Profit)

• The Pain: You are turning down orders because you can't thread colors fast enough (Single needle limitation). You are re-hooping 50 polo shirts.
• The Solution: Multi-Needle Machines (e.g., SEWTECH).
• The Logic: Moving from a single-needle SE400 to a multi-needle machine isn't just about speed; it's about autonomy. You set up 10 colors, press start, and walk away.
• The Search: Professionals typically search for a hooping station for machine embroidery alongside these machines to standardize logo placement on every single shirt.

Phase 3: Operation Checklist (The Final Safety)

• Hand Wheel Test: Turn the hand wheel toward you for one full rotation. Did the needle clear the hook without hitting metal?
• Sound Check: Run at slow speed (start/stop button). Listen for the rhythmic thump-thump. A distinct clack or grind means Stop Immediately.
• Test Sew: Always run a scrap test before putting that $40 hoodie in the hoop.

By treating your machine with this level of respect and precision, you aren't just "cleaning" it; you are calibrating it for success.

FAQ

• Q: How do I safely clean a Brother SE400 bobbin area to stop bird nesting jams without getting injured?
  A: Power off (or Lock) the Brother SE400 first, then remove sharp parts before touching the needle plate area—this is common and worth doing slowly.
  • Remove the bobbin cover, then remove the needle to prevent accidental punctures and improve visibility.
  • Unscrew and remove the entire presser foot holder (not just the foot) so the workspace is clear and you don’t strip screws.
  • Use a magnetic dish or tape to capture the tiny Brother SE400 needle plate screws so the machine doesn’t go down from a lost screw.
  • Success check: Your fingers never pass under an installed needle, and you can clearly see the feed dogs and screw heads before you apply torque.
  • If it still fails: Stop and re-check the machine is fully powered off/locked before continuing.
• Q: What is the correct way to loosen the two Brother SE400 needle plate screws without stripping the screw slots?
  A: Use the short, disc-style Brother screwdriver and apply firm downward pressure before turning—stripped screws usually come from tool “cam-out,” not user error.
  • Press straight down with your palm while twisting to maximize grip in the screw slot.
  • Re-seat the tool if it starts to slip; do not keep turning while sliding.
  • Avoid forcing with a coin unless it fully fills the slot, because slipping can burr the slot and create snag points later.
  • Success check: You feel a distinct “pop” or release when the screw breaks free, not a mushy slip.
  • If it still fails: Stop and re-align the tool; continuing while slipping is what damages the screw head.
• Q: How do I reinstall the Brother SE400 bobbin case correctly using the “arrow to dot” alignment to prevent needle strikes?
  A: Align the white triangle (arrow) on the Brother SE400 bobbin case directly to the white dot on the machine race before you sew.
  • Drop the bobbin case in gently with the arrow pointing at the dot—do not force it.
  • Perform the “wiggle test” by lightly wiggling the case left-right after seating it.
  • Reassemble only after the case feels seated; then do a hand-wheel rotation test before powered stitching.
  • Success check: The bobbin case rotates slightly (about 2–3 mm) with springy resistance and “bounces back,” not free-spinning or jammed tight.
  • If it still fails: Remove and re-seat the bobbin case again; incorrect seating can cause an immediate needle hit on the first stitch.
• Q: How can I tell if the Brother SE400 bobbin case is damaged after a jam, and what should I do about burrs?
  A: Do a fingernail inspection on the Brother SE400 bobbin case—if your nail catches, the case can snag thread and cause repeated nesting.
  • Lift the bobbin case straight up and run a fingernail along the edge where the needle drops and along the metal tension spring area.
  • Treat a “catch/click” as a real defect, even if it looks minor.
  • Replace the bobbin case if there is a deep gouge; light scratches may be gently polished only by experienced users.
  • Success check: Your fingernail slides smoothly with no catching anywhere on the thread path edges.
  • If it still fails: Replace the bobbin case rather than chasing tension settings—snag points will keep recreating the problem.
• Q: Should I use compressed air to clean a Brother SE400 bobbin race, or is vacuuming safer?
  A: Vacuum-first is the safest method for a Brother SE400 because high-pressure air can push lint deeper into sensors and greased areas.
  • Vacuum loose debris using a micro-attachment before brushing.
  • Brush next to loosen felted lint packed in feed dog valleys and around the thread cutter sensor area.
  • Use canned air only as an optional last step, angled to blow debris out (short bursts), not into the machine.
  • Success check: You can see the race and feed dog valleys clearly with no “felted” lint pads remaining.
  • If it still fails: Re-check the thread cutter sensor area for blockage and confirm the bobbin case is seated correctly.
• Q: How do I troubleshoot Brother SE400 bird nesting under fabric after re-threading, cleaning, and changing a needle?
  A: Treat Brother SE400 bird nesting under fabric as a top-tension failure or top-thread path issue first—don’t worry, this is one of the most common causes of jams.
  • Re-thread the top thread completely, making sure it seats (“flosses”) into the tension discs.
  • Clean the bobbin race again and confirm no lint is lifting the needle plate area.
  • Install a fresh 75/11 embroidery needle and do not reuse the jammed needle.
  • Success check: Stitches form without looping underneath, and the machine runs without a sudden grind or immediate knot on the first few stitches.
  • If it still fails: Inspect the bobbin case for burrs and re-check arrow-to-dot alignment to prevent hook interference.
• Q: What are the safety risks of magnetic embroidery hoops, and how do I prevent pinched fingers or device interference?
  A: Treat magnetic embroidery hoops as industrial-strength magnets—handle slowly to avoid skin pinches and keep them away from sensitive devices.
  • Keep fingers clear of closing points; let magnets “meet” in a controlled way to prevent blood-blister pinches.
  • Keep magnetic hoops at least 6 inches away from pacemakers and similar medical devices.
  • Keep magnets away from credit cards and magnet-sensitive items.
  • Success check: The hoop closes without snapping onto skin, and the fabric is clamped evenly without needing force or screw-tightening.
  • If it still fails: Pause and adjust hand placement and closure angle—most pinches happen when magnets are allowed to slam together.
