Stop the “Wrong Needle” Panic: Fast, Reliable Color Assignment on the Brother PR-600 / Brother PR-620 (Magic Wand, Swap, Anchors)

If you’ve ever loaded a design on a Brother PR machine and watched in horror as it tried to sew a black outline with yellow thread, you are not alone. This is the "Right Needle, Wrong Time" nightmare, and it is the single biggest frustration for anyone moving from a single-needle home machine to a multi-needle workhorse.

On a multi-needle head, color assignment isn't just a convenience feature; it is the difference between a calm, profitable afternoon and a frantic, stop-and-start mess that kills your productivity.

This walkthrough is scientifically structured around the Brother PR-600 and PR-620 workflow (based on Steve Tramell’s classic methodology), but I have expanded it with shop-floor reality checks and sensory cues to ensure you don’t just push buttons—you understand the machine’s logic.

The Calm-Down Moment: Why Your Brother PR Shows “Wrong” Needles

First, take a deep breath. Your machine isn't broken. It's just literal.

On a 6-needle machine, the screen is trying to map design color steps (digital data) to physical needle bars (analog reality). When that mapping is off, you’ll see a design come in as needles 1, 3, and 2, even though your red, white, and blue threads are physically sitting on needles 6, 5, and 4.

A major culprit is file format behavior. DST files do not contain color information. They only contain stitch coordinates and "stop" commands. When you load a DST, the Brother PR machine has to guess. Usually, it just assigns colors to the last needles you used. There is no rhyme or reason—just "last used."

The good news? You have three distinct tools to fix this, depending on your goal:

1. Magic Wand: The 10-second fix for single-color jobs.
2. Swap: The firefighter tool for untangling messy DST files mid-job.
3. Anchoring: The professional system for repeatable, high-volume production.


The “Hidden” Prep: Physical Verification Before Digital Action

Before you touch a single pixel on the LCD screen, you must stabilize your physical environment. Experienced operators know that the screen is just a reflection of reality. If reality is messy, the screen will lie to you.

The Tactile Thread Check

Don't just look at the cones; touch them.

1. Seat the Cones: Give each thread cone a gentle push down. If a cone is wobbling, the thread feeds unevenly, leading to tension loops.
2. Path Flossing: Run your finger along the thread path from the tree to the tension knob. Is the thread actually inside the tension discs?
   • Sensory Check: Pull the thread gently near the needle. You should feel smooth, consistent resistance—like pulling dental floss between your teeth. If it feels like a wet noodle, you have zero tension. If it feels like snapping a guitar string, it’s too tight.
3. Bobbin Audit: Pop the bobbin case out.
   • Visual Check: Is the bobbin area clean? A piece of lint the size of a grain of rice can cause a bird’s nest.
   • Metric: When you look at a test stitch on the back of the fabric, you want to see 1/3 white bobbin thread right down the center.


Pre-Flight Prep Checklist (Do this OR ensure failure):

• Physical Audit: Confirm exactly which colors are mounted on Needle Bars 1 through 6.
• Thread Path: Verify no thread is looped around the thread tree (a common cause of snap-backs).
• Sharpness Check: Run your fingernail down the needle. If it catches, the needle has a burr. Replace it.
• Consumables: Do you have your hidden essentials ready? (Applicator spray, sharp snips, and a spare needle).
• Strategy: Decide: Is this a single-color quickie (Magic Wand), a DST mess (Swap), or a standard shop run (Anchor)?

Tool 1: The Magic Wand (For Single-Color Speed)

Scenario: You are stitching a name on a gym bag. It’s one color (White). The machine defaults to Needle 1, but your White thread is on Needle 3.

Steve’s fastest method here is the Magic Wand. It bypasses deep menus for a direct override.

How to execute (Magic Wand method):

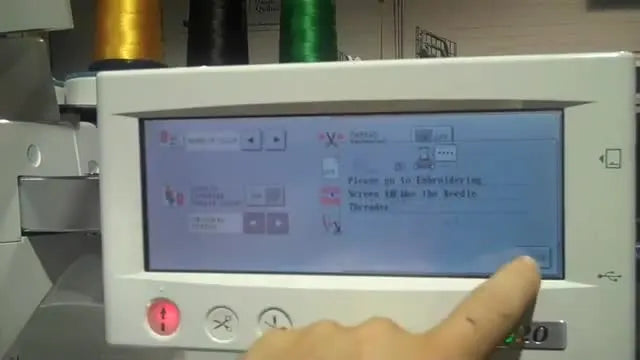

1. On the Pattern Input Screen, look for the icon that looks like a whimsical wand with stars. Tap it.
2. Tap the currently assigned needle (the one the machine thinks it should use, e.g., Needle 1).
3. Tap the destination needle (the one you actually want to use, e.g., Needle 3).
4. Sensory Cue: Listen for the beep. Watch the number next to the design thumbnail physically change from "1" to "3".


Why use this? It is fast. It prevents you from re-threading Needle 1 just for a five-minute job. If you are doing quick personalization work on a brother 6 needle embroidery machine, this is your bread and butter.

Tool 2: The Swap Tool (The DST Firefighter)

Scenario: You loaded a "Red, White, and Blue" flag design. The file is a DST. The screen says it wants to sew on Needles 1, 2, and 3. But your Red/White/Blue threads are on 6, 5, and 4.

You could move the thread cones. Don’t. Moving cones wastes time and introduces threading errors. Move the digital assignment instead using Swap.

How to execute (Swap method):

1. Navigate into the Sewing Execution Screen (where you see the "Drive" mode).
2. Locate the Swap Icon (two horizontal arrows pointing at each other).
3. Logic Check: You will see two columns.
   • Left Column: Physical Needle Bars (1-6).
   • Right Column: Design Steps (The Sequence).
4. Tap the Physical Needle Number (Left Column) that holds the thread you want (e.g., Needle 6).
5. Tap the Design Step (Right Column) you want to replace (e.g., Step 1).
6. Press Swap.




The Result: The machine now knows: "When I get to Step 1, I don't go to Needle 1. I travel to Needle 6." Steve’s example is practical: He swaps the sequence so 1, 2, 3 becomes 6, 5, 4. No re-threading required.

Setup Checklist (Verification):

• Visual Confirmation: Look at the color bar on the screen. Does it visually match the order of threads on your stand?
• Collision Check: Did you accidentally assign the same needle to two different colors? (e.g., mapping Blue and Red both to Needle 6).
• Speed Limit: For your first run after a Swap, lower the speed to 600 SPM (Stitches Per Minute). Once you see the first color change happen correctly, bump it back up to 800-1000 SPM.

If you’re running a brother pr 620 embroidery machine in a garage shop, "Swap" is how you survive bad files without losing your mind.

Tool 3: Anchoring (The Professional Workflow)

Scenario: You run a shop. Your "House Colors" (Black, White, Red, Navy, Royal) are always on the machine. You are tired of telling the machine where "Black" is every single time.

Anchoring turns your Brother PR from a "Dumb Machine" into a "Smart System." You tell the machine once: "Needle 1 is ALWAYS Leaf Green." Now, whenever you load a design with Leaf Green, the machine auto-assigns it to Needle 1.

Step A: Speak the Right Language

Steve recommends setting the thread palette to “Name of Color”.

• Why: "Madeira 1051" requires you to have a catalog. "Leaf Green" is universal.
• Action: Go to Settings -> Thread Palette -> Select "Name of Color".

Step B: Lock it Down

1. Go to the Settings Menu (Page Icon).
2. Navigate to Settings Page 3 (The Anchoring Page).
3. Tap Needle 1.
4. Scroll through the grid and find "Leaf Green".
5. Tap SET.
6. Visual Anchor: Look for the tiny Lock Icon/Anchor Icon appearing next to the needle number.




Currently, this is the secret weapon for high-volume shops using the pr600 embroidery machine. It reduces setup time by 50% on repeat orders.

Warning: Keep your hands clear! When you change settings or press "Unlock" to test mapped colors, the needle case will move sideways rapidly. It does not verify if your fingers are in the way. A needle case collision with a finger is a hospital trip.

The "Floater" Needle: Why You Can Only Anchor 5

Steve demonstrates a critical quirk: You can only anchor 5 needles. One must remain "Floating" (Unanchored).

This is not a bug; it is a safety valve. If you anchored all 6 needles (Black, White, Red, Blue, Green, Yellow) and then loaded a design with "Purple," the machine would have nowhere to go. It would throw an error or freeze.

The Strategy:

• Needles 1-5: Anchor your "House Colors" (The ones you use 80% of the time).
• Needle 6: Leave it unanchored (The "Floater"). Use this for the weird, one-off colors (Pink, Gold, Teal) that change with every custom job.


Proof: The AABC Test

To verify this works, Steve creates a test file with text "AABC" mapped to specific colors.

• Because his machine is anchored, he doesn't touch the Swap key.
• He loads the file.
• The machine instantly assigns the correct needles: 2, 3, 1, 6.




Operations Checklist (The "Green Light" Protocol):

• Screen Logic: Does the Sewing Screen needle numbers match the Anchored setup?
• Floater Check: Is your wild/specialty color actually threaded on the Floating Needle?
• Hoop Check: Is the hoop locked in? (Listen for the "Click").
• Tension Check: Are the thread tails trimmed short (approx 1 inch) so they don't get sucked under the plate?

The Decision Tree: Which Method Should I Use?

Don't guess. Use this logic flow to specific the right tool for the job.

Start Here

1. Is the design Single-Color?

• YES: Use Magic Wand. (Fastest).
• NO: Go to Step 2.

2. Is this a "One-Off" job (never to be repeated)?

• YES: Use Swap in the sewing screen. (Low commitment).
• NO: Go to Step 3.

3. Do you keep a standard "House Palette" (Black/White/Navy) mounted?

• YES: Use Anchoring. Lock down 5 needles. Keep 1 Floater.
• NO: Stick with Swap.

4. Is the file a DST (no color info)?

• YES: Anchoring is your best friend here, or use Swap for total manual control.

Troubleshooting: When the Machine Misbehaves

The "Secret" Upgrade Path: Solving Problems Money CAN Buy

Sometimes, the problem isn't your skill; it's your physics.

Steve shows us how to optimize software, but often the bottleneck is hardware. Here is how experienced shops identify when to upgrade their toolkit based on specific pain points.

Pain Point: "Hooping takes longer than sewing." If you are spending 5 minutes struggling to hoop a thick Carhartt jacket or a slippery performance polo, you are losing money. Traditional plastic hoops rely on friction and muscle power.

• The Upgrade: Magnetic Hoops (like those from SEWTECH).
• The Logic: They use magnetic force to clamp instantly without forcing inner/outer rings together. This eliminates "hoop burn" (the shine left on dark fabric) and handles thick seams that break plastic hoops.
• Search Intent: Many users struggling with production speed search for words like magnetic embroidery hoop to find compatible frames that snap on instantly.

Warning: Magnet Safety. Magnetic hoops use industrial-strength neodymium magnets. They are strong enough to pinch fingers severely. Never place them near pacemakers or magnetic storage media.

Pain Point: "I need to do 50 shirts by Friday." If you are running a single-head machine for 8 hours a day, you have hit the ceiling of "Man-Machine Ratio."

• The Upgrade: Scaling to SEWTECH Multi-Needle Machines.
• The Logic: Moving from a PR-600 to a modern 10+ needle ecosystem allows for larger fields, faster processing, and network capabilities. You stop being an operator and start being a manager.

Pain Point: "Caps are a nightmare." Caps are curved, structured, and unforgiving.

• The Upgrade: Specialized Cap Drivers and jigs.
• The Logic: If you are searching for a brother pr600 hat hoop, ensure you are looking for the complete driver set, not just the frame. A dedicated 270-degree cap system is essential for ear-to-ear embroidery.

Final Summary: Reliability is a Choice

The Brother PR-600 and brother pr series are legendary workhorses, but they are only as smart as the operator.

1. Prep: Touch your threads. Verify the bobbin.
2. Map: Use Magic Wand for speed, Swap for corrections, Anchoring for systems.
3. Upgrade: When physical constraints slow you down, look to magnetic frames and upgraded machines to break the bottleneck.

By standardizing your workflow, you stop fighting the machine and start printing money. Get your "House Palette" anchored today, leaving that one floater needle open for magic.

FAQ

• Q: Why does a Brother PR-600 or Brother PR-620 assign “random” needle numbers when loading a DST embroidery file?
  A: This is common—DST files do not contain color information, so the Brother PR series often assigns needles based on the last-used setup.
  • Use the Swap function to map the design’s steps to the physical needle bars without re-threading cones.
  • Confirm which thread colors are physically mounted on Needle Bars 1–6 before changing anything on-screen.
  • Success check: The color/needle sequence on the sewing screen matches the actual thread order on the machine stand.
  • If it still fails: Slow the first run to about 600 SPM and watch the first color change to confirm the mapping is truly correct.
• Q: How do I use the Brother PR-600 “Magic Wand” to stitch a single-color design when the correct thread is on the wrong needle?
  A: Use the Magic Wand to reassign the design to the needle that already has the correct thread—no re-threading needed.
  • Tap the Magic Wand icon on the Pattern Input Screen.
  • Tap the currently assigned needle number, then tap the needle number that has the correct thread.
  • Success check: Hear the beep and see the needle number next to the design thumbnail change to the intended needle.
  • If it still fails: Re-check that the thread is actually threaded on that needle bar and not mistakenly routed around the thread tree.
• Q: How do I use the Brother PR-620 “Swap” tool to fix a multi-color design that is mapped to the wrong needles?
  A: Use Swap on the Sewing Execution Screen to replace the design step’s needle assignment with the physical needle that holds the correct color.
  • Enter the Sewing Execution (Drive) screen and tap the Swap icon (two arrows).
  • Tap the Physical Needle Number (left column), then tap the Design Step (right column), then press Swap.
  • Success check: The on-screen color bar/sequence visually matches the real thread colors on the stand, with no duplicate needle assigned to two colors.
  • If it still fails: Reduce speed to 600 SPM for the first post-swap run and verify the first color change happens on the intended needle before increasing speed.
• Q: Why can the Brother PR-600 anchoring system only lock 5 needles, and how should the “floating needle” be used?
  A: The Brother PR series leaves one needle unanchored as a safety valve so the machine still has a place to assign uncommon colors.
  • Anchor Needles 1–5 to the most-used “house colors.”
  • Leave Needle 6 as the floating needle for one-off colors (pink, gold, teal, etc.).
  • Success check: When loading a design, the sewing screen automatically assigns expected colors to the anchored needles without needing Swap.
  • If it still fails: Verify the thread palette is set to “Name of Color” and confirm the lock/anchor icon appears next to each anchored needle.
• Q: What is the fastest pre-flight checklist to prevent birdnesting on a Brother PR multi-needle embroidery machine?
  A: Don’t start with the screen—start with a physical thread-path and bobbin-area audit to prevent tension failures.
  • Seat each cone firmly and “floss” the thread path to confirm the thread is actually inside the tension discs.
  • Pop out the bobbin case and remove lint (even a small piece can trigger nesting).
  • Success check: On the back of a test stitch, the bobbin thread shows about 1/3 down the center (balanced look).
  • If it still fails: Re-thread the top thread completely and verify the machine was threaded correctly for proper tension engagement before sewing.
• Q: How do I confirm correct tension by feel on a Brother PR-600/PR-620 before running a job?
  A: Use a tactile tension check on each needle you plan to run—don’t rely on cone color alone.
  • Pull the thread gently near the needle after threading and compare the resistance across needles.
  • Aim for smooth, consistent resistance (not slack like a “wet noodle,” not overly tight like a “guitar string”).
  • Success check: The pull-feel is consistent needle-to-needle, and the stitch test shows centered bobbin presentation on the back.
  • If it still fails: Inspect for mis-threading through the tension discs and replace any needle that has a burr (fingernail catches).
• Q: What safety steps should be followed when changing settings or testing needle assignments on a Brother PR-600/PR-620?
  A: Keep hands completely clear—Brother PR needle cases can move sideways quickly during setting changes or unlock tests.
  • Remove hands from the needle area before pressing Unlock or changing anchored mappings.
  • Watch the head movement path and wait until motion stops before reaching in.
  • Success check: No part of the hand is near the needle case during lateral travel, and adjustments are made only when the head is stationary.
  • If it still fails: Stop the machine and restart the procedure slowly—never “reach in” while the machine is repositioning.
• Q: When should embroidery hoop burn on delicate fabric be solved by technique changes versus switching to a magnetic embroidery hoop?
  A: Start by confirming the problem is clamp pressure on delicate fabric; if hoop burn keeps happening or hooping time is the bottleneck, a magnetic hoop is the next tool-level upgrade.
  • Diagnose: Identify hoop burn as shine/marking caused by traditional hoop clamping force.
  • Optimize first: Reduce unnecessary re-hooping by fixing needle-color mapping (Magic Wand/Swap/Anchoring) so the job runs cleanly the first time.
  • Upgrade next: Switch to a magnetic embroidery hoop when traditional hoops are slow on thick seams or consistently mark delicate fabrics.
  • Success check: The fabric releases with less visible ring/shine and hooping is faster with consistent holding power.
  • If it still fails: Follow magnet safety—keep fingers clear of pinch points and keep magnetic hoops away from pacemakers and magnetic storage media.
