Stop the Upside-Down Tile: A Veteran’s Workflow for Merry & Bright ITH Quilt Assembly on the Brother Luminaire XP2

Mastering the Tile Scene Quilt: The Precision Workflow for Zero-Error Assembly

Tile scene quilts are supposed to feel like a satisfying puzzle—until you sew one block upside down or realize your rows are drifting. Suddenly, that relaxing hobby feels like a crime scene investigation into where exactly things went wrong.

If you are assembling complex projects like the “Merry & Bright” tile scene, you are juggling three critical variables at once: placement accuracy, 1/2" seam allowances, and bulk management. Miss any one of them, and you will fight waves, mismatched motifs (candles, wreaths, ferns), or that dreaded realization that a block is rotated 90 degrees.

This guide rebuilds the assembly method into a clean, repeatable workflow. Whether you are working on a Brother Luminaire XP2, a Brother 10-needle machine, or a reliable single-needle setup, these steps will bridge the gap between "hoping it works" and "knowing it will fit."

1. The "Batch Hooping" Strategy (Efficiency Without Risk)

The first victory happens before you take a single stitch. Traditional logic says "hoop one block, sew one block." However, expert efficiency comes from maximizing your hoop's real estate without gambling with your fabric placement.

If your machine has a large field (like the Luminaire or a multi-needle), you can often fit up to three tile designs in a single hooping.

The Strategy:

1. Center & Shift: Place the first design centered, then shift the next design fully to the left (or right) in your software.
2. The 1/2" Rule: Tile scene blocks are engineered with a strict 1/2" seam allowance built-in. Use a 2-inch Good Measure ruler to measure from the edge of the stitched design. You must leave enough fabric for the seam allowance of both blocks plus a safety margin.
3. The "Sweet Spot" Check: If the third design looks cramped, do not force it. It is cheaper to re-hoop than to ruin a block because you ran out of seam allowance.

For beginners exploring multi hooping machine embroidery, understanding where to draw the line between efficiency and overcrowding is the hallmark of a professional mindset.

Sensory Check: When hooping, tap the fabric. It should sound like a dull drum—taut but not stretched to the point of distorting the weave. If it sounds loose or creates a "ripple" sound when tapped, re-hoop immediately.

Warning: Keep fingers clear of the needle bar area when repositioning fabric. Never try to "nudge" fabric while the machine is stitching—needle strikes at high speeds can shatter the needle, potentially sending metal shards towards your face or damaging the hook assembly.

Prep Checklist (Pre-Flight):

• Design Verification: Confirm your design files include the standard 1/2" seam allowance.
• Fabric Tension: Fabric is taut (drum sound) but not distorted.
• Clearance Check: Ensure the hoop can travel fully left/right without hitting the machine arm.
• Tool Readiness: 2-inch ruler and dissolvable marking pen are within reach.


2. The "Sticker Safety Net" (Cognitive Load Management)

Tile scenes assemble fast only when you can trust your layout 100%. Fatigue is your enemy; after staring at embroidery for hours, your brain will try to "auto-correct" patterns, convincing you that a wreath is symmetrical when it actually has a distinct "up" side.

The Protocol:

1. Print the Grid: Have the numbered paper diagram visible at all times.
2. Tag Immediately: Physically label each embroidered block with a sticker or pinned note containing its number/letter code immediately after removing it from the hoop.
3. The Golden Rule: Do not remove the numbers until the project is completely finished.

Why this works: We rely on visual cues, but black-on-black embroidery obscures details. A "Right Side Up" sticker bypasses your brain's flawed visual processing and gives you hard data. Even Linda, an expert, relied on this system to catch a feather detail that would have otherwise ended up upside down.

3. Side-by-Side Assembly: The Structural Foundation

When it is time to join your blocks, gravity and physics matter. Linda’s non-negotiable rule is: sew blocks side-by-side first, not top-to-bottom.

The Mechanics: Working in rows allows you to manage smaller units. If you build long vertical columns, the weight of the quilt can cause drag, leading to distorted seams.

The Action Plan:

1. Face to Face: Place two blocks right sides together.
2. Tactile Alignment: Use your fingers to feel the embroidery density change at the motif edges (e.g., where a candle meets the edge).
3. Clip: Use Wonder Clips to secure the alignment.
4. Stitch: Sew at exactly 1/2".

When you are researching hooping for embroidery machine technique, you learn that stabilization provides the foundation. Similarly, here, your visual check provides the assembly foundation.

Sensory Check: Before sewing, peek inside the layers. The motifs should "kiss" perfectly. If you have to pull the fabric hard to make them match, your stabilization may have shrunk the block. Do not force it—ease it in.

Setup Checklist (Assembly Phase):

• Foot Selection: Walking foot installed (preferably Open Toe for visibility).
• Needle Check: Fresh Microtex or Topstitch needle (Size 80/12 or 90/14) to penetrate dense stabilizer.
• Stitch Length: Set to 2.5mm (standard) or 3.0mm if sewing through very thick embroidery.
• Lighting: Auxiliary light on (crucial for black fabric).


4. Visibility Techniques for Dark Fabrics (The Hidden Struggle)

Black thread on black fabric is an optical nightmare. The "seam line" vanishes, and you end up guessing. In precision quilting, guessing equals drifting.

The Solution: The Laser Guide Modern machines like the Luminaire XP2 feature a laser guide projection.

1. Activate: Turn on the laser guide (switch to red or green depending on which contrasts better with your fabric).
2. Align: Do not watch the needle; watch the laser line ahead of the foot.
3. Execute: Stitch steadily, letting the laser keep you straight.

Low-Tech Alternative: If you lack a laser guide, wind a bobbin with a high-contrast thread (like neon pink or yellow) used only for the assembly seams. This allows you to clearly see your stitch path from the reverse side if you need to rip a seam or check alignment.

5. The Hardware Upgrade: Walking Foot & Reverse

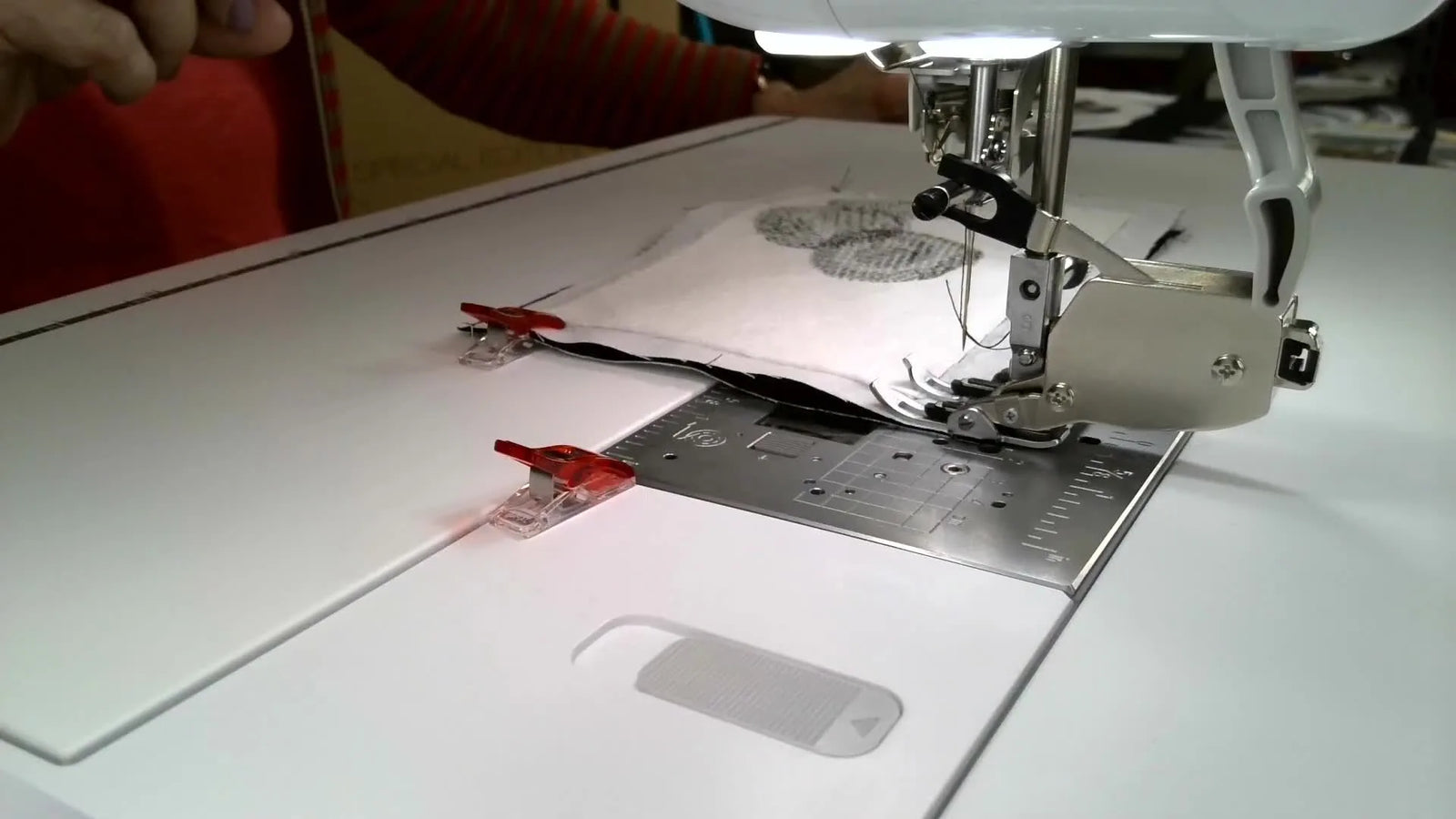

Linda utilizes a specialized Brother walking foot with an open toe. Why is this specific tool highlighted?

The Physics of Feeding: Embroidery adds significant stiffness and bulk to fabric. A standard presser foot will push the top layer forward while the feed dogs pull the bottom layer back, causing misalignment. A walking foot feeds both layers at the same speed.

The Capability: Unusually, this specific foot allows for reverse stitching. This is vital for "locking" your seams at the start and end of each tile block without shifting the fabric—a common frustration with older walking foot attachments.

For those running a production setup, tools like a hooping station for embroidery machine manage the front-end prep, while a quality walking foot manages the back-end assembly. Both are investments in consistency.

6. Managing Bulk: The "Point and Press" Technique

This is the step most hobbyists skip, and it is the primary reason their quilts do not hang flat. Embroidery creates localized rigid zones. If you iron a seam without prepping it, you are pressing a "hill" into your quilt.

The Tool: An Expert Point and Press tool (wooden or metal handle with ball ends).

The Action:

1. Slide: Insert the ball end of the tool into the sewn seam tube.
2. Open: Run it along the stitch line, forcing the seam allowance open from the inside.
3. Flatten: Use the tool to finger-press the seam flat before the iron ever touches it.

Why: You are mechanically breaking the "memory" of the fold so the seam allowance lies perfectly flat.

7. Thermal Setting: Steam and Wool

Pressing is not ironing. You are not sliding the iron (which stretches fabric); you are pressing vertically.

The Science of Wool Mats: Linda recommends a wool pressing mat. Wool fibers grip the fabric (preventing sliding) and reflect heat back up into the seam. This provides thermal setting from both sides simultaneously, which is crucial for penetrating the layers of stabilizer and thread.

Action:

1. Blast: Hover the iron and steam first (clear any water splutters).
2. Press Back: Press the seam open from the wrong side.
3. Press Front: Flip and gently press from the right side, using a pressing cloth if your embroidery thread is synthetic (to prevent melting).


8. The "Four-Block Unit" Assembly Rhythm

To maintain squareness, follow a modular architecture:

1. Create Pairs (Block 1 + Block 2).
2. Create Quads (Pair A + Pair B).
3. Join Quads into Rows.

The Junction Point: When joining pairs, the seam intersection (where four corners meet) is the critical failure point.

• The Check: Fold the fabrics back at the intersection. The vertical seams should form a continuous straight line.
• The Fix: If they are off by more than 1/16th of an inch, re-pin or re-clip. Do not hope it will look okay later. It won't.


9. Precision Clipping (The Anti-Drifters)

Clips are not just holding the fabric; they are your brakes. Linda places clips explicitly at the seam intersections.

Expert Tip: Many users interested in a hoop master embroidery hooping station are looking for placement precision. Apply that same mindset here: Place your clip exactly where the seams match. If the clip is 1/2" away, the fabric can still shift at the needle entry point.

10. Troubleshooting Visibility in Real-Time

The Problem: You are sewing row 3, and the black fabric has absorbed all the light. You cannot see the edge guide. The Fix: Trust the Laser. If your machine lacks a laser, use painter's tape on the bed of your machine to extend your 1/2" guide line 5 inches in front of the needle. Watch the tape, not the needle.

11. The Surgical Seam Rip (Psychological Safety)

Linda demonstrates a crucial reality: Mistakes happen to experts. A block was sewn upside down. Action:

1. Don't panic.
2. Use a sharp seam ripper.
3. Support stitches: Don't just yank the thread. Black fabric shows needle holes easily. Cut the thread every few stitches to gently separate the layers without distorting the weave.
4. Flip, verify with the diagram, and re-sew.


12. Hygiene: The Lint Battle

Working with black fabric and tear-away stabilizer generates "embroidery dandruff"—white flecks that embed themselves in the dark weave.

Hidden Consuambles:

• Lint Roller: For large areas.
• Rubber-Tipped Tool / Tape: For pulling stubborn stabilizer bits out of the seam crevices.
• Air Duster: To blow lint out of your bobbin case (do this frequently—stabilizer dust is abrasive).


13. Quality Control: The "Flow" Check

Before you join two large rows together, lay them out on a table. Stand back. Look at the flow of the design.

• Does the candle edge continue seamlessly?
• Does the vine curve naturally across the gap?
• Correction Window: It is infinitely easier to fix a mismatched 4-block unit than to unpick an entire finished row of 8 blocks.


14. Detailing the Shadows

Use a smaller rubber tool to get into tight corners. If you plan to custom quilt the negative space later, any trapped white stabilizer lint will be permanently sewn over, creating a visible flaw. Clean it now.

15. The Final Press: Preparing for Quilting

The result of the "Point and Press" method plus the Wool Mat is a row that lies dead flat. This is not just aesthetic; it's structural. If you plan to "stitch in the ditch" for your final quilting, those flat seams act as distinct channels for your needle to follow.

16. Sample Verification

Linda's finished sample hangs straight. This is the ultimate test. If your seams are tight (tension) and your pressing is flat, the quilt will hang like a tapestry. If the seams are bulky, the quilt will trumpet or wave at the bottom.

Strategic Decision Tree: Materials & Tools

Use this logic flow to make decisions before you start, saving time and money.

Scenario A: High Volume / Production Mode

• Trigger: You are making 5+ kits or experiencing wrist pain from clamping.
• Bottleneck: Hooping time and accuracy.
• Tool Upgrade: Magnetic Hoops.
  • Why: Reduces "hoop burn" (shiny marks on fabric) and drastically speeds up the clamping process. Users searching for magnetic hoops for brother luminaire often do so to solve the fatigue of standard lever hoops.
  • Warning: Strong magnets. Keep away from pacemakers.

Scenario B: Dark Fabric Project

• Trigger: Black background, dense white stabilizer.
• Bottleneck: Visibility and lint.
• Tool Upgrade: Laser Guide + Residue-Free Stabilizer.
  • Why: Prevents the "white dandruff" look on the finished quilt.

Scenario C: Elastic/Stretchy Fabric Base

• Trigger: Your tile scene is on jersey or knit (rare, but happens).
• Bottleneck: Puckering.
• Action: Switch from Tear-Away to Cut-Away stabilizer (Mesh). No exceptions.

The Production Upgrade: Solving the Hooping Bottleneck

If you are following Linda's method of "batch hooping" (3 items per hoop), you might find that the physical act of hooping becomes your new bottleneck. Standard hoops require perfect tension adjustment every time.

The Upgrade Path:

1. Level 1 (Technique): Use a non-slip mat under your hoop to prevent sliding while clamping.
2. Level 2 (Tool): Magnetic Hoops. These allow you to simply lay the fabric and snap the magnets in place. There is no screw-tightening or "tugging" required. This significantly reduces fabric distortion.
3. Level 3 (Ecosystem): For Luminaire owners, finding compatible brother luminaire magnetic hoop options ensures you maintain the correct field size recognition without tricking the machine.

Magnet Safety Warning: Magnetic hoops use industrial-strength magnets (Neodymium). They can pinch skin severely. Never place them near magnetic media, credit cards, or medical devices like pacemakers. Keep them out of reach of children.

Operation Checklist (The "Don't Make Me Unpick This" List)

Use this final check before every major seam assembly session:

• Identification: All blocks are labeled with stickers that match the master diagram.
• Seam Allowance: Machine guide is verified at exactly 1/2".
• Alignment: Clips are placed exactly at seam intersections (not just near them).
• Visibility: Laser guide is active OR colored bobbin thread is loaded.
• Bulk Prep: Point-and-press tool is ready; seams are opened before ironing.
• Hygiene: Lint roller helps manage the "stabilizer snow" on dark fabric.

By adhering to this rigid workflow, you move from "hoping for the best" to engineering a masterpiece. The difference between a homemade quilt and a professional one is rarely the machine—it’s the discipline of the process.

FAQ

• Q: How can Brother Luminaire XP2 owners judge correct fabric tension when hooping tile scene quilt blocks to avoid distorted weave?
  A: Re-hoop until the fabric is taut like a dull drum sound—tight but not stretched.
  • Tap the hooped fabric and listen for a dull “drum” sound rather than a loose ripple.
  • Reposition and re-clamp if the fabric looks wavy or the weave looks pulled off-grain.
  • Confirm the hoop can travel fully left/right without hitting the machine arm before stitching.
  • Success check: the fabric sounds evenly taut across the hoop and the weave looks undistorted.
  • If it still fails, reduce how many designs are packed into one hooping and prioritize seam-allowance space over efficiency.
• Q: How can Brother 10-needle embroidery machine users prevent tile scene quilt blocks from losing the required 1/2" seam allowance during batch hooping?
  A: Measure every stitched tile edge and leave enough fabric for the engineered 1/2" seam allowance before committing to multi-design hooping.
  • Measure from the stitched design edge using a 2-inch ruler before you run the next design position.
  • Shift designs fully left/right in software instead of “crowding” a third design that looks tight.
  • Stop at two designs per hoop if the third design would reduce seam-allowance safety margin.
  • Success check: every block has a clean buffer outside the stitched area so the 1/2" seam can be sewn without “eating” the design.
  • If it still fails, re-hoop more often—re-hooping is cheaper than remaking a rotated or undersized block.
• Q: How can Brother Luminaire XP2 quilt-assembly sewing stay straight on black fabric when the 1/2" seam line is hard to see?
  A: Use the Brother Luminaire XP2 laser guide and follow the laser line ahead of the presser foot instead of staring at the needle.
  • Activate the laser guide and choose the color that contrasts best with the black fabric.
  • Watch the laser line in front of the foot to keep the seam tracking straight.
  • If no laser is available, use a high-contrast bobbin thread dedicated to assembly seams for visibility from the reverse side.
  • Success check: the seam stays consistently at 1/2" and rows do not “drift” when laid flat.
  • If it still fails, extend the 1/2" guide with painter’s tape on the machine bed so the eye can track a longer straight reference.
• Q: How can Brother sewing machine users stop embroidered tile scene quilt blocks from shifting and mismatching at motif edges during 1/2" seam assembly?
  A: Switch to side-by-side row assembly and clip exactly at seam intersections so the motifs “kiss” without pulling.
  • Sew blocks side-by-side into rows before joining rows to reduce drag from quilt weight.
  • Align by feel: run fingers along motif edges to detect density changes and match those points.
  • Place Wonder Clips precisely at intersections (not nearby) and sew at exactly 1/2".
  • Success check: when you peek inside the layers before stitching, motif edges meet cleanly without having to tug fabric.
  • If it still fails, stop forcing alignment—ease it in and re-check stabilization effects on block size before continuing.
• Q: How can Brother walking foot users reduce layer creep when joining bulky embroidered tile scene quilt blocks and still lock seams with reverse stitching?
  A: Use an open-toe walking foot that can reverse so both layers feed evenly and seams can be locked without shifting.
  • Install the walking foot before joining embroidered blocks to manage bulk and stiffness.
  • Lock the seam with reverse stitching at the start/end if the walking foot supports reverse.
  • Increase visibility with open toe placement so intersections stay aligned.
  • Success check: the top and bottom layers finish the seam the same length with matched corners at junction points.
  • If it still fails, slow down and re-clip at the exact intersection—most drift starts right at needle entry.
• Q: What is the safest way to reposition fabric on a Brother multi-needle embroidery machine during hooping without risking needle strikes or injury?
  A: Never nudge fabric while the Brother multi-needle embroidery machine is stitching—stop the machine completely before touching anything near the needle bar area.
  • Stop stitching first and keep hands out of the needle bar travel zone.
  • Re-hoop or reposition only when the needle is fully stopped and clear.
  • Avoid “quick fixes” mid-stitch; needle strikes at speed can shatter needles and damage the hook area.
  • Success check: fabric is correctly placed before restarting, with no need for mid-stitch contact.
  • If it still fails, slow down the workflow and add a pre-flight checklist step to verify placement and clearance before running.
• Q: What magnetic hoop safety rules should Brother Luminaire XP2 owners follow when using neodymium magnetic embroidery hoops for batch hooping?
  A: Treat neodymium magnetic hoops as pinch hazards and keep them away from medical devices and magnetic-sensitive items.
  • Keep fingers clear when snapping magnets down to avoid severe pinches.
  • Keep magnetic hoops away from pacemakers and similar medical devices.
  • Store away from children and away from magnetic media and credit cards.
  • Success check: magnets seat cleanly without skin pinches and the hoop is stable before stitching.
  • If it still fails, pause and reset magnet placement slowly—rushing magnet seating is when most injuries happen.
