Stop the Trims: Rounded Caps for Split Monograms in Wilcom (Without Killing Production Speed)

Title: Stop The "Trim-Tie-Trim" Nightmare: Mastering Continuous Split Monograms for Production Speed

If you have ever digitized a split monogram and thought, “These blunt ends look unfinished—I’ll just add little caps to round them off,” you are not alone. I have watched seasoned digitizers lose hours of production time to a problem that should take five minutes to fix.

Here is the brutal reality of machine embroidery: Every trim is a trauma.

When you create separate “cap” objects to round off the ends of a Column C split line, you are quietly telling your embroidery machine to stop, cut the upper thread, pull the bobbin thread, tie off, move 2mm, tie in, and restart. On a single-head home machine, that is annoying. On a 12-head commercial run of 50 shirts, that is a production disaster.

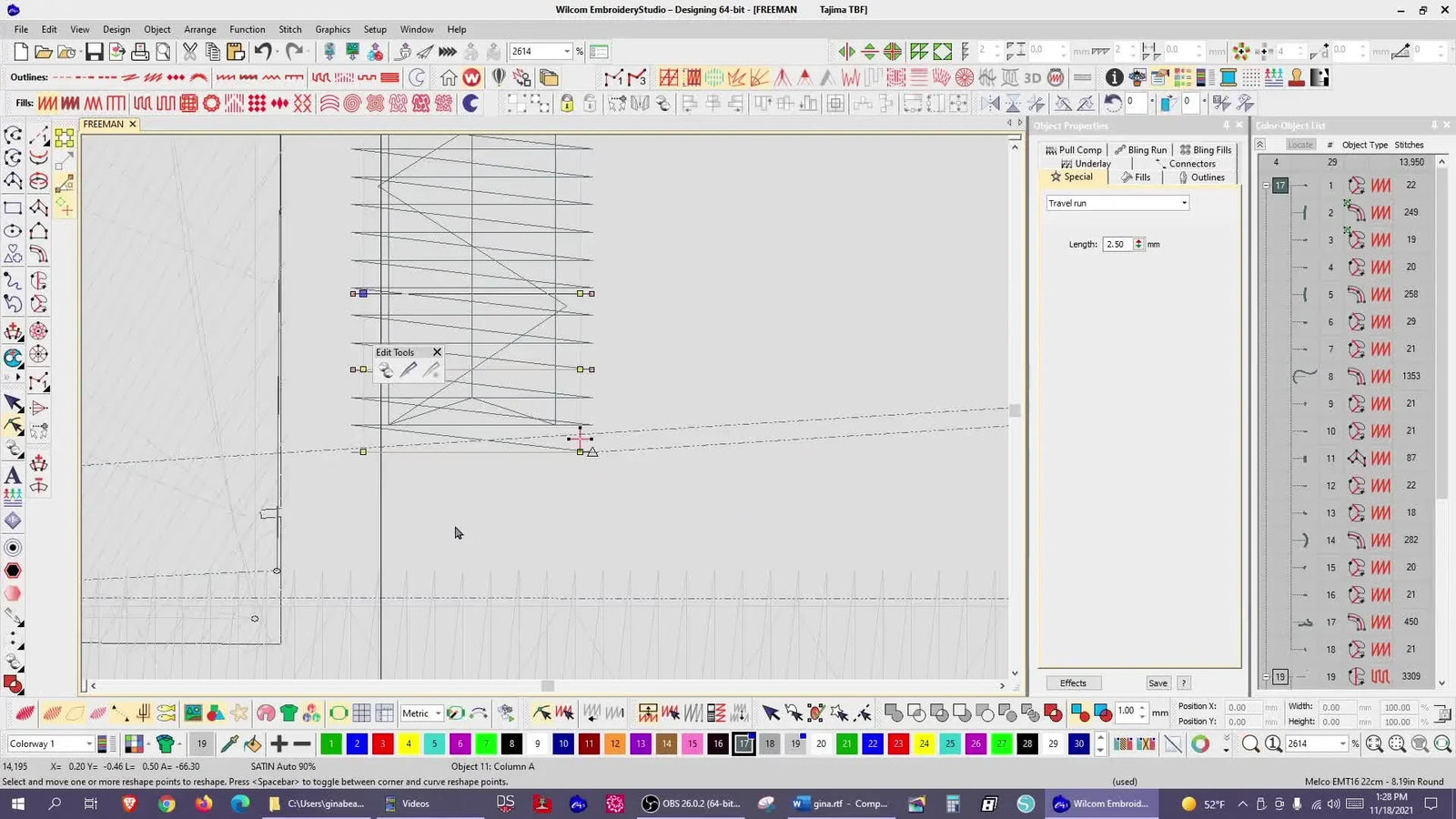

This guide rebuilds the workflow from the Wilcom EmbroideryStudio demonstration but adds the "Chief Education Officer" layer: the sensory cues, the safety parameters, and the production logic that turns a hobbyist file into a commercial asset.

The Trim Trap: Why Separate "Cap" Objects Destroy Profit margins

In the demonstration, we analyze a split monogram style (shown as “FREEMAN”), specifically focusing on the letter “H”. The vertical bars of the letter have been cut using the Outline Tool, leaving blunt, squared-off ends that look cheap.

The amateur workaround? Create separate “cap” objects—copy, paste, rotate, and nudge them into place until the ends look rounded visually on the screen.

While this looks fine on a monitor, it imposes a severe "Production Penalty" on the shop floor.

The Sensory Audit: Listen to Your Machine

Profitable embroidery has a rhythm. It should sound like a continuous, aggressive hum (thump-thump-thump). When you use separate caps, that rhythm breaks.

• The Sound of Failure: You hear the solenoid click (trim), the silence of the carriage moving, the chk-chk-chk of the tie-in, and then the rev-up.
• The Visual Risk: Every trim leaves a small "tail" or tie-off knot. On delicate satin stitches, these can poke out, requiring manual trimming with snips later.
• The Physics: Every restart creates a micro-opportunity for the bobbin thread to pull to the top (birdnesting) or for the hoop to shift slightly, ruining registration.

If you are running a shop, this is "invisible inefficiency." It doesn't show up in your total stitch count, but it kills your stitches-per-minute (SPM) average.

The "Hidden" Prep: Safety Checks Before You Touch a Node

Before we reshape the design digitally, we must establish a safety baseline. Attempting to fix embroidery files without understanding the physical variables is why needles break.

Prep Checklist: The "Pre-Flight" Safety Protocol

• Object Identification: Confirm the vertical split element you are fixing is a Column C object. (This technique relies on Column C properties).
• Stabilizer Selection: For the satin columns typical in monograms, you cannot rely on tearaway alone if the fabric has any stretch.
  • Rule of Thumb: If the shirt stretches, the backing must not. Use Cutaway (2.5oz - 3.0oz) to prevent the columns from hourglassing (pulling in at the center).
• Needle Inspection: Run your finger over the tip of your needle. If you feel a burr (like a snagged fingernail), change it. Clean satin columns demand a sharp tip (75/11 Sharp or Ballpoint depending on fabric).
• Visual decluttering: Identify any manually created cap objects (the separate "pink" pieces in the demo).
• Strategic Retreat: Decide whether to delete the caps immediately or park them aside as a visual reference.

Warning: The Density Danger Zone
When reshaping nodes (as we will do below), be incredibly careful not to drag nodes so they overlap or cross over each other.
The Risk: Crossing outline nodes creates "Zero-Stitch" zones where the software tries to put infinite stitches in zero space.
The Consequence: The needle will hammer the same spot repeatedly, heating up, shredding the thread, and eventually snapping the needle tip into the bobbin case. Always prevent node crossovers.

Step 1: Clean The Workspace

In the video, the creator doesn’t immediately delete the caps—she moves them away. This is a smart "safety net" habit when updating client files.

Action:

1. Select the manually created/separate cap objects.
2. Drag them to the pasteboard area (outside the hoop boundary).
3. Inspect the blunt end underneath.

You are now looking at the naked truth of the file. Ask yourself: "Am I fixing the structure, or just putting a band-aid on it?" We are going to fix the structure.

Step 2: The "Break Apart" Technique (Ctrl+K)

Now we execute the core maneuver. We need to unlock the geometry of the column so we can sculpt it.

Action:

1. Select the Column C object (the vertical split line).
2. Execute Break Apart:
   • Keyboard Shortcut: Press Ctrl + K.
   • Menu Path: Edit > Break Apart.

What just happened? The software has converted a complex, parametric object into a raw shape. This opens up "node-level control." Instead of adding a Lego brick to the end of your tower, you are now molding the clay of the tower itself. This ensures the thread path remains continuous—no trims, no stops.

Step 3: The Sculpting Ritual (Reshape Tool)

This is where intermediate digitizers level up and novices create lumpy, amateurish edges. We will use the Reshape Tool (H) to turn a square end into a bullet nose.

Action:

1. Activate Reshape: Press H. You will see the object's skeleton (nodes).
2. Locate the Corners: Find the blue/yellow nodes at the blunt end.
3. Add Anchor Points: Click on the outline to add new yellow nodes.
   • Pro Tip: For a Column C object, nodes often mirror. Add to one side, and watch the other side react.

The "Less is More" Rule for Nodes

Novices try to make a circle using 20 nodes. Experts use 3.

• The Geometry: To create a smooth curve, you only need an anchor point at the start of the curve, the apex (tip) of the curve, and the end of the curve.
• The Tactile Check: If you have too many nodes, the machine motors have to make micro-adjustments for every single one. This creates a "stuttering" sound. A clean curve sounds like a smooth whirrr.




Step 4: Refining the Curve

In the video, the creator utilizes a "Split the Difference" technique. She pulls the corner nodes in, then adjusts the center to round it out.

Action:

1. Taper the Base: Select the bottom corner nodes and drag them inward (x-axis) to start the taper.
2. Round the Tip: Select the middle/center nodes and drag them vertically (y-axis) to create the rounded point.
3. Stop. Do not over-fiddle.

Success Metric (Visual): Use the "Squint Test." Lean back and squint at your monitor. Does the curve look like a smooth bullet? If you see a "shoulder" or a jagged edge, delete a node.

Hidden Consumable Alert: To visualize this on the actual fabric before sewing, use a Water Soluble Marker to draw the letter bounds on your test fabric. It gives you a physical target to verify your screen geometry against reality.

Step 5: The "1:1 Reality Check"

The video concludes with two critical verification habits that separate the pros from the dreamers.

Action:

1. Toggle View: Switch to "TrueView" or "Realistic View" (usually key T) more to see the thread simulation.
2. Zoom 1:1: Press 1 (or select 100% zoom).

Why 1:1 is Mandatory: At 600% zoom, a 0.5mm bump looks like a mountain. You might waste 20 minutes fixing a "flaw" that is smaller than the width of a single thread. Conversely, at 1:1, you see what the customer sees. If the curve looks smooth at 1:1, it will sew smooth.

The Commercial Pivot: When Software Optimization Isn't Enough

We have optimized the file to save perhaps 12 seconds of trim time per shirt. That is a victory. However, in a production environment, file optimization is only 20% of the efficiency equation. The other 80% is Mechanical Handling.

If you save 12 seconds on stitching but spend 3 minutes fighting to hoop a thick Carhartt jacket, you are still losing money.

The Bottleneck Diagnosis

This video solves the digitizing bottleneck. Now, look at your workstation.

• Symptoms of Hooping Failure:
  • "Hoop Burn" (shiny rings left on fabric).
  • Wrist strain from tightening screws all day.
  • Re-hooping because the fabric slipped during clamping.

This is where the conversation shifts from "better clicking" to "better tooling."

The Solution Hierarchy

1. Level 1: Stability (Consumables). Ensure you are using temporary spray adhesive or sticky stabilizer to hold the garment firm, reducing the need for aggressive clamping.
2. Level 2: Speed (Tooling). This is the trigger for magnetic embroidery hoop systems.
   • The Logic: Unlike standard hoops that require friction and force (screw tightening), magnetic hoops use vertical clamping force. They snap on instantly.
   • The Gain: For a split monogram run on 50 towels, a magnetic hoop can save 30-60 seconds per item in load/unload time. That is nearly an hour saved on one job.
   • Many professionals search for how to use magnetic embroidery hoop videos precisely because they are tired of "hoop burn" ruining their profit margins.
3. Level 3: Scale (Machinery). If you are running these monograms on a single-needle machine, you are capped by needle-change speed. Transitioning to a monogram machine (multi-needle) allows you to queue colors and run continuously.

Warning: Magnetic Safety Protocol
If you upgrade to magnetic hoops (like the MaggieFrame or generic equivalents), treat them with respect.
* Pinch Hazard: These magnets are industrial strength. They can crush fingers instantly if caught between the rings.
* Medical Devices: Keep them at least 12 inches away from pacemakers or insulin pumps.
* Electronics: Do not place them on laptops or near unshielded hard drives.

Troubleshooting: The "Why Does It Look Bad?" Table

Even with the Break Apart method, things go wrong. Use this table to diagnose issues before you blame the machine.

Decision Tree: When to Fix Digitizing vs. Workflow

Use this logic flow to determine where your bottleneck truly lies.

START -> Are you seeing trims/stops in the middle of a letter?

• YES: Fix the Digitizing. (Use the Ctrl+K / Reshape method above).
• NO: Is the design sewing continuously, but overall time is still high?
  • YES: Check your Hooping Speed.
    • Test: Can you hoop a shirt in under 45 seconds?
    • Fail: Consider a hooping station for embroidery. A station ensures placement is identical every time without measuring.
    • Pass: Check your Machine Speed.
      • Test: Are you running at 400 SPM?
      • Fix: Increase to "Sweet Spot" (700-850 SPM). If machine walks/vibrates, check your table stability.

For those considering a hoop master embroidery hooping station or similar devices, realize that consistency is the primary driver of speed. A station allows you to trust your placement, eliminating the "measure twice" hesitation.

Operation Checklist: The "No-Stops" Standard

Before you send that file to the machine, run this final check.

• Structure: Is the rounded end physically part of the Column C object (verified via Reshape tool)?
• Path: Select "Travel by Object" in your software. Does the cursor flow from the straight bar into the curve without the "Trim" icon lighting up?
• Visual: At 1:1 Zoom, do the proportions of the rounded tip match the font style?
• Hoop Check: If using machine embroidery hoops that are standard/plastic, have you checked the inner ring screw tightness? If using magnetic, is the stabilizer fully trapped?
• Consumable Check: Is there a fresh bobbin? (Running out of bobbin thread on a satin column is a nightmare to patch seamlessly).

The Payoff

The creator’s final point is the one I want you to adopt as your mantra: Reshaping existing objects is always superior to adding new ones.

By mastering the "Break Apart" and "Reshape" workflow, you eliminate the stops that bleed your profitability. By pairing this clean data with robust hardware—like magnetic hoops and stable clamping stations—you transform from a person who "does embroidery" into a production powerhouse.

Clean data. Continuous stitching. Consistent hooping. That is how you win.

FAQ

• Q: In Wilcom EmbroideryStudio, how can a Column C split monogram end be rounded without trim-tie-trim stops from separate cap objects?
  A: Use Break Apart (Ctrl+K) and reshape the original Column C outline so the rounded end stays one continuous object.
  • Select the Column C split element and run Edit > Break Apart (Ctrl + K).
  • Activate Reshape (H) and add only a few nodes to sculpt a “bullet nose” end instead of adding separate caps.
  • Avoid dragging nodes across each other to prevent density spikes.
  • Success check: In Travel/sequence view, the stitch path flows into the rounded end with no trim icon lighting up, and the machine sound stays like a continuous hum.
  • If it still fails: Park/delete any leftover cap objects and re-check the outline for crossed/overlapping nodes.
• Q: In Wilcom EmbroideryStudio, how can crossing outline nodes during Reshape cause needle breakage on satin monogram columns?
  A: Crossing or overlapping nodes can create a “zero-space” ultra-dense zone that overheats and snaps needles, so keep outlines clean and non-intersecting.
  • Zoom in tightly (the blog uses 600% as the close-up mindset) and inspect the wireframe at the rounded tip.
  • Drag nodes so the outline lines never cross; simplify the shape if it became messy.
  • Stop reshaping once the curve is smooth—over-fiddling often creates overlaps.
  • Success check: The stitch simulation looks even at the tip (no dark “hammered” spot), and the machine does not repeatedly punch one point.
  • If it still fails: Use Reconstruct Outline (when available) or redo the tip with fewer nodes.
• Q: In Wilcom EmbroideryStudio, how can too many Reshape nodes make a split monogram curve look lumpy or jagged when stitched?
  A: Delete extra nodes and rebuild the curve with the “Less is More” rule—often Start, Apex, End is enough for a smooth curve.
  • Select the object with Reshape (H) and identify the cluster of nodes at the rounded end.
  • Delete nodes until the curve is controlled by a few key points rather than many tiny points.
  • Reposition the remaining nodes to form a clean taper and rounded tip.
  • Success check: The “squint test” shows a smooth bullet-like curve, and the stitch-out sounds smooth instead of “stuttering.”
  • If it still fails: Toggle TrueView/Realistic View and re-check the curve at 1:1 zoom before editing again.
• Q: In Wilcom EmbroideryStudio, why does a split monogram satin column show gaps after reshaping the rounded end, and what is the fastest fix?
  A: Gaps often appear when reshaping makes the satin column too wide for the stitch length limits, so keep the monogram column within a reasonable width and verify stitch behavior.
  • Inspect the widened area you created at the tip and compare it to the rest of the column.
  • Confirm the software behavior for wider columns (the blog notes Auto Split should be ON if the column exceeds about 7 mm).
  • Re-sculpt the tip so it stays within typical monogram column widths (the blog references 3–6 mm as reasonable).
  • Success check: TrueView/Realistic View shows consistent satin coverage with no open lanes at the rounded end.
  • If it still fails: Undo the last reshape moves and rebuild the curve with fewer nodes and less widening.
• Q: What is the best stabilizer choice for satin split monograms on stretchy shirts to prevent hourglassing and registration issues?
  A: Use cutaway stabilizer instead of relying on tearaway when the garment has any stretch.
  • Perform a quick fabric test: Stretch the shirt—if it stretches, the backing must not.
  • Start with cutaway in the 2.5 oz–3.0 oz range (as stated in the blog) for typical satin monogram columns.
  • Combine with firm holding methods (often temporary spray adhesive or sticky stabilizer) so the fabric doesn’t shift during restarts or dense areas.
  • Success check: The satin columns stay full (no pulled-in “hourglass” waist) and registration stays stable across the letter.
  • If it still fails: Re-check hooping/clamping pressure and confirm the design is sewing continuously without unnecessary trims.
• Q: How can needle burrs and bobbin tension cause messy satin monogram tips, and what quick inspections prevent wasted test runs?
  A: Replace any needle with a burr and verify bobbin tension with a simple drop check before blaming the digitizing.
  • Run a fingertip over the needle point; if it feels like a snagged fingernail, change the needle immediately.
  • Choose an appropriate sharp or ballpoint needle style based on fabric type (generally a safe starting point is sharp for stable wovens and ballpoint for knits; follow the machine manual).
  • If the monogram end looks thin, perform the bobbin-case drop test described: the case should drop about 1–2 inches when jerked.
  • Success check: Satin columns look smooth and filled, with no excessive bobbin thread pulling to the top and no fraying at the rounded end.
  • If it still fails: Reduce trims by ensuring the rounded end is part of the same object (Break Apart + Reshape) and re-test.
• Q: What magnetic embroidery hoop safety rules should be followed to prevent finger injuries and device risks during fast hooping?
  A: Treat magnetic embroidery hoops as industrial pinch hazards and keep them away from medical devices and sensitive electronics.
  • Keep fingers clear when bringing the rings together; magnets can snap shut instantly.
  • Maintain at least 12 inches of distance from pacemakers or insulin pumps (as warned in the blog).
  • Do not place magnetic hoops on laptops or near unshielded hard drives.
  • Success check: The hoop closes in a controlled way with no finger pinches, and the stabilizer/fabric remains fully trapped without needing excessive force.
  • If it still fails: Slow down the loading motion and consider using handling routines or a station so placement is controlled and repeatable.
• Q: When a split monogram file already stitches continuously, how can embroidery production speed be improved using a Level 1–3 workflow (stability → tooling → machinery)?
  A: Diagnose the real bottleneck—if digitizing is clean, focus next on hooping speed and mechanical handling before upgrading machinery.
  • Confirm first: No trims/stops mid-letter; if trims exist, fix digitizing with Ctrl+K + Reshape.
  • Time hooping: If hooping a shirt takes longer than about 45 seconds (blog benchmark), improve stability with adhesive/sticky stabilizer and consider faster clamping methods.
  • Upgrade tooling: Magnetic hoops can reduce load/unload time and help reduce hoop burn by avoiding aggressive screw tightening.
  • Scale only when needed: If single-needle throughput is still the cap, moving to a multi-needle workflow may be the next step.
  • Success check: Overall job time drops because hooping becomes consistent and fast, not just because stitch count changed.
  • If it still fails: Re-check table stability and operating speed range (the blog references a 700–850 SPM “sweet spot” if vibration is controlled).
