Stop the Thread Breaks Before They Start: Cleaning the Rotary Hook Area & Metal Bobbin Case (The Weekly Routine Pros Don’t Skip)

Mastering the Heart of Your Machine: The Definitive Guide to Hook & Bobbin Maintenance

If your machine suddenly starts shredding thread, nesting under the plate, or throwing random tension tantrums, don’t panic—most of the time it’s not a “mystery problem.” It is usually a hygiene problem. It’s lint, trims, and old oil building up where the hook and bobbin case do their hardest work.

Embroidery is a game of friction management. When lint accumulates, friction spikes, and your tension goes haywire. This is the exact weekly routine needed to restore your machine: clean the rotary hook area, clean the needle plate, oil the hook raceway correctly, then clean the metal bobbin case (including the hidden zone under the tension spring) and confirm tension with a sensory "drop test."

The Rotary Hook Area on Commercial Embroidery Machines: The 60-Second Calm-Down Before You Touch a Screw

When the rotary hook area looks fuzzy or gritty, it’s easy to assume something is “out of timing.” In reality, 90% of hook-area drama starts with simple debris: thread trimmings, lint, and oily residue that turns into a sticky paste.

Here’s the mindset I want you to keep: you’re not “repairing” the machine—you’re performing a Non-Negotiable Reset. You are restoring a clean, low-friction stitch path so the hook can grab the loop consistently.

One quick note for production shops running commercial embroidery machines: this routine is not optional housekeeping. It’s a quality-control step that protects your stitch consistency across a full day of runs. If you skip this, you will pay for it in thread breaks later.

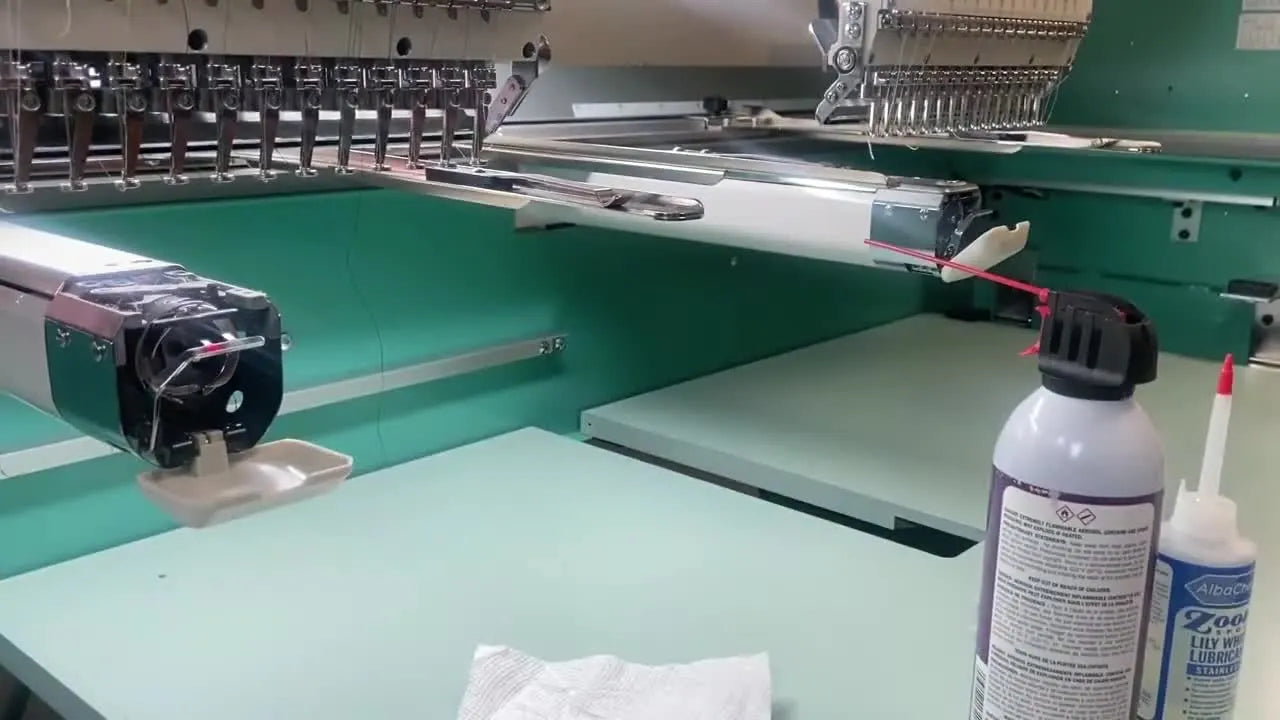

The “Hidden” Prep Pros Do First: Tools, Safety, and a Clean Work Zone Around the Needle Plate

Before you remove the needle plate, set yourself up for success. The biggest risk here isn't the cleaning; it's losing a screw into the machine belly or slicing your finger on a burred needle.

Essential Toolkit:

• Compressed Air / Duster Spray: For "surgical" bursts of air.
• Offset/Stubby Screwdriver: Essential for tight clearances under the embroidery head.
• Paper Towels: For wiping up oil sludge (cloth rags can leave lint behind).
• Double-sided Lint Brush (#BR1): Hard bristles for gears, soft bristles for dust.
• Precision Oil Pen (#EW2132): Crucial. You need to dispense drops, not streams.
• A "Post-it" Note: The secret weapon for cleaning tension springs.
• Replacement Needles: Since you hold the area open, check if your needle is bent.

Warning: Physical Hazard
The area under the needle plate is full of sharp metal edges and moving cutters.
1. Power Down or engage "Emergency Stop" lock before removing the plate.
2. Keep fingers clear of cutter blades.
3. Never rush. A dropped screw here can result in hours of downtime.

Prep Checklist (Do this BEFORE you loosen a screw)

• Lighting: Do you have a bright task light directed at the hook assembly?
• Containment: Place a small magnetic dish or cup nearby for the screws.
• Inventory: Locate your screwdriver, brush, oil pen, and paper towel.
• Clearance: Remove the hoop and lower the bed (if applicable) to give your hands room.
• Mental Reset: Commit to the "One Drop Rule." Over-oiling is the enemy.


Needle Plate Screws Without the Heart Attack: Removing the Needle Plate the Safe Way

Taking off the needle plate shouldn't be a high-stress event. The goal is "Screw Control."

The Safe Removal Protocol:

1. Pre-Clean: Use the duster spray first to blow out loose thread trimmings while the needle plate is still on. This prevents loose debris from falling into the machine when you lift the plate.
2. Break Tension: Use your short screwdriver to turn the screws just enough to break the tightness.
3. Finger Finish: Finish loosening the screws with your fingers. This gives you tactile feedback so you can feel exactly when the screw disengages, preventing it from "jumping" away.

Checkpoint: The screws come out under control, and the needle plate lifts off cleanly.

Expected outcome: You can see the entire rotary hook assembly clearly, and you haven’t lost hardware inside the machine chassis.

This “screw control” habit sounds small, but it’s a real production saver. In a busy shop, the time lost searching for a screw (or worse, replacing a specific metric screw) costs more than the cleaning itself.

Clean the Needle Plate Like It’s a Quality Part (Because It Is)

Do not just set the plate aside. Inspect it. The needle plate is the "floor" of your embroidery factory.

Action Steps:

1. Inspect the Hole: Look closely at the needle hole. Are there needle strikes, burrs, or scratches? A rough needle plate will shred thread instantly. (If scratched, sand gently with 400-grit paper or replace).
2. Solvent Clean: Spray the detached needle plate thoroughly.
3. Wipe Down: Use a paper towel to remove the "sludge"—the mixture of old oil and lint.

Checkpoint: The plate looks clean and shiny, not greasy. Run your finger over the surface; it should feel smooth like glass.

Expected outcome: Less chance of oil transfer to your fabric and less “sticky lint” re-forming quickly.

Here’s the principle behind it: oil plus lint becomes abrasive sludge. That sludge increases friction, and friction shows up as heat, noise, inconsistent tension, and thread breaks. You’re not just making it look nice—you’re reducing drag in the stitch formation zone.

Deep-Clean the Rotary Hook Assembly: Air First, Brush Second, Air Again (Weekly Minimum)

Now we enter the belly of the beast. The rotary hook is a complex assembly of gears and spinning metal.

The "Air-Brush-Air" Method:

1. Air (Burst 1): Spray the exposed hook area. Crucial: Angle your stray outward. Do not blow debris deeper into the machine electronics.
2. Brush: Use the double-sided lint brush.
   • Hard Bristles: Use on the gears and metal crevices to dislodge packed lint.
   • Soft Bristles: Use to sweep the "dust bunnies" out of the hook keeper.
3. Air (Burst 2): A final blast to remove what the brush loosened.

The host recommends doing this at least once a week. For high-volume shops, do this every Friday afternoon.

Checkpoint: You can see the gears and hook assembly clearly. The metal should reflect light, not look matte/fuzzy.

Expected outcome: Smoother hook rotation, fewer random tension spikes, and fewer trims getting dragged into the raceway to cause "birdnesting."

The One-Drop Rule: Oiling the Hook Raceway Without Staining Fabric

This is where beginners often fail by trying to be "too good." They add too much oil. The rotary hook needs a micro-film of oil, not a bath.

The Procedure:

1. Identify the Raceway: This is the specific groove where the basket sits and spins.
2. The Drop: Place ONE small drop into the raceway. Gravity and centrifugal force will distribute it.
3. The Needle Arm: Place one drop on the needle bar (if your manual specifies it—check your machine type).

Warning: Fabric Safety
Over-oiling is the fastest way to ruin light-colored garments.
* The Symptom: A faint halo of oil or small specs on your fabric around the embroidery.
* The Fix: If you accidentally dispense two drops, take a corner of paper towel and wick the excess up immediately. Oil belongs in the raceway, not on your product.

Checkpoint: You placed a single drop precisely (not a puddle).

Expected outcome: The sound of the machine changes from a dry "clatter" to a smooth "hum."

Why this matters (expert reality): lubrication is about maintaining a stable friction level. Too little oil = heat and metal wear. Too much oil = dirty fabric. Precision is profitable.

Reassembly That Won’t Punish You Next Week: Putting the Needle Plate Back On

Reassembly requires finesse. If you cross-thread these screws, you are in for a very expensive repair.

The Steps:

1. Alignment: Place the needle plate back, ensuring the bobbin case stopper (the little finger under the plate) aligns with the notch in the bobbin basket.
2. Finger Start: Start the screws by hand. Twist them 2-3 turns to ensure the threads are catching correctly.
3. Driver Finish: finish with the screwdriver. Do not crank it down. "Snug plus a tiny nudge" is enough.

Checkpoint: The plate sits perfectly flat. There is no "wobble" when you press on the corners.

Expected outcome: No needle strikes due to a shifting plate, and next week’s removal is easy.

Setup Checklist (Right after reassembly)

• Visual: Is the needle plate centered?
• Tactile: Are screws flush? (Run a finger over them to ensure they won't snag fabric).
• Cleanliness: Did you leave any brush bristles behind?
• Manual Turn: Turn the handwheel (to 100 degrees) to ensure the needle doesn't hit the plate.


Metal Bobbin Case Maintenance: The Tension Flap Is Where Lint Hides (and Tension Goes Bad)

You can clean the machine perfectly, but if your bobbin case is dirty, your stitching will look terrible. The bobbin case is the "brake" for the bottom thread.

The Hidden Enemy: Lint loves to accumulate under the thin metal tension spring (the flap on the side of the case). Even a microscopic piece of lint here acts like a wedge, lifting the spring.

• Result: Zero tension on the bobbin thread.
• Symptom: White thread showing on top of the design (I-columns looking jagged).

If you’re running multi needle embroidery machines for sale in a shop environment, this is one of the most common causes of "Monday Morning Tension Issues."

The Post-it Note Trick: Cleaning Under the Bobbin Case Tension Spring Without Bending Anything

Do not use a needle or a metal pin to clean under the tension spring! You will scratch the metal, creating a permanent snag point.

The Safe Technique:

1. The Tool: Tear off a standard sticky note (Post-it).
2. The Fold: Fold it so the sticky side is inside. Create a crisp, sharp corner.
3. The Floss: Slide that paper corner under the tension spring flap.
4. The Sweep: Move it back and forth. The paper is stiff enough to push lint out, but soft enough not to damage the spring.

Checkpoint: You can see debris come out (often looks like gray dust).

Expected outcome: Thread can slide smoothly under the tension flap again, restoring the "drag" needed for perfect tension.

Load the Bobbin Correctly, Then Trust the Drop Test (Not Your Gut)

Tension is not a guessing game. It is physics. We use the "Drop Test" (or Yo-Yo Test) to measure the friction of the bobbin case.

Loading (The Prerequisite):

1. Insert: Put the bobbin in. It should spin Clockwise when you pull the thread (check your specific machine manual, but most commercial machines are clockwise).
2. Thread: Pull thread through the angled slot and under the tension flap.

The Drop Test (Sensory Calibration):

1. Hold: Hold the thread end like you are flossing your teeth. Let the bobbin case hang. It should not move.
2. The Jerk: Give your wrist a sharp, short vertical jerk (like playing with a Yo-Yo).
3. The Result:
   • Good: The case drops 1-2 inches (3-5 cm) and stops.
   • Too Loose: It plummets to the floor.
   • Too Tight: It doesn't move at all, even with a hard jerk.

Adjustment:

• Use the Larger Screw on the bobbin case to adjust tension. (Righty-Tighty, Lefty-Loosey).
• Micro-adjustments: Turn the screw like a clock hand—only 5 minutes at a time. Retest.

Checkpoint: The bobbin case hangs, then drops slightly with a controlled motion.

Expected outcome: You have physically verified that the bottom tension is approximately 18g-22g (the standard for polyester thread) without needing a digital gauge.

Decision Tree: When Tension Acts Up, Choose Cleaning vs Adjustment (and Don’t Waste an Hour)

Beginners simply "tighten knobs" when things go wrong. Experts clean first. Use this logic flow:

Scenario A: Your bobbin case fails the drop test (it plummets fast)

• Diagnose: Is the bobbin spun correctly? Is lint holding the spring open?
• Action: Clean under the spring with the Post-it note. Retest. Only adjust the screw if it still fails.

Scenario B: Your bobbin case barely moves (it won’t drop at all)

• Diagnose: Is there wax buildup? Is the screw too tight?
• Action: Pull a foot of thread to clear potential wax. Adjust screw 1/4 turn left.

Scenario C: Tension was fine, then suddenly gets inconsistent mid-run

• Diagnose: "The Migration." Lint has moved into the hook or checks.
• Action: STOP. Do not touch tension knobs. Clean the hook area and bobbin case. 90% of the time, this fixes it.

Scenario D: You see oil spots on fabric

• Diagnose: Over-zealous maintenance.
• Action: Stop machine. Blot hook area with paper towel. Use "spray adhesive" logic—less is more.

This is how experienced operators stay profitable: they diagnose in minutes, not hours.

Troubleshooting the Scary Stuff: Symptoms → Likely Cause → Fix You Can Do Today

Below are the exact issues called out in the video, translated into shop-floor language.

A practical “watch out” I’ve learned from real shops: if you adjust tension without cleaning first, you often end up compensating for lint. Then after you finally clean it, your tension is suddenly wrong again—because you tuned the machine to a dirty condition.

The Upgrade Path: When Maintenance Is Solid but Production Still Feels Slow

You have mastered the cleaning. Your machine is humming. Your tension is perfect. So why are you still not hitting your profit goals?

If you are spending more time prepping garments than stitching them, you have hits a Workflow Ceiling. Maintenance solves quality; Tools solve speed.

Here is the logical progression for shop upgrades:

1. Level 1: Stability. Ensure you use the right stabilizer. If fabric shifts, no amount of machine tuning will fix it.
2. Level 2: The Hooping Bottleneck. If you find yourself fighting with screws, twisting your wrists, or getting "hoop burn" (shininess) on delicate fabrics, your hoop is the problem.
   • Many professionals switch to Magnetic Hoops (like MaggieFrame). Why? Because they snap onto thick jackets or delicate silks instantly without force.
   • Terminology to watch: If you search for terms like hooping stations or a dedicated hooping station for embroidery, you are looking for consistency.
   • Systems like the hoop master embroidery hooping station act as a "third hand," allowing you to hoop a chest logo in 10 seconds flat.

Warning: Magnetic Tool Safety
Magnetic hoops use strong Neodymium magnets.
* Pinch Hazard: They snap together with force. Keep fingers clear of the contact zone.
* Medical Devices: Keep at least 6 inches away from Pacemakers.
* Electronics: Do not place directly on top of your machine's LCD screen.

From a business standpoint, this is the quiet math: every minute saved per garment becomes real money when you scale from one piece to fifty.

A Simple Weekly Rhythm That Protects Your Machine (and Your Reputation)

Routine is the antidote to chaos. If you want this to become automatic, follow the same cadence the video implies:

• Daily: Spray air (lightly) and brush visible lint. Oiling (1 drop) depending on usage hours.
• Weekly (Friday Clean): Full breakdown. Remove plate, deep clean hook, floss bobbin spring, fresh needle.
• Regularly: Check the "Drop Test" anytime you change thread brands.

This is the kind of routine that keeps a shop calm. Customers don’t pay extra because you “fixed tension three times”—they pay for clean, consistent embroidery delivered on time.

Operation Checklist (The Final 2-Minute Pre-Flight)

• Plate Secure: Needle plate screws are finger-tight + snug.
• Bobbin Check: Bobbin spins clockwise; thread is under the tension flap (checked with Drop Test).
• Path Clear: No tools, screws, or magnetic dishes left on the machine bed.
• Thread Trim: Bobbin thread tail is cut to 1-2 inches (too long = birds nest).
• Test Fire: Run a test swatch on scrap fabric if you have done a Deep Clean.

If you keep this routine tight, you’ll see fewer thread breaks, fewer tension surprises, and a cleaner stitch-out—without chasing settings that were never the real problem.

FAQ

• Q: On a SEWTECH commercial embroidery machine rotary hook system, what is the safest weekly cleaning order to stop thread shredding and birdnesting under the needle plate?
  A: Use a clean-first reset in this order: hook area + needle plate cleaning, then one-drop oiling, then bobbin case cleaning and a drop test.
  • Power down or engage Emergency Stop before removing the needle plate.
  • Pre-clean with outward-angled air bursts, then use the air–brush–air method on the rotary hook assembly.
  • Oil the hook raceway with exactly ONE small drop, then wipe any excess immediately.
  • Clean the metal bobbin case (including under the tension spring) and verify with the bobbin drop test.
  • Success check: the hook area looks shiny (not fuzzy), and the machine sound shifts from “clatter” to a smoother “hum.”
  • If it still fails: stop adjusting tension knobs and repeat the hook + bobbin case cleaning—debris migration is a common cause mid-run.
• Q: On SEWTECH multi-needle embroidery machines, how can needle plate screw removal be done safely without dropping screws into the chassis?
  A: Control the screws by pre-cleaning first, breaking tension with a stubby driver, and finishing removal with fingers.
  • Blow out loose trims/lint with duster spray while the needle plate is still installed.
  • Turn screws just enough to “break” tightness using an offset/stubby screwdriver.
  • Finish loosening screws by hand to prevent screws from jumping or falling inside.
  • Success check: the needle plate lifts off cleanly and all screws are accounted for in a dish/cup.
  • If it still fails: improve lighting and use a magnetic dish/cup for containment before trying again.
• Q: On a SEWTECH embroidery machine needle plate, how can needle strikes and burrs be checked and corrected to prevent instant thread shredding?
  A: Inspect and restore the needle plate surface—burrs around the needle hole can shred thread immediately.
  • Inspect the needle hole closely for scratches, dents, or raised burrs from needle strikes.
  • Clean the detached needle plate with spray and wipe off oil-lint sludge using paper towels (cloth rags can add lint).
  • Smooth light damage carefully with fine abrasive (or replace the plate if damage is significant).
  • Success check: the plate feels smooth “like glass” when a finger is run across it.
  • If it still fails: check for a bent needle and replace the needle before chasing tension settings.
• Q: On a SEWTECH metal bobbin case tension spring, how can lint under the tension flap be cleaned without bending or scratching the spring?
  A: Use the Post-it note floss method—paper removes lint safely without metal-on-metal damage.
  • Tear a sticky note and fold it with the sticky side inside to make a crisp corner.
  • Slide the paper corner under the bobbin case tension spring (flap) and “floss” back and forth.
  • Remove visible gray dust/lint and rethread the bobbin case correctly.
  • Success check: bobbin thread slides smoothly under the flap with consistent drag.
  • If it still fails: re-do the flossing and confirm the bobbin is seated and threaded through the slot and under the flap.
• Q: On SEWTECH commercial embroidery machines, how should a metal bobbin case be loaded and verified using the bobbin drop test to avoid random tension swings?
  A: Load the bobbin in the correct direction and use the drop test to verify bobbin-case friction instead of guessing.
  • Insert the bobbin so it spins clockwise when pulling the thread (confirm with the specific machine manual).
  • Pull thread through the angled slot and under the tension flap.
  • Perform the drop test: hold the thread, let the case hang, then give a short wrist jerk.
  • Success check: the bobbin case drops about 1–2 inches (3–5 cm) and stops.
  • If it still fails: clean under the tension spring first, then micro-adjust the larger tension screw in tiny increments and retest.
• Q: On SEWTECH multi-needle embroidery machines, what is the correct one-drop hook raceway oiling method to stop clattering without causing oil spots on garments?
  A: Apply a micro-film—ONE small drop in the hook raceway is enough; more often causes staining.
  • Identify the hook raceway groove where the basket sits and spins.
  • Place exactly one small drop using a precision oiler; avoid streams or puddles.
  • Wick up excess immediately with a corner of paper towel if more than one drop lands.
  • Success check: the machine sound becomes smoother and test stitches do not show new oil halos/specks.
  • If it still fails: clean the needle plate and hook area again—oil mixed with lint becomes abrasive sludge and can mimic tension problems.
• Q: When embroidery quality is stable but production is still slow on a SEWTECH commercial embroidery workflow, when should hooping technique upgrades move to magnetic hoops and then to multi-needle capacity upgrades?
  A: Follow a tiered fix: optimize stability first, then remove the hooping bottleneck with magnetic hoops, and only then consider capacity upgrades.
  • Level 1 (Technique): confirm correct stabilizer use and keep the hook/bobbin system clean to prevent rework.
  • Level 2 (Tool): switch to magnetic hoops if hooping causes wrist strain, screw fighting, or hoop burn/shininess on delicate fabric.
  • Level 3 (Capacity): consider a multi-needle production upgrade when garment prep time is consistently higher than stitch time, even after hooping is efficient.
  • Success check: hooping becomes repeatable and fast (less force, fewer rehoops), and daily runs show fewer thread breaks from handling delays.
  • If it still fails: audit where minutes are lost (hooping, trimming, rework) and fix the largest bottleneck before changing machine settings.
