Stop the Stops on a Baby Lock Solaris: One-Color Edge-to-Edge Quilting That Actually Runs Continuous

Edge-to-edge quilting in the hoop is supposed to feel like a cheat code: load a file, press Start, and let the machine draw a clean quilting path across your sandwich. Ideally, it bridges the gap between domestic sewing and long-arm capability.

But reality often hits hard. If your file is built from multiple blocks (A/B/C/D)—a common design technique to ensure patterns tile correctly—and each block is assigned a different color, your machine will behave like it’s doing a complex multi-color embroidery design. It will stop, trim, wait for a “thread change,” and force you to babysit it every two minutes.

If you’ve ever stood over your machine thinking, “Why is my quilting file acting like a four-color logo?” you’re not doing anything wrong. The machine is just following orders too literally.

This post creates an industry-standard workflow based on Regina’s method on a Baby Lock Solaris. We will combine 4x4 variations into a larger layout, force a continuous run by unifying color codes, and optimize your physical setup to prevent the dreaded "quilt drag."

The calm-down moment: why your Baby Lock Solaris keeps stopping on an edge-to-edge quilting file

To understand the fix, you must understand the machine's psychology. When an edge-to-edge quilting design is split into multiple sections (often labeled A, B, C, D), digitizers frequently assign different colors to each section. They do this for visual reasons—so you can see where one block ends and the next begins mainly on your computer screen.

Your embroidery machine, however, doesn’t interpret that as “visual organization.” It interprets it as a strict command: Stop here. Cut the thread. Wait for the user to thread a new color.

That’s why a layout that looks like one continuous quilting path typically stitches like four separate, disjointed jobs. This creates frustration and increases the risk of thread nests during those unnecessary starts and stops.

Regina’s fix is simple and powerful: make every section the exact same thread color deep in the machine's edit menu. By doing this, you remove the "stop" command associated with the color change.

When you are researching compatible accessories, terms like babylock hoops often pop up in manuals and forums. This is the real-world reason why understanding hoop choice and file workflow matters: the more your machine runs uninterrupted, the more your hooping time becomes the bottleneck. If the machine is fast, you need to be faster at hooping.

The “hidden” prep that prevents puckers and wasted re-hoops (stabilizer, fabric, and a sanity check)

Regina stitches this design on white fabric with stabilizer and uses red thread for visibility. The design is a continuous outline style—peace symbols and flowers—meant to mimic free-motion quilting.

However, before you even touch the screen, we need to address the physical reality of quilting in the hoop. A quilt sandwich (Top + Batting + Backing) behaves differently than a t-shirt. It has "drag" (weight) and "loft" (thickness).

The Consumable Essentials:

• Needle: Do not use a standard Embroidery 75/11. For quilting layers, upgrade to a Topstitch 90/14 or Quilting 90/14. The larger eye protects the thread from friction, and the stronger shaft prevents finding "deflection" (bending) when hitting thick seams.
• Bobbin: Ensure you are using the correct weight bobbin thread (usually 60wt or 90wt).
• Adhesion: Use a temporary spray adhesive (like Odif 505) to baste your layers. Floating the quilt without adhesion invites puckering.

The "Hoop Burn" Check: Standard plastic hoops require you to tighten a screw to secure the fabric. With a thick quilt sandwich, you have to torque this screw tightly. This often leads to "hoop burn"—permanent creases in the batting or fabric. This is where physical awareness comes in: secure it tight enough to sound like a drum when tapped, but not so tight you crush the fibers.

Warning: Mechanical Safety. Keep fingers, scissors, snips, and seam rippers away from the needle path while the machine is running. A fast-moving hoop carrying a heavy quilt can pull fabric unexpectedly. Reaching in “just to grab a loose thread” is the number one cause of needle-through-finger accidents in embroidery studios.

Prep Checklist (do this before you edit colors)

• Fresh Needle: Installed a new Topstitch 90/14 or Quilting 90/14 needle.
• Bobbin Check: Full bobbin loaded (running out mid-quilt is a nightmare).
• Sandwich Basting: Layers are spray-basted or pinned (pins far away from stitch zone!).
• Hoop Tension: Fabric is hooped smoothly; tap it—it should create a dull thud, not floppy silence.
• Clearance: You have verified the design size fits the hoop (4x4 vs 10 5/8" x 16").
• Safe Zone: You visually confirmed about 1 inch of "plain fabric margin" around the design so the needle never strikes the hard plastic frame.


The no-software workaround: changing thread colors on the Baby Lock Solaris touchscreen so it stitches continuously

Here’s the core move from the video: Regina imports the design that originally shows four different colors (A/B/C/D blocks). Then she changes each block’s color assignment so they all match.

Step-by-Step on the Solaris:

1. Import: Load the design into embroidery mode.
2. Edit Palette: Open the color list/palette on-screen.
3. Target Color: Select a single target color for the first block (she uses Red).
4. Unify: Tap each of the subsequent color blocks (green, purple, blue) and reassign them to that exact same Red.
5. Verify: Look at the stitch simulation or color list. It should now show one single color block instead of four distinct steps.

The payoff: Zero Trims. The machine no longer treats block boundaries as “color changes,” so it runs the quilting path without stopping to trim or asking for permission to continue.

This continuous flow is why professionals who own a hooping station for machine embroidery tend to feel like they “suddenly got faster.” It isn't just about the tools; it's about the workflow. When the file runs continuously, your machine time becomes predictable (e.g., exactly 7 minutes), making your manual handling time the only variable left to optimize.

Run the 4x4 sample first: what you should see (and what you should NOT see)

Regina stitches the 4x4 version as a proof run. Her machine estimates 8 minutes for the 4x4 layout.

Setting the Speed (SPM - Stitches Per Minute): While your machine might be capable of 1000 SPM, quilting through layers involves physics. A heavy quilt creates drag. For top quality, I recommend the "Sweet Spot" of 600–750 SPM.

• Too fast (>800 SPM): The machine may pull the heavy quilt too violently, causing registration errors (wavy lines) or skipped stitches.
• Too slow (<400 SPM): You lose momentum and efficiency.

What you should see (and hear):

• Audio: A rhythmic, steady stitching sound. No sharp "clacking" (which indicates needle deflection).
• Visual: The needle travels from element to element in a continuous path. The machine transitions from Block A to Block B without pausing.

What you should not see:

• Actual stops between blocks.
• The "Trim" mechanism engaging at every block boundary.
• A prompt on the screen asking you to press "Start" again.

A detail that matters: Regina points out that the blocks are not identical orientations. Some have different placements and counts (peace symbols vs flowers). That variation is beneficial; it makes the edge-to-edge look organic rather than stamped by a robot.

Setup Checklist (right before you press Start)

• Color Code: All blocks (A/B/C/D) are assigned to the exact same thread color on the screen.
• Physical Clearance: Presser foot area is clear; fabric is draped so it isn't catching on the table edge or machine arm.
• Speed Limit: Machine speed set to a safe range (600-750 SPM) for the quilt layers.
• Trajectory: You’ve confirmed the stitch path stays strictly within the fabric area (no hoop strikes).
• Autonomy: You are ready to let it run without babysitting (no planned stops).

Scaling up to the 10 5/8" x 16" hoop: the clearance check that saves your project

When Regina moves to the large hoop, she does something I wish every embroiderer did more often: she checks clearance before stitching.

She visually inspects the margin between the design area and the fabric edge and confirms she has roughly an inch of extra fabric around the stitch field.

Expert Reality Check: Edge-to-edge quilting files often stitch dangerously close to the boundary. If your fabric is barely covering the stitch field, the needle can run off the fabric and stitch into stitches-only stabilizer or, worse, hit the hoop.

• Best case: It looks ugly and requires picking out stitches.
• Worst case: The logic board fries due to a needle strike, or the timing belt slips.

The "Hoop Struggle" is Real: Large geometric shapes (like 10x16) are difficult to hoop perfectly tight with standard screw-based hoops, especially with thick batting. This recurring struggle is exactly where magnetic embroidery hoops become a valid workflow upgrade. Unlike standard hoops that require significant hand strength and can leave "hoop burn" (crushed texture) on delicate quilts, magnetic frames allow you to "slap and stick." This reduces hooping time and helps you keep fabric tension consistent from hoop to hoop—critical when you are repositioning a quilt top 20 times for a king-size project.

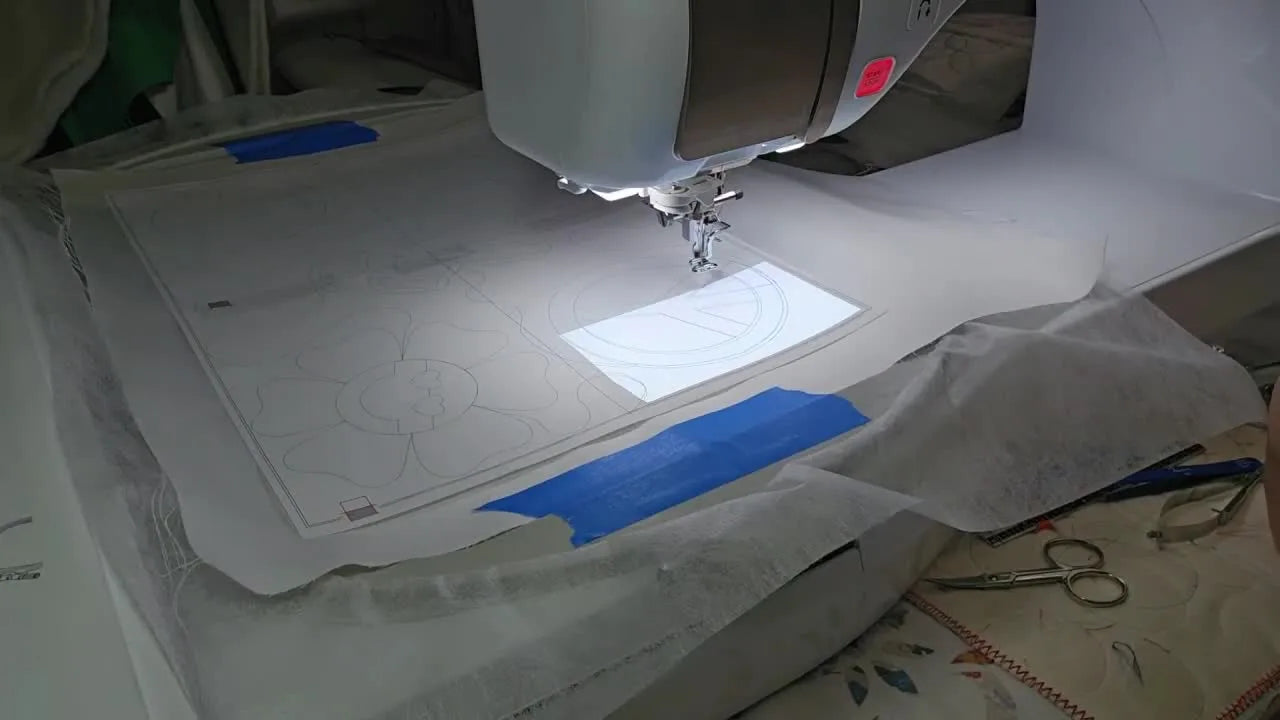

Stitching the large edge-to-edge file on the Baby Lock Solaris: what “fast” really means

Regina stitches the 10 5/8" x 16" version and her Solaris estimates 7 minutes.

That time estimate surprises people, but it makes sense: this is a continuous outline quilting path (a "running stitch" or "triple bean stitch"), not a dense tatami fill design. The stitch count is relatively low, even if the area is huge.

During the run manage the "Quilt Drag":

• Do not let the heavy quilt hang off the table unsupported.
• The weight of the quilt can pull the hoop slightly, causing the design to distort.
• The Fix: Use a table extension, or bundle the excess quilt on the table (gently clamps or "sewers aid" clips help) so the hoop moves freely without carrying the weight of the world.

Regina also mentions the practical next step: once one hooping finishes, you reposition the quilt and “marry it up” to the exit point so the next run aligns seamlessly.

The “why” behind the trick: how color blocks create trims, and how one-color coding removes them

On most embroidery machines, a color change is not just a visual label—it’s a digital boundary marker.

1. Code: STOP command.
2. Action: TRIM command.
3. Action: MOVE to jump position.

By forcing every block to the same color, you are effectively erasing the STOP and TRIM commands from the immediate processing queue. You are telling the machine: “This is one continuous operation.”

From a production mindset, this is the operational difference between:

• Hobby mode: You stand there, restart four times, trim tails manually, and accept a 20-minute run time.
• Efficient mode: You press Start once, walk away to prep the next bobbin or check your email, and return in 7 minutes to a finished block.

If you are quilting multiple projects, the time savings compounds. And once you remove the stop/start friction, the next bottleneck is undeniably the physical re-hooping process—exactly why people start comparing systems like a specialized embroidery hooping system and looking for ways to reduce wrist fatigue.

Decision tree: choosing stabilizer and hoop strategy for edge-to-edge quilting (so you don’t fight distortion)

Use this logic flow when planning repeated edge-to-edge runs.

1) What is the "Sandwich" density?

• Single layer cotton (Practice): Standard tear-away or medium cut-away. Standard hoop is fine.
• Quilt Top + Batting + Backing: The batting is the stabilizer. You may only need a light tear-away on the bottom to help glide, or none at all if using a magnetic frame with strong grip.

2) What is your Hoop Strategy? (The Re-hoop Factor)

• Small Project (1–4 re-hoops): Standard screw hoops are acceptable. Watch for hoop burn; steam it out later.
• Large Project (20+ re-hoops): Standard hoops will hurt your wrists and slow you down.
  • Recommendation: Switch to Magnetic Hoops. They offer consistent tension without "unscrewing/rescrewing" fatigue.

3) Are you seeing puckers or shifting between repeats?

• No: Keep your current method.
• Yes (Shifting): Your layers are slipping.
  • Solution A: More spray baste.
  • Solution B: Your hoop isn't holding the middle taut. Magnetic frames specifically designed for quilting (like those from SEWTECH or other reputable brands) clamp the edges firmly without distorting the bias grain.

If you’re evaluating options, magnetic hoops for embroidery machines are typically chosen for repeatability and speed—just remember to confirm compatibility with your specific machine arm width and maximum embroidery field.

Troubleshooting: symptoms, causes, and fixes (based on what people get stuck on)

I have seen these exact failure points in studios when transitioning from embroidery to quilting.

The upgrade path that actually makes edge-to-edge quilting feel effortless (without hard selling)

Once you’ve successfully used the one-color trick, your machine will finally run as designed. However, you might find new physical limitations.

Here is the practical upgrade logic I recommend to my students based on your specific pain point:

Level 1: The "Babysitter" Pain

• Symptom: You can't leave the machine because it stops every 2 minutes.
• Solution: Workflow Upgrade. Use the one-color coding method (Regina’s trick). Cost: $0.

Level 2: The "Wrist & Burn" Pain

• Symptom: Your hands hurt from tightening screws 30 times a day. You see "shiny" rings (hoop burn) on your quilt fabric. You dread the re-hooping process.
• Solution: Tool Upgrade -> Magnetic Frames.
  • Brands like SEWTECH offer high-retention magnetic hoops that adapt to thick quilt sandwiches.
  • If you are comparing different brands and see mentions of dime magnetic hoops, use a simple standard for your decision: looks for clamp strength and ease of alignment. The goal is a frame that snaps shut instantly and holds thick batting without crushing it.

Level 3: The "Volume" Pain

• Symptom: You have 5 quilts to do this week. The single-needle machine is too slow because you still have to thread it manually and change bobbins frequently.
• Solution: Production Upgrade -> Multi-Needle Machine.
  • Machines (like the Ricoma or Brother Enterprise series) offer larger fields and require less interaction, allowing you to run a business rather than just a hobby.

Warning: Magnetic Safety. Powerful magnetic hoops contain neodymium magnets. They are incredibly strong.
* Pinch Hazard: Keep fingers clear when snapping the top frame down. It can blood blister instantly.
* Medical Devices: Keep magnets at least 6 inches away from pacemakers.
* Electronics: Do not place the magnets directly on your laptop hard drive or machine LCD screen.

What “good” looks like at the end: a seamless edge-to-edge quilting field you can tile confidently

Regina finishes by showing the difference in scale between the small sample and the large hoop result. The visual impact is significant.

• Connectivity: The design lines meet the edge of the hoop, ready for the next tile.
• Variance: The pattern doesn't look like a boring grid; it flows.
• Continuity: By removing the color stops, the stitch quality is smoother because the machine didn't have to tie-off and restart constantly.


Operation Checklist (after the stitch-out, before you reposition for the next run)

• Completion: Confirm the stitch-out completed with zero stops/trims between blocks.
• Quality Control: Inspect for skipped stitches or thread loops (indicators of tension issues or drag).
• Alignment: Note the geometric "exit point" of the design. This is your anchor for the next hooping.
• Consistency: Ensure you apply the exact same amount of hooping tension for the next section. (If the first block is loose and the second is tight, they won't match up).
• Bobbin Check: Do you have enough thread for the next full 7-minute run? If not, change it now.












If you take only one lesson from this project, make it this: Edge-to-edge quilting files don’t need to be babysat. Stop fighting the stops. Tell the machine "It's all one color," secure your fabric with the right tools, and let the technology work for you.

FAQ

• Q: How can a Baby Lock Solaris stitch an edge-to-edge quilting file continuously when the design shows A/B/C/D blocks in different colors?
  A: Reassign every block to the exact same thread color in the Baby Lock Solaris color palette so the machine stops treating block boundaries as color-change stops.
  • Import the quilting design in Embroidery mode and open the on-screen color list/palette.
  • Choose one target color (for example, Red) and change every other block color to that exact same color.
  • Verify the color list shows one single color block instead of multiple separate color steps.
  • Success check: The Baby Lock Solaris runs from Block A to Block B without pausing, trimming, or asking you to press Start again.
  • If it still fails: Re-check the color list—one block is often left on a different color code and will still trigger a stop.
• Q: What needle and bobbin thread setup is a safe starting point for quilting a quilt sandwich in the hoop on a Baby Lock Solaris?
  A: Use a stronger quilting-appropriate needle and the correct bobbin thread weight before pressing Start.
  • Install a fresh Topstitch 90/14 or Quilting 90/14 needle (avoid a standard Embroidery 75/11 for thick quilt layers).
  • Confirm the bobbin thread weight is correct (commonly 60wt or 90wt) and start with a full bobbin.
  • Spray-baste the quilt layers (temporary adhesive) so the sandwich does not shift while stitching.
  • Success check: Stitching sounds steady (no harsh “clacking”), and the quilting line looks smooth without skipped stitches.
  • If it still fails: Slow the stitching speed and support the quilt weight to reduce drag-related needle deflection.
• Q: How tight should a quilt sandwich be hooped on a Baby Lock Solaris to avoid puckers and hoop burn with standard screw-based hoops?
  A: Hoop the quilt sandwich smoothly to “drum skin” tight—secure enough to hold, but not so tight that the fibers get crushed into permanent rings.
  • Hoop with even tension across the entire area; avoid stretching the fabric like a trampoline.
  • Tap the hooped area and aim for a dull “drum” response, not floppy slackness.
  • Leave a safe margin around the stitch field so the needle never hits the hard frame.
  • Success check: After stitching, the quilt surface is not shiny/creased in a ring and the quilting lines are not wavy from relaxation.
  • If it still fails: Consider a magnetic frame for more consistent holding power without over-torquing a screw hoop.
• Q: What is the 1-inch clearance rule for stitching a large edge-to-edge quilting file in a 10 5/8" x 16" hoop on a Baby Lock Solaris?
  A: Before stitching, confirm roughly 1 inch of extra fabric margin around the entire stitch field to prevent running off fabric or striking the hoop.
  • Visually inspect the fabric coverage in the hoop before pressing Start, especially near the edges.
  • Confirm the design size truly fits the hoop field you selected (small vs large hoop).
  • Keep the stitch path inside the fabric area—do not rely on stabilizer-only coverage at the boundary.
  • Success check: The design stitches fully on fabric with no edge “fall-off” and no contact marks from the hoop.
  • If it still fails: Stop immediately and re-hoop with more fabric margin; continuing risks ugly edge stitching or a hoop strike.
• Q: What Baby Lock Solaris speed (SPM) is a safe starting point for quilting through a quilt sandwich in the hoop, and what symptoms show the speed is wrong?
  A: Set a practical “sweet spot” of about 600–750 SPM for quilt layers to reduce drag distortion and needle deflection.
  • Reduce speed if the quilt is heavy, the table support is limited, or seams are thick.
  • Listen for sharp “clacking” sounds that can indicate needle deflection from drag or thickness.
  • Watch for wavy lines or registration drift that often appears when the quilt is being pulled too hard.
  • Success check: The machine runs with a rhythmic, steady sound and the stitched line stays clean and consistent.
  • If it still fails: Support the quilt weight on the table and re-check hooping tension before changing thread tension settings.
• Q: Why does a Baby Lock Solaris still trim or stop even after all blocks are set to one thread color in an edge-to-edge quilting file?
  A: Some files contain embedded trim/stop behavior beyond color changes, and machine trimming settings can also trigger trims.
  • Confirm every block truly matches the exact same color code (one leftover block will force a stop).
  • Check whether the design has embedded trim commands inside blocks (not just between colors).
  • Review machine settings related to jump-stitch trimming if trims are happening unexpectedly.
  • Success check: The quilting path runs across block boundaries with no trim mechanism engaging at each boundary.
  • If it still fails: Test a small 4x4 proof run to isolate whether the behavior is file-driven or setting-driven.
• Q: What safety rules should be followed when running an edge-to-edge quilting design on a Baby Lock Solaris, especially with heavy quilts and magnetic embroidery hoops?
  A: Keep hands and tools out of the moving hoop path, and treat magnetic frames as pinch-hazard tools.
  • Keep fingers, snips, seam rippers, and scissors away from the needle path while the machine is running—do not reach in to grab loose thread mid-run.
  • Support the quilt on the table so the hoop is not yanked by quilt weight during movement.
  • Keep fingers clear when closing a magnetic frame; magnets can snap shut hard enough to cause blood blisters.
  • Success check: The hoop travels freely without snagging fabric, and you never need to “chase” threads with your hands near the needle.
  • If it still fails: Pause the machine first, then clear threads and re-drape the quilt for full movement and visibility.
