Stop the Squeaks, Stop the Stains: Smartstitch Multi-Needle Maintenance That Keeps Production Moving

The Calm-Down Check: Smartstitch Multi-Needle Maintenance Isn’t Hard—But Skipping It Gets Expensive

If your Smartstitch multi-needle starts sounding “dry” (a hollow, scraping noise), running hot, or leaving mystery grease marks on finished expensive garments, you’re not alone—and you’re not doomed. Most breakdowns I see in high-volume shops aren’t caused by “bad machines”; they are caused by machines that didn’t get a simple, repeatable care routine.

Think of your embroidery machine like a high-performance sports car engine. It runs at thousands of revolutions per minute. Metal rubs against metal. Without a microscopic film of oil, that friction turns into heat, and heat kills timing.

A commercial head can stitch for years if you treat lubrication like a schedule, not a mood. The video’s intervals are the backbone, but let’s add the "Pro Safety Margins" to keep you in the clear:

• Needle bar slots: 1–2 drops in each slot every two months. Note: If you run 8 hours a day, shorten this to 6 weeks.
• Side oil box (clear plastic reservoir): Fill halfway, then refill when empty or add 1–2 drops per week. Visual Cue: Never let it run dry.
• Hose line: 2–5 drops once per week.
• Lithium grease on shafts/ports: Spray once per week. Auditory Cue: If you hear a "clunk" when the pantograph moves, you are late.
• Bobbin/rotary hook area: 2 drops every 3–4 hours of continuous operation.

That last one—the rotary hook—is where 80% of operators fall behind. Why? Because during a rush order, stopping feels like losing money. But the harsh reality is this: replacing a seized rotary hook costs 100x more time than oiling it.

One final reality check: If you see oil on your garments, it is almost never a "leak." It is operator error. It’s usually too much oil, oil applied to the wrong spot, or a failure to run a "test scrap" after maintenance.

The “Hidden” Prep Pros Do First: Oil Bottle Setup, Clean Tools, and a No-Mess Work Zone

The video starts with something that looks trivial but acts as the foundation of precision: preparing the oil dispenser. If you don't control the flow, you will flood the machine.

Prepare the oil bottle (Hydraulic Precision)

1. Cut the tip of the oil bottle nozzle. Crucial: Cut only the very tip to create a small aperture. A large hole creates blobs, not drops.
2. Poke a hole in the sealing film with scissors.
3. Remove the paper seal inside the cap entirely. If you leave it, it acts as a gasket that traps air bubbles, causing the oil to "spurt" unpredictably later.

This setup prevents the classic rookie mistake: squeezing the bottle hard because nothing is coming out, followed by a sudden geyser of oil that ruins the needle bar felt.

The "Hidden Consumables" You Need

Before you start, gather these often-overlooked items. Hunting for them mid-maintenance is how accidents happen.

• Lint Brush: For dry cleaning (brushing away dust).
• Non-Marring Pick: To pull out bird nests (thread clumps).
• Magnetic Tray: To hold screws (so they don't fall into the machine).
• Scrap Fabric/Felt: To run "absorption stitches" after oiling.

Prep Checklist (Do this BEFORE opening covers)

• Clean Zone: Clear the table surface of scissors, bobbins, and coffee cups.
• Bottle Check: Oil bottle tip cut small; seal removed; flow tested on a paper towel.
• Tool Staging: 2.5mm Allen wrench and Stubby screwdriver within arm's reach.
• Grease Logic: Lithium grease nozzle attached and tested (spray into a trash can first to clear air).
• Power Status: Machine is Stopped (Emergency Stop engaged if working near needles) but powered ON for positioning steps inside the UI.


Needle Bar Oiling on Smartstitch Heads: The 1–2 Drop Rule That Prevents Stiff Motion

The needle bars move up and down hundreds of times per minute. If they get dry, friction increases, and the motor has to work harder, leading to "Needle Bar Overload" errors.

In the video, oil goes into each needle bar slot.

What to do

1. Locate the lubrication slots on the front of the head.
2. Apply exactly 1–2 drops into each slot.
3. Wait 10 seconds between drops to let gravity pull the oil down the shaft.
4. Interval: Every two months.


Sensory Check: "The Glide"

• Sound: After oiling and running a test, the "chatter" of the needles should dampen to a hum.
• Sight: You should NOT see oil running down the needle bar toward the needle eye. If you do, you used too much. Wipe it immediately with alcohol.

Warning (Safety): Keep fingers, loose clothing, hair, and tools far away from the active needle area. When jogging the head via the panel, the machine moves instantly with high torque. A distraction here can result in a needle through the finger. Always engage the Emergency Stop button before touching the needles.

Practical Note from the Field: If you work in a high-lint environment (stitching hoodies, towels, or wool caps), the felt pads inside the head can get clogged with lint. Oil mixed with lint creates a "grinding paste." If you stick to the schedule but the machine still sounds loud, you may need a technician to deep-clean the internal felts.

Use the Smartstitch Control Panel Trick: Selecting Needle No. 1 to Move the Head Left for Access

You cannot maintain what you cannot reach. The video demonstrates a smart UI trick to open up the workspace.

What to do (The Ergonomic Shift)

1. On the touchscreen, go to the manual color change / needle selection menu.
2. Select Needle No. 1.
3. Watch as the head moves fully to the left.

Why this matters: This exposes the right-side mechanics of the head. If you try to oil these ports with the head in the center, you will be angling the bottle sideways. When oils bottles are tilted sideways, they tend to drip unpredictable blobs rather than precise drops. By moving the head, you get a straight, vertical shot at the maintenance ports.

Side Oil Reservoir & Ports: Fill Halfway, Then Feed the Hose on a Weekly Rhythm

This system uses gravity and wicking to lubricate the main drive components.

What to do

1. Inspect the Reservoir: Look at the clear plastic box on the side. If it is dark, dirty, or empty, you have a problem.
2. Fill Halfway: Do not fill it to the top. Air needs to circulate, and overfilling leads to leaks when the machine vibrates.
3. The Weekly Drop: Add 1–2 drops into the top holes and hose lines indicated in the video.
4. Hose Maintenance: Add 2–5 drops into the hose once per week.


Expected Outcome (The Visual Standard)

• The Line: You might see a small bubble in the oil line—this is normal. As long as oil is visible in the reservoir.
• The Case: The outside of the machine casing should be dry. If it's slick with oil, you are over-filling.

Troubleshooting "The Leaking Machine": Check the comments on any maintenance video, and you'll see people complaining about leaks. 99% of the time, this happens because the operator filled the side reservoir to the very brim. As the machine heats up and vibrates, the oil expands and splashes out. Rule of thumb: Half-full is full enough.

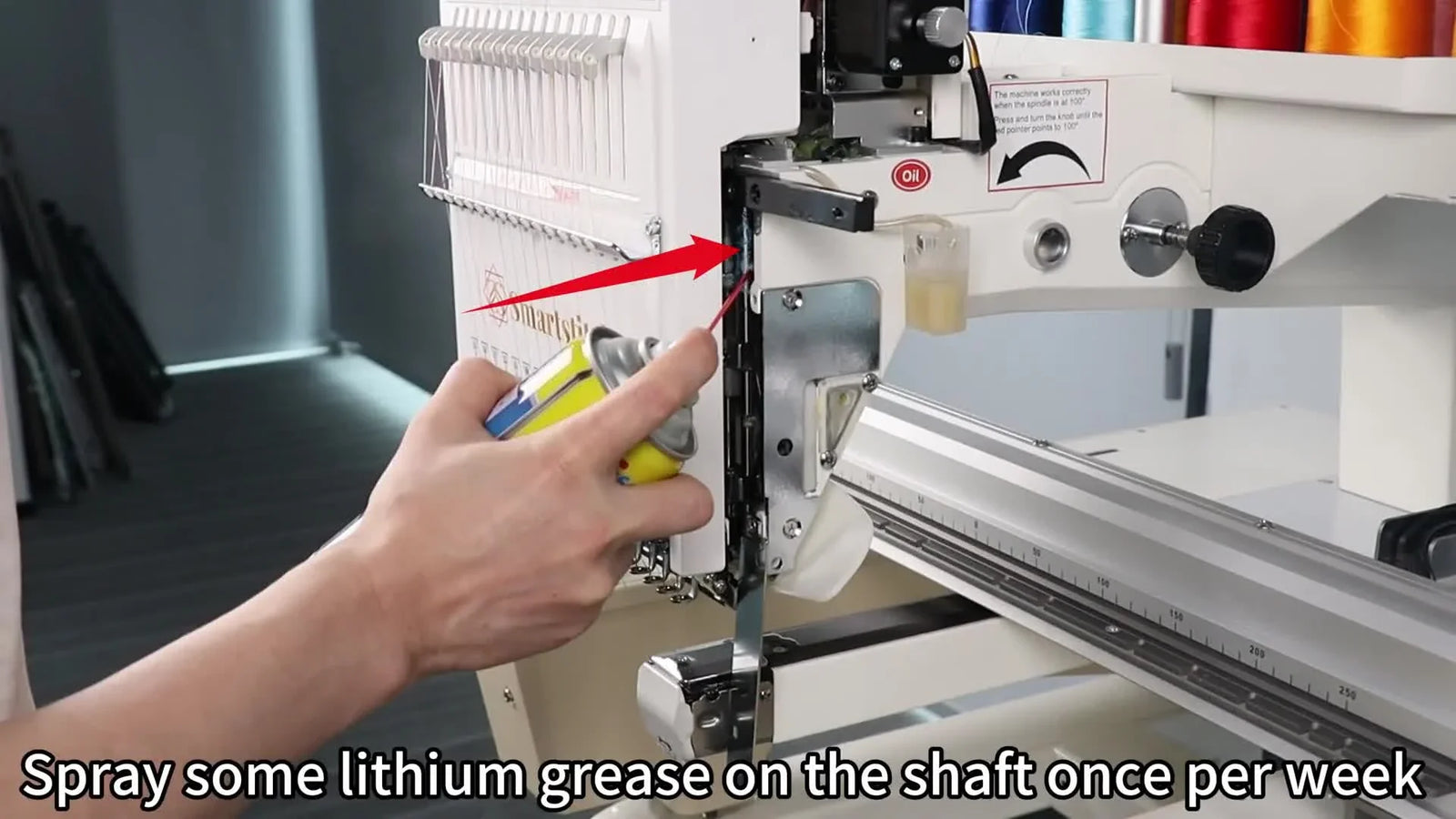

Weekly Lithium Grease on Smartstitch Shafts: How to Open the Side Plate Without Bending Anything

Oil flows; grease stays. We use White Lithium Grease on shafts and cams because they bear heavy loads and high-speed friction.

The video shows a simple way to access the shaft by pivoting the side metal plate, avoiding the need to fully remove delicate parts.

What to do (Exact Sequence)

1. Loosen, Don't Remove: Unscrew the top screw of the side metal plate fully, but just loosen the bottom screw halfway.
2. The Pivot: Rotate the metal piece down gently. It will hang on the bottom screw.
3. The Spray:
   • Shake the lithium grease can vigorously for 10 seconds.
   • Attach the red nozzle straw.
   • Spray the main shaft: Short bursts (0.5 seconds). Do not soak it.
   • Spray access holes: Target the right-side access hole and other points shown in the video.
4. The Close: Pivot the plate back, insert the top screw, and tighten both.




Why Litium Grease? (The Physics)

Standard sewing computer oil is too thin for these heavy drive shafts. It would drip off in minutes. Grease has a higher viscosity—it clings to the metal, providing a cushion that absorbs the "shock" of the reciprocating motion.

Auditory Diagnostic: If your machine sounds "clunky" or metallic during high-speed fills (jumps), your grease points are likely dry.

The 3–4 Hour Habit: Oiling the Rotary Hook/Bobbin Area Without Creating Oil Drips

This is the most critical maintenance step in professional embroidery. The rotary hook spins at twice the speed of the needle.

What to do

1. Frequency: Every 3–4 hours of continuous running. (Set a timer on your phone if you have to).
2. Application: ONE to TWO drops of standard embroidery oil.
3. Target: The "race" (the track where the hook assembly spins).


The "Sweet Spot" for Quality

• Too Dry: Thread friction increases, leading to snapping threads and bird nesting. The hook can overheat and expand, causing a seizure.
• Too Wet: Oil sprays onto the bobbin thread. Shows up as dirty grey specks on the back of the embroidery, or bleeds through to the front of white fabrics.

Expert Tip: After oiling the hook, run the machine without a bobbin case for 30 seconds on a slow speed (e.g., 600 SPM). This uses centrifugal force to spin off excess oil inside the machine casing, rather than onto your customer's shirt.

Needle Plate Removal on Smartstitch: The 2.5 mm Allen Wrench Move (and the “Bump” That Tricks People)

You cannot clean what you cannot see. Lint accumulates under the needle plate, packing into the feed dogs (if applicable) and trimmers.

What to do

1. Tool Check: Use a 2.5 mm Allen wrench. Do not use pliers or the wrong size driver—stripping these heads is a nightmare.
2. The Trick: Use your thumb to press down on the folded corners of the plate while loosening. This relieves tension on the screw threads.
3. The Lift: Gently pry to lift the plate. Watch the positioning bump. The plate must be lifted straight up or tilted slightly to clear the alignment pin.


Warning: Do not force the needle plate. If it feels stuck, it is likely caught on the positioning bump or a thread tail is jammed. Forcing it usually results in scratching the smooth surface of the plate. A scratch here acts like a knife, shredding thread during embroidery.

Rotary Hook Deep Clean on Smartstitch: Remove the Lower Metal Cover, Brush Lint, Then Oil 1–2 Drops

This is the "Saturday Morning Deep Clean."

What to do

1. Open Up: Remove the lower metal cover (left, right, bottom screws).
2. Lint Patrol: Use your small brush to sweep lint out of the rotary hook mechanism. Tip: Canned air is risky here as it can blow lint deeper into the sensors. A brush + mini vacuum is safer.
3. Lubricate: Apply 1–2 drops to the internal components exposed by the cleaning.




The "Lint Paste" Theory

Lint absorbs oil. When oil-soaked lint gets hot, it turns into a gummy paste that is harder than dried glue. This paste ruins thread trimming knives and causes the bobbin case to sit unevenly.

Symptom of Dirty Hooks: If you get "Bobbin Runout" errors when the bobbin is full, or if the auto-trimmer fails to cut the thread cleanly, it is usually a lint issue, not a broken part.

Reassembly Without Regret: The Half-Tighten Alignment Trick That Saves Threads and Screws

Reassembly is where alignment happens. If you tighten one screw 100% before inserting the others, you warp the metal cover.

What to do (The Mechanic’s Method)

1. Position: Place the bottom metal piece.
2. Finger Tight: Install the bottom screw and tighten 50%.
3. Align: Install the right and left screws and tighten 50%.
4. Lock Down: Now that the piece is centered by the screws, go back and tighten all of them fully.
5. Plate & Bobbin: Reinstall the bobbin case and needle plate (align with the bump).




Setup Checklist (Before Production Resumes)

• Plate Flatness: Rub your finger over the needle plate screws. Are they flush? (Protruding screws will snag fabric).
• Hook Cycle: Manually rotate the main shaft knob (usually on the side or rear) 360 degrees to ensure the needle doesn't hit the plate or hook.
• Bobbin Snap: Reinsert the bobbin case. Listen for the distinct "Click". No click = No latch = Needle break.

The “Why” Behind Oil Stains: How Over-Oiling Travels from the Hook to Your Garment

When a customer complains about an oil stain, it’s heartbreaking. Here is the physics of how it happens:

1. Operator adds 5 drops instead of 2.
2. Machine starts at 1000 SPM.
3. Centrifugal force throws the excess oil outward.
4. The oil mist hits the underside of the needle plate.
5. The garment wipes across the plate, absorbing the oil.

The Fix: If you over-oil, fold a paper towel, place it under the presser foot, and manually drop the needle bar (without threading) to blot the area. Then, run a test design on scrap felt.

Decision Tree: Stabilizer + Hooping Choices That Reduce Rework (and Why Magnetic Frames Change the Game)

Maintenance keeps the machine running, but upgrades keep the business growing. If you are constantly maintaining the machine but still fighting hoop burn, fabric slippage, or sore wrists, your tooling is the bottleneck.

Use this decision tree to diagnose your needs:

1. Are you struggling with "Hoop Burn" (shiny rings on fabric)?

• YES: The friction of traditional plastic hoops is crushing the fabric fibers.
  • Quick Fix: Steam the garment after embroidery.
  • Pro Solution: Switch to magnetic embroidery hoops. These use vertical magnetic force rather than friction, leaving zero marks on delicate polos or performance wear.

2. Is "Hooping Time" slowing down your production?

• YES: Screwing and unscrewing plastic hoops takes 45-90 seconds per shirt.
  • Pro Solution: A mighty hoop for smartstitch setup snaps close in 2 seconds. In a run of 100 shirts, this saves over an hour of labor.

3. Do you need to run heavy items like Carhartt jackets or bags?

• YES: Plastic hoops often pop open under the tension of thick seams.
  • Pro Solution: Strong magnetic frames hold through zippers and seams without lagging.
  • Upgrade Path: If your current machine struggles to penetrate thick canvas even with a good hoop, consider looking at multi needle embroidery machines for sale like the smartstitch s1501, which offers professional-grade motor torque designed for heavy substrates.

Warning (Magnet Safety): If you upgrade to magnetic frames, treat them with extreme respect. These are industrial magnets.
* Pinch Hazard: They snap together with enough force to bruise or break fingers. Keep hands clear of the "snap zone."
* Medical Risk: Keep strong magnets away from pacemakers and implanted medical devices (min. 6 inches).

The Production Upgrade Path: When Accessories Beat “Working Harder” on a Smartstitch Line

Once your maintenance is dialed in, efficiency is the next frontier. Small changes multiply.

• For the Home Hobbyist: Upgrading a standard hoop to a smartstitch embroidery frame (magnetic style) eliminates the frustration of trying to force thick towels into a plastic ring. It makes the hobby fun again.
• For the Commercial Shop: If you are running a smartstitch s1501 (15-needle commercial unit), standardizing your hoops across all machines allows you to prep the next run while the machine is stitching. This is how you double output without buying a new machine.

Many users begin by searching for terms like "hooping hacks," but eventually realize that terminology like magnetic embroidery hoop represents the industry standard for specific reasons: speed, ergonomics, and fabric safety.

Operation Checklist: The First Run After Maintenance

Do not put a $50 customer hoodie on the machine immediately after oiling. Just don't.

• The "Wipe Down": Use a clean cloth to wipe the needle bar area, the presser foot, and the needle plate surface.
• The "Scrap Test": Hoop a piece of scrap felt or backing. Run a 500-stitch test program (a simple square or letter 'A').
• The "Oil Check": Look at the back of the test stitch.
  • Is the bobbin thread pure white? Good.
  • Is it grey/brown? Excess oil/dirt is clearing out. Run the test again.
• The "Listen": Listen for the smooth hum. No dry clicking.
• The Log: Mark the date on a calendar or piece of tape on the machine. "Oiled: [Date]."

By treating your Smartstitch machine with this level of respect—clean oil, precise drops, and the right tools—it will pay you back with years of clean, consistent, profitable embroidery.

FAQ

• Q: How often should Smartstitch multi-needle embroidery machine needle bar slots be oiled to prevent dry scraping sounds and “Needle Bar Overload” errors?
  A: Use exactly 1–2 drops in each Smartstitch needle bar slot on a schedule (about every two months; shorten the interval in high-use situations).
  • Apply 1–2 drops into each front needle bar lubrication slot.
  • Wait about 10 seconds between drops so oil can wick down the shaft.
  • Wipe any visible runoff immediately (especially if oil starts traveling toward the needle area).
  • Success check: Needle chatter should dampen to a smooth hum after a short test run.
  • If it still fails: Internal felt pads may be lint-clogged (oil + lint can form a grinding paste), and a deeper technician clean may be needed.
• Q: How should Smartstitch multi-needle embroidery machine operators set up an oil bottle to avoid sudden oil spurts that flood the head and stain garments?
  A: Create a controlled “dropper” flow before opening covers so the Smartstitch head never gets flooded.
  • Cut only the very tip of the nozzle to make a small aperture (drops, not blobs).
  • Poke the sealing film, then remove the paper seal inside the cap completely to prevent trapped air and spurting.
  • Test the flow on a paper towel before oiling the machine.
  • Success check: The bottle delivers consistent single drops with light pressure—no sputter or geyser.
  • If it still fails: Replace the bottle/nozzle or re-cut the tip smaller; do not compensate by squeezing harder.
• Q: How do Smartstitch multi-needle embroidery machine operators reduce “leaking” complaints from the clear side oil reservoir and keep the casing dry?
  A: Keep the Smartstitch side oil reservoir half-full (not brim-full) and top up only as needed to avoid expansion splash.
  • Inspect the clear reservoir for being empty, dark, or dirty before refilling.
  • Fill to halfway, then refill when empty (or add small weekly drops as part of routine).
  • Add 2–5 drops into the hose line once per week, as shown for the hose feed.
  • Success check: Oil is visible in the reservoir and the outside casing stays dry (not slick).
  • If it still fails: Stop overfilling first; if the reservoir looks contaminated (dark/dirty), cleaning/service may be required before continued production.
• Q: How do Smartstitch multi-needle embroidery machine operators oil the rotary hook/bobbin area every 3–4 hours without creating oil drips and grey specks on embroidery?
  A: Put 1–2 drops on the Smartstitch rotary hook race every 3–4 hours of continuous running, then spin off excess before sewing customer goods.
  • Set a timer and oil the hook “race” with one to two drops (not more).
  • After oiling, run the machine slowly for about 30 seconds without the bobbin case to fling excess oil inside the casing.
  • Run a scrap test before loading a real garment.
  • Success check: Bobbin thread on the test stitch stays clean (not grey/brown) and there is no oil mist marking fabric.
  • If it still fails: You may be over-oiling or oiling the wrong spot; wipe down the needle plate area and repeat the scrap test until it clears.
• Q: What is the safest way to access Smartstitch multi-needle embroidery machine right-side maintenance ports using the control panel needle selection trick?
  A: Use the Smartstitch touchscreen to select Needle No. 1 so the head moves fully left, giving straight vertical access to right-side ports.
  • Open the manual color change/needle selection menu on the touchscreen.
  • Select Needle No. 1 and let the head travel fully to the left before oiling ports.
  • Keep the oil bottle vertical to avoid sideways drips and blobs.
  • Success check: Oil can be applied as controlled drops (not smears) because the bottle stays upright.
  • If it still fails: Reposition again using the panel—don’t force angled oiling that causes over-application and stains.
• Q: What safety steps should be followed when jogging a Smartstitch multi-needle embroidery machine head during lubrication to avoid needle injuries?
  A: Treat Smartstitch jogging as high-torque, instant motion and physically protect hands before reaching near needles.
  • Engage the Emergency Stop before touching needles, presser foot, or needle-adjacent parts.
  • Keep fingers, loose clothing, hair, and tools out of the needle area when power is on for positioning.
  • Use the panel only for controlled positioning, then stop motion before reaching inside.
  • Success check: Hands never enter the needle zone unless the Emergency Stop is engaged and motion is fully stopped.
  • If it still fails: Pause maintenance and reset the workflow—do not “work around” a moving head; injury risk is immediate.
• Q: What magnet safety rules should Smartstitch embroidery operators follow when upgrading to magnetic embroidery hoops to prevent pinch injuries and medical device risks?
  A: Handle magnetic embroidery hoops like industrial magnets: keep fingers out of the snap zone and keep magnets away from implanted medical devices.
  • Separate and join magnetic frames with a controlled grip—never let them slam together.
  • Keep hands and fingertips clear where the magnets meet (pinch hazard can bruise or break fingers).
  • Keep magnetic hoops at least 6 inches away from pacemakers and implanted medical devices.
  • Success check: Magnetic frames close without any finger contact in the closing gap, and operators follow a consistent “hands-clear” habit.
  • If it still fails: Switch back to safer handling (two-handed control, slower close) and retrain operators before using magnets in production.
