Stop the “See-Through” Fill: 40wt vs 60wt Thread on Polo Logos (Plus a Fast Magnetic Hooping Setup on the Brother PR670E)

Left-chest polo logos are where embroidery businesses either look professional… or look like they’re still “figuring it out.” If you’ve ever finished a stitch-out and thought, “Why can I see the shirt color peeking through my fill?”—you’re not alone.

Embroidery is an empirical science. It’s not just about pushing a button; it’s about understanding the physical relationship between thread diameter, fabric tension, and needle penetration. This post rebuilds a real production scenario: a women’s club logo stitched on red pique polos. The learning curve came down to two variables that quietly make or break shirt work:

1. Thread Weight Physics (40wt vs 60wt): Understanding that different threads cover different surface areas.
2. Repeatable Placement: Eliminating the "eyeball method" so every shirt in the order lands in the exact same spot without measuring drama.


The Panic Moment: Why Your Polo Logo Fill Looks “Thin” Even When the Design Is Correct

When a fill looks “gappy” or the fabric color bleeds through the stitches, most operators blame the digitizing first. They assume the density is too low. Sometimes that’s true—but in this case, the design was technically perfect. The real culprit was using 60wt thread in areas that were digitized for 40wt.

Here is the "why" behind the panic: Standard digitizing usually accounts for 40wt thread, which is thicker. If the software calculates lines based on a thick thread, and you substitute a thin thread (60wt) without increasing the stitch count, you are effectively painting a wall with a brush that is 25% too narrow. You will see the drywall between the strokes.

In the video, two test patches are compared side-by-side: one stitched with 60wt used for both fill and lettering (the “mistake”), and one corrected version using 40wt for fills and 60wt only for the small text.

The difference is immediate and visceral:

• The “Wrong” Patch: You can see the red pique fabric showing through the white fill. It looks washed out and cheap.
• The Corrected Patch: The fill is solid, opaque, and crisp. No red spots peeking through.




Here’s the practical takeaway you can apply today: If your file was digitized expecting standard 40wt coverage, switching to 60wt without manually increasing the density (usually by 20-30%) guarantees gaps.

Understanding the nuance of 60 weight vs 40 weight embroidery thread is often the specific knowledge gap that separates hobbyists from production managers.

The “Hidden” Prep Pros Don’t Skip: Thread, Needle, Stabilizer, and a Quick Reality Check on Stitch Count

Before you hoop anything, you want to know what kind of physical stress you are applying to the garment. This logo is a heavy one—Jeanette mentions it’s over 34,000 stitches, and in the comments, she notes she used two sheets of cut-away stabilizer because the logo actually hit over 39k stitches in her run.

39,000 stitches on a soft knit polo is a massive amount of tension. Imagine sewing a heavy denim patch onto a t-shirt; if the foundation isn't rigid, the shirt will buckle. You aren't treating this like a light monogram; you are building a structure.

Prep Checklist (Do this before you touch the hoop)

• Audit the Design Size: Confirm the left-chest logo size is appropriate (the video calls out 4" x 4" as the typical max for left chest). Anything larger risks hitting the armpit or the placket.
• Run a Test Swatch: If your test stitch-out looks oversized or bulletproof-stiff, correct it before touching the expensive shirts (the “too big” example shown is 4.25" x 4.25").
• Thread Mapping: Load 40wt thread for fills/solid areas and 60wt thread for small lettering (as instructed by the digitizer).
• Stabilizer Selection: For a 30k+ stitch count on pique, two sheets of cut-away is generally the safest bet to prevent "tunneling" (where the fabric puckers around the edges).
• Jump Stitch Plan: Keep fine-point snips handy.
• Needle Check: Ensure you have a sharp needle installed. A dull needle will punch holes in the knit rather than separating the fibers.

Warning: Mechanical Safety. Keep fingers clear when trimming jump stitches near dense embroidery. High speed + dense stitches + sharp snips is a recipe for injury. If you’re trimming thread tails while the hoop is still mounted, stop the machine completely. Do not rely on a "pause" button; ensure the needle bar is disengaged.

A stabilizer note (what the comments revealed)

Multiple viewers asked, “How did you stabilize this?” The answer given: two sheets of cut-away stabilizer for these polo shirts.

Why Cut-Away? New embroiderers often try to use tear-away because it is easier to clean up. Do not use tear-away on knit polos. When you wear the shirt, the fabric stretches. Tear-away does not stretch; it disintegrates. Your beautiful logo will distort after one wash. Cut-away provides permanent suspension for the stitches throughout the life of the garment.

The Thread-Weight Rule That Saves Orders: 60wt for Small Lettering, 40wt for Everything Else

The video’s core lesson is simple, and it’s worth repeating because it prevents expensive rework. This is the "Dual-Weight Strategy":

1. 60wt Thread: Used strictly for the lettering (small text like “Dominion Woman’s Club,” “Established 2007”). Why? Because 40wt thread is too thick for letters under 5mm tall; it closes up the loops (like 'e' and 'a'), making them look like blobs.
2. 40wt Thread: Used for the fills/solid areas. Why? It provides the bulk needed to cover the fabric efficiently.


This is also where many business owners get tripped up: they assume “thinner thread = better quality everywhere.” Not true. Thinner thread creates finer detail, but it lacks the "body" to cover large areas. Using it for fills is inefficient and leads to the "gapping" issue we identified earlier.

If you’re building a repeatable workflow for polos, you’ll eventually want a consistent thread inventory strategy—stocking your core corporate colors (Navy, Black, Red, White) in both weights.

One phrase customers often search when they’re shopping for production precision tools is magnetic embroidery hoop, which we will discuss in the hooping section.

Set the Hoop Master Station Once, Then Stop Measuring Every Shirt (Ladies XL = C-15)

If you’ve ever measured left chest placement three times, pinned nothing, and still felt unsure, you’ll appreciate the station workflow shown. The "Floating Ghost" problem—where logos drift up or down by an inch between shirts—kills profitability.

Jeanette uses a placement chart and sets the station for a Ladies XL polo using the coordinate C-15:

• The “15” is set on the fixture slider so it shows in the station’s indicator window.
• The “C” is the neckline reference line on the station ruler.






This setup eliminates decision fatigue. You aren't guessing where the center is; the tooling defines the center for you. This turns “one nice shirt” into “twenty identical shirts.”

If you’re using a hoop master station, keep the placement chart within arm’s reach—taped nearby or enlarged on the wall—so you don’t lose time hunting for precise coordinates during a rush.

Setup Checklist (Station + Garment Alignment)

• Size Confirmation: Confirm the shirt sizing tag matches your chart (this demo relies on the Ladies XL metrics).
• Coordinate Lock: Look up the placement coordinate (C-15).
• Physical Adjustment: Move the fixture until “15” clicks into the indicator window.
• Visual Anchor: Locate the “C” line on the ruler. This is your target for the tag/neckline.
• Fabric Management: Pre-button the placket if necessary to ensure the shirt hangs straight on the station.

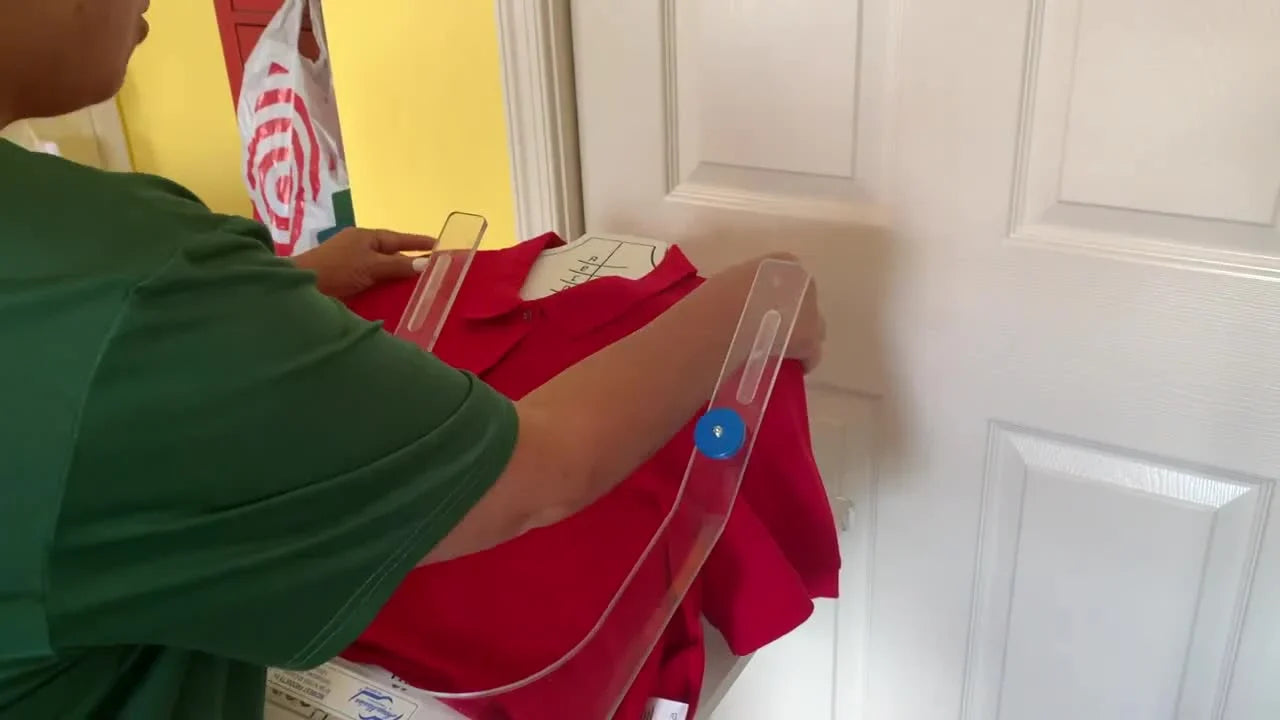

The Magnetic Hooping Sequence That Keeps Polos Straight (and Keeps You Sane)

Hooping pique knit is tricky because the fabric wants to stretch. Traditional screw-hoops require you to pull the fabric taut, which often leads to "Hoop Burn" (permanent shiny rings) or distortion (the logo looks oval when unhooped). Magnetic frames solve this by clamping straight down rather than pulling outward.

This is the exact hooping flow demonstrated:

1. Base Setup: Snap the bottom magnetic ring into the station base. You should hear a solid clunk as it seats.


2. Stabilizer Layout: Place your stabilizer (two sheets cut-away) over the bottom ring. ensure it is flat.


3. Garment Loading: Slide the polo over the station board. Pull the shirt up until the neck label/tag aligns exactly with the “C” line on the station ruler. Ensure the shoulder seams are equidistant from the center.


4. The Drop: Place the top magnetic frame onto the fixture arms. Allow it to drop and snap onto the bottom ring. The magnets will trap the fabric instantly without sliding.


Why this works (The Hooping Physics)

Knit polos distort under uneven tension. If you use a round screw hoop and pull harder on the left side to tighten it, you are pre-stretching the fabric grains. The machine stitches perfectly onto stretched fabric. When you pop the hoop, the fabric relaxes, and your perfect circle becomes an egg shape.

A magnetic frame applies vertical pressure. It does not drag the fabric outward. This "neutral tension" is the secret to flat embroidery on stretchy performance wear.

Warning: Magnet Safety. Powerful magnetic hoops utilize Neodymium magnets. They can pinch skin severely from several inches away. Keep fingers strictly on the outer rim handles. Crucial: Keep magnetic hoops away from pacemakers, implanted medical devices, and sensitive hard drives.

If you’re building a station-based workflow, terms like magnetic hooping station refer to this exact ecosystem of repeatable alignment.

Decision Tree: Choosing Stabilizer for Polo Logos (Based on Knit + Stitch Count)

Use this logic to avoid the "How much backing do I need?" guessing game.

Scenario: Knit Polo (Pique or Jersey) + Left-Chest Logo

• 1. Assess Stitch Density:
  • Heavy (>25,000 stitches) or Dense Fills?
    • Yes: Action → Use 2 layers of Cut-Away (2.5oz or 3.0oz). This mirrors the project in the video.
    • No (Light text only): Action → Use 1 layer of Cut-Away.
• 2. Assess Fabric Stability:
  • High Stretch (Performance/Dri-Fit)?
    • Yes: Action → Use No-Show Mesh (Polymesh) plus one layer of standard Cut-Away. The mesh prevents show-through; the cut-away adds rigidity.
    • No (Standard Cotton Pique): Action → Standard Cut-Away is sufficient.
• 3. Check for Puckering (Post-Test):
  • Is the fabric rippling around the logo?
    • Yes: Action → Check hooping tension (you likely stretched it). If hooping was neutral, add a layer of stabilizer.
  • No: Action → Document recipe and proceed.

Running the Brother PR670E: Slow Down for 60wt Lettering and “Babysit” the Risky Part

Once hooped, the shirt goes to the machine. Here creates the second major efficiency lesson: Variable Speed.

In the video, the machine speed is slowed down specifically to help the 60wt thread handle the small font.

• Fills (40wt): Can often run at 800-1000 stitches per minute (SPM) depending on your machine.
• Small Lettering (60wt): Should be dropped to 600 SPM or lower.




Why slow down? Small satin stitches involve rapid needle direction changes over very short distances. High speed creates excessive friction and tension spikes, leading to thread shredding or "birdnesting." Slowing down reduces the inertia, allowing the thread to form a crisp loop.

The creator’s workflow is smart:

• She doesn’t hover during the long fill portions.
• She does stand by the machine during the small lettering.

If you’re running a brother pr670e embroidery machine, utilizing the speed limit settings for specific color stops is a Pro feature you should be using.

Expert Note: The Needle Change (Crucial!)

In the replies, the creator confirms she changes the needle when switching to 60wt lettering: she uses a 65/9 needle for the 60wt portion.

• Standard: 75/11 needle (too thick for tiny text; punches large holes).
• Precision: 65/9 needle (smaller footprint; tighter entry).

Do not skip this. Using a fat needle with thin thread results in wobbly stitches because the thread swims in the needle hole.

Operation Checklist (The "During Flight" Checks)

• Needle Match: Verify a 65/9 needle is installed on the needle bar using 60wt thread.
• Speed Control: Manually reduce SPM when the machine reaches the text segment.
• Visual Monitor: Watch for the bobbin thread. If you see white bobbin thread on top (even slightly), your top tension is too tight or the bobbin is too loose.
• Auditory Monitor: Listen for the rhythmic thump-thump. A sharp snap usually means a thread break; a grinding noise means a birdnest.
• Final Trim: Trim jump stitches immediately after the job finishes while inspection is fresh.

Troubleshooting the Two Most Expensive Polo Problems: Fill Gaps and Placement Drift

You can lose money on polos in two ways: re-stitching (quality failure) and re-hooping (consistency failure).

Symptom: White spots / spacing showing through the fill

• Likely Cause: 60wt thread used on a design customized for 40wt.
• Physics: Thread is too thin to cover the digitized gap.
• Fix: Swap to 40wt for fills. If you must use 60wt, increase design density by 25%.

Symptom: Logo placement "floats" (high on one shirt, low on the next)

• Likely Cause: Manual measurement error or "eyeballing."
• Fix: Adopt a coordinate system (Hoop Master or similar). Ladies XL = C-15. Write it down.

Symptom: Ring marks (Hoop Burn) on the fabric

• Likely Cause: Traditional hoops clamped too tightly on delicate pique.
• Fix: Steam may remove it, but preventing it with Magnetic Hoops is the permanent solution.

The Upgrade Path (Without the Hard Sell): When Magnetic Frames and Multi-Needle Capacity Pay You Back

If you’re doing one shirt for fun, manual hooping and single-needle color changes are fine. If you are doing a club order of 50 shirts, those manageable tasks become painful bottlenecks.

Here is how to judge if it is time to upgrade your tools:

1. The Hooping Bottleneck

• Trigger: Your wrists hurt from tightening screws, or you are fighting "hoop burn" marks on dark polos.
• Criteria: If you spend more than 2 minutes hooping a single shirt, you are losing profit.
• Option: Even for home users, a magnetic hoop for brother se1900 style frame removes the screw-tightening variable. For production environments, reducing hooping time adds up to massive labor savings.

2. The Color Change Bottleneck

• Trigger: You are sitting by the machine waiting to change threads every 3 minutes.
• Criteria: If you are producing orders with 3+ colors regularly, a single-needle machine is costing you man-hours.
• Option: A multi-needle machine (like the SEWTECH commercial series) runs the whole job automatically. You press start and walk away to hoop the next shirt.

3. The Compatibility Search

• Trigger: You already have a machine but hate the stock hoops.
• Criteria: You need faster snap-action without buying a whole new rig.
• Option: Many professionals search for magnetic embroidery hoops for brother to find aftermarket frames that fit their existing arms (e.g., SEWTECH 5x5 or 8x12 sizes) to get that "Hoop Master feel" at a fraction of the cost.

The Finish That Makes It Look Like a Pro Shop (Even Before You Bag the Shirt)

The video ends with a beautiful stitch-out on the red polo, and the creator notes she still needs to trim a few small jump stitches and thread tails.

That last 60 seconds of cleanup is what separates “handmade” from “commercial.” On polos, customers notice three things instantly:

1. Legibility: Can I read the tiny text? (Solved by 60wt thread + 65/9 needle).
2. Coverage: Is the red shirt showing through the white logo? (Solved by 40wt fill).
3. Cleanliness: Are there loose thread tails?

Take the extra moment to trim flush. Using the right tools—like the strong holding power of a mighty hoop 5.5 or a comparable SEWTECH frame—gets you to the finish line faster, but your eyes and your scissors are the final quality control.

FAQ

• Q: Why does a left-chest polo logo fill look thin when using 60wt embroidery thread on a design digitized for 40wt coverage?
  A: Switch the fill areas back to 40wt thread, because 60wt is too thin to cover spacing calculated for 40wt.
  • Swap thread: Run 40wt on all fills/solid areas and reserve 60wt only for small lettering.
  • Re-test: Stitch a small sample patch before sewing on polos.
  • Success check: The fill looks opaque with no shirt color peeking through between stitches.
  • If it still fails: Increase the design density (generally 20–30%) only if 60wt must be used for the fill.
• Q: How do I choose stabilizer for a knit polo left-chest logo when the stitch count is 30,000–39,000 stitches?
  A: Use two layers of cut-away stabilizer as a safe starting point for heavy stitch counts on knit polos.
  • Confirm stitch load: Treat 30k+ stitches as “heavy” and plan backing accordingly.
  • Layer backing: Place two sheets of cut-away under the hoop before loading the garment.
  • Success check: After stitching, the polo lies flat without tunneling or rippling around the design edges.
  • If it still fails: Re-check hooping for stretch/distortion first; if hooping is neutral, add another stabilizer layer or adjust the recipe per the stabilizer manufacturer and machine manual.
• Q: Why should tear-away stabilizer not be used on knit pique polos for left-chest embroidery?
  A: Avoid tear-away on knit polos because it will not support stretch during wear and washing; use cut-away for permanent support.
  • Replace backing: Choose cut-away for standard cotton pique polos.
  • Plan cleanup: Trim cut-away close after stitching rather than trying to tear it off.
  • Success check: The logo stays true-to-shape after handling and stretching the shirt lightly by hand.
  • If it still fails: Reduce fabric stretch during hooping (often the real cause of distortion) and re-test.
• Q: What needle size should be used for 60wt small lettering on a Brother PR670E to prevent wobbly stitches and poor detail?
  A: Use a 65/9 needle for the 60wt lettering segment to match the thin thread and small stitch footprint.
  • Change needle: Install a 65/9 needle before the small-text portion runs.
  • Slow the machine: Drop speed for lettering (600 SPM or lower is a common target in this scenario).
  • Success check: Small letters stay open and readable (loops like “e” and “a” do not fill in).
  • If it still fails: Watch for thread shredding or breaks and reduce speed further; confirm threading path and tension settings per the Brother PR670E manual.
• Q: How can Brother PR670E operators reduce thread breaks and birdnesting when stitching 60wt small text on polos?
  A: Slow down specifically for the 60wt lettering and monitor the text segment closely, because tiny direction changes spike friction and tension.
  • Set variable speed: Run fills faster, then reduce speed when the color stop reaches small lettering.
  • Stand by the machine: “Babysit” the small-text portion instead of walking away.
  • Success check: The PR670E runs through the lettering without snapping sounds, grinding, or a thread wad forming under the hoop.
  • If it still fails: Re-check needle choice (65/9 for 60wt), confirm top thread path, and inspect for bobbin thread showing on top (a sign tension needs correction).
• Q: How do I stop left-chest logo placement drift on polos when using a Hoop Master station coordinate system like Ladies XL = C-15?
  A: Lock the placement by using the chart coordinate every time instead of eyeballing, then align the neckline/tag to the station reference line consistently.
  • Verify size: Confirm the garment size tag matches the placement chart you’re using (example workflow uses Ladies XL).
  • Set the station: Adjust the fixture so the “15” shows in the indicator window and use the “C” neckline reference line.
  • Align the garment: Pull the polo up until the neck label/tag hits the “C” line and keep shoulder seams even left-to-right.
  • Success check: Finished logos land in the same spot across multiple shirts without up/down drift.
  • If it still fails: Check that the placket is managed so the shirt hangs straight and that the garment is not twisting on the board.
• Q: What safety steps should be followed when trimming jump stitches near dense embroidery on a multi-needle or single-needle embroidery machine?
  A: Stop the machine completely before trimming near the hoop, because high speed plus dense stitches and sharp snips can cause serious injury.
  • Fully stop motion: Ensure the machine is stopped and the needle bar is disengaged (do not rely only on a pause button).
  • Keep hands clear: Trim with fingers outside the needle path and away from moving parts.
  • Success check: Jump stitches are removed cleanly without the hoop shifting and without hands entering the needle area.
  • If it still fails: Reposition the hoop to improve access or remove the hoop from the machine before trimming if visibility is poor.
• Q: What safety precautions are required when using neodymium magnetic embroidery hoops on polos to prevent pinch injuries and device interference?
  A: Treat magnetic hoops as high-force tools—handle only by the outer rim/handles and keep them away from pacemakers and sensitive electronics.
  • Control the drop: Lower the top frame carefully and keep fingertips off the mating edge where magnets snap together.
  • Maintain safe distance: Keep magnetic hoops away from implanted medical devices and hard drives.
  • Success check: The frame seats with a clean snap without pinching skin and the fabric remains straight (not dragged or stretched).
  • If it still fails: Slow down the hooping motion and re-train hand placement to the outer rim only before continuing production.
