Stop the Scissor Icons: Manual Punch Block Text That Runs Clean (and Saves Hours on 200 Hats)

The sound is unmistakable to any experienced embroiderer: the rhythmic thump-thump-thump of sewing, followed by a sudden mechanical clunk, a pause, the hiss of a trimmer, the zip of the pantograph moving, and a slow ramp-up back to speed.

When you are staring at a corporate logo that almost matches a standard keyboard font, the temptation is overwhelming. You type it out in Arial Bold, tweak the kerning, and hit "Send to Machine." But then you switch to TrueView or Stitch View, and you see them: the little scissor icons stacked between every single letter.

Your machine is telling you: "I am going to stop, trim, and jump six times for a six-letter word."

If you are sewing a single sample on a tote bag, you can live with it. But if you are staring down a production run of 200 structured caps, those trims are a production tax. They add seconds to every unit, increase the risk of thread nests (birdnesting) at restart points, and put unnecessary wear on your cam systems.

This guide rebuilds Kathleen McKee’s workflow for manually digitizing block text. We aren't just drawing letters; we are engineering a continuous toolpath that runs letter-to-letter with the machine’s "pedal to the metal"—using manual punching, smart pathing, and the critical 2 mm connection rule.

The Keyboard Font Trap: Why “NATIONAL” Looks Fine… Until Stitch View Shows Scissors

Block text is the most deceptive category in embroidery. It looks simple—usually just columns and angles—so most beginners grab a nearest-match keyboard font (like pre-digitized Arial) to save time. In the workflow, the word “NATIONAL” is typed, overlaid on the artwork, and the spacing handles (the small diamonds between letters) are adjusted until it visually matches the logo.

That is the moment most digitizers stop. And that is a mistake.

The "Why" behind the failure: Keyboard fonts are programmed as individual objects often centered for versatility, not sequenced for specific connecting flows. Stitch view reveals the truth: separate objects mean the machine must finish one, tie off, trim, move, tie in, and start the next.

On a long run, this results in:

• Cycle time bloat: 10 extra seconds per hat x 200 hats = ~33 minutes of lost production.
• Cleanup fatigue: Trimming thread tails manually (if your machine misses one) creates a bottleneck.
• Restart risks: Every "tie-in" is a potential point for a thread break or a "pop" out of the needle eye.






The Production Reality Check: “Stop, Trim, Jump” Is a Time Leak You Can Actually Measure

Kathleen frames the stakes perfectly: on high-volume orders, you simply cannot afford the machine stopping between every letter.

Think of your embroidery machine like a highway vehicle. It is most efficient at cruising speed (e.g., 800-1000 stitches per minute). A trim is a red light. It forces a full stop and a slow acceleration back up to speed.

To scale a shop, you must attack inefficiency at two points:

1. The File: Reducing trims to keep the needle moving.
2. The Setup: Reducing the downtime between hooping changes.

This is where a hooping station for machine embroidery becomes critical. Just as you optimize the file to save seconds during sewing, a dedicated station ensures you save minutes between runs by providing a consistent, repeatable grip on your garments. In a real shop, file efficiency and physical workflow are two sides of the same coin.

The Manual Punch Mindset: You’re Not Drawing Letters—You’re Designing a Sewing Route

Manual digitizing scares beginners because it feels like "drawing." Shift your mindset: you are plumbing. You are connecting pipes so the water (thread) flows from left to right without leaking.

You are controlling four physical realities:

• Entry: Where the needle drops to start the letter.
• Exit: The exact coordinate where the needle leaves to travel to the next neighbor.
• Route: How you get from Entry to Exit (the structure of the letter).
• Threshold: Keeping the travel distance short enough that the machine ignores it.

In the software, this is executed using the Shapes / Manual Punch tool, alternating between Running Stitch (your travel pipes) and Straight Block/Column (your visible letter structures).

The “Hidden” Prep Before You Click a Single Node (So You Don’t Redo the Whole Word)

Before you drop your first anchor point, you must perform a "pre-flight" check. Manual digitizing is labor-intensive; doing it twice is painful.

Prep Checklist (Do this before digitizing)

• Analyze the Fabric: Is it pique (stretchy) or twill (stable)? This dictates your Pull Compensation.
  • Standard: 0.2mm - 0.4mm for stable woven fabrics.
  • High: 0.4mm+ for knits/pique to prevent columns from looking skinny.
• Reference Setup: Overlay the keyboard font (like Arial) over your artwork to check proportions, but lock it so you don't accidentally select it.
• Consumables Check: Ensure you have the right needle point. Ballpoint for knits, Sharp for caps/woven.
• Travel Strategy: Look at the word "NATIONAL." Visually map the gap between the bottom right of the "N" and the bottom left of the "A." That is your target path.

This is also the moment to consider your physical holding method. Caps are notoriously unforgiving of registration errors caused by vibration. Using a high-quality cap hoop for embroidery machine ensures that the precise pathing you perform on screen translates to the curved surface of a hat without shifting.

The Anchor That Prevents Unraveling: Start Manual Punch Objects With a Short Running Stitch

We have all seen it: the machine starts a new letter, the thread pulls out of the needle eye, and you have to re-thread. Or, the first few stitches look loose and messy.

Kathleen’s "Non-Negotiable" Habit: Always start a Manual Punch object with a short Running Stitch.

The Physics: When a machine jumps to a new spot, there is tension on the top thread. If the first stitch is a wide column stitch, the bobbin thread may not catch it securely immediately.

• The Fix: 3-4 small running stitches (about 1.5mm - 2mm long) act as a "knot" or anchor. It gives the bobbin time to grab the top thread before the widespread column stitching begins.

Warning: Mechanical Safety First. When testing new manual files, keep your hand hovering near the emergency stop. If you accidentally created a "zero-length" stitch or stacked too many nodes in one spot, the needle can hammer the same point repeatedly, leading to friction heat, thread breaks, or even a shattered needle. Always wear safety glasses when watching a test sew-out.

Punching the Letter “N” Cleanly: The Top/Bottom Rhythm That Keeps Columns Consistent

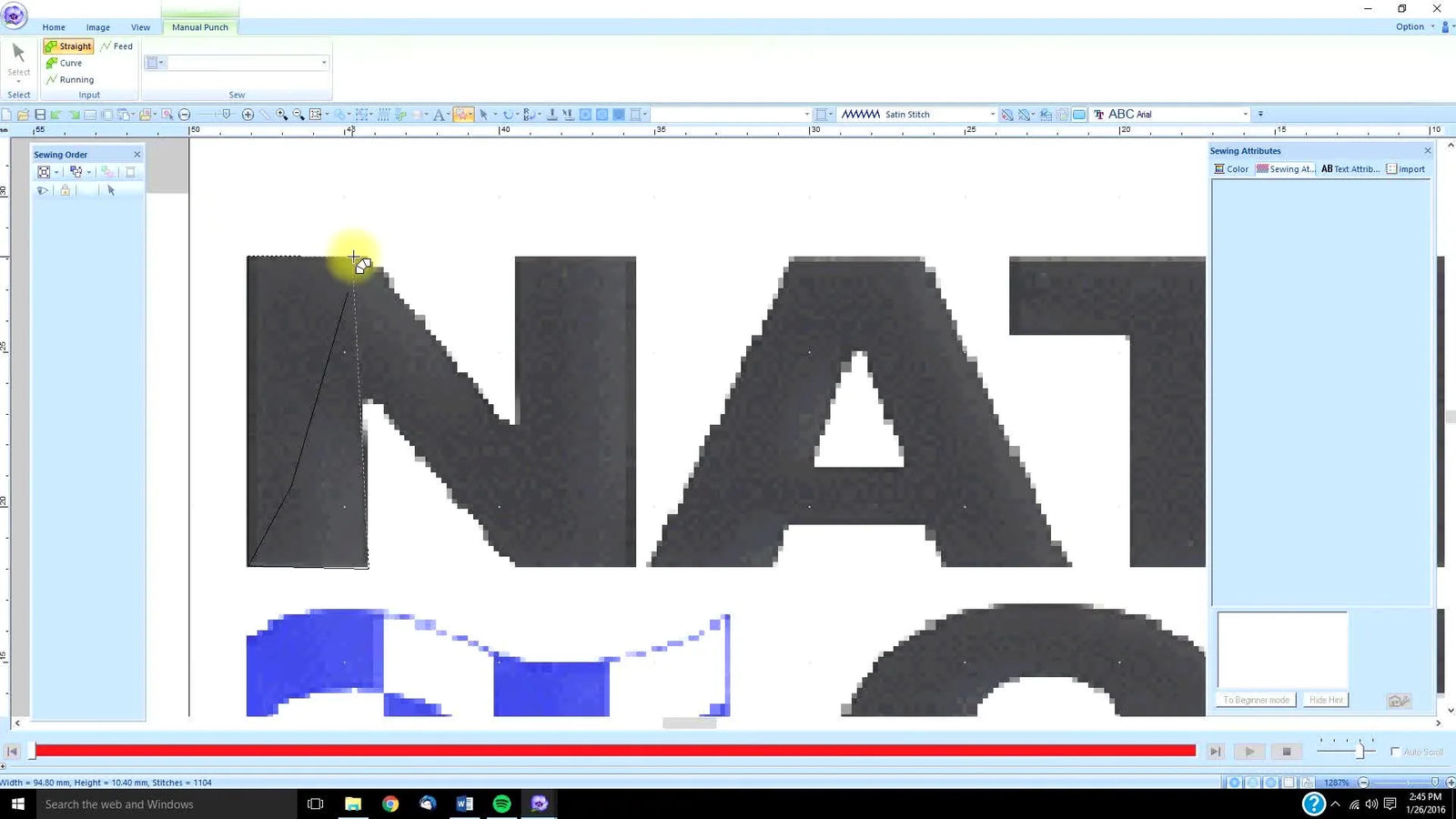

Kathleen begins the "N" with the anchor stitches, then switches to the Straight Block tool.

Sensory Technique: Think of this rhythm like walking: Left foot, Right foot.

• Click Top (Left side of column).
• Click Bottom (Right side of column).
• Repeat down the leg.

Two checkpoints for quality:

1. The "Rung" Test: Imagine the stitch lines crossing the column are rungs on a ladder. They should remain perpendicular to the sides. If the rungs start twisting diagonally, your top and bottom clicks aren’t aligned.
2. The Exit Strategy: Do not just finish the "N" at the top right because that is how you write with a pen. Finish it at the bottom right, because that is the shortest distance to the letter "A."


The 2 mm Rule That Eliminates Trims: Connecting “N” to “A” Without Triggering a Cut

This is the "Secret Sauce" of production files.

Most embroidery machines (Tajima, Barudan, Brother, Happy) have a setting called "Trim at Jump" or "Jump Stitch Trimming." This is usually set to a default length, often around 2 mm or 3 mm.

• If the jump is > 3mm: The machine Stops -> Trims -> Moves -> Starts.
• If the jump is < 2mm: The machine keeps the motor running and drags the thread to the next point (Running Jump).

Kathleen uses the Measure Tool to verify the gap between the "N" exit and "A" entry. If it is under 2mm, she knows the machine will stay continuous. If it's slightly over, she uses a Running Stitch object to bridge the gap manually, ensuring the continuous line.

Real-world application: If your machine embroidery hoops are not securing the fabric tightly (drum-tight), the fabric can flag or bounce. This movement can make those tiny 2mm connection stitches sink into the fabric or look loopy. Stable hooping allows you to get away with tighter, cleaner connections.

Digitizing the Letter “A” With Intention: Travel First, Then Build the Legs, Then Exit on the Right Side

The letter "A" presents a pathing challenge. It has a crossbar and two legs.

The Strategy:

1. Entry: Start at the bottom left (closest to the N).
2. Travel: Use Running Stitch to travel up the left leg and across the crossbar area. Crucial: This travel stitch will be covered by the top layer of satin stitching (Underlay).
3. Build: Switch to Straight Block to build the left leg, then the crossbar, then the right leg.
4. Exit: Ensure the final node is at the bottom right, ready for the "T."

Sensory Check: When you simulate this in software (Slow Redraw), it should look like someone writing in cursive without lifting the pen—one continuous flow.

Setting Up Your Sewing Order Like a Pro: Start/End Points Are Your Real “Font”

If you take one lesson from this workflow: Start and End points are more important than the font shape.

In a production shop, "Good Digitizing" means "Efficient Pathing."

Setup Checklist (Before proceeding)

• Tool Toggle: Can you switch between Running Stitch (Travel) and block (Satin) without looking at the keyboard? (Learn your shortcut keys).
• Measurement: Have you verified the specific trim threshold of your machine? (Check your machine manual; some set it at 5mm, some at 1mm).
• Spacing: Are your letters spaced tightly enough to allow the 2mm rule? If the design requires wide spacing (kerning), you must accept skips or hide the travel stitch under a baseline running stitch if the design allows.

Commercial Upgrade Context: If you are running a high-volume shop, optimizing files is Step 1. Step 2 is hardware. A single-needle machine requires a manual thread change for every color. Moving to a multi-needle machine (like the SEWTECH supported ecosystem) removes that barrier. But remember: even a 10-needle machine runs faster with a clean, trim-free file.

Digitizing the Letter “T” and “O”: Pathing Logic for Centers and Curves

The "T" - Up the Center

Kathleen exits the "A" at the bottom right. The "T" starts at the top left. The distance is too far for a jump.

• The Fix: She enters the "T" at the bottom center. She runs a travel stitch straight up the middle of the "T" stem. This travel line is then covered by the satin column of the stem. It’s invisible in the final product but provides the bridge.


The "O" - Controlling Curves

Circles are hard. A bad node placement makes an "O" look like a potato.

• Tool Switch: Kathleen uses Curve properties (Right-click nodes in most software).
• The "Undo" Reflex: If you place a point and the curve buckles or looks flat, do not hope it "sews out okay." It won't. Immediately Right-Click/Ctrl-Z to remove the node and adjust the angle.
• Visual Anchor: Imagine a clock face. Place nodes at 12, 3, 6, and 9 for a symmetrical circle.


Duplicate Letters Without Duplicating Problems: Ctrl+D Is Fast, But Entry Points Still Matter

You have already digitized a perfect "N." Don't re-digitize it for the second N in "NATIONAL." Use Ctrl+D (Duplicate).

The Trap: The first "N" was designed to start from the left (the beginning of the word). The second "N" sits after an "O." The entry point might be different. In the video, the duplicated "N" immediately triggers a scissor icon. Why? Because the start point of the copy doesn't align with the exit point of the "O."

The “Scissors Disappear” Test: Move the Entry Running Stitch Until the Trim Icon Vanishes

This is the most satisfying part of the process.

Kathleen selects the entry running stitch of the duplicated "N." She grabs the start point node and drags it closer to the exit node of the "O."

The Visual Feedback: Watch the screen. As soon as the distance drops below the threshold, the scissor icon vanishes.

• Scissors Visible: Stop, Trim, Jump.
• Scissors Gone: Continuous sew.

This is your quality gate. No scissors = No wasted time.

Decision Tree: When to Use Keyboard Text vs Manual Punch

Do not manually punch everything. Use this logic to decide where to spend your energy.

• Scenario A: One-off Name on a Towel.
  • Volume: 1 unit.
  • Action: Use Keyboard Text. The time spent digitizing > time saved sewing.
• Scenario B: 50+ Corporate Polos / 20+ Hats.
  • Volume: Medium/High.
  • Action: Manual Punch. The 5 seconds saved per shirt x 50 shirts = 4+ minutes, plus cleaner results.
• Scenario C: Text on Difficult Fabric (Pique/Fleece).
  • Constraint: Fabric sinks; text disappears.
  • Action: Manual Punch. You need to control Underlay and Pull Comp precisely, which is easier with manual objects.
• Scenario D: Hooping is the Bottleneck.
  • Constraint: You digitize fast, but hooping takes forever.
  • Action: Investigate a hooping station for embroidery machine. Consistent placement reduces the need to "tweak" files for alignment errors.

Troubleshooting: The Symptoms of Bad Pathing (and How to Fix Them)

The Upgrade Path: Fewer Trims + Faster Hooping + Safer Handling

Eliminating trims is Level 1 efficiency. Level 2 is optimizing the physical interaction with your machine.

If you are mastering file creation but fighting your equipment, consider these diagnostics:

1. The "Hoop Burn" Struggle:
   • Trigger: You are embroidering delicate performance wear or velvet, and standard hoops leave crushed rings.
   • Solution: Learn how to use magnetic embroidery hoop systems.
   • Why: Magnetic hoops hold by vertical force, not friction. They secure the fabric without crushing the fibers, allowing for faster changes and less product damage.

Warning: Magnetic Safety. Keep magnetic hoops away from pacemakers, key fobs, and hard drives. The pinch force is extreme—keep fingers clear of the snapping zone to avoid blood blisters or worse.

1. The Structured Cap Nightmare:
   • Trigger: You are manually punching text for hats, but the text still looks crooked because the center seam pushes the hoop.
   • Solution: Upgrade to a specialized hat hoop for brother embroidery machine (or your specific brand). These are designed to grip the bill and sweatband, stabilizing the exact area where your text sits.

Operation Checklist: The “Before You Export” Quality Gate

Do not export the DST/PES file until you pass this gate.

Operation Checklist

• [ ] Visual Scan: Switch to "Stitch View" (or 3D view off). scan the entire text block. Are there NO scissor icons between letters?
• [ ] Connector Check: Zoom in on connections. Are links logical (Bottom Right to Bottom Left)?
• [ ] Anchor Verification: Click the first object. Does it have run-in stitches? Click the last object. Does it have tie-off stitches?
• [ ] Underlay Check: Did you add Center Run or Edge Run underlay to your manual satin columns? (Manual punch often defaults to nothing—you must add it).
• [ ] Hidden Consumables Check: Do you have Temporary Adhesive Spray (for applique/stabilizer float), Fine-tip Tweezers (for picking threads), and strict Bobbin Monitoring (don't start a 200-hat run with 10% bobbin left)?

By treating your text as a "sewing route" rather than a "font," you transform from a casual crafter into a production engineer. The machine runs quieter, the floor stays cleaner of thread snippings, and the job finishes faster. That is the sound of profitability.

FAQ

• Q: Why does a Tajima embroidery machine show scissors between every letter when using a keyboard font like Arial for block text?
  A: The keyboard font letters are separate objects, so the Tajima embroidery machine will stop, trim, and jump between each letter.
  • Switch to Stitch View and confirm each letter is an individual object (scissors icons between letters).
  • Re-digitize the word with Manual Punch so the end point of one letter exits near the entry point of the next letter.
  • Measure the exit-to-entry gaps and keep connections under the machine’s “Trim at Jump” threshold (often around 2–3 mm, but verify in the Tajima manual).
  • Success check: Scissor icons disappear between letters and the machine runs letter-to-letter without stopping.
  • If it still fails: Add a short running-stitch bridge between letters or tighten kerning so the gap falls below the trim threshold.
• Q: How do I prevent birdnesting at the start of a new manually punched letter on a Brother multi-needle embroidery machine?
  A: Add a short run-in anchor before the satin/column stitches so the bobbin can catch cleanly.
  • Start the Manual Punch object with 3–4 small running stitches (about 1.5–2 mm long) before the first wide column stitch.
  • Test-sew the start at a safe speed and watch the first second closely.
  • Success check: The start looks tight (no loose loops), and there is no “birdnesting” sound right as the letter begins.
  • If it still fails: Recheck top thread path and tension, and confirm the design is not starting with an overly wide stitch as the very first penetration.
• Q: What is the “2 mm connection rule” for Barudan embroidery machines to eliminate trims between letters in block text?
  A: Keep the travel/jump from one letter’s exit point to the next letter’s entry point short enough that the Barudan does not trigger “Trim at Jump.”
  • Measure the gap between letter exit and next letter entry using the software Measure Tool.
  • Keep the connection under the machine’s trim threshold (the blog example uses 2 mm as the target; some machines may be set differently—check the Barudan settings/manual).
  • If the gap is slightly over, add a manual running-stitch connector that will be hidden by the next satin column/underlay where possible.
  • Success check: Stitch View shows no scissor icon between those two letters and the sew sequence stays continuous.
  • If it still fails: Verify the machine’s jump-trim setting (some are 1 mm, 3 mm, or even 5 mm) and re-plan start/end points to shorten the path.
• Q: How do I safely test a new Manual Punch text file on a Happy industrial embroidery machine without breaking needles?
  A: Run a cautious test sew-out and be ready to stop immediately because bad nodes can cause the needle to hammer one point.
  • Slow the machine down for the first run and keep a hand near the emergency stop.
  • Watch for “zero-length” stitches or stacked nodes that make the needle strike the same hole repeatedly.
  • Wear safety glasses during the test sew-out, especially on dense satin columns.
  • Success check: The needle does not dwell in one spot, the sound stays steady (no repeated hard “thunk” at one point), and there are no sudden thread breaks.
  • If it still fails: Go back to the problem area in software, remove/redo the node(s), and re-simulate with Slow Redraw before sewing again.
• Q: What prep checks should be done before manually digitizing block text for structured caps on a Brother cap frame to avoid redoing the whole word?
  A: Do a quick pre-flight on fabric behavior, needle choice, pull compensation, and travel strategy before placing the first node.
  • Analyze fabric type and set pull compensation appropriately (a safe starting point is 0.2–0.4 mm on stable wovens; higher for knits/pique as needed).
  • Choose the correct needle point (ballpoint for knits, sharp for caps/wovens).
  • Overlay a keyboard font only as a proportion reference, then lock it to prevent accidental edits.
  • Plan letter-to-letter exits/entries visually (e.g., bottom-right of one letter to bottom-left of the next) before digitizing.
  • Success check: Stitch View shows a logical continuous route with minimal or no trims, and the planned exits match the next entries.
  • If it still fails: Re-check cap holding stability (cap frames are sensitive to movement) and re-sequence start/end points for the shortest connections.
• Q: Why do duplicate letters created with Ctrl+D still trigger trims on a Tajima embroidery machine, and how do I fix the entry point?
  A: Duplicating copies the original start point, which may not align with the previous letter’s exit, so the Tajima triggers a trim.
  • Duplicate the letter, then immediately inspect where the duplicated object’s entry running stitch starts.
  • Drag the start point node closer to the previous letter’s exit until the connection falls under the trim threshold.
  • Use the on-screen scissor icon as feedback while adjusting (scissors visible = trim; scissors gone = continuous).
  • Success check: The scissor icon disappears at that connection and Slow Redraw shows a clean letter-to-letter flow.
  • If it still fails: Insert a short running-stitch bridge or redesign the previous letter’s exit point to land closer.
• Q: What are the magnetic hoop safety rules when using magnetic embroidery hoops near industrial embroidery machines?
  A: Treat magnetic hoops as high-pinch-force tools and keep them away from sensitive devices and medical implants.
  • Keep magnetic hoops away from pacemakers, key fobs, and hard drives.
  • Keep fingers clear of the snapping zone when closing the magnetic frame to avoid pinching injuries.
  • Set the hoop down carefully so it does not snap onto metal parts unexpectedly.
  • Success check: The hoop closes without finger contact in the pinch area, and the workspace stays controlled (no sudden snapping onto tools).
  • If it still fails: Change handling technique (two-handed controlled closing) and reorganize the station so sensitive items are stored well away from the hoop.
