Stop the Needle Crash: Sizing Magnetic Embroidery Hoops on the Brother PR1050X with the Half-Inch Rule (and a Camera Check)

The sound of a needle striking a hoop is unmistakable. It’s a sharp, violent CRACK—followed immediately by the sickening sound of metal grinding on plastic, and often, the error beep of a machine that has just lost its timing.

If you have ever hovered over the "Start" button with a magnetic hoop mounted, holding your breath and thinking, "The screen says it fits, but does it really?"—you are not being paranoid. You are being professional.

In the world of commercial heavy-duty embroidery, the map is not the territory. As demonstrated in Jerry’s breakdown on the Brother Entrepreneur Pro X PR1050X, the machine’s computer often "recognizes" a hoop by the mounting bracket width, not by the actual safe sewing field inside your specific frame. This disconnect is the primary cause of "phantom crashes," where the screen shows a green light, but physics delivers a broken needle.

This guide rebuilds the workflow from the video into a strict safety protocol. We will move beyond simple operation into preventative engineering—teaching you how to calculate safety buffers, visualize danger zones, and upgrade your tooling logic to protect your equipment and your profits.

Your Brother PR1050X Hoop Icon Can Lie: Why Factory Hoop Brackets Don’t Protect Magnetic Frames

Brother and Baby Lock multi-needle machines are engineering marvels, but they are designed within a "walled garden." They recognize their own specific factory hoops based on the metal brackets that snap into the machine arms.

When you mount a standard factory hoop, the machine detects the bracket width, identifies the hoop model (e.g., 100x100mm), and automatically imposes software limits to stop you from sewing into the plastic. You can trust this built-in logic for factory hoops.

However, third-party magnetic hoops break this logic. Jerry exposes the trap: A magnetic hoop often uses the exact same bracket width as a much larger factory hoop. Consequently, the machine assumes you have the wide, open space of a large "thin-wall" plastic hoop, when in reality, you have a magnetic frame with thick, solid borders that encroach on that space.

That is why operators using standard brother pr1050x hoops presets often get a false sense of security. The screen displays a large rectangle, but the physical reality is a smaller square.

The Education Officer’s Rule: Treat the on-screen hoop icon as a suggestion, not a law. When using magnetic frames, you are flying on instruments (visual checks), not autopilot (software limits).

The Thick Blue Border Problem: Magnetic Hoop Walls Eat Your Sewing Field (and That’s Where Crashes Come From)

To understand why crashes happen, you must understand the physical anatomy of the tool. Magnetic hoops are game-changers for speed and consistency, but they have a larger physical footprint than standard hoops.

1. The Wall Thickness: Factory hoops have thin, flexible plastic edges. Magnetic hoops have thick, rigid casing to house the high-power magnets.
2. The Reciprocator Danger: It’s not just the needle tip you need to worry about. The needle bar reciprocator (the assembly holding the needle) moves up and down. If you sew too close to the edge, the bar can strike the thick magnetic wall even if the needle clears it.

Jerry points directly to the thick blue border on the Magnetic Embroidery Hoop in the video. This visual cue is your "Do Not Cross" line. If your design path rides the edge of that blue border, you are in the danger zone.

When sourcing magnetic embroidery hoops, newer operators must shift their mindset from "What is the advertised size?" to "What is the Safe Operating Envelope?" The advertised size is the opening; the safe area is significantly smaller.

The Half-Inch Rule That Saves Needles: Calculating a Safe Sewing Area for Magnetic Embroidery Hoops

Mathematics is your cheapest insurance policy. Jerry uses a standard deduction rule that is widely accepted by veteran digitizers and machine operators.

The Formula:

• Subtract 0.5 inch (12.7mm) from the left side.
• Subtract 0.5 inch (12.7mm) from the right side.
• Total Deduction: 1.0 inch from the nominal width and height.

The Practical Application: If you have a 5.5" x 5.5" Magnetic Hoop:

• 5.5" width − 1.0" buffer = 4.5" Maximum Safe Field

A viewer asked the exact question many beginners stumble on: “If you take off 1/2" each direction, left-to-right that’s 1" total… so how does 5.5 become 4.25?"

This is where Jerry separates theory from experience.

• The Math (4.5"): This is the theoretical safe limit.
• The Jerry Standard (4.25"): On his 10-needle machine, he intuitively knows that the left-side hardware (the presser foot assembly and thread wiper geometry) is bulkier. He voluntarily surrenders another quarter-inch for peace of mind.

If you are calculating your magnetic embroidery hoop 5.5 sewing field, start with the strict 4.5" limit. However, if you are running a high-speed production run (800+ SPM) or working with thick garments (jackets), adopt Jerry's conservative 4.25" limit. The cost of a slightly smaller design is zero; the cost of a hoop strike is a $300 machine service call.

Warning: Mechanical Safety
Never "test fit" by starting the stitch-out and hovering your finger over the stop button. Human reaction time (0.25s) is slower than a machine running at 1000 stitches per minute (16 stitches/second). By the time you see the crash, the needle has already impacted the frame three times. Do your boundary checks before the first stitch.

The “Hidden” Prep Before You Trace: What Experienced Operators Check in 60 Seconds

Amateurs load the hoop and press start. Professionals perform a "Pre-Flight Check." In a busy shop, crashes rarely happen because of resizing errors; they happen because of mechanical sloppiness—fabric not seated, stabilizer shifting, or the hoop not fully snapped in.

Hidden Consumables You Need at This Stage:

• Fabric Tape Measure: For physical gap checks.
• Painter’s Tape / Masking Tape: To visually mark the "No Go" zone on the hoop if you are training new staff.

Do this quick prep every time you mount a magnetic hoop. It takes 60 seconds and saves hours of downtime.

Prep Checklist (do this before you touch the camera/trace):

• Auditory Check: Did you hear a distinct CLICK when snapping the hoop arms onto the machine bracket? (Give it a gentle wiggle to confirm it is locked).
• Tactile Check: Run your finger along the inner edge of the magnetic frame. Is the stabilizer flat/taut (like a drum skin), or is there "tenting" near the edges? Tenting causes registration loss.
• Visual Hazard Scan: Verify that the garment arms/sleeves are not bunched up under the hoop where they could snag the moving pantograph.
• Clearance Verification: Ensure your tape measure confirms the physical gap between the needle plate and the hoop bottom is clear of debris.
• Hardware Awareness: Look at the left side of your needle assembly. Acknowledge that it sticks out further than the needle tip.

If you are building a scalable workflow for using magnetic embroidery hoops for brother, this checklist is the standard operating procedure (SOP) that prevents "Monday Morning Crashes."

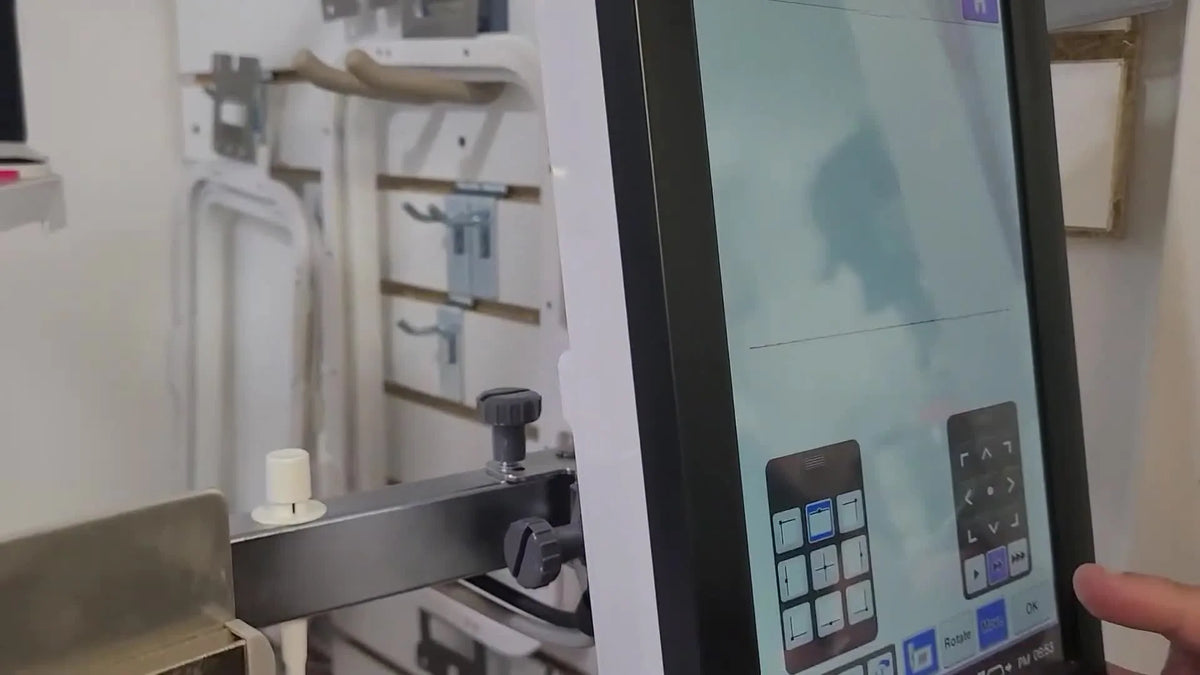

The Camera Trace Routine on the Brother PR1050X: How Jerry Verifies Clearance on a 4.25" Magnetic Embroidery Hoop

Jerry mounts the 4.25" magnetic hoop and utilizes the machine's built-in camera to overlay the design on the live video feed. This is the superpower of the Brother PR1050X/Entrepreneur Pro X series.

The Workflow:

1. Mount the Hoop: 4.25" Magnetic Frame.
2. Load the Design: Import your file.
3. Engage Camera/Trace: Select the trace function that moves the hoop while projecting the design limits or showing the camera feed.

What to Monitor: Do not just stare blankly at the screen. You are looking for specific Violation Indicators:

• The Line Cross: Does the design outline touch the blue plastic border?
• The Corner Trap: Corners are where the needle bar rotation is most likely to hit the frame geometry.
• The Shadow: Look at the shadow of the presser foot on the visual feed. If the foot shadow overlaps the frame, you are too close.

Jerry emphasizes the Left-Side Bias. Even if the needle clears, the bulky head on the left side of the carriage might not. This is why he treats designs that "technically fit" but lean left with extreme suspicion.

The Red Box Test: Creating a Boundary Design So You Can See a Crash Before It Happens

Visualizing a complex logo's outer limit is difficult. Visualizing a square is easy. A viewer asked, "How did you create those little red boxes?"

Jerry uses a technique known as "The Bounding Box Method."

1. He creates a simple running stitch square (e.g., 3" x 3").
2. He loads this "test file" onto the machine.
3. He resizes this box on the machine screen to match the hoop's nominal size (e.g., 4.25").

The Diagnostic Value: When you project a 4.25" box onto a 4.25" hoop using the camera, the red line will sit directly on top of the magnetic frame wall. This offers immediate, undeniable visual proof that advertised size ≠ safe sewing size.

You should create a folder of "Field Gauge" files (squares of 3", 4", 5") on your USB drive. Use them to verify the limits of any new how to use magnetic embroidery hoop setup before you risk a real garment.

The Crash Simulation Jerry Shows (and Why the Machine Doesn’t Warn You)

Jerry performs a crucial demonstration: He resizes the design to a full 4.25" box and runs the camera check. On screen, the design line rides directly over the plastic frame.

The Critical Failure Point: The machine does not beep. It does not lock the screen. It does not warn you "Hoop Mismatch."

Why? Because the metal brackets holding the magnetic hoop are wide enough to belong to a larger factory hoop (like the 5x7 or 8x12). The machine thinks you have inches of clearance.

The "Must-Do" Rule:

• If you are near the edge, visual verification is mandatory.
• If the machine is silent, it does not mean you are safe.

Experienced operators think in terms of Dynamic Physics: Fabric pushes and pulls under the needle. A satin stitch can expand a millimeter due to density. A design that is 1mm away from the edge while stationary can easily drift into the hoop wall during a 1000 SPM run.

The Easy Win: Size Up to a 5.5" Magnetic Embroidery Hoop When the Design Is 4.25"—and Sleep Better

This is the single most important lesson for production efficiency. Jerry removes the 4.25" hoop and installs the 5.5" hoop. Note that he does not change the arm width on the machine—the brackets are identical.

He runs the same 4.25" box trace.

• Result: The red line now floats comfortably inside the sewing field with room to spare.

The Production Mindset: If a design is pushing the limits of your current hoop (within 90% of max capacity), stop. Do not try to "finesse" it. Upsize the hoop.

Moving to a 5.5 magnetic embroidery hoop for a 4.25" design gives you:

1. Mechanical Clearance: Zero risk of needle strike.
2. Stabilizer Stability: More material around the design reduces puckering.
3. Operator Speed: You spend less time micro-adjusting positions.

In a commercial environment, the time you save by not having to align a design to the millimeter pays for the larger hoop in one week.

The Left-Side Clearance Trap: It’s Not Just the Needle—It’s the Needle Support Assembly

Jerry highlights a nuance that separates the hobbyist from the technician: The Needle Support Assembly.

On Brother PR machines, the threading mechanism and presser foot assembly have protrusions on the left side of the needle bar case. When the machine moves to the far left of the hoop, the needle might be safe, but that metal protrusion can slam into the magnetic frame wall.

Practical Habits for Left-Side Safety:

• The "Thumb Rule": Can you fit your thumb between the needle bar case and the hoop frame at the tightest point? If not, you are too close.
• Avoid Curve Placements: Don't place dense lettering right into the curved corner of a hoop.
• Upgrade Your Tooling: A well-designed magnetic embroidery frame will often have lower profiles, but you must still respect the machine's physical geometry.

Stabilizer and Fabric Reality: A Quick Decision Tree to Prevent “Edge Drift” Near the Hoop Wall

The video shows stabilizer (backing) in the hoop, but doesn't explain how it affects hoop safety. Weak stabilization allows the fabric to "flag" (bounce up and down) or pull inward, potentially dragging the design closer to the metal frame as you sew.

Use this decision tree to choose the right stabilization when you are working near the edges.

Decision Tree (Fabric → Stabilizer Strategy → Safety Margin):

1. Stable Woven (Canvas, Denim, Twill)
   • Stabilizer: 1x Firm Cutaway or 2x Tearaway (criss-crossed).
   • Safety Margin: Standard 0.5" deduction is usually safe.
   • Action: Ensure hoop tension is high to prevent slippage.
2. Stretchy Knits (Polos, T-Shirts)
   • Stabilizer: 1x No-Show Mesh + 1x Tearaway OR 1x Medium Cutaway. Must use Cutaway.
   • Safety Margin: Add +0.25" extra buffer. Knits pull inward; designs shrink.
   • Action: Do not stretch the fabric when hooping; let it lay neutral.
3. Slippery/Thin (Performance Wear)
   • Stabilizer: Self-Adhesive Stabilizer or Spray Adhesive + Cutaway.
   • Safety Margin: Keep designs 1 inch away from edges if possible.
   • Action: Use a smaller needle (75/11) to reduce drag force.
4. High-Pile (Towels, Fleece)
   • Stabilizer: Medium Cutaway + Water Soluble Topper (Solvy).
   • Safety Margin: Increase buffer. The presser foot has to ride high, reducing precision.
   • Action: Watch for the pile getting caught in the foot.

Generally, the less stable the fabric, the smaller your effective sewing field becomes.

Setup Checklist: Lock In the Design Position Before You Commit to the Stitch-Out

Once your hoop is mounted and your design is loaded, your job is to eliminate variance.

Setup Checklist (right before you run the camera/trace):

• Centering: Is the design centered by logic, or just "where it landed"? Re-center it manually.
• Target Size: Do you know your hard limit? (e.g., "I cannot exceed 4.25 inches").
• The "One Inch" Math: Have you subtracted the full 1.0 inch form the hoop size (0.5 + 0.5)?
• Left-Side Bias: Have you checked the clearance for the needle support assembly, not just the needle tip?
• Consumable Check: Is the bobbin full? Running out of bobbin near the edge of a hoop can sometimes lead to tangled bird-nests that pull fabric off-center.

Operation Checklist: The Calm, Repeatable Way to Start Sewing Without Regret

After the camera/trace confirms clearance, you are ready to sew. Do not simply walk away.

Operation Checklist (the first 30 seconds of sewing):

• Speed Limit: Start at 500-600 SPM. Do not jump to 1000 SPM immediately.
• Aural Monitor: Listen for the rhythmic thump-thump. A sharp click or grinding noise means stop immediately (E-Stop).
• Visual Tracking: Watch the hoop wall relative to the moving pantograph, especially on the first color change.
• Clearance Re-Check: If you have to reposition the design, grab your tape measure and re-verify the buffer zone.

Warning: Magnetic Field Safety
Magnetic hoops use industrial rare-earth magnets. We are talking about 10-20 lbs of pinching force.
1. Keep fingers clear of the "snap zone" to avoid blood blisters.
2. PACE MAKER WARNING: Keep these hoops at least 6 inches away from implanted medical devices.
3. Keep magnets away from embroidery machine screens and USB drives to prevent data corruption.

Quick Troubleshooting: Symptom → Likely Cause → Fix

1) Symptom: Needle strikes the metal hoop frame.

• Likely Cause: Machine recognized the bracket width as a larger factory hoop; operator relied on screen visual only.
• Fix: Apply the 0.5" deduction rule. Perform a Camera Trace every time. Replace needle immediately (even if it looks straight, the tip is hooked).

2) Symptom: Design hits the left side, but needle looked clear.

• Likely Cause: The Needle Support Assembly (reciprocator) hit the frame wall or latch.
• Fix: Use Jerry’s conservative sizing (add an extra 0.25" buffer on the left). Avoid placing designs deep in the corners.

3) Symptom: Machine loses position (Registration loss) near edges.

• Likely Cause: Fabric "Flagging" (bouncing) because the foot is hitting the hoop wall, preventing it from holding fabric down.
• Fix: Upsize the hoop. If you are hitting the wall, the hoop is too small for the job.

The Upgrade Path: When to Switch Tools for Profit

If you are doing one-off hobby projects, Jerry’s method is sufficient: Calculate, Trace, Pray, Sew.

However, if you are running a business—processing team logos, bulk orders, or high-value items—you need to eliminate the "Fear Factor" to increase throughput.

When to Upgrade Your Workflow:

1. Problem: "Hoop Burn" (shiny rings on fabric) or wrist fatigue from manual hopping.
   • Solution: Magnetic Hoops (SEWTECH/Magnetic Embroidery Hoop). They eliminate hoop burn and reduce hooping time by 30-50%. The ROI is typically reached within the first 50 shirts.
2. Problem: Constant fear of crashing or spending 5 minutes tracing every design.
   • Solution: Upsize Your Hoop Inventory. Don't try to squeeze a 4.5" logo into a 5.5" hoop. Buy the 7.25" magnetic hoop. Giving yourself space is the cheapest way to buy speed.
3. Problem: Bottlenecks. You are spending more time changing thread colors than sewing.
   • Solution: Multi-Needle Platform (SEWTECH Machines). Moving from a single needle to a 10 or 15-needle machine isn't just about colors; it's about the rigid tubular arm that allows you to use these heavy-duty magnetic hoops safely and effectively.

The best shops don’t rely on luck. They build a repeatable system: Conservative sizing, mandatory visual verification, and the discipline to use the right size tool for the job.

FAQ

• Q: Why can the Brother PR1050X hoop icon show a safe sewing area when a third-party magnetic hoop can still crash?
  A: The Brother PR1050X may identify the hoop by mounting bracket width (factory logic), not by the true safe field inside a magnetic frame, so the screen can look “green” while the physical wall is closer.
  • Treat the on-screen hoop boundary as a starting point, not a guarantee, when using magnetic hoops.
  • Subtract the safety buffer first, then verify with Camera Trace before the first stitch.
  • Prioritize extra clearance on the left side where the needle support hardware is bulkier.
  • Success check: The traced outline stays clearly inside the magnetic frame wall on the live camera view, including corners and the left side.
  • If it still fails… Upsize to the next hoop size instead of trying to “finesse” placement near the border.
• Q: How do I calculate a safe sewing field on a Magnetic Embroidery Hoop for the Brother PR1050X to prevent needle strikes?
  A: Use the half-inch buffer rule as a safe starting point: subtract 0.5" from the left and 0.5" from the right (1.0" total) from the hoop’s nominal width/height, then consider extra left-side clearance if needed.
  • Do the math on paper first (example: 5.5" nominal → 4.5" theoretical safe field).
  • Apply a more conservative limit when running fast or bulky items (many operators keep extra margin on the left side).
  • Verify the final boundary using Camera Trace, not by “hovering over the Start button.”
  • Success check: The design boundary does not touch the thick magnetic wall (especially the blue border area) during trace.
  • If it still fails… Stop using that hoop size for that design and move up to a larger hoop.
• Q: What 60-second pre-flight check should Brother PR1050X operators do before running Camera Trace with a magnetic embroidery hoop?
  A: Do a quick mechanical and material check before touching trace—most crashes come from sloppy mounting, shifting fabric, or hidden snag points, not the file itself.
  • Listen for a distinct CLICK when the hoop arms snap onto the machine bracket and gently wiggle to confirm it is locked.
  • Feel the stabilizer and fabric: aim for flat/taut (no “tenting” near the inner edge).
  • Scan for garment bulk (sleeves/arms) bunched under the hoop that could snag the moving pantograph.
  • Success check: The hoop is locked, the backing feels drum-tight, and nothing is hanging into the travel path.
  • If it still fails… Re-hoop with better stabilization and slow down the first run to confirm the setup is stable.
• Q: How do I use the Brother PR1050X camera trace to confirm left-side clearance with a 4.25" magnetic hoop?
  A: Use Camera Trace to check the design boundary and the hardware shadow, because the needle support assembly can hit the frame even when the needle tip looks safe.
  • Run the trace and watch for the outline touching the frame wall, especially in corners.
  • Watch the presser foot/assembly shadow on the camera feed; shadow overlap near the frame is a warning sign.
  • Reposition the design away from the left side if it “technically fits” but leans left.
  • Success check: There is visible air gap between the design boundary and the frame wall, and the left-side hardware shadow stays clear.
  • If it still fails… Adopt a more conservative left-side buffer or switch to a larger hoop.
• Q: How do I create and use a red bounding box test file on the Brother PR1050X to reveal magnetic hoop danger zones?
  A: Use the Bounding Box Method: stitch a simple running-stitch square, resize it on-screen to the target field size, and trace it to see the true edge before risking a real logo.
  • Load a simple square “field gauge” design (many shops keep multiple sizes saved on a USB drive).
  • Resize the box on the machine to match the intended sewing field (not just the advertised hoop size).
  • Run Camera Trace to see whether the box line rides on the magnetic wall (danger) or floats inside (safe).
  • Success check: The box outline sits comfortably inside the magnetic frame wall with consistent clearance on all sides.
  • If it still fails… Treat it as proof the setup is too tight and move up to the next hoop size.
• Q: What should I do on a Brother PR1050X when a needle strikes a magnetic hoop frame or the machine starts grinding?
  A: Stop immediately and revalidate the safe field—this symptom usually means the machine assumed a larger factory hoop based on bracket width, and the design is too close to the magnetic wall.
  • E-stop/stop the run right away; do not “test fit” at speed.
  • Replace the needle immediately (a struck needle may be hooked even if it looks straight).
  • Recalculate the sewing field using the 0.5" buffer rule and redo Camera Trace before restarting.
  • Success check: After adjustment, the trace shows clear margin from the wall and the first seconds of sewing sound smooth (no sharp clicks/grinding).
  • If it still fails… Upsize the hoop; repeated edge work is a sign the hoop is undersized for the design and garment.
• Q: What magnetic hoop safety rules should Brother PR1050X shops follow to prevent finger pinches and pacemaker risk?
  A: Treat magnetic hoops like industrial clamps—keep fingers out of the snap zone, and keep magnetic frames away from implanted medical devices and sensitive electronics.
  • Keep hands clear when closing the magnetic frame; expect strong pinching force.
  • Keep magnetic hoops at least 6 inches away from pacemakers/implanted medical devices.
  • Keep magnets away from machine screens and USB drives to reduce the risk of data issues.
  • Success check: The hoop can be opened/closed without fingers entering the pinch area, and the work area has a consistent “magnet-safe” placement habit.
  • If it still fails… Add handling steps for staff training (slow, deliberate closing and a designated parking spot for hoops away from electronics).
