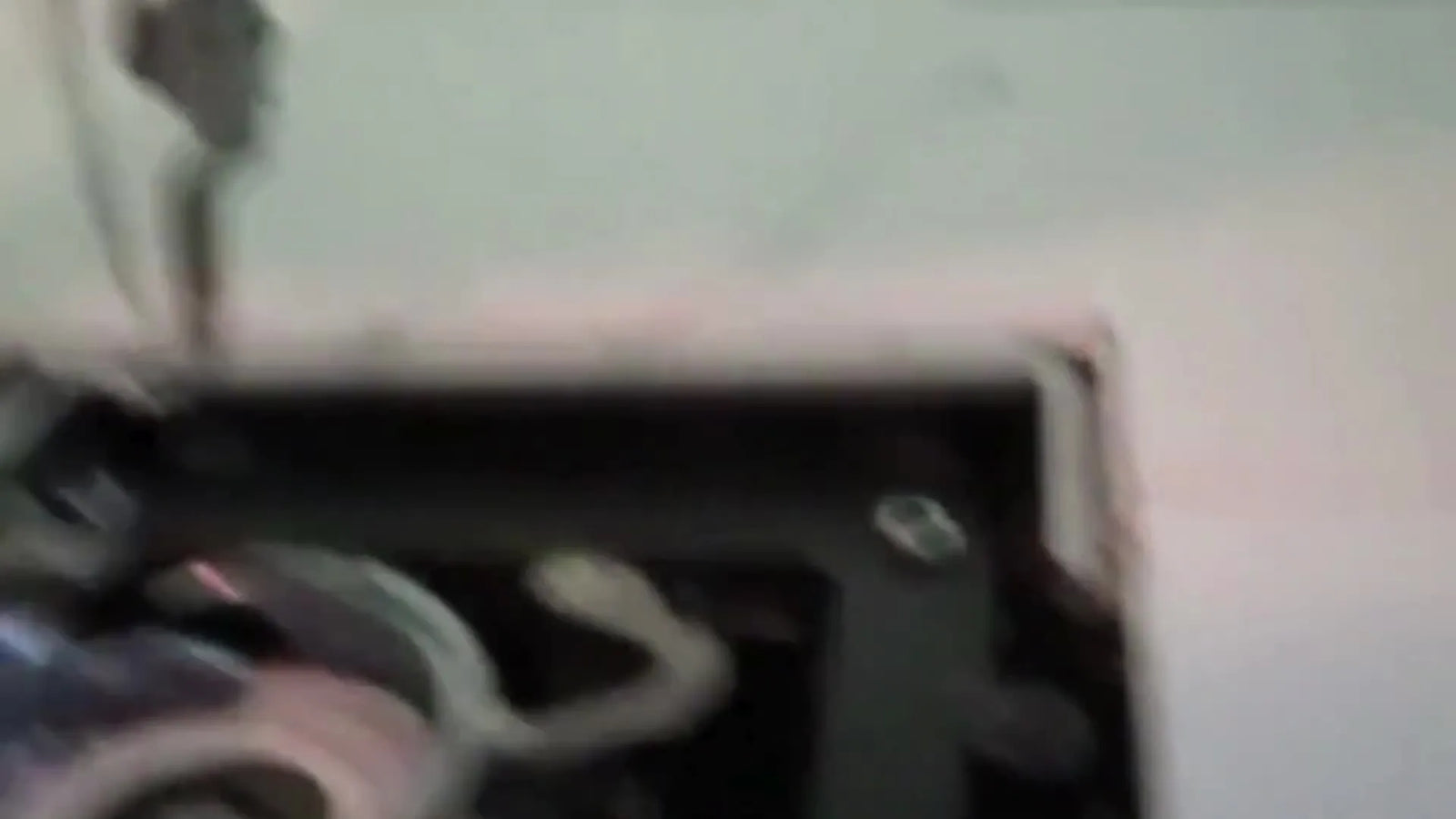

Stop the “Mystery Tension” on Your Janome: A Calm, No-Damage Bobbin-Area Clean That Fixes Loops Fast

Janome Maintenance Masterclass: Stop the "Bird's Nest" Before It Starts

If your Janome embroidery machine suddenly starts acting “possessed”—throwing loops, creating a "bird's nest" of thread under the fabric, or making a gritty thunk-thunk-grind sound you can’t un-hear—take a breath. I have heard this sound thousands of times in my 20 years of teaching, and 95% of the time, it is not a catastrophic failure. It is simply lint.

Embroidery is an "experience science." Your machine is a precision instrument relying on micron-level tolerances. When lint (a mix of fiber dust and oil) builds up, it pushes the bobbin case out of alignment by a fraction of a millimeter. That is all it takes to ruin a design.

This guide is your "White Paper" for bobbin area maintenance. We will move beyond basic cleaning into preventative hygiene that professionals use to keep their machines running at top speed.

Keep Your Fingers Out of the Danger Zone: The "Auto-Start" Reality

Before we touch a screwdriver, we must address the psychological difference between sewing and embroidery. In sewing, you control the gas pedal. In embroidery, the computer drives. I have seen seasoned sewers get complacent, put their hands in the frame to fix a pucker, and accidentally hit the "Start" button.

The Golden Rule: If you need to adjust fabric, trim a jump stitch, or check a hoop, Stop the machine completely.

Warning: Physical Injury Risk. Embroidery needles move at 400 to 1,000 impacts per minute. They can pierce skin and bone instantly. Never place fingers inside the hoop area while the machine is live. If you must adjust the material, pause the machine and lift the presser foot first.

A calm operator makes fewer mistakes. Panic leads to "force," and force breaks machines.

The "Hidden" Prep Pros Do First: Thread, Light, and a Clean Workspace

Do not open your machine while your workspace is cluttered. You are about to deal with tiny screws that love to bounce into carpet.

The Professional Setup Protocol:

1. Power Down: Turn the switch OFF. We are working near sensors and moving gears; static or accidental movement can damage the motherboard.
2. Lighting: Use a bright LED task light focused directly on the needle plate. Shadows are your enemy here.
3. The "Screw Trap": Have a magnetic bowl or a small lip-edged container ready.
4. Consumables:
   • Lint Brush: (Usually supplied with the machine).
   • Non-Fibrous Wipes: (Microfiber or specific electronics wipes; never use tissues or paper towels that shed dust).
   • Tweezers: For grabbing stubborn thread clumps.

Crucial Note on Thread Quality: If you are constantly battling lint, look at your thread spools. Hold your thread up to the light. Does it look "hairy"? Cheap thread sheds lint like a golden retriever. Using high-quality polyester thread (like Simthread or equivalent) reduces lint buildup by up to 60%. The host warning against "dusty thrift-store thread" is practically a biblical commandment in my studio.

Prep Checklist (Pre-Flight):

• Machine powered OFF.
• Embroidery unit removed (if applicable) to give you elbow room.
• Magnetic dish/container placed within reach.
• Top thread unthreaded (to prevent pulling the spool down).
• Needle removed (optional, but gives you more hand space and prevents scratching your wrist).


Removing the Janome Needle Plate Screws Without Stripping Them

You will remove the metal needle plate by taking out the two screws.

Tactile Tip: Insert your flathead screwdriver (often the "coin" tool or short driver). Press down firmly before you turn. You want to feel the driver "bite" into the slot. These screws can be tight from the factory. If you just turn without downward pressure, you risk stripping the screw head.

1. Loosen the two screws.
2. Lift them out with your fingers once loose.
3. Immediately place them in your "Screw Trap."


Lift the Needle Plate and Read the Scene: Anatomy of a Jam

Lift the metal needle plate straight up. Set it aside.

Now, look at the ecosystem under there. You are looking for two things:

1. "Dust Bunnies": Soft piles of lint. These are common.
2. "Lint Concrete": Hard, packed lint trapped between the feed dogs (if applicable) or in the hook race. This is dangerous because it acts like a shim, forcing parts out of alignment.

The Expert Reality: Even a buildup the size of a grain of rice can prevent the bobbin case from "floating" correctly. If the case can't float, the top thread can't slide around it to form a stitch. Result? Loops and tension errors.

Pull the Bobbin Case Straight Up: The "Zero Force" Rule

The black plastic part is the Bobbin Case (also called the Bobbin Holder). It is held in place only by magnets or simple gravity and a stopper.

The Action:

• Grip the center post or the sides.
• Lift Straight Up.

Sensory Check: There should be zero resistance. It should lift out as easily as a piece of paper. If it feels stuck, do not pry it. You likely have a thread nested underneath. Wiggle it gently (millimeter movements) until it releases. Prying leads to burrs on the plastic, and a burred bobbin case creates shredded thread later.

Brush the Hook Race Like You Mean It: The "Swoosh and Lift"

The metal basin where the black case sat is the Hook Race. This is the heart of the machine.

The Technique: Don't just push the dust around. Use your brush to lift the lint out.

• Visualize: You are an archaeologist sweeping dirt away from a dig site, not into it.
• Warning: Do NOT use canned air. Canned air blows lint deep into the sensors and gears of computerized machines, leading to expensive repair bills later. Vacuum or brush out.


Wipe the Bobbin Basket and the Black Ring: The Invisible Enemy

Brushing gets the big chunks. Wiping gets the micro-dust.

Use your micro-fiber wipe or a slightly damp (not wet) cleaning swab.

1. Wipe the Silver Track/Race: This is where the bobbin case spins. It must be polished clean.
2. Wipe the Black Sensor Eye (if your machine has a low-bobbin sensor): Dust here causes false "Bobbin Empty" alarms.

Expert Insight: The host mentions looking for "loose threads." I often find a roughly cut thread tail hiding under the tension spring. Use your tweezers and a flashlight to inspect the crevices. A single 2mm thread snippet can jam the entire rotation.

Clean the Bobbin Case and Needle Plate Underside

Lint defies gravity. It sticks to the bottom of your needle plate and the sides of your bobbin case.

• Inspect the Bobbin Case (Plastic): Run your finger along the edge of the plastic case. Do you feel any scratches or "bites"? Needle strikes leave burrs here.
  • If smooth: Wipe clean and reuse.
  • If rough: You need to sand it gently with 2000-grit sandpaper or replace the case. A rough case will snap your thread.


The Red-Arrow Alignment: The Defining Moment of Maintenace

This is the single most critical step in this entire article. If you get this wrong, your machine will jam immediately upon starting.

The Visual Anchor: Look at your machine's metal housing. There is a small red dot or arrow (usually on the left). Look at your black bobbin case. There is a corresponding red triangle or dot (or sometimes a white mark, depending on the model).

The Action:

1. Drop the bobbin case into the race.
2. It should sit flat.
3. Rotate it gently until the Red Arrow meets the Red Dot.
4. Sensory Check (The "Bounce"): Tap the case lightly with your finger. It should have a tiny bit of "play" or bounce. It should not feel wedged tight.




Put the Needle Plate Back Flush: Reassembly

Place the metal needle plate back.

The Alignment Check: Before screwing it down, run your finger over the seam where the plate meets the machine bed. It must be perfectly flush. If the plate is rocking, there is lint trapped underneath it. Lift and clean again.

Tighten the screws firmly, but do not overtighten (remember, you have to take them off again in 3 days!).

Setup Checklist (The "Go/No-Go" Test):

• Visual: Red Arrow on bobbin case aligns with the mark on the machine.
• Tactile: Bobbin case has a slight "wiggle" (it is not jammed).
• Structural: Needle plate is flush, no rocking.
• Hygiene: No visible "fuzz" in the raceway.

Load the Bobbin the Janome Way: The "P" for Perfect

Insert your bobbin.

The Cognitive Hook: Hold the bobbin so the thread hangs down forming the letter "P".

• "P" is for Perfect.
• "q" is for Quit (wrong way).

1. Drop the bobbin in.
2. Guide the thread through the slit and under the tension leaf.
3. Tension Check: Pull the thread gently. You should feel a slight, smooth resistance (like pulling a hair). If it pulls with zero resistance, you missed the tension spring. Retry.






Diagnose Stitch Problems Fast: The Thread Path Heuristic

When stitches fail, beginners panic. Experts triage. Use this decision matrix to diagnose 90% of issues without calling a tech.

The "Why It Works" Part: Physics of the Thread Path

Why does cleaning solve tension issues? Tension is simply controlled drag. Your machine balances the drag on the top thread against the drag on the bobbin thread.

• Lint = Random Drag. A clump of lint adds unpredictable friction. Suddenly, your "4.0" tension setting feels like "8.0" to the machine, causing the thread to snap or loops to appear.
• Clean Machine = Consistent Physics. When you clean, you return the machine to its "factory zero" state.

Needle, Threader, and Clean Thread: The Trinity of Smooth Operations

To maintain this "clean state," adopt these three micro-habits:

1. Needle Hygiene: A dull needle punches fabric rather than piercing it, driving lint down into the bobbin area. Change your needle every 8 hours of stitching time or after every major project.
2. Upper Path Cleaning: Floss the upper tension discs with a piece of un-waxed dental floss occasionally to dislodge dust.
3. Input Quality: Use clean, branded thread. If a spool has been sitting on a dusty shelf for 5 years, peel off the outer layer of thread before using it.

The Production Bottleneck: When "Cleaning" Isn't the Problem

You have cleaned the machine. The tension is perfect. But your results are still mediocre—puckering fabric, crooked designs, or hoop burn marks on delicate velvet.

This is not a maintenance issue; it is a Physics issue regarding how you hold the fabric. Standard plastic hoops rely on friction and muscle power. This is often the point of failure for growing embroidery businesses.

The Upgrade Assessment:

• Trigger: You dread hooping. Your wrists hurt. You are rejecting jobs with thick items (towels, jackets) because you can't close the hoop.
• Criteria: If you are doing production runs (5+ items) or working with delicate fabrics that crush easily, standard hoops are costing you money.
• The Solution: This is where professionals switch to magnetic embroidery hoops.

Unlike friction hoops, a magnetic embroidery frame uses vertical magnetic force to clamp the fabric.

• Benefit 1: No "hoop burn" (friction rings) on sensitive fabrics.
• Benefit 2: Speed. You can hoop a shirt in 10 seconds versus 60 seconds.
• Benefit 3: Stability. The fabric is held by force, not friction, reducing shifting.

Warning: Magnetic Safety. These are industrial-grade magnets. They can pinch fingers severely if they snap together unexpectedly. Keep them at least 6 inches away from pacemakers, insulin pumps, and magnetic storage media.

If you own a Janome, ensure you look specifically for magnetic hoops for janome embroidery machines to ensure the brackets fit your specific arm width. For those doing bulk orders, pairing this with a hooping station for machine embroidery guarantees that every logo is placed in the exact same spot on every shirt, removing the "guesswork" anxiety.

The "Do This Every Time" Routine: A Repeatable Maintenance Rhythm

Create a mental trigger. For me, it is the bobbin change.

• Every Bobbin Change: Quick blown breath (or light brush) to clear visible fuzz.
• Every 5 Projects (or 100,000 stitches): Full screwdriver disassembly and deep clean (the process above).

Operation Checklist (Final Pre-Stitch Verification):

• Bobbin thread unwinds counter-clockwise ("P" Shape).
• Thread is securely inside the tension leaf slit.
• No stray thread tails visible in the raceway.
• Top thread is threaded with the presser foot UP (to open tension discs).
• Needle is fresh and appropriate for your fabric weight.

A Final Word: Confidence is Silent

A well-maintained machine sounds different. It hums; it doesn't rattle.

If you are a new owner, do not fear the inside of your machine. The bobbin area is designed to be accessed by you. Master the Red Arrow alignment, respect the "No Canned Air" rule, and keep your "Screw Trap" handy.

Once your machine maintenance is routine, you can stop worrying about the tool and focus on the art. And when you are ready to stop fighting with plastic hoops, consider how upgrades like a magnetic embroidery hoop or even a janome embroidery machine with multi-needle capabilities can transform your hobby into a streamlined production workflow.

FAQ

• Q: How do I stop a Janome embroidery machine from making a “bird’s nest” of thread under the fabric after cleaning?
  A: Rethread the upper thread completely with the presser foot UP, because the tension discs often did not capture the thread.
  • Power OFF, raise the presser foot, and remove the top thread completely.
  • Rethread the full upper path slowly, then reinsert the bobbin in the correct direction.
  • Confirm the bobbin thread is guided through the slit and under the tension leaf before stitching.
  • Success check: The underside stops forming loose loops and the machine sound returns to a steady hum (no gritty thunk-grind).
  • If it still fails: Open the needle plate and remove any packed lint or stray thread in the hook race and around the bobbin case.
• Q: How do I correctly align a Janome bobbin case using the red arrow/red dot marks to prevent immediate jamming?
  A: Seat the Janome bobbin case flat, then rotate it until the red arrow on the case matches the red mark on the machine.
  • Lift the bobbin case straight up and re-drop it into the hook race with zero force.
  • Rotate gently until the red arrow/red dot alignment is exact.
  • Tap the case lightly to confirm it has a little “play” and is not wedged.
  • Success check: The bobbin case has a slight wiggle/bounce and the machine does not jam on the first stitches.
  • If it still fails: Remove the case again and look for a nested thread tail or “lint concrete” acting like a shim underneath.
• Q: What is the correct Janome bobbin loading direction using the “P for Perfect” check, and how do I verify bobbin tension pickup?
  A: Load the Janome bobbin so the thread hangs in a “P” shape, then pull the tail to feel smooth, slight resistance under the tension leaf.
  • Hold the bobbin so the thread forms a capital “P” as it unwinds (wrong direction looks like “q”).
  • Drop the bobbin in, guide the thread through the slit, and pull it under the tension leaf.
  • Pull the thread gently to confirm it is seated in the tension spring path.
  • Success check: The bobbin thread pulls with slight, smooth resistance (not free-spinning, not stuck).
  • If it still fails: Re-seat the bobbin case and confirm the red arrow alignment before testing again.
• Q: Is it safe to use canned air to clean a Janome embroidery machine hook race and bobbin area?
  A: Do not use canned air on a computerized Janome embroidery machine; brush and lift lint out instead.
  • Power OFF before cleaning near sensors and moving parts.
  • Use a lint brush to “swoosh and lift” debris out of the hook race rather than pushing it around.
  • Wipe the silver track/race and any black sensor eye (if present) with a non-fibrous wipe or slightly damp swab.
  • Success check: No visible fuzz remains, and “Bobbin Empty” warnings (if previously false) stop occurring.
  • If it still fails: Inspect crevices with a flashlight and tweezers—even a tiny thread snippet under a spring can jam rotation.
• Q: How do I remove Janome needle plate screws without stripping them during bobbin-area maintenance?
  A: Press the screwdriver down firmly before turning so the driver “bites” into the screw slot.
  • Use the correct flathead/coin tool and apply strong downward pressure first.
  • Loosen both screws, then lift them out by hand once they break free.
  • Drop screws immediately into a magnetic bowl or lip-edged container to prevent loss.
  • Success check: Screw slots stay crisp (not chewed), and the screws tighten/loosen smoothly on reassembly.
  • If it still fails: Stop before forcing—use better lighting and reposition the driver to fully seat in the slot.
• Q: What does “mess on top” vs “mess on bottom” mean on a Janome embroidery machine, and what is the fastest fix?
  A: Use the Janome thread-path triage: mess on TOP points to a bobbin-area issue; mess on BOTTOM points to an upper-thread threading/tension-disc issue.
  • If mess is on top: Clean the bobbin area and re-seat the bobbin case; confirm red-arrow alignment.
  • If mess is on bottom: Rethread the top thread with the presser foot UP so the tension discs can grab the thread.
  • Change the needle if skipped stitches appear (dull/bent needles commonly cause it).
  • Success check: Stitches balance with no looping on either side and no sudden thread snapping.
  • If it still fails: Inspect for packed lint (“lint concrete”) or a trapped thread tail in the hook race.
• Q: When should a Janome embroiderer upgrade from standard plastic hoops to magnetic embroidery hoops for hoop burn, puckering, or slow hooping?
  A: Upgrade to magnetic hoops when fabric holding—not cleaning—has become the bottleneck (hoop burn, shifting, wrist strain, or slow, inconsistent hooping).
  • Confirm the issue is not maintenance by doing a deep bobbin-area clean and verifying correct bobbin loading and red-arrow alignment.
  • Try Level 1 technique: Slow down and focus on consistent hooping and stable fabric handling; recheck results.
  • Move to Level 2 tool upgrade: Use magnetic hoops to clamp fabric with vertical force to reduce hoop burn and speed up hooping.
  • Success check: Items hoop faster and more consistently, with fewer shift/pucker rejects and reduced friction rings on delicate fabrics.
  • If it still fails: Consider Level 3 capacity upgrade—higher-volume work may justify a multi-needle machine for production efficiency and repeatability.
