Stop the “Missing Image” Ghost Designs: Clean a Bernina USB Stick After Mac Downloads (Without Losing Your Real Files)

Mac users, take a breath. That sinking feeling in your stomach—the one where you think your expensive Bernina has corrupted your files or your USB stick has fried—is a false alarm.

As an instructor who has spent two decades walking novices through the transition from "panicked hobbyist" to "confident producer," I see this specific issue weekly. You load your design on a Mac, walk to the machine, and suddenly your folder is full of duplicates showing a terrifying “Missing Image” icon.

Here is the truth: Your bernina embroidery machines are fine. Your designs are safe. You are simply seeing "ghost files" (hidden resource metadata) that your Mac writes to the USB stick, which the Bernina’s operating system mistakenly tries to read as embroidery files.

This guide is your filter. We will move beyond just "deleting files" and establish a Protocol of Cleanliness. We will cover how to identify the ghosts, safely excise them without touching your master files, and then—crucially—how to pivot this mindset into upgrading your physical workflow with tools like magnetic hoops to stop wasting time on "non-stitching" tasks.

The "Phantom File" Phenomenon: Why It Happens

To solve this without fear, you must understand the mechanics. When you use a Mac to copy a file named Design1.exp, the Mac operating system frequently creates a hidden companion file (often named ._Design1.exp) to store icon positions and window settings.

• The Mac: Hides these files automatically. You never see them.
• The PC: Sees them but ignores them.
• The Bernina OS: Is literal. It sees a file ending in .EXP, tries to render it, fails (because it's just data text, not stitches), and displays a "Missing Image" icon.

This is not a corruption. It is a language barrier.

Phase 1: Pre-Deletion Diagnostics (The "Do No Harm" Rule)

Before you start tapping the trash can icon, we must establish a Safe Identification Protocol. The touchscreens on high-end machines are sensitive. One wrong tap deletes your actual design, not the ghost.

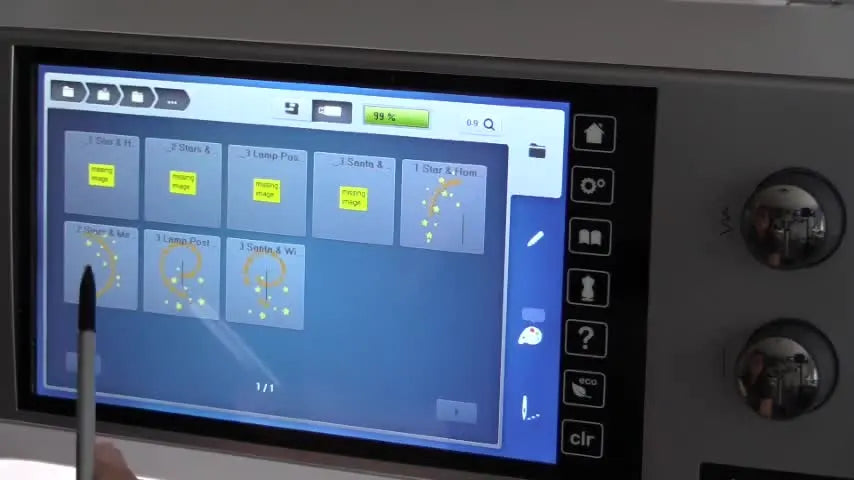

The Visual "Triage" Check

Stand in front of your machine and look at the file list. You need to distinguish the Signal (Real Design) from the Noise (Ghost File).

1. The Real Design:
   • Visual: Displays a clear, stitched rendering of the pattern.
   • Data: Usually appears first in the list (though not always).
2. The Ghost File (The Enemy):
   • Visual: Displays a generic icon, often a box with a question mark, a broken page, or the specific "Missing Image" symbol (a jagged outline).
   • Naming: Often appears as a duplicate of a file you just saw.
   • Behavior: Tapping it shows zero stitch count or error data.

Warning: Never "batch delete" until you have successfully identified and deleted ONE single ghost file to confirm you are targeting the right enemy. A slipped finger here means a trip back to the computer.

Prep Checklist: The "Pre-Flight" Safety Scan

• USB Seat Check: Ensure the USB stick is firmly inserted. A loose connection can cause read errors that look like ghost files but are actually corruption.
• Folder Verification: Confirm you are in the .EXP (or machine specific) sub-folder.
• "Twin" Confirmation: Locate the real version of the design first. If you see the thumbnail, you know the design exists. Now look for its ugly twin (the ghost).
• Consumable Check: keep a stylus handy. Fingers contain oil and are less precise. On a crowded screen, a stylus is your surgical instrument.


Phase 2: The Surgical Strike (Deleting Ghost Files)

The video source demonstrates a specific deletion workflow on the Bernina interface. We will refine this into a Standard Operating Procedure (SOP) that prevents accidental data loss.

Step-by-Step Deletion Protocol

1. The "Single Shot" Verification

• Action: Tap once on a file displaying the Missing Image icon.
• Sensory Check: Note the filename. Does it match the design you want to keep?
• Action: Look to the right-side vertical menu. Tap the Trash Can Icon.
• Confirmation: A pop-up will ask you to confirm. Tap the Green Checkmark.
• Result: The list should shift. The ghost is gone. The thumbnail version remains.

2. The "Batch Clear" (Advanced) Once you are confident, you can clear the clutter faster.

• Action: Enter the selection mode (often by long-pressing or selecting a multi-select tool, specific to your model).
• Action: Tap every item with the "Missing Image" icon. They will be marked with an X or highlighted.
• Visual Guard: Scan your selection. Ensure NO colorful thumbnails are selected.
• Action: Execute the Batch Delete via the Trash Can.


The Psychology of Formatting: Why USB Hygiene Matters

You might ask, "Why not just ignore them?"

Cognitive Load. In a production environment—even if "production" is just you making six Christmas stockings—decision fatigue is real. Every time your brain has to pause and ask, "Is this the right file?" you are burning mental energy.

• Ghost files force you to scroll twice as much.
• They increase the risk of selecting a non-functioning file, which triggers an error beep, breaking your flow.
• They clutter your folders, making it harder to find specific hoop sizes.

If you organize your folders by hoop size—a best practice I highly recommend—ghost files will replicate into every sub-folder (e.g., 8x12, 5x8, 15 inch long hoops), multiplying the mess.

Phase 3: Setup Habits for "Clean" Production

Prevention is cheaper than correction. While you cannot easily stop a Mac from creating these files without using Terminal commands (which I do not recommend for beginners), you can change how you transfer files.

The "Stick-to-Stick" Bypass

The video presenter notes a crucial observation: Ghost files often appear when downloading directly from Mac to USB.

However, when she transferred designs from one USB stick to another, the ghosts often didn't transfer.

The "Clean Stick" Workflow:

1. Format your working USB stick on the machine periodically (backup files first!). This clears out hidden system trash.
2. If possible, unzip and organize your files on your computer into a "staging folder," then drag the entire folder to the USB stick at once.
3. Eject Properly: On a Mac, always right-click and "Eject" the drive. Yanking the drive can cause the Mac to leave behind partially written metadata files that are even messier than ghost files.

Setup Checklist: Before You Stitch

• Folder Cleanliness: Open today's project folder. Is it free of "Missing Image" icons?
• Hoop Match: navigating through your machine embroidery hoops folders, verify only the relevant file sizes are present.
• Format Check: Ensure you are looking at the machine-native format (e.g., .EXP for Bernina).
• Visual Logic: Do you see the thumbnails for the next 3 designs you plan to stitch?


Phase 4: Beyond the Screen – Solving the *Real* Bottleneck

Let’s be honest. You are reading this because you want your embroidery session to be smooth. You just spent 5 minutes deleting ghost files. You are annoyed.

Now you have to hoop your fabric. This is the Point of Maximum Frustration.

If you are fighting with file errors on the screen, and then fighting with slippery fabric or stiff stabilizers at the station, your hobby becomes a chore. This is where we upgrade your toolkit.

Diagnosis: Are You Suffering from "Hoop Fatigue"?

Traditional hoarding hoops rely on friction and screw tension. They are famous for:

1. Hoop Burn: Leaving crushed rings on delicate fabrics (velvet, performance wear).
2. Wrist Strain: repetitive tightening of screws.
3. Slippage: The fabric shifts slightly during the run, ruining the design alignment.

The Solution: Magnetic Hoops (Production Specifics)

If you have mastered the digital cleanup, it is time to master the physical setup. A magnetic embroidery hoop system replaces the friction ring with high-strength magnets.

• Mechanism: You lay the bottom frame, float the stabilizer and fabric, and snap the top frame on. The magnets self-level the tension.
• Result: No screw turning. No hoop burn. Up to 40% faster changeovers between items.

Compatibility Guide: When looking for bernina magnetic hoops, you aren't just buying "magnets." You are buying Connector Compatibility.

• Standard Magnetic Hoops: Great for flats, quilts, and towels.
• Production Systems: Many pros look at systems synonymous with speed, investigating dime hoops for bernina or equivalent third-party magnetic frames like those from SEWTECH.
• The Value: If you are stitching 20 shirts, a magnetic hoop saves you roughly 60 seconds of setup per shirt. That is 20 minutes of your life back.

Warning: MAGNET SAFETY IS CRITICAL. Modern embroidery magnets (Neodymium) are incredibly strong.
* Pinch Hazard: They can crush fingers instantly if caught between the frames. Handle with deliberate care.
* Medical Device Safety: Keep these magnets at least 6-12 inches away from pacemakers or insulin pumps.
* Electronics: Do not place them directly on your laptop, phone, or the machine's LCD screen.

Decision Tree: The "Ghost File" Elimination Logic

Use this logic flow to determine your action plan for the day.

START: You insert USB stick into Bernina.

1. Do you see "Missing Image" icons?
   • NO: Proceed to stitch. Life is good.
   • YES: Go to Step 2.
2. Are the "Missing Image" icons duplicates of visible designs?
   • NO (Only missing images manifest): STOP. Your file format might be wrong (e.g., trying to read .PES on a machine that wants .EXP) or the USB is corrupt. Check on PC.
   • YES: These are Mac Ghost Files. Go to Step 3.
3. Is this a "One-Off" project or a "Batch" run?
   • One-Off: Ignore the ghosts carefully, select the real file, and stitch. not worth the cleaning time.
   • Batch Run: Perform the deletion protocol (Phase 2). Clean the folder so you don't make mistakes later.


Troubleshooting: When "Delete" Doesn't Work

Sometimes, the machine refuses to delete the file, or the problem persists. Here is the escalation ladder, from easy to hard.

Hidden Consumables: The Unsung Heroes of Clean Files

We focus so much on the machine, we forget the support crew. To maintain a "No-Stress" embroidery environment, keep these items in your drawer, not just in your shopping cart:

1. Low-Capacity USB Sticks (2GB - 8GB): Older machines often struggle to read massive 64GB drives. Keep smaller, dedicated sticks for transfer.
2. Stylus: Mentioned before, but vital for selecting tiny ghost file icons without fat-fingering the delete button.
3. Stabilizer Stash: If you are upgrading to bernina magnetic hoop sizes for a project, ensure you have the right backing. Magnetic hoops love Cut-Away stabilizer (for knits) or Tear-Away (for towels) because they hold the "sandwich" tight without slipping.
4. Temporary Spray Adhesive (KK100/505): Since magnetic hoops float the materials, a light mist of adhesive ensures your fabric doesn't bubble in the center.


Operation Checklist: The "Clean Stick" Production Routine

This is the routine I force my apprentices to use. It separates the amateurs from the pros.

1. Insertion: Insert USB. Wait 5 seconds for the machine to fully mount the drive.
2. Navigation: Enter the Folder. Locate the .EXP (or native format) directory.
3. Sanpshot: Scroll through. identify the Signal to Noise ratio. (Are there 5 ghosts? 50 ghosts?).
4. Purge: If noise is high, spend 60 seconds performing the "Batch Clear" (Phase 2).
5. Verification: Scroll to the bottom. Ensure no "Missing Image" icons remain.
6. Load: Select your design.
7. Pivot: Move to your hooping station. If you are using a magnetic hoop, check your magnet warnings.
8. Stitch: Press the green button with a clear mind.


Conclusion: Mastery is Detail

The difference between a frustrating afternoon and a finished project often lies in these invisible details. The "Missing Image" icon is not a disaster; it is a nuisance. Now that you know it is just your Mac being over-helpful, you can delete it with confidence.

But do not stop at digital hygiene. Take this opportunity to look at your entire workflow. If you are spending time optimizing your files, you deserve tools—like proper magnetic hoops and quality stabilizers—that optimize your physical labor too.

Embroidery is a mix of art and engineering. Keep your files clean, your needles sharp, and your hoops tight.

FAQ

• Q: Why do Bernina embroidery machines show duplicate design names with a “Missing Image” icon after copying .EXP files from a Mac USB stick?
  A: This is usually caused by Mac-created “ghost files” (hidden metadata like ._Design1.exp) that the Bernina operating system tries to read as real embroidery designs.
  • Identify: Look for the entry with a generic/broken “Missing Image” icon instead of a stitched thumbnail preview.
  • Confirm: Tap the suspicious file and check that it shows no usable stitch data.
  • Keep: Locate the real design first—the real file typically displays a clear stitched rendering.
  • Success check: Only the thumbnail version remains selectable, and the duplicate “Missing Image” entry is gone.
  • If it still fails… Verify the USB is firmly inserted, and confirm the machine is viewing the correct .EXP (machine-native) folder.
• Q: How do I delete Mac “Missing Image” ghost files on a Bernina embroidery machine without accidentally deleting the real design?
  A: Delete one ghost file first as a “single shot” test, then batch-delete only the missing-image icons once the target is confirmed.
  • Tap: Select one file showing the “Missing Image” icon and note the filename.
  • Delete: Tap the Trash Can icon and confirm with the green checkmark.
  • Scale up: Enter multi-select mode and select only items with the missing-image icon before running Batch Delete.
  • Success check: The file list shifts, the ghost entry disappears, and the stitched thumbnail design remains.
  • If it still fails… Stop batch actions and use a stylus for precision; one wrong tap can remove the real design.
• Q: What should I do on a Bernina embroidery machine if “Delete Failed” appears when removing “Missing Image” USB files?
  A: “Delete Failed” usually means the USB stick is locked or has a read-only/format issue, not that the Bernina embroidery machine is broken.
  • Check: Inspect the USB stick for a physical lock switch and set it to unlocked (if present).
  • Rebuild: If no switch exists, back up designs and reformat the USB on a computer as FAT32, then reload only needed files.
  • Prevent: Avoid reinserting the same USB into the Mac unless adding new designs, because the Mac may recreate ghosts.
  • Success check: The Bernina can delete files normally and folders open without freezing.
  • If it still fails… Try a smaller-capacity USB stick (often 2GB–8GB works more reliably on older machines).
• Q: Why do “Missing Image” ghost files reappear on a Bernina embroidery machine after I already deleted them from the USB stick?
  A: Ghost files commonly reappear because reinserting the USB into a Mac can cause the Mac to re-index the drive and write the hidden metadata again.
  • Limit: Do not plug the “cleaned” USB back into the Mac unless you are actively adding new designs.
  • Transfer: Use a staging folder on the computer, then drag the entire folder to the USB in one copy session.
  • Eject: Always use Mac “Eject” before removing the USB to reduce partially written metadata.
  • Success check: After multiple insertions into the Bernina, folders stay clean with only stitched thumbnails (no missing-image duplicates).
  • If it still fails… Format the working USB on the machine periodically (after backing up), then reload fresh copies of the designs.
• Q: What is the safest “USB hygiene” workflow for Mac users to prevent Bernina embroidery machines from showing “Missing Image” icons?
  A: Use a clean, properly ejected USB workflow and keep the USB dedicated to embroidery to minimize Mac metadata clutter.
  • Format: Periodically format the working USB (back up first) to clear hidden system trash.
  • Organize: Unzip and organize designs into a staging folder, then copy the whole folder to the USB at once.
  • Eject: Right-click the USB on Mac and select “Eject” before unplugging.
  • Success check: Opening the project folder on the Bernina shows only valid design thumbnails with no extra duplicates.
  • If it still fails… Try the “stick-to-stick” transfer method (copy from one USB to another), which may reduce ghost file transfer in some cases.
• Q: What safety rules should I follow when using a magnetic embroidery hoop system with Bernina-style workflows?
  A: Treat magnetic hoops as pinch hazards and keep them away from medical devices and sensitive electronics.
  • Handle: Keep fingers out of the closing path; bring frames together slowly and deliberately.
  • Separate: Keep magnets 6–12 inches away from pacemakers or insulin pumps.
  • Protect: Do not place magnetic hoops directly on laptops, phones, or the embroidery machine LCD screen.
  • Success check: The top frame snaps on without finger pinching, and the setup feels controlled rather than “slamming” shut.
  • If it still fails… Stop and reposition the fabric/stabilizer first; forcing magnets together increases injury risk.
• Q: How do I decide between deleting Bernina “Missing Image” ghost files, upgrading to magnetic embroidery hoops, or moving to a multi-needle embroidery machine for efficiency?
  A: Use a tiered approach: clean the USB for file-selection errors, upgrade to magnetic hoops for hooping fatigue, and consider a multi-needle machine when volume makes setup time the true bottleneck.
  • Level 1 (Technique): Delete ghost files only for batch runs; for one-off projects, carefully select the real thumbnail design and stitch.
  • Level 2 (Tool): Choose magnetic hoops if hoop burn, wrist strain from screw tension, or fabric slippage is slowing changeovers.
  • Level 3 (Capacity): Consider a multi-needle workflow when repeated setup and thread handling dominate the work session.
  • Success check: The embroidery session flows without repeated screen errors and without fighting fabric/stabilizer during hooping.
  • If it still fails… Track where time is lost (screen cleanup vs hooping vs changeovers) and fix the biggest time sink first.
