Stop the Loops: Dialing In Smartstitch Thread Tension (Bobbin Case Screw + Upper Tension Knobs) Without Wasting a Single Shirt

Thread tension problems feel personal—like the machine is “mad” at you. One minute you’re running smooth satin stitches, and the next, you’re looking at a bird’s nest of loops, puckered fabric, or wasted blanks. It is the single most common source of frustration for new operators, often leading to the fear that "I broke the machine."

Here is the truth: On a multi-needle machine like the Smartstitch, tension is not a dark art; it is a mechanical system based on physics. It is highly fixable when you stop guessing and follow a repeatable, empirical test-and-adjust routine.

This guide rebuilds the exact workflow from the video—covering the bobbin drag test, the specific screw adjustments, and the 1/3–2/3 rule—but effectively upgrades it with the "shop-floor habits" of a 20-year veteran. We will move you from "hoping it works" to "knowing it works," ensuring you stop chasing your tail when moving from a stiff test swatch to expensive real garments.

The “Don’t Panic” Primer: What Smartstitch Thread Tension Actually Controls (and what it doesn’t)

Before you touch a single knob, we need to reset your mental model. Tension is simply a "Tug of War" between the top thread and the bobbin thread.

The goal is to have them pull with equal force so that they lock (the knot) deep inside the fabric sandwich—not floating on top, and not pulled all the way to the back. When that balance is off, one side is "winning," pulling the knot visible to the wrong side.

In the video, the test is intentionally simple: stitch a block letter “H” in purple thread on a white stabilized fabric. This is your "Calibration Standard."

Why a block "H"? A satin stitch column (the legs of the H) is the most revealing stitch type. It provides a dense, continuous pull that exposes tension flaws instantly.

Two critical mindset shifts for professional operators:

1. Tension is a System, Not a Knob: You cannot fix a bad thread path, a burred needle, or poor stabilization by tightening a tension knob. If your thread path is wrong, the knob does nothing.
2. Calibration vs. Production: Never adjust tension on a customer's shirt. You adjust on the "H" test until it passes, then you run production.

If you are running a commercial head like the smartstitch 1501, treat this "H" test like a pilot’s pre-flight check. It takes three minutes but saves three hours of picking out bad stitches.

The “Hidden” Prep Pros Do First: Thread path, bobbin case, and a clean baseline before you touch a screw

Novices grab a screwdriver immediately. Experts clean the machine first.

If lint is packed under the tension spring of your bobbin case, or if the top thread isn't flossed deeply into the tension discs, no amount of adjusting will help. You will continuously chase a "ghost" problem.

Hidden Consumables You Need:

• Canned Air or Lint Brush: To clean the rotary hook.
• Fresh Needle (75/11 Ballpoint or Sharp): A burred needle creates friction that looks like tension drag.
• Sharpie Marker: To mark your original screw position before you move it.

Prep Checklist (Do this strictly before stitching)

• Check the Path: Verify the top thread (purple in our example) is threaded correctly. Sensory Check: Pull the thread near the needle—it should feel smooth, not jerky.
• Check the Match: Confirm you are using the same bobbin type (e.g., 60wt Continuous Filament) that the machine was tuned for.
• The "Floss" Check: Ensure the thread is seated deep between the tension discs, not riding on top of them.
• Stabilize the Test: Use a stiff backing (Cutaway is best for testing) and a piece of felt or stiff cotton. Do not test on a floppy scrap without backing.
• Clean the Hook: Open the hook cover and blow out any lint bunnies. Lint adds artificial drag.
• Tool Prep: Have a small flathead screwdriver ready.

Warning: Physical Safety Alert. Keep fingers, loose sleeves, and lanyards away from the needle bars and rotary hook area while the machine is running. A multi-needle machine does not stop instantly. Never reach into the hook zone to grab a thread tail while the machine is cycling—needle strikes can shatter metal and cause serious injury.

Read the “H” Test Like a Technician: spotting bobbin-on-top vs top-thread-on-back on Smartstitch

Run your "H" test. Now, look at it closely. Do not guess; diagnose.

The video outlines three distinct scenarios. Here is how to identify them using specific visual cues:

Scenario A: The "White Snake" (Bobbin Visible on Top)

• Visual: You see white loops or "railroad tracks" of bobbin thread poking through the purple satin on the top of the fabric.
• Diagnosis: The Bobbin is winning (too loose) OR the Top Thread is losing (too tight).
• Action: You need to increase bobbin resistance or decrease top tension.

Scenario B: The "Caterpillar" (Top Thread Loose on Back)

• Visual: Flip the hoop. The back looks loopy, messy, or—crucially—you see only purple thread and zero white bobbin thread.
• Diagnosis: The Top Thread is extremely loose and lacks the strength to pull the bobbin thread up.
• Action: You need to tighten the top tension.

Scenario C: The "Tunnel" (Puckering)

• Visual: The fabric around the "H" is puckering or tunneling, even with stabilizer. On the back, the white bobbin column is super wide (wider than 1/3).
• Diagnosis: The Top Thread is too tight, strangling the fabric.
• Action: Loosen the top tension.


The Bobbin Case Pull Test on a Smartstitch Rotary Hook: the fastest way to set lower tension

We always adjust the bobbin first. Why? Because the bobbin is the "foundation." If the foundation is unstable, you cannot build the house (upper tension).

The video demonstrates the "Pull Test" (also known as the Drag Test). This relies on muscle memory, which takes time to build, so we will add a "Spider Test" relative benchmark for you.

How to execute the Drag Test:

1. Open the hook cover.
2. Reach in, flip the latch, and remove the bobbin case.
3. Hold the case in your palm. Pull the thread tail slowly.

Sensory Calibration (The "Feel"):

• Too Loose: It feels like pulling a loose hair; there is zero resistance. The bobbin spins wildly.
• Too Tight: It feels like pulling a heavy shoelace; you have to physically yank it, and the bobbin case jumps around in your hand.
• Just Right (The Sweet Spot): It should feel like pulling dental floss. There is a steady, smooth consistency.

The "Drop" or "Spider" Test (Visual Alternative): Hold the bobbin thread tail and let the case hang like a spider. Gently flick your wrist.

• If it doesn't move at all: Too Tight.
• If it falls to the floor: Too Loose.
• If it drops 1-2 inches and stops: Perfect.

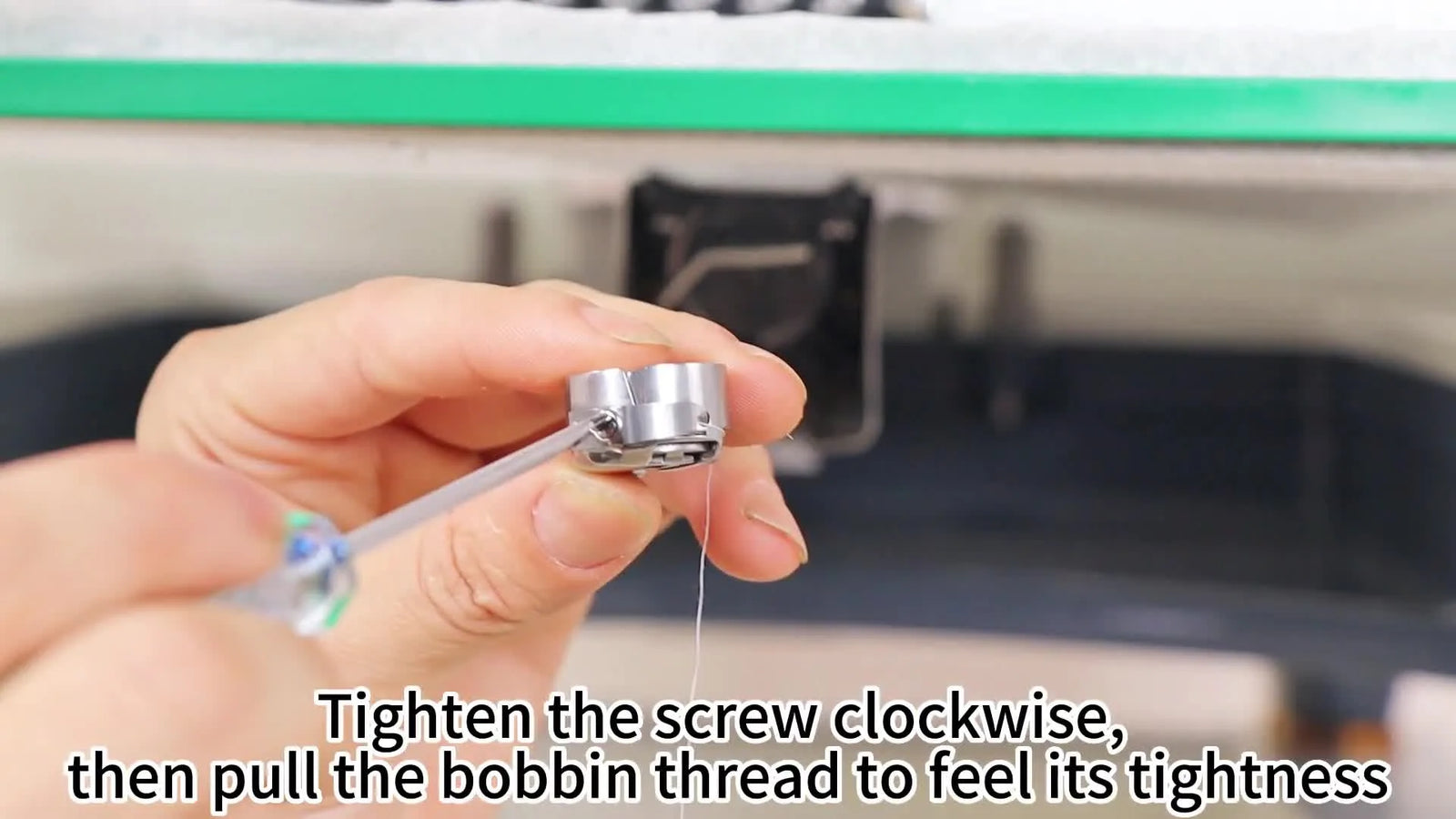

Turn the Smartstitch Bobbin Case Screw the Right Way (and only in micro-moves)

The bobbin case has two screws. One is small (fixing the spring); one is slightly larger (adjusting tension). Only touch the larger screw.

Direction Memory Aid:

• Righty-Tighty (Clockwise): Increases tension/drag.
• Lefty-Loosey (Counter-Clockwise): Decreases tension/drag.

The "Clock Face" Rule: Never turn the screw a full rotation. Pretend the screw slot is the hand of a clock.

• If it is at 12:00, turn it to 12:15 (Clockwise) to tighten.
• Turn it to 11:45 (Counter-Clockwise) to loosen.
• Micro-moves only. A 1/4 turn is a massive adjustment in the world of embroidery.

The Fix (Bobbin Process) — Step-by-Step

1. Mark It: Use your Sharpie to put a tiny dot on the original screw position. If you get lost, you can reset.
2. Test: Pull the thread to feel the current drag.
3. Adjust: Turn the screw 5-10 degrees (minutes on a clock).
4. Verify: Pull the thread again. Did the dental floss feeling return?
5. Repeat: Keep adjusting in tiny increments until the drag feels consistent and smooth.


The “Click Test” Reinstall: seating the bobbin case so tension readings are real

You can have perfect tension settings, but if the bobbin case isn't seated, the machine will jam instantly.

The Auditory Anchor: When you insert the bobbin case back into the rotary hook, you must push until you hear a sharp, metallic CLICK.

• No Click? It is not locked. The needle will come down, hit the metal case, and break (potentially damaging the rotary hook).
• The Test: After the click, try to pull the bobbin case out without opening the latch. It should be immovable.


Upper Thread Tension Knobs on Smartstitch: which way to turn, and how to avoid adjusting the wrong knob

Once your bobbin feels like dental floss, you can adjust the upper knobs. On Smartstitch machines, like most commercial units, you turn the knob itself.

Direction Logic:

• Clockwise (Right): Tightens the spring (squeezes the thread harder).
• Counter-Clockwise (Left): Loosens the spring.

The Common Mistake: Operators often adjust the knob for Needle #1 when the machine is stitching with Needle #4.

• Look: Trace the thread from the active needle bar up to the tension knob. Confirm you are touching the correct one.

Setup Checklist (Before turning the upper knob)

• Identify: Locate the specific tension knob for the color performing the test.
• Base Setting: Most knobs have a "baseline" where the screw is flush or midway. If yours is screwed all the way in or falling off, reset it to the middle before testing.
• Action: Turn the knob 1/2 a turn at a time. It is less sensitive than the bobbin screw, so you can be slightly more aggressive here, but strictly test between every adjustment.




The Golden Backside Rule on Satin Columns: lock in the 1/3 bobbin to 2/3 top thread ratio

How do you know when you are "done"? You use the Golden Ratio of embroidery.

Flip your "H" test over. Ignore the front for a moment; the truth is on the back.

The 1/3 Rule:

• You should see a column of white bobbin thread running down the center.
• This white column should take up exactly 1/3 of the total width of the stitch.
• The colored top thread should wrap around from the front and take up the outer 1/3 on the left and 1/3 on the right.

Visual Diagnostics:

• White column is a tiny skinny line? Top tension is too loose (not pulling bobbin up enough).
• White column takes up the whole back? Top tension in too tight (strangling the bobbin).
• Solid White 1/3 Strip? STOP. You are done. Do not touch the knobs again.








Why tension “mysteriously changes” on real garments: fabric stretch, stabilization, and hooping physics

You passed the "H" test, but now you put a hoodie on the machine and it looks terrible. Why?

The Physics of Failure: The "H" test uses stiff felt. A hoodie is stretchy. If the fabric stretches while the needle is penetrating it, the "hole" changes shape, and the friction on the thread changes. This alters your tension results even though you didn't touch the knobs.

The Real Culprit: Hooping Inconsistent tension is often actually inconsistent hooping.

• If you hoop too loosely, the fabric flags (bounces), causing looped stitches.
• If you hoop too tightly ("drum tight" on a stretchy knit), the fabric relaxes after you take it off, causing puckers.

This is a critical production bottleneck. If you are struggling to get consistent tension on distinct items (like thick Carhartt jackets or delicate polos), the issue is likely mechanical holding, not thread tension. This is the "Trigger Point" where professionals upgrade to magnetic embroidery hoops. Unlike standard rings that require manual muscle to screw tight (often causing "hoop burn" or uneven tension), magnetic hoops clamp with consistent force every single time, removing the "hooping variable" from your tension equation.

Warning: Magnetic Hazard. Commercial magnetic hoops utilize N52 industrial magnets. They are incredibly powerful. Pinch Hazard: They can crush fingers if caught between the rings. Medical Safety: Keep at least 12 inches away from pacemakers or insulin pumps. Tech Safety: Do not place phones or credit cards directly on the magnets.

“Do I need to wash the shirt first?”—the real-world garment prep answer (so your tension test stays valid)

A common question: "If I tune my tension, will washing the shirt ruin it?"

The video doesn't cover this, but here is the industry consensus:

1. Don't Pre-wash for Production: Commercial shops almost never pre-wash. It doubles handling time.
2. The Shrinkage Risk: If you stick a dense design on a cheap cotton tee, and it shrinks 10% in the dryer, the embroidery will pucker. No tension setting can fix that.
3. The Fix: Use the right backing (stabilizer). The backing is the "bones" that resist the shrinkage.

Strategy: Perform your "H" test on a scrap piece of fabric that matches your final garment (e.g., stitch on an old t-shirt rag if you are printing t-shirts). It keeps your calibration honest.

A stabilizer decision tree that prevents puckers (and reduces how often you touch tension)

Tension cannot fix a lack of stability. If your embroidery is sinking or puckering, 90% of the time you need more backing, not more tension.

Use this decision logic before you reach for a screwdriver:

Decision Tree: Fabric Type → Stabilizer Choice

1. Is the fabric stretchy? (T-shirts, Polos, Hoodies, Beanie Hats)
   • NO: Go to Step 2.
   • YES: You MUST use Cutaway Stabilizer. Even if the customer wants "soft," tears-away will fail, the stitches will distort, and tension will look uneven.
     • Check: Use 2.5oz or 3.0oz Cutaway.
2. Is the fabric unstable/loose weave? (Pique Polo, Sweater)
   • NO: Go to Step 3.
   • YES: Use Cutaway + Water Soluble Topping (Solvy) firmly on top. The topping prevents the thread from sinking, which often mimics "loose tension."
3. Is the fabric stable? (Twill, Denim, Canvas, Caps)
   • YES: You can use Tearaway Stabilizer. The fabric supports itself.

Pro Tip: If you see "looping" on a textured polo, try adding a layer of Solvy topping before you adjust tension. Often, the thread is just snagging on the fabric grain.

Troubleshooting Smartstitch tension symptoms: symptom → cause → fix (exactly as the video teaches)

When you are in the middle of a job, you don't have time for theory. Use this "Battlefield Triage" list. Follow the order: Low Cost Fixes (top) to High Cost Fixes (bottom).

1) Symptom: White Bobbin Thread visible on Top ("Railroad Tracks")

• Check 1 (Free): Is the top thread caught on a rough spot or the spool pin? Clear it.
• Check 2 (Bobbin): Is the bobbin case screw too loose? (Perform Spider Test -> Tighten screw slightly).
• Check 3 (Top): Is the top tension too tight? (Loosen knob 1/2 turn).

2) Symptom: No Bobbin visible on Back (Solid Color column)

• Check 1 (Free): Is the bobbin empty? (It happens to the best of us).
• Check 2 (Top): Top tension is way too loose. (Tighten knob 1 full turn).
• Check 3 (Bobbin): Is bobbin thread stuck/jammed in the case? (Clean and re-thread).

3) Symptom: "Bird Nests" or Huge Loops

• Check 1 (Crucial): Did you thread the machine with the presser foot down? If so, the tension discs didn't open. Rethread with foot UP.
• Check 2: Is the thread properly in the take-up lever eyelet? If it missed this, you get zero tension.

The production-minded workflow: stop “random knob turning” and make tension repeatable across jobs

Consistency is profit. You want a workflow that any operator in your shop can follow without calling you for help.

1. Daily Warm-up: Run the "H" test on a scrap of broadcloth every morning.
2. Visual Audit: Check the 1/3 vs 2/3 ratio on the back.
3. Micro-Adjust: Tweak only if necessary.
4. Production: Start the real job.

If you find yourself constantly re-adjusting variables, your bottleneck might be the physical handling of the garments. Many scaling shops invest in a hooping station for embroidery. A station ensures that every shirt is placed on the hoop with the exact same tension and alignment. Consistent placement means consistent fabric stretch, which means your tension settings stay valid from Shirt #1 to Shirt #50.

When a magnetic hoop is the right upgrade (and when it’s not) for Smartstitch operators

The YouTube comments confirmed that Smartstitch machines are compatible with aftermarket hoops. But when should you spend the money?

The Upgrade Logic:

• Level 1 (Technique): Use standard hoops. Master the "H" test. Learn your stabilizers.
• Level 2 (Speed & Safety): If you are doing production runs of 20+ items, or thick items like jackets that pop out of plastic rings, upgrade to a smartstitch magnetic hoop.
  • Why: It eliminates "Hoop Burn" (shiny ring marks) on delicate polyesters because it doesn't friction-clamp the fabric fibers.

(Note: Many pros look for the branded mighty hoop for smartstitch, which is the industry standard for magnetic systems).

• Level 3 (Scale): Combine magnetic hoops with a magnetic hooping station. This allows you to hoop the next shirt while the machine is running the previous one, doubling your throughput.

Operation Checklist (the “one clean test” routine you can run every time tension looks off)

Print this out and tape it to your machine stand.

• Clean: Is the rotary hook area free of lint balls?
• Needle: Is the needle straight, sharp, and inserted all the way up?
• Thread Path: Is the thread flossing the discs and caught in the check spring?
• Bobbin Test: Perform the "Spider Test" (Drop 1-2 inches).
• Run Test: Stitch the calibration "H" on backing.
• Inspect: Check for the 1/3 white center column on the back.
• Adjust (If needed): Bobbin screw first (15 mins on clock face), then Top Knob.
• Re-Run: Never trust an adjustment without a re-test.
• Go: Start production run.

By following this strict order of operations, you stop viewing tension as a mystery and start treating it as a calibrated setting—just like the temperature on a heat press. That is how professional Smartstitch shops operate.

FAQ

• Q: What prep items should Smartstitch multi-needle operators check before adjusting Smartstitch thread tension screws and knobs?
  A: Start by cleaning and resetting the baseline—most “tension” problems on Smartstitch machines are actually lint, needle, or threading issues.
  • Clean: Blow/brush lint out of the Smartstitch rotary hook area and bobbin case spring zone.
  • Replace: Install a fresh needle (75/11 ballpoint or sharp) to remove friction variables.
  • Verify: Rethread the Smartstitch top thread path and “floss” the thread deep into the tension discs.
  • Mark: Put a Sharpie dot on the Smartstitch bobbin case tension screw position before any adjustment.
  • Success check: Top thread pull near the needle feels smooth (not jerky) and the hook area is visibly lint-free.
  • If it still fails… Run the Smartstitch satin “H” test and diagnose top vs bobbin symptoms before touching settings.
• Q: How do Smartstitch rotary hook operators perform the Smartstitch bobbin case drag test (Spider Test) to set lower thread tension?
  A: Set Smartstitch bobbin tension first using the drag feel plus the “spider drop” benchmark.
  • Remove: Open the hook cover, flip the latch, and take out the Smartstitch bobbin case.
  • Pull: Draw the bobbin thread tail slowly to feel resistance (aim for a “dental floss” steady drag).
  • Drop: Hold the case by the thread tail like a spider and lightly flick the wrist.
  • Success check: The Smartstitch bobbin case drops about 1–2 inches and stops (or feels like pulling dental floss).
  • If it still fails… Clean lint under the bobbin tension spring and repeat the test before changing upper knobs.
• Q: Which Smartstitch bobbin case screw should be adjusted for tension, and how far should the Smartstitch bobbin screw be turned?
  A: Only adjust the larger Smartstitch bobbin case tension screw, and move it in micro-steps (clock-face minutes), not full turns.
  • Identify: Locate the two screws and touch only the slightly larger adjustment screw (leave the small spring-fixing screw alone).
  • Turn: Rotate clockwise to increase drag, counter-clockwise to decrease drag.
  • Limit: Move 5–10 degrees per attempt (about “12:00 to 12:15”), then re-test.
  • Success check: After each micro-move, the bobbin pull returns to a smooth “dental floss” drag or passes the 1–2 inch spider drop.
  • If it still fails… Re-seat the bobbin case correctly (listen for the click) and confirm correct bobbin type/threading.
• Q: How can Smartstitch multi-needle operators confirm the Smartstitch bobbin case is seated correctly to prevent jams and needle strikes?
  A: Reinstall the Smartstitch bobbin case until a sharp metallic “CLICK” confirms it is locked.
  • Insert: Push the bobbin case firmly into the Smartstitch rotary hook until the click is heard.
  • Test: Try pulling the bobbin case out without opening the latch.
  • Success check: The Smartstitch bobbin case does not move at all unless the latch is opened.
  • If it still fails… Stop immediately—do not run the machine; reinsert until the click happens to avoid needle hitting the case.
• Q: How do Smartstitch operators read the Smartstitch satin “H” test using the 1/3 bobbin and 2/3 top thread rule?
  A: Judge Smartstitch tension from the backside: the bobbin thread should be a centered 1/3 column, with top thread wrapping the outer 2/3.
  • Stitch: Run a satin block-letter “H” test on stiff stabilized material (cutaway backing is recommended for testing).
  • Flip: Inspect the back first, not the front.
  • Adjust: If the white bobbin column is too skinny, tighten upper tension; if the back is mostly white or fabric tunnels, loosen upper tension.
  • Success check: A solid, centered white bobbin strip is about 1/3 of the satin width, with colored thread on both sides (about 1/3 + 1/3).
  • If it still fails… Reconfirm bobbin drag (foundation first), then re-run the “H” after every adjustment.
• Q: What causes Smartstitch bird nests and huge loops, and what is the fastest Smartstitch threading check to stop nesting?
  A: Bird nests on Smartstitch machines are commonly caused by incorrect threading through the tension system—rethread correctly before changing tension.
  • Rethread: Remove the top thread and rethread the Smartstitch path carefully.
  • Confirm: Make sure the thread is properly seated (“flossed”) into the tension discs.
  • Verify: Ensure the thread is captured in the take-up lever eyelet (missing it can create “zero tension” behavior).
  • Success check: The next “H” test stitches without a loop pileup underneath and the backside starts showing a controlled bobbin/top balance.
  • If it still fails… Perform the Smartstitch bobbin drag/spider test and inspect for thread catching on rough spots (spool pin/path).
• Q: What Smartstitch embroidery safety rules prevent injuries near Smartstitch needle bars, rotary hooks, and magnetic embroidery hoops?
  A: Keep hands clear of moving Smartstitch needle bars and the rotary hook area, and treat magnetic embroidery hoops as pinch hazards.
  • Avoid: Never reach into the Smartstitch hook zone to grab thread tails while the machine is cycling (multi-needle machines do not stop instantly).
  • Secure: Keep fingers, loose sleeves, and lanyards away from needle bars and rotating parts during operation.
  • Handle: When using magnetic embroidery hoops, keep fingers out of the closing gap and keep magnets away from pacemakers/insulin pumps and away from phones/credit cards.
  • Success check: All adjustments are done with the machine stopped, hands out of the hook area, and magnetic hoops are closed without finger contact between rings.
  • If it still fails… Pause the job and reset the workflow: stop motion first, then troubleshoot tension/hooping—do not “work around” moving parts.
