Stop the Extra Stops: PE Design 9/Next vs PE Design 10 Applique Wizard (Text, Holes, and Multi-Region Sewing Order)

If you’ve ever watched your machine stop… and stop again… and stop again during a multi-piece appliqué design, you already know the sinking feeling. The real enemy isn’t the satin border—it’s a chaotic stitch sequence that forces you to change threads and trim fabric twenty times for a single coffee cup logo.

In this guide, we are going to deconstruct the "Applique Wizard" workflow (specifically for Brother PE Design Next, 9, and 10) and rebuild it into a professional-grade process. We will move beyond the basic "click-and-pray" method and teach you the engineering logic used by high-volume embroidery shops: Batch Processing.

We will solve the headache of multi-region shapes (like a cup with a handle and an inner hole) that stubbornly want to sew "one region at a time." We will also address the phantom "hole-sewing" option and the physical reality of holding fabric without losing your fingerprints.

The "Physics" of Appliqué: Why Your Machine Keeps Stopping

To master the software, you must understand the hardware mechanics. Applique Wizard defaults to a standard four-part sequence for every individual shape:

1. Cut Line (Running Stitch): A prompt to lay down fabric.
2. Position Line (Running Stitch_): Shows you exactly where the piece goes.
3. Tackdown (Zigzag/Run): Secures the fabric so it doesn't shift.
4. Cover Stitch (Satin): The final decorative edge.

The Problem: If you have a design with three parts (a cup, a handle, and a steam swirl), the software treats them as three separate islands. It will force you to Cut-Place-Tack-Cover the cup, then stop and do it all again for the handle.

The Professional Goal: We want Process Batching.

• All Cut Lines First: Lay down and cut all materials at once.
• All Position Lines Second: Verify placement for the whole design.
• All Tackdowns Third: Lock everything down simultaneously to prevent "fabric creep."
• All Covers Last: Finish the job with a consistent satin tension.

This isn’t just about saving time; it’s about Reducing Registration Errors. Every time you touch the hoop or stop the machine, you introduce a micro-variable of movement. Fewer stops mean cleaner embroidery.

Phase 1: The "Sensory" Prep & Safety Check

Before you click a single button, we must stabilize your environment. Appliqué is 40% digitizing and 60% physical handling.

The "Hidden" Consumables List

Beginners often focus on thread. Pros focus on adhesion. Ensure you have:

• Fabric: Pre-pressed. Wrinkles in appliqué fabric create "bubbles" that satin stitches cannot hide.
• Sharp Scissors: Double-curved appliqué scissors are non-negotiable for getting close to the tackdown line.
• Temporary Adhesion: ODIF 505 spray (for large areas) or a glue stick (for corners).
• Stabilizer:
  • Standard: Tearaway (for woven fabrics).
  • Stretchy/Knits: Cutaway (Mesh) is mandatory. If you use tearaway on a t-shirt, the satin stitch will distort the circle into an oval.

The Hooping Reality Check

If you are fighting to get a smooth "drum-skin" feel—tight but not stretched—or if you are seeing "hoop burn" (crushed fabric pile) around your design, your tools may be the bottleneck.

Traditional screw-tighten hoops rely on friction and friction distortion. This is often where we suggest an upgrade. Many professionals switch to magnetic embroidery hoops because they clamp straight down without pulling the fabric grain. If you are doing appliqué, where you repeatedly remove the hoop or touch the fabric, a magnetic frame prevents the "fabric slip" that happens after the third or fourth color change.

Warning — Mechanical Safety: Appliqué requires putting your hands near the needle bar repeatedly to place fabric and trim threads. Always use your machine’s "Lock" mode (or power off) before your fingers cross the plane of the needle. A foot pedal press by mistake can result in a needle through the finger.

Prep Checklist (Verify before opening software):

• Fabric: Appliqué fabric is ironed flat; base fabric is stabilized correctly (Cutaway for knits!).
• Hoop Test: Fabric sounds like a drum when tapped? (If using a standard hoop, check for "hoop burn" on delicate items).
• Font: Choice is a TrueType font that is thick enough for satin borders (avoid thin scripts).
• Machine: Needle is sharp (Size 75/11 or 90/14) to pierce multiple layers without pushing fabric.


Phase 2: PE Design Next / Version 9 — The "Handshake" Protocol

In older versions of PE Design (Next/9), the software is notoriously picky about selection states. You might see the "Applique Wizard" button greyed out even when text is selected.

The "Click-Off" Ritual

This is a quirky but essential behavior in the software engine that you must memorize:

1. Select TrueType Text.
2. Convert to Outline: (Text Attributes → Convert to Outline). You will see blue dotted lines.
3. Ungroup: (Right-click → Ungroup).
4. The Secret Step: Click on the empty white canvas (deselect everything). Then, click back on your text object to re-select it.
5. Result: The Applique Wizard button lights up.

Think of this as a "handshake" with the software. It forces the program to recognize the object as a raw shape rather than a text block.

Phase 3: Calibrating the Wizard (Data & Settings)

Once the wizard is open, you are presented with physics choices. Here are the industry standard ranges you should use for a secure hold:

1. Cut & Position Lines

• Stitch Type: Running Stitch.
• Length: 2.5mm - 3.0mm. (Too short perforates fabric; too long causes loops).

2. Tackdown Stitch

• Selection: The wizard implies this is combined with the position line. In practice, you want a secure hold.
• Output: Often a Zigzag or an inset Running Stitch.

3. Covering Stitch (The Satin Border)

This is where most beginners fail.

• Stitch Type: Satin Stitch (Standard).
• Width: 3.0mm to 4.0mm.
  • Beginner Tip: Do not go below 3.0mm. You need that width to cover raw edges if your trimming isn't perfect.
• Density: 4.5 lines/mm (approx 0.4mm spacing).
  • Visual Check: You want a solid rope interaction. If you see the fabric through the stitch, increase density (lower the number, e.g., to 0.35mm).
• Hole Sewing: CHECK THIS BOX. (Labeled: "Create an applique with hole sewing"). Without this, the inside of an "A" or "O" will be ignored, leaving you with a solid blob.

Expert Insight: Satin is forgiving and hides trimming errors. If you choose E-Stitch or Blanket Stitch (V-Stitch), your trimming must be surgically precise, as those stitches leave raw edges exposed.

PE Design 10: The "Replace" Protocol

If you are on PE Design 10, the workflow is smoother, but there is one trap.

• The Trap: The "Sewing Object" section defaults to "Add".
• The Fix: Switch this to "Replace".
• The Reason: If you leave it on "Add," the software keeps your original outline stitch underneath the new appliqué satin. This adds unnecessary bulk and can cause needle deflection (broken needles) on dense areas. "Replace" swaps the original line for the new appliqué properties cleanly.


Phase 4: The Core Logic — Breaking the "Region" Loop

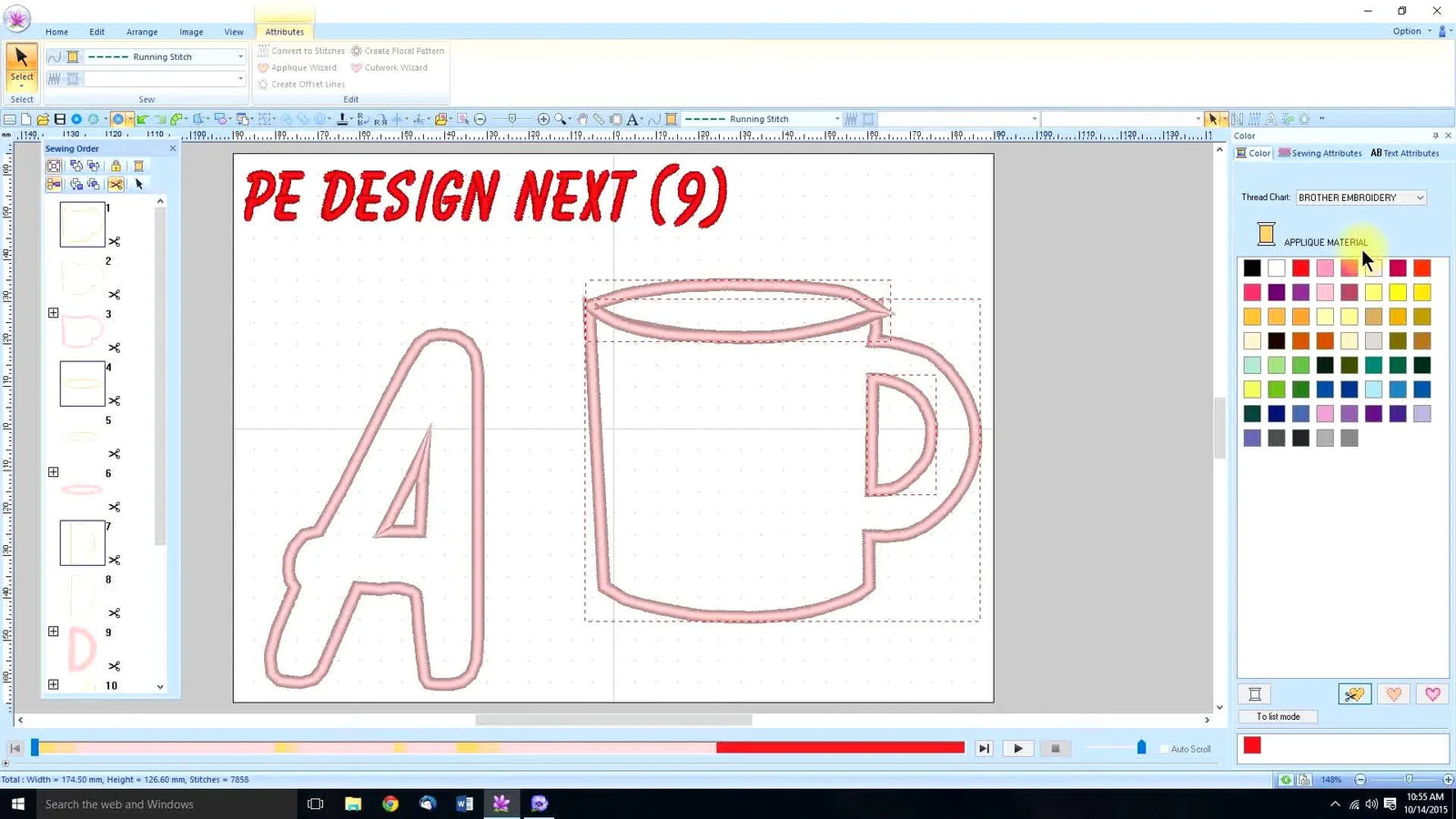

This is the heart of the tutorial. We are going to solve the "Coffee Cup Problem" (aka: why the handle and the cup sew separately).

When you use the wizard on a custom shape with multiple parts, the software creates a "vertical stack" for each part:

• Stack 1 (Cup): Cut → Place → Tack → Cover
• Stack 2 (Handle): Cut → Place → Tack → Cover
• Stack 3 (Steam): Cut → Place → Tack → Cover

In a commercial environment, this is unacceptable. It requires 12 stops/interactions. We will reduce this to 4 stops.

The Logic: We will group by Function, not by Geometry.

If you are running a business where time is inventory, or if you simply lack the patience for constant re-hooping, mastering this grouping is step one. Step two often involves hardware; using a hooping station for machine embroidery ensures that when you do place your fabric, it lands in the exact same spot on every shirt, making your batch processing valid.

Phase 5: The "Ctrl-Click" Reordering Method

Execute these steps in the Sewing Order Pane (usually on the left or tight of your screen).

Step 1: Visual Coding (Optional but Recommended)

Kathleen advises color-coding. This is brilliant for beginners.

• Make all Cut Lines Blue.
• Make all Position Lines Green.
• Make all Tackdowns Red.
• Make all Covers Black.

(Note: These are just digital markers; use whatever thread you want at the machine.)

Step 2: Multi-Select and Group

1. Hold the Ctrl key on your keyboard.
2. Click every layer labeled "Applique Material" (The Cut Line).
3. Drag them to the very top of the list.
4. Repeat: Select all "Position" lines → Drag them below the Cut lines.
5. Repeat: Select all "Tackdown" lines → Drag them below Position.
6. Repeat: Select all "Satin/Cover" lines → Drag them to the bottom.

Step 3: Success Metric

Look at your Sewing Order pane. Instead of a "striped" pattern (Blue, Green, Red, Black, Blue, Green...), you should see solid blocks of color.

• Block 1: All Cuts.
• Block 2: All Positions.
• Block 3: All Tackdowns.
• Block 4: All Covers.

Setup Checklist (Software Final Check):

• Blocks Verified: Are all Cut Clean lines at the very top?
• Tackdown Check: Did you group Tackdowns separate from Cover stitches? (Crucial: You must secure the fabric before the heavy satin hitting starts).
• Simulation: Run the "Slow Draw" simulator. Does the virtual needle finish all cutting before moving to placement?
• Density Check: Is the final Satin stitch dense enough (0.4mm spacing) to cover raw edges?


Troubleshooting: The "Phantom" Hole Sewing Option

A major pain point mentioned by users is the disappearance of the "Hole Sewing" checkbox.

The Diagnosis: This feature is context-sensitive.

• Cause: The software thinks your shape is an "Open Path" (a line) rather than a "Closed Region" (a shape). You cannot have a hole inside a line.
• The Fix:
  1. Check your original vector drawing. are the start and end points connected?
  2. If it looks closed but the option is gone, try the "Convert to Outline → Ungroup → Click Off → Reselect" ritual again.
  3. If that fails, use the "Close Point" tool in the shape edit menu to mechanically force the shape closed.


Phase 6: Physical Execution — Holding the Fabric

You have the perfect file. Now, how do you hold a small scrap of fabric inside the hoop without your fingers getting stitched?

The Three Tiers of Safety:

1. Level 1 (Risk): Holding it with fingers. Not recommended.
2. Level 2 (Standard): Tape or Spray. Use painter's tape (outside the stitch area) or a light mist of KK100/505 spray on the back of the appliqué patch.
3. Level 3 (Pro): The "Chopstick" Method. Use a stylus, tweezers, or a chopstick to hold the fabric center while the machine tack-downs the perimeter.

The Hoop Factor: If you find yourself wrestling with the hoop to smooth out the fabric for Tackdown, consider your equipment. A magnetic hoop for brother allows you to make micro-adjustments to the fabric tension without un-hooping the garment. You simply lift the magnets, smooth the ripple, and snap them back. This capability alone saves huge amounts of frustration during the tackdown phase.

Warning — Magnet Safety: Powerful magnetic hoops (like those from Sewtech) can pinch skin severely. Only handle them by the designated grips and keep them away from pacemakers or sensitive electronics.

The Strategic Upgrade Path

At what point do you stop optimizing software and start optimizing hardware? Use this decision matrix to diagnose your workflow bottlenecks.

Decision Tree: Determining Your Bottleneck

• Problem: "My designs look sloppy because the fabric shifts between the Placement and Tackdown steps."
  • Solution Level 1: Use more spray adhesive and a 'Cutaway' stabilizer.
  • Solution Level 2: Switch to a brother magnetic embroidery frame. The even clamping pressure prevents the "flagging" (bouncing) of fabric that causes shifts.
• Problem: "I am spending more time changing thread colors than actually sewing."
  • Solution Level 1: Use the Grouping method above to minimize stops.
  • Solution Level 2: This is the hard limit of single-needle machines. If you are producing 10+ shirts a batch, a Multi-Needle Machine (like SEWTECH models) becomes a return-on-investment, not a luxury.
• Problem: "My wrists hurt from hooping 50 shirts."
  • Solution: Investigate hooping stations. Ergonomics is a legitimate production factor. Consistency in placement leads to fewer rejects.


Why Operations Grouping Matters (The "Why")

We prioritize this "Batching" method for three reasons rooted in physics:

1. Fabric Relaxation: Every minute the fabric sits in the hoop, fibers relax. Minimizing the time between "First Stitch" and "Last Stitch" reduces distortion.
2. Consistency: By running all tackdowns at once, you ensure every piece of fabric is locked under the same tension conditions.
3. Operator Fatigue: Reducing 12 stops to 4 stops reduces the chance you will make a mistake (like forgetting to trim a thread).


Summary: What "Good" Looks Like

Before you hit start on your machine, run this final mental simulation:

1. Machine acts as a cutter: It runs a running stitch trace of all shapes. (You lay fabric).
2. Machine verifies position: It runs the placement lines. (You confirm coverage).
3. Machine locks it down: It tacks all shapes securely. (You trim all shapes at once).
4. Machine finishes: It runs the satin cover over everything in one smooth pass.


This workflow turns a frantic, stop-start session into a rhythmic, predictable production. Whether you are using standard brother embroidery hoops or have upgraded to magnetic systems, the software logic remains the key to clean edges.

Master the Sewing Order pane, and you master the machine.

FAQ

• Q: In Brother PE-Design Next / PE-Design 9, why is the “Applique Wizard” button greyed out after selecting TrueType text?
  A: Use the PE-Design “handshake” selection ritual so the program recognizes the object as a shape, not a text block.
  • Convert: Text Attributes → Convert to Outline (look for blue dotted lines).
  • Ungroup: Right-click → Ungroup.
  • Deselect: Click empty white canvas once, then re-select the outline object.
  • Success check: The Applique Wizard button becomes available (lights up) immediately after re-selecting.
  • If it still fails: Repeat the Convert → Ungroup → Click-off → Reselect sequence and confirm the object is no longer editable text.
• Q: In Brother PE-Design 10 Applique Wizard, why should “Sewing Object” be set to “Replace” instead of “Add”?
  A: Set “Sewing Object” to “Replace” to avoid stacking the original outline under the new appliqué stitches, which can create bulk and needle deflection.
  • Open: Applique Wizard settings in PE-Design 10.
  • Switch: “Sewing Object” from “Add” to “Replace” before generating stitches.
  • Preview: Check the sewing order to confirm the original outline stitch is not still present under the appliqué.
  • Success check: The design shows only the appliqué sequence, not doubled outlines that make the area look unusually dense.
  • If it still fails: Re-run the wizard after deleting the earlier “Add” result so the old stitches are not kept in the file.
• Q: In Brother PE-Design Applique Wizard, what stitch settings are a safe starting point for cut lines, position lines, and satin cover borders?
  A: Use running stitches at 2.5–3.0 mm for cut/position lines, and a satin border around 3.0–4.0 mm wide with ~0.4 mm spacing (about 4.5 lines/mm) for edge coverage.
  • Set: Cut Line + Position Line = Running Stitch, length 2.5–3.0 mm.
  • Set: Satin Cover = 3.0–4.0 mm width (avoid going below 3.0 mm if trimming is not perfect).
  • Set: Density to about 0.4 mm spacing (about 4.5 lines/mm); tighten slightly if fabric shows through.
  • Success check: The satin border fully covers raw fabric edges without visible fabric peeking through.
  • If it still fails: Re-check stabilizer choice (especially on knits) and verify trimming is close to the tackdown line.
• Q: In Brother PE-Design Applique Wizard, why is the “Create an applique with hole sewing” option missing or unchecked when digitizing letters like “A” or “O”?
  A: The hole-sewing option is context-sensitive and usually disappears when PE-Design treats the artwork as an open path instead of a closed shape.
  • Inspect: Confirm the original drawing is a closed region (start and end points connected).
  • Retry: Convert to Outline → Ungroup → Click off the canvas → Reselect the object, then reopen the wizard.
  • Force-close: Use the “Close Point” tool in the shape edit menu to mechanically close the shape if needed.
  • Success check: The “hole sewing” checkbox appears and the inner counter (hole) is preserved instead of filling as a solid blob.
  • If it still fails: Go back to the source vector and repair the path closure before bringing it into the appliqué workflow.
• Q: In Brother PE-Design Sewing Order pane, how can multi-piece appliqué (cup, handle, steam) be reordered to reduce constant stops and re-trimming?
  A: Reorder by function—group all Cut lines first, then all Position lines, then all Tackdowns, then all Covers—using Ctrl-click multi-select and drag.
  • Select: Hold Ctrl and click every “Applique Material” (Cut Line) layer, then drag them to the top.
  • Repeat: Ctrl-select all Position lines and drag below Cut lines; then Tackdowns; then Satin/Cover stitches last.
  • Simulate: Run Slow Draw to confirm the file finishes all cuts before placements, then all tackdowns before satin.
  • Success check: The Sewing Order pane shows solid blocks (not striped Cut/Place/Tack/Cover repeating per piece).
  • If it still fails: Color-code cut/position/tack/cover layers temporarily so mis-grouped elements are obvious before stitching.
• Q: During Brother appliqué stitching, how can fabric be held in the hoop safely without risking fingers near the needle bar?
  A: Do not hold appliqué fabric with fingers near the needle; use tape/spray or tools, and always lock the machine before hands enter the needle area.
  • Lock: Use the machine “Lock” mode (or power off) before placing fabric or trimming near the needle plane.
  • Secure: Use painter’s tape (outside stitch area) or a light mist of temporary spray on the back of the appliqué piece.
  • Control: Use tweezers, a stylus, or a chopstick to hold the fabric center during tackdown instead of fingertips.
  • Success check: The fabric stays flat through tackdown with no finger-close calls and no fabric lifting at the edges.
  • If it still fails: Increase temporary adhesion and verify the tackdown step is grouped before the satin cover stitching.
• Q: For appliqué on knit garments in Brother workflows, when should tearaway stabilizer be replaced with cutaway (mesh) to prevent distortion?
  A: Use cutaway (mesh) when stitching appliqué on stretchy knits because tearaway on a t-shirt commonly allows satin borders to distort shapes (often circles into ovals).
  • Identify: Confirm the base fabric is knit/stretchy (t-shirt, performance knit).
  • Switch: Choose cutaway (mesh) stabilizer instead of tearaway for the garment foundation.
  • Re-test: Stitch a small sample with the same satin border settings before running production.
  • Success check: The satin border remains round/true with no “pulled” oval distortion after the hoop is removed.
  • If it still fails: Reduce handling/stops by batching the sewing order (all tackdowns together) and improve adhesion so fabric cannot creep between placement and tackdown.
• Q: When appliqué placement keeps shifting between the Position line and Tackdown on Brother embroidery setups, what is a practical “Level 1 → Level 2 → Level 3” upgrade path?
  A: Start by improving stabilization and adhesion, then consider a magnetic hoop to reduce fabric slip, and only then consider a multi-needle machine if thread-change time is the real bottleneck.
  • Level 1: Add more temporary adhesion and confirm correct stabilizer choice (cutaway for knits).
  • Level 2: Upgrade to a magnetic embroidery hoop to clamp straight down and reduce fabric slip during repeated handling.
  • Level 3: If production volume is high and thread-change time dominates, consider moving to a multi-needle embroidery machine.
  • Success check: Placement lines and tackdowns land consistently with fewer pauses and fewer registration errors across repeats.
  • If it still fails: Audit operator touches—every stop and hoop contact adds movement—then re-check sewing order batching to minimize interactions.
