Embroidery is an exacting science. It sits at the intersection of digital logic and physical mechanics. In this master class, we are going to break down a common point of failure demonstrated by Regina: the disconnect between "Marketing Hoop Size" and "Actual Writable Field."

We will cover the St. Patrick’s Day redheaded gnomes breakdown, the critical "Square Test" to find your machine's true limits, and the physical hooping mechanics that ensure your result matches your screen.

The Anatomy of a Design: What You’re Really Looking At Before You Stitch

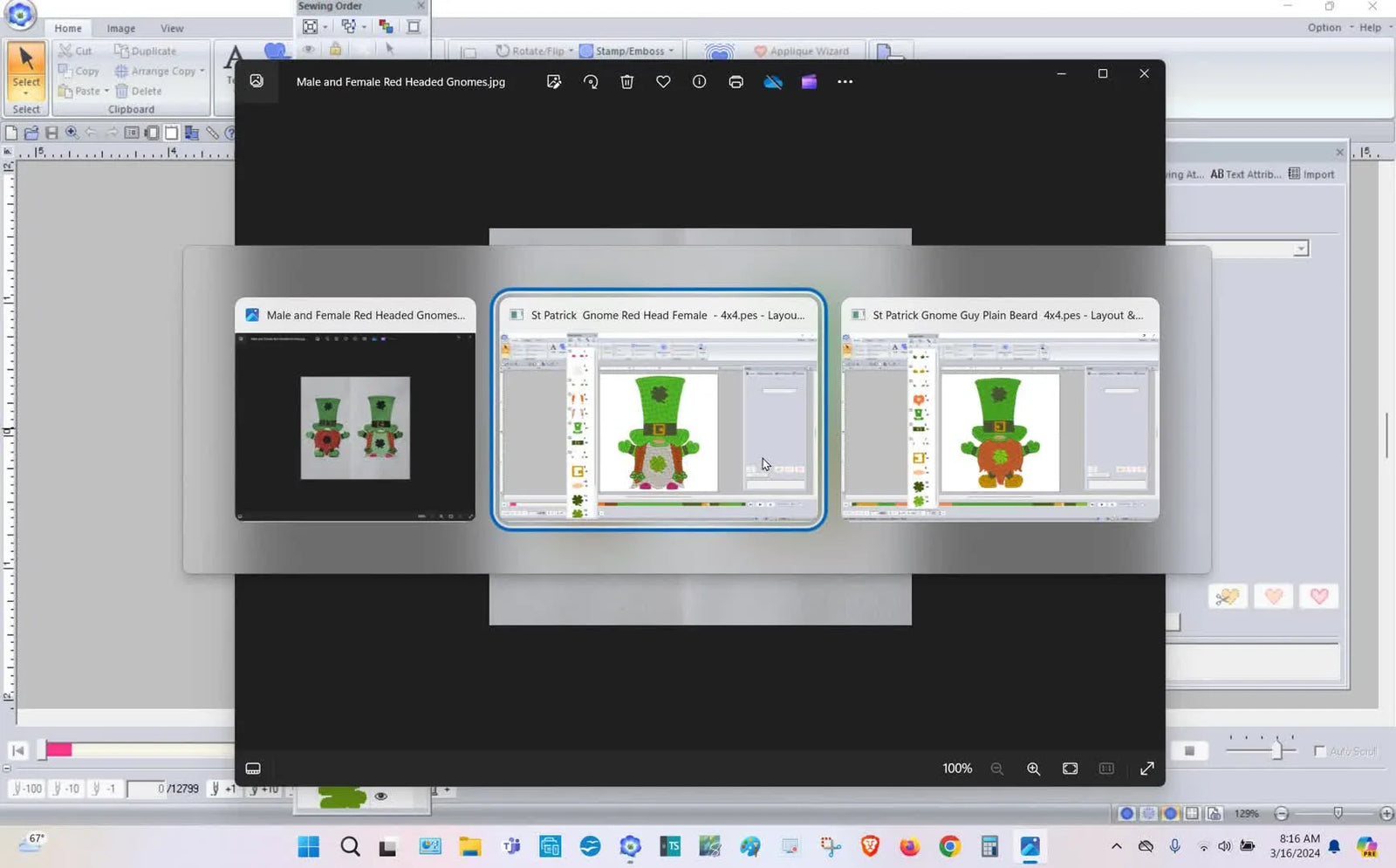

Regina starts by showing the finished stitch-outs of the male and female gnomes. Before sticking a USB drive into your machine, you need to understand the architecture of the file.

The female gnome has 14 color stops. To a beginner, this might sound tedious. To a pro, this is control. Regina explains that she intentionally separates elements—even if they are the same color—so the machine forces a stop.

Why is this vital for your workflow? If you group all the green elements together, the machine will jump from the hat to the shoe in one go. If a thread breaks or the bobbin runs out during that long travel, you have to backtrack. By keeping stops separate, you create natural "checkpoint" pauses. This allows you to walk away, prep your next hoop, or check your phone without fearing a bird's nest disaster.

The “Layering Logic” in Embroidery Tool Shed: Preventing the "Bulletproof Patch" Effect

Regina walks through the female gnome’s color sequence. Her layering order is deliberate:

1. Shoes
2. Dress
3. Gloves
4. Hair highlights
5. Hat and brim
6. Hat band (with insert)
7. ...and so on, ending with outlines.

The Physics of Layering: If you stitch the heavy outlines before the fill stitches, your fabric will push and pull, leaving gaps (white fabric showing through). By stitching the "anchor" layers (shoes, dress) first and details last, you permit the fabric to shift slightly without ruining the alignment.

This is the part many novices skip—and then wonder why their stitch-out looks "flat" or has gaps. When a digitizer separates stops (like hat band vs. glove band), it allows the machine to pause at a clean moment.

Virtual Thread Swaps: Save Money Before You Stitch

Regina demonstrates changing thread colors on-screen—swapping the dress to a pale mint green and the bands to pink.

Why do this digitally? Embroidery thread and stabilizer are consumables. Money. By visualizing the change in Embroidery Tool Shed (or your preferred software), you avoid the "regret stitch-out."

If you are using tools like the dime snap hoop for quick testing, this digital previewing is even more critical. It allows you to cycle through color options mentally before you commit physical resources to the frame.

The "Check Twice, Stitch Once" Habit

Regina opens the included PDF color sheet and cross-references it with the stop list in the software. She highlights checking Stop #13 (a specific green for the bows).

The " Sensory Check" for Thread: Don't just look at the screen. Physically line up your thread spools in order 1 through 14 next to the machine.

• Visual: Does cone #4 actually match cone #11?
• Tactile: Is the thread weight consistent? (Don't mix 40wt embroidery thread with 60wt bobbin thread on top).






The Hidden Prep: Hoop Reality and File Discipline

Before you click "Save As," you must control three variables: True Design Dimensions, True Hoop Field, and Fabric Stability.

Regina checks design properties. The female gnome stats:

• Stitch count: 12,796
• Width: 3.86 in
• Height: 3.79 in

The Cognitive Trap: A 4x4 hoop is mathematically 4.00 inches wide. A 3.86-inch design should fit. But in the world of file formats like CSD, 4.00 inches does not exist. The "buffer zone" required by the machine often eats into that space.

Prep Checklist: The "Pre-Flight" Safety Protocol

• Verify Dimensions: Check the width/height in the properties window. Is it under your confirmed safe limit?
• Consumables Check: Do you have enough bobbin thread? (A 12k stitch design will consume a significant amount).
• Needle Check: Is your needle fresh? If you can hear a "popping" sound as it penetrates fabric, the needle is dull. Change it.
• Format Strategy: Create a dedicated folder for exports so you don't corrupt your master file.

The Error: “The Design Doesn’t Fit Within the Embroidery Field”

Regina attempts to save the design as a .CSD file and hits the wall. Even resizing to 95% fails.

The "Why" Behind the Error: Your physical hoop might be 100mm x 100mm. However, the .CSD format (and many others) requires a "keep-out zone" for the presser foot and frame attachment. The software is protecting you from slamming the needle bar into the plastic frame.

The Danger of Resizing: Regina tries resizing. This is risky.

• Density Issues: If you shrink a design by 10%, the stitch count often stays the same, increasing density. This can cause the needle to hammer a hole in your fabric.
• Distortion: Satin stitches become too narrow, causing thread breaks.

Warning: Resizing embroidery designs can drastically change stitch density; even a small scale-down (like 95%) can cause thread breakage or puckering if the software doesn't automatically recalculate density. Always run a test stitch on scrap fabric after resizing.

The Solution: The "Square Test" (Finding Your True Max)

This is the most critical takeaway. Regina switches to Baby Lock Palette 11, sets the hoop to 100 x 100, creates a simple square, and incrementally sizes it down until it saves.

The Magic Number: In her setup, the safe maximum CSD design size for a 4x4 hoop is 3.94" x 3.94". Anything larger triggers the error, even if the hoop is physically 4.00".

If you frequently encounter file errors, many users search for CSD file format troubleshooting to understand these specific limitations. But the "Square Test" beats reading forums—it gives you the hard data for your specific machine.

Setup Checklist: Calibrating Your Digital Workspace

• Set the Grid: In your software, define the hoop as 100x100 (4"x4").
• The Increment Test: Create a square. Try saving at 3.99", 3.98", etc.
• Record the Limit: Write the final successful number (e.g., 3.94") on a piece of tape and stick it to your machine or monitor.
• Center Check: Ensure your design is mathematically centered (0,0 coordinate) before saving.

Why Resizing “Just 5%” Is a Gamble

Regina notes she doesn't like how the stitch view looks after resizing ("look what it does down here").

When you resize a digitizer's work, you are altering the physics of the stitch.

• Original: A 3mm satin stitch (beautiful sheen).
• Resized (Smaller): A 2.2mm satin stitch (stiff, thread piles up).
• Resized (Larger): A 4mm satin stitch (loose loops, snag hazard).

If you find yourself resizing every design to fit a 4x4 hoop, you are fighting a losing battle against quality. This is where learning true digitizing for 4x4 hoop constraints becomes essential—or upgrading your hardware to accommodate larger fields.

The Male Gnome: 11 Stops of Simplicity

Regina shows the male gnome (11 stops). The logic remains: separation equals control.

• Socks
• Shoes
• Gloves
• Beard
• Hat...

This separation allows for easy customization (blue socks? brown shoes?) without complex editing.

Decision Tree: Fabric, Stabilizer, and Hooping Strategy

The software is prep. The stitching is reality. Your choice of stabilizer and hooping method determines if your gnome is cute or distorted.

Start Here: What is your base material?

(A) Stretchy Knit (T-Shirts, Baby Onesies)

• Stabilizer: Cut-Away (Absolute requirement). Tear-away will result in a distorted design after the first wash.
• Hooping Risk: "Hoop Burn" (shiny ring marks) and stretching the fabric while measuring.
• The Fix: Use a Magnetic Hoop. It clamps straight down without the "tug and screw" friction of traditional hoops.

(B) Terry Cloth / Towels (High Pile)

• Stabilizer: Tear-away (back) + Water Soluble Topper (front). The topper prevents stitches from sinking into the loops.
• Hooping Risk: The thick fabric pops out of the inner ring.
• The Fix: Magnetic Hoops are superior here because they self-adjust to thickness.

(C) Woven Cotton (Table Runner / Quilting Cotton)

• Stabilizer: Tear-away is usually sufficient.
• Hooping Risk: Alignment.

The Physical Hooping Reality: Why "Free" Hoops Fail You

Regina’s demo solves the software error, but if you solve the file error and then hoop your t-shirt crookedly, the result is still a failure.

Sensory Cues for Good Hooping:

• Touch: The fabric should feel taut like a drum skin, but not stretched like a rubber band. If you pull the fabric after hooping to tighten it, you have already failed (it will pucker when released).
• Sight: The grain of the fabric must remain perpendicular. If the vertical knit lines look curved near the hoop edge, un-hoop and try again.

The Tool Upgrade: Traditional inner/outer ring hoops rely on friction and physical strength. This is the #1 cause of frustration (and sore wrists). For those struggling with thick items or delicate knits, upgrading to magnetic hoops for embroidery machines changes the physics. Instead of friction, you use vertical magnetic force. This prevents the "fabric drag" that distorts designs.

Many professionals using specific ecosystems eventually look for magnetic hoops for babylock embroidery machines because they significantly speed up the re-hooping process during production runs.

Warning: Magnet Safety. Magnetic hoops contain powerful Neodymium magnets.
1. Pinch Hazard: Keep fingers clear of the snapping zone.
2. Medical: Keep at least 6 inches away from pacemakers.
3. Tech: Do not place phones or credit cards directly on the magnets.

Operation: The "No-Babysit" Workflow

Regina’s file structure allows you to multitask. But meaningful multitasking requires trust in your machine setup.

Setting the Speed: Just because your machine can do 1000 stitches per minute (SPM) doesn't mean it should.

• Beginner Sweet Spot: 600 - 700 SPM.
• Listen to the Machine: A rhythmic "thump-thump" is good. A frantic, high-pitched clatter or metallic slapping sound indicates vibration that will kill your accuracy. Slow down.

If you are using a hooping station for embroidery, you can prep the next garment while the machine runs the 14 stops of the current one. This is how you turn a hobby into a side hustle.

Operation Checklist: The "Go/No-Go"

• Bobbin Status: Is it full? (Check visually).
• Upper Thread Path: Is the thread seated deep between the tension disks? (Pull the thread near the needle; you should feel resistance similar to drawing dental floss between teeth).
• Clearance: Is the hoop clear of the wall/table?
• Stop 1 Observation: Watch the first 100 stitches. If the fabric bubbles, STOP. No amount of wishing will fix bad hooping. Cut the thread, re-hoop.

Troubleshooting: From Symptoms to Solutions

When things go wrong, don't guess. Follow this logic path.

The Growth Path: When to Upgrade Your Tools

Regina’s demo shows how to optimize software for a 4x4 environment. But if you find yourself constantly fighting the size limit or the color change downtime, it's time to evaluate your hardware.

Level 1: Stability Upgrade Struggling with hoop burn or thick towels? Use Magnetic Hoops. They solve the physical holding problem without buying a new machine.

Level 2: Software Upgrade Struggling with "blind" edits? Tools like Embroidery Tool Shed (used in the demo) allow for safe resizing and color management.

Level 3: Production Upgrade If changing threads 14 times per gnome is driving you crazy, this is the trigger for a Multi-Needle Machine. Moving from a single-needle to a SEWTECH multi-needle setup allows you to load all 11-14 colors at once. You press "Start" and come back to a finished gnome.

Final Review

• The Limit is Real: For CSD files in a 4x4 hoop, your safe zone is likely 3.94" x 3.94".
• Layering Matters: Trust the stop count; it's there to protect quality.
• Test Physically: Screen previews save money, but only a test stitch proves the tension.

Master the format limits, respect the hoop physics, and your gnomes will stitch out perfectly every time.

FAQ

• Q: Why does Baby Lock Palette 11 show “The design doesn’t fit within the embroidery field” when saving a 4x4 design to CSD format?
  A: This is common—CSD often enforces a keep-out buffer, so a “4x4” (100×100) hoop may only accept about 3.94" × 3.94" in your setup.
  • Run the Square Test: set hoop to 100×100, draw a square, and try saving at 3.99", 3.98", then step down until it saves.
  • Record the last successful size (example shown: 3.94") and treat it as the maximum safe CSD export size for that hoop.
  • Center the design at the 0,0 coordinate before saving to avoid edge overrun.
  • Success check: the file saves to .CSD with no “doesn’t fit” pop-up at the tested size.
  • If it still fails… verify the hoop size setting is truly 100×100 in software and repeat the test in a new blank file.
• Q: Why does shrinking an embroidery design to 95% in Embroidery Tool Shed or Baby Lock Palette 11 still look risky even if it saves to CSD?
  A: Resizing down can increase stitch density and distort satin stitches, so “it saves” does not always mean “it will stitch cleanly.”
  • Prefer the Square Test to find a safe max size instead of repeatedly shrinking finished designs.
  • If resizing is unavoidable, stitch a test on scrap with the same fabric + stabilizer before committing to a garment.
  • Inspect the stitch view after resizing for crowded areas (especially satin columns and dense fills).
  • Success check: the test stitch runs without thread breaks and the fabric does not pucker around dense areas.
  • If it still fails… choose a design drafted for the true 4x4 limit or move to a larger hoop/field rather than forcing scale changes.
• Q: How do I confirm correct hooping tension on stretchy knit T-shirts to avoid puckering and hoop burn during embroidery?
  A: Hoop the knit drum-tight but not stretched—stretching in the hoop is a common cause of puckering after release.
  • Use cut-away stabilizer for stretchy knit (tear-away commonly distorts after washing).
  • Clamp fabric without “tugging and screwing” friction; a magnetic hoop often reduces drag and ring marks on knits.
  • Re-hoop if the knit grain lines curve near the hoop edge; keep the grain perpendicular.
  • Success check: fabric feels taut like a drum skin, and the knit lines stay straight (not bowed) at the hoop edge.
  • If it still fails… stop after the first 100 stitches if the fabric bubbles, then re-hoop with better stabilization.
• Q: How do I stop bird nesting (loops underneath) caused by top thread not seated in the tension disks on a home embroidery machine?
  A: Re-thread the top thread with the presser foot raised—most bird nesting comes from the thread missing the tension disks.
  • Raise the presser foot to open the tension disks, then completely re-thread the upper path.
  • Pull the thread near the needle after threading to confirm it “bites” with noticeable resistance.
  • Start again and watch the first 100 stitches before walking away.
  • Success check: the underside shows tidy bobbin lines, not a wad of loops or tangles.
  • If it still fails… check for thread jumping out of guides and re-check the bobbin area for lint buildup.
• Q: What should I check first when white bobbin thread is showing on top of the embroidery design during stitching?
  A: Start with cleaning and re-threading, then adjust top tension slightly—this symptom often points to top tension too tight or bobbin too loose.
  • Clean the bobbin case area (remove lint “dust bunnies”) before changing settings.
  • Re-thread the top thread to ensure proper seating through the tension path.
  • Lower the top tension slightly in small steps and re-test.
  • Success check: top thread covers the bobbin thread on the surface, with no white “peeking” in normal fill areas.
  • If it still fails… confirm the bobbin is correctly inserted and consider whether the bobbin case needs deeper inspection/servicing.
• Q: When should I replace an embroidery needle to prevent needle breaks and stitch quality problems on dense designs?
  A: Replace the needle at the first sign of dullness—if a “popping” sound is heard as the needle penetrates, change it before continuing.
  • Swap in a fresh needle before long runs (the blog notes standard chrome needles last about ~8 hours of run time).
  • Stop immediately after a needle strike or repeated breaks and replace the needle instead of forcing the run.
  • Reduce speed if the machine sounds frantic or clattery to minimize deflection and vibration.
  • Success check: the machine returns to a steady, rhythmic sound and stitches form cleanly without breaks.
  • If it still fails… confirm the hoop has clearance (no frame collision) and reassess density/resize choices.
• Q: What magnetic hoop safety rules should I follow when using a neodymium magnetic embroidery hoop on towels or T-shirts?
  A: Magnetic hoops are very effective but must be handled like a strong clamping tool—keep fingers, medical devices, and sensitive electronics away from the snap zone.
  • Keep fingers clear when the hoop closes to avoid pinch injuries.
  • Keep magnetic hoops at least 6 inches away from pacemakers.
  • Do not place phones or credit cards directly on the magnets.
  • Success check: the hoop closes smoothly without finger pinches and holds fabric evenly without shifting.
  • If it still fails… slow down the closing motion and reposition fabric/stabilizer so the hoop seats flat before letting magnets engage.
• Q: If a single-needle embroidery workflow has too many color changes (11–14 stops) and constant re-hooping, what is the best upgrade path for production efficiency?
  A: Use a tiered approach: optimize technique first, then upgrade hooping, then upgrade the machine only if the workload justifies it.
  • Level 1 (Technique): slow to a stable 600–700 SPM and watch the first 100 stitches to catch hooping/tension issues early.
  • Level 2 (Tool): switch to a magnetic hoop to reduce hoop burn, speed re-hooping, and handle thick towels more reliably.
  • Level 3 (Capacity): move to a multi-needle machine when thread-change downtime is the bottleneck (load all colors and run with fewer stops).
  • Success check: fewer mid-run stops for re-hooping/threading, and you can prep the next item while the machine stitches reliably.
  • If it still fails… document which step is consuming time (threading, hooping, errors) and address that specific bottleneck first.
