Stop the Breakdown Before It Starts: A Tajima Service Day That Saved Two Single-Head Machines from Cable Failure

When you run an embroidery shop, the scariest failures aren’t the dramatic ones—they’re the quiet ones. The machine that was “stitching fine yesterday” is often the one that breaks your production schedule today.

Day 5 of this service trip in St. Kitts offered a textbook example of this hidden danger: two industrial Tajima machines were still producing acceptable stitches, but deep inside the chassis, the internal cables were visibly fraying. This is exactly how professional shops get blindsided. One minute you are running a job, and the next, a cable snaps, a sensor fails, and you are facing three days of downtime waiting for parts.

This post rebuilds that day into a practical, repeatable workflow you can use in your own shop. Whether you are the owner, the in-house tech, or the person who always gets called when the machine starts acting “weird,” this guide is your blueprint for moving from reactive panic to proactive control.

Calm the Panic First: When a Tajima Machine Still Stitches but Something Feels “Off”

A machine can be running at 100% speed and still be on the edge of a catastrophic failure. In the video, the shop had two machines operating and producing “beautiful stitches,” yet the technician identified that critical cables were “on their way out to breaking.”

That gap—between current performance and impending failure—is the most dangerous zone for a business owner. It creates a false sense of security.

If you are responsible for production, you must adopt a "Chief Engineer" mindset. Reset your thinking with these three rules:

1. A good sew-out today does not guarantee uptime tomorrow. Mechanical wear is cumulative. The machine doesn't "heal" itself overnight.
2. Visible wear is a schedule problem, not a “someday” problem. If you see insulation rubbing off a wire, that isn't a cosmetic issue; it is a countdown timer.
3. Preventative maintenance is profit protection. Emergency repairs cost 3x more than scheduled maintenance because they include the cost of rush shipping parts and the cost of your customer’s anger.

Consider the "sunk cost" of a mid-run failure: If a cable snaps while you are embroidering a jacket back, you don't just lose the cable. You lose the hooping time, the backing, the thread, the garment (if it ruins the fabric), and the operator's momentum.

The “Hidden” Prep Pros Do Before Touching a Tajima Single-Head Embroidery Machine

Before a single screw is turned, the day begins with a professional rhythm. It’s not about rushing to the machine with a screwdriver; it’s about assessment.

Experienced technicians know that rushing into a repair without a plan is how you strip screws, pinch wires, and lose small parts. If you are working on a tajima single head embroidery machine, follow this sensory preparation routine to protect your asset.

The Sensory Scan (Eyes, Ears, Touch)

• Listen: Before shutting down, run the machine at a low speed (e.g., 400-500 SPM). Listen for rhythmic clicking or grinding. A smooth "hum" is good; a harsh "rattle" suggests loose mechanical linkages.
• Touch: Feel the motor housing and the area near the reciprocator. Is it excessively hot? Heat indicates friction.
• Look: Open the bobbin case area. Is there "black dust"? That’s not lint; that is usually a belt or a rubber dampener disintegrating.

Essential "Hidden" Consumables

Before starting, ensure you have these often-overlooked items:

• Cable Ties (Zip Ties): To secure the new cables away from moving parts.
• Lithium Grease/Oil: Determine strictly by your manual.
• Compressed Air & Tweezers: To clear debris from the cable path.
• Smartphone Camera: To take "Before" photos of the cable routing.

Prep Checklist (end-of-prep checkpoint)

• Documentation: Take a photo of the current cable routing before unplugging anything.
• Sample: Run a "Before" sew-out (e.g., the letter 'H' or a satin column) to establish a baseline for tension and stitch quality.
• Parts Verification: Confirm the replacement cable matches the part number exactly. Visual matches can be deceiving.
• Workspace: Clear the table area. Place a magnetic tray down for screws.
• Power: Unplug the machine from the wall. Switching it off is not enough when working with internal electronics.

Warning: Mechanical Hazard. Before you open covers or reach near moving assemblies (like the reciprocator or trimmer knives), ensure the machine is fully powered down and unplugged. Needles and knives can trigger unexpectedly if residual power remains in capacitors, causing severe puncture wounds.

Triage Like a Shop Owner: Choosing Which Tajima Embroidery Machine Gets Serviced First

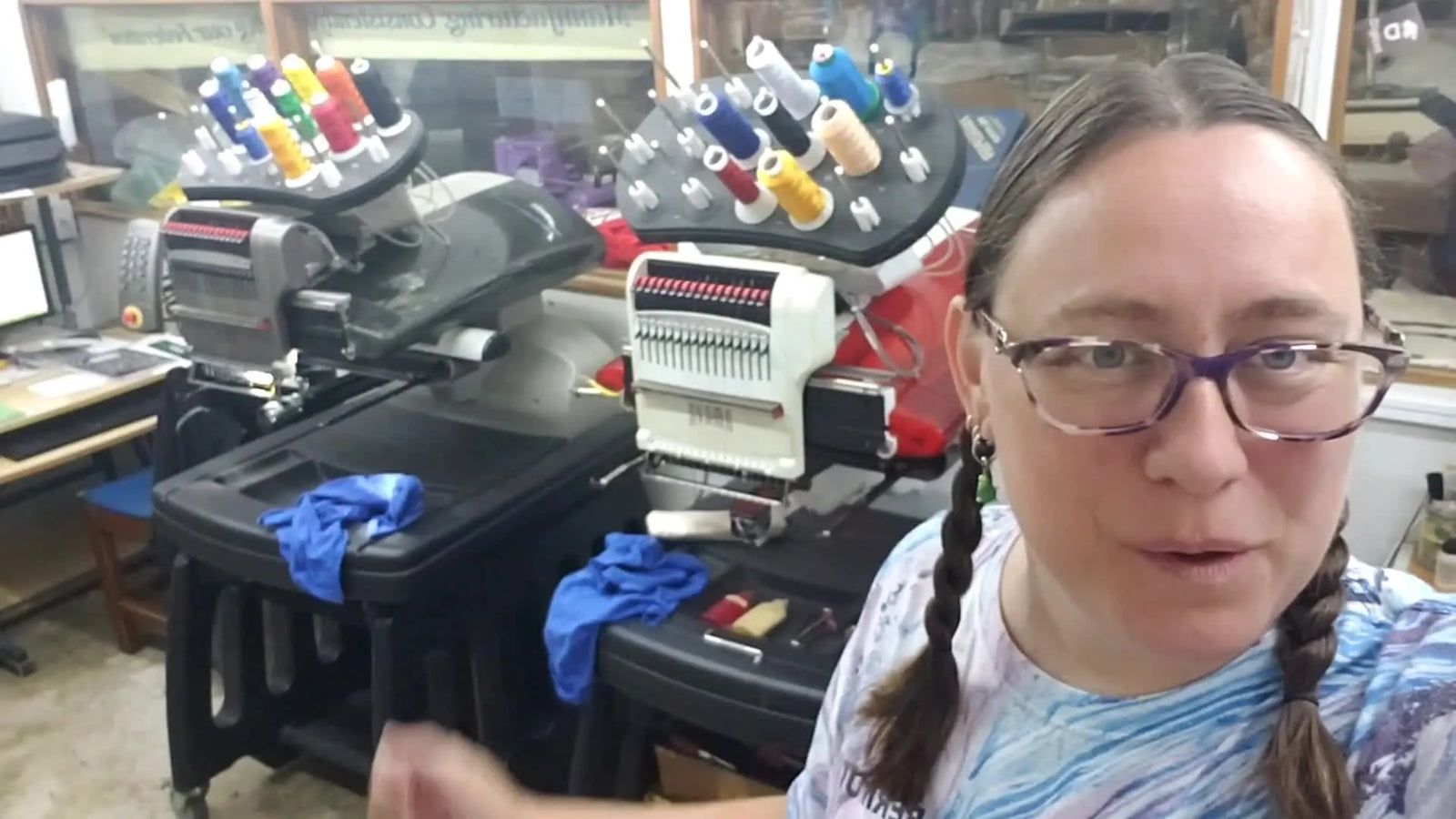

In the workshop, the vlogger points out two machines and makes a critical decision: Start with the red-and-white machine because it is “the most difficult” and has “more parts…to swap out.”

This is Triage Logic. In a commercial environment, your energy is a finite resource.

The "Eat the Frog" Strategy

1. High Complexity First: Tackle the machine that requires the deepest disassembly (removing shells, accessing tight spots) while your mind is fresh and your hand-eye coordination is peak.
2. Risk Management: If the sophisticated repair goes wrong, you have the rest of the day to troubleshoot. If you leave it for 4:00 PM and it fails, you are working overtime in a panic.
3. The "Easy Win" Buffer: Save the simpler machine for later. It acts as a psychological boost at the end of a hard day.

If your shop runs multiple tajima embroidery machines, this prevents the classic disaster: spending all morning on the easy unit, only to discover the hard unit needs a part you don't have, leaving you with zero output for the day.

The Tell-Tale Sign You Can’t Ignore: Diagnosing Fraying Cables Before They Snap

The diagnosis in the video is subtle: the machines are stitching okay, but the cables are “starting to fray.” Why is this happening?

The Physics of Fraying

Internal cables in embroidery machines are often routed through "drag chains" or alongside moving pantographs (the X-Y carriage system). Every stitch requires movement.

• Friction: If a cable isn't secured tightly, it rubs against the metal casing 800 times a minute.
• Fatigue: Copper work-hardens and breaks after repeated bending.
• The "Pinch": This happens during reassembly. If a wire is trapped between two metal plates, the insulation cuts, leading to a short circuit.

Visual Cues

Look for:

• Shiny Spots: If the black insulation looks shiny or polished in one spot, it is rubbing.
• White Powder: This is the internal shielding of the wire grinding down.
• The "Kink": A sharp 90-degree bend in a wire that should be a smooth curve.

Even if you don't see error codes yet, a frayed cable is a ticking time bomb. It will eventually ground out against the chassis, potentially blowing a main circuit board—a $1,000+ repair caused by a $20 cable.

Use a Sew-Out as Your “Truth Meter” (Even When the Problem Is Mechanical)

In the video, the vlogger holds up a hooped sample (a sun design) to show stitch quality is currently acceptable. Never skip this step.

A Sew-Out generates data. You need to read it like a doctor reads an X-ray.

How to Read the "Truth Meter"

1. Top Tension: Are the satin stitches smooth? If they look loopy or "railroaded" (perfectly parallel tracks), your tension is too loose.
2. Bobbin Show: Flip the hoop over. For commercial embroidery machines, you should see 1/3 white bobbin thread in the center of a satin column, with top thread flanking the sides.
3. Registration: Are the outlines lining up with the fill? If the outline is shifted (gapping), it might not be a digitizing error—it could be mechanical "slop" caused by the same wear that is fraying your cables.

The Rule: A good sew-out does not cancel a mechanical warning sign. It only confirms you have a brief window to fix the mechanical issue before it destroys your stitch quality.

The Fix That Prevents Downtime: Swapping Fraying Cables and Doing a Tune-Up Mindset

The repair process documented involves swapping the fraying cables and performing a tune-up. Here is the professional workflow for this "surgery."

The Swap Workflow

1. Expose the Path: Remove the necessary covers. Tip: Poke screws through a piece of cardboard in the pattern you removed them so you know exactly which screw goes back into which specific hole.
2. One Motion Rule: Do not disconnect the old cable immediately. Route the new cable alongside the old one first. This ensures you follow the exact factory pathing.
3. The Switch: Disconnect the old, connect the new.
4. Secure: Use zip ties, but do not overtighten. A zip tie should hold the cable snug, not crush the insulation. If you crush it, you create a new failure point.

The Tune-Up Trio

Once the cable is fixed, perform these three maintenance tasks while the hood is open:

1. Grease: Apply a tiny amount of white lithium grease to the reciprocating shaft (cam) if your manual dictates.
2. Oiling: Add a drop of oil to the rotary hook raceway.
3. De-linting: Blast the thread path and tension disks with compressed air.

Setup Checklist (end-of-setup checkpoint)

• The "Wiggle" Test: Gently wiggle the new cable. Does it have enough slack to move with the machine head?
• Pinch Check: Run your finger along the entire length of the cable. Ensure it isn’t trapped under a cover or screw.
• Manual Revolution: Turn the main shaft wheel manually (usually on the side or back) through a full needle cycle. Listen for crunches. If you hear any resistance, STOP. You may have pinched a line.
• Slow Start: When powering on, set the speed to the absolute minimum (e.g., 400 SPM) for the first test run.

Why This Happens (and How to Make It Happen Less): Cable Wear, Motion Paths, and Shop Habits

Cables die because of Strain and Abrasion.

• Tight Routing: If a cable is pulled tight like a guitar string, the vibration of the machine will snap the internal copper strands.
• Loose Routing: If it's too loose, it loops out and catches on moving gears or belts.

The "Goldilocks" Zone: Cables should have a gentle curve (a service loop) that allows for movement but prevents flopping.

The Pro Habit: Every time you oil your machine (which should be daily or weekly depending on volume), verify that your cables aren't touching a belt. A belt acts like sandpaper; it will eat through a cable in hours.

The Shop-Floor Reality: Hooping Bottlenecks Can Waste More Time Than Repairs

The video focuses on maintenance, but let’s talk about the elephant in the room. You can have a perfectly tuned Tajima with brand new cables, but you will still lose money if your Hooping Workflow is inefficient.

Common "Silent Killers" of production speed:

• Hoop Burn: Traditional plastic rings leave shiny marks on delicate polyester or performance wear. Removing these marks requires steaming (extra labor) or causes customer returns (lost revenue).
• Repetitive Strain: Screwing and unscrewing hoops hundreds of times a day destroys your operators' wrists.
• Slippage: Setup takes 2 minutes, but the fabric slips mid-stitch, ruining a $20 garment.

The Business Case for Tooling Up

If you find yourself constantly fighting with fabric shifting or hoop marks, it is time to upgrade your infrastructure using the "Trigger → Standard → Solution" model:

• Trigger: You are producing orders of 20+ items, and your operators are complaining of wrist pain, or you are seeing "hoop burn" marks on dark polo shirts.
• Standard: Can you afford to spend 2 minutes hooping a shirt that takes 5 minutes to sew? (Hint: No. Hooping should take 30 seconds).
• Solution: The Magnetic Upgrade.
  • Level 1 (Technique): Use a machine embroidery hooping station to standardize placement. This builds muscle memory.
  • Level 2 (Tooling): Switch to magnetic hoops for tajima embroidery machines. Magnetic hoops snap closed instantly. They hold thick jackets without forcing screws, and they float on the fabric, eliminating "hoop burn."
  • Level 3 (Scaling): For shops running SEWTECH multi-needle machines, magnetic frames are a force multiplier. Because they don't require re-adjusting screws for every shirt, you can increase throughput by 20-30% simply by changing the hoop type.

Warning: Magnetic Field Safety. Commercial magnetic hoops use industrial-strength neodymium magnets. They are incredibly powerful.
1. Pinch Hazard: They snap together with enough force to crush fingers. Handle with extreme care.
2. Medical Devices: Keep them at least 6 inches away from pacemakers or insulin pumps.

A Simple Decision Tree: Fabric + Stabilizer Choices That Reduce Rework

The video shows a sample on white fabric. In the real world, 80% of machine "malfunctions" are actually Stabilizer Errors.

Use this logic flow to stop blaming the machine and start fixing the physics:

Decision Tree (Fabric Type → Essential Action)

1. Is the fabric Stretchy (T-Shirt/Polo/Performance)?
   • Action: YOU MUST USE CUT-AWAY STABILIZER.
   • Why: Knits stretch. Tear-away tears during stitching, allowing the fabric to distort. Cut-away provides a permanent skeleton.
   • Top Tip: Use a ballpoint needle (75/11) to part the fibers rather than cutting them.
2. Is the fabric Stable (Twill/Canvas/Denim/Cap)?
   • Action: Use TEAR-AWAY STABILIZER.
   • Why: The fabric supports itself. The stabilizer just adds crispness.
   • Needle: Sharp point (75/11 or 80/12).
3. Is the fabric Fluffy (Towel/Fleece/Velvet)?
   • Action: Add WATER SOLUBLE TOPPING (Solvy) + Tear-away Backing.
   • Why: Without topping, the stitches will sink into the "pile" and disappear. The topping keeps the thread floating on top.

Using high-quality consumables—like SEWTECH stabilizers—is cheaper than replacing a ruined Carhartt jacket.

“We Got Both Major Things Done”: How to Schedule Preventative Maintenance Without Killing Production

The vlog ends with a clear win: maintenance day is finished, and the next day is reserved for testing. This is the "24-Hour Rule" of maintenance.

Day 1: The Surgery. Perform the repairs, swaps, and greasing. Day 2: The Physical Therapy. Run the machine on non-critical jobs or thorough samples.

Never perform a major repair and immediately jump into a rush order for a VIP client. The "settling in" period is where you find the loose screw or the pinched wire.

Operation Checklist (end-of-operation checkpoint)

• Auditory Check: Run the machine at 600 SPM. Does it sound rhythmic?
• Tension Verification: Check the back of the first 3 test runs. Is the 1/3 bobbin rule holding?
• Speed Ramp: Only after 1,000 stitches of clean running, increase speed to your production standard (e.g., 800-1000 SPM).
• Watch the Cables: During the first run, visually watch the new cables. Are they moving freely?

Quick Troubleshooting Table: Symptoms That Often Point Back to Cable Wear

When cables start to fail, they don't always snap immediately. They haunt you with "ghosts."

The Human Side of Shop Success: Team, Food, and Why Morale Matters More Than You Think

The video highlights the team eating dinner and the travel logistics. This isn't just filler—it's sustainability.

Maintenance is stressful. Diagnostics is mentally draining. Successful shops build a culture where technicians and operators can take a breath.

• Share Knowledge: Don't be the "Wizard" who is the only one who can fix the machine. Teach your operators to listen for the "bad sounds."
• The "Fresh Eyes" Rule: If you have been fighting a repair for 2 hours and can't fix it, walk away for 15 minutes. Fatigue causes mistakes.

The Upgrade Moment: When It’s Time to Stop Fighting Your Tools

Sometimes, the maintenance is done, the cables are new, but you are still struggling. This is usually a sign that you have outgrown your workflow, not your skills.

If you are treating embroidery as a business, ask yourself these hard questions to determine your upgrade path:

1. Are you losing time to setup?
   • If yes, move to a tajima embroidery hoops magnetic system. The speed gain is immediate.
2. Are you turning away bulk orders?
   • If you are maxing out your single-head capacity, looking into commercial embroidery machines or adding a SEWTECH multi-needle workhorse to your fleet is the next logical step. These machines maximize the "spindle time" (time spent actually sewing) versus setup time.

The goal of maintenance isn't just to keep the machine running—it's to keep the business profitable. Fix the cables today so you can build the empire tomorrow.

FAQ

• Q: What “hidden consumables” should be ready before replacing internal cables on a Tajima industrial embroidery machine?
  A: Prepare the small items first so the cable swap stays clean and you don’t create a new pinch point.
  • Gather: zip ties, lithium grease/oil (per manual), compressed air + tweezers, a smartphone for “before” photos, and a magnetic tray for screws.
  • Photograph: take clear photos of the original cable routing before unplugging anything.
  • Verify: confirm the replacement cable matches the exact part number (visual similarity can be misleading).
  • Success check: all screws and small parts stay organized, and the new cable can be routed without guesswork.
  • If it still fails: stop and re-check routing photos before disconnecting more connectors.
• Q: What is the correct safety procedure before opening covers near the reciprocator or trimmer knives on a Tajima embroidery machine?
  A: Unplug the Tajima embroidery machine from the wall—powering off is not enough when working near moving assemblies and electronics.
  • Power down: shut the machine off, then physically unplug it.
  • Clear hands: keep fingers away from needle and knife areas until the machine is fully de-energized.
  • Re-check: confirm no covers are removed until the machine is unplugged and stable.
  • Success check: the machine cannot be started from the control panel because the plug is removed.
  • If it still fails: wait and follow the machine manual for any additional lockout steps your model requires.
• Q: How can a shop diagnose fraying internal cables on Tajima embroidery machines before a cable snaps?
  A: Inspect and act immediately when insulation wear appears—fraying cables are a countdown timer even if stitch quality still looks fine.
  • Look for: shiny/polished insulation spots, white powder (shielding debris), and sharp 90-degree kinks where a smooth curve should be.
  • Check routing: verify cables are not rubbing metal edges, belts, or moving pantograph paths.
  • Prevent pinch: after any reassembly, run a finger along the cable path to confirm nothing is trapped under a cover or screw.
  • Success check: cables sit in a gentle service loop (“Goldilocks” slack) and do not touch belts or sharp edges during motion.
  • If it still fails: stop production and replace the cable before it can short to the chassis and risk a control board failure.
• Q: What is the safest workflow to swap fraying cables inside a Tajima industrial embroidery machine without misrouting the harness?
  A: Route the new cable alongside the old cable first, then switch connections—this prevents wrong pathing and future abrasion.
  • Expose: remove only the necessary covers and keep screws mapped (cardboard pattern works well).
  • Route: lay the new cable along the factory path next to the old cable before unplugging the old one.
  • Secure: add zip ties snugly (do not overtighten and crush insulation).
  • Success check: the “wiggle test” shows enough slack for movement, and a manual handwheel revolution feels smooth with no crunch/resistance.
  • If it still fails: stop immediately and re-check for pinched lines under covers, then restart testing at minimum speed (about 400 SPM).
• Q: How should stitch quality be checked as a “truth meter” on commercial embroidery machines after mechanical work like cable replacement?
  A: Always run a test sew-out and read tension/registration so mechanical warnings don’t get ignored just because stitches look “okay.”
  • Sew-out: stitch a controlled sample (a satin column or simple letter) before and after the repair.
  • Flip check: confirm bobbin show on satin columns follows the 1/3 bobbin thread guideline on the back (common commercial standard).
  • Inspect registration: verify outlines align with fills; shifting can indicate mechanical slop, not just digitizing.
  • Success check: satin stitches look smooth on top and the back shows consistent bobbin presentation without sudden shifts.
  • If it still fails: slow the machine down and re-check thread path/tension first, then re-check cable freedom of movement.
• Q: What does screen flickering on a Tajima embroidery machine usually indicate, and what is the fastest first check?
  A: Screen flickering often points to a loose or damaged power/data ribbon connection at the control panel, so reseating the connector is the first step.
  • Power off/unplug: disconnect power before touching internal connectors.
  • Inspect: access the control panel rear connection and look for looseness or damage.
  • Reseat: unplug and firmly reconnect the ribbon/connector.
  • Success check: the display stays stable during power-up and remains steady while the machine runs.
  • If it still fails: stop and inspect the cable for damage or abrasion and replace if wear is visible.
• Q: When hooping is slowing production with hoop burn, wrist strain, or fabric slippage, what is the practical upgrade path from technique to magnetic hoops to a multi-needle setup?
  A: Use a tiered fix: improve placement technique first, then move to magnetic hoops, and only then consider scaling with a multi-needle machine if capacity is capped.
  • Level 1 (Technique): standardize placement with a hooping station to reduce rehoops and operator variability.
  • Level 2 (Tooling): switch to magnetic hoops to snap closed quickly and reduce hoop burn and screw-driven wrist strain.
  • Level 3 (Scaling): if single-head output is the bottleneck, add a multi-needle production machine to increase spindle time versus setup time.
  • Success check: hooping time drops toward a consistent, repeatable cycle and rework from slippage/marks noticeably decreases.
  • If it still fails: audit stabilizer choice and test sew-outs, because many “machine problems” are actually setup and material physics issues.
