Stop Stitching the Back of a Baby Onesie: A Flatbed Brother Single-Needle Hooping Method That Actually Clears the Machine

If you’ve ever hooped a baby onesie on a single-needle flatbed machine and felt your stomach drop—because you just know the needle is about to stitch the front and back layers together—you are not alone. This is the single most common frustration for beginners. Tubular garments (onesies, small tees, sleeves) fight the flatbed architecture, and the machine has no sensors to tell it that fabrics are bunched up underneath.

The method analyzed here is the industry-standard "Floating Bundle" technique. It involves turning the garment inside out at the hoop, rolling the excess into a tight cylinder, and effectively creating a "flat" surface out of a tube.

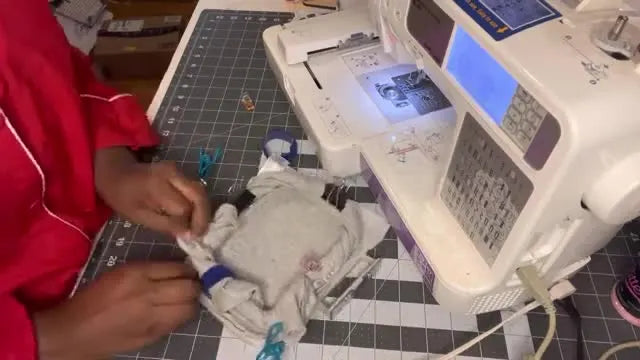

Flatbed Brother single-needle embroidery machine vs. tubular onesie: why the back layer keeps getting stitched

To master this, you must understand the physics of your equipment. On a flatbed setup, the machine bed is solid. Unlike a commercial free-arm machine (like a SEWTECH multi-needle) where the garment hangs freely, a flatbed forces the excess fabric to bunch up around the needle plate.

The "gravity trap" is real: the back of the onesie naturally wants to slide under the hoop area due to vibration and friction.

The fix is not "hope." The fix is physics. We must mechanically constrain the fabric so that only one layer exists in the needle path.

The "Throat Space" Reality Check:

• If you are working on a standard brother embroidery machine, realize that the throat space (the distance between the needle and the right-side vertical arm) is your hard limit.
• Anything bulky (rolled fabric, tall clips) runs the risk of hitting the motor housing during travel. This is why "low profile" is our mantra today.

The tool pile that makes this work: Velcro strap, binder clips, quilting clip, and cutaway stabilizer

Professional results require a professional setup, even on a home machine. The video uses a simplified kit, but as your Educator, I will expand this to the "Professional Safety Standard."

The Essential Kit:

• Standard 4x4 hoop (Inner and Outer rings).
• Cutaway Stabilizer: Crucial. For baby onesies (knits), you must use Cutaway (2.5oz or similar). Tearaway will result in broken stitches and holes when the fabric stretches.
• Velcro Strap: To bundle the fabric tightly.
• Binder Clips (Medium/Large): Stronger grip than quilting clips.
• Ballpoint Needles (75/11): Hidden Consumable. Sharp needles pierce knit loops and cause holes; ballpoint needles slide between them.
• Temporary Spray Adhesive (Optional): Helps secure the onesie to the stabilizer before hooping to prevent "ripples."


Commercial Insight: When Tools Limit Talent A quick veteran note: Binder clips are a functional "Level 1" solution. However, they create pinch points and can leave rust marks or indentations ("hoop burn") on delicate cotton.

• The Problem: Traditional hoops force you to pull fabric, distorting the weave.
• The Level 2 Solution: If you struggle with hoop burn or wrist pain, consider magnetic embroidery hoops. They clamp fabric flat without distortion and eliminate the need for the "inner ring struggle," making the bundling process significantly faster and safer for the garment.

The hidden prep that prevents puckers and clip chaos (before you touch the machine)

90% of embroidery failures happen at the prep table. Do not skip these steps.

1. The "Wing" Strategy: Connect with your materials. When you cut your stabilizer, do not cut it flush with the hoop size. Cut it 2 inches larger on all sides. These are your "wings." You need this excess material to clip your rolled fabric to. If you clip fabric-to-fabric, it slides. If you clip fabric-to-stabilizer, it locks.
2. Pre-Shrink & Press: Cotton onesies shrink. Wash and dry them first. Then, press the area to be embroidered. Warm fabric hoops better than cold fabric.
3. Visualizing the "Kill Zone": Look at your machine's throat space. Plan your roll so the bulk ends up on the left (open side) if possible, or tightly bundled if it must go right (throat side).

Warning: Needle Safety. Before handling the hoop area so intimately, ensure your machine is incapable of stitching. If your machine has a "Lock" mode, use it. If not, build the habit of keeping your foot off the pedal (if applicable) or your hands strictly away from the start button during setup.

Prep Checklist (Pre-Flight):

• Needle Check: Is a fresh 75/11 Ballpoint needle installed?
• Bobbin Check: Do you have enough bobbin thread for the whole design? (Changing bobbins with a bundled onesie is a nightmare).
• Stabilizer Wings: Is the stabilizer cut at least 1-2 inches wider than the hoop?
• The Inversion: Is the garment turned inside out, ready for the "floating" technique?

The inside-out flip: the one move that stops “stitching through the back” on a onesie

This is the "Aha!" moment. We are not hooping the shirt normally.

The Action:

1. Hoop the stabilizer only (or loop the onesie if you prefer traditional hooping, but "floating" is safer here).
2. Pull the entire onesie body to the FRONT of the hoop.
3. The result: The "pretty" side of the onesie is facing the needle, but the rest of the garment body is flipped up and around the hoop mechanism.

Sensory Check:

• Visual: You should see the inside seams of the onesie where the neck and armholes are rolled back.
• Tactile: Run your hand under the hoop. You should feel nothing but the smooth back of the stabilizer. If you feel fabric lumps, stop.


This creates a physical barrier. The back layer of the onesie is now suspended in the air above the hoop, rather than lying dangerously beneath it.

The Velcro bundle trick: roll the bottom snaps/leg area into one tight cylinder

Loose fabric is the enemy of precision. The embroidery arm moves rapidly; loose fabric creates drag, which ruins registration (alignment).

The Action:

• Take the bottom snaps/leg area of the onesie.
• Roll it upward toward the center of the hoop, like a tight burrito.
• The Anchor: Wrap your Velcro strap around this roll.

Sensory Cues:

• Tightness: Wrap it until it feels solid, like a rope. It should not feel "squishy" or loose.
• Sound: You want the Velcro to engage fully. If it's barely holding, it will pop open when the machine vibrates.


Commercial Context: The Production Scale If you are doing this for one grandchild, Velcro is fine. If you are fulfilling an order for a local sports team (20+ items), this bundling process becomes a massive time-sink.

• The Pivot: This is where a hooping station for machine embroidery changes the game. It holds the hoop and garment rigid, allowing you to use both hands for rolling and clamping. It turns a 5-minute struggle into a 30-second standard procedure.

The stabilizer-wing clamp method: roll the side fabric and clip it to the stabilizer (not the hoop)

Here is the physics of why we left those stabilizer "wings" earlier.

Left Side (The Control Side)

1. Roll the excess fabric on the left side tightly inward toward the hoop rim.
2. The Fold: Fold the extra stabilizer "wing" UP and OVER the rolled fabric.
3. The Clamp: Place your binder clip over the sandwich (Stabilizer-Fabric-Stabilizer).


Why this prevents disaster: Knit fabric is slippery. If you just clip a roll of jersey knit, it will "worm" its way out of the clip as the machine jerks. Stabilizer is fibrous and rigid. By wrapping the stabilizer over the fabric, you create a high-friction cage that locks the fabric in place.

Progress Check

Look at the setup. The fabric should be taut and contained. It shouldn't look like a "cloud" of fabric; it should look like a controlled package.

When you trimmed stabilizer too short: the quilting clip workaround (and how to avoid it next time)

Sometimes we forget to leave wings. The video host encounters this on the right side.

The Workaround:

• Use a plastic quilting clip (smaller, weaker grip) to pinch the rolled fabric directly to the edge of the hoop.


The Expert critique: This is risky. Quilting clips have weak springs. High-speed embroidery (600+ stitches per minute) creates G-force. Weak clips can fly off, land in the machine bed, and shatter a needle.

• Correction: If you lack stabilizer overlap, use painter's tape to tape the rolled fabric bundles to the plastic rim of the hoop. It’s safer than a loose clip.

The Tool Upgrade: If you routinely face this "not enough hands/not enough grip" issue:

• Grip Solution: magnetic embroidery hoops often have a stronger inherent holding mechanism that helps trap excess material without the need for as many peripheral clips.
• Consistency Solution: If your issue is repeatability (logos slightly crooked), a station workflow is your answer.

The “ready-to-stitch” hoop should look boring: compact, clipped low, and nothing dangling

"Boring" is good. "Exciting" means broken needles.

The Visual Inspection:

• The setup should look low-profile. The highest point of your clips or bundles must be lower than the needle bar housing.
• Verify that no clip handles are flipped "up." Flip silver binder clip handles down or remove them if the clip allows.


Sound Check: Shake the hoop gently. Do you hear anything rattling? If a clip is loose, fix it now.

Sliding a hooped onesie into a Brother flatbed throat: put the least-bulk side inward

This is the moment of highest anxiety. The Brother flatbed throat (the space to the right of the needle) is tight.

The Strategy:

• Orient the hoop so the thinnest part of your bundle goes toward the throat (right side).
• The thickest part (usually the bottom snap roll) should face the open side (left) or the front.


The Clearance Check: Before locking the hoop in, slide it manually into the space.

• Does it rub against the plastic housing?
• If it rubs, stop. Re-roll tighter. Friction causes drag, and drag causes design misalignment (the "shifted outline" effect).


Lock the lever. Listen for the "Click." If it feels mushy, check for fabric trapped in the attachment mechanism.

Warning: Magnet Safety. If you have upgraded to high-performance tools, be aware. magnetic embroidery hoops use industrial-grade magnets. They are incredibly strong. Pinch Hazard: Do not let them snap together near your fingers. Medical: Keep them at least 6 inches away from pacemakers. Tech: Keep away from credit cards and screens.

The trace button is your insurance policy: run a frame check before the first stitch

Never, ever press "Start" without Tracing.

The Process:

1. Locate the Trace / Frame button on your screen (usually a square icon with arrows).
2. Eyes on the Machine: Do not look at the screen. Look at the needle bar and the clips.
3. The "Close Call" Test: As the hoop moves to the four corners of the design, watch the clearance between your needle bar and your binder clips.


Sensory Safety:

• Listen: If you hear a grinding noise, the hoop motor is struggling against the weight of the fabric. Pause. Support the fabric weight with your hand (gently!) or slow the machine down.


In the video, the host shows a moment where the clip almost hits. This isn't a mistake; it's a feature of the checking process. If it's close (less than 5mm), move the clip.

Clip size matters more than people admit: why bigger binder clips can be safer

The host mentions a counter-intuitive point: Bigger clips can be better.

The Logic:

• Small Clip: Requires you to clip very close to the hoop edge to get a grip. This puts the metal clip in the needle's danger zone.
• Large Binder Clip: Has a deeper "throat." You can clip the fabric/stabilizer bundle further away from the hoop edge—moving the metal obstacle outside the travel path of the embroidery foot.

The goal is to move all hard obstacles ("Hard Hardness") away from the needle ("Hard Hardness").

Final machine-ready check: nothing under the needle, nothing tall near the head

You are cleared for takeoff. One last look under the hoop.

Setup Checklist (The "Green Light"):

• The Under-Check: Run a finger under the hoop one last time. Is it smooth?
• Speed Limit: Crucial. Lower your machine speed. If your max is 800 SPM (Stitches Per Minute), reduce it to 400-600 SPM. High speed increases vibration, which loosens clips.
• Clip Handles: Are all binder clip silver handles folded DOWN or removed?
• Trace Passed: Did the machine complete a full trace without touching any clip?

Troubleshooting the three failures that ruin onesie embroidery on a flatbed

Diagnosis is faster when structured. Use this logic flow:

Decision tree: choosing stabilizer strategy for a knit onesie (and when to change your workflow)

Embroidery is decision making. Follow this path for Knits/Onesies:

1. Identify Fabric Elasticity:
   • High Stretch (Lycra/Spandex blends): Heavy Cutaway + Spray Adhesive + Water Soluble Topper (to keep stitches from sinking).
   • Standard Cotton Jersey: Standard Cutaway (2.5oz).
   • T-shirt (Thicker): No-Show Mesh (Poly-mesh) Cutaway (softer against baby skin).
2. Identify Design Density:
   • Heavy Fill (20,000+ stitches): Double layer of Mesh Cutaway or 1 layer Heavy Cutaway. Slow speed to 400 SPM.
   • Redwork / Outline: Single layer Cutaway.
3. Evaluate Your Pain Points (The Upgrade Trigger):
   • Issue: "I spend 15 minutes hooping and getting the clips right."
   • Solution: hoop master style stations stabilize the platform.
   • Issue: "I get 'hoop burn' rings that won't wash out."
   • Solution: Switch to Magnetic Frames. They use top-down pressure, not inner-ring friction.

The upgrade path I’d recommend after you master this (without buying random gadgets)

Mastering the single-needle flatbed is a rite of passage. But acknowledge the limitations.

Level 1: Stability & Consumables Before buying new machines, upgrade your interface. If you are experimenting with different hoop sizes, like brother se1900 hoops, ensure you are using quality Ballpoint Needles and premium Polyester Thread (which tolerates high speeds better than Rayon).

Level 2: The Workflow Upgrade (Magnetic Hoops) If you are doing production runs (e.g., "I need to make 50 onesies for the charity walk"), binder clips are not a strategy; they are a bottleneck.

• The Fix: magnetic embroidery hoops.
• Why: They clamp instantly. They hold thick/rolled fabric securely without the "pop out" risk of standard hoops. They are safer for the machine because they often have a lower profile than a binder clip arrangement.

Level 3: The Capacity Upgrade (Multi-Needle) If you are consistently fighting the "Throat Space" of your single-needle machine, you have outgrown the tool.

• The Reality: Commercial machines (like SEWTECH multi-needle systems) have a "Free Arm." The arm sticks out into empty space. You simply slide the onesie onto the arm—no inside-out flips, no clips, no Velcro, no fear. The gravity works for you, letting the back of the shirt hang harmlessly below the bed.
• The Metric: If you are spending 50% of your time hooping and only 50% stitching, it is time to look at multi-needle solutions.

Operation Checklist (Post-Stitch):

• Trimming: Remove garment from hoop. Cut jump stitches.
• Stabilizer Removal: Trim the Cutaway stabilizer on the back, leaving about 1/4 inch around the design. Do not cut the fabric! rounded corners are best to prevent scratching the baby's skin.
• Topper Removal: If used, tear away the plastic topper or dab with water.
• Quality Check: Check for puckering. If puckered, use more stabilizer next time or loosen the fabric "float" slightly—do not stretch knits while hooping!

FAQ

• Q: How do I stop a Brother single-needle flatbed embroidery machine from stitching the front and back layers together on a baby onesie?
  A: Use the inside-out “floating bundle” method so only one fabric layer can enter the needle path.
  • Hoop cutaway stabilizer first (not the onesie), then pull the entire onesie body to the front of the hoop.
  • Roll the remaining garment into a tight bundle and secure it so the back layer stays suspended above the hoop area.
  • Clip rolled fabric to stabilizer “wings” (stabilizer-fabric-stabilizer sandwich) instead of clipping fabric-to-fabric.
  • Success check: Slide a hand under the hoop—there should be nothing but smooth stabilizer (no fabric lumps).
  • If it still fails: Reduce machine speed and re-bundle so gravity cannot pull the back layer underneath during vibration.
• Q: What stabilizer and needle setup works best for embroidering a knit baby onesie on a Brother single-needle embroidery machine?
  A: Start with cutaway stabilizer and a fresh 75/11 ballpoint needle to prevent holes and broken stitches on knits.
  • Choose cutaway (about 2.5oz for standard cotton jersey); consider heavier cutaway for high-stretch fabrics.
  • Add a water-soluble topper when stitches sink into stretchy knit or textured fabric.
  • Use temporary spray adhesive (optional) to hold the onesie flat to the stabilizer before hooping/floating.
  • Success check: After stitching, the fabric around the design lies flat without ripples, and the needle holes do not look “cut” or enlarged.
  • If it still fails: Add another layer of cutaway and slow down to the lower speed range used for dense designs.
• Q: How do I know the hooped onesie setup is “ready-to-stitch” on a Brother flatbed embroidery machine without hitting clips or the machine head?
  A: The hoop should look compact, low-profile, and nothing should be tall or dangling near the needle bar housing.
  • Fold binder-clip handles down (or remove handles if the clip allows) so nothing stands up into the travel path.
  • Put the least-bulk side toward the tight throat area (right side) and keep the thick bundle toward the open side (left/front).
  • Manually slide the hoop into the throat space before locking it in to confirm there is no rubbing.
  • Success check: Gently shake the hoop—nothing rattles, and the highest point stays clearly below the needle bar housing.
  • If it still fails: Re-roll tighter and move clips farther from the hoop edge using larger binder clips with deeper reach.
• Q: Why is the Trace/Frame check mandatory on a Brother flatbed embroidery machine when embroidering a onesie with binder clips?
  A: Running Trace/Frame is the safest way to confirm the hoop travel will not crash into clips before the first stitch.
  • Press the Trace/Frame function and watch the needle bar and clip clearance (do not stare at the screen).
  • Pause immediately if any corner passes within a few millimeters of a clip and reposition the clip farther away.
  • Listen for grinding during tracing—grinding suggests drag or excessive weight resisting the hoop motor.
  • Success check: The machine completes a full trace with no contact noises and visible clearance around all clips.
  • If it still fails: Lower speed and reduce bulk on the throat side to prevent drag-related misalignment.
• Q: How do I fix a “needle break” or clunk sound on a Brother single-needle embroidery machine when embroidering a hooped onesie with clips?
  A: Stop immediately—needle breaks usually mean the needle struck a binder clip, hoop rim, or another hard obstacle.
  • Power down/lock the machine before handling the hoop area, then remove the hoop and inspect for damage.
  • Replace the needle (ballpoint 75/11 for knits) and reposition clips so metal parts sit outside the hoop travel area.
  • Run Trace/Frame again before restarting to confirm clearance at all corners.
  • Success check: Tracing runs quietly with no “tick/clunk,” and the needle area clears every clip during travel.
  • If it still fails: Use painter’s tape to secure rolled fabric to the hoop rim instead of relying on weak or poorly placed clips.
• Q: What causes a shifted outline or misregistration on a Brother flatbed embroidery machine when embroidering a onesie, and how do I stop hoop drag?
  A: Misregistration often comes from hoop drag—rolled fabric rubbing the tight Brother throat space and slightly stalling the hoop movement.
  • Re-roll the bundle tighter and orient the thinnest side toward the throat (right side).
  • Do a manual slide-in clearance check before locking the hoop to ensure the bundle does not rub the housing.
  • Reduce stitch speed (for example, moving from a high setting down into the 400–600 SPM range mentioned for stability).
  • Success check: During tracing and stitching, there is no rubbing sound and the hoop moves freely without hesitation.
  • If it still fails: Support the fabric weight gently during stitching or reduce friction on the bed as suggested (a slick surface can help).
• Q: What safety rules should be followed around the needle area and magnetic embroidery hoops when bundling a onesie on a Brother single-needle machine?
  A: Prevent accidental stitching and pinch injuries by disabling stitch-start habits and controlling strong magnets deliberately.
  • Engage any available lock mode (or keep hands away from the start button/foot control) while bundling and clipping near the needle.
  • Keep fingers clear of snap-together magnet zones; industrial magnets can pinch hard when they close.
  • Keep magnetic hoops away from pacemakers and away from items like credit cards and screens.
  • Success check: Setup work is done with zero risk of unintended movement, and magnets are brought together slowly under control.
  • If it still fails: Switch to lower-risk holding methods (stabilizer-wing clamping or tape) until confident and consistent.
