Stop Stabilizer Slippage in Large Brother/Babylock Hoops: The T-Pin Lock That Makes FSL Stitch Like a Dream

If you have ever tightened a large embroidery hoop until your knuckles turned white—only to watch the stabilizer go slack at the corners the moment you started stitching—you’re not doing anything “wrong.” You are simply fighting physics.

Large rectangular hoops (common in Brother, Babylock, and Janome ecosystems) suffer from a structural flaw: the screw applies tension at a single point, but the hoop relies on friction to hold the fabric along the long flat sides. That friction often fails. This is exactly when Free Standing Lace (FSL) projects turn into disasters: satin stitches pull inward, the stabilizer creeps, and your lace loses the crisp, interlocked structure it requires to hold together.

This guide rebuilds a proven "shop floor" technique: using T-pins to mechanically lock the stabilizer against the hoop frame. We will move beyond just "how to pin" and cover the sensory cues of a perfect hoop, the safety margins for beginners, and when it is time to stop fighting the hoop and upgrade your tools.

Why Large Brother/Babylock Embroidery Hoops Go Loose at the Corners (Even When the Screw Is Maxed Out)

The frustration is universal: you tighten the hoop screw as far as your fingers will allow, yet if you tug on the stabilizer at the corner, it slides right out. On 5x7" or larger hoops, tightening the screw too much can actually bow the outer frame outward, reducing the grip at the corners.

The Physics of Failure: When the hoop’s long sides don’t clamp evenly, the stabilizer is not under uniform tension. During stitching—especially high-density satin stitching common in FSL—the needle penetration and thread tension create a "drawin" effect. This drags the stabilizer downward between the inner and outer hoop rings.

The Sensory Check:

• Visual: Look for "tunneling" or subtle waves forming near the borders of your design.
• Tactile: If you push on the stabilizer in the center, it should feel like a drum skin. If it feels like a loose bedsheet, the hoop grip has failed.

A mechanical lock (pins) stops this downward creep physically, regardless of friction. It is a fast, inexpensive bridge between standard hooping and professional magnetic systems.

The “Hidden” Prep for FSL Hooping: Double Wash-Away Stabilizer, Flat Hoop Seating, and No Stretching

Before you pick up a single pin, you must establish a stable foundation. "Hooping tight" is a myth; "Hooping flat" is the goal. For FSL, the stabilizer is the fabric. If it fails, the project fails.

Beginner Sweet Spot: Materials & Consumables

• Stabilizer: Use two layers of heavy-duty fibrous water-soluble stabilizer (like Vilene). Do not rely on the thin, plastic-wrap style "toppers" for FSL bases; they cannot support the needle penetrations.
• Hidden Consumables:
  • T-Pins: 1.5 inch or larger.
  • Temporary Spray Adhesive (Optional): A light mist on the inner rim of the outer hoop can add friction (do not spray the stitch field for FSL).
  • Curved Scissors: For trimming precise edges later.

Prep Checklist (Do this BEFORE you hoop)

• Layer check: Stacking two layers of wash-away stabilizer (aligned with grain if applicable).
• Surface check: Clean the hoop contact surfaces. Remove old adhesive gunk or fuzz that reduces friction.
• Tool check: Have 8-10 T-pins ready (or sturdy glass-head pins).
• Environment: Use a completely flat table. Hooping on your lap or a soft ironing board introduces warp immediately.

Pro Tip: If you are trying to squeeze embroidery productivity into your evenings, consistency beats speed. This method is meticulous, but it prevents the 45-minute teardown of a failed lace project.

Choosing Pins for Hooping Wash-Away Stabilizer: Why T-Pins Bend Less (and What Else Works)

In the standard method, T-pins are the gold standard. Why? Leverage.

• The "T" Head: Allows you to apply torque with your thumb without the pin slipping or digging into your skin.
• Steel Shaft: They are thicker than dressmaker pins, meaning they resist bending when you lever them against the plastic hoop rim.

Can I use other pins? Yes. Quilting pins (yellow heads) or daisy pins work. However, avoid cheap, thin dressmaker pins; they will bend under the pressure needed to lock the stabilizer.

The Workflow Context: If you find yourself constantly struggling with hoop alignment or stabilizing tricky garments, you might see professionals using a hooping station for embroidery. While these stations are fantastic for alignment and holding the outer hoop steady, they do not inherently solve the "corner slip" on large plastic hoops. The pin lock is the specific antidote for slippage, regardless of how you loaded the hoop.

The Calm Hooping Move: Seat the Inner Hoop Flat, Smooth Gently, and Don’t “Pre-Stretch” Stabilizer

The biggest mistake novices make is pulling the stabilizer after the hoop is engaged. This is called "pre-stretching." When you release that tension, the stabilizer relaxes back to its original size, creating instant puckers.

The Correct Sequence:

1. Lay Flat: stabilizer connects with outer hoop.
2. Press, Don't Push: Press the inner hoop straight down. Engage the corners first if possible.
3. The "Click": Listen for the hoop seating fully into the groove.
4. No Tugging: Do not pull the stabilizer edges like you are tightening a drum after the ring is in. The hoop should entrap the stabilizer in its relaxed, flat state.

Setup Checklist (Post-Hooping, Pre-Pinning)

• Seating: Inner hoop is fully depressed and level with the outer hoop.
• Texture: Stabilizer is smooth but not under extreme tension (touch it—it should not feel like a guitar string yet).
• Overhang: You have at least 1 inch of "waste" stabilizer sticking up around the rim (this is your anchor point).
• Orientation: Mark your "Top" or attachment side if it isn't obvious.

Note on Size: While this guide focuses on large hoops, even a standard brother 5x7 hoop benefits from this technique when stitching dense FSL, as the plastic sides can still flex under load.

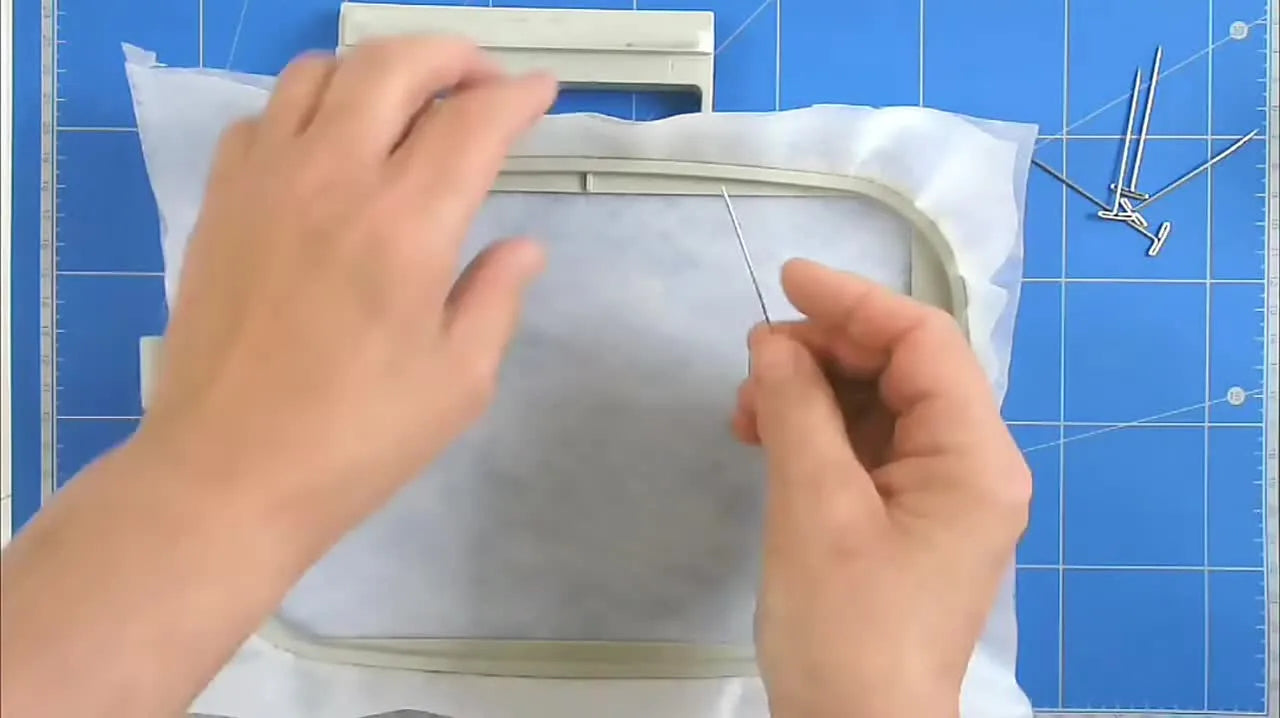

The T-Pin Locking Technique for Embroidery Hoops: Slide, Pierce, Twist, and Lock

This is the core mechanic. It is not just sticking a pin in; it is creating a leverage lock. The goal is to pin the excess stabilizer to the outside of the hoop frame so it cannot slide down.

The "Leverage Lock" Maneuver (Step-by-Step)

Step 1: The Slide

• Action: Rest the shaft of the T-pin on the top plastic lip of the inner hoop.
• Visual: The pin should point outward, away from the embroidery field.

Step 2: The Pierce

• Action: Angle the pin down sharply and pierce through the "waste" stabilizer overhang, right against the outer hoop edge.
• Sensory: You should feel a distinct "pop" as it penetrates both layers.

Step 3: The Twist & Lock

• Action: This is the critical move. Lever the head of the pin up and push the point back in horizontally toward the hoop wall.
• Result: The pin effectively "wedges" the stabilizer against the hoop rim. The stabilizer is now mechanically unable to slide down.

Step 4: Perimeter Security

• Placement: Place one pin at each corner (the danger zones) and 2-3 pins along the long straight edges.

Warning: Physical Safety
Pins are sharp, and machine vibration can loosen them if not secured correctly.
1. Placement: Ensure pin heads are uniformly pointing away from the needle bar path.
2. Clearance: Check that no part of the pin extends below the hoop where it could scratch the machine bed.
3. Eyes: Wear safety glasses if you are new to this; a broken needle hitting a pin can send shrapnel flying.

Double-Sided Tape on the Inner Hoop: When It Helps, When It’s Optional, and How to Think About Grip

The video source discusses double-sided tape (like wonder tape) as an alternative or additive.

The Expert View:

• Tape = Friction: It increases the coefficient of friction between the hoops. It helps, but heat and tension can cause tape to creep.
• Pins = Mechanical Anchor: Pins provide a hard stop.

Recommendation: Use pins for FSL. Use tape for slippery fabrics (like satin or performance wear) where you might not have enough excess material to pin effectively.

If you are doing production runs—say, 50 left-chest logos—fiddling with pins or tape for every shirt destroys your profit margin. Professional shops solve this with systems like the hoop master embroidery hooping station or the hoopmaster system, which rely on precise repeatability rather than manual pinning. However, for the home user doing a single intricate lace design, the pin method is the most cost-effective solution.

The “Drum-Tight” Test Before Stitching FSL: What You Should Feel (and What You Shouldn’t)

You have hooped and pinned. Now, validate the setup.

The Sensory Audit:

1. The Tap Test: Tap the center of the stabilizer with your fingernail.
   • Success: A sharp, high-pitched thump-thump (Drum tight).
   • Failure: A dull, rattling sound (Loose).
2. The Corner Check: Press your thumb firmly into the corner of the stitching area. It should not deflect significantly or leave a dent.
3. The Shimmy: Shake the hoop gently. If you hear a "crinkle" sound, the layers might be separated—re-hoop.

Why this matters: Start-up issues become stitch-out disasters. If the stabilizer is loose now, it will buckle when the machine runs at 600+ SPM (Stitches Per Minute). Speaking of speed: for FSL, reduce your machine speed, even if the machine can do 1000 SPM. run it at 600-700 SPM to reduce the force pulling on your stabilizer.

When Your Baby Lock Solaris (or Other High-Profile Hoop) Won’t Let You Swing the Pin

Some modern premium machines (Solaris, Luminaire, Stellaire) use hoops with very thick, high outer walls. You may find you physically cannot angle the T-pin to minimize the "Leverage Lock" described above.

The "Roll and Pin" Variation:

1. Take the excess stabilizer sticking up.
2. Roll it tightly down toward the outer hoop rim until it forms a thick cylinder.
3. Drive the T-pin through this rolled cylinder and wedge it against the frame.
4. "Why this works": You are creating a physical bumper that is too thick to slide between the hoop rings.

The Ergonomic Reality Check: Does your hand hurt? Fighting plastic hoops requires grip strength. If you have arthritis, carpal tunnel, or simply want to embroider without a wrestling match, this is the trigger point to upgrade your tools.

Many users find relief by switching to magnetic hoops for babylock embroidery machines. Unlike standard hoops that rely on friction/screws, magnetic hoops clamp flat from the top down with immense force. They eliminate the "corner gap" problem entirely because the magnets hold the perimeter evenly.

Warning: Magnetic Safety
Professional magnetic hoops (like those from SEWTECH) use N52 industrial magnets.
* Pinch Hazard: Never put your fingers between the magnets. They snap together with enough force to cause blood blisters or worse.
* Electronics: Keep them at least 12 inches away from pacemakers, credit cards, and machine screens. Slide the magnets on and off; do not "slam" them.

Decision Tree: Stabilizer + Hooping Method Choices for FSL vs. Regular Embroidery

Don't over-engineer every project. Use this logic flow to determine when to pin and when to relax.

START: What is your project?

1. Free Standing Lace (FSL)
   • System: 2 Layers Hydro-Soluble Stabilizer.
   • Action: Must Pin. Use T-pins on all corners + long sides.
   • Speed: Reduce to 600 SPM.
2. Standard Embroidery (T-shirt/Towel)
   • Hoop Check: Does the fabric slip when pulled?
     • YES: Use T-pins or switching to a Magnetic Hoop.
     • NO: Standard hooping is sufficient.
   • Action: If using pins, ensure they don't snag the fabric loops (towels).
3. Production Run (10+ items)
   • Pain Check: Is hooping taking longer than stitching?
   • Action: Stop pinning. This is a workflow bottleneck. Investigate a dedicated embroidery hooping system or magnetic frames to secure fabric instantly without the "screw-tightening" ritual.


Operation Checklist: Pin Placement That Won’t Crash the Foot

You are ready to stitch. One final pass can save you a $500 repair bill.

Pre-Flight Checklist (Right before pressing 'Start')

• Pin Heads: All heads are outside the stitch field.
• The "Trace": Run the machine's trace/contour function. Watch the foot closely as it passes near the corners. Does it clear the pins by at least 5mm?
• Under-Hoop clearing: Run your hand gently under the hoop to ensure no pin points are poking through to scratch the bed.
• Tail Management: Ensure thread tails are trimmed so they don't snag on a pin head.

The Panic Stopper Habit: Do not walk away for the first 2 minutes. Watch the "underlay" stitches. If the stabilizer is going to shift, it will usually happen in the first layer of stitching. If you see a bubble form, stop immediately, un-hoop, and fix it. A bubble never fixes itself; it only gets worse.

The “Why” Behind the Pin Lock: Hooping Physics, Stitch Pull, and Why Over-Tightening Backfires

To become a master, you must understand the forces at play.

• Vector Pull: Every needle penetration pulls fabric toward the center. A dense design can have 20,000 "pulls."
• Plastic Creep: Smooth plastic hoops have a low coefficient of friction. Constant vibration lowers this friction further.
• The Over-Tightening Trap: When you overtighten a screw, you ovalize the outer hoop. This puts more pressure on the short sides (screw axis) and less pressure on the long sides/corners. You are literally bending the clamp open.

Pins work because they ignore friction. They are physical barricades.

Troubleshooting: Symptom → Likely Cause → Fix

The Upgrade Path: When Pins Are Enough—and When You Need More

T-pins are the perfect "Level 1" fix. They cost pennies and solve a major frustration for hobbyists doing occasional lace or dense designs.

However, as you grow, you may encounter the limits of this method:

1. Setup Time: Pinning takes 3-5 minutes per hoop.
2. Physical Toll: Pushing pins through thick stabilizer hurts fingers over time.
3. Hoop Limitations: Some items (thick bags, jackets) simply can't be pinned easily.

Level 2: The Tool Upgrade If you are doing frequent projects, magnetic hoops for embroidery machines are the logical next step. They solve the "corner slip" physics problem by clamping the entire perimeter with magnetic force, eliminating the need for pins entirely. They are faster, safer for your hands, and leave zero "hoop burn."

Level 3: The Production Upgrade If you find yourself limited by needle changes or the slow speed of a single-needle flatbed, consider the jump to a Multi-Needle Machine (like the SEWTECH series). These machines are built with tubular arms designed to handle tension differently, often providing a more professional finish on difficult items without the "hooping wrestling match."

Master the pins first—it teaches you control. When you are ready for speed, the tools are waiting. Happy stitching!

FAQ

• Q: Why do large Brother/Babylock/Janome rectangular embroidery hoops slip at the corners even when the hoop screw is fully tightened for Free Standing Lace (FSL)?
  A: This is common—over-tightening can bow the outer hoop and reduce corner grip, so the stabilizer creeps during dense FSL stitches.
  • Loosen slightly: Back off the screw if the outer frame looks distorted, then re-seat the hoop flat on a table.
  • Add a lock: Use the T-pin locking method on all corners and along long sides to create a physical stop.
  • Slow down: Run FSL around 600–700 SPM to reduce draw-in force.
  • Success check: Push the center—stabilizer should feel drum-like and corners should not slide when tugged.
  • If it still fails: Switch to the “roll and pin” variation for high-wall hoops, or consider a magnetic hoop for even perimeter clamping.
• Q: What supplies are required to hoop wash-away stabilizer correctly for Free Standing Lace (FSL) on Brother/Babylock/Janome hoops?
  A: Use two layers of heavy-duty fibrous water-soluble stabilizer plus T-pins; this prevents the stabilizer base from collapsing under satin density.
  • Stack: Align and layer 2 sheets of heavy-duty fibrous wash-away stabilizer (not thin film toppers).
  • Prep: Clean hoop contact surfaces to remove fuzz/adhesive that reduces grip.
  • Stage tools: Keep 8–10 T-pins (1.5" or longer) ready; optional light spray on the inner rim only (not the stitch field).
  • Success check: After hooping, confirm at least 1" stabilizer overhang around the rim for pin anchoring.
  • If it still fails: Re-hoop on a completely flat table (avoid lap/soft ironing board), then pin again.
• Q: How do I avoid “pre-stretching” water-soluble stabilizer when hooping for Free Standing Lace (FSL) on a Brother/Babylock hoop?
  A: Don’t pull the stabilizer tight after the hoop is engaged—seat the hoop flat first, then lock it with pins.
  • Lay flat: Place stabilizer on the outer hoop without stretching.
  • Press down: Seat the inner hoop straight down (corners first if possible) until fully seated.
  • Stop tugging: Do not pull edges “drum tight” after engagement; rely on pin locking to prevent creep.
  • Success check: Stabilizer looks smooth (no waves) and feels firm without looking stretched or distorted.
  • If it still fails: Un-hoop and repeat with more stabilizer overhang; then add pins along the long sides, not just corners.
• Q: How do I use T-pins to lock wash-away stabilizer on large Brother/Babylock embroidery hoops so FSL stabilizer cannot slide down?
  A: Use a leverage lock—pin the excess stabilizer to the outside of the hoop so it physically cannot creep during stitching.
  • Slide: Rest the T-pin shaft on the inner hoop lip, pointing outward away from the stitch field.
  • Pierce: Angle down and pierce the waste stabilizer right against the outer hoop edge (through both layers).
  • Twist & lock: Lever the head up and push the point back in horizontally toward the hoop wall to wedge stabilizer tight.
  • Success check: Corner tug test—pull at each corner; stabilizer should not slip or “feed” downward.
  • If it still fails: Add 2–3 pins along each long side and re-check clearance with the machine trace before starting.
• Q: What is the “drum-tight” test before stitching Free Standing Lace (FSL) on Brother/Babylock machines, and what does failure feel like?
  A: Do a tap/press/shake audit before pressing Start; loose stabilizer now becomes a stitch-out disaster later.
  • Tap: Tap the center with a fingernail—listen for a sharp, high-pitched thump (not a dull rattle).
  • Press: Thumb-press corners of the stitch area—there should be minimal deflection and no denting.
  • Shimmy: Gently shake the hoop—no crinkle sound that suggests layers separating.
  • Success check: High “thump-thump” sound + stable corners + smooth surface with no tunneling waves.
  • If it still fails: Re-hoop flat, re-pin, and reduce speed to about 600–700 SPM for FSL.
• Q: How do I prevent a presser foot crash or needle strike when using T-pins on Brother/Babylock/Janome embroidery hoops?
  A: Treat pin clearance like a pre-flight check—angle pin heads outward and always run the machine’s trace/contour before stitching.
  • Orient: Point all pin heads away from the needle bar path and keep pin bodies outside the stitch field.
  • Trace: Run the machine trace/contour and watch the foot near corners; keep at least ~5 mm clearance.
  • Check underside: Feel under the hoop—no pin points should protrude to scratch the machine bed.
  • Success check: The trace completes without the foot approaching pins, and nothing protrudes below the hoop.
  • If it still fails: Stop immediately, remove and re-pin with a steeper outward angle; do not “chance it” on the first stitches.
• Q: When should a Baby Lock Solaris/Brother Luminaire user switch from T-pins to a magnetic embroidery hoop for corner slippage and hand strain?
  A: If thick, high-wall hoops make pin leverage difficult or hooping hurts your hands, a magnetic hoop is the next-step tool upgrade for even perimeter grip.
  • Diagnose: Notice if you cannot swing the T-pin into the leverage lock, or if repeated pinning causes finger/hand pain.
  • Try variation: Use the “roll and pin” method (roll excess stabilizer into a cylinder, then pin/wedge against the frame).
  • Upgrade trigger: Move to a magnetic hoop when corner slip persists or setup time becomes the bottleneck.
  • Success check: With magnetic clamping, the stabilizer perimeter stays uniformly tight and corners no longer creep during dense stitching.
  • If it still fails: Re-check stabilizer choice (two heavy-duty fibrous layers for FSL) and run slower (600–700 SPM); confirm hoop clearance and trace path.
