Stop Sneaker-Netting Designs: Set Up Wilcom Embroidery Connect WiFi for Tajima & Barudan (and Avoid the .FDR Trap)

Wireless file transfer sounds like a small upgrade—until you’ve watched a production floor lose 20 minutes because someone walked the wrong USB stick to the wrong head. In the embroidery business, time isn’t just money; it’s the difference between a panicked deadline and a profitable afternoon.

As an operator, you know the "Sneakernet" struggle: manual file copying is the bottleneck of the modern shop. In this white paper, I’m going to rebuild Wilcom’s Embroidery Connect setup into a shop-floor-friendly workflow. We will cover what to plug in, how to interpret the LED language, how to configure Tajima vs. Barudan correctly, and how to use the Design Queue + barcode scanner so your operators stop hunting for files.

The “Don’t Panic” Moment: Reading Wilcom Embroidery Connect LED Lights Before You Touch Any Settings

The first time you plug in the Embroidery Connect device, the blinking lights can feel like a mystery—especially when you’re under pressure and a machine is waiting. Understanding this visual language is your first step to control.

Here’s the exact sequence you will see, calibrated to the video walkthrough:

1. Connect Power: Connect the Embroidery Connect device to your PC using the provided USB cable.
2. Verify Power (Top LED): Watch the top power LED. It should flash green.
   • Sensory Check: This isn't a solid light yet. A rhythmic green pulse indicates the system recognizes the hardware is alive.
3. Verify WiFi Search (Symbol LED): Watch the WiFi symbol LED. It should flash blue.
   • Visual Anchor: A flashing blue light means "I am searching." Do not panic if this takes 30-60 seconds.
4. Confirm Connection: Wait until the WiFi symbol becomes solid blue.
   • Success Metric: Solid Blue = "Handshake Complete." This is your green light to proceed.


Expected outcome: Flashing green (power) + flashing blue (searching) → Solid blue (connected).

Warning: Mechanical Safety Hazard. Keep fingers, tools, and loose lanyards away from moving machine parts when you later plug the dongle into the machine’s USB port. Operators are often tempted to "just jog the frame a little" while reaching behind the head. Power down or pause safely per your machine manual before reaching near the needle area. A moving pantograph does not stop for fingers.

The “Hidden” Prep Pros Use: PC Requirements, Password Readiness, and Finding Embroidery Hub in Windows

Most setup failures I see aren’t "bad hardware"—they’re missing prerequisites or a rushed start. Professional setups begin with a clean environment.

From the video, ensure you have the following "Flight Ready" status:

• A computer with a 64-bit operating system (Standard for modern design software).
• An embroidery machine with a working USB port.
• Wilcom Embroidery Studio 4.5G (or higher) installed.
• Embroidery Hub (This is the traffic controller software included with Embroidery Studio).
• A wireless network—and you should have the WiFi SSID and password written down before you begin. Nothing kills momentum like guessing a password three times.

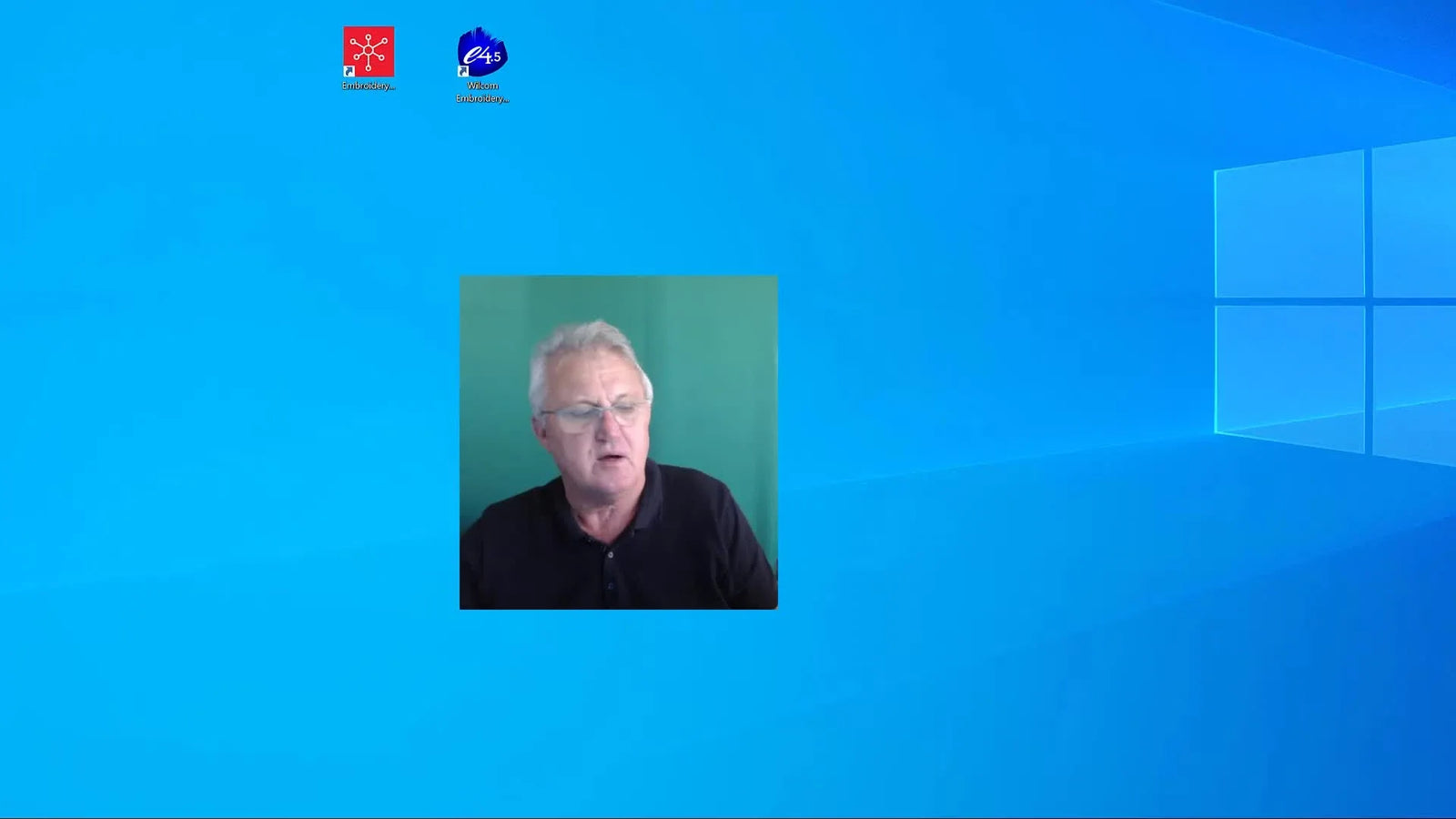

If the desktop shortcut icons don’t appear after installation, the video shows the practical workaround (don't reinstall, just search):

• Action: Go to the Windows Start Menu → All Programs → find the Wilcom folder → locate Embroidery Hub.




Prep Checklist (Do this *before* you click “Add Device”)

• System Check: Confirm your PC is running a 64-bit OS via System Properties.
• Software Check: Confirm Embroidery Studio 4.5G is installed and updated.
• Access Check: Confirm Embroidery Hub launches from the Start Menu.
• Network Check: Have your WiFi SSID and password ready on a sticky note.
• Physical Labeling: Decide which machine this dongle will live on (e.g., "Tajima 01") and label the physical dongle with a permanent marker now.
• Consumables Check: While prepping, ensure you have your spray adhesive and marking pens nearby—don't let small missing items stop the workflow later.

Lock It to Your Network: Adding the Embroidery Connect Device in Embroidery Hub Without Guesswork

Once Embroidery Hub is open, you are essentially introducing the dongle to your shop’s ecosystem.

In the video workflow:

1. Initiate: In Embroidery Hub, click the large plus button: “Add new Embroidery Connect device.”
2. Wait: Allow the software to scan.
3. Select: Choose your local WiFi network from the list.
4. Authenticate: Enter the WiFi password to join the network.




Expected outcome: After the password is accepted, the device connects. You will see the "ready" indicators in the Hub—the video describes a green bar and a green check mark when it’s online.

Experience-Based Note: WiFi setup is where people rush. If the WiFi LED never goes solid blue, stop. Do not start changing machine settings. 90% of the time, this is a typo in the password or selecting the 5GHz network when the device prefers 2.4GHz (check your specific device specs). Verify the connection first.

Name the Machine Like a Production Manager: Tajima DST Setup (Model ID + Heads) That Prevents Mix-Ups

This is where you prevent the classic "sent the hat file to the flat machine" disaster. Precise naming is your insurance policy.

In the video’s Tajima example, you configure the device identity as follows:

1. Identity: Name the device to match the machine (example used: “Machine 1”).
   • Pro Tip: Use physical labels on your machine stands that match these digital names.
2. Format: Choose the file type for Tajima: DST.
   • Note: DST is the industry standard "instructions only" format. It contains X/Y coordinates but often requires manual color setting at the machine.
3. Orientation: Decide whether you want to rotate designs automatically.
4. Hardware Match: Enter the machine model identifier (example shown: TEMX). The presenter explicitly says to read the model number off your physical machine plate.
5. Scale: Enter the number of heads (example shown: 4 heads).






Expected outcome: The machine icon appears in Hub. Initially, it may show as offline/connecting, then it updates to a connected/ready state (Green status).

One workflow detail that matters: if you run multiple machines—especially a mixed floor with a tajima embroidery machine on one side and other brands on the other—use consistent naming (Machine 1, Machine 2, etc.). It’s a small discipline that prevents expensive operator errors (like sending a jacket back design to a machine setup for caps).

The “Walk It Over” Step: Plugging the Dongle Into the Machine USB Port (and Why Waiting Beats Fiddling)

After configuration on the PC, the video’s next move is simple but requires patience:

1. Disconnect: Unplug the dongle from the PC.
2. Connect: Plug it into the embroidery machine’s USB port.
3. Wait: Wait a couple of minutes for it to boot and reconnect.

Key detail: The device has no battery. It runs on USB power. When you unplug it, it dies. When you plug it into the machine, it must reboot and re-acquire WiFi.

Expected outcome: It reconnects automatically (Solid blue WiFi light + “online/ready” status in Hub). The presenter emphasizes you don’t need to do anything after plugging it in—just wait.

Sensory Check: Listen for the machine to beep (if applicable) recognizing the USB. Watch the light turn solid blue. If it flashes for more than 3 minutes, check your WiFi signal strength at the machine's location.

Sending Your First Design: The Paper Plane Icon in Wilcom Embroidery Studio (Push Workflow)

Once the device is online, you can send designs wirelessly from Embroidery Studio using the "Push" method.

In the video:

1. Locate: In Wilcom Embroidery Studio, look at the Standard Toolbar.
2. Click: The Paper Plane icon (Standard 'Send' symbol).
3. Target: Select the destination machine from the list.
4. Confirm: Watch the green progress bar during transfer.


Expected outcome: The transfer completes, and the operator at the machine can read the design as if it were a normal USB drive inserted.

Setup Checklist (So “Send” doesn’t become “Where did it go?”)

• Status Verification: Confirm the device shows online/ready in Hub before hitting send.
• Target Verification: Confirm you are sending to the correct named machine. Don't trust muscle memory—read the list.
• Visual Confirmation: Watch for the green progress bar and the "Transfer Complete" message.
• Test Run: If this is a new setup, send one small design (e.g., a 2-inch circle) first to validate the path before sending complex production files.

Comment question, answered (Colors): Do you keep the original image colors?

A viewer asked whether sending the image keeps the original colors or whether you still assign them at the machine.

Expert Answer: The video shows that you will see design files in storage (DST plus an image file). However, it does not explicitly demonstrate thread color assignment behavior on the machine control panel. In real-world DST workflows, color information is often just a "stop" command. You must still verify thread colors on the machine screen. Always treat the wireless transfer as a way to move the shape reliable—verification of the palette happens at the needle.

The Barudan “Root Folder” Trap: U File + .FDR Folder Setup That Makes Files Visible

If you’ve ever heard "the machine can’t see the file," this is the section that saves your day. Barudan machines are notorious for strict file structures.

The video is very clear: Barudan machines cannot read from the root directory in this specific wireless workflow. You must change both the file type and the folder structure.

To configure for Barudan in Embroidery Hub:

1. Format: Change the file type to “U??” (U file).
2. Path: Set a folder path that ends with “.FDR” (example shown: designs.FDR).


This is not optional. The video states the folder extension MUST be “.FDR” for Barudan machines to recognize it.

If you’re running a barudan embroidery machine in production, this one setting is the difference between "wireless is amazing" and "wireless is unreliable." It isn't unreliable; it just requires you to speak the machine's specific file system language.

The Yellow Bar Mystery: Why “Manage Designs” Locks Operators Out (and How to Clear It Fast)

The video shows a status that scares operators: the device icon can show a yellow bar.

• Symptom: Yellow bar on the device icon in Hub.
• Cause (from video): The administrator is currently in “Manage Designs” mode on the PC.
• The "Why": While you are managing files (deleting, renaming), the system locks the folder to prevent corruption if an operator tries to download mid-change.
• Fix: Close the Manage Designs window.


Expected outcome: The bar turns green again, and the operator can access files. Train your team: Yellow bar doesn’t mean broken—it means "The boss is working in the folder, wait one minute."

Push vs. Pull in Real Shops: Design Queue + Barcode Scanner Workflow That Stops File Hunting

The push method (Paper Plane) is great for single samples. But for mass production, you want a "Pull" workflow using the Design Queue and a barcode scanner.

Here’s the workflow shown:

1. Hardware: Plug a barcode scanner into the bottom of the Embroidery Connect device.
2. Software: In Embroidery Studio, send designs to the Queue instead of directly to a specific machine folder.
3. Process: Operators receive a plot sheet (worksheet) with a printed barcode.
4. Action: The operator scans the barcode at the machine. The system finds that specific design in the queue and pulls it down instantly.




Critical safety setting: Check “delete from queue after receiving” to prevent two operators from grabbing the same design file and accidentally duplicating an order.

This is where workflow becomes scalable. If you’re juggling multiple machines—say you’ve got swf embroidery machines on one line and a happy embroidery machine on another—using a queue + barcode system reduces "human routing errors" dramatically. The file always goes to the machine that scans it.

Operation Checklist (What I’d enforce on a production floor)

• Push Rule: Use Paper Plane for quick tests or single-machine, single-operator situations.
• Pull Rule: Use Design Queue + barcode when multiple operators are pulling jobs from a central list.
• Hygiene: Turn on delete from queue after receiving when only one machine should run that design.
• Broadcast: If multiple machines should run the same design simultaneously, leave the delete option off.
• Communication: If the device icon turns yellow, confirm via headset or shout that someone is in Manage Designs and ask them to close it.

A Stabilizer-Style Decision Tree for Workflow: When a Dongle Is Enough—and When You Need a Bigger Upgrade

In embroidery, the best shops think in decision trees: Fabric -> Stabilizer; Design -> Needle; Volume -> Workflow.

Here is a practical decision tree to help you choose the right workflow based on the video's capabilities:

Decision Tree: Choose Your Sending Workflow

1. Are you running one machine with one operator?
   • Yes: Use Paper Plane (Push). It is faster for single tasks.
   • No: Go to step 2.
2. Do operators frequently grab the wrong file or waste time scrolling?
   • Yes: Use Design Queue + Barcode Scanner (Pull). This creates a "Zero-Search" environment.
   • No: Go to step 3.
3. Are you mixing brands (Tajima + Barudan) or formats?
   • Yes: Standardize profiles in Hub. Note that Barudan must use U files + .FDR.
   • No: Push workflow may be sufficient.
4. Is your real downtime happening at the machine (hooping, loading garments, re-hooping)?
   • Yes: Wireless transfer helps, but your next gains come from faster, more consistent hooping and fewer re-runs (See the Upgrade Path below).

The “Why” Behind the Time Savings: Reduce Touch Points, Reduce Errors, Protect Your Throughput

The video calls the device "magic," but let's call it what it is: Touch Point Reduction.

Every time a human touches a file (copy, paste, walk, plug, search), there is a chance for error. Wireless + Queue turns file delivery into a secure pipeline. However, once the file is there instanty, your next bottleneck becomes physical handling.

If your shop is still using traditional screw hoops, you are likely seeing slow loading times, inconsistent tension, or "hoop burn" on delicate fabrics. This is the moment to evaluate upgrades like hoops for embroidery machines that utilize magnetic force. For many operators, magnetic hoops can reduce checking alignment and relieve wrist strain because you aren't fighting the ring tension every cycle.

Warning: Magnetic Safety Hazard. Magnetic hoops are incredibly powerful industrial tools. Keep them away from pacemakers and implanted medical devices. Keep fingers clear when the top and bottom halves snap together to avoid severe pinch injuries. Always slide the magnets apart; do not try to pry them.

Comment-Driven Pro Tips: The Questions People Ask After the Video (So You Don’t Learn the Hard Way)

A few patterns show up in the comments and in real shops that you should know:

Pro Tip (Barudan Users): One viewer thanked the presenter specifically for the Barudan help—because the .FDR rule is easy to miss in manuals. If files "disappear," don't blame the WiFi. Verify you are using U file format and the .FDR folder extension.

Watch Out (Home Machine Expectations): A commenter asked whether the software can be used with a household sewing/embroidery machine over WiFi. The video’s demonstrated workflow is built around commercial machines with USB ports and brand-specific profiles (Tajima/Barudan/Happy/SWF are referenced). If you’re trying to adapt this to a domestic machine, confirm compatibility with your specific model and check if your machine accepts standard USB drives first.

The Upgrade Path After WiFi: Where Shops Actually Win Back Hours (Hooping, Not Clicking)

Once you stop walking USB sticks, you’ll notice the next "silent killer" of profit: hooping time and redo rates.

Here’s a practical, commercial diagnostic to see if you need an upgrade:

• Scenario Trigger: Your file transfer is instant, but operators are waiting at the hooping table. Garments are shifting, or you see hoop marks on performance wear.
• Judgment Standard: If hooping + alignment takes longer than the machine's run time for small logos (e.g., left chest), your bottleneck is physical.
• Solution Options:
  • Level 1: Improve your alignment workflow with a dedicated hooping station for machine embroidery. This ensures every logo is in the exact same spot, reducing "measure twice" time.
  • Level 2: If you use a station like a hoopmaster but still fight with screws and fabric burn, upgrade to Magnetic Hoops. They snap on instantly and hold thick jackets or thin knits without adjustment.
  • Level 3: For true production scaling, pairing faster hooping with a reliable multi-needle platform (like a SEWTECH multi-needle machine) minimizes thread change downtime. This is often where shops see the biggest throughput jump—moving from "hobby speed" to "profit speed."

Even if you run standard equipment, keeping dedicated sets like tajima embroidery hoops for specific garment categories (caps vs. flats) prevents wear and maintains tension consistency.

Quick Troubleshooting Table (Print This for the Shop Wall)

If you treat these as your "First Response" checks, you’ll solve most setup calls in minutes.

If you set this up once, label it well, and standardize your push vs. queue workflow, Wilcom Embroidery Connect transforms from a "gadget" into a production asset. It saves time and prevents avoidable errors—allowing your team to focus on stitch quality and throughput rather than playing hide-and-seek with files.

FAQ

• Q: What do the Wilcom Embroidery Connect LED lights mean (flashing green power LED + flashing blue WiFi LED vs. solid blue WiFi LED)?
  A: Solid blue on the WiFi symbol LED is the “connected/handshake complete” state—wait for that before changing any settings.
  • Connect: Plug the Embroidery Connect device into the PC with the supplied USB cable.
  • Wait: Allow 30–60 seconds while the WiFi symbol LED flashes blue (searching).
  • Proceed: Continue only when the WiFi symbol LED turns solid blue (connected).
  • Success check: Top LED pulses green and the WiFi symbol LED becomes solid blue (no longer blinking).
  • If it still fails: Re-check the selected WiFi network and re-enter the password carefully before touching machine profiles.
• Q: What PC and software prerequisites are required before adding a Wilcom Embroidery Connect device in Wilcom Embroidery Hub (Embroidery Studio 4.5G workflow)?
  A: Most “setup failures” are missing prerequisites—verify 64-bit Windows, Embroidery Studio 4.5G+, and that Embroidery Hub launches before clicking “Add Device.”
  • Confirm: Verify the PC is running a 64-bit operating system in Windows System Properties.
  • Verify: Confirm Wilcom Embroidery Studio 4.5G (or higher) is installed and updated.
  • Launch: Open Embroidery Hub from Windows Start Menu → All Programs → Wilcom (if desktop shortcuts are missing).
  • Success check: Embroidery Hub opens normally and the “Add new Embroidery Connect device” option is available.
  • If it still fails: Stop and fix the PC/software launch issue first—don’t troubleshoot the dongle or machine settings until Hub runs correctly.
• Q: Why does a Wilcom Embroidery Connect device keep flashing blue and never show a solid blue WiFi light after entering the WiFi password in Embroidery Hub?
  A: A flashing blue WiFi LED means the device is still searching—most often the WiFi password or network selection is wrong, so redo the network join cleanly.
  • Re-do: In Embroidery Hub, add the device again and select the correct WiFi SSID from the list.
  • Re-enter: Type the WiFi password slowly (avoid “rushed” setup mistakes).
  • Pause: Wait for the device to complete the connection before changing any embroidery machine settings.
  • Success check: WiFi symbol LED turns solid blue and the device shows “online/ready” status (green indicators) in Hub.
  • If it still fails: Check WiFi signal strength at the machine location and confirm the network choice (some shops find the wrong band selection causes repeated searching).
• Q: How should Tajima DST settings be entered in Wilcom Embroidery Hub (machine name, TEMX model ID, and number of heads) to prevent sending the wrong design to the wrong machine?
  A: Use strict, production-style naming and match the physical machine plate details—DST + correct model ID + correct head count prevents costly mix-ups.
  • Name: Set the device name to the real floor identity (for example, “Tajima 01” or “Machine 1”) and label the physical dongle to match.
  • Set: Choose Tajima file type as DST and decide whether design rotation should be enabled for your workflow.
  • Enter: Read the machine model identifier from the machine plate and enter it (example shown: TEMX), then enter the correct number of heads (example shown: 4).
  • Success check: The machine icon appears in Hub and changes to a connected/ready (green) state after it comes online.
  • If it still fails: Re-check that the model identifier and head count were read from the machine plate (not guessed) and that the device is truly online before sending files.
• Q: Why can a Barudan embroidery machine not see files sent through Wilcom Embroidery Connect, and what exact U file + .FDR folder setup makes the designs visible?
  A: Barudan visibility usually fails because the file is in the wrong format or the wrong folder structure—use U file format and a folder path ending in .FDR (not the root directory).
  • Change: In Embroidery Hub, set the Barudan profile file type to U?? (U file).
  • Set: Configure the storage path to a folder name ending with “.FDR” (example shown: designs.FDR).
  • Avoid: Do not rely on the root directory for this workflow when using Barudan.
  • Success check: The Barudan control can browse and display the transferred design files inside the .FDR folder.
  • If it still fails: Re-verify both items together (U file + .FDR)—fixing only one often still leaves files “invisible.”
• Q: What does the yellow bar on a Wilcom Embroidery Connect device icon mean in Wilcom Embroidery Hub, and how do operators clear the lockout fast?
  A: The yellow bar usually means the PC is in “Manage Designs” mode and the folder is locked—close Manage Designs to restore access.
  • Check: Look at the admin PC running Embroidery Hub and confirm “Manage Designs” is open.
  • Close: Exit the Manage Designs window to release the file lock.
  • Communicate: Tell operators the yellow bar is a temporary lock, not a hardware failure.
  • Success check: The device status returns to green and operators can access/download designs again.
  • If it still fails: Confirm no one else reopened Manage Designs and wait briefly for the status to refresh.
• Q: What safety steps should operators follow when plugging a Wilcom Embroidery Connect dongle into an embroidery machine USB port near moving parts, and what magnetic hoop safety rule applies if upgrading hooping after WiFi?
  A: Treat both steps as real hazards: pause/power down before reaching near moving machine parts, and keep magnetic hoops away from pacemakers while protecting fingers from pinch points.
  • Pause: Power down or pause safely per the embroidery machine manual before reaching behind the head or near the needle/pantograph area.
  • Keep clear: Keep fingers, tools, and lanyards away from any moving mechanism while connecting the USB device.
  • Handle safely: If using magnetic hoops, keep them away from pacemakers/implanted medical devices and keep fingers clear when the halves snap together (slide apart—do not pry).
  • Success check: The dongle is inserted without any “jogging” or reaching into moving areas, and the workflow continues with no near-miss pinch or snag incidents.
  • If it still fails: Stop the operation and re-train the step—speed is never worth a finger injury; follow the machine’s safety guidance every time.
