Stop Skipped Stitches on a 12-Needle Embroidery Machine: Set Round-Shank Needles the Way the Rotary Hook Expects

If you have ever stood in front of a multi-needle machine, holding a tiny round-shank needle between two trembling fingers, terrified that a millimeter of error might convert your $15,000 investment into a paperweight, you are not alone.

In the world of domestic sewing, the "flat back" of the needle is your training wheels—it physically prevents you from installing it wrong. But in industrial embroidery, we use round-shank needles. Why? Because at production speeds of 1,000+ stitches per minute (SPM), a round shaft is structurally stronger and deflects less.

However, that strength comes with a cost: zero guidance. You are the only thing ensuring that needle faces the right way.

Gary from Echidna Sewing demonstrates this essential skill on a Halo 12-needle machine (similar to the SEWTECH architecture). The physics he reveals applies to almost every commercial machine on the market. This guide will take his demonstration and layer it with 20 years of shop-floor experience to ensure you never guess again.

The "Calm Before the Storm" Check: Why Orientation is Non-Negotiable

On a 12 needle embroidery machine, tolerance is measured in fractions of a millimeter. The rotary hook—the spinning metal component in the bobbin area—passes the needle at incredible speeds.

If your needle is rotated incorrectly, two disasters happen:

1. The Miss: The hook cannot find the thread loop, resulting in skipped stitches.
2. The Strike: The hook physically hits the needle. This snaps the needle, burrs the hook (expensive damage), and shreds your thread.

Treat a needle change like a surgical procedure, not a pit stop.

Warning: Mechanical Safety First. Always power down your machine or engage the "E-Stop" before your fingers enter the needle bar area. An accidental jog or Start button press while your fingers are near the clamp screw can result in severe puncture wounds or broken metal flying into your eyes.

Anatomy of a Needle: Reading the Metal

You don't need a microscope; you need to know what your fingers are looking for. Intermediate users know the parts; experts know the function of the parts.

• The Shank (Top): The thick upper part that clamps into the bar. On industrial needles (System DBxK5 is common), this is perfectly round.
• The Long Groove (Front): A deep channel running down the shaft. Memorize this. Its job is to hide the thread so it doesn't get shredded by friction as it punches through coarse fabric.
• The Scarf (Back): A "scooped out" indentation just above the eye. This hollow space allows the rotary hook point to pass extremely close to the needle without hitting it.

The Golden Rule: For standard industrial machines, the Long Groove faces Front, and the Scarf faces Back.

Sensory Check: The Fingernail Test

In a dimly lit shop, your eyes might deceive you, but your touch won't.

1. Hold the needle.
2. Run your fingernail down the shaft.
3. Sensory Anchor: If your nail slides into a deep trench and tracks straight down to the eye, you have found the Front.
4. If your nail feels a smooth surface and then suddenly dips into a short scoop near the bottom, you have found the Back.

The Physics of Loop Formation: Why "Close Enough" Fails

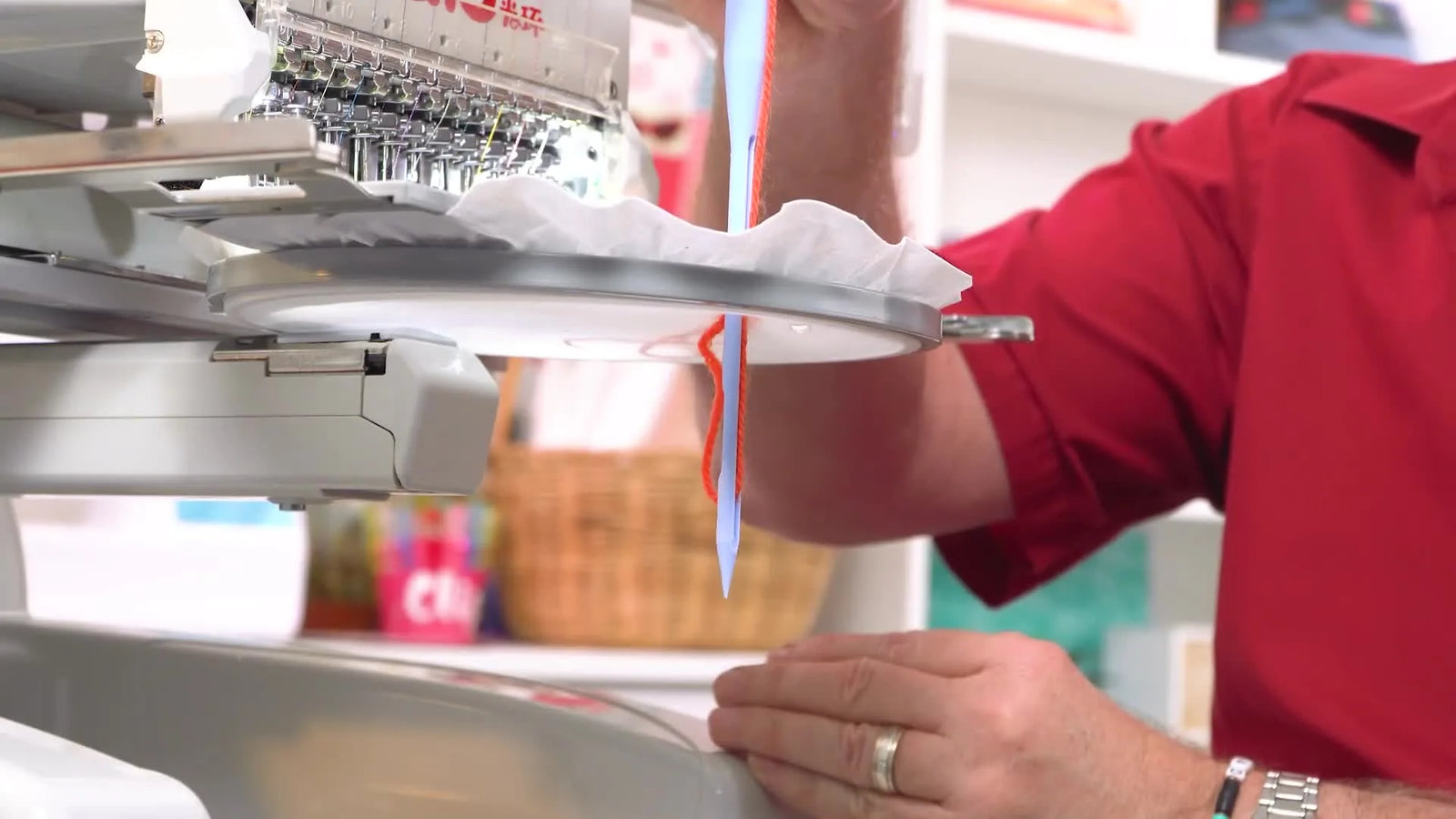

Gary creates a brilliant visual using a hoop with cutaway stabilizer and oversized yarn. He reveals the secret life of a stitch.

Here is the 7-step physics cycle occurring 15 times every second:

1. Penetration: The needle punches down through the fabric.
2. Protection: As it descends, the thread hides inside the Front Long Groove to avoid friction.
3. The Rise: The needle hits the bottom dead center and begins to rise.
4. The Pinch: The fabric grips the thread. Because the Back of the needle has no groove, the fabric friction holds the thread in place while the needle rises.
5. The Balloon: This friction causes the thread to buckle outwards, forming a perfect "scarf loop" on the back side.
6. The Catch: The rotary hook passes precisely through the Scarf indentation, snagging that loop.
7. The Lock: The take-up lever pulls tight.

If the needle is twisted, the loop forms in the wrong direction (away from the hook) or collapses entirely. Result: Skipped stitch.

The Hidden Villain: "Flagging"

Gary mentions Flagging, a term that confuses many beginners.

• What it is: The fabric lifting up (bouncing) with the needle as it rises, like a flag flapping in the wind.
• The Consequence: If the fabric rises with the needle, it fails to create the friction needed to form the loop. The loop collapses, and the hook misses.
• The Fix: This is why we use checking the hooping for embroidery machine tension is critical. A loose hoop guarantees flagging.

The "Hidden" Pre-Flight Prep

Before you even pick up a screwdriver, you need to prepare the environment. Experienced operators don't improvise; they execute a routine.

Hidden Consumables List

Don't start without these:

• Canned Air: To blow out lint from the needle bar hole (lint prevents the needle from seating high enough).
• Proper Lighting: A magnetic gooseneck light or a headlamp.
• The "Gap" Card: A business card to place over the needle plate (prevents a dropped needle from falling into the bobbin area).

Prep Checklist (Do before loosening the screw)

• Identify the Front: Hold the new needle and locate the Long Groove.
• Cover the Plate: Place your business card or paper over the needle hole.
• Inspect the Old Needle: When you remove it, is it bent? If yes, discard immediately into a sharps container.
• Clear the Path: Ensure the needle bar hole is free of debris.

The Magnetic Needle Setter: Tool vs. Guesswork

Gary introduces a Magnetic Needle Setter. This simple tool aligns with the flat plane of the needle's eye/groove, giving you a visual "arrow" to judge rotation.

Why use it? Because human eyes are bad at judging the rotation of a 1mm cylinder. The tool magnifies the angle so you can see it clearly.

The Process:

1. Snap the needle into the tool (the magnet grabs the flat face of the eye).
2. Insert the assembly into the needle bar.
3. Push up until you feel a solid mechanical stop.
   • Sensory Anchor: You should feel a solid "thud." If it feels spongy, there is lint in the bar.








Warning: Magnet Safety. These alignment tools often use rare-earth magnets. They are strong enough to pinch skin painfully. More importantly, keep them away from computerized machine screens, credit cards, and pacemakers.

The "Expert's Degree": Why 5° Left is Better Than Straight

Here is the nuance that separates a user from a pro. Gary advises that straight back is "good," but slightly left is "perfect."

The "5 Minutes to 6" Rule Imagine the needle is a clock face, and the eye represents the hands.

• 6:00 (Straight Back): The standard position.
• 6:05 (Slightly Right): DANGER ZONE. This hides the loop from the hook. Avoid this.
• 5:55 (Slightly Left): The Sweet Spot.

Why rotate 5-10 degrees left? As the machine runs at high speed, the thread loop has momentum. Rotating the scarf slightly toward the oncoming rotary hook (which approaches from the left on most standard machines) opens the loop up to the hook slightly earlier. This is your "insurance policy" against skipped stitches.

Steps to fine-tune:

1. Insert the needle fully.
2. Snug the screw (don't over-tighten yet).
3. Place the magnetic tool on the needle.
4. Use an old needle in the eye as a lever to gently rotate until the tool points just slightly left of center.
5. Lock the screw down.






Troubleshooting: Is it the Needle or the Setup?

When stitches fail, beginners blame the machine settings. Pros blame the physics. Use this Decision Tree to diagnose properly.

Decision Tree: Fabric Behavior & Stabilizer Choice

Goal: Prevent Flagging to ensure loop formation.

Scenario A: Stretchy Fabric (Polyester Performance Wear)

• Problem: Fabric stretches and lifts with the needle (Flagging).
• Solution: Must use Cutaway Stabilizer. Tearaway is structurally insufficient.
• Tool Upgrade: If you still see flagging, the fabric isn't held tight enough. A Magnetic Hoop grips thick or slippery performance wear far better than plastic hoops, maintaining the tension needed for loop formation.

Scenario B: Thick Items (Carhartt Jackets / Towels)

• Problem: Traditional hoops pop open or leave "hoop burn" marks.
• Solution: Do not over-tighten a plastic hoop screw (you will break it).
• Tool Upgrade: This is the trigger to search for a magnetic embroidery hoop. The magnets self-adjust to the thickness, preventing the fabric bounce that causes skipped stitches.

Scenario C: High Speed Production (800+ SPM)

• Problem: Shredding thread.
• Solution: Check needle orientation. Even a 5-degree error to the right (6:05 position) will cause shredding at high speeds.

The Troubleshooting Matrix

If you are running a smartstitch 1501 or similar production driver, print this table and tape it to the machine stand.

The Commercial Logic: When to Upgrade

There is a moment in every embroiderer's journey where "trying harder" stops working.

• If you are spending 5 minutes hooping a shirt because you are afraid of hoop burn, you are losing money. A magnetic hooping station pays for itself in labor savings within 500 shirts.
• If you are constantly fighting needle breaks on thick caps, standard needles naturally struggle. Using titanium-coated needles and ensuring precise orientation is the Level 1 fix.
• If you find yourself limited by color changes—spending more time re-threading a 6-needle machine than running it—it is time to look at commercial embroidery machines like the 12 or 15-needle platforms (Sewtech/Ricoma class). These machines allow you to leave your standard colors threaded effectively forever.

Setup Checklist (The "Last 60 Seconds")

Before you press that green START button:

• Scarf Check: Is the scarf facing back (or 5° left)?
• Height Check: Is the needle pushed all the way up to the "thud"?
• Tightness Check: Is the clamp screw secure? (Finger tight + 1/4 turn with screwdriver).
• Path Clear: Is the area clear of magnetic tools and spare needles?
• Tracing: Have you traced the design to ensure the needle won't hit the hoop?

Mastering needle orientation isn't just about fixing a machine; it's about mastering the relationship between steel, thread, and physics. Once you respect the loop, the machine will respect you.

FAQ

• Q: How do I orient a round-shank DBxK5-style needle correctly on a 12-needle commercial embroidery machine to prevent skipped stitches?
  A: Install the needle with the long groove facing the front and the scarf facing the back, then fine-tune slightly left if needed.
  • Power down the multi-needle embroidery machine or press E-Stop before touching the needle clamp.
  • Identify the long groove (front) and scarf (back) on the new needle before inserting it.
  • Push the needle fully up until it hits a firm mechanical stop, then tighten the clamp screw (finger tight + 1/4 turn).
  • Success check: Handwheel/jog a few stitches—no clicking, no thread shredding, and no consistent skipped stitches.
  • If it still fails: Rotate the needle a few degrees left (not right), then re-test and replace the needle if any burr or bend is suspected.
• Q: What is the fingernail test for finding the “front” and “back” of an industrial round-shank embroidery needle?
  A: Use touch to locate the long groove (front) and scarf scoop (back) when lighting is poor.
  • Run a fingernail down the needle shaft.
  • Feel for a deep trench running straight down to the eye (that side is the front/long groove).
  • Feel for a mostly smooth surface that dips into a short scoop near the eye (that side is the back/scarf).
  • Success check: After installing with long groove forward, the machine forms stitches without random loop-miss skips.
  • If it still fails: Re-seat the needle fully upward and re-check rotation (a small twist can break stitch formation).
• Q: What pre-flight items should I prepare before changing needles on a commercial multi-needle embroidery machine to avoid bad seating and dropped-needle jams?
  A: Set up the workspace first—most “mystery” skipped stitches after a needle change come from poor seating or a dropped needle.
  • Blow out lint from the needle bar hole with canned air so the needle can seat fully.
  • Add proper lighting (headlamp or magnetic gooseneck light) so rotation is easier to see.
  • Place a business card over the needle plate hole to stop a dropped needle from falling into the bobbin area.
  • Success check: The needle seats with a solid “thud” (not spongy) when pushed fully up.
  • If it still fails: Clean again for lint/debris and re-insert—do not force the screw to compensate for poor seating.
• Q: What safety steps should I follow when changing needles on a 12-needle embroidery machine needle bar to prevent injury?
  A: Treat needle changes like a controlled procedure: power off or E-Stop before fingers enter the needle bar area.
  • Turn off the machine or engage E-Stop before loosening the clamp screw.
  • Keep fingers clear of the needle path and avoid accidental Start/jog while the clamp is open.
  • Remove and discard bent needles immediately into a sharps container.
  • Success check: Needle change is completed without any unexpected machine movement and the clamp is secured before power-on.
  • If it still fails: Stop and reset—do not continue if the machine can be jogged while hands are in the needle area.
• Q: How do I use a magnetic needle setter tool to align a round-shank needle on a commercial embroidery machine?
  A: Use the magnetic needle setter to “magnify” needle rotation so the long groove/scarf alignment is obvious.
  • Snap the needle into the magnetic needle setter so the magnet grabs the flat face at the eye/groove area.
  • Insert the needle and tool assembly into the needle bar, then push up to a firm mechanical stop.
  • Snug the clamp screw, verify the tool points correctly, then lock the screw down.
  • Success check: The needle is fully seated and consistent stitches form without shredding at normal run speed.
  • If it still fails: Re-check for lint causing a spongy seat and re-install—rotation accuracy does not help if the needle is not fully up.
• Q: What magnet safety rules should I follow when using a rare-earth magnetic needle setter near a computerized embroidery machine?
  A: Handle rare-earth magnets carefully: pinch risk is real, and sensitive items must be kept away.
  • Keep the magnetic needle setter away from computerized machine screens and credit cards.
  • Keep rare-earth magnets away from pacemakers and anyone with implanted medical devices.
  • Grip and separate magnets slowly to avoid sudden snaps that pinch skin.
  • Success check: The tool is removed from the sewing area before pressing START and nothing metallic is pulled into the needle zone.
  • If it still fails: Clear the area and follow a “path clear” habit—magnetic tools left near the needle area can create collision risk.
• Q: How do I troubleshoot skipped stitches vs. birdnesting vs. thread shredding on a Smartstitch 1501-class multi-needle embroidery machine?
  A: Diagnose by symptom and fix low-cost causes first: threading/tension, hooping (flagging), then needle orientation.
  • Re-thread the top path and clean tension discs first if birdnesting is on the bobbin side (often no top tension).
  • Tighten hooping and switch to cutaway stabilizer on stretchy fabric if skipped stitches look random (flagging is common).
  • Check needle orientation and rotate slightly left if skipped stitches are consistent or thread is shredding at higher speeds.
  • Success check: Stitches lock cleanly, skipping stops, and shredding reduces without new clicking noises.
  • If it still fails: Stop immediately if there is loud clicking (possible needle strike), then re-hoop and check for needle/plate/hoop interference.
• Q: When should I upgrade from technique fixes to a magnetic hoop, and when does a 12–15 needle commercial embroidery machine become the practical next step for production?
  A: Use a tiered approach: fix loop formation first, upgrade holding power next, and upgrade capacity only when changeovers become the bottleneck.
  • Level 1 (technique): Correct needle orientation, prevent flagging with proper hoop tension, and choose cutaway stabilizer for stretchy fabrics.
  • Level 2 (tool): Move to a magnetic hoop when plastic hoops pop open, leave hoop burn, or cannot hold thick/slippery items without bounce.
  • Level 3 (capacity): Consider a 12–15 needle commercial embroidery machine when color-change time and re-threading limit throughput more than stitch speed.
  • Success check: Hooping becomes repeatable with less fabric bounce, skipped stitches decrease, and operator time per garment drops.
  • If it still fails: Slow the machine down to reduce heat/friction, re-check needle seating/orientation, and confirm the design trace clears the hoop before running.
