This guide rebuilds the standard "Multi-Hooping in Hatch" workflow into a shop-floor compatible process. We will cover the software steps, but more importantly, we will cover the physical alignment tactics that prevent gaps, ruined garments, and wasted stabilizer.

Don’t Shrink the EMB: Use Hatch Multi-Hooping to Keep Detail Inside a 100x100mm Field

The physics of embroidery are unforgiving. If you shrink a design by 20% or more, density increases, and needles start breaking. Linda’s starting point is the professional approach: keep the size, split the file.

In Hatch, the Multi-Hooping toolbox is designed to fragment one large design into logical "tiles" that fit inside your machine’s hard limits.

If you are specifically working with a brother 4x4 embroidery hoop, that 100x100mm boundary is a physical wall. You cannot "cheat" it. The software must create safe zones that account for the plastic edges of your hoop.

The “Hidden” Pre-Flight Check: Sequence Docker Inspection

Before you touch the Multi-Hooping tool, open the Sequence Docker. You need to audit the design structure.

In this example, Linda checks two variables:

1. Color Count: The design has 16 colors.
2. Repeats: There are no repeated colors.

Why this matters on the shop floor: every extra hooping adds risk. If a design has repeated colors (e.g., Color 1 and Color 15 are both Red), a professional would normally re-sequence them to stitch together. However, across multiple hoops, you must stitch sequentially. This audit confirms you aren't missing an easy optimization before you commit to the split.

Phase 1 Checklist: Preparation

• Visual Check: Confirm the design screen shows your actual machine hoop boundary (e.g., 100x100mm).
• Sequence Check: Open Sequence Docker. Verify color count (16) and check for unnecessary repeats.
• Consumable Check: Do you have enough temporary spray adhesive (like 505) and a water-soluble pen? You will need these for re-hooping alignment.

Lock the Hoop Choice: Selecting the 100x100mm Limit

Now, initiate the Multi-Hooping toolbox.

1. Click Multi-Hooping in the left toolbox.
2. In the dialog, purely verify that 100x100 (or your specific machine limit) is selected.
3. Click OK.

Sensory Check: You should see the hoop boundary appear on the screen. It acts as a transparent overlay on your design.

Decoding the Color Feedback

Hatch provides immediate visual feedback on what is "safe" vs. "unsafe":

• Green Objects: These fit entirely within the current hoop position.
• Black Objects: These fall outside the boundary or cross the line.
• Split Objects: Green objects that have a split line running through them (Hatch handles this, but try to avoid splitting complex fills if possible).

The Fast Split: Using “Automatically Add Hoops” to Calculate Positions

Manual calculation is prone to human error. Use the algorithm first.

1. Click Automatically Add Hoops.
2. Click OK to confirm.
3. Zoom Out (Scroll wheel or - key) to see the entire "map" of hoops.

The Goal: You want the minimum number of hoops required to cover the design. Green, Red, Blue, and Purple rectangles will appear, representing Hooping 1, 2, 3, etc.

Production Note: If you are doing multi hooping machine embroidery for paid customer work, efficiency is key. Every re-hoop takes about 5-10 minutes of labor. If the auto-tool gives you 5 hoops, but you can manually rotate one to make it 4, do it. Fewer hoops = higher profit margin and less alignment risk.

The Critical Review: Preview Hoopings Docker + Orientation Arrows

Never trust the algorithm blindly. You must verify the logical flow.

1. Select Preview Hoopings.
2. A docker opens list-view showing each segment.
3. Click through each frame sequentially.

The Alignment Trap: Look closely at the Orientation Arrows on the previews.

• Does Hooping 1 point North?
• Does Hooping 2 point West?

If the arrow rotates, you must rotate your fabric in the physical hoop. This is a massive source of error for beginners. Expert Rule: Keep the rotation consistent if possible. It is much easier to keep the fabric pointing "up" than to calculate 90-degree turns on a sweatshirt mid-job.

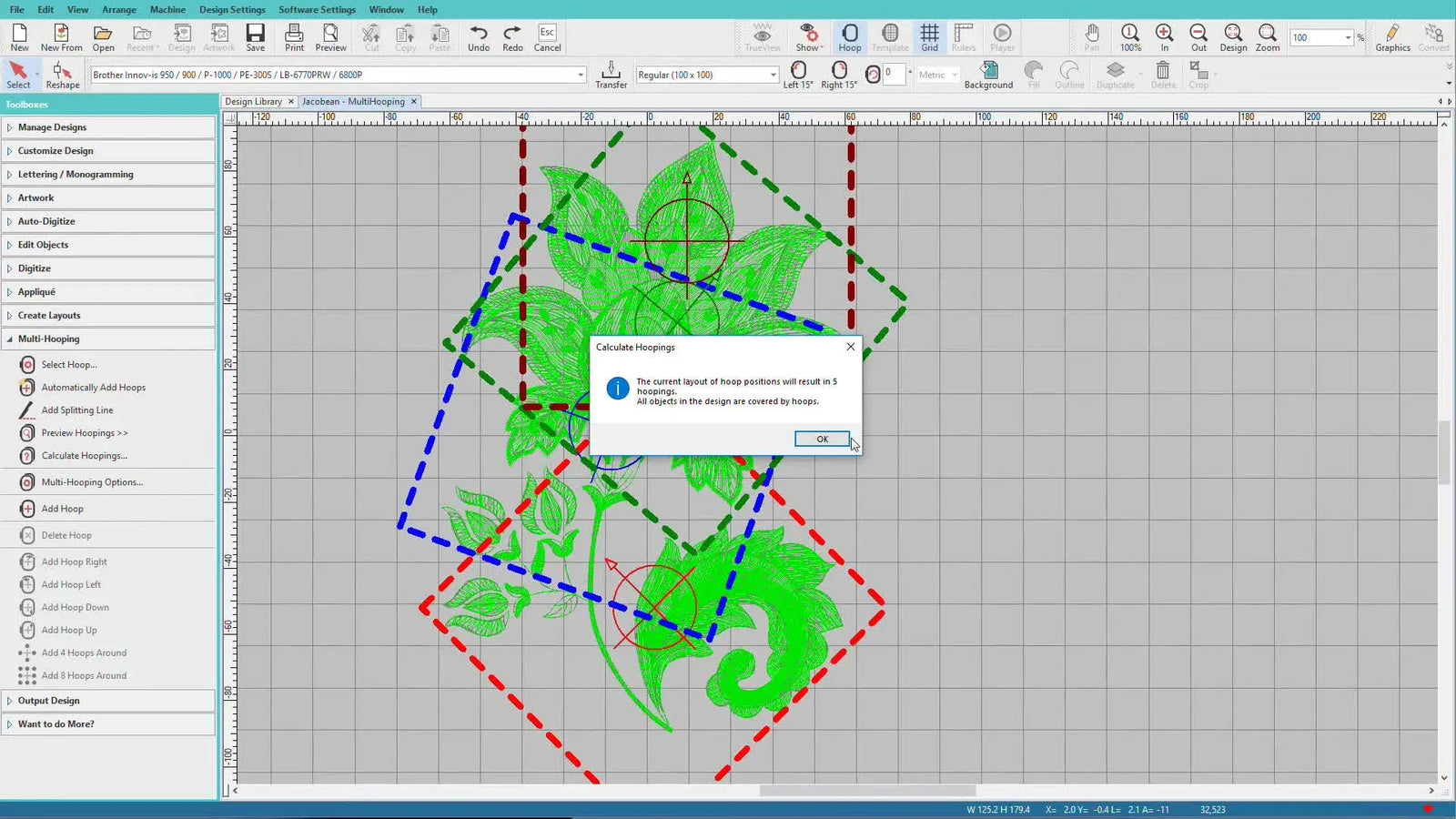

Finalize the Blueprint: “Calculate Hoopings”

Once the preview confirms that no objects are sliced in awkward places (like the middle of a face or text):

1. Click Calculate Hoopings.
2. Click OK.

This "bakes" the splitting lines into the software's logic.

Phase 2 Checklist: Setup & Calculation

• Coverage: All design elements are covered by colored hoop boundaries.
• Orientation: You have noted if any hooping requires rotating the fabric (Physical UP vs. Screen UP).
• Logic: The split lines do not cut through critical small details (like small lettering).

The Alignment Insurance: Adding Registration Marks

This is the single most important setting for multi-hooping success. Without this, you are guessing.

1. Open Multi-Hooping Options.
2. Check the box: Add registration marks on output.
3. Set Size to Medium.

What happens: The machine will stitch small "L" shaped corners or crosshairs at the end of Hooping 1. When you load Hooping 2, the needle will start by checking those exact positions.

• Sensory Cue: When stitching Hooping 2, drop your needle (hand wheel) into the registration mark of Hooping 1. If it lands exactly in the hole, you are safe. If it misses by 1mm, your design will have a gap.


Save the Master: The "Two-File" System

Do not overwrite your original. Do not only save stitch files.

1. Go to the Output toolbox.
2. Save As -> Choose EMB format.
3. Name it with a suffix like _SPLIT_MASTER.

Why: Next year, you might buy a larger machine. If you only saved the cut-up PES/DST files, you cannot put them back together easily. Keeping the EMB preserves the object data.

Export for Production: Generating Sequenced Machine Files

Now, create the files your machine can read.

1. Choose Export Design.
2. Select your machine format (e.g., PES for Brother).
3. Click Save.
4. Select Save All Now.

Result: Hatch generates a series of files: Design_01, Design_02, Design_03. Crucial: You must stitch them in this exact order.

Phase 3 Checklist: Output & Safety

• Registration Marks: Enabled (Medium).
• File Format: Correct for your machine (PES, DST, EXP).
• File Sequence: Files are number-coded in your USB drive.
• Safety Zone: You are mentally prepared to keep hands clear during frame movement.

Warning: Mechanical Safety
Multi-hooping involves large fabric bundles moving rapidly. Ensure the excess fabric of the garment does not catch on the presser foot screw or the needle bar. Never reach inside the hoop area while the machine is active.

The Physical Reality: Why Hooping Technique Causes 90% of Failures

Software precision means nothing if your fabric behaves like a rubber band.

• Tension Drift: If Hooping 1 is "drum tight" and Hooping 2 is "loose," the stitches will not meet.
• Hoop Burn: Traditional hoops rely on friction and friction rings. Squeezing them tight enough to hold multiple layers often leaves permanent white rings on dark fabric ("hoop burn").

Experienced operators searching for correct hooping for embroidery machine technique know that the variable is usually the human hand, not the machine calibration.

Decision Tree: Stabilization Strategies for Multi-Hooping

Select your method based on fabric stability.

• Scenario A: Stable Woven (Denim, Canvas)
  • Risk: Low.
  • Stabilizer: Tearaway (2 layers) or Cutaway (1 layer).
  • Adhesion: Light spray.
• Scenario B: Stretchy Knit (T-Shirts, Polos)
  • Risk: High. Knit fabric stretches effectively changing the size of the design while you stitch.
  • Stabilizer: Fusible Cutaway Mesh (Iron-on).
  • Why: You need to turn the stretchy fabric into a temporary "stable woven" before you even start hoop 1.
• Scenario C: Slippery/Delicate (Silk, Performance Wear)
  • Risk: Slippage.
  • Stabilizer: Sticky Stabilizer (Peel & Stick) or Magnetic Hoops.

The Tool Upgrades: Solving the Physical Bottleneck

If you are doing this commercially, "eyeballing it" kills your hourly rate.

Level 1: The Station

A hooping station for machine embroidery allows you to place the hoop in a fixed jig. You pull the shirt over a platen, ensuring that "straight" is actually straight. If you have an embroidery hooping station, use the grid lines to ensure the grain of the fabric runs perfectly vertical for every hooping section.

Level 2: Magnetic Hoops (The Friction Solver)

Standard hoops require you to shove an inner ring into an outer ring, distorting the fabric. magnetic embroidery hoops clamp the fabric flat using powerful magnets (Force mapping).

• Benefit 1: No distortion. The fabric lays flat, so Hooping 1 and Hooping 2 match perfectly.
• Benefit 2: Speed. You can lift the magnet, slide the fabric to the next registration mark, and click it back down in seconds.

For Brother users specifically, a dedicated brother magnetic embroidery frame solves the "Hoop Burn" issue on delicate items, as it holds via magnetic force rather than friction abrasion.

Warning: Magnetic Hazard
Commercial magnetic hoops are incredibly strong. Pinch Hazard: Keep fingers away from the contact zone when snapping shut. Medical: Keep at least 6 inches away from pacemakers. Data: Do not place standard credit cards or USB drives directly on the magnets.

Quick Troubleshooting: The "Why is this happening?" Guide

The Payoff: Consistency is King

Transforming a large design into a multi-hoop masterpiece is a rite of passage.

1. Trust Hatch to handle the math.
2. Trust the Registration Marks to handle the map.
3. Upgrade your Tools (Stabilizers, Magnetic Hoops) to handle the physics.,

When you stop fighting the hoop and start controlling the tension, multi-hooping changes from a "scary experiment" into a standard, billable service in your shop.

FAQ

• Q: In Hatch Multi-Hooping for a Brother 4x4 (100x100mm) hoop, what should be checked in Sequence Docker before splitting a large EMB design?
  A: Audit the design structure first, because color repeats and excessive color changes increase re-hoop risk.
  • Open Sequence Docker and note total color count and whether any colors repeat later in the sequence.
  • Re-sequence only if the design is single-hoop; for multi-hooping, keep the stitch order sequential to match the split output.
  • Gather temporary spray adhesive (e.g., 505) and a water-soluble pen before starting, because re-hooping alignment depends on both.
  • Success check: Sequence Docker shows a clear, logical color flow with no “surprise” repeated colors near the end.
  • If it still fails, reduce risk by aiming for fewer hoopings (optimize hoop placement) before committing to output files.
• Q: In Hatch Multi-Hooping, how can Hatch Preview Hoopings orientation arrows prevent fabric rotation mistakes during multi-hooping machine embroidery?
  A: Treat the orientation arrows as a physical instruction, because a changed arrow means the fabric must be rotated in the hoop.
  • Open Preview Hoopings and click through every hooping segment in order.
  • Compare orientation arrows between Hooping 1, Hooping 2, Hooping 3, and note any 90° changes before going to the machine.
  • Keep rotation consistent whenever possible by adjusting hoop positions in software to avoid needing fabric turns mid-job.
  • Success check: Every hooping preview shows the same “up” direction, or a clearly noted rotation plan that matches how the garment is hooped.
  • If it still fails, redo hoop placement to minimize rotations, because rotation changes are a common beginner misalignment trap.
• Q: In Hatch Multi-Hooping, how do “Add registration marks on output” settings prevent gaps between hoop sections?
  A: Turn on registration marks and use a needle-drop verification before stitching file #2, because guessing alignment causes gaps.
  • Open Multi-Hooping Options and enable “Add registration marks on output,” then set mark size to Medium.
  • Stitch Hooping 1 normally so the machine creates the registration marks at the end of that section.
  • Before starting Hooping 2, manually drop the needle (hand wheel) into the previous registration mark to confirm perfect alignment.
  • Success check: The needle drops into the existing registration-mark hole exactly; if it is off by about 1 mm, a visible gap is likely.
  • If it still fails, adjust the starting position on the machine screen rather than shifting the fabric, because moving fabric usually worsens alignment.
• Q: When multi-hooping machine embroidery shows gaps between sections, what is the fastest stabilization fix based on the “Gaps between sections” troubleshooting symptom?
  A: Stop fabric shifting by stabilizing and hooping correctly, because multi-hooping fails most often from movement between re-hoops.
  • Hoop the stabilizer with the fabric for multi-hooping instead of floating the stabilizer.
  • Switch to a more locking method on unstable fabrics, such as fusible cutaway mesh on knits.
  • Use light temporary spray adhesive to keep layers from sliding during re-hoop alignment.
  • Success check: The join line closes cleanly with no visible open space where sections meet.
  • If it still fails, add tool support (magnetic hoop or hooping station) to make tension and placement repeatable.
• Q: When Hatch multi-hooping output produces double focus or blurry lines at the join, how should registration mark alignment be corrected before stitching file #2?
  A: Verify and correct registration mark alignment before running the next file, because a small starting offset creates “ghosted” outlines.
  • Pause before stitching file #2 and manually drop the needle into the stitched registration mark from file #1.
  • If the needle misses the hole, adjust the starting position on the machine screen (not by pulling the fabric).
  • Re-check the needle-drop after the adjustment before pressing start.
  • Success check: The needle lands exactly in the registration-mark hole and the first stitches of file #2 track cleanly without a shadow line.
  • If it still fails, re-hoop with more consistent tension and stabilization, because drift between hoopings amplifies registration error.
• Q: What mechanical safety steps should be followed when stitching multiple Hatch multi-hooping files on a home embroidery machine with bulky garments?
  A: Prevent fabric from catching during rapid movement, because multi-hooping often involves large fabric bundles near moving parts.
  • Manage excess garment fabric so it cannot snag on the presser foot screw or needle bar during frame travel.
  • Keep hands out of the hoop area while the machine is running; do not reach in to “help” the fabric.
  • Verify the hoop path is clear before starting each numbered file in sequence.
  • Success check: The frame moves through full travel smoothly with no pulling, jerking, or fabric snagging sounds.
  • If it still fails, stop immediately and re-bundle/clip excess fabric away from the movement zone before restarting.
• Q: What magnetic embroidery hoop safety rules should be followed when upgrading multi-hooping alignment with magnetic hoops?
  A: Treat magnetic hoops as a pinch and medical hazard, because the magnets snap with high force.
  • Keep fingers away from the contact zone when closing the magnetic frame to avoid pinch injuries.
  • Keep magnetic hoops at least 6 inches away from pacemakers.
  • Avoid placing standard credit cards or USB drives directly on the magnets.
  • Success check: The hoop closes under control without finger contact at the clamp edge and the workspace stays clear of sensitive items.
  • If it still fails, slow down the closing motion and reposition hands to the outer edges before snapping the magnets shut.
