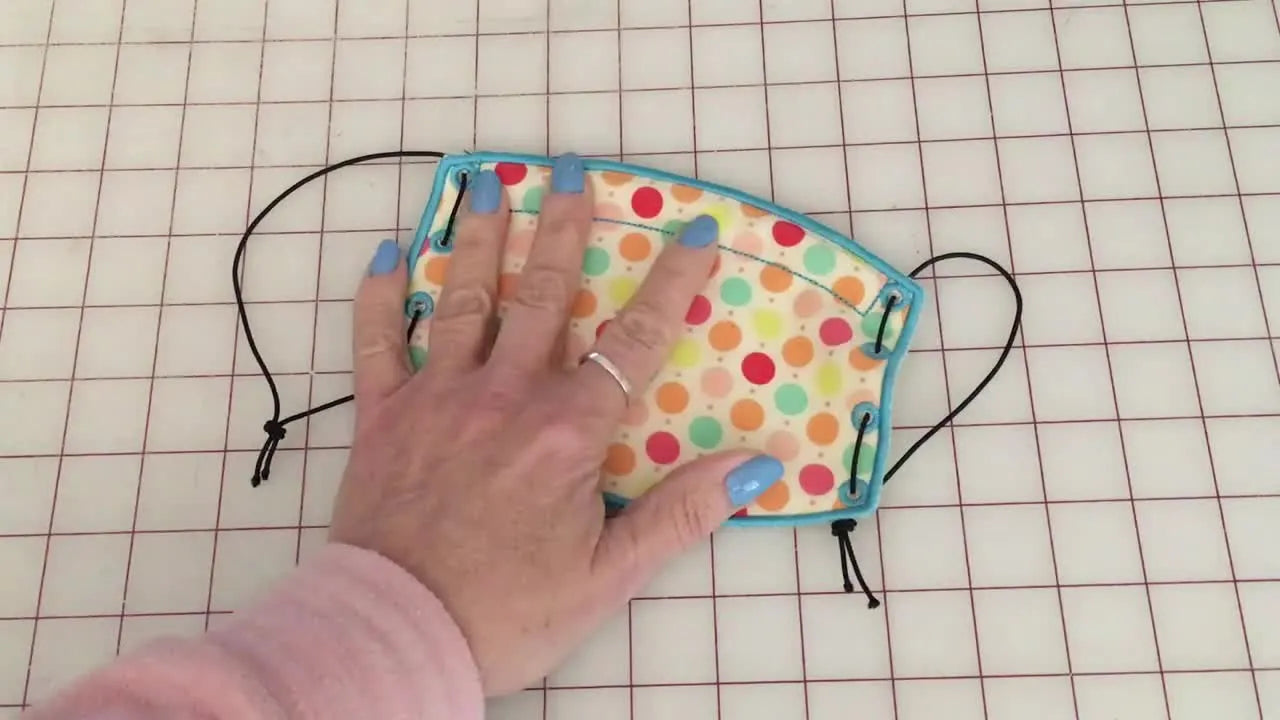

Stop Sewing, Start Stitching: An ITH Face Mask with Satin Edge, Nose Wire Channel, and Clean Eyelets

When you’re trying to make a mask that looks finished—not “homemade”—the satin edge is the difference. It seals the raw fabric edges, hides tiny trimming sins, and gives you a clean perimeter that doesn’t require a sewing machine.

This project (shown by Dawn from Creative Appliques) is a true in-the-hoop build: placement stitch, tack-downs, trimming, a nose wire pocket slit, a stitched nose channel, embroidered eyelets, and a final satin border. If you follow the order and trim like you mean it, you’ll get a professional result.

Don’t Panic—ITH Satin Borders Look Scary, but They’re Actually Forgiving (If You Respect the Trim)

A dense satin stitch around curves can feel like a “point of no return.” The good news: this design is built to be forgiving as long as you trim close after each tack-down and keep your layers stable.

Two things usually cause the heartbreak moments (fabric peeking out, wavy edges):

• The fabric shifts slightly between tack-down and satin stitch.
• The fabric wasn’t trimmed close enough, so raw edges creep out past the satin.

The Physics of Failure: Satin stitches create intense "pull compensation" forces. As the needle swings right-to-left rapidly, it literally tugs the fabric inward. If your stabilizer foundation is weak, or your fabric is floating loosely, the border will shrink inward, revealing the raw edge you just tried to hide.

If you’ve ever watched a satin border finish and thought, “Please don’t show the raw edge…,” you’re exactly the right person for this tutorial. We are going to prioritize structural integrity over speed.

The Supplies That Actually Matter (And the Ones People Forget Until It’s Too Late)

Dawn’s supply list is practical and production-friendly. However, I am adding specific "hidden consumables" and technical specifications based on production floor experience.

Materials (from the video):

• Adhesive tear-away stabilizer (sticky back)
• Cotton quilting fabric (outer)
• Jersey knit (recommended for the inner layer closest to the face)
• Masking tape (Painter's tape is often safer for residue)
• Pipe cleaner or wire (12-inch pipe cleaner is shown; floral wire is also mentioned)
• Strap options: elastic cord (1mm or 2mm), 1/4-inch flat elastic, or 1/2-inch T-shirt knit strips

Tools (from the video & expert additions):

• Multi-needle embroidery machine (or single needle capable of ITH)
• Metal open-window embroidery frame (Durkee/Fast Frame style)
• Double curved embroidery scissors (Non-negotiable for ITH work)
• Seam ripper
• Awl (for guiding fabric and punching holes)
• Crop-A-Dile punch tool (1/8-inch hole size)
• Hidden Consumable: 75/11 Sharp Needles (Ballpoints can push knit fabric; Sharps cut cleaner satin edges).
• Hidden Consumable: Alcohol swabs (to clean needle gum from sticky stabilizer).


Thread choice (pulled from the comments)

A viewer asked whether to use cotton thread for construction and embroidery thread for the satin/eyelets. The creator replied that she uses embroidery thread for the whole mask.

That’s a smart simplification for ITH work: fewer thread changes, consistent sheen, and predictable stitch behavior across placement/tack-down/satin.

Expert Note: Ensure you are using 40wt Polyester embroidery thread. It has higher tensile strength than Rayon, which is critical for a mask that will be washed repeatedly.

The “hidden” prep that saves your satin edge

Before you stitch anything, do these quick checks—because satin borders punish sloppy prep.

• Check your adhesive: Make sure your sticky stabilizer is firmly adhered in the frame with no bubbles. A bubble in the stabilizer equals a pucker in the mask.
• Pre-cut accurately: Pre-cut your fabrics large enough to fully cover the placement line with at least 1-inch margins for tape.
• Tool staging: Keep your curved scissors and seam ripper within reach; you’ll need them immediately after tack-downs.

If you’re using a sticky frame system like durkee fast frames, plan your tape placement so you’re not fighting adhesive residue and tape fuzz at the same time. The goal is friction-free operation.

Prep Checklist (do this before you press Start)

• Sticky tear-away stabilizer is mounted flat in the frame (Auditory check: Tap it; it should sound like paper, not a loose bag).
• Inner layer fabric (jersey knit) is cut oversized to cover the placement stitch completely.
• Outer fabric (cotton) is cut oversized to cover the placement stitch completely.
• Masking tape is ready (you’ll secure corners outside the stitch line when possible).
• Double curved scissors are sharp and clean (Test cut: If they chew the fabric, do not proceed).
• Seam ripper is ready for the nose wire slit.
• Pipe cleaner/wire and strap material are staged for finishing.
• Crucial: Needle is fresh and free of sticky residue (clean with alcohol swab if reusing).

Hooping on Sticky Stabilizer Without Distortion: The “Float It Flat” Habit That Prevents Wavy Edges

This project is built on a sticky stabilizer “floating” method: the machine stitches directly onto the stabilizer first, then you place fabric over the outline and tape it down.

Here’s the key physical principle: the stabilizer is your true foundation. If your fabric is stretched, skewed, or tensioned unevenly when you tape it, the satin border will faithfully lock that distortion in place. When you remove the mask from the hoop, the fabric will relax, and your beautiful satin border will ripple like bacon.

What I do in production:

• Lay the fabric down relaxed. Do not pull it.
• Smooth outward gently with your palm to engage the adhesive.
• Tape only what you must, and keep tape outside the stitch path whenever possible.
• Avoid pulling the knit inner layer tight—knit wants to rebound, and that rebound can ripple the edge.

If you’re currently relying on a workflow involving a sticky hoop for embroidery machine, this is where most people accidentally “over-help” the fabric and create the very puckers they’re trying to prevent.

The Stitch Sequence That Makes This Mask Work (Placement → Tack-Down → Trim → Slit → Tack-Down → Trim → Channel → Eyelets → Satin)

This is the exact construction flow shown in the tutorial. We will tackle this step-by-step with sensory cues to ensure you are on track.

1) Sew the placement stitch on the sticky stabilizer

The machine runs a single outline stitch directly onto the adhesive stabilizer to define the mask shape.

Checkpoint: You should see a clean outline on the stabilizer. Look closely: are there skipped stitches? If so, your needle may be gummed up with adhesive. Clean it now.

Expected outcome: A clear “map” of where every layer must cover.

2) Place the inner layer (jersey knit) and tape it down

Place the lining fabric so it completely covers the placement stitches. Secure corners with masking tape, preferably outside the stitch line.

Pro tip from the video: Tape outside the stitching area if possible. Tape requires extra force for the needle to penetrate, which can cause subtle deflection.

3) Inner layer tack-down, then trim close

After the machine tacks the inner layer down, trim the excess fabric very close to the stitch line using double curved scissors.

Visual Anchor: You want these scissors to glide within 1-2mm of the threads. DO NOT cut the threads.

Expected outcome: The inner layer is shaped cleanly with minimal overhang.

Warning: Curved embroidery scissors and a running needle are a bad combination. Never trim while the machine is "paused" if your foot is near the start pedal. Stop the machine completely, move the hoop to a safe position (away from the needle bar), and keep fingers clear before trimming. One slip can cut the tack-down stitches or worse, nick the stabilizer foundation.

4) Create the nose wire pocket slit (between the buttonholes)

The machine sews two vertical buttonhole stitches. Use a seam ripper to cut a small horizontal slit in the fabric and stabilizer between them.

Checkpoint: The slit needs to be just big enough to accept the wire later. Don't be aggressive here or you will cut the buttonhole stitches.

Expected outcome: A clean opening that won’t tear wider when you insert the pipe cleaner.

5) Place the outer fabric (cotton) face up and tape it down

Place the top fabric face up over the mask area, smooth it, and tape securely.

Dawn notes you can add multiple layers for filtration if desired. A viewer comment asked about adding flannel in the middle for extra filtering, and the creator confirmed you can.

My practical caution (experience-based): Extra layers are fine, but thickness increases drag under the presser foot. This can make the satin edge look “ropey” if the stack is too bulky. If you add layers, confirm your presser foot height is adjusted slightly higher to accommodate the bulk without dragging the fabric.

6) Outer layer tack-down, then trim extremely close

After the tack-down stitch, trim this layer very closely. This is the most critical trim in the entire project.

Sensory Check: Run your finger lightly over the edge. If you feel a "lip" of fabric extending significantly past the thread, trim it again. Any fabric extending more than 1.5mm is at high risk of poking through the final satin stitch.

Expected outcome: A clean edge that the satin stitch can fully cover.

Setup Checklist (right before the detail stitches)

• Both inner and outer layers are trimmed within 1-2mm of the tack-down line.
• No tape overlaps the stitch path (check the corners especially).
• The nose slit is cut between the buttonholes (or you’ve decided to cut it later).
• The fabric stack is flat with no ridges at the edge.
• Bobbin Check: Do you have enough bobbin thread to finish? Satin stitches consume massive amounts of thread. Check now to avoid a run-out in the middle of the border.

The Functional Details That Separate “Cute” from “Wearable”: Nose Wire Channel + Eyelets

Now the machine adds the features that make the mask practical.

7) Stitch the nose wire channel and the eyelets

The machine stitches the channel for the nose wire, then stitches the eyelets (circles) for straps.

Important note from the video: During filming, the satin stitch was recorded first by mistake, but the actual file order is correct.

Correct order to follow: Nose channel → Eyelets → Satin stitch.

This matters because the satin border creates a rigid frame. If you stitch the rigid frame first, it may push the fabric slightly, causing the interior details (eyelets) to be misaligned. Always stitch from the center out when possible.

The Satin Border Moment: How to Get a Smooth Edge Without Fabric “Whiskers”

8) Stitch the final satin stitch around the perimeter

The machine sews a dense satin stitch around the entire perimeter to sealing the raw edges.

Speed Adjustment: Reduce your machine speed here. If you usually run at 1000 SPM (Stitches Per Minute), drop to 600-700 SPM. High speed on satin edges causes vibration, which leads to jagged edges.

Checkpoint: Watch the edge as it stitches. If you see tiny fabric threads ("whiskers") poking out:

1. Stop immediately.
2. Use fine tweezers to tuck the stray threads back under the needle path.
3. Resume stitching.

Expected outcome: A continuous, even satin border with no raw fabric showing.

Here’s the “why” behind the obsession with trimming: satin stitches are dense but not magical. If fabric extends past the tack-down line, the satin can’t always wrap far enough to hide it—especially on tight curves.

If you’re experimenting with dime sticky hoop style setups, the same rule applies: sticky support helps hold position, but it doesn’t replace precision trimming.

Finishing Like a Pro: Tear Away Cleanly, Insert the Wire, Punch the Eyelets, Add Straps

9) Remove from stabilizer and tear away excess

Remove the project from the sticky stabilizer and tear away the excess. A pick tool helps lift and remove small bits.

Tip: Support the satin stitches with your thumb while tearing the stabilizer to prevent stretching the stitches.

Expected outcome: The back is clean with minimal stabilizer fuzz.

10) Insert the pipe cleaner/wire into the slit

Slide the pipe cleaner into the slit; you may need to cut it to adjust length. Fold the sharp ends of the wire over so they don't poke through the fabric.

11) Punch out the center of the embroidered eyelets

Use the Crop-A-Dile punch tool and align the 1/8-inch tooth with the embroidered eyelet, then punch.

Checkpoint: The punched hole is centered inside the stitched eyelet. If you don't have a punch tool, a sharp awl works, but the hole is less clean.

Expected outcome: A clean opening that won’t fray when you pull elastic through.

12) Add straps (cord, flat elastic, or T-shirt ties)

Dawn shows multiple options:

• Elastic cord (1mm or 2mm) feeds easily through the holes.
• 1/4-inch flat elastic can work, especially with an awl to help push it through.
• T-shirt knit strips cut to 1/2-inch width can be pushed through as ties.


Operation Checklist (before you call it “done”)

• Satin border fully covers the trimmed edge with no fabric/thread poking out.
• Nose wire slides smoothly and sits centered.
• Eyelets are punched cleanly and straps feed without snagging.
• Backside stabilizer is torn away neatly (no hard chunks that irritate the skin).

When Something Goes Wrong, It’s Usually One of These Two Things (And Both Are Fixable)

The Upgrade Path That Makes This Workflow Faster (and Easier on Your Hands)

This project uses a sticky stabilizer frame system and tape to hold layers in place. It works—but it can be consumable-heavy and fussy when you’re making more than a couple of masks.

If you’re doing small-batch production, the biggest bottleneck isn’t the machine stitching—it’s the repeated hooping, taping, and re-positioning.

Here’s a practical “tool upgrade” logic to diagnose your workflow:

• Scenario trigger: You find yourself taping every piece, fighting shifting layers, or spending more time prepping adhesive backing than actually stitching.
• Judgment standard: If hooping and securing layers takes longer than the stitch-out (e.g., 5 mins prep for a 3 min run), you are losing efficiency.
• Optional paths:
  • Level 1 (Cleaner): If you want less tape and less adhesive stabilizer waste, consider magnetic embroidery hoops. These clamp layers firmly and evenly without "hoop burn" (the ring marks left by standard hoops) and eliminate the need for sticky sprays or backings that gum up needles.
  • Level 2 (Ergonomic): If your wrists and hands are tired from repetitive hooping and trimming setups, a magnetic hooping station acts as a "third hand," reducing handling time and keeping alignment consistent across batches.

Warning: If you move to magnetic frames, keep magnets away from pacemakers/implanted medical devices and be mindful of pinch points—strong magnets can snap together fast and hurt fingers.

For shops scaling beyond hobby volume, pairing a stable hooping workflow with a productivity-focused multi-needle platform (like SEWTECH multi-needle embroidery machines) is often the cleanest jump: fewer stops, smoother runs, and a process you can repeat 20 times a day without “operator fatigue.” If you’re evaluating magnetic hoops for embroidery machines, always confirm compatibility with your machine model and your frame/arm clearance to ensure safety.

A Simple Decision Tree: Fabric Layers → Stabilizer Strategy → Best-Fit Hooping Method

Use this matrix to decide how to set up your next run based on materials.

1) What represents your inner layer?

• Jersey knit: Risk: Stretching. Action: Keep it relaxed. Use sticky stabilizer or magnetic clamping to avoid pull-distortion.
• Cotton: Risk: Low. Action: Standard taping or hooping is fine.

2) Are you adding extra filtration layers (like flannel)?

• No (2 layers total): Sticky tear-away + careful tape is straightforward.
• Yes (3+ layers): Expect bulk. Action: Increase presser foot height. Consider magnetic hoops as they handle variable thickness better than standard hoops which may pop open.

3) How many are you making?

• 1–5 masks: Sticky stabilizer frame methods are cost-effective.
• 10+ masks: The cost of sticky stabilizer adds up. Consider reducing consumable waste and setup time with magnetic clamping and specific cut-away or tear-away stabilizers that don't rely on adhesive.

The “Old Hand” Takeaway: This Mask Succeeds on Two Skills—Layer Control and Trim Discipline

If you remember only two things from this guide, make them these:

1) Float the fabric flat—don’t stretch it into place. Let the adhesive or the magnet do the holding. 2) Trim like the satin stitch is watching—because it is.

Once you’ve got those habits, this ITH mask becomes a reliable, repeatable product: clean edge, functional nose wire, and eyelets that look intentional—not improvised.

FAQ

• Q: How do I prevent an in-the-hoop satin border mask from showing raw fabric edges (“fabric peeking out”) after the final satin stitch?
  A: Trim both fabric layers to within about 1–2 mm of the tack-down line before the final satin border stitches.
  • Trim: Cut the inner layer close right after the inner tack-down, then trim the outer layer even closer after the outer tack-down.
  • Feel: Run a fingertip around the edge and re-trim any “lip” that extends past the tack-down stitches.
  • Slow down: Reduce speed for the final satin border to reduce vibration and uneven coverage.
  • Success check: The satin border fully covers the edge with no “whiskers” or fabric color peeking out on curves.
  • If it still fails: Stop mid-run when whiskers appear, tuck threads back under the needle path with fine tweezers, then resume.
• Q: How do I stop wavy or rippled edges on an in-the-hoop satin border mask when using sticky tear-away stabilizer and tape?
  A: Place fabric relaxed and flat on the sticky stabilizer—do not stretch fabric while taping or smoothing.
  • Lay: Set the jersey knit lining down without tension; let the adhesive hold it rather than your hands.
  • Smooth: Press outward gently with your palm to engage the adhesive without pulling the grain.
  • Tape: Secure only what is necessary and keep tape outside the stitch path when possible.
  • Success check: After stitching, the perimeter border lies flat instead of “bacon ripples,” especially after unhooping.
  • If it still fails: Re-check whether the fabric was pulled tight during taping; ripples are often “locked in” once stitched and may not fully press out.
• Q: What needle type should be used for an in-the-hoop satin border mask on cotton and jersey knit, and how do I diagnose skipped stitches on sticky stabilizer?
  A: Use a fresh 75/11 sharp needle and clean adhesive buildup immediately if skipped stitches appear on the stabilizer outline.
  • Change: Install a new 75/11 sharp needle (sharps often cut cleaner satin edges than ballpoints on this workflow).
  • Inspect: Look at the placement outline on the stabilizer for skips right at the start of the design.
  • Clean: Wipe the needle with an alcohol swab if sticky stabilizer residue is gumming it up.
  • Success check: The placement stitch outline is continuous and clean with no gaps before adding fabric layers.
  • If it still fails: Replace the needle again and confirm the needle is not re-contaminated by excessive adhesive.
• Q: How do I avoid running out of bobbin thread during the final satin stitch border on an in-the-hoop mask?
  A: Check bobbin capacity right before the detail stitches because satin borders consume a lot of thread.
  • Pause: Do a bobbin check after both layers are trimmed and before nose channel/eyelets/satin border begins.
  • Plan: Rewind or replace the bobbin early rather than “hoping it makes it” through the border.
  • Watch: Monitor the border segment for any sudden change in stitch formation that can hint at low bobbin.
  • Success check: The satin border completes without a mid-border run-out or visible stitch thinning.
  • If it still fails: Restart with a full bobbin and avoid starting the satin border when the bobbin is already partially used.
• Q: What is the correct stitch order for an in-the-hoop mask with a nose wire channel, embroidered eyelets, and a final satin border?
  A: Follow the digitized file order—nose channel first, then eyelets, then the final satin border.
  • Stitch: Sew the nose wire channel and eyelets before the perimeter satin frame stiffens the edge.
  • Verify: Do not rely on video visuals if the filming order differs from the actual file sequence.
  • Work center-out: Keep the “details first, border last” habit to reduce interior misalignment.
  • Success check: Eyelets and the nose channel land centered and symmetrical, not shifted by a pre-stitched rigid border.
  • If it still fails: Re-open the design sequence on the machine and confirm the file is not being manually re-ordered.
• Q: What safety steps should be followed when trimming close to tack-down stitches on an in-the-hoop satin border mask with double curved embroidery scissors?
  A: Stop the machine completely and move the hoop to a safe position before trimming—never trim with the machine paused and your foot near the pedal.
  • Stop: Fully stop the machine (not just a quick pause) before putting scissors near the hoop.
  • Move: Reposition the hoop away from the needle bar area so scissors cannot contact the needle or stitches.
  • Trim: Cut slowly within 1–2 mm of the tack-down without cutting the threads or nicking the stabilizer.
  • Success check: The tack-down stitches remain intact and the stabilizer foundation is not cut or weakened.
  • If it still fails: If the tack-down is cut, re-hoop and restitch that step; do not continue to satin over a compromised edge.
• Q: What are the safety precautions for using magnetic embroidery hoops or magnetic frames to speed up in-the-hoop mask production?
  A: Treat magnetic hoops as high-force clamps—keep them away from pacemakers/implanted devices and protect fingers from pinch points.
  • Keep distance: Do not use magnetic hoops near pacemakers or implanted medical devices.
  • Control: Separate and close magnets deliberately; do not let magnets snap together unexpectedly.
  • Position: Keep fingertips out of the closing gap and handle on a stable surface.
  • Success check: The fabric stack is held evenly without “hoop burn,” and setup feels controlled rather than forceful.
  • If it still fails: If magnets feel unsafe or unstable for the material thickness, revert to sticky stabilizer/tape for that job.
• Q: When should an in-the-hoop mask workflow be upgraded from sticky stabilizer and tape to magnetic embroidery hoops or a multi-needle embroidery machine for small-batch production?
  A: Upgrade when hooping/taping prep time consistently exceeds stitch time and shifting layers or adhesive mess becomes the main bottleneck.
  • Measure: Time one full cycle; if prep takes longer than stitch-out (example: 5 minutes prep for 3 minutes stitching), workflow is drag-limited.
  • Level 1: Improve technique first—float fabric flat, trim closer, reduce tape inside stitch paths.
  • Level 2: Switch tools—use magnetic embroidery hoops to clamp layers evenly and reduce adhesive residue and tape handling.
  • Level 3: Scale production—consider a multi-needle embroidery machine when frequent thread handling and repeated runs create operator fatigue.
  • Success check: Setup time drops and repeatability improves across 10+ masks without increased puckers or edge issues.
  • If it still fails: Verify magnetic hoop compatibility with the machine’s frame/arm clearance and follow the machine manual for safe operation.
