Stop Second-Guessing Placement: A PAL 3 Perfect Alignment Laser Workflow for Centering Sweatshirt Embroidery (with a Magnetic Hoop Station)

The Precision Protocol: Perfect Sweatshirt Placement with Lasers & Magnetic Hoops

If you’ve ever stood over a sweatshirt thinking, “It looks centered… but is it really?”—you’re not alone. After two decades running embroidery floors, I can tell you the anxiety of "ruining a blank" never fully disappears; what changes is your system.

In this workflow analysis, based on a demonstration by Dawn from Creative Appliques, we break down the PAL 3 Perfect Alignment Laser and magnetic hooping stations. We aren't just " eyeballing it." We are using the garment’s anatomy (armpit seams + neck tag) and a laser crosshair to create a repeatable coordinate system.

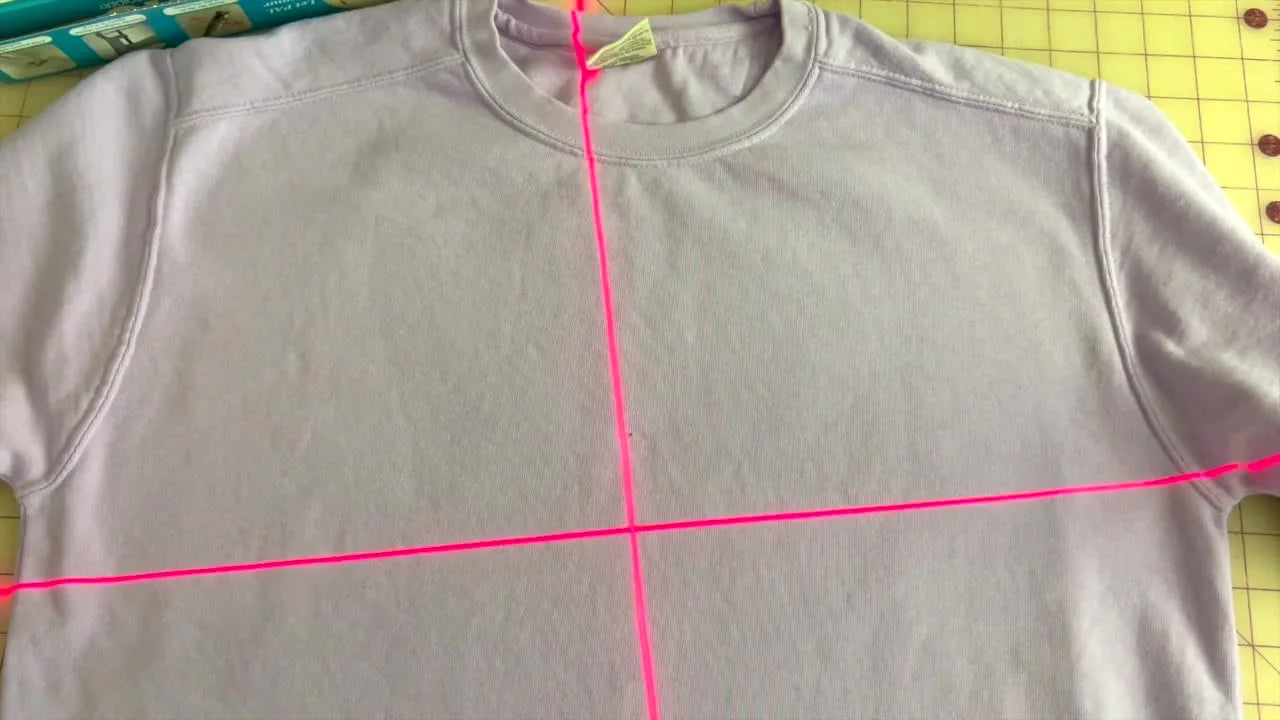

The PAL 3 Perfect Alignment Laser: The "Visual Anchor" for Production

The PAL 3 is a clamp-mounted laser that projects a red crosshair onto your work surface. Why do pros use this? because physical rulers slip, but light does not.

When you are pushing fabric around to accommodate a heavy sweatshirt, you lose your sense of direction. A laser provides a "North Star." If you want to maximize efficiency, pairing this laser with a magnetic embroidery frame is the industry standard for reducing "hoop burn" and increasing throughput. The laser keeps the geometry true; the magnetic frame keeps the tension consistent.

Unboxing: The Pre-Flight Check

Before you plan a production run, you must inventory your critical components. Missing a power cord on the day of a deadline is a rookie mistake we avoid.

The Kit Inventory:

1. Laser Unit: Check the lens for scratches.
2. USB Cord & Adapter: Ensure the connection is tight.
3. Inline Switch: Toggle it—you want a crisp click.
4. Gooseneck Arm: Flex it. It should hold its position without drooping.

Pro Tip: Always keep a spare set of CR2032 batteries (if battery ops) or a spare USB block in your "Oh Sh*t Kit."

Warning (Safety First): Lasers and sharp tools require focus. Never look directly into the beam. Keep scissors, seam rippers, and needles off the alignment surface while the laser is on to avoid reflective glare hitting your eyes.

Mounting: Creating the "Zero Point"

Dawn mounts the PAL 3 using the C-clamp on the table edge. This seems basic, but in a shop environment, vibration is the enemy.

The Stability Test: Once clamped, grab the gooseneck and give it a firm shake. Does the base wiggle? If yes, it’s not tight enough. If the base moves during production, every shirt after that moment will be crooked.

If you are working at a magnetic hooping station, treat the station and the laser as a single fused unit. The laser must be clamped to the same surface the station rests on to prevent relative motion.

Calibration: The "Twist" Technique

Accuracy isn't about the laser being level; it's about the laser being square to your hooping board.

The Action:

1. Turn the laser on.
2. Align the crosshair with the printed grid on your cutting mat or hooping station.
3. The Fix: If the horizontal line drifts up or down, gently rotate (twist) the physical tip of the laser lens housing.

The Sensory Check: Look at the intersection of the crosshair. It should be crisp, not fuzzy. If it looks like a starburst, clean the lens with a microfiber cloth.

Why this prevents "Parallelogram" Distortion

Fabric is fluid. A knits sweatshirt can stretch diagonally. If your laser isn't perfectly square (90 degrees), you will unconsciously pull the fabric to match a crooked line, baking distortion into the garment before the first stitch lands.

The "Armpit Seam" Centering Method (No Ruler Required)

This is the cheat code for crewnecks. Rulers are slow; anatomy is fast.

The Protocol:

1. Tag Alignment: Adjust the laser so the vertical line cuts directly through the center of the neck tag.
2. Armpit Tension: Pull the sweatshirt armpits taut.
3. The Triangle Check: Ensure the vertical laser line bisects the imaginary line connecting the armpits.
4. The Cross: Rotate the laser head/neck so the horizontal line connects the left and right armpit seams exactly.

The Sweet Spot (Vertical Placement): Experience Note: For standard adult crewnecks, a safe vertical center point is usually 3 to 3.5 inches down from the collar seam. Use the laser to mark this height.

Expert Note: The "Fold and Press" Hybrid

While the laser is superior, folding gives you a physical crease to catch the light.

• Action: Fold the shirt lengthwise -> Press.
• Result: The laser line will illuminate the crease, confirming you are dead center.

The "Paper Template Proof": Visualizing the End Game

Dawn places a printed paper template ("FLYERS") on the shirt, aligning printed crosshairs to the laser.

Why we do this:

• Scale Reality: A 14.5-inch design looks different on a size S vs. a size 2XL.
• Mirror Check: It prevents the embarrassing mistake of hooping a design upside down.




Stabilization: The "Knit Sandwich"

Correct stabilization is the difference between a flat design and a puckered mess.

The Formula for Sweatshirts:

1. Inside Layer (Against skin): Fusible Mesh (Poly Mesh). Why: It bonds to the fiber and prevents the knit from stretching during stitching.
2. Bottom Layer (Under hoop): Tear-away Stabilizer. Why: It provides rigidity for the hoop to grip.


Prep Checklist: 60 Seconds to Success

• Laser verified "Square" against table grid.
• Neck tag aligned to vertical beam.
• Horizontal beam connects armpit seams.
• Vertical Placement Check: Design center is ~3-3.5" down from collar.
• Stabilizers staged: Fusible applied, Tear-away on station.

Hooping Phase: Trusting the Station

Dawn re-centers the garment on the hooping station. Here is where beginners panic: as you push the bulk of the sweatshirt onto the station, the top near the collar might bunch up.

The Rule: Ignore the bunching outside the hoop area. Focus entirely on the laser lines matching the hoop’s center notches.

Equipment Insight: If you struggle with alignment here, evaluate your gear. A quality station has repeatable registration tabs. When looking for hooping stations, prioritize models that lock the bottom frame in a fixed position so it cannot slide.

The Magnetic Drop: Speed & Safety

Dawn uses the station tabs to align the top magnetic frame and lets it snap down.

The "Click" Factor: Unlike screw-tight hoops, you aren't listening for a drum sound. You are listening for a sharp, unified SNAP.

• Touch: Run your fingers around the edge. The fabric should feel taut but not stretched to the point of distortion (look for "wavy" grain lines—that's bad).
• The Commercial Upgrade: If you are hooping 50+ shirts, magnetic embroidery hoops save your wrists from repetitive strain injury (RSI). This is where brands like SEWTECH offer a massive ROI by increasing production speed and eliminating "hoop burn" (the shiny ring left by tight plastic hoops).




Warning (Pinch Hazard): Magnetic hoops use industrial-strength neodymium magnets. They snap with enough force to bruise fingers.
* Do: Hold the frame by the extended tabs/handles.
* Don't: Place fingers between the rings.
* Medical: Keep magnets away from pacemakers.

Verification: The Standard of No Return

Before you walk to the machine, do the "Last Mile" check. Dawn verifies the laser aligns with the hoop notches.

Why: Once the magnet snaps, the fabric can shift 1-2mm. This final look confirms precision.

Setup Checklist: The "Green Light"

• Hoop snapped shut with a solid sound.
• No fabric "ripples" inside the hoop area.
• Hoop center notches align perfectly with laser crosshair.
• Excess material (sleeves/waist) is clear of the attachment brackets.
• Safety: No spare needles left on the workspace.

The Physics of Why It Works

1. Anchoring the Variable

Sweatshirt knits have "grain." If you pull hard left-to-right, the shirt shortens vertically. By using the armpits (fixed structural points) rather than the hem (which is often crooked), you anchor your design to the garment's skeleton.

2. The Magnetic Advantage

Traditional hoops require you to force fabric into a gap. This friction distorts patterns. A magnetic hoop clamps down, pressing vertically. This reduces distortion, making it the superior choice for knits.

Decision Tree: Stabilizer & Hoop Strategy

Don't guess. Use this logic flow for sweatshirt production.

Troubleshooting: When It Goes Wrong

Symptom: "The design is crooked on the finished shirt."

• Likely Cause: You centered the hoop, but the shirt was twisted on the station.
• Fix: Use the laser horizontal line to verify the shoulder seams are parallel before dropping the magnet.

Symptom: "The laser line is blurry or thick."

• Likely Cause: Out of focus or dirty lens.
• Fix: Rotate the focus ring on the laser (if equipped) or clean the lens. A thick line introduces a 2-3mm margin of error.

Symptom: "Hooping hurts my hands / I'm too slow."

• Diagnosis: Tooling bottleneck.
• Prescription: This is the trigger for commercial upgrades.
  • Level 1: Switch to SEWTECH Magnetic Frames (compatible with most Brother/Babylock/Janome/Industrial machines).
  • Level 2: If you use terms like mighty hoops magnetic embroidery hoops in your search history, you are looking for production speed. Ensure you buy the interface brackets that match your specific machine arms.

The Productivity Path: Upgrading Your Gear

Once you master placement, your next limitation is equipment.

The "Pain-Point" Diagnosis:

• Scenario: You have orders for 50 shirts, and re-hooping takes longer than stitching.
• Solution: Upgrade to compatible magnetic hoops. These allow you to hoop the next garment while one is stitching.
• Scenario: You need to embroider thick pockets or bags that don't fit in single-needle machines.
• Solution: This is the sign to move to a SEWTECH Multi-Needle Machine. The free-arm design allows you to slide tubular items on (like sleeves and bags) using the same laser alignment principles but with 10x the versatility.

Final Verification

Dawn places the template back inside the hooped shirt.

The Golden Rule: The template is cheap. The shirt is expensive. Always re-verify.

Operation Checklist: Ready to Stitch

• Template lines match laser lines one last time.
• Remove the paper template! (Don't sew it in).
• Slide hoop onto machine arm—listen for the lock "click."
• Trace the design on the machine (Trace function) to ensure the needle doesn't hit the magnetic frame.
• Go.

By combining the optical precision of a laser with the mechanical consistency of magnetic hoops, you stop "feeling" for the center and start hitting it every single time.

FAQ

• Q: How do I square and calibrate a PAL 3 Perfect Alignment Laser on an embroidery hooping station so sweatshirt designs stop drifting crooked?
  A: Square the laser crosshair to the station grid before placing any garment, then fine-tune by twisting the lens housing until the lines track true.
  • Turn on the laser and align the crosshair to a printed grid on a cutting mat or hooping board.
  • Gently twist/rotate the laser lens housing tip if the “horizontal” line drifts up or down across the grid.
  • Clean the lens with a microfiber cloth if the crosshair looks fuzzy or starburst.
  • Success check: The crosshair intersection looks crisp and the lines stay parallel to the grid from edge to edge.
  • If it still fails: Re-clamp the laser to the same surface as the hooping station and repeat the stability test (no wiggle).
• Q: What is the armpit-seam centering method for crewneck sweatshirt embroidery placement using a PAL 3 alignment laser (no ruler)?
  A: Use the neck tag and both armpit seams as fixed “anatomy points,” then match the laser crosshair to those references for repeatable center placement.
  • Adjust the vertical laser line so it cuts through the center of the neck tag.
  • Pull the sweatshirt armpits taut and verify the vertical laser line bisects the imaginary line between armpits.
  • Rotate the laser so the horizontal line connects the left and right armpit seams exactly.
  • Use a safe starting point of about 3–3.5 inches down from the collar seam for adult crewnecks (adjust as needed for size/design).
  • Success check: The horizontal laser line hits both armpit seams at the same time with no “tilt” across the chest.
  • If it still fails: Add the fold-lengthwise and press method to create a crease, then confirm the laser illuminates that crease.
• Q: What stabilizer stack should I use for sweatshirt embroidery to prevent puckering using the “knit sandwich” method?
  A: Use fusible mesh (poly mesh) on the inside plus tear-away under the hoop as the baseline sweatshirt stack.
  • Fuse poly mesh on the inside (skin side) to help stop the knit from stretching during stitching.
  • Place tear-away stabilizer under the hoop to give the hoop/station more rigidity and grip.
  • Switch to cutaway stabilizer when the design is high density (large solid fill / 20k+ stitches) to reduce risk of holes and distortion.
  • Success check: The hooped area looks flat with no ripples before stitching and the finished design lays flat without puckered edges.
  • If it still fails: Re-check hoop tension (taut, not overstretched) and confirm the fabric grain is not being pulled diagonally to “match” a crooked laser line.
• Q: How tight should fabric be in magnetic embroidery hoops on sweatshirts, and what are the signs the hoop tension is wrong?
  A: Aim for taut fabric without distortion—magnetic hoops should clamp evenly with a clean snap, not stretch the knit into waves.
  • Drop the magnetic top frame using the station tabs/handles and let it snap down as one unified closure.
  • Run fingers around the hoop edge to confirm even clamping all the way around.
  • Look for wavy grain lines inside the hoop area; if waves appear, reduce pulling/stretching and re-hoop.
  • Success check: You hear a sharp, unified SNAP and the fabric inside the hoop looks smooth (no ripples) and feels firm but not “drum-stretched.”
  • If it still fails: Ignore bunching outside the hoop area and re-focus only on matching the laser lines to the hoop center notches before snapping shut.
• Q: Why is my sweatshirt embroidery design crooked even though the hoop center notches were aligned on the hooping station?
  A: The hoop can be centered while the sweatshirt is twisted—use the laser horizontal line to confirm the garment is square before the magnetic frame snaps.
  • Re-position the sweatshirt so the neck tag stays centered on the vertical laser line.
  • Confirm the horizontal laser line connects the left and right armpit seams evenly (not just “close”).
  • Do a last-mile verification after the hoop closes because a 1–2 mm shift can happen when the magnets snap.
  • Success check: The laser crosshair lands exactly on the hoop center notches and the shoulder/armpit references still read level.
  • If it still fails: Use a paper template with printed crosshairs to preview rotation and scale before hooping again.
• Q: What should I check if the PAL 3 alignment laser line looks blurry, thick, or hard to see for embroidery placement accuracy?
  A: Treat a thick/blurry laser line as an accuracy problem—clean and re-focus first, because it can add millimeters of placement error.
  • Wipe the laser lens with a microfiber cloth to remove dust and film.
  • Rotate the focus ring if the laser has one, then re-check line sharpness on the grid surface.
  • Re-aim the laser so the crosshair intersection is clear and not “starburst.”
  • Success check: The line is thin and crisp enough that you can reliably hit the same printed grid line every time.
  • If it still fails: Re-check power/connection (USB/adapter/switch) and verify the unit is mounted rigidly (no vibration drift).
• Q: What are the key safety rules for magnetic embroidery hoops and alignment lasers during hooping and setup?
  A: Prevent pinch injuries from magnets and eye hazards from reflected laser light by controlling hand placement and keeping reflective tools off the beam area.
  • Hold magnetic hoop frames by tabs/handles and keep fingers out of the gap when the frame snaps shut.
  • Keep magnets away from pacemakers and treat the snap force as strong enough to bruise fingers.
  • Never look directly into the laser beam and remove scissors, seam rippers, needles, and other reflective tools from the alignment surface.
  • Success check: Hands never enter the closing path of the magnetic rings, and the laser workspace stays clear of loose sharp/metal tools.
  • If it still fails: Slow the process down—stage tools away from the station and only bring the hoop/frame to the closing zone when alignment is confirmed.
• Q: When hooping sweatshirts becomes too slow or painful, what is the step-by-step upgrade path from technique to magnetic hoops to a multi-needle embroidery machine?
  A: Fix the process first, then upgrade tools only when a clear bottleneck remains—use a three-level progression based on symptoms.
  • Level 1 (Technique): Standardize the laser + armpit-seam method, template proofing, and last-mile notch verification to eliminate re-hoops.
  • Level 2 (Tooling): Move to magnetic hoops if hooping causes wrist/hand pain, hoop burn, or re-hooping time is longer than stitch time.
  • Level 3 (Capacity): Consider a multi-needle machine when order volume (e.g., 50+ shirts) or product types (thick pockets/bags/tubular items) exceed single-needle workflow limits.
  • Success check: Hooping time drops consistently and repeat placement matches the template without “second tries.”
  • If it still fails: Audit the hooping station registration (bottom frame must not slide) and confirm the hoop/frame interface matches the machine arm before blaming placement skill.
