Stop Running Your Brother PR1055X at Full Speed: The Maintenance Math That Prevents Thread Breaks and Early Service Calls

The "Perfectionist’s Paradox": Why Slowing Down is the Fastest Way to Professional Embroidery Results

If you have ever stood next to your embroidery machine holding your breath, praying the thread doesn’t snap during a complex fill, you know the sound of stress.

There is a distinct audible difference between a machine running happily and one that is struggling. A happy machine hums rhythmically. A struggling machine has a metallic, frantic "clack-clack-clack" that changes pitch just before disaster strikes.

Most machine manuals lie to you—or at least, they tell you a "marketing truth." They list a maximum stitch-per-minute (SPM) rating (e.g., 1000 SPM), implying you should stitch at that speed. Do not do this. Running a machine at its redline is the surest way to shorten its life, ruin your expansive garments, and create a basket full of "birdnest" thread tangles.

As someone who has managed production floors for two decades, I treat embroidery as an experience-based science. It’s not just about pushing a button; it’s about listening, feeling, and respecting the physics of thread and steel.

This guide rebuilds the core lessons of machine longevity into a workflow you can actually use. We will move beyond "guessing" and establish a Safe Operating Envelope for your equipment, whether you are running a single-needle home unit or a multi-needle production beast.

1. Read the Machine Like a Mechanic: The "Tap Test" for Build Quality

Before you dial in your settings, you must understand the physical limitations of your hardware. The video highlights a crucial distinction: Metal vs. Plastic components.

When you inspect an embroidery machine—from an entry-level Brother PE535 up to a semi-industrial multi-needle—you aren't just looking at the case. You need to gauge the rigidity of the Drive Train (the mechanism moving the needle) and the Pantograph (the arm moving the hoop).

The "Tap and Wiggle" Inspection

Here is how I teach new technicians to judge a machine's tolerance:

1. The Needle Bar: With the machine off, gently try to wiggle the needle bar assembly. A pro-grade machine feels solid, like a single block of steel. A hobby machine will have slight "play" or flex. The more flex you feel, the slower you must go.
2. The Hoop Arm: Tap the embroidery arm. Does it sound hollow and plastic, or dense and heavy?

The Physics of Plastic: Plastic components heat up and flex under rapid oscillation. If you run a plastic-heavy machine at top speed for 2 hours, that microscopic flex allows the needle to drift slightly. This leads to:

• Poor registration (outlines not lining up with fills).
• Needle strikes on the throat plate.
• Premature wear on gears.

The Commercial Reality: If you are moving into production work, swapping between tubular hoops and heavy caps, you need stability. If your current setup feels flimsy, you are fighting physics. This is often the moment users begin looking at equipment like SEWTECH multi-needle embroidery machines, which utilize heavier metal internal frames designed to absorb the vibration of high-speed production.

2. The 80–85% "Sweet Spot": Your New Speed Limit

The single most actionable takeaway for longevity is the Speed Strategy.

Think of your embroidery machine like a car. Your speedometer might say 140mph, but if you drive to work at 140mph every day, your engine will blow, and your tires will burn out.

The Golden Rule: Operate at 80–85% of your machine’s rated maximum.

Why? Friction. At 1000 SPM, the thread passes through the needle eye 16 times per second. The friction generates heat, which weakens polyester and melts rayon. By dropping to 800 SPM, you reduce that heat exponentially, keeping the thread strong and the needle cooler.

Warning: Needle Deflection Hazard.
High speeds on dense fabric can cause the needle to bend slightly (deflect) as it penetrates. A bent needle can hit the metal hook assembly below the plate. This can shatter the needle—sending shards flying towards your eyes—and burr the hook, requiring an expensive repair. Always wear safety glasses when monitoring high-speed runs.

The Beginners' Sweet Spot Chart

Copy this to a sticky note and put it on your machine:

If you are operating a brother pr1055x or similar 10-needle beast, resisting the urge to hit "1000" demonstrates professional discipline. You will finish faster because you aren't re-threading needle #6 three times an hour.

The Auditory Check

When you drop from 100% to 85%, listen. The harsh, rattling vibration should smooth out into a consistent hum. That hum is the sound of profit.

3. Hooping: The Root Cause of 90% of "Machine" Problems

You can perfect your speed, but if your hooping is loose, you will fail. The video mentions hoop choice, but let’s go deeper. The fabric acts as the "canvas." If the canvas is loose, the needle pushes the fabric down (flagging) rather than penetrating it cleanly.

The Sensory Anchor: The "Drum Skin" Test Once hooped, tap the fabric with your finger.

• Sound: It should make a dull "thump."
• Feel: It should be taut, but not stretched correctly so the grain is distorted.
• Sight: The grid lines of the fabric should remain straight, not bowed.

The "Hoop Burn" Struggle

Traditional hoops require you to jam an inner ring into an outer ring. This causes two major pain points:

1. Hoop Burn: The friction leaves a crushed ring on delicate fabrics (velvet, performance polos) that is impossible to steam out.
2. Wrist Fatigue: Doing 50 shirts a day with standard hoops is a recipe for carpal tunnel.

This is the exact production bottleneck where a magnetic embroidery hoop becomes an essential tool rather than a luxury. By using strong magnets to clamp the fabric rather than friction, you eliminate hoop burn and drastically speed up the hooping process.

Pro Tip for Searching: Many professionals search for common terms like tajima embroidery hoop or equivalents for their specific machine brand when trying to solve stability issues. Ensure you are buying frames compatible with your machine's attachment arms.

4. Prep Checklist: The "Pre-Flight" Ritual

Before you press the green button, perform this 10-second mental scan. This prevents the "heartbreak" of a ruined garment.

The "Save Your Shirt" Checklist

• [ ] Bobbin Check: Visually confirm you have enough winding left. (Don't trust the sensor; look at it).
• [ ] Thread Path: Pull the top thread near the needle. Does it unspool smoothly? If it jerky, re-thread.
• [ ] The "Floss" Tension Test: Pull the thread through the needle eye. It should feel like pulling dental floss between teeth—slight, consistent resistance. If it's loose, tighten tension. If it bows the needle, loosen it.
• [ ] Clearance Check: Rotate the handwheel (or trace function) to ensure the needle won’t hit the hoop frame.
• [ ] Hoop Lock: Wiggle the hoop. Is it clicked in 100%?

Thinking about hooping for embroidery machine success is 80% preparation and 20% execution.

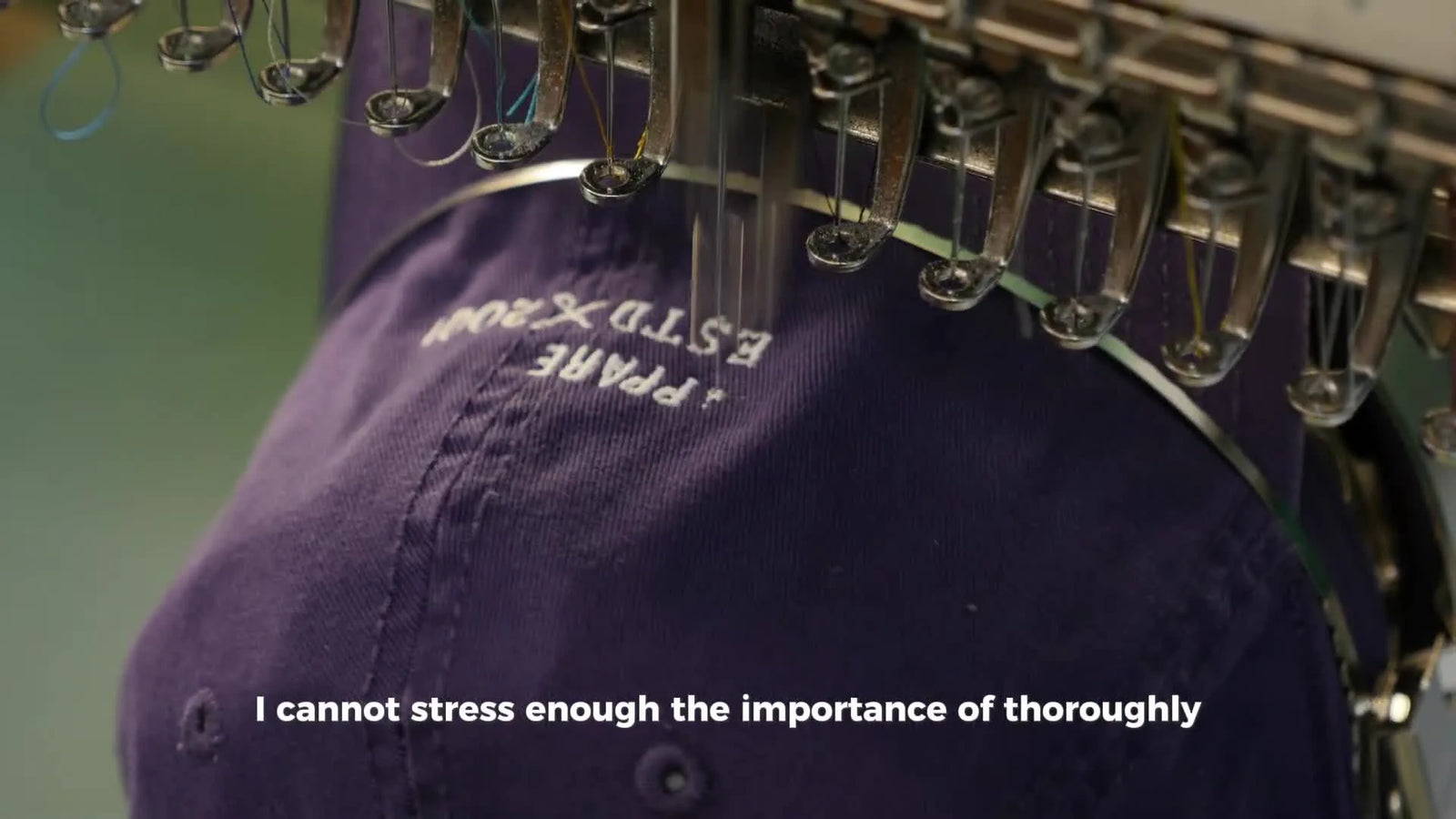

5. The Black Belt Level: Cap Drivers and Friction

Caps are the nemesis of the impatient embroiderer. The video correctly identifies that cap drivers add complexity. You are stitching on a curved surface that is spinning, often through a thick central seam (buckram).

The Seam Spike: When the needle hits the thick center seam of a baseball cap, resistance triples. If you are running at 1000 SPM, the needle will deflect, snap, or shred the thread.

The Protocol:

1. Slow Down: Cap speed limit is 600 SPM.
2. Titanium Needles: Use a Titanium-coated #80/12 Sharp needle for better penetration.
3. Hooping: The cap must be banded tight to the gauge.
4. Hardware: If you struggle with standard frames, a specialized cap hoop for embroidery machine designed for high-tension gripping can stabilize the front panel better than standard kit frames.


6. Machine Class Reality: Home vs. Pro

Don't ask a pony to do the work of a draft horse. The video compares a Brother PE535 (Single Needle) to a PR series (Multi-Needle).

• Home Machines: Great for one-offs. Requires frequent color changes by hand.
• Multi-Needle: Designed for efficiency.

If you are using a standard brother 4x4 embroidery hoop, you have a small field. This actually requires more precision because mistakes are more visible. If you intend to scale, eventually the "manual thread change" becomes your profit killer. upgrading to a machine that holds 10 or 15 colors isn't just about laziness—it's about reclaiming your time.

When upgrading, ensure your new beast comes with the right furniture. Generic brother pr1055x hoops are fine, but magnetic options are usually the first upgrade pros make.

7. The "Hidden" Consumables and Maintenance

You cannot maintain a machine with just good intentions. You need chemistry. Lint is the enemy. It sucks up oil, acts like sandpaper on moving parts, and clogs tension discs.

The Maintenance Kit (Things you need to buy)

1. Clear Sewing Machine Oil: (Not 3-in-1, not WD-40).
2. Compressed Air (Canned Air): Use carefully—don't blow lint deeper into the machine. Vacuuming is better.
3. Zoom Spout Oiler: To reach deep linkage points.
4. Dental Pic or Soft Brush: To dig lint out of the bobbin case.


The Oiling Routine:

• Every Day: One drop on the rotary hook (the race).
• Every Week: Needle bars (if exposed/accessible per manual).
• Every Month: Deep clean under the throat plate.

8. Time Between Service (TBS): The Math of Mercy

Embroidery machines don't care about "time"; they care about "cycles." The video introduces the concept of Stitch Count Maintenance.

Action Item: Check your machine's settings menu for "Total Stitch Count." Write it down on a piece of tape stuck to the machine with today's date. This is your "Odometer."

9. Troubleshooting Matrix: Symptom → Cause → Fix

When things go wrong, don't panic. Use this logic flow. Always start with the Cheapest fix.

10. The Decision Tree: Stabilizer & Hooping

Stop guessing. Follow this path.

Scenario: You have a stretchy Performance Polo.

1. Is it unstable? Yes. Use Cutaway Stabilizer (Mesh). Tearaway is forbidden on knits.
2. Will hoop burn show? Yes.
   • Path A: Use a hooping station for embroidery machine and magnetic hoops to float it or clamp gently.
   • Path B (Old School): Hoop the stabilizer only, use spray adhesive, and "float" the shirt on top.

Hidden Consumables:

• Temporary Spray Adhesive (e.g., KK100): Essential for floating.
• Water Soluble Topping: The "plastic wrap" for towels/fleece to keep stitches from sinking.

11. The Upgrade Path: Solving the Human Bottleneck

Once you master the physics, the machine is rarely the problem. You are the bottleneck. If you are spending 5 minutes hooping a shirt that takes 3 minutes to sew, your business is bleeding money.

The Solution Hierarchy:

1. Level 1 (Consistency): Upgrade to Magnetic Hoops.

Warning: Magnetic Pinch Hazard.
Industrial magnetic hoops use N52 Neodymium magnets. They can snap together with over 30lbs of force. Keep fingers clear of the mating surfaces. Do not use if you have a pacemaker. Keep away from credit cards and phone screens.

1. Level 2 (Speed): Upgrade consumables. Use pre-wound bobbins and high-tensile Embroidery Thread (polyester) to reduce breaks.
2. Level 3 (Scale): Upgrade to a SEWTECH Multi-Needle Machine.
   • Trigger: You are turning away orders because you can't hit deadlines.
   • Benefit: Auto-color changes and 1000 SPM (run at 850!) capability transform a hobby into a factory.


Operation Checklist (During the Run)

• [ ] Listen: Does the sound change?
• [ ] Watch: Is the thread feeding smoothly off the cone?
• [ ] Inspect: Pause after the underlay stitches. Is the coverage correct?
• [ ] Don't Walk Away: Never leave a machine running alone on a new design.


Conclusion: Longevity is a System

Your machine is an investment in your creativity and your business. It wants to work for you. By respecting the Build Quality, adhering to the 80% Speed Rule, and using the right heavy-duty tools (like magnetic frames and proper stabilizers), you stop fighting the machine and start producing art.

Whether you are mastering a brother pr1055x hat hoop or just trying to get a clean monogram on a towel using a standard cap hoop for embroidery machine, the secret is control. Control the fabric, control the speed, and the quality will follow.

FAQ

• Q: How can a Brother PR1055X multi-needle embroidery machine avoid thread breaks when the maximum rating is 1000 SPM?
  A: Run the Brother PR1055X at about 80–85% of its maximum speed (roughly 800–900 SPM) to reduce heat and needle deflection.
  • Lower speed before dense fills, small lettering, and thick fabrics instead of “pushing through.”
  • Listen for a smooth, consistent hum rather than a harsh metallic “clack-clack” that changes pitch.
  • Replace the needle if the thread starts shredding after a speed increase.
  • Success check: the machine sound smooths out and thread feeding stays consistent without repeated rethreading.
  • If it still fails, inspect for burrs/timing issues on the hook area and needle plate per service guidance.
• Q: How do I perform the “drum skin” test for hooping for an embroidery machine to prevent fabric flagging and registration problems?
  A: Hoop fabric so it is taut like a drum skin—tight but not stretched—because loose hooping causes flagging and misregistration.
  • Tap the hooped fabric and aim for a dull “thump,” not a loose, rattly bounce.
  • Check the fabric grain/grid stays straight (no bowing or distortion from over-stretching).
  • Lock the hoop fully and physically wiggle it to confirm it is clicked in 100%.
  • Success check: the fabric stays flat during stitching (less “pushing down”) and outlines line up with fills.
  • If it still fails, change stabilizer strategy (cutaway for knits) and consider floating with adhesive instead of forcing tighter hooping.
• Q: How can a magnetic embroidery hoop reduce hoop burn on delicate performance polos compared with a traditional hoop?
  A: Use a magnetic embroidery hoop to clamp fabric with magnets instead of friction, which often eliminates hoop burn and speeds hooping.
  • Position fabric and stabilizer, then let the magnets clamp rather than forcing an inner ring into an outer ring.
  • Use the gentlest clamping that still holds the fabric stable (avoid stretching the knit).
  • Combine with a “float” method when needed: hoop stabilizer, secure garment with temporary spray adhesive, then stitch.
  • Success check: no crushed ring appears after unhooping and the fabric does not show a permanent hoop mark.
  • If it still fails, reduce clamping pressure where possible and switch to floating the garment on hooped stabilizer for the most delicate materials.
• Q: What safety precautions should be used to prevent injury from needle breakage on a high-speed multi-needle embroidery machine?
  A: Treat high-speed runs as a needle-deflection risk and wear safety glasses when monitoring dense or thick materials.
  • Slow down when stitching dense fabrics to reduce needle deflection and hook strikes.
  • Run a clearance check (trace/handwheel rotation) to ensure the needle cannot hit the hoop frame.
  • Stop immediately if the machine sound turns harsh or changes pitch, then inspect the needle.
  • Success check: the machine runs with a steady hum and completes dense sections without needle strikes or broken needles.
  • If it still fails, check hooping stability first, then consider timing/hook damage inspection by a technician.
• Q: What safety rules should be followed when using industrial magnetic hoops with N52 neodymium magnets on commercial embroidery machines?
  A: Keep fingers clear and avoid magnetic hoops if the operator has a pacemaker, because magnets can snap together with strong force.
  • Separate and mate magnetic frames slowly and deliberately—never let magnets “slam” together.
  • Keep magnets away from credit cards and phone screens during setup and storage.
  • Set up a consistent handling routine so helpers/operators do not pinch hands during fast production.
  • Success check: hooping stays fast and controlled with zero pinches and stable fabric holding throughout the run.
  • If it still fails, switch to a safer handling workflow (one hand on frame, one guiding fabric) or use non-magnetic frames for that station/operator.
• Q: How do I stop birdnesting (bobbin thread nests) on a multi-needle embroidery machine when the underside fills with loops?
  A: Start by re-threading the top thread path and restoring top tension, because “no top tension” is a common cause of bobbin-side nests.
  • Re-thread the top path from spool to needle and confirm the thread pulls smoothly (no jerky feeding).
  • Clean lint around the bobbin case area, especially near the tension spring, before restarting.
  • Pause after underlay to check the underside before committing to the full design.
  • Success check: underside shows controlled stitches (not large loose loops) and the machine does not jam early in the run.
  • If it still fails, inspect for take-up lever spring issues or deeper mechanical/timing problems.
• Q: What is the fastest pre-flight checklist to prevent a ruined shirt on an embroidery machine before pressing Start?
  A: Do a 10-second pre-flight check: bobbin, thread path, floss-style tension feel, clearance, and hoop lock.
  • Visually confirm bobbin thread is sufficient (do not rely only on a sensor).
  • Pull top thread near the needle; if it feeds jerky, re-thread immediately.
  • Do the “floss” tension test: slight consistent resistance through the needle eye (not loose loops, not bending the needle).
  • Rotate/trace for clearance and physically verify the hoop is locked in.
  • Success check: underlay stitches form cleanly without looping, and the machine runs without a sudden sound change.
  • If it still fails, slow down to the 80–85% safe zone and re-check hooping tightness and stabilizer choice before adjusting deeper mechanics.
