Stop Ruining FSL Ribbon Earrings: The Exact Palette 11 Stitch Sequence (and the Color-Sort Trap That Causes Gaps)

Freestanding lace (FSL) is the ultimate "trust exercise" in machine embroidery. It looks deceptively simple on a screen, but the moment you wash away the stabilizer, gravity takes over. If your structure isn’t sound, you don’t get a beautiful ornament—you get a limp, distorted tangle of thread.

Regina’s walkthrough of the diabetes awareness ribbon set is a masterclass not just in design, but in structural integrity. Whether you are stitching these for a fundraiser or personal use, the difference between a "craft project" and a "professional product" lies in adhering to the physics of thread and tension.

Below is a reconstructed, experience-calibrated guide based on her workflow in Baby Lock Palette 11 (compatible with PE-Design). I have added specific "Beginner Sweet Spot" data and sensory checks to ensure your success on the very first try.

Don’t Guess: Visual File Forensics in Window Explorer

Before you even open your software, you need to identify your assets. Most beginners simply double-click the first file they see—this is a mistake.

Regina starts in Folder View for a specific reason: differentiation.

• The Trap: You will see "Type 1," "Type 2," and "Plain." You will also see "Earrings" vs. "Tags."
• The Reality: Ensure you are loading the .PES (or your machine formats) file, not the image reference chart.

Pro-Tip: Create a dedicated folder named "MACHINE_READY". Copy only the specific file you intend to stitch into this folder. When you are tired at 2:00 AM, this prevents the heartbreak of loading a color chart or the wrong size file.

The 60-Second "Sanity Check" (Design Properties)

Once the file is loaded, do not hit stitch. Open Design Property. You are looking for anomalies that could break your needles or jam your machine.

The Data You Need:

• Stitch Count: For the Type 1 earring, it is 2605 stitches.
• Dimensions: 29.5 mm x 57.5 mm.
• Color Changes: 5 stops.

The "Red Flag" Rule: If you see a stitch count over 15,000 for a design this small, stop. You likely have a corrupted file or a dense resize that will shred your thread. If you see only 1 color stop, you have a monochrome version that won't allow you to pause for hardware loops.

Understanding these properties is the foundation of multi hooping machine embroidery. Even if you are just doing one hoop now, checking these metrics ensures that when you eventually step up to multi-hoop production, you understand the density limits of your machine.

The Skeleton: Understanding the Grey Lattice Base

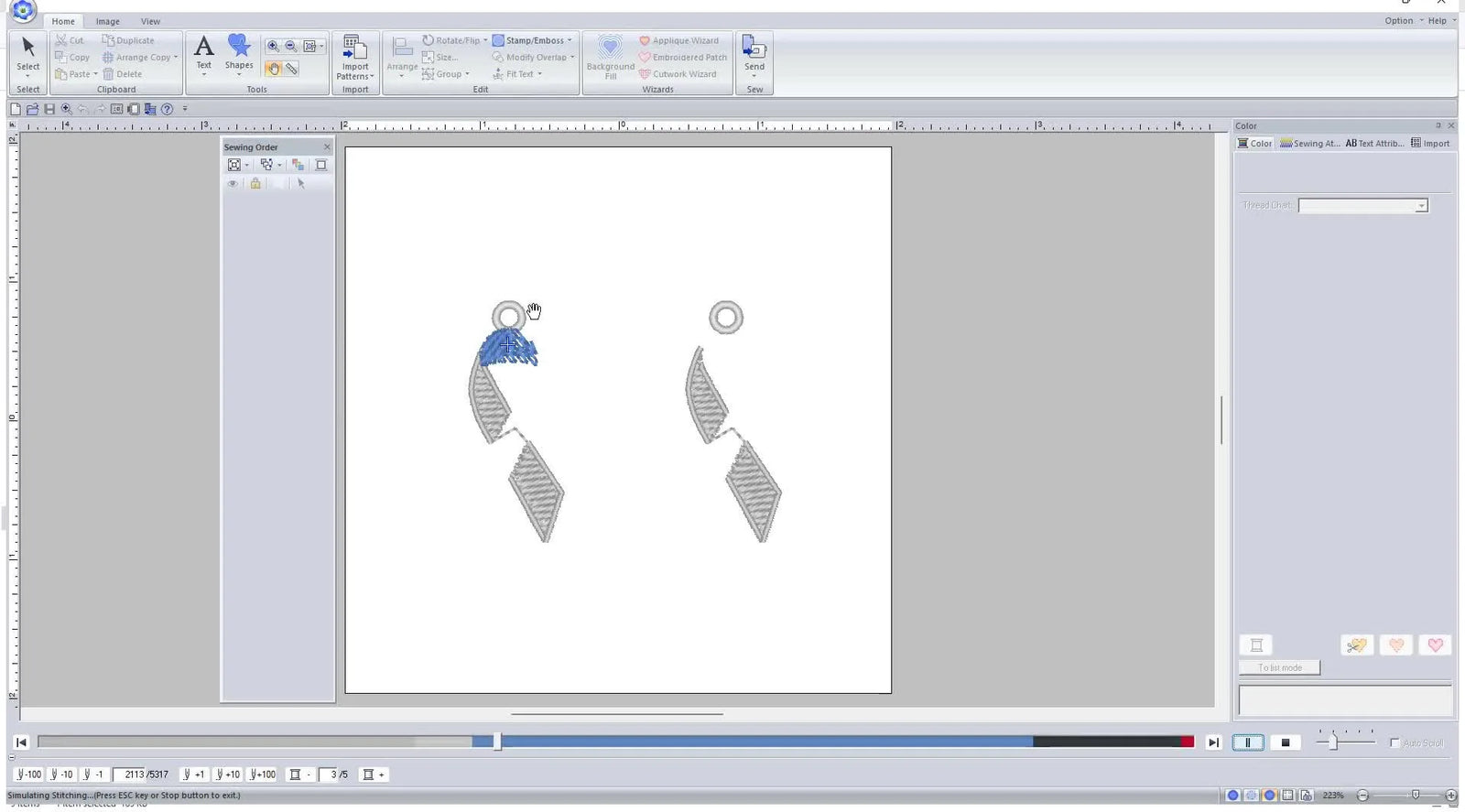

Regina runs the simulator to reveal the "engineering" behind the art.

• Stop #1 (Grey): This is not just color; it is structure. It stitches a lattice/satin base that acts as the "bones" of the lace.

The Physics of Pull: Embroidery shrinks. Thread pulls fabric (or stabilizer) inward. By stitching this skeleton first, the digitizer anchors the stabilizer. If you were to mess with the stitch order, the subsequent heavy fills would pull the stabilizer freely, causing the outline to fail to line up later.

Sensory Anchor: Watch your machine during this phase. It should sound rhythmic and steady. If you hear a "thumping" sound, your needle may be dull or struggling to penetrate the stabilizer.

The "Hidden" Prep: Stabilization, Hooping, and Hardware

This is where 90% of FSL failures happen. You cannot use standard tear-away stabilizer. You need Water Soluble Stabilizer (WSS)—specifically a fibrous, fabric-like WSS (often called "mesh" water soluble), not just the thin plastic film (topping).

The Golden Rules of FSL Prep:

1. Double Up: Use two layers of fibrous WSS. One layer is rarely enough to support the density of lace without tearing.
2. Drum-Tight Tension: When hooped, the stabilizer should feel tight, like a drum skin. If you tap it, it should make a taut sound.
3. Secure the Perimeter: Regina suggests shelf liner or T-pins to prevent slippage.

The Upgrade Path: If you are struggling to get that "drum-tight" feel without wrist pain, or if you notice "hoop burn" (creases) on your stabilizer, this is a hardware limitation. Traditional screw-tightened hoops rely on friction. Modern shops often solve this by using hooping for embroidery machine accessories or upgrading to Magnetic Hoops.

• Why? Magnetic hoops clamp flat and hold consistent tension without the "unscrew-tighten-pull" struggle.

**Pre-Flight Prep Checklist**

• Consumables: 2 Layers of fibrous WSS (not topper film).
• Needle: New 75/11 Sharp or Embroidery needle (Ballpoint is for knits; use Sharp for crisp lace).
• Bobbin: Wound with matching color to your top thread.
• Hoop: Stabilizer is taut (no sagging in the middle).
• Tool: Micro-snips placed right next to the machine.


The Hardware Loop: Strategic Stops

Stop #2 is the hardware loop at the top of the earring.

• Why it's separate: This allows you to switch to Metallic Gold or Silver thread to match your earring hooks (findings).

Operational Note: If you plan to produce these in bulk, thread changes kill efficiency.

• Level 1 Strategy: Group all "gold hook" earrings in one batch.
• Level 2 Strategy: If your volume justifies it, this is where multi-needle machines (like SEWTECH or Brother PR series) shine, allowing you to have Gold on Needle 1 and Ribbon Blue on Needle 2, eliminating the manual change entirely.

For now, on a single needle machine, just ensure you don't walk away. This stop is fast.

Warning (Mechanical Safety): Never put your hands inside the hoop area while the machine is running. If you need to trim a thread, hit the STOP button first. A needle moving at 600 stitches per minute can cause severe injury instantly.

The "Clean Back" Discipline: Trimming Tails

Regina emphasizes trimming tails on the back. I will make this stronger: It is mandatory.

The Process:

1. Machine stops for color change.
2. Remove hoop (or slide it forward if possible).
3. Flip it over.
4. Trim the jump threads and tails flush to the knot.

Why? In normal embroidery, tails hide between the fabric and stabilizer. In FSL, there is no hiding place. If you leave a dark blue tail and then stitch white text over it, that blue thread will show through, ruining the legibility of the text.

Many users searching for magnetic hoop embroidery solutions do so because magnetic hoops make it incredibly fast to pop the hoop off and on for these frequent trimming tasks, keeping the stabilizer undisturbed.

The Fill Stitch (and the Bobbin Myth)

Stop #3 is the Blue Fill. The "Matchy-Matchy" Rule: For FSL, the back is visible. Therefore, you must run a bobbin that matches your top thread.

• Standard Embroidery: White bobbin always.
• FSL Embroidery: Bobbin color = Top color.

Beginner Sweet Spot (Speed): While your machine might go up to 800 or 1000 Stitches Per Minute (SPM), for dense FSL fills, I recommend slowing down to 500-600 SPM.

• Sensory Check: The sound should be a hum, not a rattle. High speed on FSL causes heat, which can melt some cheap water-soluble stabilizers.


The "Proof" Stops: Text and Details

Stop #4 (Text) and Stop #5 (Red Drop). These are the fine details. If your machine tension is too loose, the text will look like blobs.

The "Spiderweb" Check: Before you stitch the text, look at your bobbin case area. Is there lint? Clean it. Small text requires perfect tension.

• Top Tension: For fine text, slightly increasing top tension (e.g., from 4.0 to 4.2) can help pull the satin stitches tighter, making the font crisp. Test this on scrap first!


Scaling Up: The Gift Tag

Regina notes the Gift Tag stitches exactly like the earrings. This consistency is vital. It means you don't need to learn a new workflow. The "skeleton first, details last" logic applies regardless of size.

The "Color Sort" Trap: A Critical Warning

This is the most technical part of the tutorial. The Temptation: You have 4 earrings in one hoop. You want to stitch all the grey frames at once, then all the blue fills. You hit "Color Sort" in your software. The Result: Failure.

The Physics: When you stitch the grey frame on Earring #1, the stabilizer shrinks slightly toward that area. If you then stitch the frame on Earring #4, the stabilizer shifts again. By the time you come back to Earring #1 to do the blue fill, the "registration" point has moved 1-2mm. You will have a gap between the outline and the fill.

The Rule: Do not color sort multi-piece FSL files unless you have tested it and are using "bulletproof" stabilization (like a magnetic embroidery hoop with extreme grip). Even then, the safest path is to stitch each earring to completion before moving to the next.

Decision Tree: To Sort or Not to Sort?

Use this logic flow to avoid ruining materials.

1. Is the design Freestanding Lace (FSL)?
   • YES: Go to step 2.
   • NO: You can likely color sort safely.
2. Does your hoop hold the stabilizer with absolute rigidity (no movement when tugged)?
   • YES: Go to step 3.
   • NO: STOP. Do not color sort. Stitch items one by one.
3. Are the design elements close together?
   • YES: Risk is lower, but gaps are possible.
   • NO: If items are far apart, stabilizer distortion increases. Do not color sort.


The Setup Rhythm

Regina’s workflow is calm and rhythmic. To replicate this, you need a setup that minimizes friction.

If you find yourself frustrated by the physical act of hooping—unscrewing, pushing, pulling, tightening—you are experiencing "production friction." This is the number one reason people quit embroidery.

• The Fix: Consider a Hooping Station or hooping station for machine embroidery aids to standardize placement.
• The Checklist: See below.

**Setup Checklist (Before Pressing Start)**

• Design: Correct file selected (Type 1 vs Type 2).
• Order: Color Sort is OFF.
• Bobbin: Matching bobbin installed.
• Stabilizer: 2 Layers WSS, drum-tight.
• Speed: Limiter set to 600 SPM (or Medium).


Troubleshooting: The "Why Did It Fail?" Matrix

If your lace looks bad, don't guess. Use this matrix to diagnose.

Warning (Magnetic Safety): Magnetic hoops use powerful Neodymium magnets. They can pinch fingers painfully! Pacemaker users should maintain a safe distance (usually 6-12 inches) as per the manufacturer's warnings.

The Upgrade Path: From Hobby to Production

Regina’s tutorial focuses on software, but the physical reality of stitching sets of earrings often triggers a desire for better equipment.

When should you upgrade?

1. The "Hoop Burn" Trigger: If you are ruining delicate fabrics or FSL with hoop marks, or if your wrists hurt from tightening screws, this is the time to investigate Magnetic Hoops. They snap on instantly and hold fabric flat without "burn."
   • Search Term: how to use magnetic embroidery hoop to see how they differ from standard ones.
2. The "capacity" Trigger: If you have orders for 50 ribbon sets, a single-needle machine will require 250 manual thread changes. That is hours of wasted time.
   • Solution: This is the threshold where a SEWTECH multi-needle machine becomes an investment, not a luxury. It automates the color (and needle) changes, allowing you to press "Start" and walk away.

**Operation Complete Checklist**

• Visual Inspect: Check for loose loops before unhooping.
• Trim: Cut remaining jump stitches before washing.
• Wash: Soak in warm water. Tip: Don't wash all the stabilizer out if you want stiff earrings. Leave a little residue.
• Dry: Lay flat on a towel. Do not hang dry (gravity will stretch it).

Stitching FSL is achievable for beginners if you respect the structure. Follow the steps, trust the physics, and keep your stabilizer tight.

FAQ

• Q: What stabilizer setup should be used for Freestanding Lace (FSL) machine embroidery to prevent lace collapse during washing?
  A: Use two layers of fibrous, fabric-like Water Soluble Stabilizer (WSS), not thin topper film, to keep the lace structure supported until the end.
  • Hoop: Stack 2 layers of fibrous WSS and hoop it drum-tight before stitching.
  • Avoid: Do not use standard tear-away stabilizer for FSL; it will not support dense lace.
  • Secure: Stabilize the perimeter (for example with shelf liner or T-pins) to prevent slippage.
  • Success check: Tap the hooped WSS—it should feel and sound taut like a drum, with no sag in the center.
  • If it still fails… Stop and re-hoop tighter; if hooping tension is inconsistent or causes creases, consider switching from screw hoops to a magnetic hoop for more even clamping.
• Q: What needle type and bobbin color should be used for FSL earrings so the back looks clean and the lace stays crisp?
  A: Start with a new 75/11 Sharp (or Embroidery) needle and match the bobbin thread color to the top thread for every color section.
  • Replace: Install a fresh needle before the run; dull needles can “thump” and struggle through WSS.
  • Match: Use bobbin color = top thread color (FSL backs are visible).
  • Prepare: Keep micro-snips next to the machine so trimming happens on schedule.
  • Success check: The stitch sound should be rhythmic (a hum, not a thump), and the back should not show contrasting bobbin lines.
  • If it still fails… Recheck needle condition and clean lint near the bobbin area before stitching fine text or details.
• Q: How can a single-needle embroidery machine operator prevent messy backs and show-through on Freestanding Lace (FSL) text?
  A: Trim jump threads and tails flush after every stop—this is mandatory for FSL because there is no fabric layer to hide thread tails.
  • Stop: Press STOP before handling the hoop area.
  • Flip: Remove the hoop (or slide it forward if the machine allows), flip it over, and trim tails close to the knot.
  • Repeat: Do this at every color change, especially before stitching light text over darker areas.
  • Success check: Hold the piece to the light—dark tails should not be visible through lighter stitches.
  • If it still fails… Slow down the stitch speed for dense fills and re-check tension cleanliness (lint near bobbin can make small text blob).
• Q: Why does “Color Sort” cause gaps between outline and fill in multi-piece Freestanding Lace (FSL) files, and what is the safest workflow?
  A: Keep Color Sort OFF and stitch each FSL piece to completion before moving to the next, because the stabilizer shrinks and shifts as each area stitches.
  • Disable: Turn off Color Sort for multi-piece FSL hoopings.
  • Sequence: Stitch Earring #1 completely (all stops), then proceed to Earring #2, and so on.
  • Stabilize: Use two layers of fibrous WSS and ensure rigid hoop tension to reduce movement.
  • Success check: Outline and fill should meet cleanly with no 1–2 mm gaps after the fill stitches.
  • If it still fails… Re-hoop for tighter tension and verify the hoop holds with absolute rigidity (no movement when tugged).
• Q: What stitch speed is a safe starting point for dense Freestanding Lace (FSL) fills to reduce heat and distortion on water-soluble stabilizer?
  A: A safe starting point is 500–600 SPM for dense FSL fills to keep stitching stable and reduce heat-related stabilizer issues.
  • Limit: Set the machine speed limiter to about 600 SPM (or Medium).
  • Listen: Monitor the sound—steady hum is good; rattling suggests too fast or unstable penetration.
  • Observe: Watch for stabilizer softening or warping during long, dense fill sections.
  • Success check: Stitches lay flat without rippling, and the stabilizer remains firm through the run.
  • If it still fails… Confirm you are using fibrous WSS (not only film) and reduce speed further as needed per the machine manual.
• Q: What mechanical safety rule should be followed when trimming threads during embroidery machine color stops to avoid needle injury?
  A: Never put hands inside the hoop/needle area while the embroidery machine is running—press STOP before trimming or reaching in.
  • Stop: Hit the STOP button before touching threads near the needle path.
  • Move: Slide or remove the hoop only after motion fully stops.
  • Trim: Use micro-snips with controlled, short cuts away from the needle.
  • Success check: Hands never enter the hoop area unless the machine is fully stopped and the needle is stationary.
  • If it still fails… Create a habit trigger: trim only at stops, and keep tools placed consistently next to the machine to prevent rushed reaching.
• Q: What magnetic hoop safety precautions should be followed when using neodymium magnetic embroidery hoops for FSL hooping and frequent trimming?
  A: Treat magnetic hoops as pinch hazards and keep them away from pacemakers per manufacturer guidance, because neodymium magnets can clamp suddenly and strongly.
  • Handle: Keep fingers clear of the closing gap when snapping the magnetic frame together.
  • Control: Set the hoop down flat before separating magnets to prevent sudden jumps.
  • Distance: Pacemaker users should maintain the manufacturer-recommended safe distance (often 6–12 inches).
  • Success check: The hoop closes without finger pinches and stays stable when lightly tugged.
  • If it still fails… Slow down the handling process and separate magnets deliberately; if safety remains a concern, use a conventional screw hoop and focus on perimeter securing instead.
• Q: When frequent thread changes and hooping friction slow down Freestanding Lace (FSL) production, what is the step-by-step upgrade path from technique to equipment?
  A: Start by optimizing workflow, then upgrade hooping tools, and only then consider a multi-needle machine when volume makes manual color changes the bottleneck.
  • Level 1 (Technique): Batch by hardware color (e.g., stitch all “gold hook” pieces together) and keep Color Sort OFF for FSL.
  • Level 2 (Tooling): Use a hooping station or magnetic hoop to reduce re-hooping time and maintain consistent tension during frequent trimming.
  • Level 3 (Capacity): Move to a multi-needle machine when repeated manual thread changes dominate the job time and you need automated needle/color readiness.
  • Success check: You spend less time re-hooping and changing thread than the machine spends stitching, and registration stays aligned piece-to-piece.
  • If it still fails… Re-audit the checklist before pressing start (correct file, Color Sort OFF, matching bobbin, 2-layer WSS, speed limited) and identify which step causes the most delays or defects.
