Master Class: Fixing the "Open Shape" Nightmare in PE Design 10 (The Alt Key + Red Box Method)

If you have ever stared at a design on your screen that looks perfect, but refuses to fill with stitches, you are experiencing one of the most common frustrations in machine embroidery digitization. You see a shape. The software sees two disconnected lines.

The emotional cycle is predictable: Confusion ("Why is there no color?"), followed by Panic ("My machine won't stitch this correctly"), and finally Resignation ("I guess I have to redraw the whole thing").

As a digitizer, your goal isn't just to draw lines; it is to create closed architectural structures that your machine can interpret. When a shape is closed, the software can automatically calculate underlay, pull compensation, and stitch density. When it is open, it is just a running stitch—a piece of string with no structural integrity.

In this guide, we are not just analyzing a YouTube tutorial; we are breaking down the physics of vector connection. We will cover the exact workflow to snap nodes together in PE Design 10, explain why the "Red Box" visual cue is effectively your safety harness, and discuss how to support these digital fixes with the right physical tools—from stabilizers to magnetic hoops—to ensure your final stitch-out is bulletproof.

1. The Core Concept: Why "Almost Touching" isn't Good Enough

In the physical world, if you lay two pieces of string on a table and their ends touch, they look connected. In the mathematical world of embroidery software (Vector Space), "almost touching" is the same as being miles apart.

PE Design 10 operates on binary logic:

• Open Object: A line. It has a start and an end. It cannot hold a fill pattern because the "bucket" has a hole in it.
• Closed Object: A loop. The start and end are mathematically fused. It can hold a fill, standard underlay, and density settings.

Sue, the instructor in our source material, demonstrates this with two distinct open objects. They look like they create a shape, but to the software, they are ghosts.

The Production Consequence (Why You Must Fix This)

Why not just visually align them and leave them open? Because your machine knows the difference.

1. The "Machine Gun" Effect: If lines aren't joined, the machine stitches to the end of Line A, locks the stitch, trims the thread (creating a birdnest underneath), moves 0.1mm, and starts Line B. This creates lumps and weak points.
2. Lack of Underlay: Open lines typically cannot accept complex tatami or satin fills with proper underlay foundation. Without underlay, your fabric will pucker.
3. Registration Drift: On stretchy fabrics (knits/performance wear), the fabric relaxes between the two separate objects, causing a visible gap to form on the finished garment.


2. Pre-Flight Preparation: Setting the Stage for Precision

Before you attempt the "Alt Key Trick," you must configure your workspace. Digitizing is microsurgery; you cannot operate with dull tools or a cluttered view.

Hidden Consumables for Success:

• A Scroll-Wheel Mouse: Do not attempt this with a laptop trackpad. You need the stability of a physical mouse.
• Zoom Tool: You need to be zoomed in at least 400-600% to see the nodes clearly.

Phase 1: Prep Checklist (Do This Before Touching Nodes)

• Isolate the Objects: Ensure you are looking at the two specific vector lines you want to join. Hide other background layers if necessary to avoid clicking the wrong thing.
• Identify the Gap: Zoom in until you can visually see the disconnect between the two endpoints.
• Visual Setting Check: Look at your "Sewing Attributes" panel. If the options for "Fill Stitch" are grayed out, it confirms the computer thinks your object is open.
• Mental Reset: Stop trying to "draw." You are now shifting to "editing."


Warning: Ergonomics & Precision Safety. High-precision node editing requires repetitive small movements. If you are doing this for hours, use a wrist rest. Tensile strain from "claw gripping" a mouse while holding keyboard shortcuts is a leading cause of RSI in professional digitizers. Shake your hands out every 20 minutes.

3. The Toolkit: Open Line vs. Curve Tool

Sue’s demonstration begins with the creation of the problem. She uses the Open Line Tool and the Curve Tool.

This is a critical distinction: You can join any two open vector objects, regardless of which tool created them originally. You can join a straight line to a curved Bezier line. The software cares about the endpoints (nodes), not the history of the line.

4. Entering the Matrix: The "Select Point" Mode

To manipulate nodes, you must change your interaction mode.

• Go to the Home Tab.
• Select the Select Point tool (often represented by an arrow editing a point).

In this mode, the line isn't a "stitch" anymore; it is a wireframe skeleton. You will see small squares or dots along the line. These are Nodes (or Anchor Points).

• Black Nodes: Usually define the curve handling.
• White/Hollow Nodes: Usually define the start/endpoints or sharp corners (depending on your specific version settings).


Setup Checklist (Ready to Join)

• Tool Active: The mouse cursor should look different (usually an arrow with a small node icon).
• Visibility: When you click the object, the nodes must "light up."
• Selection: Click one of the objects first. You cannot join them if the software doesn't know which one you are holding.

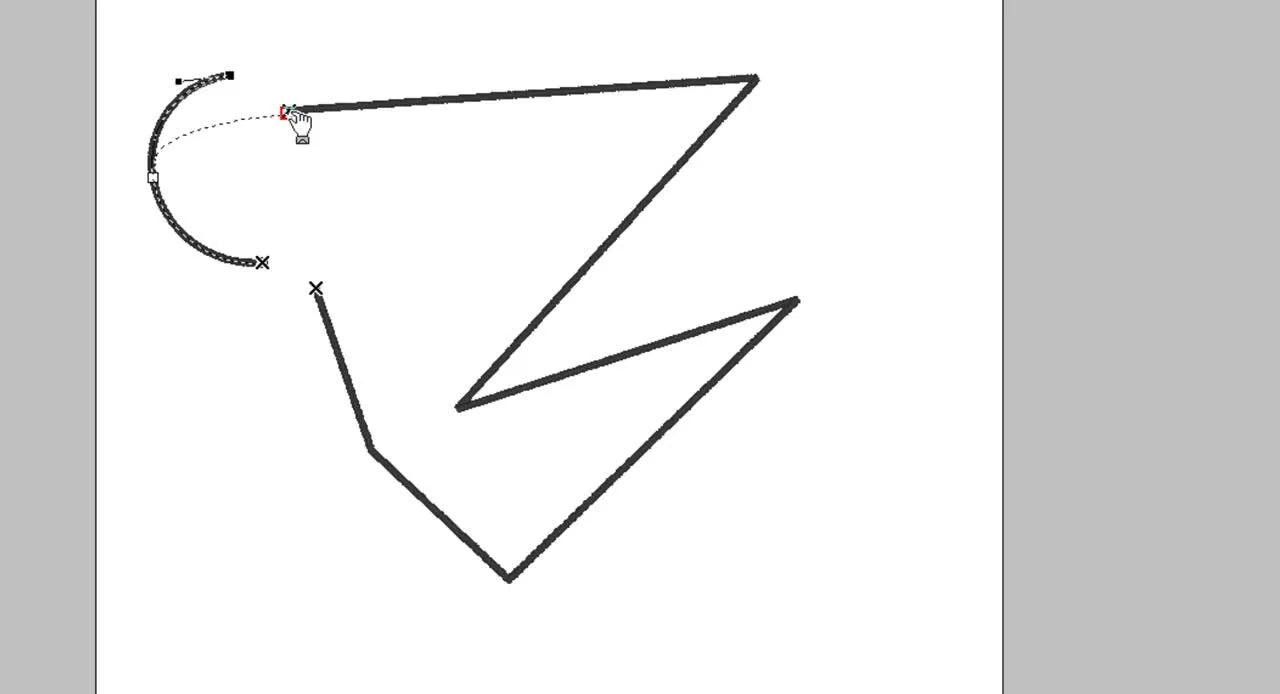

5. The "Alt Key" Maneuver (The Sensory Trigger)

This is the single most important technique in the tutorial. It is the bridge between "two lines" and "one shape."

The Action Sequence:

1. Engage: Click the endpoint of Line A.
2. Modify: Press and HOLD the Alt key on your keyboard.
3. Verify: Watch your cursor. It should transform from a standard pointer into a Hand Icon.
   • Sensory Check: If you don't see the hand, you are not in the joining mode.
4. Execute: With Alt still held down, drag the endpoint of Line A toward the endpoint of Line B.
5. The Snap: As you get close (magnetic radius), the software will detect the other point.
6. The "Red Box": A small red square outline will appear around the junction.
   • Visual Anchor: Red Box = GO. No Red Box = NO GO.
7. Release: Release the Mouse Button First, then release the Alt key.


Troubleshooting: "The Alt Key is Opening Menus!"

A common pain point mentioned in the comments is that pressing Alt triggers the Windows menu shortcuts (showing letters over the ribbon) instead of changing the cursor.

The Fix: Windows defaults Alt to menu navigation if nothing is selected.

• Step 1: Click the node first to tell Windows "I am working on the canvas."
• Step 2: Then press and hold Alt.
• Step 3: If it still fails, try clicking the node, holding the mouse button down, and then adding the Alt key into the mix.


6. Closing the Loop: The "Fill" Confirmation

Joining the first set of points creates one long, open snake. To create a shape, you must repeat the process for the other end.

The Transformation: Once you successfully Alt + Drag the final two endpoints together:

1. The Snap: You see the Red Box.
2. The Release: You let go.
3. The Fill: The software immediately fills the shape with color/stitches.

This automatic fill is the software's way of telling you: "Congratulations, this is now a valid polygon."

7. Real-World Application: The "Roof" Rescue

Sue demonstrates this with a house roof. One line is the wrong color/layer. Instead of deleting and redrawing, she merges the "orphan" line into the main roof structure.

Expert Insight: This technique saves massive time when editing purchased designs or vector imports (SVG/WMF). Often, imported vectors arrive as hundreds of disconnected "spaghetti" lines. Using this join method allows you to weld them into stitchable shapes without re-tracing.

8. The Physics of Embroidery: When Software Meets Fabric

You have fixed the file. Now you must ensure it survives the physical embroidery process. A closed shape introduces thread tension. The thread pulls the fabric inward (Purse String Effect).

If your digitization is perfect but your stabilization is weak, the outline of your new closed shape will not line up with the fill.

The Stabilizer Decision Tree

Use this logic to support your newly closed shapes. Values below are industry "safe zones."

The Workflow Upgrade: If you find yourself constantly battling to get thick fabrics (like the roof example on a hoodie) into a standard hoop, consider analyzing your toolset.

• For home users, brother embroidery hoops have specific limitations on thickness.
• The industry solution to "fighting the hoop" is often magnetic hoops for brother. These allow you to float the stabilizer and simply "snap" the fabric in place without forcing inner/outer rings together, which distortion-proofs your closed shapes.


9. Comprehensive Troubleshooting Guide

When things go wrong, do not panic. Follow this diagnostic path. Settle on the solution with the lowest cost (time/money) first.

10. Operational SOP: The "Alt + Drag" Standard

Follow this checklist for every repair job.

Operation Checklist (Quality Control)

• Zoom Check: Am I close enough to see individual pixels/nodes?
• Mode Check: Is "Select Point" active?
• Action Check: Did I hold Alt before the drag?
• Visual Confirmation: Did I see the Hand Icon?
• Success Metric: Did the Red Box appear?
• Final Verification: Did the object fill with color upon release?

11. Tool Upgrades: From Fixer to Producer

Mastering the "Alt + Drag" fix makes you a better digitizer. But digitizing is only 20% of the job. The other 80% is physical production.

If you are fixing files to reduce production errors, you should also look at your hardware bottlenecks.

• Consistency: A machine embroidery hooping station ensures that once your file is fixed, every shirt is hooped in the exact same spot.
• Speed: If you are doing volume (e.g., 50 left-chest logos), standard hooping takes 2 minutes per shirt. Using magnetic embroidery frames can cut this to 15 seconds.
• Capacity: If your single-needle machine is slowing you down on color changes for these newly filled shapes, exploring multi-needle options like SEWTECH machines becomes the logical step for profitability.

Warning: Magnet Safety Protocol.
Magnetic hoops use industrial-strength neodymium magnets. They can pinch fingers severely (blood blister risk) if snapped together carelessly.
Medical Risk: Never* place strong magnetic hoops near a person with a pacemaker or ICD.
* Electronics: Keep them away from mechanical hard drives and credit cards.
* Handling: Always slide the magnets apart; do not try to pry them directly up.

12. Final Polish: Post-Join Editing

Once your shape is closed and filled, the job isn't done. Correct sequencing is vital:

1. Structure: Close the nodes (The Alt Trick).
2. Cosmetics: Right-click to change color, density, or direction after the structure is solid.

Sue notes that you can right-click the newly formed object to access attributes. This is the time to check your Pull Compensation (try 0.2mm - 0.4mm for standard knits) to ensure your new shape doesn't shrink.

Conclusion

The difference between an amateur and a pro isn't that the pro never makes mistakes—it's that the pro knows how to fix them efficiently. The Alt + Drag + Red Box workflow in PE Design 10 is your primary rescue tool for vector errors.

Master this software skill, pair it with solid physical stabilization and reliable hooping tools, and you will stop seeing "errors" and start seeing "solutions."

FAQ

• Q: In Brother PE-Design 10, how do I join two open vector lines so the object becomes a closed shape that can accept a fill stitch?
  A: Use Select Point mode and Alt + drag one endpoint onto the other until the Red Box appears, then release in the correct order.
  • Activate Home > Select Point, then click the first line so its nodes appear.
  • Zoom in (often 400–600%) and click the endpoint you want to move.
  • Hold Alt until the cursor becomes a Hand icon, then drag the endpoint onto the other endpoint.
  • Release mouse first, then release Alt, and repeat for the other pair of endpoints to fully close the loop.
  • Success check: a small Red Box shows at the join, and when the final join is made the shape auto-fills with color/stitches.
  • If it still fails… zoom closer and confirm you are dragging endpoint-to-endpoint (not a middle node).
• Q: In Brother PE-Design 10, why does pressing the Alt key open the Windows ribbon menus instead of showing the Hand icon for joining nodes?
  A: Click the canvas/node first so Windows focus is on the design area, then hold Alt while dragging.
  • Click the target endpoint node first (do not press Alt yet).
  • Press and hold Alt and confirm the cursor changes to the Hand icon.
  • Drag the endpoint toward the other endpoint while still holding Alt.
  • Success check: the Hand icon appears during the drag, and the Red Box appears when you reach the other endpoint.
  • If it still fails… try clicking the node, holding the mouse button down, and then adding Alt while you start the drag.
• Q: In Brother PE-Design 10, what does it mean when the Red Box never appears during Alt + drag node joining?
  A: The software is not detecting a valid endpoint snap—usually because zoom is too low or the wrong point/mode is being dragged.
  • Zoom in further until endpoints are unmistakable, then retry the join.
  • Confirm Select Point is active and the line’s nodes are visible (the object must be selected).
  • Drag only an endpoint onto the other endpoint, not a curve control point.
  • Success check: a Red Box outline appears right at the junction (“Red Box = GO”).
  • If it still fails… isolate/hide other objects so you are not accidentally grabbing the wrong line.
• Q: In Brother PE-Design 10, why does a closed shape look “twisted” after joining endpoints (bowtie/crossed vectors), and how do I fix it?
  A: The wrong endpoints were connected (cross-connection); undo and connect each endpoint to its correct neighbor.
  • Press Ctrl+Z to undo the last join.
  • Zoom in and identify which endpoint should connect to which adjacent endpoint (avoid crossing paths).
  • Repeat Alt + drag and only release when the correct Red Box appears at the intended corner.
  • Success check: the shape closes and fills without an “X”/bowtie crossover in the outline.
  • If it still fails… join one corner at a time and visually confirm the outline direction before closing the final loop.
• Q: After fixing open shapes in Brother PE-Design 10, why does the embroidery still show a stitch gap on knit shirts even though the design looks correct on screen?
  A: This is usually a hooping/stabilizer failure (fabric moved), not a digitizing error—use a proper cut-away and reduce fabric distortion during hooping.
  • Switch knits to cut-away 2.5oz–3.0oz (the blog notes this is non-negotiable for knits).
  • Re-hoop with a method that prevents stretching and “hoop burn” on knits (magnetic hooping often helps reduce distortion).
  • Stitch a test and watch for fabric shifting between outline and fill (the “purse string effect” can expose weak stabilization).
  • Success check: the outline and fill stay registered on the garment with no visible gap after the stitch-out relaxes.
  • If it still fails… treat the symptom as movement: increase stabilization support first before re-editing the file.
• Q: In Brother PE-Design 10 node editing, what are the must-have prep tools and workflow checks before attempting the Alt + drag Red Box join?
  A: Set up for precision first: use a scroll-wheel mouse, zoom aggressively, isolate the target lines, and confirm the object is truly open.
  • Use a scroll-wheel mouse (avoid trackpads) and zoom to at least 400–600%.
  • Isolate the two target vectors (hide other layers/objects if needed).
  • Check the Sewing Attributes panel—if Fill Stitch options are grayed out, the object is still open.
  • Switch mindset from drawing to editing: use Home > Select Point so nodes “light up” when selected.
  • Success check: nodes are clearly visible, the endpoint can be grabbed cleanly, and the join produces the Red Box cue.
  • If it still fails… stop and re-select the correct object; focus loss and mis-selection are the most common causes.
• Q: What magnet safety rules should operators follow when using industrial-strength magnetic embroidery hoops during production hooping?
  A: Treat magnetic hoops like pinch hazards and medical-device hazards—slide magnets apart, protect fingers, and keep them away from pacemakers and sensitive items.
  • Slide magnetic pieces apart; do not pry straight up where they can snap together unexpectedly.
  • Keep fingers out of the closing path to prevent severe pinching (blood blister risk).
  • Keep magnetic hoops away from anyone with a pacemaker or ICD, and away from credit cards and mechanical hard drives.
  • Success check: magnets separate and re-seat in a controlled motion without sudden snapping or finger contact.
  • If it still fails… stop and change handling technique; do not “force” separation—reposition hands and slide to disengage safely.
• Q: For repeated production issues caused by open-shape trims and fabric movement, when should an embroidery shop upgrade from technique fixes to magnetic hoops or a multi-needle SEWTECH embroidery machine?
  A: Start with the lowest-cost fix (file + stabilization + hooping), then upgrade tools when time loss and rework remain measurable and frequent.
  • Level 1 (technique): close all nodes using Alt + drag and confirm the object auto-fills; re-check for micro-gaps if trims keep happening.
  • Level 2 (tooling): move to magnetic hoops when thick fabrics are hard to clamp or when knits show distortion/hoop burn that causes registration drift.
  • Level 3 (capacity): consider a multi-needle SEWTECH machine when single-needle color changes and re-hooping time limit throughput on repeat jobs.
  • Success check: fewer trims/birdnest events, faster consistent hooping, and fewer stitch-outs rejected for gaps or misregistration.
  • If it still fails… document whether the failure is file-structure (no auto-fill), hooping movement, or throughput bottleneck, then upgrade the weakest link first.
