Stop Re-Hooping: Use the Dahao-Style “Repeats/Array” Screen to Batch 3×3 Designs Without Software (and Keep Them Centered)

If you’ve ever stitched one patch perfectly… then spent the next hour re-hooping, re-aligning, and second-guessing your placement, you’re exactly who this technique is for.

Belinda (All My Ancestors) demonstrates a simple but powerful workflow: create one clean base design on the machine screen, then use the controller’s Repeats/Array function to multiply it into a grid—no external digitizing software required. The real “secret” is the interval math and the final trace.

The Real Reason the Dahao-Style Repeats/Array Function Saves Your Day (and Your Hoop Alignment)

On a Dahao-style touchscreen controller (common on many multi-needle machines), the Repeats/Array feature lets you stitch the same design multiple times in one hooping—perfect for patches, table runners, Christmas tree skirts, or repeating lace motifs.

In production terms, it’s not just convenience. It’s consistency: once your fabric is hooped correctly, every repeat is stitched under the same tension, the same stabilizer support, and the same fabric grain direction. That’s how you get nine “matching” results instead of nine “close enough” results.

If you’re building a batching workflow, this is also where embroidery machine hoops start to feel less like accessories and more like throughput tools—because the hoop is now holding a whole run, not a single piece.

The “Hidden” Prep Pros Do Before Touching Repeats: Base Design, Fabric Reality, and a Quick Sanity Check

Belinda keeps the demo simple by creating a single letter on-screen first. That’s the correct habit: the array is only as good as the base design.

Before you start tapping icons, do two quick checks that prevent 80% of repeat-layout headaches:

1. Know what you’re stitching on (and how it behaves).
   • Stable woven patch twill behaves very differently than a stretchy knit.
   • A table runner may be long and stable, but it can still skew if it’s hooped off-grain.
2. Decide whether you’re optimizing for “one perfect item” or “nine consistent items.”
   • For one-off gifts, you can baby the hooping.
   • For batches, you need repeatable hooping and repeatable stabilization.

If you’re doing a lot of repeats (patch sheets, logo grids, name runs), this is where embroidery hooping station setups earn their keep—because they reduce human variation between hoopings, ensuring your grid lands straight every time.

Prep Checklist (Do this BEFORE you create the design)

• Verify Hoop: Confirm the hoop/frame definition selected on-screen matches the one physically mounted.
• Check Grain: Ensure fabric is squared to grain (pull thread to check weave alignment).
• Sizing Check: Measure your stabilizer. It must extend at least 1 inch beyond the entire array area, not just the first design.
• Consumables: Have temporary spray adhesive or pins ready for floating technique if the fabric is too thick to hoop traditionally.
• Machine Prep: Clean the bobbin area. Listen for a clean "click" when inserting the bobbin case.


Build the Base Letter on the Touchscreen: Lettering Tool, Gothic Font, and the 75 mm Size Input

Belinda starts by creating a quick test design directly on the controller:

1. Enter the design/edit area and tap the lettering tool icon.
2. Select the ABC input method to bring up the keyboard.
3. Choose the letter “D.”
4. Pick a Gothic font (standard block font).
5. Tap the magnifying glass to maximize your view.
6. Visual Check: Press Fill so you can see the stitched version (density check), not just an outline.
7. Set the size parameter to 75 mm.

Expert Note: A single filled letter makes spacing mistakes obvious immediately. If the fill looks sparse on screen, check your density settings (Standard is usually roughly 0.4mm spacing).

Save It Like You Mean It: Store the Design, Exit Edit Mode, and Keep the Orientation

Next, Belinda saves the design to the machine’s memory:

1. Tap the Save (floppy disk) icon.
2. Confirm with the green checkmark.
3. Exit back to the main parameter/menu area.

She explicitly notes she wants to keep the design in its current orientation. That matters because rotating later changes the "bounding box"—the invisible rectangle around your design. If you rotate a rectangle 45 degrees, the bounding box gets wider, which messes up your interval math later.

The Interval Math That Prevents Overlaps: Use the Actual 51.9 × 55.9 mm Dimensions (Not Your “75 mm” Assumption)

Here’s the part beginners miss: the “75 mm” you typed is a nominal font size, not the actual width of the letter 'D'.

Belinda goes back to check the machine’s generated design dimensions:

• Width (X): 51.9 mm
• Height (Y): 55.9 mm

She rounds mentally to about 52 × 56 mm for quick math.

The Physics: The interval is the start-to-start distance between repeats.

• If Interval X = Design Width X, the designs will touch.
• If Interval X < Design Width X, the designs will overlap/collide.

Rule of Thumb: Always add a "Breathing Room" buffer. For patches, add 5–10mm for cutting space. Belinda does exactly that.

Open the Repeats/Grid Icon and Set 3 Across × 3 Down (X and Y Counts)

With the design selected:

1. Tap the Repeats icon (it looks like a grid/matrix).
2. Set X Priority (usually determines stitching order).
3. Set X = 3 (three across).
4. Set Y = 3 (three down).

Belinda gives the most important real-world constraint: how many will fit depends on your hoop size. Build the grid to match the physical hoop you’re actually using.

If you run a Bai or Ricoma machine and are constantly switching frames, keep a written reference for bai embroidery machine hoop sizes so you don’t waste time building arrays that can’t physically trace inside the mounted frame.

Set Interval X = 60 mm and Interval Y = 61 mm (and What “Interval” Really Means)

Now the spacing logic:

1. Find the Interval section in the Repeats menu.
2. X Calculation: Design (52mm) + Buffer (8mm) = 60 mm. Belinda sets X Interval to 60.
3. Y Calculation: Design (56mm) + Buffer (5mm) = 61 mm. Belinda sets Y Interval to 61.

That gives clear separation so the repeats don’t feel cramped.

Sensory Concept: Imagine cutting these out with scissors. If the gap is too small, your scissors won't fit between the embroidery. That 60mm interval ensures you have room to maneuver.

Hit Green Check, Then Center the Whole Grid (and Don’t Trust the “Center Point” Blindly)

After entering repeats and intervals:

1. Press the green check to confirm.
2. Press the Center Design button (crosshairs icon) to move the entire grid into the middle of the frame visualization.

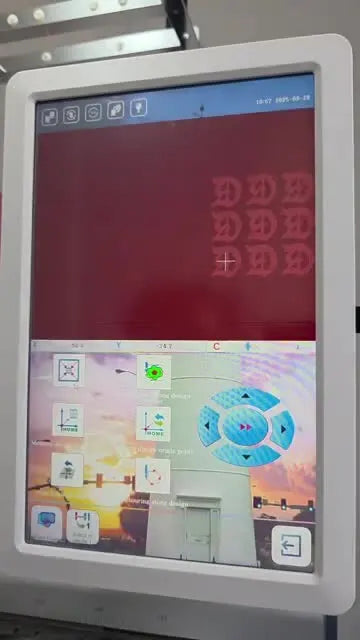

On-screen, the single letter multiplies into a clean 3×3 grid.

The Trap: Belinda warns that the “center point” you see on screen is mathematically calculated based on the array, not necessarily your hoop.

• Action: Always center the grid on-screen.
• Follow-up: Then physically center your hoop on the machine arms before tracing.


Assign One Needle/Color for the Whole Array (Simple Now, Smart Later)

Belinda switches to the Needle/Color menu and assigns a single color (blue) to the entire array—because it’s a one-color repeat.

This is more than cosmetic. In production workflows, keeping a repeat run single-color reduces stops and trims. Every trim adds 5–10 seconds. On a 9-piece array, unnecessary color changes add minutes to your run time.

If you’re building a repeat workflow for patches, this is also where the process of hooping for embroidery machine becomes a system: consistent hooping + consistent color assignment + consistent trace = consistent output.

The Trace Is Non-Negotiable: Prevent Needle Breaks and Frame Hits Before the First Stitch

Belinda is blunt here—and she’s right: always do a trace.

The trace (Border/Frame Check) moves the machine head around the perimeter of the design area so you can confirm:

1. The needle path stays inside the hoop/frame.
2. Your grid is positioned where you want it on the fabric.

Warning: Never run an array without tracing first. Needle-to-frame contact can shatter the needle, sending metal shards flying, and can scar your hoop or knock the machine timing out of sync.

Checklist: The "Safe Trace" Protocol

• Visual: Watch the presser foot. It should clear the inner edge of the hoop by at least 5mm.
• Auditory: Listen for the servos. Strain or grinding sounds mean the machine is trying to push beyond its limit.
• Action: If the trace is too close to the edge, stop. Go back to Repeats and reduce the Interval or the X/Y count.

“Everything Is Suddenly Off-Center” After I Added a Frame—What Likely Happened (and the Safe Way to Recover)

A common new-owner panic (seen in comments) is adding a custom frame size and suddenly finding every frame is out of center.

This usually happens because the "User Defined Frame" offset parameters were entered incorrectly, confusing the machine's global coordinate system.

A safe recovery sequence (Brand-Agnostic)

1. Stop: Do not try to stitch a design to "test" it.
2. Reset Selection: Go to the Frame Select menu and choose a standard factory hoop (e.g., Hoop E) that came with the machine.
3. Center: Press the "Center Frame" or "Return to Center" button on the panel.
4. Test: Create a tiny 10mm circle. Trace it.
5. Re-Define: If you are using non-standard frames (like specific bai embroidery frame sizes), consult your manual for the exact X/Y offsets before entering them again. Write these numbers down.

The “Why” Behind Clean Repeats: Hooping Physics, Stabilizer Choices, and Why Magnetic Frames Reduce Drift

Arrays magnify small problems. A tiny hooping error that’s invisible on one design becomes obvious across nine.

Decision Tree: Fabric vs. Stabilizer for Arrays

Use this logic to prevent the grid from "warping" as it stitches.

• Scenario A: Patches (Twill/Canvas)
  • Risk: Low.
  • Rx: One layer of medium tearaway is usually sufficient.
• Scenario B: T-Shirts/Knits (Stretchy)
  • Risk: High. The fabric will pull inward as the stitches accumulate.
  • Rx: No-Show Mesh (Cutaway) + Temporary Spray Adhesive. Do not rely on hoop tension alone.
• Scenario C: Towels/Thick Items
  • Risk: Hoop burn (marks) and difficulty clamping.
  • Rx: Use magnetic embroidery hoops. They hold thick items without forcing the inner ring, preventing hoop burn and keeping tension even across the array.

Why Magnetic Hoops? (The Mechanic's view)

If your pain is "hooping takes forever" or your hands hurt from tightening screws, magnetic frames are the throughput solution. They allow you to slide fabric in and out without recalibrating the tension screw every time.

Warning: Magnetic Safety. These magnets are industrial strength. Keep them away from pacemakers, credit cards, and keep fingers clear of the "pinch zone" when snapping them shut.

Production Reality: Turning a 3×3 Array Into a Repeatable Money-Maker (Without Burning Out)

Belinda’s example is a 3×3 grid of a single letter, but the workflow scales directly to production.

The Efficiency Mindset:

• Legacy Method: Hoop 1 shirt -> Stitch -> Unhoop -> Repeat 9 times. (High labor, high variance).
• Array Method: Hoop large backing -> Stitch 9 patches -> Cut. (Low labor, high consistency).

If you’re currently re-hooping each patch individually, upgrading to a repeat layout plus a consistent hoopmaster hooping station workflow can be the difference between a hobby and a business.

Quick Troubleshooting: Symptom → Likely Cause → Fix

Setup Checklist (Right before you press Start)

1. Dimensions: Re-check the design info dimensions (X/Y) to confirm your math.
2. Intervals: Confirm X/Y intervals include "Breathing Room" (Design Size + Gap).
3. Center: Press the Crosshairs icon to center the grid on screen.
4. Color: Assign a single needle for the whole block to prevent unnecessary trims.
5. TRACE: Run the border check. Listen for smooth movement. Watch for hoop clearance.

Operation Checklist (While stitching the batch)

1. The Watch: Stay near the machine for the entire first repeat (the first letter "D").
2. Sound Check: If you hear a rhythmic "thump-thump," your needle is dull or hitting a thick seam. Pause and check.
3. Visual Audit: After the first row of 3 completes, stop. Measure the spacing with a ruler to confirm it matches your interval plan.
4. Drift: If the fabric looks like it is "bubbling" in the center, pause. Your stabilizer is too loose. Add a floating layer of stabilizer under the hoop.

The Upgrade Path: When Better Tools Beat More Screen Tapping

Once you’re comfortable building arrays on-screen, your bottleneck will shift from "programming" to "physical labor."

Here is how to judge when to upgrade your gear:

• Pain Point: Hoop Burn / Hand Fatigue.
  • Solution: Search for how to use magnetic embroidery hoop videos. Magnetic hoops eliminate the screw-tightening variable.
• Pain Point: Crooked Placement.
  • Solution: Use a placement station or laser guide.
• Pain Point: Too Slow.
  • Solution: If single-needle work is killing your profit margins, look into entry-level multi-needle machines (like SEWTECH or similar) that handle batching natively with larger stitching fields.

You don't have to struggle with imperfect tools. Master the logic Belinda taught you, then let the right equipment handle the heavy lifting.

FAQ

• Q: On a Dahao-style touchscreen embroidery controller, why does a 75 mm lettering size not match the real design width/height when setting Repeats/Array intervals?
  A: Use the controller’s actual X/Y design dimensions (e.g., 51.9 × 55.9 mm), not the nominal “75 mm,” to calculate Interval and avoid overlaps.
  • Open the design info/properties screen and write down the generated Width (X) and Height (Y).
  • Add “breathing room” to both directions (often 5–10 mm for patch cutting space), then enter those totals as Interval X and Interval Y.
  • Rebuild the grid and re-center the full array on-screen after confirming.
  • Success check: repeated designs show a visible gap between motifs, and scissors would have room to cut between them.
  • If it still fails: reduce the X/Y repeat counts to match the physical hoop size and run a trace before stitching.
• Q: On a Dahao-style Repeats/Array embroidery layout, how can the operator prevent needle-to-frame hits and needle breaks before starting a 3×3 grid?
  A: Always run a Trace/Border Check and confirm at least 5 mm clearance from the hoop edge before the first stitch.
  • Start the Trace (Border/Frame Check) with the actual hoop/frame mounted.
  • Watch the presser foot travel around the perimeter and stop immediately if it gets too close to the inner hoop edge.
  • Listen for strain/grinding servo sounds during trace; treat that as a stop signal.
  • Success check: the trace path stays clearly inside the hoop with smooth motion and no “hard” sounds.
  • If it still fails: go back to Repeats and reduce Interval or reduce X/Y counts, then trace again.
• Q: On a Dahao-style embroidery controller, why does a repeated grid land in the wrong place on fabric after pressing Center, and how can the operator correct placement?
  A: Center the entire grid on-screen first, then physically center the hoop on the machine arms before tracing.
  • Build the Repeats/Array and press the Center Design (crosshairs) so the full array is centered in the frame view.
  • Verify the selected hoop/frame definition on-screen matches the hoop physically mounted.
  • Move/align the hoop so it is centered on the machine arms, then run a trace to confirm fabric placement.
  • Success check: the traced perimeter outlines the grid exactly where the embroidery is intended on the fabric.
  • If it still fails: reduce the grid size or re-hoop with fabric squared to grain before re-centering and tracing.
• Q: On multi-needle embroidery arrays for patches or name grids, what stabilizer and prep steps help prevent drift, bubbling, or a “warped” grid across 9 repeats?
  A: Match stabilizer to fabric behavior and verify stabilizer coverage extends at least 1 inch beyond the entire array area.
  • Measure stabilizer so it exceeds the outer boundary of the full grid, not just the first design.
  • Square fabric to grain (use a weave pull check on wovens) before hooping to prevent a crooked grid.
  • Use temporary spray adhesive or pins for floating when the item is too thick or awkward to hoop normally.
  • Success check: during stitching, the center of the fabric stays flat (no bubbling) and row-to-row spacing remains consistent.
  • If it still fails: add an additional floating stabilizer layer under the hoop and re-check hooping alignment to grain.
• Q: On a Dahao-style embroidery controller, what is the safest recovery sequence when a user-defined frame makes every hoop suddenly off-center?
  A: Stop stitching and return to a factory hoop selection, re-center the frame, then trace a tiny test shape before redefining offsets.
  • Stop and do not “test stitch” a full design while the coordinate system may be wrong.
  • Select a standard factory hoop/frame in the Frame Select menu and press Center Frame/Return to Center.
  • Create a tiny ~10 mm circle and run a trace to confirm center behavior.
  • Success check: the traced small circle is centered inside the hoop and the machine moves normally without limit strain.
  • If it still fails: consult the machine manual for the exact X/Y offset entries for the custom frame and re-enter them carefully, recording the numbers.
• Q: For thick items like towels on multi-needle embroidery machines, when should an operator switch to magnetic embroidery hoops to reduce hoop burn and clamping issues?
  A: If hoop burn marks or difficult clamping show up on thick materials, magnetic hoops are often the safer, more consistent holding method.
  • Hoop the item with a method that does not require over-tightening (magnetic clamping can reduce pressure marks).
  • Keep stabilizer support consistent across the entire array area to prevent shifting under the repeats.
  • Run a trace after hooping because thick materials can sit higher and reduce clearance.
  • Success check: fabric holds evenly with minimal visible ring marks, and the trace clears the hoop edge smoothly.
  • If it still fails: reduce batch size (fewer repeats per hooping) and reassess stabilizer choice for the fabric type.
• Q: What magnetic embroidery hoop safety rules should operators follow to prevent finger injuries and other hazards during hooping?
  A: Treat magnetic hoops as industrial-strength magnets and control the “pinch zone” when closing the frame.
  • Keep fingers clear while snapping the magnetic ring closed; close slowly and deliberately.
  • Keep magnetic hoops away from pacemakers and away from credit cards or sensitive magnetic media.
  • Store magnets so they cannot slam together unexpectedly (separate and secure them when not in use).
  • Success check: the hoop closes without a sudden snap on fingers, and the fabric is held evenly without needing force.
  • If it still fails: pause and reposition the fabric—do not fight the magnets; re-seat the hoop gradually and re-check alignment.
• Q: For patch batching on a Dahao-style Repeats/Array workflow, what is the upgrade path from technique fixes to tool upgrades to production upgrades when hooping and alignment become the bottleneck?
  A: Start by tightening the repeat math and trace discipline, then upgrade to magnetic hoops for faster, consistent hooping, and consider a multi-needle machine when physical labor caps throughput.
  • Level 1 (Technique): verify real design X/Y dimensions, add breathing-room intervals, center the full grid, and trace every time.
  • Level 2 (Tool): use magnetic hoops when hoop burn, thick items, or screw-tightening fatigue slows loading/unloading.
  • Level 3 (Capacity): move to a multi-needle platform when single-needle batching and frequent trims/stops are crushing runtime.
  • Success check: the first hooping produces multiple repeats with consistent spacing and fewer re-hoops, and the first trace always clears safely.
  • If it still fails: reduce grid counts per hoop and standardize prep (clean bobbin area, confirm hoop definition, and keep stabilization consistent) before scaling up.
