Stop Re-Hooping Sleeves: Dial In Brother PR1055X Live Camera Placement with a Robot Frame (Without Smacking the Bobbin Area)

Master Guide: Flawless Sleeve Embroidery on the Brother PR1055X

Precision Placement, Safety Protocols, and Production Workflow

Sleeves are where good embroidery operators get humbled—fast. The opening is small (often barely 4-5 inches wide), the fabric wants to twist due to the seam construction, and the moment you think you’ve nailed placement, you realize you’re 6mm off-center.

When you are fighting the fabric physics, you are losing money.

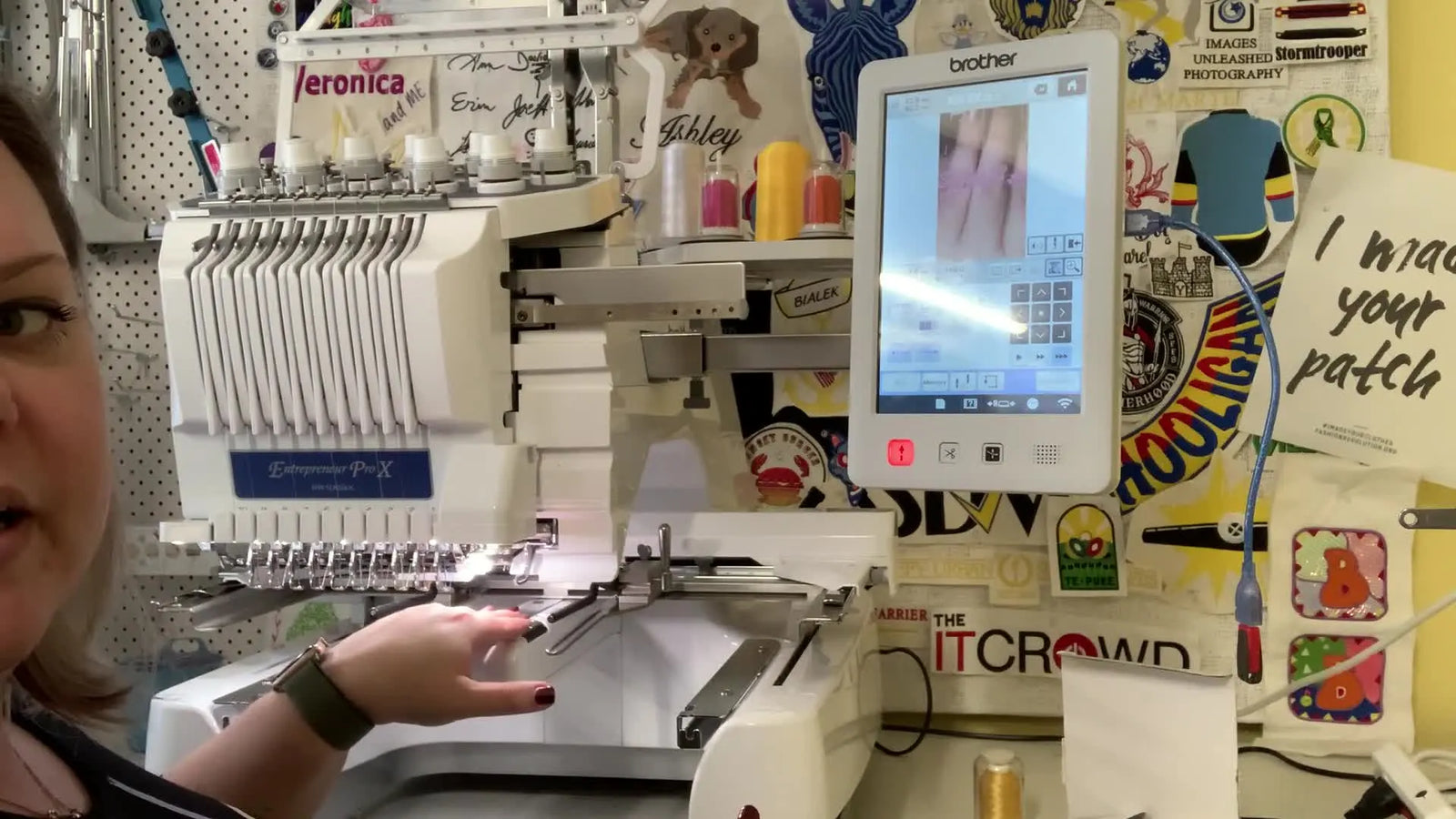

This workflow (demonstrated on a Brother Enterprise PR1055X) combines two powerful tools to solve the geometry problem:

1. The machine’s Live Camera (Live View) feature.
2. A Robot Frame (a mechanical clamping frame with spring clips).

Done correctly, you align the sleeve in real time on the screen, clamp it once, verify once, and stitch. This guide will walk you through the tactile nuances of this process and help you decide when it’s time to upgrade your tools for higher production volume.

The Calm-Before-The-Stitch: Mental Prep & Physics

If you’ve ever stared at a sleeve and thought, “There’s no way this is going to sit flat,” you’re not being dramatic—sleeves are a cylindrical geometry problem being forced into a 2D plane.

The good news: on a tubular multi-needle machine, the camera isn’t a gimmick. It is a precision surveyor's tool that saves you multiple re-hoops per garment. When you are running a brother 10 needle embroidery machine for customer work, the difference between "profit" and "loss" is often defined by how many times you have to un-hoop a shirt to fix the alignment.

This workflow turns "guessing" into "targeting."

Know Your Hardware: The Robot Frame (Clamp) Physics

To master this, you must understand what you are holding. A Robot Frame is a mechanical clamping frame with spring-loaded clips. It works on friction, not the "inner-ring/outer-ring" tension of a traditional hoop.

• What it excels at: Grabbing thick seams, shoes, and narrow sleeves where a standard hoop cannot fit.
• What it lacks: The uniform, drum-tight tension of a magnetic frame.
• Tactile Check: When you engage the clips, you should feel a firm "snap." If the clip feels spongy, your fabric/stabilizer stack is too thin, and the embroidery will pull inward (pucker).


CRITICAL SAFETY: The "No Scan" Rule

This is the most important section of this guide. Read this before touching your screen.

The video makes a point I agree with 100%: start with "Live View," not "Background Scan."

The Physics of the Crash: The Robot Frame is bulky, heavy, and has protruding metal arms. During a standard "Hoop Scan," the machine moves the pantograph to extreme limits to map the area. With a Robot Frame attached, this movement can slam the metal clamp frame into the bobbin case arm or the presser foot bar.

The Golden Rule:

• Robot Frame attached = Live View ONLY.
• NEVER hit "Scan Hoop" with a clamp frame or shoe frame attached.

Warning: Physical Safety
Keep hands clear when the machine moves the pantograph/arm into camera position. The PR1055X will reposition automatically and rapidly when you activate the camera. Fingers can get pinched if you hover near the frame arms during this reset.

The "Hidden" Prep: Friction, Stabilizer, and Grip

This is the step most beginners rush—and then they blame the machine when the design registers poorly.

Because clamping frames rely on friction, the clips need something substantial to bite into. A single layer of t-shirt cotton is too slippery; it will slide out like a silk sheet.

The Stabilizer Strategy:

1. Material: For sleeves (usually knits), use a Cutaway Stabilizer. It provides permanent support.
2. Size: Do not skimp. Cut your stabilizer at least 2 inches wider than the clamp on all sides.
3. The Sandwich: Only the stabilizer and fabric go under the clamp.

If you are used to standard brother pr1055x hoops, the mindset shift is this: You are not "tensioning in a ring," you are "anchoring a sandwich."

Prep Checklist (Pre-Flight):

• Clearance: Confirm Robot Frame clamps are set to the width of your design + 10% safety margin.
• Foundation: A generous layer of Cutaway stabilizer is placed inside the sleeve.
• Temporary Hold: Use pins (away from the stitch zone) or a specialized temporary spray adhesive to keep the stabilizer from shifting inside the sleeve before clamping.
• Marking: A visible crosshair or chalk mark is placed on the fabric center point.


UI Navigation: Finding the "Safe" Camera Mode

A common frustration for new users is: “When I click the camera, it tries to do the dangerous scan! How do I stop it?”

You are looking for the Live View button. On the PR1055X interface:

1. Locate the standard camera icon (Scanning). Ignore it.
2. Look for the icon next to it—often depicted as a machine with a magnifying glass or an eye.
3. This activates the camera without the perimeter scan.

Pro Tip: The "Snowman" positioning sticker is useful here, but use it as a visual reference only. Do not use the "Auto-Scan for Snowman" feature with a Robot Frame, as it may trigger unwanted pantograph movement.

If you plan to utilize the deep features of the brother pr1055x camera system, consult your manual for the exact icon placement, as firmware updates can slightly shift menu layouts.

The Real Workflow: Real-Time Ballistics

Once you are on the layout screen, follow this sequence to avoid collisions and ensure accuracy:

1. Activate: Tap the Live View (magnifying glass) icon.
2. Wait: Keep hands back. Listen for the distinct motor hum as the machine centers the needle bar over the camera sensor.
3. Visualize: You will see a live video feed of the needle plate area on your LCD screen.
4. Overlay: Turn on the Grid/Crosshair overlay (usually red or green lines).
5. Insert: Slide the prepped sleeve onto the Robot Frame arm unclamped.
6. Align: Watch the LCD screen, not your hands. Move the fabric until your chalk mark sits perfectly under the digital crosshairs.

Setup Checklist (Right before clamping):

• Live View is active.
• Crosshairs are visible on screen.
• Fabric mark is centered.
• The sleeve seam is straight (not corkscrewed around the arm).
• Consumable Check: Ensure you have enough bobbin thread (white thread visible through the slit) to finish the job without removing the difficult clamp.


The Hardest 10 Seconds: The "White-Knuckle" Clamp

The presenter in the source material correctly identifies this as the crux of the operation: clamping without shifting.

When you press down on a spring clip, you introduce Shear Force—the pressure wants to push the fabric sideways.

Refined Technique:

1. Anchor Hand: Use your non-dominant hand to pull the fabric taut and hold the alignment mark under the needle.
2. Action Hand: Use your dominant hand to depress the spring clip.
3. The Move: Clamp the left side first, re-verify alignment on screen, then clamp the right side.

The Professional Upgrade Path (Pain vs. Profit): If you are doing one sleeve, the Robot Frame is fine. If you are doing 50 sleeves, the spring resistance will fatigue your wrists. This is where professional shops upgrade to a magnetic embroidery frame.

Magnetic frames (like the MaggieFrame or Clamp types) drop vertically. They eliminate the "shear" sliding effect and the physical strain of pinching springs. If you find yourself fighting the clamp daily, a magnetic system is the industry standard solution for production volume.

Warning: Magnetic Safety
If you upgrade to magnetic hoops, be aware they carry extreme clamping force. Keep fingers clear of the mating surfaces. Users with pacemakers should maintain a safe distance (usually 6-12 inches) from high-power magnets.

Final Verification: Trust the Ghost

After clamping, look at the screen one last time. The PR1055X allows you to project a "phantom" image of your design over the live video of your clamped sleeve.

Visual Check:

• Does the design fit within the sleeve width?
• Is it centered on your mark?
• Is it straight relative to the cuff?

This verification is your insurance policy. Catching a mistake here costs you 30 seconds to re-clamp. Catching it after the machine starts costs you the price of the garment.

The Invisible Enemy: Lighting and Glare

Several users commented on difficulties seeing the screen. This is a real production floor issue. The glossy screen of the PR1055X reflects overhead lights, washing out the delicate camera feed.

The Fix:

• Angle: Tilt the screen downward slightly.
• Environment: Turn off the direct overhead fluorescent light if possible.
• Task Lighting: Use a small, directed gooseneck lamp pointed at the fabric, not the screen. This increases the contrast of the video feed.

When using advanced tools like magnetic embroidery hoops or clamping frames, your ability to see the alignment is just as critical as the hoop's grip.

Troubleshooting: The "Why is this happening?" Matrix

Use this structured guide to solve problems quickly (Low cost to High cost).

Decision Tree: Fabric, Stabilizer, and Hooping Method

Don't guess. Follow this logic path to choose the right gear for the sleeve.

1. Is the fabric stable? (e.g., Heavy Denim Jacket)

• YES: You can use Tearaway stabilizer.
• NO (T-Shirts/Polos): You MUST use Cutaway stabilizer to prevent distortion.

2. Is the sleeve diameter very small (under 4 inches)?

• YES: Use the Robot Frame/Clamp. A standard hoop won’t fit.
• NO: Go to step 3.

3. What is your volume?

• Low Volume (<10 items): The Robot Frame/Spring Clamp is sufficient.
• High Volume (50+ items): Upgrade. Consider a sleeve hoop for brother embroidery machine that utilizes magnetic clamping. This reduces operator fatigue and increases speed by 30-40%.


The Professional Upgrade Path: From "Working Hard" to "Working Smart"

The workflow described above is excellent for custom, one-off jobs. However, if you are running a business, you need to identify bottlenecks.

Level 1: Technique (No Cost) Master the Live View camera. It eliminates the "trial and error" of plastic templates.

Level 2: Ergonomics (Tool Upgrade) If your wrists hurt or you struggle with thick garments (Carhartt jackets/Hoodies), switch to a magnetic hooping station system. These stations hold the garment in place while you apply a magnetic hoop, ensuring perfect alignment without the physical struggle of spring clips.

Level 3: Production Scale (System Upgrade) For repetitive sleeve jobs, a dedicated hooping station for embroidery machine allows you to prep the next garment while the machine is stitching the current one. This overlapping workflow is key to profitability.

Final Operation Checklist:

• Stabilizer is Cutaway (for knits) and sized correctly (2" overshoot).
• Live View is active (NOT Scan).
• Hands are clear during camera positioning.
• Clamps are engaged firmly; fabric is taut like a drum skin.
• Design overlay has been verified on screen.
• Speed is reduced for the first 500 stitches (start at 600 SPM, then ramp up).


A Note on Digitizing: The Camera Can't Fix Bad Files

A viewer asked regarding the design source, and it was clarified that digitizing is separate from placement.

The Reality Check: The camera ensures your design is centered. It does not ensure the design stuffs. If your digitizing file lacks proper Underlay or Pull Compensation, a sleeve (which is unstable knit fabric) will distort even if clamped perfectly. Use the camera for placement; use a professional digitizer (or proper software settings) to handle the physics of the thread.

Conclusion: Confidence through Systematization

Once you repeat this Live View + Clamp workflow five times, the fear disappears.

• You stop scanning (and risking crashes).
• You stop re-hooping (and wasting time).
• You stop guessing.

If you are scaling up, consider how tools like generic magnetic frames or specific compatible systems (often compared to mighty hoops for brother pr1055x) can fit into your shop. Treat your machine setup as a complete ecosystem: The Camera provides the eyes, the Stabilizer provides the backbone, and the Frame provides the grip.

FAQ

• Q: How can Brother PR1055X operators prevent a crash when using a Robot Frame (clamp frame) on sleeves?
  A: Use Brother PR1055X Live View only and never run Scan Hoop/Background Scan with a Robot Frame attached.
  • Tap the Live View icon (the “magnifying glass/eye” style camera mode), not the scanning camera icon.
  • Keep hands fully clear while the PR1055X automatically repositions to camera position.
  • Re-check that no metal clamp arms can contact the bobbin case arm or presser foot area during movement.
  • Success check: The Brother PR1055X shows a live video feed without doing any perimeter scan movement.
  • If it still fails: Stop immediately and consult the Brother PR1055X manual for the exact Live View icon on the current firmware.
• Q: What stabilizer setup works best for sleeve embroidery on a Brother PR1055X when using a Robot Frame (spring clamp)?
  A: Use cutaway stabilizer and make it oversized so the Robot Frame clips have real grip.
  • Cut cutaway stabilizer at least 2 inches wider than the clamp on all sides.
  • Place only the fabric + stabilizer “sandwich” under the clamp (don’t try to “tension like a ring”).
  • Add temporary hold (pins away from the stitch zone or temporary spray adhesive) to stop the stabilizer from shifting inside the sleeve.
  • Success check: The clips “snap” firmly and the sleeve does not creep when gently tugged.
  • If it still fails: Increase the stabilizer substance (often thicker cutaway) because thin stacks can feel spongy and slip.
• Q: How can Brother PR1055X operators tell if a Robot Frame clip clamp is tight enough before stitching a sleeve?
  A: The clamp must feel firm (not spongy) and the fabric must stay aligned under Live View crosshairs during clamping.
  • Engage the clip and look for a decisive “snap” sensation instead of a soft, springy close.
  • Clamp one side first, re-verify alignment on the Brother PR1055X Live View screen, then clamp the other side.
  • Keep the sleeve seam straight (not corkscrewed) while confirming the chalk/crosshair mark stays centered.
  • Success check: After both sides are clamped, the center mark still sits under the on-screen crosshair without drifting.
  • If it still fails: Add friction support (temporary adhesive or tape on stabilizer) to reduce sliding during the “shear force” of clipping.
• Q: How do Brother PR1055X operators fix sleeve placement drift when clamping a Robot Frame causes the fabric to slide sideways?
  A: Reduce shear movement by holding alignment under Live View and adding temporary anti-slip support to the stabilizer.
  • Pull the fabric taut with the non-dominant “anchor hand” while keeping the mark centered on the Brother PR1055X crosshair.
  • Clamp left side first, then pause and re-check the mark on the screen before clamping the right side.
  • Use temporary spray adhesive or double-sided tape on the stabilizer to stop the sleeve from skating during clip pressure.
  • Success check: The chalk/crosshair center stays fixed before and after each clip is engaged.
  • If it still fails: Rebuild the stabilizer/fabric sandwich for more grip, because a single layer of knit can be too slippery for friction clamping.
• Q: How can Brother PR1055X users improve a blurry Live View camera image when aligning sleeve embroidery?
  A: Control glare and clean the Brother PR1055X camera lens area so the live feed has contrast.
  • Tilt the PR1055X screen downward slightly to reduce reflections.
  • Reduce direct overhead fluorescent glare when possible and use a small task light aimed at the fabric (not the screen).
  • Gently clean the camera lens area under the needle array with a microfiber cloth.
  • Success check: The chalk mark and fabric texture become clearly visible on the Live View feed.
  • If it still fails: Reposition lighting again, because glare can wash out fine alignment lines even when the lens is clean.
• Q: What is the safest way to verify sleeve design placement on a Brother PR1055X before starting embroidery with a Robot Frame?
  A: Use the Brother PR1055X “ghost/phantom” design overlay on Live View and confirm fit, center, and straightness before stitching.
  • Turn on the grid/crosshair overlay during Live View alignment.
  • Project the design preview over the live video and check that the design stays within sleeve width.
  • Confirm the design is centered on the marked point and straight relative to the cuff.
  • Success check: The overlay sits exactly where the stitch-out is expected, with no edge crossing the sleeve boundary.
  • If it still fails: Re-clamp and re-check; fixing it now costs seconds, fixing it after stitching costs the garment.
• Q: When should a Brother PR1055X sleeve workflow upgrade from a Robot Frame to a magnetic hoop system or higher-production setup?
  A: Upgrade when spring clamping causes daily fatigue or repeated re-clamping; use technique first, then tools, then production workflow.
  • Level 1 (technique): Rely on Brother PR1055X Live View + crosshairs to eliminate guessing and re-hooping.
  • Level 2 (tool): Move to a magnetic hoop system when doing high volume or when shear/sliding during spring clamping keeps happening.
  • Level 3 (workflow): Use a hooping station approach so one garment can be prepped while another is stitching.
  • Success check: Fewer re-clamps, less wrist strain, and faster repeatable alignment on sleeves.
  • If it still fails: Slow the first part of the run (a safe starting point is reducing speed for the first 500 stitches) and reassess stabilizer grip and design file quality.
• Q: What magnetic hoop safety rules should Brother PR1055X operators follow when upgrading from a Robot Frame to magnetic embroidery hoops?
  A: Treat magnetic hoops as high-force clamps and keep fingers and medical devices safely away from the mating surfaces.
  • Keep fingertips out of the closing gap and lower the magnetic ring vertically to avoid pinching.
  • Store magnetic hoops so they cannot snap together unexpectedly on the table or machine.
  • Maintain extra caution around pacemakers (a common safe guideline is keeping strong magnets 6–12 inches away; follow medical advice and product guidance).
  • Success check: The hoop closes without finger contact and the garment is secured without repeated re-positioning.
  • If it still fails: Switch back to a lower-force method for that job and confirm the hoop style and handling steps match the manufacturer’s instructions.
