The "One-Hoop" Protocol: Mastering Split Necklines on Brother Machines

If you have ever extracted a finished blouse from your machine, only to find the left and right sides of the neckline don't meet—leaving a heartbreaking 2mm gap or a jagged step—you know the specific kind of dread that follows. It is the sinking feeling of wasted materials and lost time.

Split necklines are the ultimate stress test for any embroiderer. They expose every weakness in your stabilization, every micro-millimeter of hoop shifting, and every shortcut taken during alignment.

But here is the truth: Your machine is capable of perfection. The error almost always lies in the process, not the hardware.

This white paper re-engineers the workflow for joining split designs on Brother Innov-is series machines (and similar single-needle models). We will move beyond "hoping it lines up" to a military-grade protocol using the One-Hoop Method—combining files digitally to stitch physically in a single 200×300mm frame.

1. The Physics of Failure: Why "Aligning Later" Doesn't Work

To fix the problem, you must understand the enemy. When you stitch the left side, un-hoop, and then try to re-hoop for the right side, you are fighting three physical forces:

1. Friction Variance: You can never re-hoop fabric with the exact same tension vector twice. One side will always rely on a slightly different stretch, causing the design to look "longer" or "wider" than its twin.
2. Hoop Burn & Drag: Re-hooping crushes the fibers of delicate blouse materials (silk, rayon, blends).
3. The "blind Spot": Aligning a needle drop point by eye has a margin of error of roughly 0.5mm to 1.0mm. On a neckline, a 1mm gap looks like a canyon.

The Solution: By combining the left and right files inside the machine and stitching them in one large hoop (200×300mm), we eliminate re-hooping entirely. The fabric stays under constant, singular tension.

2. Pre-Flight Preparation: Fabric, Physics, and the "Drum Skin" Myth

Before you touch the screen, you must stabilize the physical world. The worst advice given to beginners is "hoop it tight as a drum." On necklines, this causes the fabric to snap back (pucker) once removed.

The Fabric-Stabilizer Equation

Necklines are curved. Curved fabric features a "bias"—a diagonal grain that stretches notoriously easily.

Decision Tree: Fabric & Stabilizer Pairing Strategy
Use this logic to select your foundation.
* Scenario A: Stable Woven Cotton/Linen
Risk:* Low stretch, moderate wrinkling.
Prescription:* Medium Tear-away (x2 layers) cross-laid OR Fusible Mesh Cut-away.
* Scenario B: Slippery Blouse Material (Silk/Rayon/Poly-blend)
Risk:* High shifting, puckering, hoop marks.
Prescription:* No-Show Mesh Cut-away (Fusible). The fusible aspect prevents the fabric from "swimming" on top of the stabilizer.
* Scenario C: Stretchy Knits (T-shirt/Jersey)
Risk:* Massive distortion, needle perforation.
Prescription:* Heavy Cut-away only. Never tear-away.

The Hooping Reality Check

This project utilizes a large 200×300mm hoop. Large plastic hoops have a structural weakness: they flex in the middle, losing grip on slippery fabrics.

The Diagnostic: Tighten your hoop screw. Pull the fabric gently at the center. Does it slip? If you are physically struggling to get even tension without dragging the grainline off-center, or if you are seeing "shiny rings" (hoop burn) on your fabric/velvet, this is a hardware limitation.

The Hardware Upgrade: This is the precise scenario where professionals switch to magnetic embroidery hoops. Unlike screw-based mechanisms that drag fabric while tightening, magnetic hoops clamp vertically with strictly even pressure.

• Why it matters here: On a split neckline, if the fabric shifts 1mm during the 40-minute stitch time, the join will fail. Magnetic hoops minimize this "creep."

Warning: Magnetic Safety
Magnetic hoops use industrial-grade neodymium magnets. They can pinch fingers severely. Keep them away from pacemakers, credit cards, and machine screens. Never rest a magnetic hoop on the machine's LCD screen.

Pre-Flight Checklist (The "No-Go" List)

• Needle Condition: Run your fingernail down the needle tip. Any catch? Replace it. A burred needle causes birdnesting.
• Bobbin Check: Is the bobbin area clean of lint? A lint bunny can throw off your alignment by jerking the carriage.
• Thread Path: Are you using metallic thread (Gold/Silver)? If yes, bypass the last guide or use a thread stand to reduce drag.
• Hoop Clearance: With the large 200x300mm hoop attached, move the carriage to all four corners. Does it hit the wall? A cup of coffee? Clear the "blast radius."

3. The Digital Join: merging Files on the Brother Innov-is

Now, we enter the machine interface. We are not just stitching; we are editing.

1. Select "Embroidery Edit": Do not hit "Embroidery" directly. You need the grid manipulation tools.
2. Load Part A (Left Side): Place it on the screen.
3. The Critical Step: Press ADD. Find Part B (Right Side).
4. Rough Placement: Move Part B to the general area.

If you are a brother v3 owner, this screen is your command center. You must see both designs on the grid simultaneously.

4. Optical Alignment: The "Pixel-Perfect" Grid Technique

This is where patience pays dividends. You cannot align these designs by "eyeballing" the gap. You must use the machine's coordinate system.

The Zoom & Nudge Protocol

1. Zoom In: Maximize the view to 200% or 400% on the join area.
2. Identify the "Anchor Point": Every split design creates a specific stitch, usually a running stitch or a satin column end, meant to touch its partner.
3. The Bump Test: Use the arrow keys to nudge the right side until it touches the left.
   • Visual Check: It should look like one continuous line.
   • Grid Check: Look at the grid lines. Is the bottom of the "U" curve sitting on the exact same horizontal grid line for both sides?

Crucial Insight: If the curve looks "kinked" or sharp at the bottom, your alignment is off. It should flow like water.

5. Controlling the Variables: Tension & Speed Management

In the reference video, the operator drops the tension significantly to 1.0.

• Context: Standard Brother tension is usually around 4.0.
• Why drop to 1.0? The operator is likely using Metallic Thread (gold) or a thick cotton thread on a delicate fabric.

The "Sweet Spot" Settings

Do not blindly set tension to 1.0 unless you are using metallic thread. Use these ranges:

• For Standard Rayon/Polyester (40wt): Tension 3.4 – 4.0.
• For Metallic Thread: Tension 1.0 – 2.0. (Metallics are stiff; high tension snaps them).
• Speed (SPM - Stitches Per Minute):
  • Standard: 800-1050 SPM.
  • Split Neckline Safe Zone: 600 SPM.
  • Why slow down? High speed causes hoop vibration. Vibration causes micro-shifting. On a join, micro-shifting is fatal. Slow is smooth, smooth is fast.

If you see the top thread looping (too loose), bump tension up by 0.2 increments. If you see white bobbin thread on top (too tight), lower it.

6. Resolving the "Memory Full" System Error

Brother machines have limited internal "pocket memory." When combining two complex designs, you may hit a “Not enough available memory” error when trying to save or sew.

The Fix Loop:

1. Don't panic; your edit is still on screen.
2. Press the "Pocket" or "Memory" tab.
3. Delete old test files or completed projects. (You have them on USB anyway, right?)
4. Save the new combined file immediately.
   • Pro Tip: Always save the combined file as "ProjectName_COMBO". If the power goes out, you don't want to re-align from scratch.

7. The 200×300mm Protocol: Managing the "Beast"

A 200×300mm hoop is heavy. On a sleek machine like the Brother, a fully loaded large hoop generally has a "cantilever effect"—the weight of the hoop drags the carriage down.

Fabric Management (The "Table" Trick)

Never let the excess blouse fabric hang off the table—this weight pulls the hoop backward, distorting the Y-axis alignment.

• Action: Bunch the excess blouse fabric gently and clip it around the hoop edges (away from the needle path) using quilting clips or magnetic cable ties.
• Support: If possible, put a stack of books or an extension table to the left of the machine to support the hoop's weight.

If you are struggling with keeping the fabric taut in such a large frame, this is another trigger to check hooping station for embroidery solutions. A dedicated station holds the outer hoop fixed while you place the inner hoop, ensuring the grainline remains perfectly orthogonal (90 degrees).

Setup Checklist (The "Green Light" Sequence)

• Stabilizer is fused/pinned and does not ripple.
• Grid Check: Design is centered and combined in the edit screen.
• Hoop Check: The inner hoop is fully seated. Give it a firm push. Listen for the clack.
• Fabric Clearance: Excess shirt sleeves are pulled back and clipped.
• Speed Limiter: Set to approx 600 SPM.

8. The Stitch-Out: Performing the Surgery

Press the localized "Green" button (Start).

Phase 1: The Basting/Placement Line (Gold)

Most professional designs start with a "running stitch" outline. Do Not Walk Away. Watch this line. It traces the exact shape of the neck.

• Sensory Check: Is the line smooth? Does it meet perfectly where the designs join?
• Abort Criteria: If this thin line is off by even 1mm, STOP. It is easier to pick out a running stitch than a satin fill. Adjust your alignment on screen and restart.

Phase 2: The Left & Right Fills

The machine will travel. It will stitch the left side, travel over the arc, and stitch the right.

• Observation: Watch for fabric "flagging" (bouncing up and down with the needle). If it bounces too much, your hooping is too loose. Pause -> Place a layer of water-soluble topping -> Resume.

9. Understanding Hoop Sizes & Hardware Limits

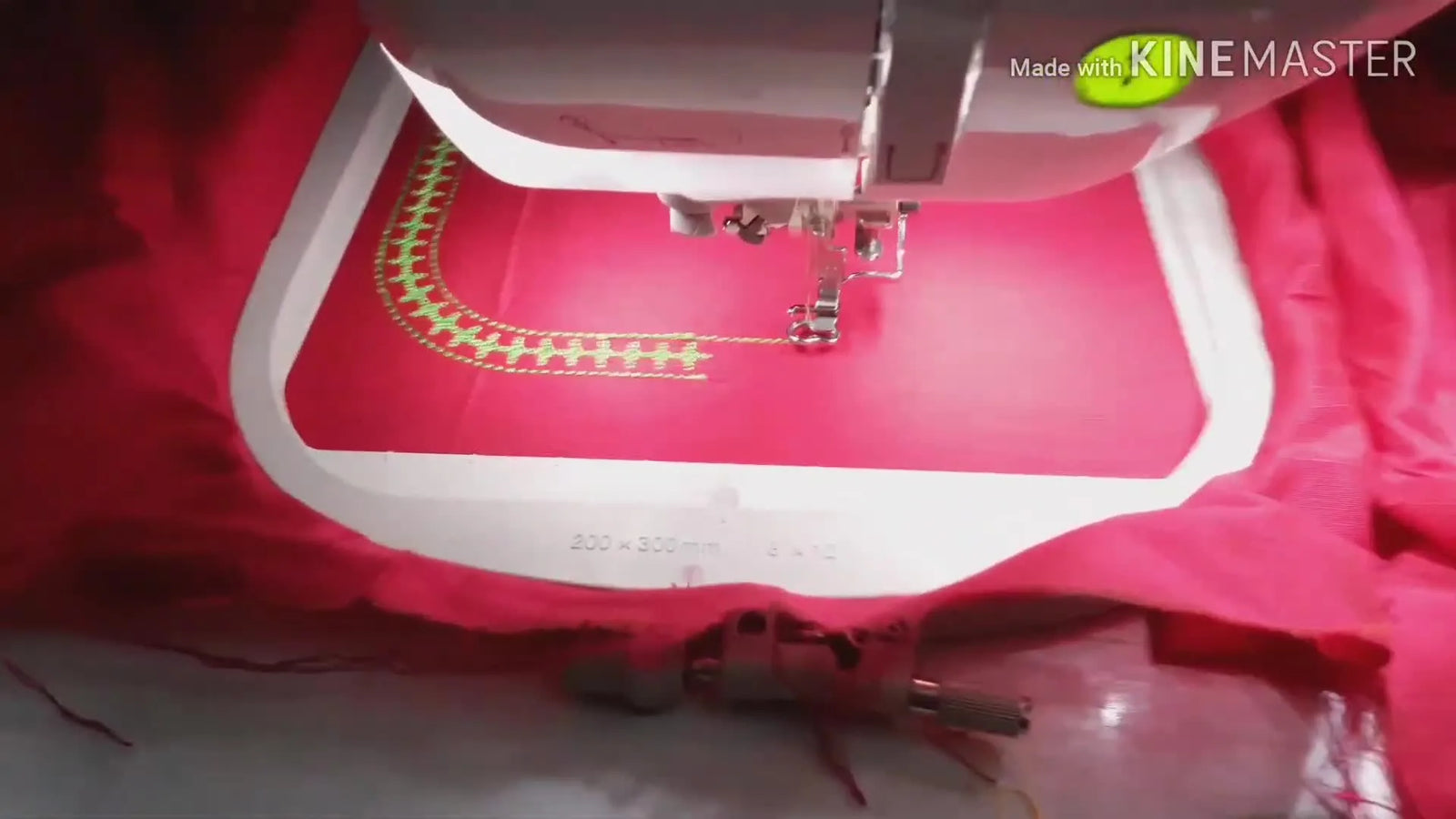

The image below shows the "200x300mm" marking. This is your "hard deck."

Beginners often ask: "Can I do this in a 5x7 (130x180) hoop?" The answer is No. To do a one-hoop join, the physical aperture must exceed the total design size. If you try to do this in a 5x7 hoop, you are forced to re-hoop, returning to the alignment problems we discussed in Section 1.

The "Hoop Burn" Dilemma: Look closely at your chosen hoop. Is it leaving "shiny marks" or crushed velvet texture?

• Low Cost Fix: Wrap the inner plastic hoop ring in bias binding tape or medical gauze to soften the grip.
• Pro Fix: Upgrade to a brother embroidery machine large hoop that is magnetic. The flat clamping force eliminates the friction burn caused by forcing an inner ring inside an outer ring.

Warning: Needle Zone Safety
When working with large garments, it is tempting to reach in to smooth the fabric. Never put your hands inside the hoop area while the machine is "Green" (active). If a needle hits a finger bone at 600 SPM, it will shatter the needle and damage the hand.

10. Troubleshooting the "Imbalanced" Look

"I did everything right, but the right side looks bigger than the left."

This is rarely a digitizing error. This is Physics. The machine stitches the left side first. As it stitches, it adds thousands of stitches—which equals mass and pull. The fabric contracts. By the time it gets to the right side, the fabric has "shrunk" slightly due to the pull of the previous stitches.

The "Pull Compensation" Fix:

1. Heavy Stabilizer: Use a firmer Cut-away stabilizer (2.5oz or 3.0oz).
2. Spray Adhesive: Use a temporary spray adhesive (like 505) to bond the fabric to the stabilizer. This turns two flexible layers into one solid board.
3. Topping: A layer of water-soluble topping on top prevents stitches from sinking, making them look uniform even if the fabric pulls.

11. Comment Section Analysis: Real-World Q&A

We analyzed user feedback to solve the most common edge cases.

• "The Add Button is Missing":
  • Diagnosis: You went straight to "Embroidery" (Ready to Sew).
  • Fix: Go back. Select "Edit" first. You cannot merge files in the sewing screen.
• "There is a gap in the connection":
  • Diagnosis: Hoop slippage.
  • Fix: If using a standard hoop, tighten the screw with a screwdriver (gently), not just fingers. If using a magnetic hoop for brother, ensure no fabric bunches are trapped between the magnets.

12. The Decision: When to Upgrade Your Logic?

You can execute this technique with the standard kit included in the box. However, if you are moving from "Hobbyist" to "Small Business," your time becomes your most expensive currency.

The Upgrade Path:

1. Level 1 (Technique): Use the One-Hoop method described here. Cost: $0.
2. Level 2 (Efficiency): If you struggle with hooping slippery necklines, a hooping for embroidery machine magnet system will save you approx. 5 minutes per shirt and reduce rejects.
3. Level 3 (Scale): If you are doing 50+ of these necklines, a single-needle machine is too slow (color changes take too long). This is where a SEWTECH Multi-Needle machine becomes a mathematical necessity for profit.

Final Operation Checklist

• Watch the outline: Did the gold line meet perfectly?
• Listen: Is the sound a rhythmic thump-thump? A loud clack means the needle is hitting the needle plate or hoop—STOP immediately.
• Fabric Management: Ensure the rest of the blouse doesn't slide under the hoop and get stitched to the back (we've all done it).

By following this protocol, you turn a terrifying game of chance into a repeatable engineering process. The result? A neckline that looks like it was manufactured in a high-end factory, not struggled over on a kitchen table.

FAQ

• Q: How do I join split neckline embroidery on a Brother Innov-is machine without a 1–2mm gap between the left and right sides?
  A: Use the One-Hoop method by combining both parts in the Brother Innov-is Embroidery Edit screen and stitching in one 200×300mm hoop to eliminate re-hooping shift.
  • Load Part A (left) in Embroidery Edit, then press ADD to load Part B (right) onto the same grid.
  • Zoom to 200%–400% at the join and nudge Part B with arrow keys until the anchor stitches touch cleanly.
  • Slow the machine to about 600 SPM to reduce vibration-driven micro-shifting at the join.
  • Success check: The placement/running outline meets smoothly at the join with no visible step, kink, or open gap.
  • If it still fails: Re-check hoop slippage (center-pull test) and stabilizer choice for the fabric type (fusible mesh or heavier cut-away for unstable fabric).
• Q: What stabilizer should I use for a Brother Innov-is split neckline on slippery blouse fabric like silk, rayon, or poly-blend?
  A: Use fusible no-show mesh cut-away to stop the fabric from “swimming” and shifting during a long neckline stitch-out.
  • Fuse the mesh cut-away smoothly so the foundation does not ripple before hooping.
  • Avoid over-tight “drum skin” hooping; aim for flat and supported rather than stretched.
  • Add water-soluble topping if stitches tend to sink or the fabric surface looks uneven during stitching.
  • Success check: The fabric stays flat in the hoop with no creeping, and the neckline curve stitches evenly without puckers after unhooping.
  • If it still fails: Increase foundation firmness (often a heavier cut-away helps) and consider temporary spray adhesive to bond fabric-to-stabilizer.
• Q: Why is the “ADD” button missing when trying to merge two embroidery files on a Brother Innov-is (and similar single-needle) machine?
  A: The ADD function appears in Embroidery Edit, not in the ready-to-sew Embroidery screen.
  • Back out to the main menu and enter Embroidery Edit first.
  • Load Part A, then press ADD to bring in Part B for on-screen alignment.
  • Save the combined design after aligning so the edit is not lost if power drops.
  • Success check: Both Part A and Part B are visible on the same grid and can be moved/nudged together.
  • If it still fails: Confirm the files are being loaded into the edit workspace (not directly into the sew screen) and try removing other saved items if memory is limited.
• Q: How do I fix the Brother Innov-is “Not enough available memory” error when combining two complex neckline designs?
  A: Free internal pocket memory by deleting old files, then save the new combined file immediately.
  • Open the Pocket/Memory area and delete old test designs or completed projects you already have on USB.
  • Return to the edit screen and save the combined design right away (use a clear “_COMBO” style name).
  • Avoid repeated re-alignments by saving as soon as the join looks correct on the grid.
  • Success check: The machine allows saving/sewing the combined design without the memory warning.
  • If it still fails: Simplify what is stored internally (keep files on USB) and re-try the save after additional deletions.
• Q: What Brother Innov-is upper thread tension and speed settings are safest for split neckline embroidery, especially with metallic thread?
  A: Use standard tension for 40wt rayon/poly, drop tension for metallics, and slow to about 600 SPM to protect the join from vibration.
  • Set tension 3.4–4.0 for standard 40wt rayon/poly; set 1.0–2.0 for metallic thread to reduce snapping.
  • Reduce speed from typical 800–1050 SPM down to a split-neckline safe zone of ~600 SPM.
  • Adjust tension in small steps: raise by 0.2 if top thread loops; lower if bobbin thread shows on top.
  • Success check: Stitching sounds smooth and consistent, with balanced thread appearance (no looping, no excessive bobbin showing) and a clean join.
  • If it still fails: Check needle condition and thread path drag (metallic thread may need reduced drag, such as bypassing the last guide or using a stand).
• Q: How do I prevent hoop slippage and hoop burn on a Brother Innov-is 200×300mm hoop when stitching a split neckline?
  A: Diagnose slippage with a center-pull test and reduce friction damage by improving grip or softening contact; upgrade to a magnetic hoop if the standard hoop cannot hold tension evenly.
  • Tighten the hoop screw and gently pull at the hoop center to see whether the fabric creeps.
  • Support the heavy 200×300mm hoop (books/extension surface) so fabric weight does not drag the hoop and distort alignment.
  • Reduce hoop burn by wrapping the inner plastic ring with bias tape or medical gauze to soften pressure points.
  • Success check: The fabric stays fixed during the stitch-out and comes out with minimal shiny rings or crushed nap, and the join remains aligned.
  • If it still fails: Treat it as a hardware limitation—magnetic clamping pressure often reduces creep on slippery fabrics compared to screw-tight hoops.
• Q: What safety rules should be followed when using magnetic embroidery hoops and when working near the needle on a Brother Innov-is split neckline job?
  A: Treat magnetic hoops and the needle zone as high-risk areas: keep fingers out of pinch/strike zones and keep magnets away from sensitive devices and the machine screen.
  • Keep hands out of the hoop area whenever the machine is active (green/start), especially during large-hoop garment management.
  • Handle magnetic hoops carefully—neodymium magnets can pinch hard; keep away from pacemakers, credit cards, and electronics.
  • Never rest a magnetic hoop on the Brother Innov-is LCD screen.
  • Success check: Hooping and stitching are completed without pinched fingers, accidental fabric grabs, or any contact between hand/hoop and the moving needle area.
  • If it still fails: Stop the machine, power down if needed, and reset the workspace (clear the “blast radius” and re-clip excess fabric away from the needle path).
