Stop Re-Hooping for Tiny Designs: Run 3 Names at Once on a Janome MB-7 (and Save Your Stabilizer)

Stop Wasting Stabilizer: A Production-Grade Workflow for "Batching" on the Janome MB-7

If you have ever stared at a massive 200×240mm hoop containing a single, tiny 3-inch name design and thought, "I am about to waste an entire sheet of premium stabilizer for that?", take a breath. You are experiencing the friction between hobbyist caution and production efficiency.

In professional embroidery, stabilizer is not just a disposable backing; it is a fixture.

In this detailed breakdown, we analyze a workflow where Becky runs three names in a single hoop on a Janome MB-7, and then—crucially—keeps the stabilizer hooped while she repeats the batch using a technique known as "Windowing." This isn’t just about saving pennies on backing; it is about saving the 5–10 minutes of "hooping time" that kills your hourly profit.

There are two major wins here:

1. Mathematical Precision: A clean layout in Embrilliance Essentials ensures the machine lands exactly where you expect (Zero-Guesswork).
2. Structural Conservation: A repair method allowing you to reuse the "good" stabilizer that remains structurally sound.

One sentence for your mindset: You are not being "cheap" by patching stabilizer. You are building a repeatable manufacturing jig.

Why “Embroidery in Multiples” on a Janome MB-7 Hoop Feels Like Cheating (In the Best Way)

When you wield a large industrial-style frame like the Janome M1 (200×240mm), the novice instinct is to fill it with one large design to "be safe." But if you are stitching small personalization—names on felt "snowballs," patches, or uniform tags—single placements are where time and materials go to die.

Becky’s approach is a classic production maneuver: place three identical text objects across the X-axis of the hoop so the machine stitches Left (-3"), Center (0"), and Right (+3") automatically.

This is the strategic advantage of a janome mb-7 seven-needle embroidery machine. Unlike a single-needle machine that requires a manual thread change or a jump-stitch trim for every color, a multi-needle machine is built for this "traveling" workflow. It reduces Needle Downtime—the silent killer of profitability.

The Scalability Rule: A viewer noted you could push this further on larger frames (e.g., a 10×16" hoop could fit 6–8 patches). While true in principle, the "Rule of Three" is the perfect starting point for beginners. It balances efficiency with manageable risk. If you are new to batching, start with three. Get your alignment perfect. Then scale up.

The “Hidden Prep” That Makes Multiples Work: Stabilizer Choice, Marking Strategy, and Friction Control

Before you open your software, you must establish a physical baseline. If your foundation moves, your stitching moves.

Becky uses a specific combination of materials to create a "No-Slip" environment:

• Stabilizer: Medium weight tearaway (Recommend: 2.5 oz to 3.0 oz). It must be crisp enough to support the stitches but tear cleanly without distorting the font.
• Friction Surface: A DIME Hoop Mat (silicone with a grid).

Why the Mat Matters (The Physics of Hooping): When marking stabilizer, the plastic outer hoop slides easily on smooth tables. If the hoop shifts while you are drawing your centerline, your "Zero" is no longer Zero. The silicone mat provides high friction, locking the hoop in place for precision marking. This effectively treats your hooped stabilizer as a reusable jig.

Search your supplier for "silicone embroidery mat with grid." If you cannot find the branded version, any high-friction, gridded craft mat will improve your accuracy by preventing micro-shifts during prep.

Prep Checklist: The "Zero-Drift" Protocol

• Check Stabilizer Tension: Hoop the 2.5 oz tearaway. Tap it with your finger—it should sound like a tight drum skin (thump-thump), not a loose paper bag (crackle).
• Check Surface: Place hoop on a non-slip gridded surface (silicone mat).
• Marking Tool: Use a mechanical pencil or fine-tip water-soluble pen. Light pressure only—do not stretch the stabilizer while drawing.
• Adhesive Ready: 505 Temporary Spray (Cap ON until use).
• Consumable Check: Ensure you have sharp applique scissors and clear scotch tape within arm's reach.


Mark the 0 / -3 / +3 Template on Hooped Stabilizer (The "Physical Twin" of Your Digital File)

Here is the physical template Becky creates directly on the stabilizer. This is the most critical step for "Floating" (stitching without catching the fabric in the hoop ring):

1. Mark the Vertical Center (0) line.
2. Measure and mark exactly 3 inches to the Left (-3).
3. Measure and mark exactly 3 inches to the Right (+3).
4. Draw a Horizontal Center line across all three to create crosshairs.

Why this works: Most tutorials skip the "Why." When you float fabric, the hoop's plastic ring is no longer your reference point. Your pencil marks become your Registration System. If these marks are off by 2mm, your design is off by 2mm. By matching these physical marks to the coordinates in your software (Embrilliance), you create a closed loop of accuracy.

Pro Terminology: Experienced digitizers and operators often call this "Windowing" or "Window Floats." You keep the "frame" of the stabilizer intact and only replace the "window panes" where the needle perforated the material.

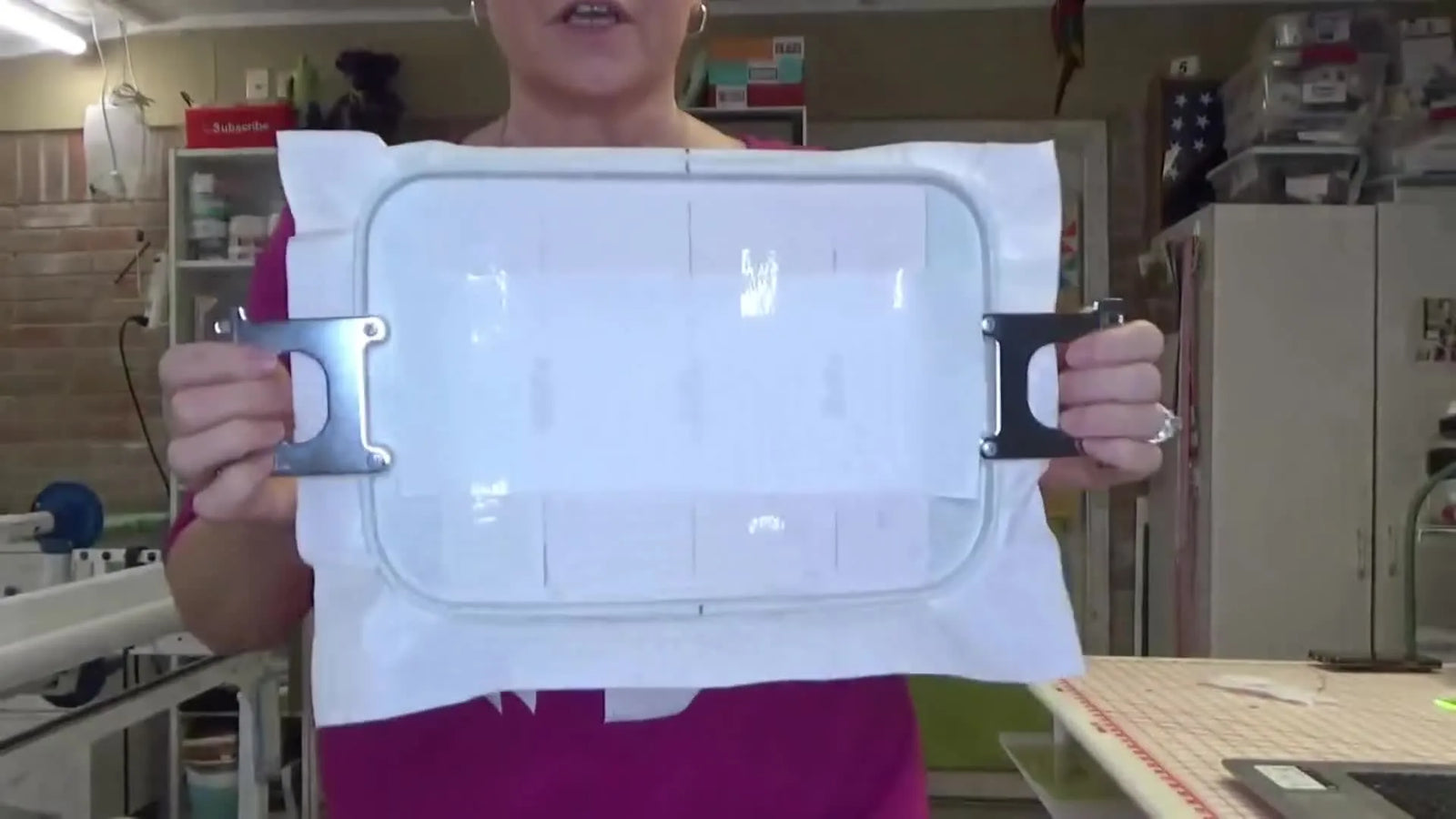

The Stabilizer-Saving Tape Patch: Repair Tearaway Without Re-Hooping

This is the "Hack" that scares beginners because it feels like cheating. It is not. It is standard industry practice for patches and badges.

After a run is complete, you will have three torn-out holes. Do NOT un-hoop. Instead:

1. Cut a fresh strip of stabilizer slightly larger than the holes.
2. Slide it under the hoop (or lay it on top if floating) to cover the voids.
3. Use clear Scotch/cellophane tape to bridge the fresh patch to the old stabilizer.

The Physics of the Patch: The goal is not aesthetic perfection. The goal is Ten-sile Continuity. You are restoring the "drum skin" tension so the next stitchout does not sink or flag (bounce up and down).

Two Critical Safety Rules for Taping:

1. Keep Tape Out of the Stitch Path: Tape gum will accumulate on your needle, heat up, and cause thread breaks. Tape the edges of the patch, not the center where the needle strikes.
2. Finger Safety:

Warning: Pinch Point Hazard! When applying tape or smoothing patches near a multi-needle machine, keep your hands clear of the needle bar case. Industrial machines engage instantly. Never reach under the presser foot while the machine is powered or in "Ready" mode.

Float Felt Snowball Segments with 505 Spray: Fast Placement Without Pins

Once your "Windows" are patched, it is time to attach the fabric (the Felt Snowballs). Becky uses the Float Method with 505 Temporary Spray.

The Process:

1. Light Mist: Spray the 505 onto the patched stabilizer, not the felt. Hold the can 12 inches away. You want a "tacky mist," not a "wet puddle."
2. The Crease: Fold your felt piece in half to create a visible center crease.
3. The Drop: Align the felt crease with your pencil crosshair (-3, 0, or +3).
4. The Anchor: Press firmly from the center outward.

Sensory Check (The "Stick" Test): Felt is forgiving, but it can shift. After pressing the felt down, tug a corner gently. You should feel resistance similar to peeling a Post-it note. If it lifts effortlessly, you need more spray or more pressure. If it leaves wet residue on your finger, you sprayed too close.

Why No Pins? On a multi-needle machine, clearance is tight. A pin head can catch on the presser foot, causing a catastrophic collision. 505 Spray, applied correctly, provides sufficient shear strength to hold small felt pieces without the risk of metal-on-metal strikes.

Embrilliance Essentials Layout: Place Text at -3, 0, +3 and Rotate 90° for Clean Multiples

Now we synchronize the digital brain with the physical marks. In Embrilliance Essentials:

1. Hoop Selection: Select the Janome 200×240mm (M1) hoop in Preferences.
2. Object Creation: Type the name (e.g., "Aiden").
3. Orientation: Rotate the text 90 degrees.
   • Why? On the MB-7, the gantry moves the hoop. Orienting text vertically often utilizes the Y-axis movement more smoothly for long names.
4. The Grid System:
   • Place Instance 1 at Center (0,0).
   • Copy/Paste Instance 2 and move center to -3 inches (Left).
   • Copy/Paste Instance 3 and move center to +3 inches (Right).

The Beginner's Anxiety: Many novice users searching for floating embroidery hoop techniques are actually confused about coordinate systems, not hooping. They think "floating" means the machine magically knows where the fabric is. It does not. The machine only knows coordinates. Your software layout must match your pencil marks.

Becky's Insight: She notes the text size is the default ~1/2 inch. This is the Sweet Spot for legibility on felt. Going smaller (under 5mm) often requires a thinner needle (60/8) and thinner thread (60 wt) to avoid the text looking like blobs.

Setup That Prevents “Why Is It Stitching Crooked?”: Hoop Orientation and Reality Checks

Before you press the green button, perform a Pre-Flight Sanity Check. This saves 90% of failures.

Becky loads the hoop into the MB-7 arms.

The "Technician's Eye" - What to look for:

• The "Click": When locking the hoop onto the machine, listen for a distinct click or snap. A loose hoop frame causes "registration loss" (outlines not matching fills).
• Clearance: Check that your felt pieces are not curled up. A curled edge can catch the presser foot and rip the piece off the stabilizer.
• Needle Assignment: Becky uses Needle 3 (Pink). Ensure your machine has Needle 3 assigned to the correct color slot in the screen.

Note on Machines: While demonstrated on an MB-7, this logic applies perfectly to single-needle machines with large hoops (e.g., 9×14"). The physics of placement and windowing are identical; the only difference is you will likely have more jump stitches to trim manually.

Setup Checklist (Do this BEFORE pressing Start)

• Hoop Lock: Physically tug the hoop gently to ensure it is locked into the drive arm.
• Planar Check: Look at the hoop from eye level—is the stabilizer flat? (No "hammocking").
• Obstruction: Ensure the hoop has full range of motion. (No coffee cups or scissors behind the machine!).
• Pattern Check: Does the screen show 3 names? Are they inside the red safety boundary?
• Needle Check: Is the active needle (Needle 3) threaded correctly? Pull the thread tail—you should feel smooth resistance (like flossing teeth).


Run the Janome MB-7: Let the Machine Travel

Becky starts the machine. The MB-7 stitches the Left name, trims, moves to Center, trims, moves to Right.

Speed Settings (SPM - Stitches Per Minute): For text on felt, you do not need to run at maximum speed.

• Danger Zone: 800+ SPM (Risk of thread breaks on small satin columns).
• Sweet Spot: 600–700 SPM.

The entire run takes about five minutes. This is the efficiency equation: 5 minutes of run time vs. what would have been 15 minutes of re-hooping time (3 hoops x 5 minutes prep each).

Post-Run Handling: When the machine stops, remove the felt pieces gently. Support the stabilizer with your hand as you tear the felt away to minimize distortion of the remaining backing. This preserves the "Window" structure for the next batch.

Decision Tree: Stabilizer + Hooping Strategy for Multiples

Use this decision matrix to determine the correct workflow based on your materials. One size does not fit all.

START: What material are you stitching?

• A. Stable, Non-Stretch (Felt, Denim, Canvas)
  • Volume: High (10+ pieces)?
    • Action: Hoop 2.5oz Medium Tearaway -> Cut Windows -> Float Fabric with Spray.
  • Volume: Low (1-2 pieces)?
    • Action: Standard hooping (Fabric + Stabilizer together).
• B. Unstable, Stretchy (T-Shirts, Performance knits, Minky)
  • Risk: Fabric distortion and "puckering."
  • Action: Do NOT use Tearaway alone. Use Cutaway Stabilizer (2.5 - 3.0 oz). You can still "float," but you must use a sturdier base.
  • Better Option for Production: Keep reading below regarding Magnetic Hoops.

The "Tooling" Reality Check: If you find yourself fighting with screw-tightened hoops on thick items (like hoodies) or delicate items (like performance wear), you are hitting the limit of "Legacy Tooling." This is usually where magnetic embroidery hoops enter the conversation. They do not rely on friction/screws; they use magnetic force to clamp, which eliminates "hoop burn" (the shiny ring mark) and drastically speeds up the reload process.

Warning: Magnetic Safety! Magnetic frames (like MaggieFrame or similar) use rare-earth magnets. They are incredibly powerful. Do not place fingers between the rings—they will snap shut with bone-bruising force. Keep safe distance from pacemakers and sensitive electronics.

The “Why” Behind the Tape Patch: Tension & Quality

Why does the stitch quality depend on that ugly tape patch?

The Physics of Penetration: Every time the needle enters the fabric, it pushes down. Every time the take-up lever pulls the thread tight, it pulls up. This cycle happens 10+ times per second.

• Without a Patch: The stabilizer has a hole. The fabric has no support. It "flags" (bounces). Result: Birds nests, skipped stitches, and wavy letters.
• With a Patch: You restore the XY Plane rigidity. The fabric stays flat, and the thread loop forms correctly.

Troubleshooting the Patch Method:

1. Needle gumming up? You taped too close to the center. Use Isopropyl Alcohol on a cotton swab to clean the needle groove.
2. Patch lifting? You used weak tape. Use packing tape or quality brand-name clear tape.
3. Outline off? Your tape patch was "loose." Make sure to pull the patch taut before taping it down.

Industry search trends for terms like hooping for embroidery machine often spike during holiday seasons. Why? Because people are overwhelmed by volume. Mastering this "Patch and Float" method is the first step to surviving the rush.

“I Need That Hoop Mat” and Other Comment Questions—Answered

Key questions from the community, filtered through a shop-owner’s expertise.

1) “Where do I get the snowball template?”

• Answer: Do not overthink the source. The video uses a specific cut, but you can use any die-cut shape. The secret is Physical Consistency. If you hand-cut your felt, ensure every piece is identical. If your fabric varies, your alignment marks are useless.

2) “Do I need Embrilliance Essentials, or the full suite?”

• Answer: For this workflow—merging designs, adding text, and aligning coordinates—Embrilliance Essentials is sufficient. You do not need the expensive digitizing modules yet. Start with the basics of layout control.

3) “Can I do this without a multi-needle machine?”

• Answer: Yes, but with caveats. A single-needle machine with a 9x14" hoop can physically hold the pieces. However, you will have to manually change threads (if multicolor) and the machine will make long jump stitches between names that you must trim by hand. The logic holds, but the labor is higher.

This is why tools like the hoop master embroidery hooping station exist—they are mechanical jigs designed to solve the physical alignment problem, just like Becky’s grid mat solution.

The Upgrade Path: 30 Pieces vs. 300 Pieces

Once you master the "Batch of Three," you will inevitably hit the next bottleneck: Capacity.

Here is a logical framework for deciding when to upgrade your tools:

The Pain Point: Your wrist hurts from tightening hoop screws, or you are rejecting shirts because of "Hoop Burn" marks.

• Level 1 Solution (Consumables): Switch to "floating" with adhesive spray (as described above). Cost: Low.
• Level 2 Solution (Tooling): Upgrade to dime snap hoop or Magnetic Hoops. These allow you to clamp fabric in seconds without screws. This preserves fabric integrity and saves operator wrists. Cost: Moderate.

The Pain Point: You have orders for 50+ hats or shirts, and your single-needle machine takes 20 minutes per item due to thread changes.

• Level 3 Solution (Machinery): This is the threshold for a multi-needle machine. Machines like the SEWTECH multi-needle series are designed for this exact "Load-Run-Repeat" cycle. They offer larger stitching fields, faster independent needle speeds, and better clearance for items like bags and caps.

Hidden Consumables for the Pro Kit: Don't start a batch without these often-forgotten essentials:

• Needles: 75/11 and 80/12 Titanium Organ Needles (Change every 8 hours of run time).
• Bobbin Case Cleaner: A business card or dense paper to floss out lint from the bobbin tension spring.
• Curved Scissors: Essential for snipping jump stitches flush to the felt.

Operation Checklist (The Loop)

• Patch: Apply fresh stabilizer patch over previous holes; tape edges firmly (away from stitch area).
• Mist: Re-apply 505 spray lighty (do not soak).
• Fold & Align: Crease the new felt piece, align to pencil crosshairs.
• Press: Apply pressure from center out to activate adhesive.
• Verify: Check thread path (no tangles from previous run).
• Run: Execute the file.
• Extract: Peel gently to preserve the stabilizer frame.

By adopting this workflow, you stop treating embroidery as a series of isolated, risky events and start treating it as a controlled manufacturing process. Your stabilizer waste goes down, and your confidence goes up.

FAQ

• Q: How can Janome MB-7 users batch three names in one 200×240mm (M1) hoop without wasting stabilizer?
  A: Use a “Rule of Three” layout and keep the stabilizer hooped as a reusable jig instead of re-hooping each name.
  • Mark: Draw a physical template on hooped stabilizer at 0, -3", and +3" with crosshairs.
  • Stitch: Run Left → Center → Right in one file so the Janome MB-7 travels automatically between placements.
  • Reuse: Do not un-hoop after tearing out the pieces; patch the “windows” and repeat the batch.
  • Success check: The next batch lands on the pencil crosshairs with no drift, and the stabilizer still feels drum-tight.
  • If it still fails… Re-check that the digital coordinates match the physical marks exactly before changing materials.
• Q: What stabilizer weight and hooping tension works best for Janome MB-7 name batching on felt using tearaway?
  A: Start with medium tearaway around 2.5–3.0 oz and hoop it tight like a drum before floating felt on top.
  • Hoop: Tighten until the stabilizer is flat with no “hammocking.”
  • Test: Tap the hooped stabilizer before marking lines.
  • Match: Use crisp tearaway that supports stitches but still tears cleanly for small names.
  • Success check: The tap test sounds like a tight drum skin (“thump-thump”), not a loose crackle.
  • If it still fails… If the fabric is stretchy/unstable (knits, minky), switch to cutaway as a safer base rather than tearaway alone.
• Q: How do Janome MB-7 operators stop crooked placement when floating fabric by matching Embrilliance Essentials coordinates to hoop markings?
  A: Treat the pencil crosshairs as the registration system and mirror those positions in Embrilliance Essentials at -3, 0, +3.
  • Select: Choose the Janome 200×240mm hoop in software preferences.
  • Place: Set one text instance at (0,0), then copy and move to -3" and +3" on the X-axis.
  • Align: Rotate text 90° if needed to fit names cleanly and keep motion predictable.
  • Success check: The needle drops exactly on the intended crosshair center for each name position.
  • If it still fails… Re-draw the template with the hoop held on a non-slip gridded mat so the hoop doesn’t micro-shift during marking.
• Q: How can Janome MB-7 users repair tearaway stabilizer “windows” with tape patches without causing thread breaks?
  A: Patch the holes to restore tension, but keep clear tape away from the stitch path so adhesive never touches the needle.
  • Cut: Make a stabilizer patch slightly larger than the torn-out windows.
  • Bridge: Tape only the edges of the patch to the old stabilizer to restore tensile continuity.
  • Avoid: Keep tape out of the needle strike area to prevent needle gumming and thread breaks.
  • Success check: The patched area stays flat and firm; fabric does not “flag” (bounce) during stitching.
  • If it still fails… If the needle starts gumming up, move tape farther from the center and clean the needle groove with isopropyl alcohol on a cotton swab.
• Q: How should Janome MB-7 users apply 505 temporary spray to float felt pieces for fast batching without pins?
  A: Mist the spray lightly onto the patched stabilizer (not the felt), then align the felt crease to the crosshair and press from center out.
  • Spray: Hold the can about 12 inches away and aim for tacky, not wet.
  • Align: Fold felt to make a center crease, then match that crease to the pencil crosshair (-3, 0, or +3).
  • Press: Anchor firmly from the center outward to prevent edge curl from catching the presser foot.
  • Success check: A gentle corner tug feels like peeling a Post-it—resistant, not sliding; no wet residue on fingers.
  • If it still fails… If pieces lift easily, add a slightly heavier mist or increase pressing pressure (don’t soak).
• Q: What pre-flight setup checks prevent “registration loss” on the Janome MB-7 when running multiple names in one hoop?
  A: Confirm hoop lock, flat stabilizer plane, clear travel path, correct on-screen pattern, and correct active needle before pressing Start.
  • Lock: Seat the hoop fully and listen/feel for a distinct click; then gently tug to confirm it’s engaged.
  • Inspect: Look at hoop level from eye height to confirm the stabilizer is flat (no hammocking).
  • Clear: Verify full hoop travel (no tools/cups behind the machine; no curled felt edges).
  • Confirm: Check the screen shows three names inside the boundary and the intended needle (e.g., Needle 3) is threaded correctly.
  • Success check: The hoop feels solid in the arms and the first stitches land where expected without shifting.
  • If it still fails… Slow down (don’t push max speed on small text) and re-check threading and needle assignment.
• Q: What are the key finger-safety risks when taping stabilizer near a multi-needle embroidery machine, and how can Janome MB-7 users reduce them?
  A: Keep hands away from needle/presser-foot pinch points and never reach under the needle area while the machine is powered or “Ready.”
  • Power-state: Pause and ensure the machine cannot start unexpectedly before hands go near the needle bar area.
  • Position: Apply tape and smooth patches with fingers kept clear of the needle bar case and presser-foot zone.
  • Habit: Work from the hoop edges inward so hands don’t drift into the strike zone.
  • Success check: Hands remain outside the needle/presser-foot area during all patching and positioning steps.
  • If it still fails… If access feels cramped, remove the hoop from the machine arms before patching, then re-lock and re-check alignment.
