Stop Re-Hooping Appliqué: A StitchArtist Level 2 Daisy Workflow That Runs Clean, Stops on Purpose, and Covers Every Edge

If you’ve ever stitched an appliqué file that looked fine on screen but turned into a stop-and-start mess at the machine—random jumps, bird nests, excessive trims, or fabric edges peeking out from the satin stitch—take a breath. Nothing is “wrong with you.” What’s wrong is the workflow.

In my 20 years of embroidery education, I have seen thousands of students blame their hands for errors that were actually programmed into the file. Lisa’s StitchArtist Level 2 daisy method is one of those rare tutorials that teaches the thinking behind a clean appliqué file: build three intentional layers (position, tack-down, satin), then force the machine to stop only when you actually need to touch the hoop.

This post rewrites her process into a shop-ready, white-paper level guide that you can repeat on any simple SVG flower. We will move beyond just "clicking buttons" and discuss the physics of the needle, the fabric, and the hoop.

The Calm-Down Primer: Why This StitchArtist Level 2 Daisy Appliqué Workflow Feels “So Much Easier” at the Machine

Lisa’s core idea is simple: the basic auto-appliqué approach offered by many software packages is a "black box." It often leaves you doing extra manual cleanup at the machine, snipping jump stitches that shouldn't be there. Her manual method creates three distinct physical phases that behave predictably:

1. Position Stitch (The Map): A single run line on the stabilizer showing you exactly where to place your fabric.
2. Tack-Down Stitch (The Anchor): A run line that secures the fabric to the stabilizer so you can trim it.
3. Satin Border (The Paint): The final dense stitching that covers raw edges and beautifies the design.

The real win is workflow efficiency: you’re aiming to remove the hoop one time to fuse or place fabric, then let the machine run through the rest with minimal babysitting.

A lot of commenters said this style of explanation made digitizing “finally click.” That’s not luck—this is exactly what happens when you stop treating digitizing like button-pushing and start treating it like stitch-path planning.

The “Hidden” Prep Pros Do First: SVG Hygiene, Thread Plan, and a Reality Check on Hooping Time

Before you touch the StitchArtist tools, decide what you’re optimizing for. There is a massive difference between "It stitched okay once" and "I can stitch 50 of these without a thread break."

• Hobby Mode: Fewer steps on screen, more fiddling/trimming at the machine. Use this for one-offs.
• Production Mode: More planning on screen, zero surprises at the machine. This is Lisa's approach.

The Physical Reality Check: Even the best digitized appliqué file still depends on stable hooping. If your fabric shifts by even 1mm during the process, your satin border will expose raw edges (a defect known as "gapping"). That’s why experienced shops treat hooping as a process, not just a preparatory step.

Pain Point Diagnosis: When to Upgrade Your Tools If hooping is currently your bottleneck (causing wrist pain or crooked designs), sticking with basic equipment will only result in frustration. Here is the industry upgrade path:

1. The Alignment Struggle: If you are constantly re-measuring garments to avoid crooked chest logos, a system like a machine embroidery hooping station is the standard solution depending on your hoop type. It standardizes placement so you don't have to guess.
2. The "Hoop Burn" Struggle: If you are fighting to close standard hoops over thick seams, or if you see ring marks on delicate fabrics, this is where professionals switch to magnetic embroidery hoops. These allow you to float fabric without crushing the fibers, significantly reducing prep time.

Warning: Safety First
Embroidery machines involve moving parts and sharp needles. Keep fingers clear of the needle bar when the machine is running. When trimming appliqué fabric inside the hoop, ensure the machine is stopped (not just paused) to prevent accidental pedal presses.

Prep Checklist (Do this BEFORE import)

• Data Check: Does your SVG have separate objects for each petal and the center? (A merged grouping will not digitize correctly).
• Color Plan: Decide on three distinct "stop colors" (e.g., Blue for Position, Red for Tack-down, Yellow for Satin). The machine will force a stop at each color change.
• Consumables Check: Do you have Appliqué Scissors (duckbill scissors)? These are non-negotiable for trimming fabric close to the tack-down line without cutting the stabilizer.
• Mental Check: Commit to testing one sample on scrap fabric (similar weight to your final garment) before running the final product.

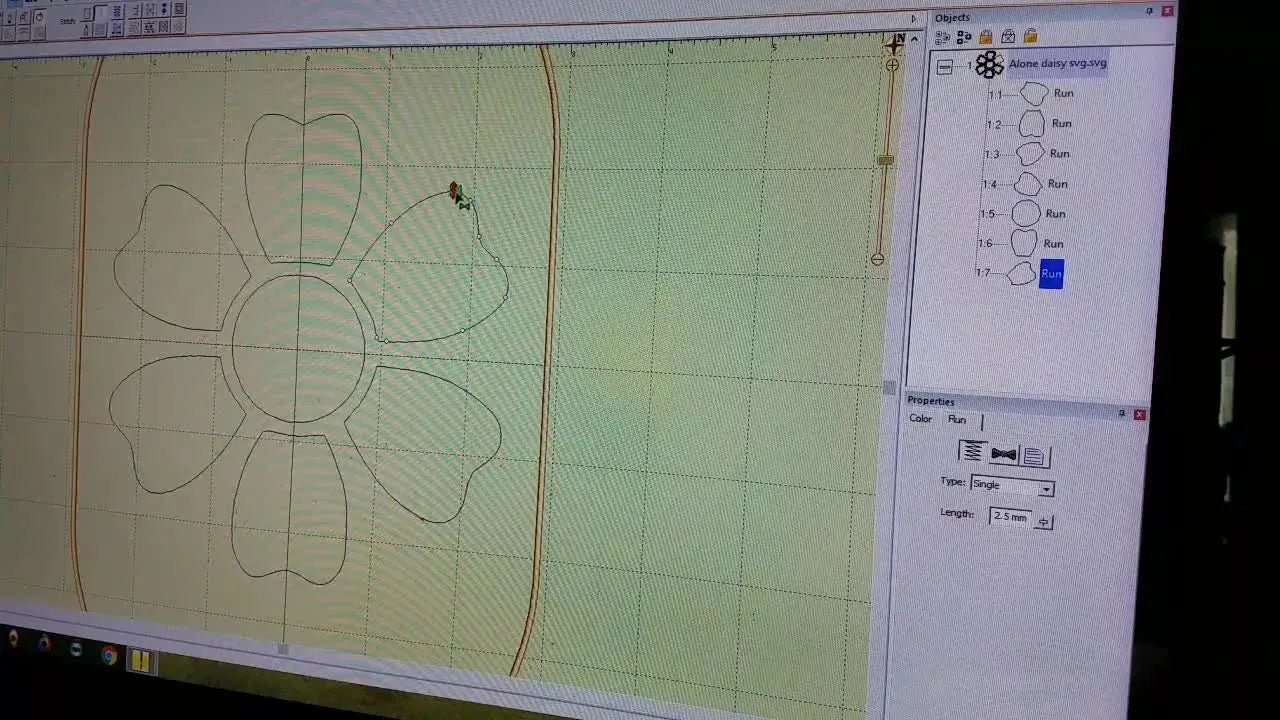

Convert the SVG to Running Stitch in StitchArtist Level 2 (and Set Run Length to 2.5 mm)

Lisa starts with the raw SVG and converts every object into stitch data. This transforms a vector drawing into a machine instruction.

Here’s the exact flow she demonstrates:

1. In the Objects pane, select the top object.
2. Hold Shift and click the bottom object to select the entire design.
3. Go to Create Design on the toolbar.
4. Choose Running Stitch.
5. In the Properties panel (bottom right), set the running stitch length to 2.5 mm.

The visual cue is important: once converted, the solid vector drawing turns into a dashed line on screen.

The "Why": Expert Calibration

Why 2.5 mm? In the industry, 2.5 mm to 3.0 mm is the "sweet spot" for placement lines.

• Too short (<2.0 mm): Perforates the stabilizer like a postage stamp, causing it to fall apart.
• Too long (>4.0 mm): The thread becomes loose and can snag when you place your fabric on top.

Expert Tip: If you are using a lofty fabric (like fleece), bump this to 3.0 mm. It helps the thread sit on top of the pile so you can actually see the placement line.

The Jump-Stitch Cleanup Ritual: Sequence Objects + Drag Green/Red Bow Ties Until the Red Dotted Lines Disappear

This step separates “it stitched” from “it stitched like a professional file.” Uncontrolled jump stitches are the enemy of appliqué because they get trapped under your fabric, creating lumps or snagging your scissors during trimming.

Lisa does two things to sanitize the file:

1) Re-sequence the objects

She uses the Sequence Objects tool and manually clicks petals to stitch in a logical circle (clockwise or counter-clockwise). Do not let the machine jump across the center randomly.

2) Remove long jumps by moving start/stop points

On screen, you will see red dotted lines. These represent machine movement without stitching (jumps). To eliminate them:

• Green Bow Tie: The needle entry point (Start).
• Red Bow Tie: The needle exit point (Stop).

The Method:

1. Select the first petal.
2. Drag the Green Start to the corner closest to your previous tie-off.
3. Drag the Red Stop to the corner closest to the next petal.
4. Repeat this chain linkage around the flower.

Visual Success Metric: The long red dotted travel lines across the center should disappear. The path should look like you are tracing the flower without lifting your pen.

Expert Insight: Why Jump Stitches Matter in Production

In a production environment, every trim takes 6–10 seconds. If a design has 15 unnecessary trims, you’ve added minutes to the run time and increased the chance of a "bird nest" (thread tangle) at the bobbin case.

Clean travel is also crucial for hooping stability. Violent machine jumps can slightly shift fabric in a standard hoop. This is why searching for hooping for embroidery machine best practices often leads to discussions about file optimization—the smoother the file runs, the less stress is placed on your hooping job.

Force a Clean Machine Stop: Copy/Paste the Whole Running Stitch Group and Change the Second Layer to Red (Tack-Down)

Once the position layer is sequenced and cleaned up, Lisa duplicates it to create the Tack-Down layer. This layer creates the physical anchor for your fabric.

The Workflow:

1. Select the optimized running stitch objects you just cleaned.
2. Copy and Paste.
3. In the Objects list, select the new pasted set.
4. Change its color to Red (or any contrasting color).

Crucial Concept: The embroidery machine does not see "Red." It sees "Color Change = STOP." This forced stop is your opportunity to place your fabric.

Production Bottleneck: The Re-Hooping Factor

If you are doing this on garments, the "Stop -> Remove Hoop -> Trim -> Replace Hoop" cycle is where errors happen.

• Standard Hoops: Require force to pop in and out. This can shift the stabilizer.
• The Upgrade: If you are producing purely appliqué batches, a hoop master embroidery hooping station paired with magnetic frames allows for faster transitions. Magnetic frames (like the SEWTECH variety) are particularly useful here because they don't distort the fabric grain when you re-attach the hoop after trimming.

Build the Satin Border Layer: Paste a Third Time, Switch to Yellow, Convert to Satin Border, and Enable Tie-In/Tie-Out

Now Lisa creates the finishing layer—the "Paint."

The Steps:

1. Copy and Paste the design a third time.
2. Change this layer to Yellow.
3. Convert the stitch type from Running Stitch to Satin Border.
4. Critical Step: Enable Tie at Entry and Tie at Exit.

The visual cue is immediate: the thin lines become thick columns.

Expert Parameter: Density and Ties

• Ties (Knots): Without ties, satin stitches will unravel in the wash. Always ensure these are checked.
• Density: The default standard is usually 0.40 mm. For better coverage on standard cotton, I recommend tightening this slightly to 0.38 mm.
• Width: For appliqué covering raw edges, a width of 3.5 mm to 4.0 mm provides a safe margin of error. Anything narrower than 3.0 mm risks exposing the raw fabric edge.

Fix Crowding Without Losing Alignment: Ctrl-Select the Center Circle Across All Three Layers and Resize Together

Lisa notices the center circle is crowding the petals. Her fix is disciplined and vital for alignment integrity.

The Pro Move:

1. In the Objects pane, select the circle in the Satin layer.
2. Hold Ctrl (Win) or Cmd (Mac) and select the circle in the Tack-down layer.
3. Still holding Ctrl/Cmd, select the circle in the Position layer.
4. Resize them simultaneously.




The Physics of "Registration"

Never move or resize just one layer of an appliqué design. If the Position line moves but the Satin line stays, your machine will place the fabric in one spot and stitch the border in another. This is called a Registration Error. By multi-selecting, you ensure concentricity.

Export a Cutting File That Actually Works: Inflate the Appliqué Cut by 0.6 mm So Tack-Down Catches the Fabric

This is the most common point of failure for beginners. If your fabric is cut to the exact size of the stitch line, the tack-down stitch might miss the edge, causing the fabric to lift.

Lisa’s solution is to "Inflate" (expand) the cutting line.

The Fix:

1. Click the Color property of the Position layer.
2. Go to the Applique tab in the dialog.
3. Select Applique Position.
4. Enter Inflation: 0.6 mm.
5. Save this as your cutting file (for Cricut/ScanNCut) or use it as a guide for hand-cutting.






Expert Calibration: Inflation Values

• 0.6 mm: A safe starting point for woven cottons.
• 1.0 mm: Use this for simpler shapes or if you are hand-trimming and want extra safety margin.
• 0.0 mm: Never use zero. Fabric shrinks and moves when stitched. You need the overlap.

A Stabilizer-and-Fabric Decision Tree for Appliqué

Your digital file is only as good as your physical stabilization. Use this decision tree to ensure your perfect file doesn't fail in the hoop.

Decision Tree: Stabilizer & Hooping Strategy

1. Is your base fabric stable? (e.g., Denim, Canvas, Quilting Cotton)
   • YES: Use Tearaway (Medium Weight). It creates sharp lines and removes easily.
   • NO (Knit, T-Shirt, Jersey): Go to Step 2.
2. Is your base fabric stretchy?
   • YES: You MUST use Cutaway stabilizer (Mesh or Medium Weight). Tearaway will allow the shirt to stretch during stitching, creating gaps.
   • Expert Tip: Do not stretch the fabric when hooping. It should be "neutral"—flat, but not pulled tight like a drum skin.
3. Is hooping difficult or causing "burn" marks?
   • YES: Investigate magnetic options. If you run a domestic machine, many users search for a magnetic hoop for brother or Baby Lock compatible frame to eliminate the need for hand-tightening screws.

Warning: Magnetic Hoop Safety
Magnetic frames contain strong industrial magnets.
* Pacemakers: Keep at least 6 inches away.
* Pinch Hazard: Never let two top frames snap together without a separator. The force can pinch skin severely.

Setup Checklist (Right Before You Stitch)

• Needle Check: Are you using a fresh needle? (75/11 Sharp for Woven, 75/11 Ballpoint for Knits).
• Bobbin Check: Is your bobbin at least 50% full? Running out during a satin stitch is a nightmare to fix.
• File Check: Does the machine screen show 3 distinct colors? (Position, Tack, Satin).
• Materials: Are your appliqué fabric pieces pre-ironed with a fusible backing (like Heat'n Bond Lite)? Self-Correction: Fusible backing acts as a second stabilizer and prevents fraying.
• Speed: Lower your machine speed to 600 SPM for the Appliqué process. Speed kills accuracy here.

Troubleshooting the Top 3 Failures (Symptom → Diagnosis → Fix)

The Upgrade Path: From Fiddling to Factory Speed

Digitizing fixes the instructions, but tools fix the execution.

If you find yourself enjoying the result but hating the process, identify your bottleneck:

1. "My wrists hurt / I get hoop burn":
   If clamping is the issue, an embroidery magnetic hoop is the ergonomic solution. It uses magnetic force rather than friction to hold fabric, which is gentler on both the operator and the garment.
2. "I can't get the placement straight":
   If you spend 5 minutes measuring every shirt, a hoopmaster hooping station system aligns the hoop to the garment automatically based on shirt size.
3. "It takes too long to change thread":
   If you are running batches of 20+ items, the single-needle machine is your bottleneck. Moving to a multi-needle machine (like the SEWTECH commercial line) allows you to set all colors at once and produce while you prep the next hoop.

Operation Checklist (During the Stitch-Out)

• Stop 1 (Position): Run the line. Stop. Place fabric. Action: Smooth fabric gently; do not push hard enough to distort the hoop.
• Stop 2 (Tack-Down): Run the line. Stop. Remove hoop (or slide out). Action: Trim fabric within 1-2mm of stitches. Do not cut the stitches!
• Stop 3 (Satin): Replace hoop. Ensure it clicks/locks firmly. Run the final border.
• Inspection: Check the back of the hoop. The bobbin thread should show as a white column taking up 1/3 of the width of the satin stitch.

Mastering this workflow turns anxiety into rhythm. Happy stitching.

FAQ

• Q: In StitchArtist Level 2 appliqué digitizing, what running stitch length should be used for the Position Stitch, and why does 2.5 mm prevent problems?
  A: Set the Position Stitch running length to 2.5 mm as a safe default because it stays visible without shredding stabilizer or creating loose snags.
  • Set Running Stitch length to 2.5 mm in the Properties panel before sequencing.
  • Increase to 3.0 mm when stitching on lofty fabric (like fleece) so the line stays visible on the pile.
  • Avoid < 2.0 mm (can perforate stabilizer) and avoid > 4.0 mm (can snag when placing fabric).
  • Success check: the placement line looks continuous and readable, and the stabilizer does not tear like a “postage stamp” after stitching.
  • If it still fails: change stabilizer choice (tearaway vs cutaway) and re-check hooping stability before blaming the file.
• Q: In StitchArtist Level 2 appliqué files, how can long jump stitches be removed using the Green Bow Tie and Red Bow Tie so red dotted lines disappear?
  A: Remove long jumps by re-sequencing petals and dragging the Green Start and Red Stop points so travel links step to the next object instead of crossing the center.
  • Use Sequence Objects and click petals in a clean clockwise (or counter-clockwise) order.
  • Drag the Green Bow Tie (Start) to the corner closest to the previous tie-off.
  • Drag the Red Bow Tie (Stop) to the corner closest to the next petal.
  • Success check: the long red dotted travel lines across the center largely disappear and the path looks like tracing the flower without lifting a pen.
  • If it still fails: re-check object order in the Objects list—one “out-of-circle” petal selection can force cross-center travel.
• Q: For appliqué on a home single-needle embroidery machine, how should the file be set up to force three clean machine stops for Position, Tack-Down, and Satin?
  A: Use three distinct color blocks (Position, Tack-Down, Satin) because the machine treats a color change as a stop.
  • Create the Position layer first (running stitch), then copy/paste and set the second layer color (Tack-Down) to a contrasting color.
  • Copy/paste a third time, change to a third color, convert that layer to Satin Border, and enable Tie at Entry and Tie at Exit.
  • Verify the machine screen shows 3 distinct colors before stitching.
  • Success check: the machine stops exactly at the moments needed—after Position (place fabric), after Tack-Down (trim), then runs Satin as the final pass.
  • If it still fails: confirm objects did not merge into one color block during export and that each layer truly has a different color assigned.
• Q: In StitchArtist Level 2 appliqué cutting files, what Inflation value should be used so the Tack-Down stitch catches the fabric edge reliably?
  A: Set Inflation to 0.6 mm as a safe starting point so the tack-down line catches the fabric instead of missing it.
  • Go to the Position layer color properties, open the Applique tab, choose Applique Position, and set Inflation: 0.6 mm.
  • Increase to 1.0 mm for simpler shapes or when hand-trimming and needing extra margin.
  • Never use 0.0 mm inflation because fabric can shift/shrink during stitching.
  • Success check: after tack-down, the fabric edge is consistently trapped under stitches all around with no loose “lift” spots.
  • If it still fails: add fusible backing or spray adhesive to reduce movement, then re-test the inflation on scrap.
• Q: For appliqué on knit T-shirts and jersey, which stabilizer should be used (Cutaway vs Tearaway), and what hooping method prevents gapping?
  A: Use Cutaway stabilizer for stretchy knits and hoop the fabric neutral (not stretched) to reduce gapping and edge exposure.
  • Choose Tearaway (medium weight) only for stable woven fabrics like denim/canvas/quilting cotton.
  • Choose Cutaway (mesh or medium weight) for knits, T-shirts, and jersey to prevent stretch during stitching.
  • Hoop the garment flat but not “drum tight,” and avoid stretching while tightening the hoop.
  • Success check: the satin border covers the raw edge evenly without gaps opening as the fabric relaxes.
  • If it still fails: slow down to 600 SPM for appliqué and add fusible backing as a second stabilizing layer.
• Q: During appliqué stitch-out, how should the back of the satin stitch look to confirm embroidery tension is correct and prevent bird nests?
  A: Aim for bobbin thread showing as a white column covering about 1/3 of the satin stitch width on the back of the hoop.
  • Inspect the back immediately after the satin border starts—do not wait until the design finishes.
  • Re-thread the machine if a bird nest starts forming, and thread with the presser foot UP so tension discs open.
  • Confirm the top thread is seated correctly by “flossing” it into the tension path (a common fix when loops appear).
  • Success check: the underside shows an even bobbin “rail” about one-third of the column width, not big loops or messy tangles.
  • If it still fails: stop the job and fully re-thread again—lost upper tension is a frequent cause of bird nesting under the throat plate.
• Q: What safety steps should be followed when trimming appliqué fabric inside the hoop to avoid needle injuries on an embroidery machine?
  A: Stop the embroidery machine completely before trimming, and keep fingers clear of the needle area at all times.
  • Ensure the machine is stopped (not just paused) before inserting scissors into the hoop area.
  • Use duckbill appliqué scissors to control the blade and protect the stabilizer while trimming close to the tack-down.
  • Remove or slide out the hoop only when the machine is not moving to prevent accidental contact with the needle bar.
  • Success check: trimming happens with zero machine motion, and no stitches are cut while fabric is trimmed to within 1–2 mm of the tack-down line.
  • If it still fails: slow down the workflow—treat trimming as a separate step between color-change stops, not something done “while the machine waits.”
