Stop Re-Digitizing: Split, Recolor, and Clean Up Embird Editor Designs Without Ruining Stitch Order

Master Class: The Surgeon’s Guide to Editing Embroidery Designs in Embird

Technical White Paper | 2025 Edition

If you have ever bought a digitized design and realized, "I love it… but the flower needs to be red, not blue," you have faced the embroiderer’s dilemma. The panic usually hits after you have planned your thread chart—or worse, after the garment is already hooped.

Changing thread colors is easy. Changing stitch structure without destroying the integrity of the design is where novices get into trouble. This guide transforms the basic Embird Editor workflow into a production-grade standard operating procedure (SOP). We will cover how to separate colors, isolate motifs, and safely split solid fills without creating "bulletproof" stiff patches or unraveling edges.

1. The Physics of the Edit: Why "Just Clicking" isn't Enough

Before we touch the software, you must understand the physical reality. An embroidery file is not a JPEG. It is a set of coordinate instructions for a needle moving at 600+ stabs per minute.

When you edit a file (e.g., splitting a rose petal from a bunch), you are altering the Pull Compensation.

• The Risk: If you split a fill incorrectly, the stitches may unravel, or the underlay (the structural foundation) may peek out like a petticoat under a dress.
• The Goal: To move stitches into new "Objects" without corrupting their density or direction.

Two realities to keep in mind:

1. Simple elements split cleanly: A paisley scroll separated by white space is forgiving.
2. Solid fills fight back: Splitting a petal out of a solid rose cuts through the underlay. This requires "Node Surgery" to fix.


2. Preparation: The "Clean Room" Protocol

Amateurs edit on the fly; professionals prep. To ensure you don't destroy your only copy of a paid design, follow this "Non-negotiable" setup.

The Golden Rule: Never overwrite the source file. Always Save As Filename_MOD_v1.

Visual Setup (Sensory Calibration)

You need to see the structure, not just the colors.

1. Load the design into Embird Editor.
2. Switch View to 3D Matte.
   • Why? Standard view looks flat. 3D Matte renders the thread path so you can visually distinguish where one layer ends and the next begins.


PRE-FLIGHT CHECKLIST: Before You Click 'Split'

• File Safety: Validate you are working on a copy of the design (_MOD suffix).
• Visual Check: Toggle "3D Matte" mode to identify object layering.
• Machine Prep: Ensure you have a standard 75/11 Sharp Needle installed for testing (Ballpoint can hide alignment issues on wovens).
• Consumables: Have your curved appliqué scissors ready for trimming jump threads later.

Warning: Editing stitch objects changes the travel path. If you skip the test stitch, you risk Needle Deflection (needle hitting a dense knot of thread) which can shatter the needle and send metal shrapnel towards your face. Always wear safety glasses when testing modified files.

3. The Separation: Converting a "Flat" File into Layers

A DST or EXP file often loads as a single "block" of data. To edit it, we must separate the colors into selectable layers.

The Action: Right-click a color in the palette on the right side of the screen and select Separate All Colors.

The Result: You will see the list expand. Green leaves and yellow petals become separate, selectable entries. This makes the next step—selection—dramatically safer.

Pro Habit: Hide the layers you aren't touching. If you are editing the green leaves, click the eye icon to hide the yellow rose. This prevents accidental "stitch snatching."

4. Freehand Select + Split: The Scalpel Move

Now we isolate a specific motif (e.g., the top paisley swirl) to change its color.

1. Select: Use the Freehand Select tool.
   • Technique: Draw a lasso around the specific area. You do not need to be pixel-perfect; you just need to encompass the stitch points.
2. Verify: The selected stitches will turn Red.
3. Execute: Go to Edit > Split Join > Split.


Sensory Check: You should see a new object appear in the object list on the right. If the list didn't grow, the split didn't happen.

Now, assign a new color from the catalog (e.g., Medium Pink).

Critical Concept: When you split an object, Embird adds lock stitches (tie-ins and tie-offs) at the cut point. This creates a tiny "thread knot" on the back. This is normal, but be aware that too many splits in one small area can make the embroidery feel stiff or "bulletproof."

5. Stitch Order: The Silent Layout Killer

This is where most novices fail. When you create a new object via splitting, Embird often moves it to the end of the stitch sequence.

The Scenario: You split a background leaf to make it darker. The Error: Determine if that leaf is now stitching on top of the flower because it moved to the bottom of the list. The Fix:

• Check the Object List.
• Select your new object.
• Use Stitch Order > Move Up/Move Down until it sits logically in the sequence (Background first -> Foreground last).

6. Removing Connectors: hygiene for Your Design

After recoloring, you may see a thin "Travel Stitch" connecting two objects that used to be the same color. If you don't remove this, you will have a random thread tracing across your fabric.

The Protocol:

1. Hide non-essential layers.
2. Freehand Select only the connector line.
   • Visual Anchor: Zoom in until individual needle points look like small dots.
3. Split this line into its own object.
4. Delete the object.


Commercial Insight: Removing connectors reduces manual trimming time. For a home business, saving 30 seconds of trimming per shirt on a 50-shirt order saves you nearly 30 minutes of labor.

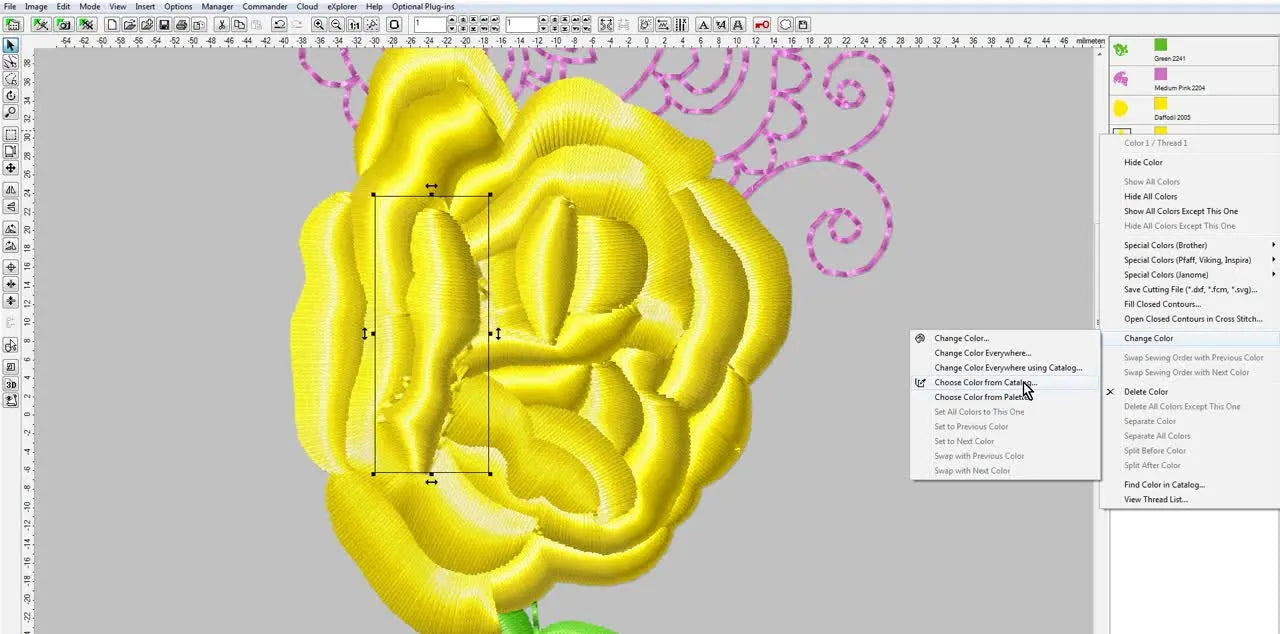

7. Advanced Surgery: Splitting a Solid Fill (The "Rose Petal" Scenario)

Splitting a pre-separated element is easy. Splitting a chunk out of a solid block (like one petal from a solid rose) is advanced because you are cutting through the Underlay.

The Procedure:

1. Trace the single petal carefully with Freehand Select.
2. Verify the selection turns Red.
3. Split and Recolor (e.g., Golden Poppy).






The Symptom: Look at the edge where you cut. It looks "fuzzy" or rough. This is the underlay stitching (the foundation) sticking out because you sliced through the roof of the house.

8. Point Editing: Tucking in the Underlay

To fix the rough edge, we must perform "Node Editing."

1. Switch to Points Editing Mode (or Wireframe view).
2. Visual Anchor: Look for the small squares (nodes).
3. The Action: Manually drag the underlay nodes inward, tucking them under the top cover stitches.
   • Tactile Tip: Imagine you are tucking a bedsheet under a mattress. You want it hidden, but flat.


Toggle back to 3D Matte view frequently to check your work.

SETUP CHECKLIST: The "Clean Edge" Protocol

• Inspect: Zoom into the split line at 400%.
• Tuck: Ensure no underlay runs perpendicular to the cover stitch at the edge.
• Density Check: Ensure you haven't overlapped nodes so much that you created a "hard spot" that will break a needle.
• Save: Save this as Filename_MOD_v2.

9. The Physical Test: When Software Meets Steel

You have edited the file. Now you must prove it works. Do not skip the test stitch.

The "Sweet Spot" Testing Parameters:

• Machine Speed: 600 - 700 SPM (Stitches Per Minute). Do not run at max speed for a test.
• Fabric: Use the exact same material as the final project, or a similar scrap.
• Stabilizer: Use one grade heavier than you think you need for the test.

Troubleshooting the Physical Stitch-Out

If your edited design fails on the machine, use this logic flow:

10. The Production Upgrade: Beyond the Software

Editing designs is necessary, but it introduces variables that slow down production. If you find yourself constantly editing files and then fighting with your machine to get them to stitch straight, the bottleneck might be your hardware, not your software.

The "Pain Point" Decision Matrix

Use this commercial logic to determine if you need to upgrade your physical tools:

Scenario A: You struggle with "Hoop Burn" or re-hooping speed.

• The Problem: Traditional screw hoops require significant hand force and can crush delicate fabrics (velvet, performance wear).
• The Solution: Professionals often switch to magnetic embroidery hoops. These use vertical magnetic force rather than friction, eliminating hoop burn and reducing strain on your wrists suitable for most single-needle machines.

Warning: High-power magnetic embroidery hoops secure fabric firmly, but contain strong magnets. pinched fingers are a real risk. Keep away from pacemakers.

Scenario B: You are running batches (10+ items) and color changes are killing your profit.

• The Problem: Your single-needle machine stops for every color change (like the Rose split we just did).
• The Solution: This is the trigger point for a Multi-Needle Machine.
• The Efficiency: A multi-needle machine allows you to assign the new "Split Color" to a specific needle. The machine handles the transition instantly. Combining edited files with magnetic embroidery frames on a multi-needle machine is the industry standard for speed.

Scenario C: Registration is drifting on slippery items.

• The Problem: Edited files often have more jumps. On slippery items, the fabric moves.
• The Solution: A dedicated embroidery hooping station ensures that every garment is hooped with identical tension and placement, reducing the variables that cause edited designs to fail.

11. Final Operation Checklist

Before you commit this edited design to a customer's garment, run this final "Pre-Flight":

• Design is Saved: _MOD version secured.
• Colors Separated: No accidental groupings.
• Stitch Order Verified: Background -> Foreground.
• Connectors Removed: No long jump stitches.
• Edges Clean: Underlay tucked in via Point Editing.
• Test Stitched: Validated on scrap fabric at 600 SPM.
• Hooping Strategy: Determine if you need machine embroidery hoops with magnetic grip for better stability on this specific fabric.

By following this workflow, you move from "guessing" to "engineering." You aren't just changing colors; you are rewriting the physical instructions for your machine. Edit smart, hoop tight, and stitch confidently.

FAQ

• Q: In Embird Editor, how do embroidery professionals prevent destroying a paid DST/EXP design file when splitting objects?
  A: Never edit the original—always work on a duplicated “_MOD” version so there is a safe rollback.
  • Save As: Create Filename_MOD_v1 before any split or delete action.
  • Switch View: Use 3D Matte to see stitch layering instead of judging by color only.
  • Hide Layers: Click the eye icon to hide objects not being edited to avoid accidental stitch selection.
  • Success check: The original file remains unchanged and the edited file name clearly shows _MOD with a version number.
  • If it still fails… Restart from the untouched source file and redo the edit with smaller, isolated splits.
• Q: In Embird Editor, how can an embroiderer confirm “Separate All Colors” worked when a DST/EXP loads as one block?
  A: Use “Separate All Colors” and verify the color/object list expands into multiple selectable entries.
  • Right-click: Right-click a color in the palette and choose Separate All Colors.
  • Verify List: Look for the list to expand (e.g., leaves and petals appear as separate entries).
  • Isolate Work: Hide the layers not being edited before selecting stitches.
  • Success check: Clicking one entry highlights only that area (selection turns red when selected), not the whole design.
  • If it still fails… Re-load the file and repeat the separation step before attempting any Split operation.
• Q: In Embird Editor, what is the safest way to use Freehand Select + Split Join > Split without accidentally “stitch snatching” nearby areas?
  A: Lasso only the needed motif, confirm the selection turns red, then split and confirm a new object appears in the object list.
  • Select: Use Freehand Select to draw a lasso around the target stitches (aim to encompass stitch points, not perfect outlines).
  • Verify: Confirm the selected stitches turn Red before splitting.
  • Split: Use Edit > Split Join > Split and then assign the new color.
  • Success check: The object list grows by one new object immediately after the split.
  • If it still fails… Hide non-target layers first, then re-select and split again; if the list doesn’t grow, the split did not execute.
• Q: In Embird Editor, how can embroidery operators fix stitch order problems after splitting an object so the new piece does not stitch on top of the wrong area?
  A: After splitting, immediately check the Object List and move the new object up/down until the sequence is Background first and Foreground last.
  • Inspect: Find the newly created object (splits often push it toward the end of the sequence).
  • Reorder: Use Stitch Order > Move Up/Move Down to place it logically.
  • Re-check: Toggle visibility of nearby layers to confirm overlaps will stitch correctly.
  • Success check: A preview (and test stitch) shows background elements sewing before foreground elements with no unwanted coverage.
  • If it still fails… Perform a slow test stitch-out and re-adjust the stitch order until the layering matches the intended layout.
• Q: In Embird Editor, how do embroidery professionals remove unwanted travel stitches (connectors) after recoloring split objects so thread does not trace across fabric?
  A: Isolate the connector line, split it into its own object, then delete that object.
  • Zoom In: Zoom until individual needle points look like small dots for accurate selection.
  • Select: Use Freehand Select to capture only the thin travel/connector line.
  • Split + Delete: Split the connector into its own object, then delete that object.
  • Success check: The connector line is gone in preview, and there is no visible line crossing open fabric areas.
  • If it still fails… Hide more layers to reduce visual clutter and repeat selection at higher zoom to avoid grabbing production stitches.
• Q: When editing embroidery designs in Embird Editor, how can stitchers prevent needle breakage from needle deflection during a modified-file test stitch?
  A: Always test stitch the modified design at reduced speed and treat dense areas as a safety risk (wear safety glasses).
  • Slow Down: Run the test at 600–700 SPM, not maximum speed.
  • Use Matching Materials: Test on the same fabric (or close scrap) and use one grade heavier stabilizer for the test.
  • Prepare Needle: Install a 75/11 sharp needle for testing (a safe starting point for revealing alignment issues on wovens).
  • Success check: The machine runs without sharp “popping” sounds, repeated impacts, or sudden needle failure in dense zones.
  • If it still fails… Re-check density/overlaps near the edited edge (point edits can create hard spots) and test again before sewing a real garment.
• Q: During a physical stitch-out of an edited Embird design, how can embroidery operators troubleshoot registration gaps, bird nesting, and hoop burn using a step-up approach?
  A: Match the symptom to the cause, fix technique first, then upgrade the holding method (magnetic hoops) if fabric movement or hoop pressure is the limiter.
  • Fix Registration Gaps: Stabilize hooping to stop fabric shifting; consider switching to a magnetic hoop when standard hooping allows drift.
  • Fix Bird Nesting: Re-thread the upper thread with the presser foot UP and confirm the thread is seated in the tension disks.
  • Fix Hoop Burn: Stop over-tightening screw hoops to “force” stability; move to magnetic hoops for a cushioned, distortion-free grip.
  • Success check: Stitch-out shows clean alignment between colors, no thread wad under the needle plate, and no ring marks after unhooping.
  • If it still fails… Reduce variables by re-testing at 600–700 SPM on scrap with heavier stabilizer; if frequent color changes are slowing work, consider a multi-needle workflow for production efficiency.
• Q: What magnetic embroidery hoop safety rule should embroidery operators follow to avoid injuries and medical-device risks during hooping?
  A: Treat magnetic hoops as high-force tools—protect fingers from pinch points and keep magnets away from pacemakers.
  • Handle Carefully: Keep fingertips out of the closing path when seating the magnetic ring.
  • Control the Workspace: Place magnets down deliberately to prevent snapping together unexpectedly.
  • Medical Caution: Keep strong magnets away from pacemakers and follow the machine/manual safety guidance.
  • Success check: Hooping is fast and stable with no finger pinches and no uncontrolled magnet “snap.”
  • If it still fails… If the magnet strength feels hard to control, slow the hooping motion and practice on scrap fabric before production runs.
