Stop Re-Digitizing: Split “Locked” Color Blocks in Embrilliance Essentials (and Keep Your Machine Stitching Smooth)

The "Impossible" Edit: How to Split Single-Color Designs in Embrilliance (And Save Your Sanity)

If you have ever clicked one tiny part of a design—one stem, one bar, one little accent—and watched Embrilliance select everything in that color, you know the sinking feeling in your stomach: "Great… now I have to re-digitize the whole thing."

You don’t.

In embroidery, we often confuse "grouped objects" with "welded permanent fixtures." But as someone who has spent 20 years on the shop floor, I can tell you: digitizing is just a sequence of coordinates. If you can interrupt that sequence, you can control it.

In Embrilliance Essentials, you can force a split inside a single color block by inserting a "Color Stop" at the exact stitch boundary. This technique allows you to temporarily isolate segments, move them to fit a specific uniform or logo placement, and then stitch them out seamlessly.

This guide isn't just about clicking buttons; it's about the entire workflow—from the digital surgery to the physical stitch-out on your machine. We will cover the software steps, the safety checks to prevent machine damage, and the hardware upgrades that make these custom jobs profitable.

The Real Problem in Embrilliance Essentials: One Color Block, Zero Control

Designs often arrive with multiple elements digitized as a single object because they share the same thread color. It’s an efficiency standard for digitizers to reduce needle jumps. However, for the end-user, it’s a trap.

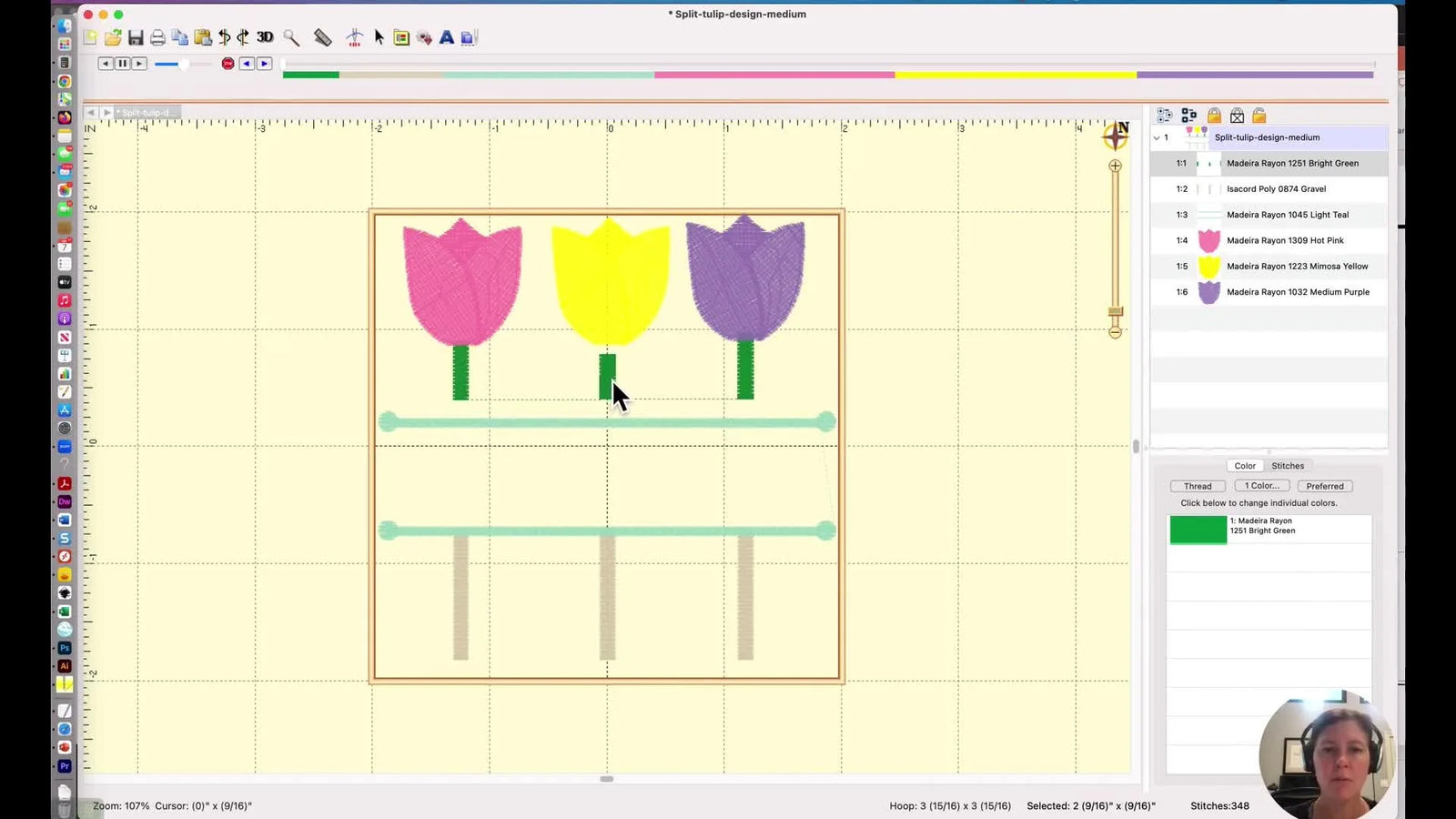

In the example we’re analyzing, a tulip design has three green stems behaving like one unit. Click one stem, and the selection box grabs all three.

This is why you can move the flowers as a group, but you can't "nudge just the third stem" or "separate the text bars" to fit a team leader's long name.

Here is the key mindset shift: you are not trying to redraw stitches. You are trying to create a clean break point in the time-line of the design. Think of it like a train track; we aren't building a new train, we are just switching the tracks so the caboose goes to a different station than the engine.

The Hidden Prep Before You Touch Stitch Simulator: Save Smart, Then Work Like a Pro

Before you start splitting anything, we need to do the "Pre-Surgery Scrub-in." This prevents the 90% of file corruption/loss capable of ruining a day's production.

1. Work on a copy: Never edit your "Master" file.
2. Plan your moves: Are you moving stems up? Bars down? Every split you add is a decision you will have to manage at the machine.

Even though this is a software tutorial, it directly affects your physical production. Every extra "Stop" you insert has the potential to become a real, physical pause at the machine. Unnecessary pauses are where thread nests happen, where registration shifts occur, and where operators get distracted.

If you are running a small home-based business or a garage shop, this is where hooping stations quietly matter. The cleaner your digital stitch flow, the less time you spend re-hooping or correcting alignment after interruptions. You want a file that flows, and a workstation that supports that flow.

Prep Checklist (Do this BEFORE editing):

• File Safety: Save original as Design_Name_MASTER.be and the working file as Design_Name_EDIT_v1.be.
• Visual Planning: Zoom in until you can see individual stitch points (needle drops).
• Object Pane: Ensure your "Objects" window is visible (usually on the right) so you can confirm when a split creates a new layer.
• Canvas Check: Ensure the hoop size selected in software matches the physical hoop you will lock into the machine.

Use Stitch Simulator in Embrilliance Essentials: Find the Exact Boundary

This is the make-or-break moment. We need to find the specific millisecond where one object ends and the next begins.

Open Stitch Simulator (the compass rose icon usually at the top). Drag the progress slider forward. Watch the "Ghost" needle draw the design on your screen.

You are looking for the Jump.

In the tutorial case, we watch the dark green stems stitch out. First stem... second stem... stop. We need to pause the simulator exactly when the third stem completes, right before the travel stitch jumps to the next section.

Why "Close Enough" is a Disaster: If you insert the stop too early, you will split inside the stem, cutting the satin column in half. This leads to unravelling. If you insert it too late, you catch the travel stitch. When you move the stem later, you will see a long, ugly "drag line" of thread connecting the two parts across your fabric.

The Color Stop Trick: Insert the Stop, Then Pick an Obvious Color on Purpose

Once you are parked at the correct stitch boundary, click the Stop Sign Icon in the simulator bar. Choose Stop Type: Color Stop.

Embrilliance will immediately ask you to pick a thread color. Do not pick the original green. Pick something loud, ugly, and obvious—like Hot Pink or Gravel Grey.

The Cognitive Anchor:

• Original Green: "I am part of the group."
• Bright Pink: "I am surgically separated and ready to move."

This temporary color is a visibility tool. It forces the software to treat that segment as a totally unique object in the list.

If you are the kind of user who invests in precision tools like the hoopmaster, treat this software step with the same respect. You aren't buying a gadget; you are buying repeatability. The obvious color ensures you don't accidentally select the wrong layer.

Move the Separated Element Without Wrecking Registration

Now that the stems are separated into different color layers in the Object pane, you can select the group you want and drag it. In our example, the flowers/upper stems are dragged upward to create negative space.

The "Physics of Embroidery" Reality Check: Moving elements is easy on a screen. On fabric, it changes the tension map.

When you move two dense satin columns apart, you create a gap of unstitched fabric between them. During the stitch-out, the fabric in that gap is prone to "push/pull."

• The Risk: The fabric might bubble or ripple in the gap.
• The Solution: You may need more stabilization than the original design required because the "structure" of the design is now spread out.

This is why, when stitching edited files with new gaps, your hooping must be drum-tight. If you are using standard machine embroidery hoops that struggle to grip slippery performance wear, you will see distortion immediately in these new gaps.

Repeat the Same Stitch Simulator Method for the Horizontal Bars

The process is identical for text bars or underlines:

1. Simulator -> Find the end of Bar 1.
2. Stop -> Insert Color Stop -> Make it Orange (or any contrast color).
3. Move the separated bar (e.g., move Bar 2 downward).




Production Tip - Scaling Up: If you are doing this edit because you have a team order of 50 shirts and need to fit custom names between these bars, you need to think about cycle time.

• Single Needle: Stop, thread change, start. (Slow).
• Multi-Needle (SEWTECH/Ricoma/Barudan): Program the stops, let it run.

If you find yourself spending 30% of your day editing files just to make them fit, and another 30% changing threads, it might be time to look at a multi-needle machine. The SEWTECH series, for instance, allows you to map these "split" colors to different needles without manual intervention, drastically increasing profit per hour.

Recolor Back to the Original Palette: Keep the Split, Lose the “Temporary Ugly”

Once spacing is perfect, select the separated segments and recolor them back to the original shade.

• Pink Stems → Back to "Bright Green."
• Orange Bar → Back to "Light Teal."


Common Fear: "If I make them green again, won't they glue back together?" Expert Answer: No. In Embrilliance, a Color Stop is a command in the code. Even if visual colors are identical, the stop command remains until you delete it.

Workflow Upgrade: This involves a lot of "test and check." When doing repeated test hooping to verify these spacing edits, magnetic embroidery hoops can be a savior for your wrists. They allow you to pop fabric in and out instantly without unscrewing and tightening the outer ring, reducing "hoop burn" (the shiny ring mark) that often ruins the very negative space you just created.

The “Keep Color Stop” Setting: The One Checkbox That Decides Whether Your Machine Pauses

This is the most critical technical detail in the article.

Right-click the color stops in the Object property area. You must verify that “Keep Color Stop” is NOT checked.

Why?

• Checked: The machine will stitch the first green part, STOP, beep, and wait for you to press start again—even though the next part is the exact same green. This is a waste of time.
• Unchecked: The machine sees "Green Part 1" ends and "Green Part 2" begins, and stitches right through without pausing.

After unchecking, Save the file as a new name (e.g., Design_Revised_Final.pes). Then, Close and Reopen it.

The Reopen Test: When you reopen the file, if you did it right, the separate layers of the same color should appear visually merged in the object tree (or at least behave sequentially). This confirms the machine will treat them as one fluid run.

If you are optimizing your efficiency with an embroidery hooping station, you want the machine running while you hoop the next garment. Unnecessary stops break that rhythm.

Warning: Mechanical Safety. Any time you run a heavily edited file for the first time, keep your hands near the Emergency Stop button. If you accidentally deleted a movement command, the needle could jump to a coordinate you didn't expect. Keep fingers clear of the needle bar area!

Fabric-to-Stabilizer Decision Tree (Because Software Edits Change Physical Stability)

You have opened up the design. Now, the fabric has less support from the thread. You must compensate with your backing (stabilizer).

Use this decision logic to prevent puckering in the new gaps you created:

Decision Tree: Stabilizer Choice for "Split & Spaced" Designs

1. Is the fabric stretchy (Polo/T-shirt/Performance)?
   • YES: Cutaway Stabilizer (2.5 - 3.0 oz). NO exceptions. You need permanent support to keep the gap from distorting.
   • NO: Go to step 2.
2. Is the fabric a loose weave (Linen/Light Cotton)?
   • YES: Fusible Mesh (PolyMesh) + Tearaway. The fusible prevents the fabric grains from shifting in the open spaces.
   • NO: Go to step 3.
3. Is the fabric rigid (Denim/Canvas/Caps)?
   • YES: Tearaway (Standard). The fabric is strong enough to support the new gap on its own.

Hidden Consumables:

• Spray Adhesive (Temporary): Essential for keeping backing tight against the fabric in the new open areas.
• New Needle: If stitches look shaky after the split, switch to a fresh 75/11 needle. Old needles struggle with precision starts/stops.

If hooping accurately is your struggle, an embroidery magnetic hoop is a powerful tool. It allows you to make micro-adjustments to the fabric after the magnet has snapped down (by gently tugging), which is impossible with standard screw hoops.

Warning: Magnet Safety. Magnetic hoops use industrial-strength neodymium magnets. They can pinch fingers severely (blood blisters). Never place them near pacemakers or allow the two magnetic frames to slam together without fabric in between.

Setup Notes That Prevent Shop-Floor Mistakes

After the digital work is done, the physical setup determines success.

Setup Checklist (The "Pre-Flight"):

• Bobbin Check: Do you have enough bobbin thread? A split design often adds tie-ins/tie-offs which consume slightly more thread.
• Needle Plate: Is it clean? Lint buildup can cause birdnesting on the new jump stitches.
• File Version: Double-check you loaded the _Revised file, not the _Master.
• Trace Function: Run a trace on the machine to ensure your new "expanded" layout doesn't hit the plastic hoop frame.

Many professionals search for terms like how to use magnetic embroidery hoop specifically to solve the "hooping pain" problem. If you upgrade to magnetic frames, remember to check your machine's clearance—some bulky magnetic frames require a wider clearance arm.

Troubleshooting: Symptoms & Solutions

If things go wrong during your first test stitch, diagnose carefully before blaming the software.

The Upgrade Path: From Editing to Production

Mastering the "Split and Move" technique in Embrilliance is a gateway skill. It takes you from "stitching what you are given" to "engineering exactly what you want."

However, as your designs become more complex and your order volume grows, you will hit new bottlenecks:

1. Hooping Fatigue: Fixing this often requires a hooping station for machine embroidery to ensure every shirt is hooped identically and quickly.
2. Machine Speed: If you are splitting designs to add multiple colors, a single-needle machine becomes the choke point. Upgrading to a multi-needle machine (like the SEWTECH 15-needle) turns a 45-minute headache into a 12-minute run.

Final Operation Checklist:

• Watch the first run like a hawk (do not walk away).
• Listen for the "Snap" of the thread trimmer—ensure it cuts cleanly between your new split sections.
• Inspect the back of the embroidery: Are the tie-offs secure?
• Document your settings (Needle type, Stabilizer used, Speed) for future repeat orders.

You now control the file, rather than the file controlling you. Stitch on!

FAQ

• Q: How do I split a single-color block in Embrilliance Essentials when clicking one stem selects all same-color stems?
  A: Use Stitch Simulator to park on the exact stitch boundary, then insert a Color Stop so Embrilliance creates a new separable segment.
  • Open Stitch Simulator and drag the slider until the target stem/bar finishes, stopping right before the next jump/travel stitch.
  • Click the Stop/Stop Sign icon and choose Stop Type: Color Stop, then assign a loud temporary color (hot pink/orange) so the segment is easy to spot in the Objects list.
  • Move only the separated segment on the canvas, then recolor it back to the original shade after placement is correct.
  • Success check: The moved element no longer drags a connecting thread line across the fabric preview, and it appears as its own segment in the object/sequence view.
  • If it still fails: Re-do the stop placement—“close enough” usually means the stop was inserted inside a satin column or after a travel stitch.
• Q: Why does an embroidery machine stop and beep mid-design after I split a same-color design in Embrilliance Essentials?
  A: Uncheck Keep Color Stop on the inserted stops so the file stitches continuously even when the thread color is visually the same.
  • Right-click the color stop entries in the object/property area and verify Keep Color Stop is NOT checked.
  • Save under a new filename (for example, a “_Final” version), then close and reopen the file to confirm the sequence behaves as one continuous run.
  • Run a first test stitch while staying at the machine so any unexpected pause or jump can be caught immediately.
  • Success check: The machine does not pause between “Green Part 1” and “Green Part 2” after the change.
  • If it still fails: Confirm the edited file (not the master) is the one loaded on the machine.
• Q: How do I prevent puckering in the new open gap after moving stems or bars in Embrilliance Essentials?
  A: Upgrade stabilization because spreading the design creates unsupported fabric areas that can push/pull during stitch-out.
  • Choose stabilizer by fabric: stretchy polos/T-shirts/performance fabric = cutaway 2.5–3.0 oz; loose weaves = fusible mesh (PolyMesh) + tearaway; rigid denim/canvas/caps = standard tearaway.
  • Add temporary spray adhesive to keep backing tight to the fabric, especially around newly created open spaces.
  • Hoop drum-tight so the gap area cannot float or ripple while the machine stitches.
  • Success check: The fabric stays flat around the new gap with no ripples after the hoop is removed.
  • If it still fails: Move up one stabilizer level (for example, from tearaway to cutaway) and re-test.
• Q: What quick checklist prevents birdnesting at the start of a newly split segment after adding Color Stops in Embrilliance Essentials?
  A: Treat each split as a fresh start/stop point: secure thread control and clean mechanics before the first run.
  • Rethread the upper path if nesting appears, and ensure the thread tail is controlled for the first 3 stitches.
  • Clean lint from the needle plate area because buildup can trigger nesting on jump stitches and restarts.
  • Confirm bobbin thread supply—split designs often add tie-ins/tie-offs that consume slightly more thread.
  • Success check: The first few stitches of the new segment lay flat with no thread wad under the hoop.
  • If it still fails: Check upper tension condition (the blog notes ~100g–120g as a target range) and consider changing to a fresh 75/11 needle.
• Q: How do I make sure a moved design does not hit the hoop frame after editing layout in Embrilliance Essentials?
  A: Always trace the revised design on the embroidery machine before stitching to confirm the expanded layout clears the hoop.
  • Match the hoop size in software to the physical hoop you will mount on the machine before exporting.
  • Use the machine’s Trace function after loading the revised file to verify the new extremes do not contact the hoop ring/frame.
  • Re-center the layout in software if the trace shows the needle path approaching the hoop edge.
  • Success check: The trace runs fully without the presser foot/needle path approaching or striking the hoop frame.
  • If it still fails: Reduce the movement distance or switch to a larger hoop size that matches the design’s new footprint.
• Q: What mechanical safety steps should I follow when running a heavily edited Embrilliance Essentials file for the first time?
  A: Run the first stitch-out like a controlled test—stay at the machine with hands clear and be ready to hit Emergency Stop.
  • Keep fingers away from the needle bar area while the machine is moving, especially right after edits that change stitch coordinates.
  • Start with a slow, watched first run so any unexpected jump or trace issue is caught immediately.
  • Verify the machine can trim cleanly between newly split sections (listen for the trimmer “snap” during the run).
  • Success check: The design stitches without sudden, unplanned needle travel to an unexpected coordinate.
  • If it still fails: Stop immediately, re-check the edited sequence and trace again before restarting.
• Q: What magnetic hoop safety rules should be followed when using industrial magnetic embroidery hoops for repeated test hooping after Embrilliance Essentials edits?
  A: Handle magnetic hoops as pinch hazards and keep them away from medical implants—control the snap and never let frames slam together.
  • Keep fingers out of the closing path; guide the magnetic ring down gently instead of letting it snap.
  • Never place magnetic hoops near pacemakers, and store magnets so they cannot jump together unexpectedly.
  • Insert fabric between frames before closing to reduce violent snap force and help protect both fingers and hoop surfaces.
  • Success check: The hoop closes without a hard slam, and there are no pinched areas or sudden jumps of the frames.
  • If it still fails: Slow down the closing motion and reposition hands—most pinches happen when rushing the last inch.
