Stop Paying $150–$1,500: Digitize a Clean PES Logo on Mac with Inkscape + Ink/Stitch (Without the Usual Traps)

If you’ve ever priced professional digitizing software and felt your stomach drop—$150 on the “cheap” end and four figures on the high end—you’re not being dramatic. For hobbyists and small shops, that price tag is a massive barrier to entry.

The Mac workflow using Inkscape + the Ink/Stitch plugin is a genuine power move, but let's be honest: it lacks the "hand-holding" of paid software. One missed folder, one messy vector node, or one wrong density setting can turn a $20 hoodie into a rag.

I have spent two years analyzing the failure points of this specific open-source stack. We are going to make it work—cleanly, repeatably, and with the "safety buffers" that pros use to protect their machines (and their sanity).

The Calm-Down Moment: Your Brother SE600 (and Similar Machines) Can Use Your Own PES Files

The video uses a Brother SE600 and calls out the 100 × 100 mm embroidery area limit (4" × 4" class). That matters because your design size decisions start in software, not at the machine.

If you’re coming from “built-in designs only,” here’s the mental shift: you’re not just making a picture—you’re writing code for a robot. You are building a stitch path.

Why does this matter? When you use a standard plastic hoop, you are relying on friction to hold the fabric. If your design is too dense, it will pull the fabric inward (puckering). One quick note for anyone shopping accessories: a standard generic brother embroidery machine hoop is functional, but it relies on you tightening that screw perfectly—tight enough to sound like a drum when tapped, but not so tight you burn the fabric fibers. Your digitizing choices determine if that hoop holds or slips.

The “Hidden” Prep on Mac: Download the Right Files, Then Install Ink/Stitch the Way Mac Actually Likes

The video’s first win is simple: download Inkscape, then download Ink/Stitch for Mac. However, Mac OS security (especially Catalina, Big Sur, and later) hates manual installations.

What the video does (and what you must not skip)

1. Download and install Inkscape.
2. Download Ink/Stitch as a compressed file (.tar.gz), then unzip it using Archive Utility.
3. Manually place the Ink/Stitch files into Inkscape’s Extensions folder.
4. Restart Inkscape.

On Mac, the “manual install” is the friction point. If you do not put the files in the specific "User Extensions" or "Package Resources" folder, Inkscape simply ignores them.

Manual install path (Action-First)

• Open your Applications folder.
• Find Inkscape.
• Right-click the icon → Select Show Package Contents.
• Navigate strictly to this path: Contents → Resources → Share → Inkscape → Extensions.
• Drag the unzipped Ink/Stitch files into that Extensions folder.
• Close the finder window.
• Restart Inkscape immediately.


Warning: You are working inside the application's brain. Do not delete or rename existing folders to "organize" them. If you delete native Inkscape files here, the app will crash on launch. Only add the Ink/Stitch files.

Prep Checklist (Do this before you design)

• Software Verify: Open Inkscape → Extensions menu. Do you see "Ink/Stitch"? If no, restart.
• File Check: Unzip the download fully. Do not drag the .zip file into the extensions folder; drag the contents.
• Physical Check: Ensure you have your hidden consumables ready: temporary spray adhesive (essential for 4x4 hoops), a fresh 75/11 embroidery needle, and water-soluble marking pens.
• Test Image: Have a simple, high-contrast logo (JPEG/PNG) ready on your desktop.


Importing a JPEG into Inkscape Without Regret: Size Limits, Clean Edges, and Why “Pretty” Images Stitch Badly

The video imports a Google logo JPEG, then points out a key constraint: the imported logo width shows 154 mm, which exceeds the Brother SE600’s 100 × 100 mm limit.

The Physics of Resizing: You must resize the image before you convert it to stitches.

• Correct: Resize the artwork to 90mm, then digitize. The software calculates density based on 90mm.
• Disaster: Digitize at 150mm, then shrink the stitch file to 90mm. The stitch count remains high, but the area shrinks. The needle will strike the same spot repeatedly, potentially cutting a hole in your fabric or breaking the needle.


Production Tip: If you are doing repetitive placement (like 50 left-chest logos), alignment is your enemy. A generic hooping station for brother embroidery machine can help standardize where the design lands on the shirt, but it cannot fix a design that was digitized at the wrong scale.

Trace Bitmap in Inkscape: The “5 Scans” Starting Point That Keeps Your Color Blocks Manageable

Inkscape can’t “embroider” a pixel. It needs vectors (math). The video converts the raster image using:

• Path → Trace Bitmap
• Mode: Accurate Scan / Multiple scans
• Selection: Colors
• Scans: 5 (This is the experienced baseline).


Why 5? Every "scan" creates a layer of color. If you choose 20 scans, Ink/Stitch will try to create 20 thread changes.

• Visual Check: Zoom in on the edges. If they look "hairy" or "jagged," uncheck "Stack Scans" or reduce the number of scans.
• Sensory Anchor: A good vector path looks like a clean wire. A bad one looks like a coastline with tiny islands. Delete the "islands" (artifacts) now, or your machine will make terrible "thud-thud-thud" sounds trying to stitch them later.

Pro tip from the comments

After you run the trace, click and drag the result to the side. Then, immediately delete the original JPEG. This prevents the classic "Why won't it break apart?" error happens when you are accidentally clicking the background image instead of the new vector.

The “Everything Turned Black” Moment: Break Apart Is Supposed to Look Wrong

After tracing, the video uses:

• Select the traced vector group.
• Path → Break Apart.

The image will suddenly look like a blob. The holes in letters like 'O', 'A', and 'P' will disappear and fill with color.

Psychological Safety: This is normal. It is not a bug. "Break Apart" separates the coastline (outer edge) from the lake (inner hole). Since they are now separate objects, they both default to the same fill color. You haven't broken it; you've just disassembled it.

Fixing Filled-In Letters with Layers + Difference: The Clean Way to Restore Counters (o, e, a, g)

You must tell the software: "This little circle is actually a hole, not a patch."

1. Identify the inner shape (the hole).
2. Select the inner shape AND the main letter shape.
3. Command: Path → Difference.


The Common Failure Point: "I clicked Difference and nothing happened." The Fix: You likely only selected one item or selected the wrong layer. You must hold Shift to multi-select.

Touch Test: When you successfully "Difference" a shape, click the letter and drag it. The hole should move with the letter and show the background through it. If the hole stays behind, you didn't finish the operation.

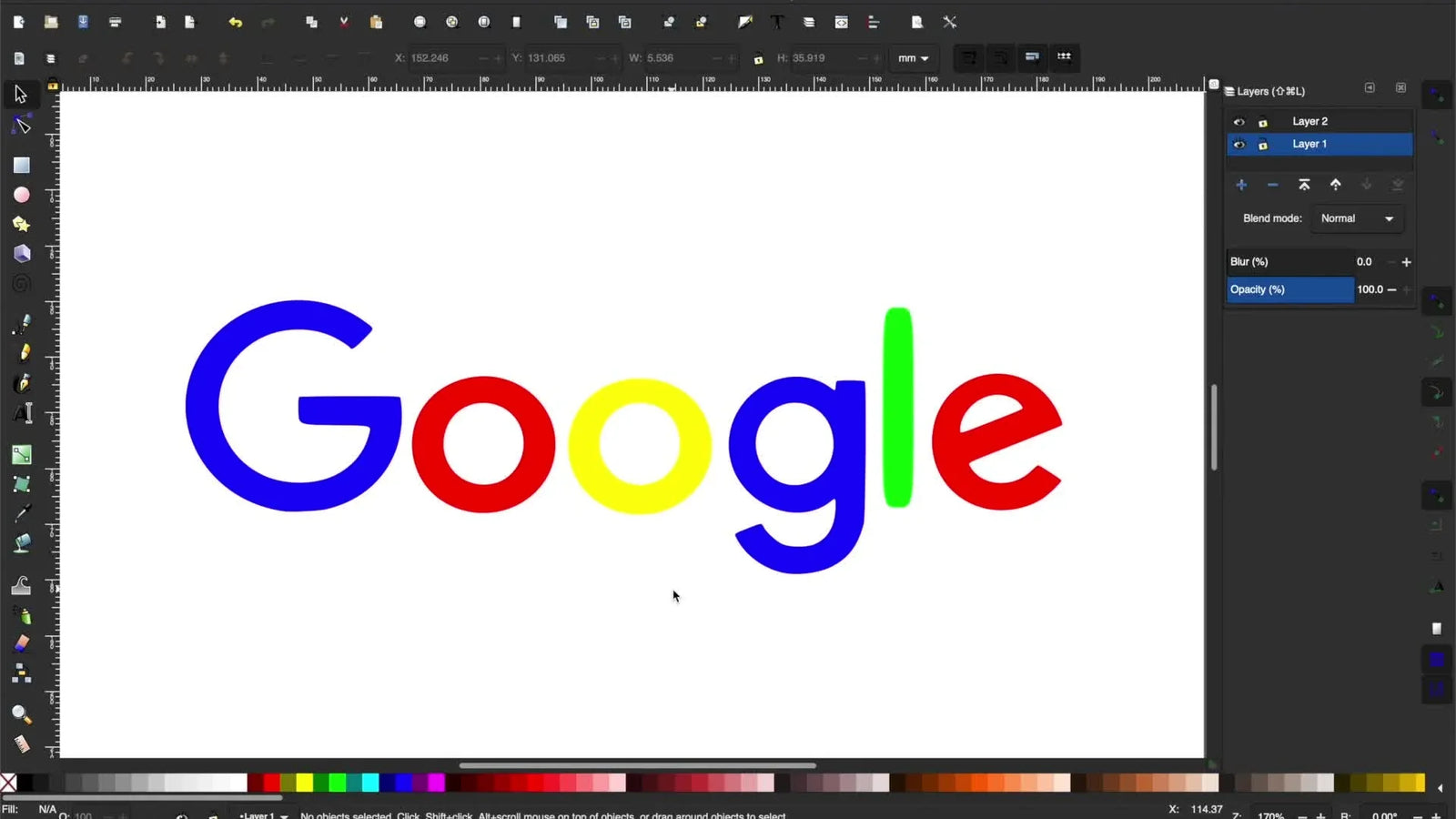

Color Assignment in Inkscape: You’re Not Picking Thread Yet—You’re Defining Stitch Blocks

The video assigns colors by selecting each vector piece and clicking a bottom palette.

Expert Nuance: The machine does not know what color thread you loaded. It only knows "Stop" and "Go."

• If you make the 'G' blue and the 'o' blue, the machine will stitch them in one continuous run (if they are grouped).
• If you make the 'G' blue and the 'o' red, the machine will force a stop and a trim.


Hooping Strategy: When stitching small 4x4 designs, fabric stability is everything. A standard brother 4x4 embroidery hoop provides decent tension, but for maximum stability on knits (t-shirts), use a cutaway stabilizer. Tear-away stabilizer is often too weak for the high stitch counts generated by auto-digitizing software.

Ink/Stitch Params: The Stitch Simulator That Saves You From Wasting Fabric (and Your Patience)

This is the most critical step.

• Extensions → Ink/Stitch → Params

The video highlights:

• Spacing between rows (Density).


The Beginner Sweet Spot: The video tests 0.25 mm vs 0.5 mm. Here is the industry reality:

• 0.25 mm: Very dense. Good for thin thread (60wt) or very detailed patches. Can be "bulletproof" and stiff on t-shirts.
• 0.40 mm - 0.50 mm: Standard "Fill" density. Good coverage without stiffening the fabric.
• > 0.60 mm: Danger zone. You will see the fabric between the threads.


Sensory Check: Look at the simulator.

• Does it look like a solid brick? Increase spacing (0.45mm).
• Does it look like a fishing net? Decrease spacing (0.30mm).

Warning: Safety First. When your machine finishes a color block and jumps to the next, it may leave a "jump stitch." If you trim this manually while the machine is paused, keep your fingers clear of the needle bar. Never use scissors near a moving machine.

Setup Checklist (Before you click Apply)

• Angle Check: Did you change the stitch angle to 45 degrees? (0 degrees often pushes fabric creating a "snowplow" effect).
• Underlay: Verify "Underlay" is checked in Params. This is the foundation stitching that prevents distortion.
• Density: Set "Spacing between rows" to 0.40mm for a safe first test.
• Simulator: Run the preview. Do you see logical movement? If the needle jumps wildly across the screen, reorder your objects in the Layers panel.

Exporting a PES File: Where “Leave Directory Blank” Works… Until It Doesn’t

The video exports via:

• Extensions → Ink/Stitch → Embroider
• Choose Brother Embroidery Format (PES).


The Fix for "File Not Found": Mac permissions are strict. If you leave the directory blank, Ink/Stitch tries to save into a hidden system folder that you cannot access.

• Solution: Create a folder on your Desktop named "StitchFiles".
• In the Export window, type the full path to that folder (or browse to it if the button allows).
• Always save the .SVG (Inkscape) file first. The .PES is just the machine output; you cannot easily edit it later.

StitchBuddy Preview: A Smart Final Check Before You Touch Your Fabric

The video mentions StitchBuddy. I second this. Viewing the file outside of Inkscape confirms the file is not corrupted.

The "Hoop Burn" Reality: If you look at the preview and see a very dense border, be careful with standard plastic hoops. The pressure required to hold the fabric against that much thread tension can leave permanent "hoop burn" (shiny rings) on delicate dark fabrics. This is where pros often switch to a magnetic embroidery hoop. Magnets redistribute the tension force without crushing the fabric fibers against plastic ridges, cleaner results on sensitive garments.

Decision Tree: Pick Stabilizer + Hooping Strategy Based on Fabric

Don't guess. Use this logic flow to prevent the #1 beginner error: Puckering.

Start Here: What is your fabric?

1. Stretchy (T-Shirts, Polos, Knits)
   • Stabilizer: Cutaway (2.5oz or mesh). No exceptions. Tearaway will distort.
   • Hooping: Do not stretch the shirt. It should lie flat and natural.
   • Risk: Hoop burn is high. If available, use Magnetic Hoops to hold gently but firmly.
2. Stable (Denim, Canvas, Twill caps)
   • Stabilizer: Tearaway is fine.
   • Hooping: Tighten standard hoops like a drumskin.
   • Risk: Needle deflection. Use a sharp 90/14 needle for thick canvas.
3. Fluffy (Towels, Fleece)
   • Stabilizer: Tearaway on bottom + Water Soluble Topping (Solvy) on top.
   • Hooping: Float method (hoop the stabilizer, stick the towel to it) or use Magnetic Hoops to accommodate thickness.

Warning: Magnetic Safety. Powerful magnetic hoops (like those used on multi-needle machines) can snap together with extreme force (40lbs+). Keep fingers clear of the mating surfaces. Do not place near pacemakers.

Troubleshooting the Real Problems People Hit (and the Fix That Usually Works)

The Upgrade Path That Actually Makes Sense: Fix the File First, Then Buy Speed

Ink/Stitch is a fantastic educational tool. It forces you to understand the "physics" of stitching rather than just clicking a button.

Once you master the file creation, your bottleneck will shift from "designing" to "producing."

• Pain Point: Wrists hurting from screwing/unscrewing hoops?
• The Upgrade: A workflow using magnetic embroidery hoops for brother machines reduces hooping time by 50% and saves your joints.
• Pain Point: Cannot embroider hats or bulky bags?
• The Upgrade: Flatbed machines (SE600) fight against caps. A brother hat hoop setup usually requires a multi-needle machine (like SEWTECH models) that has a "free arm" to slide inside the cap.

When you find yourself rejecting orders because "it takes too long to change thread" or "hooping takes longer than stitching," that is the signal to look at multi-needle equipment. But until then, perfect your digitizing data.

Operation Checklist (The "Don't Waste a Saturday" Final Pass)

• Size: Is the design strictly within 100x100mm (or your specific hoop limit)?
• Vectors: Did you run "Difference" on all letters with holes?
• File: Did you export to a folder you can find (Desktop)?
• View: Did you open the PES in StitchBuddy or a viewer to confirm it's not corrupt?
• Bobbin: Is your bobbin full? (Running out mid-stitch is heartbreaking).
• Thread Path: Rethread the top thread. Ensure the presser foot is UP when threading (to open tension discs).

Master these basics, and you won't just be a person with a sewing machine; you'll be an embroiderer.

FAQ

• Q: How do I install the Ink/Stitch extension in Inkscape on macOS when Ink/Stitch does not appear in the Extensions menu?
  A: Install Ink/Stitch by copying the unzipped extension files into Inkscape’s macOS Extensions folder, then restart Inkscape—this is the most common miss on Mac.
  • Open Applications → find Inkscape → right-click → Show Package Contents
  • Navigate to Contents → Resources → Share → Inkscape → Extensions
  • Drag the unzipped Ink/Stitch contents (not the compressed file) into the Extensions folder
  • Restart Inkscape immediately
  • Success check: Open Inkscape → Extensions menu and confirm Ink/Stitch is listed
  • If it still fails: Re-check that the download was fully unzipped and the files were placed in the exact Extensions path (Mac security often blocks “almost correct” installs)
• Q: How do I prevent Brother SE600 “needle breaks instantly” when exporting a PES from Ink/Stitch and stitching a dense fill?
  A: Reduce fill density first—set “Spacing between rows” to a safer starting point like 0.40 mm before running the stitch test.
  • Open Inkscape → Extensions → Ink/Stitch → Params
  • Change Spacing between rows from very dense values (like 0.20–0.25 mm) to 0.40 mm (safe first test)
  • Verify Underlay is enabled and preview in the simulator before applying
  • Success check: The simulator should look like solid coverage, not a “brick,” and the machine should stitch without repeated needle strikes in the same spot
  • If it still fails: Increase spacing toward 0.45–0.50 mm and re-check object order if the needle path “jumps wildly” in the simulator
• Q: How do I avoid puckering on knit t-shirts when using a Brother SE600 4x4 hoop with Ink/Stitch auto-digitized designs?
  A: Use cutaway stabilizer and hoop the knit without stretching—this is the most reliable fix for puckering on knits.
  • Switch stabilizer to cutaway (tearaway is commonly too weak for high stitch counts from auto-digitizing)
  • Hoop the shirt flat and natural (do not stretch the knit while tightening the hoop)
  • Run Ink/Stitch Params preview and avoid overly dense settings as a first test (start around 0.40 mm spacing)
  • Success check: After stitching, the design area stays flat with minimal ripples and the fabric does not “draw in” around the fill
  • If it still fails: Re-check hoop tension (too loose slips, too tight can mark fabric) and consider a gentler hooping method for delicate/dark knits to reduce hoop pressure marks
• Q: How do I fix Inkscape Trace Bitmap results when “Break Apart” makes the logo turn black and fills in the holes of letters (O, A, P)?
  A: “Everything turned black” after Path → Break Apart is normal—restore letter holes by selecting the inner shape and the letter, then using Path → Difference.
  • Run Path → Break Apart on the traced vector group (expect the blob/filled look)
  • Identify each inner counter (the “hole” shape) and Shift-select the hole + the main letter
  • Apply Path → Difference to punch the hole through
  • Success check: Drag the finished letter—its hole moves with the letter and shows the background through it
  • If it still fails: Confirm two objects are selected (Shift multi-select) and ensure the original JPEG was removed so selection is not accidentally grabbing the background image
• Q: How do I prevent Brother SE600 “File Error” when exporting PES from Ink/Stitch, including the 100 × 100 mm hoop size limit?
  A: Keep the design strictly under 100 × 100 mm and export the PES to a known folder (macOS permissions can break “blank directory” exports).
  • Resize the artwork to fit the Brother SE600 hoop before digitizing (do not digitize large and shrink later)
  • Export via Extensions → Ink/Stitch → Embroider → PES and choose a real folder (create a Desktop folder like StitchFiles)
  • Save the SVG first so edits remain possible, then output PES
  • Success check: The PES opens cleanly in a viewer (for example StitchBuddy) and the machine loads the design without an error prompt
  • If it still fails: Re-check the design dimensions are under 100 mm × 100 mm and try saving to an older PES version if the machine rejects the file
• Q: What embroidery safety steps should be followed when trimming jump stitches or working near the needle bar on a Brother SE600 during a paused color change?
  A: Keep hands clear of the needle bar and never use scissors near a moving machine—trim only when the machine is fully stopped and stable.
  • Pause and confirm the machine is not moving before bringing hands near the needle area
  • Keep fingers away from the needle bar zone while handling jump stitches
  • Avoid placing scissors near any moving parts; reposition fabric/hoop only when motion is fully stopped
  • Success check: Trimming is done without the needle cycling, and fingers never pass under or beside the needle path
  • If it still fails: Stop the machine completely, re-check the pause state, and only then resume handling threads—do not “work fast” around the needle
• Q: When should a Brother SE600 workflow upgrade from standard plastic hoops to magnetic embroidery hoops, and when does upgrading to a multi-needle SEWTECH embroidery machine make sense?
  A: Use a tiered approach: fix digitizing and stabilization first, upgrade hooping next if hooping pressure/time becomes the bottleneck, and upgrade to a multi-needle machine only when production limits block orders.
  • Level 1 (Technique): Correct scale before digitizing, start with safe density (around 0.40 mm), use proper stabilizer (cutaway for knits), and preview with a stitch simulator/viewer
  • Level 2 (Tool): Switch to magnetic embroidery hoops when hooping causes hoop burn on delicate/dark fabrics or when repeated screw-tightening causes fatigue and inconsistency
  • Level 3 (Capacity): Consider a multi-needle SEWTECH embroidery machine when thread changes and hooping time prevent accepting more work, or when the work requires setups like caps that are difficult on flatbed-only workflows
  • Success check: The same design stitches consistently across multiple garments with fewer rejects, faster hooping, and fewer restarts/stops
  • If it still fails: Re-run the file checks (size limit, density, underlay, object order) because hardware upgrades cannot compensate for a badly scaled or overly dense stitch file
• Q: What magnetic embroidery hoop safety rules should be followed to avoid finger injuries and pacemaker risks when using strong magnetic hoops on multi-needle embroidery machines?
  A: Treat strong magnetic hoops like pinch hazards—keep fingers out of the closing zone and keep magnets away from pacemakers.
  • Keep fingers completely clear of the mating surfaces before bringing magnetic frames together
  • Close magnets slowly and deliberately; do not “let them snap” together
  • Keep magnetic hoops away from pacemakers and follow all medical-device safety guidance
  • Success check: The hoop closes without any finger contact in the pinch area, and the operator maintains full control of the frame during closure
  • If it still fails: Stop using the hoop until a safer handling routine is in place (two-hand control, clear work surface, and strict keep-out zone for fingertips)
