Stop Multi-Hoop Misalignment in Bernina V8: Custom Registration Lines That Actually Land Where You Need Them

The "Floating Fabric" Problem: Why Your Multi-Hoop Designs Don't Line Up (And How to Fix It in Bernina V8)

There is a specific, sinking feeling every embroiderer knows: watching your machine start the second half of a large design, hearing the needle thump-thump-thump, and realizing the satin border is misaligned by exactly two millimeters. It doesn't look like a continuous design anymore; it looks like a broken zipper.

If you are using Bernina’s default "green cross" registration marks, you aren’t doing anything wrong—but you are trusting a method that has a fatal physical flaw. Those marks often stitch onto the stabilizer, not the fabric. Between hoopings, your stabilizer might stay perfect, but your fabric can twist, stretch, or "drift" like a loose sail.

In this guide, we are moving beyond the manual. I will walk you through the Bernina Embroidery Software V8/V8.1 manual registration method—a technique used by production houses to force alignment on the fabric itself. We will cover the specific digitizing steps, the 4mm "basting" rule, and the hardware upgrades (like magnetic frames) that stop the drift before it starts.

The Physics of Failure: Why Fabric Twists Inside the Hoop

Bernina’s built-in green crosshairs are designed to help you align Hoop B to Hoop A. However, the software assumes your fabric is as rigid as plywood. It isn't.

When you re-hoop, two things happen that the software cannot see:

1. The "Torque" Effect: Tightening a standard screw hoop creates radial friction. As you tighten the screw, the inner ring often pulls the fabric clock-wise, creating a subtle skew.
2. The Pivot Point: If your registration marks are far apart on the stabilizer, the fabric in the middle can "hinge" or bubble.

For professional multi hooping machine embroidery, our goal is Zero Drift. We need a reference point that travels with the fabric, not one that sits on the stabilizer underneath it.

Phase 1: The "Hidden" Prep (Mental & Material Setup)

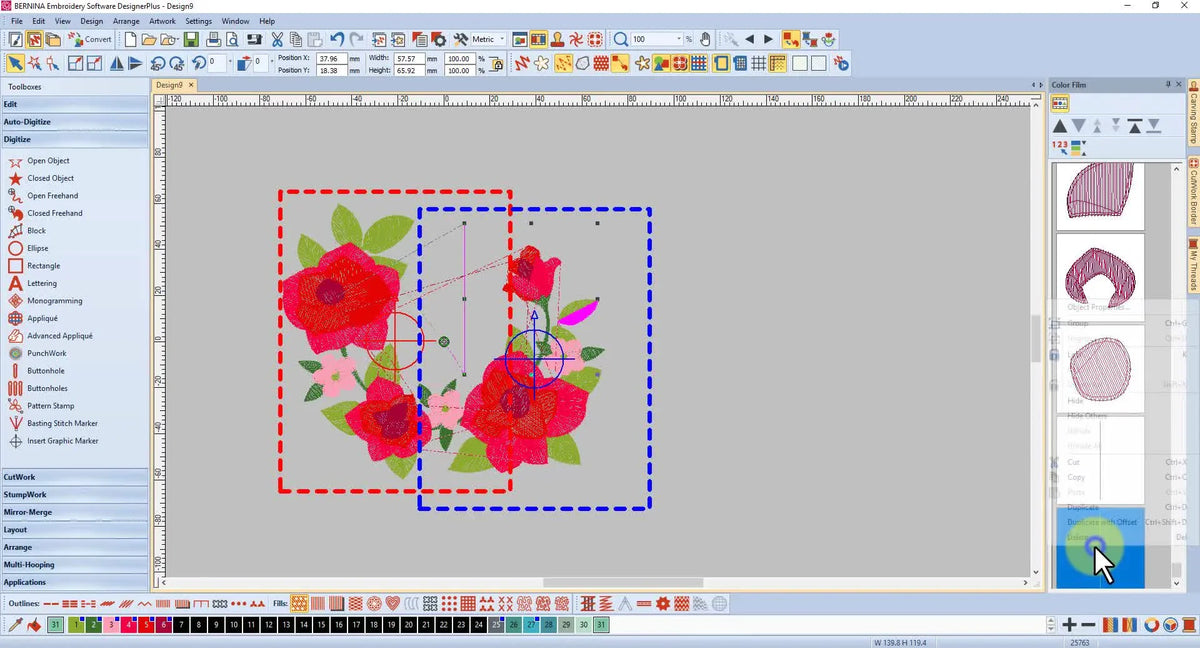

Before you click a single tool in V8, you must visualize the "overlap zone." This is the specific strip of fabric that will live in both the bottom of Hoop 1 and the top of Hoop 2.

We are going to create a manual registration line. Think of this like a "basting stitch" or a tailor's chalk line, but digitized. It is a temporary object that forces the machine to acknowledge exactly where the fabric ends and begins.

Prep Checklist: The "Pre-Flight" Safety Check

• Visualize the Overlap: Confirm your multi-hooping layout is active in V8 and you can see the light grey overlap area.
• Select Your Stabilizer: For multi-hooping, "floating" is risky. Adhesive Stabilizer or a Fusible Woven Interfacing is recommended to lock the fabric fibers in place.
• Gather "Hidden" Consumables:
  • Micro-tip Snips: You will need these to remove the registration stitches later.
  • Paper Tape/Masking Tape: To hold excess fabric out of the way during the second hooping.
• Check Your Canvas: Ensure no final design stitches run through your planned registration line (it complicates removal).


Warning: Fabric Safety Alert. When removing registration stitches later, never dig the seam ripper point into the fabric. Slide the ball-tip under the thread, or use tweezers to lift the thread and snip with curved scissors. One slip can slash your expensive garment.

Phase 2: Digitizing the "Ruler Line" (The 4mm Rule)

This is the core technique. We are going to draw a line that stitches on the fabric at the end of Part A, and on the stabilizer at the start of Part B.

In Bernina Embroidery Software V8/V8.1:

1. Select the Tool: Click Open Object > Single Outline.
2. Set the Properties (Crucial): Open Object Properties.
3. Adjust Stitch Length: Change the length to 4.00 mm (or higher).
   • Why? Standard 2.5mm stitches lock into the fabric weave and are a nightmare to remove. A 4.00mm stitch sits on top like a basting stitch, offering zero resistance when you pull it out.
4. Draw the Line: Digitize a vertical line straight through the overlap zone.
5. Finalize: Press Enter.


Sensory Check: What does it look like?

• Visual: You should see a long, jagged-looking line in your workspace. It shouldn’t look "pretty."
• Logical: It must cross the boundary where Hoop 1 ends and Hoop 2 begins.

Phase 3: The "Split & Lock" Maneuver (Color Coding)

If you just draw the line and hit export, Bernina might put the whole thing in Hoop 1. We need to force the software to treat this line as a "bridge" between two worlds.

1. Duplicate: Select your line. Right-click > Duplicate. You now have two identical lines stacked like pancakes.


2. Color Separation: This is the most important step for the machine's brain.
   • Assign Color A (e.g., Turquoise) to the first line.
   • Assign Color B (e.g., Gray) to the duplicate.
   • Rule: These colors must not be used anywhere else in your design. They act as "stop signs" for the machine.




This technique utilizes the machine's "Color Stop" function to force a pause, giving you control. It’s a concept familiar to anyone using a hooping station for embroidery—using physical or digital stops to standardize placement.

Phase 4: The Anchor Trick (Forcing the Hooping Handoff)

Now we must tell V8: "Line A belongs to the first hoop. Line B belongs to the second hoop." We do this by "anchoring" the lines to objects that definitely live in those zones.

1. Select the Duplicate Line (The Gray one, intended for Hoop 2).
2. Find an Anchor: Look for a design element (like a leaf or a letter) that is visibly located deep inside the Hoop 2 area—far away from the overlap.
3. Group Them: Select the Duplicate Line + The Anchor Object. Right-click > Group.


The software logic now dictates: "Since the Leaf is in Hoop 2, and the Line is glued to the Leaf, the Line must also go to Hoop 2."

The "Missing Link": Sequencing

A sharp-eyed viewer noted a critical step often missed in tutorials. Grouping isn't enough; order matters.

• Move Line A (Hoop 1) to the very END of the Hoop 1 stitch sequence.
  • Result: The machine stitches your design, then marks the fabric.
• Move Line B (Hoop 2) to the very START of the Hoop 2 stitch sequence.
  • Result: The machine stitches the line on the stabilizer first, letting you align your fabric to it before the real design begins.

Phase 5: Clean Export (No "Double Marking")

We don't want Bernina’s green crosses confusing us.

1. Go to Multi Hooping Options.
2. Uncheck "Add registration marks on output."


Exporting for Production:

1. File > Export Machine Files.
2. Select "Export one file for every hooping" (This is non-negotiable).
3. Naming Convention: Save them as Design_Part1 and Design_Part2. Do not rely on the machine to sort them out.






Setup Checklist: The "Go/No-Go" Decision

• Preview Check: Open Design_Part2 on your machine screen. Is the registration line the first thing it stitches?
• Mark Removal: Are "Add registration marks" turned OFF?
• Stitch Length: Is the registration line really 4mm? (Check visually—the stitches should look long).
• Color Stop: Does the machine stop after the registration line? (It should, because it's a unique color).

The Physical Upgrade: Reducing "Hoop Drift"

We have fixed the software, but we still have to contend with physics. Traditional screw-tightened hoops are the enemy of precision alignment. You have to pull the fabric to get it taut, which distorts your registration lines.

This is where the industry separates "hobbyists" from "production shops."

The Magnetic Advantage

If you find yourself constantly fighting "Hoop Burn" (those shiny crushed rings on velvet or dark cotton) or if your registration lines look wavy, many professionals upgrade to magnetic embroidery hoops.

• Vertical Pressure: Unlike screw hoops that torque the fabric, magnetic hoops clamp straight down. Your fabric doesn't shift.
• Speed: You can hooping and re-hoop in seconds without adjusting screws.
• Precision: The fabric stays flat, meaning your 4mm registration line stays straight.

Warning: Magnetic Hazard. Industrial magnetic hoops (like those from SEWTECH) use powerful Neodymium magnets.
* Pinch Hazard: Keep fingers clear of the snapping zone.
* Electronics: Keep away from pacemakers, phones, and credit cards.
* Storage: Always store with the provided spacers.

Troubleshooting: When It Still Doesn't Line Up

Even with manual lines, things go wrong. Use this expert diagnostic table.

Scaling Up: The 3+ Hoop Nightmare

"What if I have a banner that needs three hoops?"

The logic remains the same, but you need a system.

• Transition A (Hoop 1 -> 2): Use Color Pair X (e.g., Red/Pink).
• Transition B (Hoop 2 -> 3): Use Color Pair Y (e.g., Blue/Cyan).

Creating extensive multi-hoop projects (banners, sashes) is often the tipping point where a user decides to upgrade their machine. If you are doing this commercially, the time cost of re-hooping 4 times per shirt destroys your profit margin. This is where SEWTECH’s multi-needle platforms shine—their massive embroidery fields (often 14" x 20" or larger) eliminate the need to split designs entirely.

Stabilizer Decision Tree: Matching Backing to Fabric

Your registration line is only as good as the stabilizer holding it.

START: What is your fabric?

• 1. Stretchy (T-Shirts, Polos, Knits)?
  • MUST USE: Cutaway Stabilizer (2.5 - 3.0 oz).
  • WHY: Knits will stretch under the registration line. Tear-away will result in a 2-3mm gap.
  • Pro Tip: Use a fusible version (Iron-on) to lock the knit loops before hooping.
• 2. Stable (Denim, Canvas, Twill)?
  • USE: Tear-away (Medium weight) OR Cutaway.
  • WHY: Fabric supports itself. Tear-away is cleaner, but Cutaway offers better registration for high stitch counts.
• 3. Delicate/Slippery (Silk, Satin, Performance Wear)?
  • USE: No-Show Mesh (Polymesh) + Temporary Spray Adhesive.
  • WHY: heavy stabilizers show through. You need the "grip" of the adhesive to prevent sliding during clamp-down. This is a prime scenario for a magnetic hooping station to ensure the fabric is square before the magnet snaps shut.

The Upgrade Path: Tools vs. Skills

You can master this software technique and get perfect results with a standard plastic hoop. However, as your volume increases, your "Cost of Poor Quality" (ruined garments) rises.

• Level 1 (Skill): Master the Manual Registration Line (this guide). Cost: $0.
• Level 2 (Tool): Upgrade to Magnetic Hoops. Eliminates "Hoop Burn" and fabric torque. Cost: Low investment, High ROI on time.
• Level 3 (Capacity): Move to a Multi-Needle Machine. Eliminates splitting designs entirely for most garment sizes. Cost: High investment, Transformative for business.

Operation Checklist: The Final Run

Before you press "Start":

1. [ ] Hoop 1: Stitch the design. Watch the final Turquoise registration line stitch on the fabric. DO NOT UNHOOP yet.
2. [ ] Marking: (Optional) If the fabric is dark, mark the line with a white chalk pencil over the stitches for visibility.
3. [ ] Re-Hoop: Un-hoop. Hoop the stabilizer for Part 2.
4. [ ] Transfer: Place Hoop 2 on the machine. Load File 2.
5. [ ] Alignment: Advance the needle to the start of the Gray registration line.
6. [ ] Float & Align: Lay your fabric (with the Turquoise line) on top of the hooped stabilizer. Use the machine's "Needle Drop" or laser pointer to match the start/end of the Turquoise line to where the needle will stitch the Gray line.
7. [ ] Pin/Adhere: Use pin-basting or spray to lock the fabric in that exact spot.
8. [ ] Stitch: Run the Gray line. It should land exactly on top of your Turquoise line.
   • Auditory Check: Listen for the needles hitting the same holes? No. You want to see the thread cover the previous thread.
9. [ ] Run Design: If aligned, stitch the rest. remove the 4mm stitches with snips at the very end.

Precision isn't magic; it's just physics managed by good software habits. Happy stitching!

FAQ

• Q: Why do Bernina Embroidery Software V8 multi-hoop designs misalign by 1–3 mm when using the default green cross registration marks?
  A: This is common—Bernina’s green cross marks can stitch on the stabilizer instead of the fabric, so the stabilizer stays aligned while the fabric drifts between hoopings.
  • Switch to a manual registration line that stitches on the fabric at the end of Part 1 and is re-stitched at the start of Part 2.
  • Use adhesive stabilizer or fusible woven interfacing to reduce fabric sliding during re-hooping.
  • Tape excess fabric out of the way so it cannot tug during Hoop 2.
  • Success check: the first stitches of Part 2 land directly on top of the Part 1 registration stitches, not 1–2 mm beside them.
  • If it still fails: stop before stitching the real design in Part 2 and re-check that the registration reference is on the fabric (not only on the stabilizer).
• Q: What stitch length should the Bernina V8 manual registration line use so the stitches remove cleanly after multi-hooping?
  A: Set the manual registration line to 4.00 mm (or longer) so it behaves like basting and pulls out easily.
  • Create the line using Open Object > Single Outline, then open Object Properties and set stitch length to 4.00 mm.
  • Place the line straight through the overlap zone so both hoopings share the same reference.
  • Plan the line where no final design stitches will cross it, so removal stays simple.
  • Success check: the line looks long and slightly “jagged,” and it lifts out with snips without grabbing fabric fibers.
  • If it still fails: if the line feels “locked in,” the stitch length is likely too short—re-digitize and re-export with 4.00 mm.
• Q: How do you force Bernina Embroidery Software V8 to stitch the registration line at the end of Hoop 1 and the start of Hoop 2 (instead of putting both lines in Hoop 1)?
  A: Duplicate the line, assign two unique colors, anchor the Hoop 2 line by grouping it to a Hoop 2-only object, then sequence the lines to the correct start/end positions.
  • Duplicate the registration line so there are two identical lines.
  • Assign two colors that are not used anywhere else in the design to create a reliable color stop.
  • Group the Hoop 2 line with an object that clearly sits deep inside the Hoop 2 area, then move Hoop 1 line to the end of Hoop 1 and Hoop 2 line to the start of Hoop 2.
  • Success check: when you preview Part 2 on the machine, the registration line is the very first thing it stitches and the machine pauses at the color stop.
  • If it still fails: ungroup and re-group the Hoop 2 line to a different object that is unmistakably inside Hoop 2, then re-check the stitch order.
• Q: Which Bernina V8 export settings prevent “double marking” and confusion from extra registration marks in multi-hooping?
  A: Turn off adding registration marks on output and export one file per hooping so the machine runs the correct sequence each time.
  • Open Multi Hooping Options and uncheck “Add registration marks on output.”
  • Export using File > Export Machine Files and select “Export one file for every hooping.”
  • Name files clearly (for example: Design_Part1 and Design_Part2) so the machine operator cannot mix them up.
  • Success check: Part 2 opens on the machine showing the registration line first, with no extra green cross marks added by the software.
  • If it still fails: re-export after confirming the multi-hooping option is truly unchecked (it is easy to miss) and verify you are loading Part 2, not Part 1 again.
• Q: What stabilizer should be used for Bernina V8 multi-hooping to prevent gaps, tunneling, or drift between Hoop 1 and Hoop 2?
  A: Match stabilizer to fabric—multi-hooping needs stability, and weak backing is a common reason designs separate at the split.
  • Choose cutaway stabilizer for stretchy knits to prevent the 2–3 mm “gap” that can happen when knits relax after re-hooping.
  • Use medium tear-away or cutaway for stable fabrics like denim/canvas; choose cutaway when stitch count is high and registration must be tighter.
  • Use no-show mesh (polymesh) plus temporary spray adhesive for delicate/slippery fabrics where heavy stabilizer would show and sliding is the main risk.
  • Success check: the overlap area stays flat (no bubbling) and the seam between parts looks continuous, not like a stepped offset.
  • If it still fails: increase stabilization (switch from tear-away to cutaway for dense designs) and add adhesive support to stop the fabric from shifting during clamp-down.
• Q: How do you safely remove Bernina V8 manual registration stitches from the fabric after multi-hooping without cutting the garment?
  A: Remove the basting-style line by lifting thread first—do not dig a seam ripper point into the fabric.
  • Use micro-tip snips to cut lifted thread segments rather than stabbing into the cloth.
  • Slide a ball-tip tool or tweezers under the thread to lift it, then snip with curved scissors.
  • Remove stitches only after the full design is confirmed aligned, so you do not lose your reference early.
  • Success check: the thread pulls out cleanly and the fabric surface shows no nicks, runs, or slashes along the line.
  • If it still fails: stop and switch to lifting with tweezers only; if threads are hard to remove, confirm the stitch length was truly set to 4.00 mm or longer.
• Q: What magnetic hoop safety rules should be followed when using industrial magnetic embroidery hoops for multi-hooping alignment?
  A: Treat industrial magnetic hoops as pinch-and-electronics hazards—keep fingers clear, keep magnets away from sensitive devices, and store with spacers.
  • Keep fingertips out of the “snap zone” when the magnet clamps down to avoid pinch injuries.
  • Keep strong magnets away from pacemakers, phones, and credit cards to avoid interference or damage.
  • Store magnetic hoops with the provided spacers so the magnets do not slam together unexpectedly.
  • Success check: the hoop closes in a controlled way with no finger contact, and the work area stays clear of devices that could be affected.
  • If it still fails: slow down the clamp-down process and reposition hands—most pinch incidents happen when trying to “catch” the magnet mid-snap.
• Q: When Bernina V8 multi-hooping keeps drifting, how should embroiderers choose between technique fixes, magnetic hoops, or upgrading to a multi-needle machine?
  A: Use a stepped approach: fix the method first, then upgrade the hoop to reduce torque, then upgrade the machine if re-hooping time is killing production.
  • Level 1 (Technique): implement the 4.00 mm manual registration line, unique color stops, correct anchoring, and correct sequencing.
  • Level 2 (Tool): switch from screw hoops to magnetic hoops when torque causes skew, hoop burn, or wavy registration lines.
  • Level 3 (Capacity): move to a multi-needle platform with a larger field when frequent 3+ hoop projects make re-hooping unprofitable.
  • Success check: alignment becomes repeatable—Part 2 registration stitches consistently cover Part 1 stitches without “zipper” gaps.
  • If it still fails: stop production and audit the workflow step-by-step (export settings, stitch order, stabilizer choice, and fabric adhesion) before changing hardware.
