Stop Losing Your SewArt Files: The “Save As” Workflow That Actually Creates PES/JEF (and the Fix When the 2nd Window Never Shows Up)

How to Save in SewArt: The "Ghost File" Fix & The 2-Step Secret

If you have ever clicked Save As in SewArt, hit Cancel on that first confusing pop-up, and then stared blankly at your screen thinking, “Where did my PES window go?”—you are not alone. I have spent two decades in the embroidery industry, and I still see beginners lose hours of their lives to this exact moment.

Here is the psychological trap: The software looks like it is working. You clicked the buttons. You heard the mouse click. But when you go to your desktop, the file isn’t there.

This guide rebuilds the full workflow from the video, but I am going to layer on the "shop-floor" habits that professional digitizers use. We will cover the specific two-step save dance SewArt requires, how to verify your file actually exists, and—critically—how to translate that digital file into a physical stitch-out without ruining your garment.

The “Save” vs. “Save As” Trap: Why You Keep Losing Files

SewArt gives you two paths that feel similar but behave very differently. Using the wrong one is the primary reason beginners think the software is broken.

• Save: This is a "silent" save. It drops the file into a default Documents folder you likely aren’t watching. It’s useful for quick backups, but terrible for workflow control.
• Save As: This is the command that forces the software to stop and ask you, "Where do you want this?" and "What machine are we using?"

When you are new, the biggest hidden cost isn’t the price of thread—it’s search time. If you are juggling test stitch-outs on a brother embroidery machine, managing your save location is the difference between specific, actionable learning ("I need to adjust the density") and vague frustration ("I can't even find the file to put it on the USB drive").

The "Pre-Flight" Prep: Don't Click Save Until You Do This

Before you even move your mouse to the "File" menu, you need to perform a sensory check. Experienced operators don't just "look" at the screen; they analyze the data state.

The "Stitch" Check: Look closely at your workspace. Do you see the texture of thread simulation?

• If yes: You have stitch data. You are ready to save.
• If no (it looks flat like a photo): You only have an image on the canvas. Saving now will only create a picture file, not an embroidery file.

This sounds obvious, but SewArt throws an image dialog at you first (we'll get to that), which tricks your brain into thinking you are just saving a picture.

Prep Checklist: The "Before You Click" Routine

Do not initiate the save sequence until you can check off these five boxes.

• Stitch Verification: Visually confirm the design has texture/stitch direction, not just flat pixels.
• Naming Convention: Name your design clearly (e.g., "Seahorse_v1_3in"). Avoid generic names like "Test1."
• Destination Check: Create a folder on your Desktop named "Embroidery_Staging." Save everything there first.
• Format Decision: Know your machine's language before the window opens (PES for Brother/Babylock, JEF for Janome, DST for commercial).
• Command Check: Ensure your mouse is hovering over File > Save As (NOT Save).

Hidden Consumable Alert: Keep a dedicated, low-capacity (8GB or less) USB drive formatted to FAT32 ready. Many older embroidery machines struggle to read large, modern USB drives filled with non-embroidery files.

The "False Door": Why SewArt Asks to Save an Image First

Here is the part that breaks the workflow for 90% of new users.

After you click File > Save As, SewArt opens a window titled Save Image File.

• What it is: It is offering to save a picture (TIFF, JPG, BMP) of your design.
• What you think it is: You think it's the embroidery file save screen.

If you save here and walk away, you will go to your machine, plug in your USB, and the machine will see nothing. Why? Because embroidery machines cannot read JPGs. Conversely, the instructor in the video usually clicks Cancel here.

Why click Cancel? Because in SewArt logic, canceling the Image dialog is the trigger that opens the Embroidery dialog.

When should you actually save the image?

You should only use this first dialog if you have significantly altered the artwork inside SewArt (e.g., you reduced a complex photo down to 2 colors). In that case, saving a PNG or TIFF gives you a "clean" reference image to look at later. For the purpose of stitching, however, it is a roadblock.

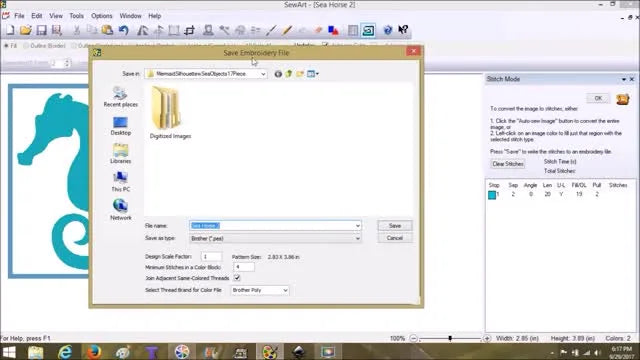

The "Real Door": The Embroidery File Dialog

Once you surpass the image dialog (by saving or canceling), SewArt should automatically launch the Save Embroidery File window. This is the "Engine Room." This is where pixels become needle commands.

Inside this dialog, your eyes must immediately snap to the Save as type dropdown menu. The video shows formats tied to specific machine brands. If you are trying to stitch on a janome embroidery machine, this is the critical moment where you must select JEF. If you leave it as the default (often BMP or generic), your machine will ignore the file.

Setup Checklist: Inside the "Save Embroidery" Dialog

• File Name: Verify it didn't revert to "Untitled."
• Location: Ensure it is still pointing to your "Embroidery_Staging" folder.
• Format match: Double-check your machine manual. (e.g., Selecting PES for Brother).
• Size Reality Check: Look at the pattern size displayed (e.g., 2.85 x 3.88 in).
• Hoop check: visualize your physical hoop. Will 3.88 inches fit inside your 4x4 hoop with the safety margin? (Yes, but barely).

The Trap of Scaling: What 0.5 and 2.0 Actually Do to Your Stitches

In the Save Embroidery File dialog, you will see a Design Scale Factor.

• 1 = Original Size
• 0.5 = 50% Smaller
• 2 = Double the Size


Expert Warning: Scaling here is mathematically dangerous.

• Scaling Down: If you shrink a design by 50% here, the software often keeps the original stitch count but packs them into half the space. Result: Bulletproof embroidery. The density becomes so high your needle will heat up, shred the thread, and potentially jam the machine.
• Scaling Up: If you double the size, the gaps between stitches grow. Result: You will see the fabric through the embroidery, and the fill will look sparse and cheap.

The Fix: If you need to resize, do it in the digitizing phase where you can adjust density, not in the saving phase.

Production Reality: If you find yourself constantly fighting to fit designs into awkward hoop sizes, or struggling to get the fabric straight in standard plastic hoops, the issue might not be the software—it might be your hardware. In professional settings, inconsistent placement is resolved by using hooping stations alongside standard hoops. However, for difficult items, forcing a scale change just to fit a hoop often leads to poor quality.

The "Minimum Stitches" Filter: When to Ignore It

The video highlights Minimum Stitches in a Color Block, but leaves it alone.

My Advice: Leave it alone for now. This setting tells the software, "If a color block has fewer than 5 stitches, delete it." It is a tool for cleaning up "confetti" (tiny stray pixels digitized by accident). If you set this too high, you might accidentally delete the dot on an "i" or the pupil of an eye.

The Only Proof that Matters: The "Successfully Saved" Pop-Up

In aviation, pilots trust their instruments, not their feelings. In SewArt, you must trust the confirmation pop-up, not your mouse click.

After you click Save in the embroidery dialog, two things must happen:

1. A pop-up box appears saying the file was successfully saved.
2. A tiny sew-out preview icon appears in the top toolbar.




If you click Save and the window just disappears without that pop-up, the file did not save.

Operation Checklist: The Verification Routine

• Click Save in the Embroidery Dialog.
• Visual Anchor: Did the "Successfully Saved" box appear?
• Icon Check: Do you see the tiny shirt/stitch icon in the toolbar?
• Physical Check: Open your folder. Is the .PES/.JEF file there? Does the file size look real (e.g., 15kb, not 0kb)?
• Only after these checks do you close the software.

Troubleshooting: When the Second Window Never Appears

The most common panic point: "I clicked Cancel on the Image dialog, and then... nothing happened."

This is often a UI (User Interface) glitch related to the Stitch Mode tab. One user discovered that if the Stitch Mode tab (the panel showing stitch counts) is closed, the software sometimes fails to trigger the second step.

The Fix:

1. Open the Stitch Mode tab/view.
2. Go to File > Save As again.
3. Cancel the Image dialog.
4. The Embroidery dialog should now trigger.

The "Clear Stitches" Nuclear Option

If the file still won't save, your stitch data might be corrupted. The video demonstrates a "reset":

1. Click Clear Stitches.
2. This wipes the embroidery data but keeps the image.
3. Re-digitize (Select Fill, click the Merge button).
4. Try File > Save As again.




Why Your File Looks Like "Dots" in Other Software (The SAF Issue)

If you open your newly saved file in a viewer like Bernina ArtLink and it looks like a mess of dots or shows as "SAF":

1. Format Mismatch: You saved as a generic format, not the specific one for bernina embroidery machines (like ART or EXP).
2. Hoop Violation: You saved a design that is physically larger than the maximum stitch field of your machine. Many machines/software will refuse to display a file that is 5.1 inches wide if the limit is 5.0 inches.

From Software to Steel: The Physical Reality Check

You have successfully saved the file. Congratulations! But a perfect file can still result in a disastrous product if the physical setup is wrong. Digital perfection cannot overcome bad physics.

Before you press "Start" on your machine, run this mental decision tree. This is the difference between a shirt you can sell and a rag you use to clean fit.

Decision Tree: Fabric, Stabilizer, & Hooping Strategy

Warning: Physical Safety
Machine embroidery involves needles moving at 600-1000 stitches per minute.
* Eye Protection: Needles can shatter if they hit a hoop or a dense knot. Always watch the machine from a safe distance.
* Hand Safety: Never put your hands near the needle bar while the machine is running.

The Upgrade Path: When "Good Enough" Isn't Enough

Once you master the software save, your bottleneck will shift. You will notice that while saving takes 10 seconds, hooping a shirt straight takes you 5 minutes, and holding a thick towel in a plastic hoop hurts your wrists.

This is the "Frustration Phase" where hobbyists either quit or upgrade using smart tools.

1. The Pain of "Hoop Burn": Traditional plastic hoops require you to jam fabric between two rings. On delicate items or thick jackets, this leaves a shiny ring ("hoop burn") or necessitates extreme hand strength.

• The Solution: Professionals switch to magnetic embroidery hoops. These use powerful magnets to hold the fabric flat without forcing it into a ring. It’s faster, safer for the fabric, and saves your wrists.

2. The Pain of Repetition: If you are doing 50 corporate polos on a single-needle machine, the manual color changes will drive you insane.

• The Solution: This is when you look at multi-needle machines (liker our SEWTECH 15-needle models). But before you buy a big machine, you can optimize your current setup. For example, a brother magnetic embroidery frame allows you to hoop the next shirt while the first one is stitching, significantly increasing your throughput.

Warning: Magnetic Field Safety
Magnetic embroidery hoops for bernina embroidery machines and other brands use industrial-strength magnets.
* Pacemakers: Keep these hoops at least 6 inches away from pacemakers or ICDs.
* Pinch Hazard: These magnets snap together with immense force. Keep fingers clear of the mating surfaces.
* Electronics: Store away from credit cards, phones, and hard drives.

Conclusion: The Reliable Loop

Embroidery is a mix of digital precision and physical art. By mastering the "Save As" loop in SewArt—File > Save As > Cancel Image > Save Embroidery > Verify—you eliminate the digital variables. By using the right backing and considering tools like a hooping station for machine embroidery or magnetic frames, you control the physical variables.

Stop chasing ghost files. Follow the checklist, trust the verification pop-up, and let your machine do the rest. Happy stitching.

FAQ

• Q: Why does SewArt "Save As" show a "Save Image File" window first, and how do I save a real PES/JEF/DST embroidery file?
  A: Cancel (or save) the Image dialog to trigger the real "Save Embroidery File" dialog, then choose the correct embroidery format there.
  • Click File > Save As and watch for the Save Image File window.
  • Click Cancel on the image window to open Save Embroidery File (this is normal SewArt behavior).
  • Select the correct Save as type (for example: PES for Brother/Babylock, JEF for Janome, DST for many commercial machines) and save into a known folder.
  • Success check: after saving, a “Successfully Saved” pop-up appears and a small sew-out/preview icon shows in the toolbar.
  • If it still fails: confirm the design is in stitch view/has thread texture (not just a flat image) before saving.
• Q: How can SewArt users confirm an embroidery file is not a "ghost file" after saving a PES or JEF?
  A: Trust the confirmation pop-up and verify the file exists in the folder before closing SewArt.
  • Click Save inside the Save Embroidery File dialog (not the image dialog).
  • Look for the “Successfully Saved” pop-up immediately.
  • Open the destination folder and confirm the .PES/.JEF/.DST file is present and the file size is not 0kb.
  • Success check: the pop-up appears and the file shows in the folder with a realistic size.
  • If it still fails: re-save to a simple Desktop staging folder and avoid unusual locations until the workflow is stable.
• Q: Why does the SewArt "Save As" workflow fail when the "Stitch Mode" tab is closed, and how do you fix the missing second window?
  A: Re-open the Stitch Mode view, then repeat File > Save As so SewArt correctly triggers the embroidery save dialog.
  • Open the Stitch Mode tab/view (the panel that shows stitch counts).
  • Go to File > Save As again.
  • Click Cancel on the Save Image File window to trigger Save Embroidery File.
  • Success check: the Save Embroidery File window appears right after canceling the image window.
  • If it still fails: use the Clear Stitches reset, re-digitize, then try Save As again.
• Q: What does "Clear Stitches" do in SewArt, and when should SewArt users use it to fix saving problems?
  A: Use Clear Stitches as a reset when stitch data may be corrupted; it removes stitches but keeps the image so you can re-digitize and save again.
  • Click Clear Stitches to wipe embroidery data while leaving the image artwork.
  • Re-digitize (for example, re-apply Fill and Merge as shown in the workflow).
  • Try File > Save As again and proceed to the embroidery format dialog.
  • Success check: the re-created design shows thread/stitch texture and saves with a “Successfully Saved” pop-up.
  • If it still fails: confirm you are not only saving an image format (JPG/BMP/TIFF) and that you are selecting a true embroidery type in the second dialog.
• Q: Why is changing "Design Scale Factor" (0.5 or 2.0) in the SewArt Save Embroidery File dialog risky for stitch quality?
  A: Avoid resizing at save-time because scaling can create overly dense stitches (downsizing) or visible gaps (upsizing); resize during digitizing instead.
  • Leave Design Scale Factor = 1 when possible to preserve stitch behavior.
  • If the design must change size, adjust it earlier in the digitizing stage so density can be corrected (scaling at save-time often does not correct density).
  • Do a quick hoop reality check against the physical hoop size before saving.
  • Success check: the stitched fill is not “bulletproof” dense and the fabric does not show through as sparse gaps.
  • If it still fails: choose a hooping strategy that fits the design instead of forcing a scale change just to “make it fit.”
• Q: What stabilizer and hooping strategy should machine embroidery users choose to prevent hoop burn and distortion on knits, towels, and delicate fabrics?
  A: Match stabilizer to fabric type first, then choose hooping that holds fabric flat without stretching or crushing fibers.
  • Use cut-away for stretchy knits and do not stretch the fabric while hooping; consider floating or using magnetic hoops to reduce hoop burn.
  • Use tear-away + water soluble topper for high pile items like towels/fleece to prevent stitches from sinking.
  • Use no-show mesh (cut-away) for slippery/delicate fabrics to support stitches while handling gently.
  • Success check: fabric stays flat (not rippled), the hoop mark is minimal, and the design does not sink into pile.
  • If it still fails: reduce handling force and reassess hooping method (magnetic hoops can help when standard plastic hoops crush or mark fabric).
• Q: What safety rules should operators follow for high-speed machine embroidery needles and magnetic embroidery hoops?
  A: Treat embroidery as a high-speed cutting operation and treat magnetic hoops as pinch hazards with strong magnetic fields.
  • Wear eye protection and watch from a safe distance because needles can shatter if they hit a hoop or dense knot.
  • Keep hands away from the needle bar while the machine is running (600–1000 stitches per minute can injure quickly).
  • Keep magnetic embroidery hoops at least 6 inches away from pacemakers/ICDs and keep fingers clear when magnets snap together.
  • Success check: no fingers near moving parts, no “magnet snap” pinches, and the machine runs without needle strikes against the hoop.
  • If it still fails: stop the machine immediately and re-check hoop clearance, design size vs hoop, and handling procedures before restarting.
• Q: When SewArt users struggle with hoop burn, slow hooping, or repeated placement issues, what is the best upgrade path: technique changes, magnetic hoops, or a multi-needle embroidery machine?
  A: Start with workflow control, then upgrade hooping hardware for consistency, and only then consider production-capacity upgrades if volume demands it.
  • Level 1 (technique): stage files in a dedicated folder, use the save verification routine, and match stabilizer/hooping strategy to fabric.
  • Level 2 (tool upgrade): use magnetic embroidery hoops when standard hoops cause hoop burn, require excessive force, or distort fabric.
  • Level 3 (capacity upgrade): consider a multi-needle machine when frequent manual color changes and repetitive hooping become the real bottleneck.
  • Success check: hooping time drops, placement becomes repeatable, and stitch-outs stop being ruined by distortion or hoop marks.
  • If it still fails: identify whether the limiting factor is still software saving, physical hooping consistency, or production throughput before spending on the next step.
