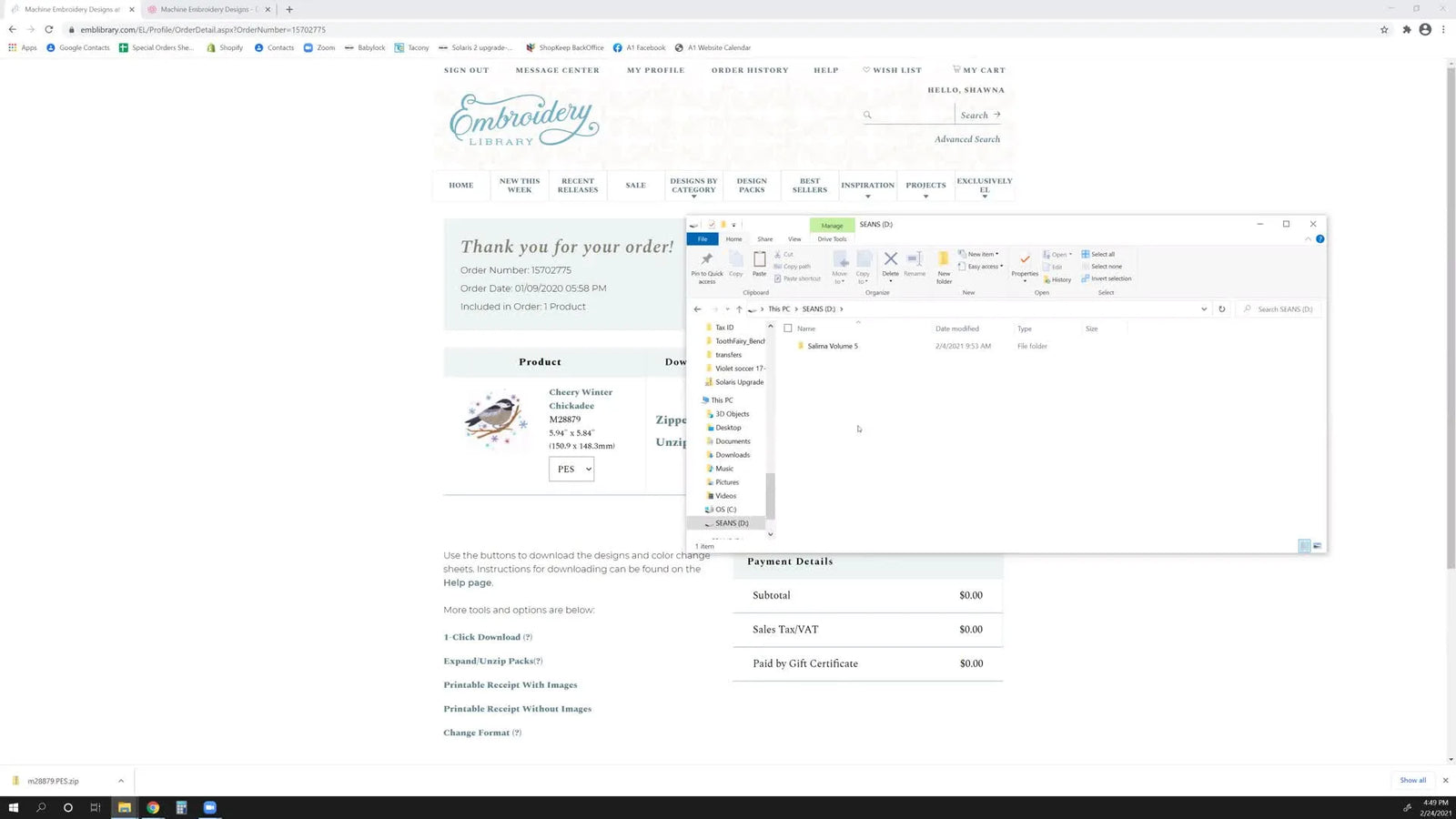

Stop Losing Designs on Your USB: A Windows-Proof Workflow for Downloading, Unzipping, and Organizing Embroidery Files

The Silent Panic: Why Your Machine Can’t See Your Design (and How to Fix It Forever)

You have loaded the design onto the USB drive. You plug it into the machine. You tap the screen. Nothing. Just an empty grid or a "No File Found" error.

In my 20 years of teaching embroidery, I have seen this moment cause more tears than thread nests. It triggers a specific type of frustration because the machine feels "blind." But here is the truth: Your machine is not broken, and you are not incompetent. The machine is simply a strict librarian—if the file isn't in the exact format, unlocked from its shipping container (ZIP), and placed on a shelf (folder) it can reach, it will refuse to see it.

This guide replaces the guesswork with a "military-grade" digital workflow. We will replicate the exact Windows process used by professionals to move files from the internet to your machine without losing data along the way.

The Calm-Down Check: Diagnostics Before Drastics

Before you re-buy a design or call a technician, perform this 3-Point Reality Check. 90% of "ghost file" issues are solved here.

1. Is the file "Naked"? If your filename ends in .zip, it is still wearing a coat. Your machine cannot unzip files; it needs the raw .pes, .dst, or .exp file inside.
2. Is the format correct? A vendor folder might contain 15 different files. If you copy the .jef file to a Brother machine (which speaks .pes), the machine will ignore it.
3. Is the USB drive formatted correctly? Most embroidery machines require a USB drive formatted to FAT32 with a capacity under 32GB. If you are using a massive 1TB drive formatted for a Mac, the machine will likely reject it entirely.

Hidden Consumable Alert: Always keep a spare, dedicated USB drive (4GB - 16GB) in your drawer. They are cheap, and having a backup rules out hardware failure instantly when troubleshooting.

If you are working with a Brother-style workflow and downloading a specific size, you might see folders labeled by hoop constraints. This is common in packs compatible with a standard brother 4x4 embroidery hoop, where file organization helps you avoid loading a 5x7 design that physically won't fit your frame.

The "Hidden" Prep: Setting the Stage for Success

The video tutorial jumps into the download, but professionals set their digital workspace first. If you skip this, you will end up with a "Downloads" folder that looks like a junk drawer, making it impossible to find that one snowflake design three months from now.

Prep Checklist (Do This Once)

• Insert the USB Drive: Listen for the Windows "da-dunk" sound to confirm connection.
• Check the Drive Letter: Open File Explorer (Yellow Folder Icon). Note if your USB is named (e.g., "USB Drive (E:)").
• Create a "Staging" Folder: Do not work directly out of your Downloads folder forever. Create a folder on your Desktop named "Embroidery Staging" where you will extract files.
• Know Your Format: Write it on a sticky note on your machine. (e.g., Brother/Babylock = .PES, Janome = .JEF, Bernina = .EXP).

Warning: Data Corruption Risk
Never pull a USB drive out while files are copying or while the machine is reading it. This can corrupt the file header, making it unreadable forever. Always usage the "Eject" function in Windows (Right-click drive > Eject) or wait until the machine screen has fully changed screens before removing.

The Download: Zipped vs. Unzipped (Decoding the Icons)

When you buy a design, you often face a choice: Zipped or Unzipped.

Visual Anchors: What You See

• Zipped (The Shipping Container): The icon looks like a manila folder with a literal zipper on it. This is a compressed package containing multiple files.
• Unzipped (The Item): The icon usually looks like a piece of paper, a flower, or the logo of your embroidery software.

Why choose Zipped? If you are buying a full alphabet or a collection, downloading one by one is painful. Zipping them bundles them into one easy download. Why choose Unzipped? If you just need one specific flower design, unzipped is faster because it skips the "unlocking" step.

In the workflow shown, we select Zipped because that is where most beginners get stuck. Watch the Chrome download bar at the top right (or bottom left on older versions). Wait for the blue circle to complete.

The "Show in Folder" Shortcut (Stop Hunting)

Beginners often click the file immediately, which tries to "open" it. If you don't have embroidery software installed, Windows will throw an error saying, "I don't know how to open this."

The Correct Move:

1. Locate the downloaded file in your browser status bar.
2. Click the small Folder Icon or the arrow next to the filename.
3. Select "Show in folder".

This forces Windows File Explorer to pop up and highlight exactly where the file landed. It eliminates the "Where did it go?" panic.

Unlocking the Container: The "Extract" Myth vs. Experience

Here is the core concept: A Zipped folder is a locked room. You can look through the window (double-click to see inside), but you cannot furniture out (files) until you unlock the door.

Your embroidery machine cannot open the door. You must take the file put of the room first.

The "Copy-Out" Method (Safest for Newbies)

1. Double-click the Zipped folder to see the contents.
2. Locate the file you need (look for the file extension, e.g., .pes).
3. Left-click once to highlight it.
4. Right-click on the highlighted file and select Copy.

Sensory Check: You won't see anything happen yet. You have just stored that file on your "digital clipboard."

Pasting to the USB: The Physical Transfer

Now we move from the computer to the transfer stick.

1. On the left navigation pane of File Explorer, find your USB drive (often named "Removable Disk" or the brand name like "SANDISK").
2. Click it once to open the drive. You should see a blank white space (or your existing folders).
3. Right-click in the empty white space.
4. Select Paste.

The Rename Rule

Immediately after pasting, the file might have a cryptic name like x9924_sm.pes. Your machine layout might only show the first 8 characters.

1. Right-click the file on the USB.
2. Select Rename.
3. Type a clear name: XmasBird_4x4.
4. Press Enter.

Why rename? Because searching for "XmasBird" is infinitely easier than guessing what "x9924" means when you are standing at the machine.

Visual upgrades: Thumbnails and View Settings

If you only see lists of filenames, it is hard to know which "Flower" is the rose and which is the tulip.

Action:

1. In File Explorer, click the View tab at the top.
2. Select Extra Large Icons.

If you have software like PE-Design or a thumbnail plugin installed, you will now see a picture of the stitch file. If not, you will just see a larger generic icon—but the larger text makes mistakes less likely.

The "Unzipped" Shortcut

If you chose the "Unzipped" download option initially:

1. Use "Show in Folder."
2. You will notice the icon does not have a zipper.
3. You can skip the "Double-click to open" step.
4. Simply Right-click > Copy directly from the Downloads folder.

This is faster, but reckless if you are downloading 50 files at once. Use unzipped for single, quick jobs.

The Filter Trick: Solving the "Format Soup"

When you download a "Multi-Format Pack," the folder is a mess. It contains .dst, .exp, .jef, .vip, .vp3... hundreds of files. This is visually overwhelming and leads to copying the wrong format.

The Pro Fix:

1. Open the folder containing all the files.
2. Go to the Search Box (top right of the window).
3. Type your machine's extension: e.g., *.pes.
4. Windows hides everything else. Now you only see the files your machine can actually read.

This simple trick is arguably the most valuable step in learning how to download embroidery designs to USB quickly and accurately.

Organizing on the Stick: Folders Are Your Friend

Dumping 500 files onto the "root" (the main area) of the USB drive makes your machine sluggish to load. Organized professionals use folders.

The "Project > Size" Hierarchy

1. On the USB drive, Right-click > New > Folder.
2. Name it Xmas Cookie Proj.
3. Inside that folder, create sub-folders if needed (e.g., 4x4, 5x7).

When the tutorial selects the 4x4 folder, it’s not just about organization—it’s about safety. Placing a 5x7 design into a folder explicitly named 4x4 is a recipe for needle strikes. Keeping them separated ensures that when you select a file from the 4x4 folder, it is guaranteed to fit your standard hoop.

The Batch Transfer Loop: Building Muscle Memory

Once the folder structure is ready, the process becomes a rhythmic loop.

1. Source: Browser > Show in Folder.
2. Filter: Search for .pes.
3. Capture: Highlight Files > Copy.
4. Destination: Click USB > Open Project Folder > Paste.

Setup Checklist (The "Runway" Check)

• Tabs clear? Close unnecessary windows so you don't paste into the wrong folder.
• Format filter on? Ensure the search bar still says *.pes (or your format).
• Destination ready? Is the USB drive folder open and empty?
• Batch size safe? Don't copy 1,000 files at once. Older machines may crash reading a folder with more than 20-50 designs. stick to small batches.


Troubleshooting: The "Why Isn't It Working?" Table

If you follow the steps and still fail, consult this table. It covers the three most common panic-inducers.

The Decision Tree: How to Handle Any Download

Stop guessing. Follow this logic path whenever you download a new file.

Start: You have a new download.

1. Is it Zipped? (Zipper Icon)
   • YES: Double-click to open > Find your file > Copy.
   • NO: Right-click file > Copy.
2. Does the folder have multiple formats?
   • YES: Type *.pes (or your format) in the search bar.
   • NO: Proceed.
3. Is this for a specific project?
   • YES: Create a folder on the USB named for the project.
   • NO: Paste into a "Misc" folder (Do not leave loose in root).
4. Did you Rename it?
   • YES: Proceed to Eject.
   • NO: Rename now (Max 8-15 chars recommended).
5. Finish: Eject USB safely.


The Desktop Drop: When to Use It

The video shows dragging a folder to the Desktop. This is a valid shortcut for active projects.

• Good Habit: Drag the current project folder to the Desktop so it is front-and-center.
• Bad Habit: Saving everything to the Desktop. This slows down your computer and risks losing files if Windows crashes.

Expert Advice: Use the Desktop as a "workbench," not a "warehouse." Once the project is done, move the folder to your Documents or an external hard drive archive.

Beyond the File: Upgrading Your Physical Workflow

Mastering the USB transfer solves the "Input" problem. But once the design is in the machine, beginners often hit the next wall: Hooping Fatigue.

If you notice that transferring the file takes 2 minutes, but wrestling the fabric into the hoop takes 10 minutes (or leaves you with "hoop burn" marks on delicate items), your bottleneck has shifted. This is usually where frustration sets in—you have the design, but the physical setup is fighting you.

Criteria for Tool Upgrades

When should you stop blaming your technique and start upgrading your tools?

1. The Trigger: You are avoiding projects because hooping is physically painful for your wrists, or you are ruining garments with hoop marks.
2. The Diagnosis: Traditional screw-tension hoops are excellent for basics, but slow and aggressive on fabric.
3. The Solution:
   • For Home Users: A magnetic hoop for brother (or your specific brand) uses clamps instead of friction. This eliminates hoop burn and drastically speeds up the process for items like towels or thick sweatshirts.
   • For Bulk Production: If you are trying to sell items, researching how to use magnetic embroidery hoop videos will reveal that magnets are the industry standard for speed.
   • For Scale: If you find yourself limited by needle changes, you might be outgrowing your single-needle machine. This is when shifting to SEWTECH multi-needle solutions becomes a business decision, not just a hobby cost.

Warning: Magnet Safety
magnetic embroidery hoops use powerful neodymium magnets.
* Pinch Hazard: They snap together instantly. Watch your fingers.
* Medical Safety: Keep them at least 6 inches away from pacemakers or insulin pumps.
* Electronics: Do not rest them directly on your laptop hard drive or near credit cards.

Operation Checklist (The Final "Go" Check)

• File: Correct format (.pes, .jef, etc.) is on the USB.
• Placement: File is NOT inside a ZIP folder.
• Hoop: The design size matches the physical hoop you are about to use.
• Stabilizer: You have matched the stabilizer to the fabric (e.g., Cutaway for knits, Tearaway for woven).
• Safety: The USB has been safely ejected from the computer before removal.

By locking down your digital workflow, you stop fighting the computer and start focusing on the art of the stitch. Copy, Paste, Unzip, Eject—make it a rhythm, and the panic disappears.

FAQ

• Q: Why does a Brother embroidery machine show “No File Found” or an empty grid after inserting a USB drive with designs?
  A: The Brother embroidery machine usually cannot see the design because the file is still inside a ZIP folder, the format is wrong (not .PES), or the USB is not FAT32.
  • Open the download and confirm the design file is a raw .pes file (not a .zip).
  • Use Windows search in the folder and type *.pes to hide other formats, then copy only the .pes file.
  • Reformat a small dedicated USB to FAT32 (many machines work best under 32GB) and retry.
  • Success check: The Brother embroidery machine design screen shows selectable thumbnails/files instead of an empty list.
  • If it still fails: Try a spare USB drive to rule out a failing stick or corruption.
• Q: How does a Brother or Baby Lock embroidery machine fail when a .ZIP embroidery design folder is copied to the USB drive?
  A: A Brother or Baby Lock embroidery machine cannot unzip files, so copying the ZIP “container” to USB makes the design invisible.
  • Double-click the ZIP on the computer to view contents, then locate the actual .pes file inside.
  • Right-click the .pes file and choose Copy, then paste onto the USB (or into a project folder on the USB).
  • Rename the file after pasting (do not rename inside the ZIP).
  • Success check: The file on the USB ends with .pes and is selectable on the Brother/Baby Lock screen.
  • If it still fails: Confirm the file is not still sitting inside a ZIP and is not the wrong format from a multi-format pack.
• Q: What is the safest Windows method to prevent embroidery design corruption when removing a USB drive from a Brother embroidery machine workflow?
  A: Always use Windows “Eject” and never pull the USB during copying or while the embroidery machine is reading the drive.
  • Wait until file copying fully finishes before touching the USB drive.
  • Right-click the USB drive in Windows File Explorer and select Eject.
  • At the machine, wait until the screen has fully changed/loaded before removing the USB.
  • Success check: The design opens normally every time without random “can’t read” behavior.
  • If it still fails: Re-copy the file from the original download source using the same eject procedure to rule out a corrupted header.
• Q: Why does a Windows computer refuse to rename an embroidery design file inside a ZIP folder for a Brother .PES workflow?
  A: Windows may show the file, but renaming inside a ZIP often fails because the ZIP acts like a locked container—copy the file out first, then rename.
  • Open the ZIP, right-click the .pes file, and Copy it out to Desktop or directly to the USB.
  • Rename the copied file on the Desktop/USB (use a clear short name like XmasBird_4x4).
  • Keep names short because some embroidery machine screens only display the first part of a filename.
  • Success check: The renamed .pes file remains a normal file (not a zipped item) and appears on the machine with the new name.
  • If it still fails: Confirm the filename did not accidentally change the extension (it must still end in .pes).
• Q: How can a Brother embroidery machine user quickly find the correct .PES file inside a multi-format embroidery design pack (“format soup”)?
  A: Use the Windows File Explorer search filter *.pes to hide every other format and prevent copying the wrong file type.
  • Open the folder that contains all formats (.dst, .exp, .jef, etc.).
  • Click the search box (top right) and type *.pes.
  • Copy only the filtered results to the USB drive project folder.
  • Success check: The USB contains only .pes files, and the Brother embroidery machine can see and load them.
  • If it still fails: Verify the design vendor actually included .pes in the pack and that the file is not still compressed.
• Q: Why does an embroidery machine freeze or load very slowly when reading a USB drive full of designs?
  A: The embroidery machine may struggle when too many designs are in one folder—reduce the file count and use folders.
  • Create project folders on the USB (e.g., Xmas Cookie Proj), then subfolders like 4x4 and 5x7.
  • Keep small batches per folder (a safe starting point is the “rule of 20” designs per folder mentioned in the workflow).
  • Avoid dumping hundreds of files on the USB root directory.
  • Success check: The machine opens the USB directory quickly and scrolling/selecting designs is responsive.
  • If it still fails: Test the same folder on a different small FAT32 USB drive to rule out drive failure.
• Q: When should a home embroiderer upgrade from a screw-tension hoop to a magnetic embroidery hoop to reduce hoop burn and hooping fatigue?
  A: If hooping is painful, slow, or leaving hoop burn marks, a magnetic embroidery hoop is often the next tool upgrade after technique checks.
  • Confirm the bottleneck: File transfer takes minutes, but hooping takes much longer or damages delicate fabric.
  • Switch from friction-based screw hoops to a magnetic hoop system that clamps fabric more easily (brand-specific selection matters).
  • Pair the hoop choice with correct stabilizer habits (match stabilizer to fabric as a baseline).
  • Success check: Hooping time drops noticeably and fabric shows fewer hoop marks after stitching.
  • If it still fails: Re-check design size vs. physical hoop size and stabilizer choice; if production volume is the issue, consider moving up to a multi-needle workflow.
• Q: What are the key safety rules when using neodymium magnetic embroidery hoops around fingers, pacemakers, and electronics?
  A: Neodymium magnetic embroidery hoops can snap together hard—treat them like a pinch hazard and keep them away from medical devices and sensitive items.
  • Keep fingers clear when magnets come together; place magnets deliberately, not by “letting them jump.”
  • Keep magnetic hoops at least 6 inches away from pacemakers or insulin pumps.
  • Avoid resting magnets on laptops, near credit cards, or near sensitive electronics.
  • Success check: Magnets seat cleanly without finger pinches and nothing “mysteriously” stops working nearby.
  • If it still fails: Stop and reassess the work area layout before continuing—magnet accidents happen fast and are preventable.
