Stop Losing Designs in Wilcom Hatch: Manage Designs, Read Stitch Counts Fast, and Fix the “White Box” Thumbnail Problem

If you have ever stood in front of your machine, staring at a folder of 500 mystery files named "Design1_final_v2.pes," feeling the creeping panic of a looming deadline, you are not failing—you are just experiencing the "Digital Fog" of machine embroidery.

Embroidery is a physical art, but it starts as digital data. The friction between your computer (which sees files) and your embroidery machine (which needs explicit instructions) is where 80% of production errors happen. The panic hits right before you press start: Is this the version with the fixed spelling? Is this the one sized for a hat or a jacket back?

This is why Wilcom Hatch’s Manage Designs is not just a file browser; it is your Pre-Flight Safety Control Center.

As someone who has trained operators for two decades, I teach a simple rule: The quality of your stitch-out is determined before the machine even moves. Hatch’s library allows you to see the "DNA" of your design—stitch angles, density, and trim commands—without opening a single file. By mastering this view, you stop guessing and start manufacturing.

Windows File Explorer vs. Wilcom Hatch: Why "Standard" Browsing is Dangerous

Operating Systems like Windows are designed for PDFs and JPEGs. They treat embroidery files like generic data. They might show you a tiny thumbnail if you are lucky (and have the right shell extensions installed), but they hide the data that actually matters to your machine.

An embroidery operator needs to know Stitch Count and XY Dimensions instantly. Why? Because a 5,000-stitch design and a 25,000-stitch design might look identical in a small icon, but if you put the 25,000-stitch version on a thin t-shirt without heavy stabilizer, you will destroy the garment.

Hatch’s built-in manager reads the metadata directly. It allows you to browse with the eyes of a digitizer. This is the difference between a hobbyist saying, "I hope this works," and a professional saying, "I know exactly how this will run."

The 10-Second Switch: Accessing the "Manage Designs" Toolbox

To enter this mode, do not look for a separate program. Inside Hatch, look to the Toolbox on the left side of your workspace.

1. Locate: Find the "Manage Designs" tab.
2. Action: Click the arrow to "twirl down" the menu.
3. Select: Click Manage Designs.

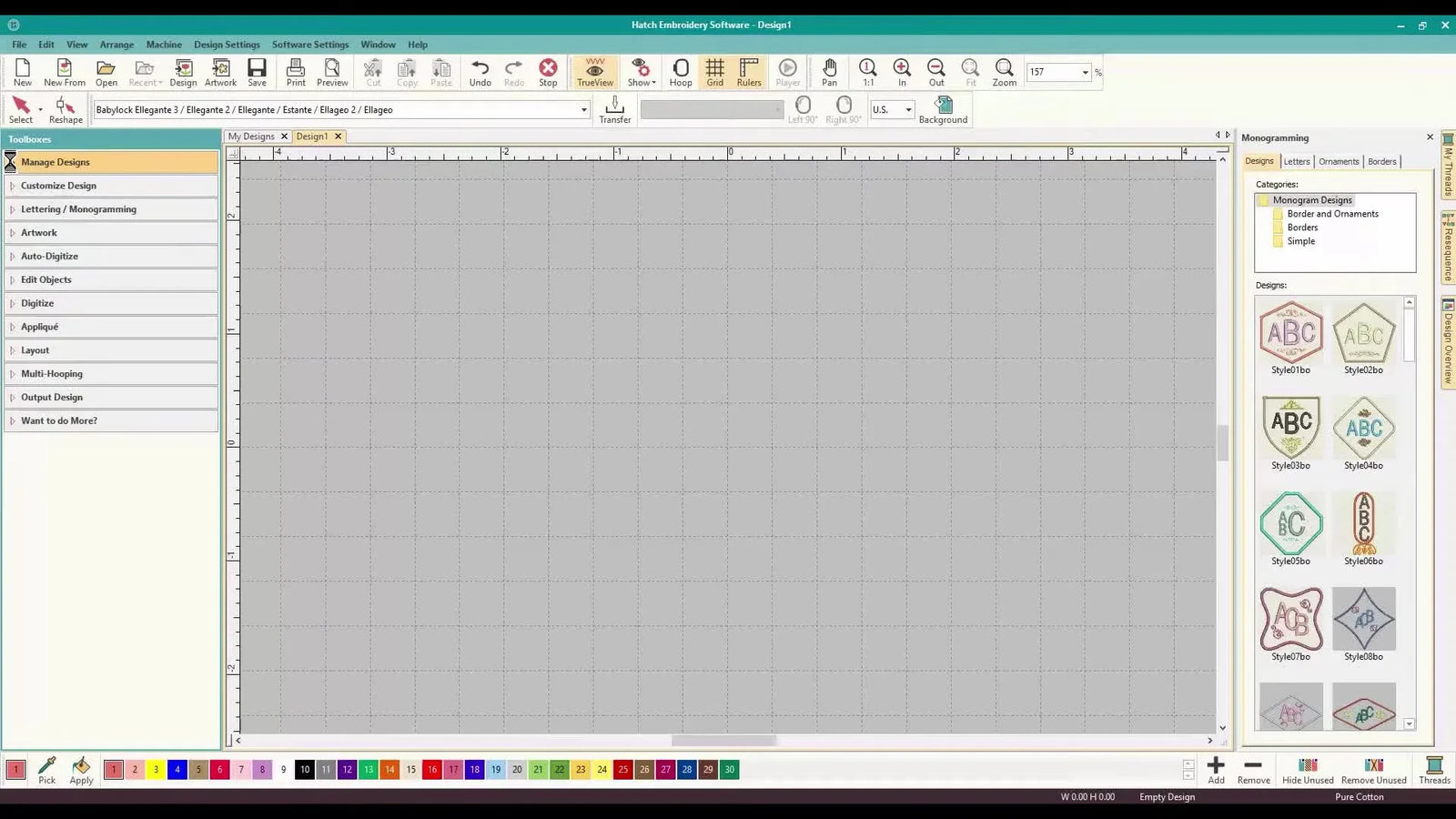

Your interface will shift from the "Canvas" (creation mode) to the "Library" (management mode). This switch is your foundation. I recommend making this your default morning routine: Open Hatch, switch to Manager, and scan your daily production folder before you even turn on the embroidery machine.

The "Hover Test": Diagnosing Failure Before It Happens

Here is a secret that saves thousands of dollars in ruined garments: The Hover Test.

In the Manage Designs view, simply hover your mouse over any design thumbnail. Hatch will generate a pop-up readout containing the crucial "Vital Signs" of the file: Stitch Count, Height, Width, Colors, and Trims.

Interpreting the Data (The Expert's Eye)

New users ignore these numbers. Pros use them to predict physical behavior.

• Height/Width vs. Hoop Size:
  • The Trap: Windows might mistakenly tell you a file is "4 inches." Hatch will tell you it is exactly "4.02 inches."
  • The Reality: If your machine’s limit is 4.00 inches (common in 4x4 hoops), that extra 0.02 inches will cause the machine to refuse the file, or worse, cause a Hoop Strike (where the needle hits the plastic frame).
• Stitch Count vs. Fabric:
  • The Rule: Look at the density. In the video example, a Sunflower design is 4.88 inches wide with 14,755 stitches.
  • The Verdict: This is a moderately dense design. If you put this on a flimsy t-shirt with a single layer of tear-away stabilizer, you will get puckering. This data tells you: "Use Cut-Away stabilizer and perhaps a spray adhesive."


Warning: The Hoop Strike Hazard
Never guess if a design fits. If the digital file size is within 3mm of your hoop's maximum physical limit, you are in the "Danger Zone."
* Risk: The needle bar hitting the hard plastic hoop frame.
* Result: Shattered needle, thrown timing, or a broken reciprocity shaft.
* Best Practice: Always leave a 10% safety buffer zone in your hoop area.

Prep Checklist: Data Integrity Check

Before you stitch, verify these three points in the Manage Designs view:

• Size Check: Is the design at least 5mm smaller than my hoop's max field on all sides?
• Density Check: Does the stitch count match my fabric choice? (e.g., <10,000 for knits, >15,000 needs heavy support).
• Format Check: Is this the executable file (PES/DST) or the object file (EMB)?

Visualizing Texture: Using Extra-Large Thumbnails for Quality Control

Go to the View options in the top menu and slide the icon size to Extra Large.

Why do this? Because in embroidery, Texture is Truth. At this size, Hatch renders the 3D simulation of the thread. You can visually distinguish between a Satin Stitch (smooth, shiny columns) and a Tatami/Fill Stitch (flat, textured fills).

Why this matters physically:

• If you are stitching on a towel (terry cloth), you need to see if the design has "underlay" or if it is a thin sketch.
• A thin sketch on a towel will sink into the loops and disappear.
• By viewing the Extra Large thumbnail, you can spot this issue instantly: "This design is too open for a towel. I need to add a water-soluble topper (Solvy) or pick a different file."




EMB vs. PES: Understanding Your Digital Assets

Hatch (and the embroidery industry) divides files into two categories. Understanding this distinction is mandatory for professional workflow.

1. The Source File (.EMB): This is your "Master Tape." It contains vector data, object properties, and resizing logic. Never delete this.
2. The Machine File (.PES, .DST, .JEF): This is the "MP3." It is compressed and dumbed down. It only contains XY coordinates for the needle.

If you own a single-needle machine, you likely live in the world of brother embroidery machine formats like PES. However, you must archive your EMB files separately.

• Scenario: A client wants that 4-inch logo resized to 3 inches.
• Wrong Way: Open the PES and shrink it. (Result: Density doubles, bulletproof embroidery, broken needles).
• Right Way: Open the EMB, resize it (Hatch recalculates the density), and export a new PES.


Setup Checklist: Organizing Your Library

• Folder Visibility: Ensure "Show Folders" is checked in the library tree so you can navigate your hard drive.
• Naming Convention: Rename files with meaningful tags. Example: Sunflower_W4in_15k_Stitch.EMB.
• Separation: Consider keeping separate folders for "Editable_EMBs" and "Machine_Ready_PES".

Filter Like a Pro: Preventing the "Wrong File" Disaster

In the library view, there is a powerful dropdown menu often set to "All Embroidery Files." If you use a specific machine brand, change this setting immediately.

For example, selecting Brother/Babylock/Bernina/Deco (*.PES) acts as a safety filter. It hides the files your machine cannot read.

The "Hoop Burn" Context: Many users upgrading their gear start researching brother embroidery hoops to expand their capabilities. When you buy larger hoops, file management becomes even more critical because you will have multiple versions of the same design (e.g., Logo_4x4, Logo_5x7). Filtering by format and checking the size in the metadata prevents you from loading a 5x7 file when you have a 4x4 hoop attached—a mistake that stalls your workflow and frustrates the operator.

The "Collect All Files" Command: Taming the Chaos

If your designs are scattered across "Downloads," "Documents," and "Desktop," use the Collect all files button. This aggregates every recognizable embroidery file in the selected directory tree into one visual grid.

This is critical for "Batching."

• Production Tip: If you are about to run 20 navy blue hats, use this feature to find all white-thread designs across your folders. You can then batch your work by thread color rather than by folder location, saving you dozens of re-threading stops.




Operation Checklist: The Pre-Stitch Routine

• Filter: Set the specific machine format (e.g., PES or DST).
• Verify: Click the design to confirm the stitch count is reasonable for your speed setting (slow down for high density!).
• Visual Check: Look at the thumbnail—does the stitch angle look correct?
• Hidden Consumables: Do you have enough bobbin thread? Check your Pre-wound Bobbins stock before starting a large run (14k+ stitches).

Troubleshooting: The "White Box" Thumbnail Glitch

A common pain point mentioned by users is the "White Box" syndrome—where personal designs show no preview image.

This is usually a shell extension conflict. If you have installed multiple embroidery software packages (e.g., generic editors + Hatch), they fight over who gets to generate the thumbnail icon in Windows.

The Fix Protocol:

1. Internal Check: ensure you are browsing inside Hatch Manage Designs, not Windows Explorer.
2. Filter Check: Verify you haven't filtered for a file type you don't possess (e.g., looking for .ART files in a .PES folder).
3. Support Ticket: If the problem persists inside Hatch, it is a registry conflict. Contact Wilcom support. Do not edit your registry manually unless you are an expert.

The Physical Connection: From Software to Steel

Organizing your files is Step 1. But once the file is perfect, the bottleneck shifts to your hands. The number one complaint I hear from students isn't about software—it is about Hooping.

Traditional plastic hoops require hand strength and precision screw-tightening. If you overtighten, you get "hoop burn" (permanent ring marks on the fabric). If you undertighten, the fabric slips, and your perfect digital design becomes a physical mess of registration errors.

The Logic of Tool Upgrades

When your file management helps you retrieve designs in seconds, but it takes you 5 minutes to hoop a shirt, your tools are unbalanced.

• Level 1 (The Hobbyist): improving technique with standard hoops.
• Level 2 (The Pro-sumer): This is where many users switch to an embroidery magnetic hoop.
  • Why? It uses magnets to clamp fabric instantly without "unscrewing." It reduces hand fatigue and hoop burn significantly.
  • Fit: Owners of popular domestic machines often specifically seek a brother pe800 magnetic hoop or similar compatible models to speed up their workflow.
• Level 3 (The Business Owner): If you are running production orders (50+ items), single-needle changes become the enemy. This is when you look at SEWTECH multi-needle machines or similar industrial upgrades to match the speed of your organized digital library.

Warning: Magnetic Safety
Modern magnetic hoops use industrial-strength Neodymium magnets.
* Pinch Hazard: These snap together with incredible force. Keep fingers clear of the contact zone.
* Medical Safety: DO NOT use magnetic hoops if you (or anyone nearby) has a pacemaker or ICD. The magnetic field can interfere with life-saving devices.

Decision Tree: Stabilizer Selection Strategy

Your file is ready. Your machine is ready. Do not fail on the stabilizer. Use this logic flow before you stick the backing to the fabric.

Q1: Is the fabric stretchy? (T-shirts, Polos, Knits)

• YES: STOP. You simply must use Cut-Away Stabilizer.
  • Why? Knits stretch. A 14,000-stitch design will push the fabric. Tear-away will shatter, leaving the fabric unsupported, leading to a distorted ball of thread.
• NO: Go to Q2.

Q2: Is the fabric unstable or loose weave? (Towels, Sweaters)

• YES: Use Cut-Away + Water Soluble Topper.
  • Why? Topper prevents stitches from sinking (the "texture" issue we saw in the thumbnail).
• NO: Go to Q3.

Q3: Is the fabric stable and woven? (Denim, Canvas, Twill)

• YES: You can safely use Tear-Away Stabilizer.
  • Experience: Even on denim, for high stitch-count designs (>15k), I often float a layer of tear-away under the hoop for extra crispness.


Quick Troubleshooting: Symptoms → Fixes

The Final Stitch

Mastering "Manage Designs" in Hatch is about confidence. When you can verify the stitch count, visualize the texture, and filter for the correct format before you load the file, you eliminate 90% of the variables that cause embroidery to fail.

Once your digital house is in order, your hands are free to focus on the craft—hooping straight, choosing the right thread, and watching your creation come to life without the fear of a machine error. Those terms like hooping station for embroidery or magnetic frames aren't just accessories; they are the physical counterparts to the organization you just achieved in software. Get the files right, get the tools right, and the stitching becomes the easy part.

FAQ

• Q: How do I use Wilcom Hatch Manage Designs to prevent a hoop strike when a design is near a 4x4 hoop limit?
  A: Do the “Hover Test” in Hatch and keep a safety buffer—never guess a near-limit design size.
  • Hover over the design thumbnail to read the exact Height/Width (do not rely on Windows Explorer).
  • Compare the readout to the hoop’s maximum sewing field and avoid designs within 3mm of the physical limit (“Danger Zone”).
  • Leave a 10% safety buffer in the hoop area before pressing start.
  • Success check: Hatch shows the design dimensions clearly under the safe margin, and the machine does not refuse the file or threaten the frame during trace.
  • If it still fails: Re-check you exported the correct machine file format and confirm the hoop attached matches the design size.
• Q: Why do embroidery files show a white box thumbnail in Windows File Explorer, and how do I fix the preview using Wilcom Hatch Manage Designs?
  A: Use Hatch Manage Designs for reliable previews; Windows thumbnails often break due to shell extension conflicts.
  • Open Wilcom Hatch and browse the folder inside Manage Designs instead of Windows Explorer.
  • Verify the file-type filter is not hiding your designs (switch to “All Embroidery Files” or the correct machine format view).
  • Avoid editing the Windows registry unless you are an expert; escalate to Wilcom support if previews are missing inside Hatch too.
  • Success check: Design thumbnails and hover pop-ups (stitch count/size/colors/trims) display inside Hatch.
  • If it still fails: Remove the filter mismatch first; if Hatch still shows blanks, treat it as a software/registry conflict and contact support.
• Q: How do I fix “File format not recognized” on a Brother/Babylock/Bernina/Deco machine by using the Wilcom Hatch file-type filter?
  A: Set the Manage Designs dropdown to the exact machine format (for example, Brother/Babylock/Bernina/Deco *.PES) so incompatible files are hidden.
  • Change the library filter from “All Embroidery Files” to your machine’s executable format (PES/DST/JEF as applicable).
  • Confirm the selected file is a machine file (PES/DST/JEF), not an object/source file (EMB).
  • Re-export from the EMB to the correct machine format when needed.
  • Success check: Only machine-readable files appear in the folder view, and the embroidery machine loads the design without a format error.
  • If it still fails: Confirm the design is not the wrong version for the hoop size by checking exact dimensions in the hover pop-up.
• Q: When a design jams immediately on a T-shirt, how can Wilcom Hatch stitch count help choose stabilizer (cut-away vs tear-away)?
  A: Treat stitch count and fabric type as the decision driver—dense designs on knits need cut-away support.
  • Hover over the design to confirm stitch count and overall size before stitching.
  • Use Cut-Away Stabilizer for stretchy fabrics (T-shirts/polos/knits); tear-away may fail and lead to distortion and nesting.
  • If the design is moderately/highly dense (often 15k+ stitches), add stronger support and consider spray adhesive for control.
  • Success check: The knit stays flat after stitching with minimal puckering, and the design edges stay registered.
  • If it still fails: Reduce speed for high density and re-check that the file is properly digitized for the final size (prefer resizing from EMB, not shrinking a PES).
• Q: What is the safest way to avoid hoop burn and fabric slipping with a traditional embroidery hoop before upgrading to a magnetic embroidery hoop?
  A: Start with technique: avoid over-tightening (hoop burn) and under-tightening (slip) by aiming for firm, even tension.
  • Tighten the screw only enough to hold fabric stable; do not crank down to the point of leaving permanent ring marks.
  • Use stabilizer strategy to help control the fabric (for knits, cut-away; for stable wovens, tear-away can work).
  • Re-check design placement and keep a safe margin from hoop edges to prevent stress and pop-open events.
  • Success check: Fabric stays taut without visible ring damage, and the stitch-out shows clean registration without shifting.
  • If it still fails: Consider upgrading to a magnetic hoop to reduce hand fatigue and clamp inconsistencies.
• Q: What safety precautions are required when using a neodymium embroidery magnetic hoop near an embroidery machine?
  A: Treat magnetic hoops as industrial pinch hazards, and do not use them around pacemakers/ICDs.
  • Keep fingers clear of the contact zone when magnets snap together.
  • Do not allow anyone with a pacemaker or ICD near the magnetic hoop setup.
  • Handle magnets deliberately (separate and seat them slowly) to avoid sudden slams.
  • Success check: The hoop closes without finger pinches, and the fabric is clamped evenly without needing screw force.
  • If it still fails: Stop and reassess handling technique; if safe use is not possible in the workspace, switch back to a traditional hoop.
• Q: How do I decide between technique optimization, upgrading to an embroidery magnetic hoop, or moving to a SEWTECH multi-needle embroidery machine for production efficiency?
  A: Use a tiered decision: fix workflow first, then remove physical bottlenecks, then upgrade capacity when volume demands it.
  • Level 1 (Technique): Standardize a pre-stitch routine in Hatch (filter format, hover for size/stitches, visual thumbnail check) before turning on the machine.
  • Level 2 (Tool): If hooping takes minutes per item or causes hoop burn/slip, upgrade to a magnetic hoop to clamp faster and more consistently.
  • Level 3 (Capacity): If orders are high-volume (often 50+ items) and thread/color changes dominate time, consider a multi-needle machine to match your organized digital workflow.
  • Success check: Total cycle time per garment drops (less hooping time, fewer stoppages), and rework rates fall.
  • If it still fails: Identify the true bottleneck (file version errors vs hooping inconsistency vs single-needle changeovers) and address that layer first.
