Stop ITH Seams From Popping Open: The Real Fix for Embroidery Tension (Metered vs Auto vs “Universal”)

If you’ve ever finished an in-the-hoop (ITH) project, tugged it gently, and watched the seam start to “smile” open like it’s about to fall apart—take a deep breath. You didn’t suddenly forget how to embroider. What you’re seeing is a structural failure caused by the "Running Stitch Reality."

In the video, the host demonstrates two classic symptoms of this failure:

• Placement stitches that look loosely draped on the stabilizer (sometimes peeling right off).
• Structural seams that separate when you pull the layers apart, revealing thread loops.

These are tension problems. However, the fix is not one-size-fits-all, because your machine’s physical mechanism dictates the solution. Let's decode the "feel" of correct tension and how to achieve it.

When ITH placement stitches lift off stabilizer, don’t blame the file—blame the “running-stitch reality”

ITH projects rely heavily on running stitches for structure: placement lines, tack-down lines, and final seams. While a satin stitch (like a letter) might look glossy and perfect on the front, your running stitches could be quietly failing underneath.

The Sensory Check: Don't just look at the front. Flip the hoop over.

• Visual: Do you see loops standing up?
• Tactile: Run your fingernail over the back. It should feel relatively smooth. If it feels like the rough side of Velcro or catches your nail, your tension is too loose.
• Physical Test: If your placement line lifts off the stabilizer with a gentle tug, your final seam will likely burst when the project is stuffed or turned.

Treat loose running stitches as a structural engineering failure, not just a cosmetic flaw.

The “don’t touch the tension” myth—why it’s true on some machines and terrible advice on others

You have likely heard the golden rule of fear: “Don’t touch your tension dials.” The video dismantles this myth. The truth depends entirely on your machine's category:

1. High-End Enterprise: Rarely needs manual changes.
2. Mid-Range Smart: Needs occasional help.
3. Standard Domestic: Absolutely requires manual intervention for ITH work.

The host breaks embroidery machines into three tension behaviors. Once you identify your machine type, tension stops feeling like gambling and starts feeling like science.

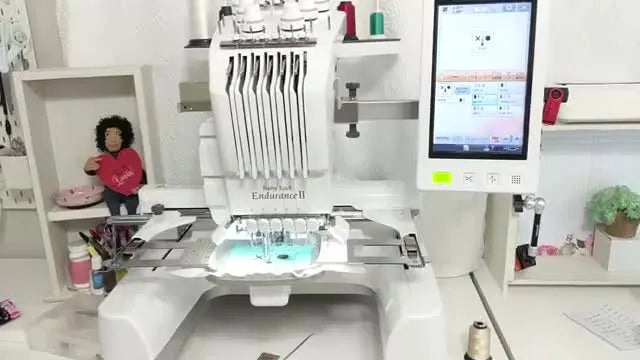

Metered top thread tension on the Baby Lock Endurance II: why high-end machines feel ‘unfairly easy’

On pro-sumer and industrial machines (like the Baby Lock Endurance II or multi-needle equivalents), the host explains “metered top thread tension.” These machines do not use traditional tension discs that squeeze the thread. Instead, they measure the fabric thickness and mechanically feed the exact amount of thread needed for each stitch.

The "Why" it Works: Because the machine actively feeds thread rather than passively dragging it, it handles the transition from thin cotton to thick vinyl without hiccuping.

Expert Note: If you own a metered machine and seams are still loose, do not touch the software yet. The issue is almost certainly physical: a burr on the needle, a lint-clogged bobbin case, or poor hooping. Metered systems are forgiving, but they cannot fix physics.

Auto tension by stitch type on Husqvarna Viking: the clicking tension discs that still need your help

The mid-range category features “auto tension by stitch type.” The host describes a distinct auditory cue: a rhythmic clicking sound. This is the sound of the tension discs physically tightening for running stitches and loosening for satin stitches automatically.

However, the host is clear: Automation is a guess, not a guarantee.

Why? Because ITH projects are hybrids:

• Satin columns (decoration) need lower tension (~2.8 - 3.4) to sit pretty.
• Running seams (structure) need higher tension (~4.0 - 5.0) to lock the layers together.

Auto-tension helps, but it cannot feel that you are stitching through three layers of marine vinyl plus batting. You must still verify the hold.

Universal/manual tension (the default “4” compromise): why it’s fine for flats—and risky for ITH seams

This is the most common scenario for domestic machines (like the Brother SE/PE series). You have a dial or a digital setting, and it usually sits at the default 4.0.

The "4.0" setting is a compromise:

• It is "Okay" for running stitches (but maybe too loose for tight seams).
• It is "Okay" for satin stitches (but maybe too tight for wide fills).
• It is optimized for neither.

If you want ITH seams that survive being turned inside out, you must be willing to override this compromise. Do not be afraid to bump that dial up to 4.6 or 5.0 when stitching the structural seams of a plush toy or zipper bag.

The hidden prep that fixes most tension drama before you ever touch the dial

Before touching any dial, you must perform the "Pre-Flight Check." 80% of tension issues are actually threading or needle issues in disguise.

The Professional Prep Sequence:

1. Fresh Needle: A dull needle pushes fabric down, creating "flagging" that mimics tension issues. Use a Size 75/11 for standard work, or a Size 90/14 for thick ITH layers.
2. The "Floss" Test: Unthread the machine. Pass a piece of unflavored dental floss between your tension discs. If a clump of lint comes out, you just fixed your machine.
3. Bobbin Path: clear lint with a brush (never canned air, which blows lint deeper).
4. The "Click" Check: Rethread top and bottom. Ensure you feel/hear the thread snap into the take-up lever and the bobbin tension spring.

Warning: Safety First. Always power off your machine before cleaning around the needle area or tension discs. If your foot hits the pedal or start button while your fingers are flossing the discs, the take-up lever can cause severe injury.

Prep Checklist (Do NOT skip)

• Needle: Is it new (under 8 hours use) and the right type (Ballpoint for knits, Sharp for woven)?
• Bobbin: Is the bobbin thread unwinding in the correct direction (usually counter-clockwise/P-shape)?
• Path: Have you "flossed" the tension discs to remove invisible lint buildup?
• Thread: Are you using quality polyester (40wt) and not old, brittle cotton?
• Hoop: Is the fabric "drum tight" (for wovens) without stretching the grain?
• Hidden Consumables: Do you have temporary spray adhesive or a water-soluble topping ready for high-pile fabrics?

The “eye test” for satin stitches: the one-third rule that tells you if you’re balanced

The host monitors tension using a standard satin column. This is your baseline.

Visual Anchor: The 1/3 Rule Flip your test stitch over.

• Fail: A solid bar of top thread color on the back (Top tension too loose).
• Fail: A solid bar of white bobbin thread (Top tension too tight).
• Pass: You see a white column of bobbin thread occupying the middle 1/3 of the width, flanked by the top thread color on the left and right.

Advanced Tip: Use a "Fox Test" or "H Test" file. Straight columns are easy; a test file with curves and corners reveals if your tension fails when the machine changes direction.

The ITH-specific twist: seams are running stitches, and they often need tighter top tension than satin

Here is the "Secret Sauce" for ITH durability:

• Satin Stitches (Decoration): Prefer lower tension (Dial 2.0–3.0). This allows the thread to loft beautifully over the fabric.
• Running Stitches (Seams): Require higher tension (Dial 4.0–5.0). This pulls the bobbin thread up into the fabric sandwich, locking the layers tight.

Actionable Advice: If your ITH zipper pouch is splitting at the sides, do not adjust your bobbin. Instead, increase your top tension specifically for the final seam steps.

Reading the back of the stitch-out: loops, bulk, and the bird’s-nest warning sign

You need to learn to read the "Braille" of embroidery. Run your fingers over the back of the design.

• The "Bird's Nest" Warning: If you feel a massive clump of thread, stop immediately. This is usually not tension—it's often the top thread jumping out of the take-up lever.
• The "Carpet" Feel: If the back feels soft and loopy (like shag carpet), your top tension is too loose. The stitches aren't forming a knot inside the fabric; they are resting on the bottom.
• The "Wire" Feel: If the bobbin thread feels like a tight wire and the fabric is puckering, your tension is too tight.

A practical workflow for ITH: tune satin first, then tighten for seams (without losing your mind)

If you are using a standard machine without automatic adjustment, adopt this workflow to maximize quality:

1. Baseline: Set tension for a perfect satin stitch (usually around 3.0-4.0). Run the decorative parts of your design.
2. The Switch: When the machine stops for the final "enveloping" or seam steps, pause.
3. Adjust: Bump your tension up by 1.0 (e.g., to 5.0).
4. Finish: Run the structural seams.

This ensures you get pretty embroidery and tough seams. Keep a notebook next to your machine and log the "Sweet Spot" numbers for different thread brands.

Hooping and stabilization: the physics that makes tension look worse than it really is

Poor hooping mimics bad tension. If your fabric is "flagging" (bouncing up and down with the needle), the thread loop won't form properly, causing skipped stitches and loose seams.

The Hooping Standard: For non-stretch fabrics, tap the hooped fabric. It should sound like a drum—thump, thump. If it sounds like paper rustling or feels loose, re-hoop.

Commercial Solution: If you struggle with hand strength, "hoop burn" (white marks on fabric), or keeping items straight, you are fighting a tool problem. Many professionals upgrade to a hoopmaster hooping station to guarantee alignment. Furthermore, moving to an embroidery magnetic hoop can eliminate the struggle of tightening screws. The magnets clamp the fabric instantly and evenly, reducing the flagging that causes tension issues.

Decision Tree: Fabric → Stabilizer to prevent "False" Tension Errors

Follow this logic path to ensure your base is stable:

• Is the fabric stretchy (T-shirt/Knit)?
  • YES: Use Poly-Mesh Cutaway. Do not use Tearaway (stitches will pop). Consider a Ballpoint needle.
  • NO: Go to next step.
• Is the placement line lifting off?
  • YES: Fabric is slipping. Use temporary spray adhesive or a sticky stabilizer back.
  • NO: Go to next step.
• Is the fabric thick/plush (Fleece/Minky)?
  • YES: Use a Water Soluble Topping prevents stitches sinking. Use a magnetic hoop for brother se1900 (or your specific machine model) to hold thick layers without crushing them.
  • NO: Standard Tearaway or Cutaway is likely fine.

The comment-section reality check: “Where’s the test file?” and why tension tools matter

Common questions from the community highlight two needs:

1. Test Files: Always keep a simple "H-Test" file on your USB drive. When things go wrong, don't test on a $20 hoodie; test on scrap with the H-file.
2. Gauges: Experienced users often buy a Towa Bobbin Gauge. It gives you a number (e.g., 220mN) for bobbin tension. If you are serious about production, this tool removes the guesswork.

The upgrade path that actually makes sense: fix the process first, then upgrade the bottleneck

If you are fighting your machine daily, identify the true bottleneck.

• Physically Painful Hooping? If tightening screws hurts your wrists or you can't hoop thick items, upgrading to babylock magnetic embroidery hoops (or versions for your specific machine) drastically reduces physical strain and setup time.
• Inconsistent Seams? If you follow all the prep steps and still get bad seams, your single-needle machine might be struggling with the thickness of ITH projects.
• Efficiency Blocked? If you are running 50+ items and changing thread is killing your profit margin, this is the trigger to look at multi-needle machines.

Warning: Magnetic Hoop Safety. These magnets are industrial strength. Keep them at least 6 inches away from pacemakers and medical devices. Watch your fingers—getting pinched between the magnets is painful and can cause blood blisters.

Setup Checklist (Lock in consistency)

• Hoop: Fabric is taut and square. If using a magnetic embroidery hoop, ensure the magnets are fully seated.
• Stabilizer: Matched to fabric (Cutaway for knits/ITH, Tearaway for stable wovens).
• Topping: Soluble topping applied if fabric has pile/texture.
• Needle: Fresh needle installed (Size 90/14 if doing heavy ITH layers).
• Bobbin: Check that bobbin is mostly full (running out mid-seam is a nightmare).

Operation Checklist (The "Live" Monitoring)

• Listen: Is the machine sound rhythmic? A "clunk-clunk" usually means the needle is dull or hitting a knot.
• Watch: Are the placement lines laying flat? If they loop, stop immediately.
• Feel: Check the back of the hoop after the first color change. Any bird's nesting?
• Adjust: If seams look loose, increase top tension by +0.5 to +1.0 steps.

The bottom line: ITH tension is a two-stitch problem, not a one-number problem

The takeaway is simple: Stop looking for the "Perfect Setting" and start looking for the "Structural Reality."

• Metered systems allow you to work faster with less fiddling.
• Universal systems require you to actively managing the transition between satin (beauty) and running stitch (strength).

Once you master the habit of inspecting the back of your hoop and adjusting tension for structure, your ITH projects will stop falling apart—and you will have the confidence to tackle professional-level production.

FAQ

• Q: Why do in-the-hoop (ITH) placement running stitches lift off the stabilizer on a Brother SE/PE series machine?
  A: Increase top tension and verify threading, because lifted placement lines are usually loose running-stitch tension—not a bad file.
  • Do: Flip the hoop and check for standing loops; rethread the top thread with the presser foot up, then re-seat the thread into the take-up lever.
  • Do: Run the “floss test” by sliding unflavored dental floss between the tension discs to remove hidden lint.
  • Do: Stitch a short placement line again, then bump top tension up in small steps (+0.5 to +1.0) if it still lifts.
  • Success check: The placement line stays flat on the stabilizer and the back feels relatively smooth (not like Velcro).
  • If it still fails: Replace the needle (75/11 for standard, 90/14 for thick ITH layers) and re-check hooping tightness to reduce flagging.
• Q: How do I use the “one-third rule” to check satin stitch tension on a Husqvarna Viking machine with auto tension by stitch type?
  A: Use a satin column test and adjust only after confirming the back shows bobbin thread in the middle third.
  • Do: Stitch a satin column test (an “H test” style file works well) and flip the fabric over.
  • Do: Identify the back pattern: bobbin thread should appear as a white column in the middle 1/3, with top thread color on both sides.
  • Do: If the back shows mostly top thread color, increase top tension; if it shows mostly bobbin thread, decrease top tension.
  • Success check: The back shows a centered bobbin strip occupying about one-third of the satin width, especially through curves/corners.
  • If it still fails: Clean the bobbin area and rethread; automation can’t compensate for lint, burrs, or incorrect threading.
• Q: What top tension workflow prevents ITH seams from splitting when using a standard domestic machine set near the default 4.0?
  A: Tune satin stitches first, then tighten top tension specifically for the running-stitch seam steps.
  • Do: Set top tension for clean satin stitches first (often around 3.0–4.0 depending on the machine/thread) and run decorative sections.
  • Do: Pause when the design reaches the final seam/enveloping steps and increase top tension by about +1.0 (for example, up to ~5.0).
  • Do: Finish the running-stitch seams, then return tension to the satin-friendly setting for the next project.
  • Success check: The seam does not “smile” open when gently pulled, and the back does not feel loopy like shag carpet.
  • If it still fails: Stop adjusting the bobbin first; re-check hooping/stabilization so the fabric sandwich is not flagging during seam stitches.
• Q: What does a bird’s nest under the hoop usually mean on a single-needle embroidery machine, and what should I do immediately?
  A: Stop right away, because a sudden bird’s nest is often the top thread coming out of the take-up lever path—not a normal tension tweak.
  • Do: Stop the machine and remove the hoop carefully; cut away the thread mass without pulling hard on the fabric.
  • Do: Rethread the top thread completely and confirm it snaps into the take-up lever and follows the correct path.
  • Do: Brush lint from the bobbin area (avoid canned air, which can push lint deeper).
  • Success check: After restarting, the first few stitches form cleanly with no clump building on the underside.
  • If it still fails: Replace the needle and repeat the pre-flight check (thread path, bobbin direction, tension-disc lint).
• Q: What is the safest way to clean embroidery tension discs using the “floss test,” and why is powering off the machine required?
  A: Power off the machine before flossing the tension discs, because accidental movement of the take-up lever can cause serious finger injury.
  • Do: Turn the machine off before putting floss near the tension area.
  • Do: Unthread the machine, then gently slide unflavored dental floss between the tension discs to pull out packed lint.
  • Do: Rethread with the presser foot up so the thread seats correctly into the discs.
  • Success check: The floss comes out clean (or removes lint), and stitches no longer show random loops from inconsistent tension.
  • If it still fails: Clean the bobbin path next and install a fresh needle to rule out flagging and thread damage.
• Q: How do I know if poor hooping is causing “false tension” problems like loops, skipped stitches, or loose ITH seams?
  A: Re-hoop to a true “drum tight” standard first, because fabric flagging can mimic bad tension and break running-stitch structure.
  • Do: Tap the hooped fabric; for non-stretch fabric it should sound like a drum (thump, thump), not rustly or slack.
  • Do: Verify the fabric is taut and square without stretching the grain (especially important before placement and seam runs).
  • Do: Add support if layers slip (temporary spray adhesive or a sticky stabilizer back can help hold placement lines).
  • Success check: Placement lines lay flat immediately and the fabric does not bounce with the needle (reduced flagging).
  • If it still fails: Then adjust top tension and confirm correct needle size/type for the fabric and ITH thickness.
• Q: What is the safety guidance for using industrial-strength embroidery magnetic hoops around pacemakers and fingers?
  A: Keep embroidery magnetic hoops at least 6 inches away from pacemakers/medical devices and protect fingers from pinch points.
  • Do: Maintain a minimum 6-inch clearance from pacemakers and sensitive medical electronics.
  • Do: Place magnets deliberately and keep fingertips out of the closing path to avoid painful pinches and blood blisters.
  • Do: Confirm all magnets are fully seated before starting the machine to prevent shifting during stitching.
  • Success check: The hoop clamps evenly without slipping, and setup feels controlled rather than forced.
  • If it still fails: Switch back to a standard hoop for that job or reduce thickness/stack height; some ITH layer builds are simply harder to clamp safely.
