Stop Hunting Hotkeys: A Two-Handed Redragon + Wacom Digitizing Setup That Actually Speeds You Up

If you have ever found yourself staring at a screen at 2:00 AM, digitizing with one hand while your other hand hover-hunts for hotkeys like a lost tourist, you already know the enemy. It isn't your software. It isn't your creativity. It is friction.

As someone who has spent two decades in this industry—from running single-heads in a garage to managing multi-head production floors—I can tell you that physical friction leads to mental fatigue. When your wrist hurts, your design quality drops.

John Deer’s setup targets this specific pain point. It is a deceptively simple workflow evolution: use a pen tablet to “float” the cursor for precision, and use a programmable 16-button gaming mouse in your non-dominant hand to fire commands.

In production terms, we call this "reducing cycle time." John puts it plainly: fast meant money and slow meant poor. This guide will strip away the theory and give you the concrete "Lego instructions" to build this high-speed cockpit yourself.

The “Don’t Panic” Moment: Why Your Digitizing Speed Problem Isn’t a Talent Problem

Most new digitizers internalize their lack of speed as a personal failure. You sit down, the software feels clunky, and you think:

• “I lack the artistic talent.”
• “My brain doesn't work this way.”
• “I’ll never be as fast as the YouTube pros.”

Let me offer you some psychological safety: Speed in embroidery digitizing is almost never about "thinking faster." It is about Cognitive Load Management.

If you are using a standard mouse and keyboard, your brain is constantly switching modes:

1. Creative Mode: "Where does this curve go?"
2. Admin Mode: "Where is the 'Satin Stitch' icon?"
3. Physical Mode: "Look down at keyboard, find 'S', look back up."

John’s approach solves this by assigning two hands to two distinct jobs, eliminating the "Admin Mode" switching tax:

• Dominant Hand (Pen): Pure geometry and flow.
• Non-Dominant Hand (Mouse): Command center (Tool selection, Enter, Escape).


From Pantographs to Tablets: The Evolution That Explains Why This Works

To understand the tool, you must understand the motion. John walks through history not for nostalgia, but to highlight ergonomic efficiency.

• The 1950s (Pantograph): Operators used a physical arm to trace 6x enlarged drawings. It was tactile and fluid.
• The 1980s (Digitrac): We moved to paper tape, but input was still coordinate-based.
• The 1990s (Numonics Boards): Large digitizing tablets allowed users to click buttons on a cursor puck while tracing. Speed came from crosshair accuracy + instant button commands.

Modern software forced us back to a "one-handed mouse" workflow, which John describes accurately as “trying to create with a brick in my hand.”

By reintroducing the Pen Tablet, we restore the fluid "drawing" feeling of the pantograph. By adding the programmable mouse, we restore the "instant buttons" of the Numonics board. It is the best of both worlds.

The “Hidden” Prep Pros Do First: Build a Workstation That Doesn’t Fight You

Before you buy a single gadget, we need to address the "Hidden Consumables" and setup integrity. A $100 mouse won't help if your drivers are crashing or your batteries are dead.

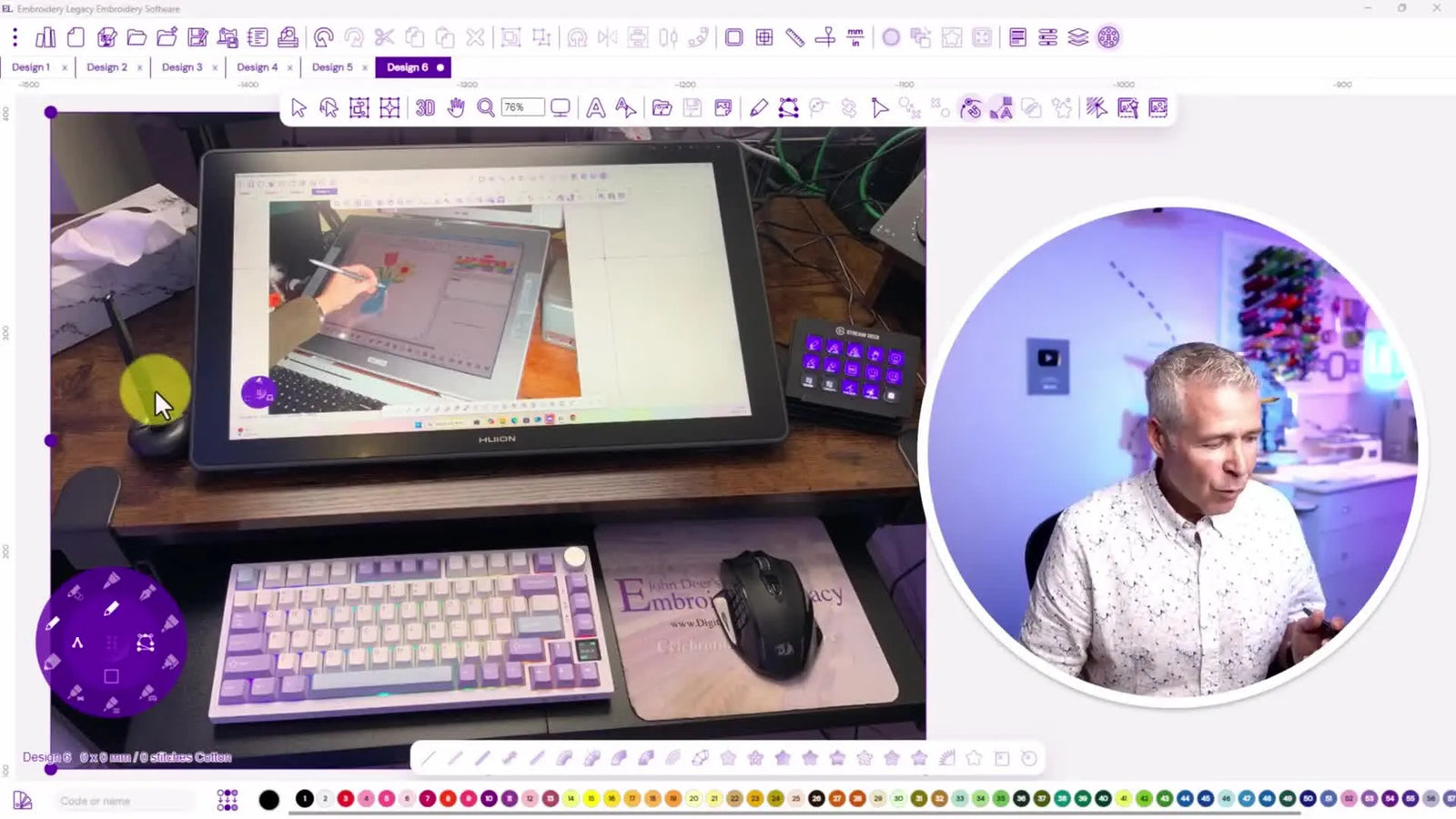

John’s hybrid workstation uses a Pen Tablet (Wacom style) and a Gaming Mouse (Redragon style). Here is how to prep the environment so you don't rage-quit loop during setup.

Prep Checklist (The "Pre-Flight" Inspection)

• Driver Integrity: Uninstall old mouse/tablet drivers before installing new ones. Conflicts here cause "cursor jitter."
• The "Hidden" Consumables: Stock up on spare nibs for your pen (they wear down to sharp points that scratch screens) and rechargeable batteries if your mouse is wireless.
• Locate the "Rosetta Stone": Find the exact hotkey list for your software version. (John’s team notes these are often hidden in "Resources" tabs or Help menus). Do not guess. A Wilcom hotkey might be different from Hatch or PE-Design.
• Ergonomic Clearance: Clear a 10-inch square on the left side (or non-dominant side) of your desk. You need room to move the mouse freely without bumping your keyboard.
• DPI Sensitivity: Set your new mouse DPI to a "Sweet Spot" between 800–1200 DPI. Any higher, and the cursor becomes too twitchy for precise tool selection.


Pen Tablet “Float” Control: Why Wacom-Style Input Beats Dragging a Mouse

John’s technique relies on "Floating."

When you use a standard mouse, you are constantly applying downward friction to the desk to move the cursor. This creates micro-tension in your forearm (the precursor to Carpal Tunnel).

With a tablet, you hover the pen tip about 5-10mm above the surface. The cursor flies to the position instantly. You only touch the surface to "click" a node.

The Sensory Anchor:

• Mouse feel: Pushing a bar of soap across sandpaper.
• Tablet feel: Conducting an orchestra with a baton.

This mirrors the efficiency principles found in physical hooping stations. Just as a good station holds the garment so you don't have to fight the fabric, a tablet holds the cursor potential so you don't have to fight surface friction.

The Redragon 16-Button Mouse Setup: Put Your “Money Tools” Under Your Thumb

This is the game-changer. John uses a mouse with a 12-button side grid (originally designed for World of Warcraft players) to trigger embroidery commands.

The Golden Rule of Mapping: Map based on Frequency, not Category. Do not group "all outline tools" together; group "the 3 tools I use every 10 seconds" on the easiest-to-reach buttons.

John Deer’s Exact Button Map (Run/Satin/Fill/Enter/Escape) — Copy This First, Then Customize

We will treat this setup like a machine calibration. Use these settings as your baseline.

Primary Stitch Tools (Side Buttons 1–6 - Under the ball of your thumb)

• Button 1 → Run Stitch: The bread and butter. constant access.
• Button 2 → Classic Satin (Column A): For varying width columns.
• Button 3 → Regular Satin (Column C): For even width lines.
• Button 4 → Fill Stitch (Tatami): For large areas.
• Button 5 → Steil (Fixed Width Satin): Essential for borders.
• Button 6 → Artwork Tool: For tracing vectors.

Navigation + Command (The "Flow" Buttons)

• Button 7 → Shift: Critical. Used for selecting multiple objects or constraining angles.
• Button 9 → Escape: The "Oops" button. Hit this to drop a tool immediately.
• Button 11 → Zoom (Ctrl+Scroll or specific key): Stop squinting.
• Button 13 → Delete: Rapid object removal.
• Button 15 → Backspace: Step back one node (fixes a bad click without dropping the tool).
• Button 16 → Enter: The "Commit" button. Generates stitches.
• Index Button → Spacebar (Pan): Activates the "Hand" tool to drag the screen.


Setup Checklist (Configure -> Test -> Verify)

• Input Delay: If your mouse software allows it, set a "macro delay" of 50ms between keystrokes to ensure the embroidery software registers the command.
• The "Escape" Safety Valve: Verify Button 9 (Escape) works immediately. If the software crashes or hangs, you need a bailout key.
• Modifier Key Test: Hold Button 7 (Shift) and drag an object. Does it move in straight lines? If not, the "hold" function isn't mapped correctly.
• Profile Lock: Save this profile as "Embroidery_Main" and set it to auto-switch when you open your digitizing software.

Warning: Programmable mice are powerful, but they lack context awareness. If you leave the mouse in "Macro Mode" and switch to your email or bank login, hitting a side button might type your password or delete text. Always create a "Default Office" profile to switch back to.

The Two-Handed “Float and Click” Rhythm: What You Should Feel When It’s Working

When John demonstrates this live, it isn't frantic. It is rhythmic.

The Sensory Target:

Left Thumb (Select Run) -> Right Hand (Tap-Tap-Tap Nodes) -> Left Thumb (Enter) -> Left Thumb (Select Satin).

You should hear a rhythmic percussive sound: Click... tap-tap-tap... thud (Enter).

If you feel like you are stumbling, check your Button 7 (Shift). Often, users try to do too much with the mouse. If a fast combination (like Ctrl+Shift+Alt+Drag) feels awkward on the mouse, leave that complex combo on the keyboard. Build the workflow for the 90% task, not the 1% edge case.

The “Why It Works” (So You Don’t Regress Back to Keyboard Hunting)

Why do we obsess over this? Because micro-interruptions kill flow.

Every time you look down at the keyboard to find "F6", your brain drops the visual map of the design. When you look up, you spend 0.5 seconds re-orienting. Multiplied by 5,000 stitches, that is hours of lost time.

Production Reality Check: In a commercial shop, time is inventory. If you digitize a logo 20 minutes faster, that file gets to the machine floor sooner. This aligns with the same logic as upgrading to magnetic embroidery hoops. We don't buy magnetic hoops just because they are "cool"; we buy them because they eliminate the friction of adjusting screws and fighting fabric tension. The goal is to remove every non-value-added second from the process.

Decision Tree: Match Fabric + Stabilizer Before You Judge Your Digitized File

You can have the world's fastest mouse setup, but if your stabilization data is wrong, the sew-out will fail. Novices often blame the digitizing nodes/density when the culprit is actually the physics of the fabric.

Use this decision tree to set your "Mental Parameters" before you start clicking nodes.

Start → What is the substrate?

1. Stable Woven (Canvas, Denim, Twill)
   • Risk: Low.
   • Prescription: Medium Tearaway (1.5oz - 2.0oz).
   • Digitizing Note: Standard pull compensation (0.2 - 0.3mm).
2. Unstable Knit (Perf. Wear, T-Shirts)
   • Risk: High (Distortion & Pucker).
   • Prescription: No-Show Mesh (Cutaway) x 2 layers OR Medium Cutaway (2.5oz). Never use just tearaway.
   • Digitizing Note: Increase pull compensation (0.4mm+). Consider "Center-Out" sequencing.
3. High Pile (Fleece, Towels)
   • Risk: Texture swallows stitches.
   • Prescription: Soluble Topping (Solvy) on top + Cutaway on back.
   • Digitizing Note: Add a zig-zag underlay grid to mat down the fur.
4. Delicate/Slippery (Silk, Satin)
   • Risk: Hoop burn and needle holes.
   • Prescription: Light Cutaway + Temporary Spray Adhesive.
   • Hooping Note: This is the prime candidate for magnetic frames to avoid crushing the fibers.

If you are generating files for a robust industrial machine like a tajima embroidery machine, remember that these machines run fast (1000 SPM+). Your stabilization must be bulletproof to withstand that g-force.

Troubleshooting the Real-World Snags (Based on What People Asked in Comments)

Even with the best guide, hardware can be tricky. Here is the "Field Repair" guide for your workstation.

Hidden Consumable Alert: Keep a pack of Post-it notes. In the first week, draw a physical map of your mouse buttons and stick it to your monitor bezel. Visual reinforcement beats trial-and-error.

The Upgrade Path After You Fix Digitizing Speed: Don’t Let Hooping Become Your New Bottleneck

Congratulations. You have optimized your digitizing input. You are now producing files twice as fast. But here is the brutal truth of the embroidery business: You cannot bill for a file sitting on a hard drive. It has to be sewn.

Once digitizing is solved, the bottleneck immediately shifts to Setup and Hooping. Here is the logical "Tool Upgrade Path" for a growing business:

• Level 1: The Hooping Fix. If you are spending 5 minutes struggling to hoop a thick Carhartt jacket, your profit is gone. Pros use a machine embroidery hooping station to ensure placement is consistent and ergonomic.
• Level 2: The Tooling Fix. For sensitive items or rapid gang-runs, standard plastic hoops are slow and leave marks. magnetic embroidery hoops allow you to clamp thick or thin materials instantly without adjusting screws. This protects the garment and saves wrists.
• Level 3: The Capacity Fix. If you are still running a single-needle machine, every thread change is a stoppage. As your volume grows, moving to multi-needle platforms (similar to melco embroidery machines or our Efficiency Series) becomes the only way to scale.


Warning: Magnetic Safety. Magnetic hoops use industrial-grade neodymium magnets. They snap together with crushing force.
* Pinch Hazard: Keep fingers clear of the mating surfaces.
* Medical Safety: Keep magnets at least 6 inches away from pacemakers and ICDs.
* Tech Safety: Do not place magnetic hoops directly on top of laptops, tablets, or external hard drives.

Operation Checklist (The "10-Minute Drill")

Do not try to switch your entire production to this method on a Monday morning. Run this drill first.

1. Isolate: Open a blank design file (Do not use a customer order).
2. The "Trinity" Test: Create three objects using ONLY the mouse hotkeys:
   • Create a circle with Run Stitch.
   • Create a square with Fill Stitch.
   • Create a border with Satin Stitch.
3. The Edit Test: Select the square and Change it to a Satin without touching the keyboard.
4. The Panic Test: Start a tool, then hit your mapped Escape button. Does it drop instantly?
5. Save: Hit your mapped Enter key to generate stitches.

If you can do this "10-Minute Drill" without looking at your hand, you are ready for live work.

A Final Note on Profit: Speed Is Only Valuable When It’s Repeatable

John Deer’s method isn't just about cool gadgets; it's about standardization.

Whether you are digitizing on a tablet or framing up a run of 50 polo shirts on a tajima embroidery frame, the goal is the same: Zero Cognitive Friction.

When you stop fighting your tools—be it a mouse or a hoop—you stop making mistakes. And in the embroidery game, the shop that makes the fewest mistakes keeps the most margin.

FAQ

• Q: What are the hidden consumables to stock for a Wacom-style pen tablet + Redragon 16-button gaming mouse digitizing workstation?
  A: Stock spare pen nibs and reliable power first, because worn nibs and dead batteries create jitter and interruptions.
  • Replace: Keep spare pen nibs on hand and swap the nib when it wears to a sharp/flat edge.
  • Power: Use fresh/rechargeable batteries (or keep charging habits consistent) for wireless mice.
  • Print: Find the exact hotkey list for the digitizing software version and keep it accessible.
  • Success check: The pen glides without catching and the cursor movement stays steady for several minutes without dropouts.
  • If it still fails… Uninstall old tablet/mouse drivers and reinstall only the current drivers to eliminate conflicts.
• Q: What mouse DPI should a Redragon-style programmable gaming mouse use for embroidery digitizing tool selection and node work?
  A: Set mouse DPI to a sweet spot around 800–1200 DPI to avoid twitchy cursor movement during precise tool clicks.
  • Set: Start at 800 DPI, then move up toward 1200 only if the pointer feels sluggish.
  • Test: Try selecting small icons/tools and placing a few nodes without overshooting targets.
  • Lock: Save the DPI inside the “Embroidery” profile so it does not drift between sessions.
  • Success check: The pointer lands on icons/nodes predictably without repeated re-aiming.
  • If it still fails… Reduce DPI further and rely on the pen tablet for most precision placement.
• Q: How do you stop Wacom pen tablet cursor jumping caused by Windows Ink driver conflicts during embroidery digitizing?
  A: Disable Windows Ink in the tablet settings, because Windows Ink often fights the Wacom driver and creates cursor jitter.
  • Open: Go to Tablet Properties (or the tablet driver control panel) and find the Mapping settings.
  • Uncheck: Turn off “Use Windows Ink.”
  • Reboot: Restart the digitizing software to ensure the change takes effect.
  • Success check: The cursor no longer “teleports” or shivers when hovering 5–10 mm above the tablet surface.
  • If it still fails… Fully remove older mouse/tablet drivers, then reinstall only the current driver set to clear conflicts.
• Q: Why do programmable mouse side buttons do nothing in Wilcom/Hatch/PE-Design digitizing, and how do you fix the inactive profile issue?
  A: The most common cause is the wrong mouse profile being active—activate and lock the “Embroidery” profile in the mouse software.
  • Verify: Open the mouse software (for example Redragon/Razer Synapse-type utilities) and select the embroidery profile.
  • Lock: Set the profile to “active” or enable auto-switch when the digitizing program opens.
  • Test: Map one button to Escape and confirm it drops tools immediately in the software.
  • Success check: Pressing the mapped Enter/Escape produces immediate on-screen tool changes with no delay.
  • If it still fails… Add a 50–100 ms macro delay between keystrokes so the embroidery software reliably registers the command.
• Q: Why does embroidery digitizing software ignore the Enter key from a Redragon programmable mouse macro, and what macro delay should be used?
  A: Increase macro delay to about 50–100 ms, because some embroidery software needs a moment to “listen” between keystrokes.
  • Set: In the mouse macro editor, add a 50 ms delay first; increase toward 100 ms if misses continue.
  • Retest: Use the mapped Enter to “commit/generate stitches” multiple times in a row.
  • Simplify: Avoid stacking overly complex combos on one button; keep complex shortcuts on the keyboard.
  • Success check: The “commit/generate” action triggers every time with no double-press needed.
  • If it still fails… Confirm the hotkey is correct for the specific software version and is not different from another program’s default mapping.
• Q: What are the safety rules for magnetic embroidery hoops when using neodymium magnets near fingers, pacemakers, and electronics?
  A: Treat magnetic hoops like pinch tools: keep fingers clear, keep magnets away from pacemakers/ICDs, and do not place hoops on laptops or drives.
  • Protect: Keep fingertips away from mating surfaces when the magnets snap together.
  • Separate: Keep magnetic hoops at least 6 inches away from pacemakers and ICDs.
  • Store: Do not set magnetic hoops directly on laptops, tablets, or external hard drives.
  • Success check: Hoops close without finger contact and the work area stays clear of sensitive devices.
  • If it still fails… Stop and reorganize the station layout so magnets have a dedicated, safe parking spot.
• Q: After speeding up digitizing with a pen tablet and programmable mouse, how do you prevent hooping time from becoming the next production bottleneck?
  A: Use a tiered plan: optimize hooping workflow first, then consider magnetic hoops for faster clamping, then scale to multi-needle capacity if thread changes are the stopper.
  • Level 1: Add consistent setup methods (often a hooping station) when placement and ergonomics are slowing runs.
  • Level 2: Switch to magnetic hoops when screw hoops are slow or causing hoop marks on sensitive fabrics.
  • Level 3: Move to a multi-needle platform when single-needle thread changes are dominating cycle time.
  • Success check: The design files reach sewing faster because hooping/setup takes minutes less per item.
  • If it still fails… Track where minutes are lost (hooping vs thread changes vs re-hooping) and upgrade only the step that is repeatedly blocking output.
