Stop Hoodie Snags on the Ricoma EM-1010: The Upside-Down Hooping Trick That Keeps Bulky Sweatshirts Under Control

When a client asks for gold thread on a black hoodie, they aren’t just buying stitches—they’re buying contrast, confidence, and a premium finish. However, for the embroiderer, hoodies represent a specific engineering challenge: bulk management. The thick hood bunches up, the heavy fabric creates drag on the pantograph, and one bad snag can turn a profitable job into a "thread-break marathon."

In this comprehensive guide, we are decoding a real shop workflow on a multi-needle machine. We will cover embroidering "BOSS LADY" in gold on a Jerzees NuBlend hoodie, utilizing a strategic "upside-down" orientation and magnetic hoops to eliminate friction.

First, breathe: a snaggy hoodie on a Ricoma EM-1010 doesn’t mean your machine is “acting up”

If you’ve ever watched a hoodie shift during a trace and felt your stomach drop, you are not alone. This is rarely a mechanical failure; it is a physics problem.

On any multi-needle machine, the space behind the needle bar is limited. When you hoop a hoodie traditionally (hood facing back), that massive wad of fabric piles up between the needle case and the machine body.

• The Symptom: You hear a rhythmic scuff-scuff sound as the machine moves.
• The Result: The fabric drag creates "flagging" (bouncing fabric), leading to misaligned outlines or broken needles.

The Mindset Shift: Control the bulk, and you control the stitch quality. By systematizing your garment management, you stop fighting the machine and start directing it.

Read the hoodie like a pro: Jerzees NuBlend tags tell you what your stabilizer must do

The video begins with a critical habit: checking the tag. Here, we identify a Jerzees NuBlend hoodie in size Large.

Why does this matter? The tag is your material data sheet.

• NuBlend (50/50 Cotton/Poly): It’s stable but "spongy." It resists shrinking but requires a sharp needle (75/11 BP) to penetrate the polyester without cutting the cotton.
• Fleece Interior: The loft (thickness) means stitches will sink. You cannot skip the water-soluble topping.
• Dark Fabric: Black fabric shows everything—white bobbin pull-up, gaps in coverage, and hoop marks.

If you are setting up this job on a ricoma em 1010 embroidery machine, treat the tag check as your first line of defense. It dictates your speed limits and stabilizer choices before you even touch the screen.

The “Hidden” Prep most people skip (and then wonder why lettering puckers)

Before you hoop, you must perform a "Pre-Flight Check." 80% of failures happen because of what was missed before the start button was pressed.

Hidden Consumables You Will Need:

• Water-Soluble Topper: Essential for preventing stitches from sinking into the fleece.
• Temporary Spray Adhesive (e.g., 505): To bond the backing to the hoodie without shifting.
• Fresh Needles: If you don't remember when you changed them, change them now.

Prep Checklist (Pre-Hooping):

• Tag Check: Confirm garment size and fiber content (Polyester blend requires Ballpoint needles).
• Resource Check: Ensure the gold thread cone is full enough (no knots) and the bobbin is at least 50% full.
• Obstruction Check: Feel the embroidery area for hidden pockets, thick zippered seams, or hoodie strings.
• Relaxation Check: Smooth the fabric with your hands. Does it distort easily? If yes, upgrade to Cutaway stabilizer.
• Bulk Plan: Decide where the hood will sit. (Strategy: Forward).

Warning: Mechanical Safety. Keep fingers, snips, and loose hoodie sleeves clear of the needle bar and moving pantograph. Multi-needle machines have high torque; a caught sleeve can bend the main shaft.

The upside-down hooping hack for hoodies: put the hood toward you so it can’t choke the pantograph

Here is the core technique to solve the clearance issue: Hoop the hoodie upside down.

Instead of shoving the heavy hood through the machine throat toward the back, position the hood opening so it faces you (the operator).

Why this physics works:

1. Gravity Assist: The heavy hood falls naturally into your lap or hangs off the front table.
2. Clearance Zones: The area behind the needle bar remains empty, preventing the "bunching" that causes design registration loss.
3. Flow: The pantograph moves freely without dragging 2lbs of cotton fleece.

This technique is the industry standard for specific hooping for embroidery machine scenarios involving heavy winter gear. It ensures the machine creates the stitch, rather than the fabric fighting the movement.

Magnetic hoop advantage on thick fleece: clamp strength without crushing the knit

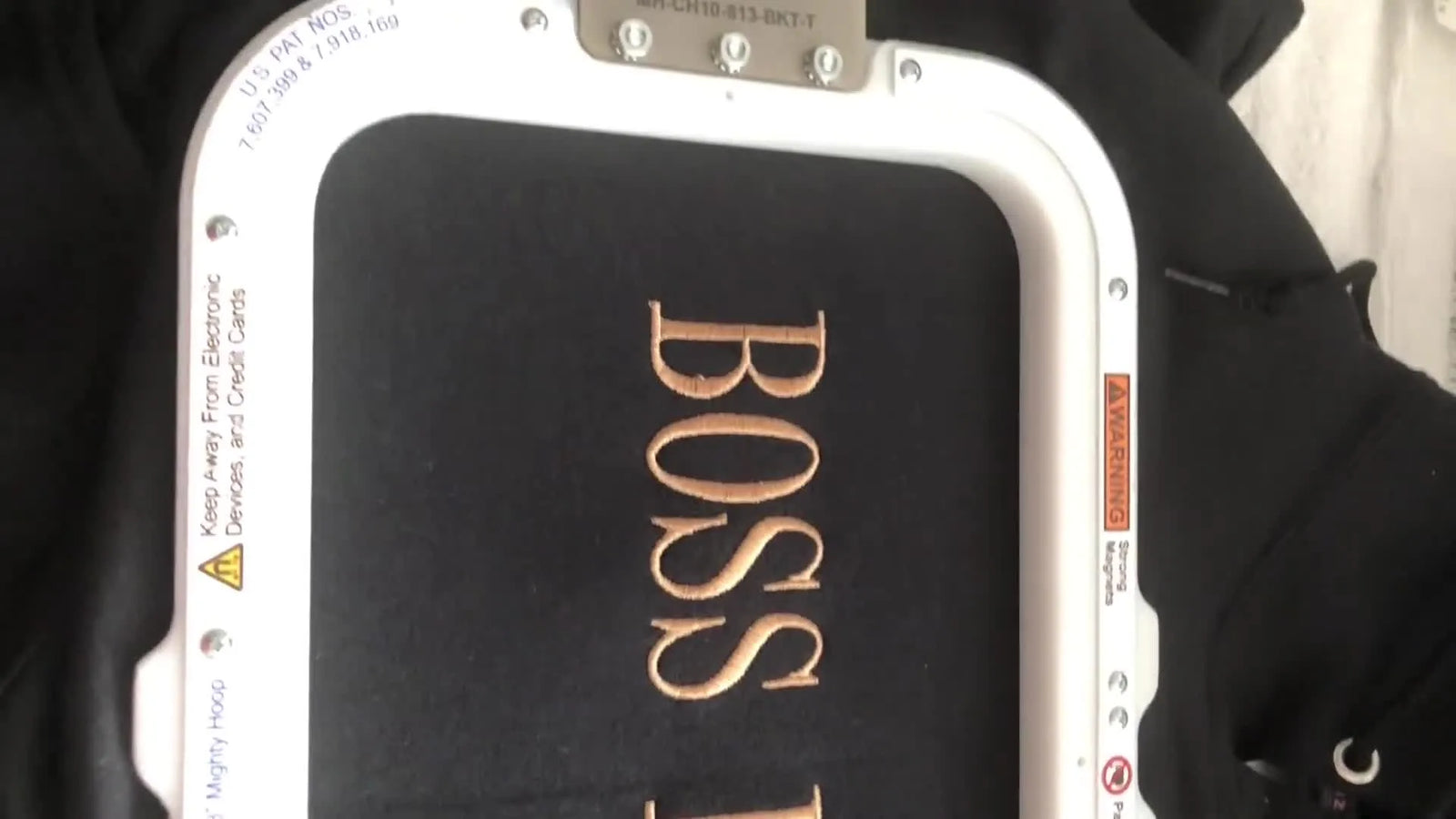

The tutorial utilizes an 8x13 magnetic hoop. On lofty items like hoodies, this is a distinct competitive advantage over standard tubular hoops.

The "Hoop Burn" Problem: Standard hoops require you to muscle the inner ring into the outer ring. On thick fleece, this crushes the fibers, leaving a shiny "burn" ring that may impossible to steam out.

The Magnetic Solution: Magnetic frames snap together with vertical force. They hold the fabric firmly like a sandwich, rather than stretching it like a drum skin. This eliminates "hoop burn" and significantly reduces the strain on your wrists during repetitive production runs. If you are serious about efficiency, mastering magnetic hoop embroidery is often the first step toward professional-grade output.

Warning: Magnet Safety. These magnets are industrial strength. They can pinch skin severely. Keep them away from pacemakers, insulin pumps, and credit cards. Always slide the magnets apart; never pry them.

Don’t forget the flip: rotate the “BOSS LADY” design 180° on the Ricoma control panel

The upside-down hooping technique introduces one critical risk factor: Orientation.

If the hoodie is upside down, the design must be upside down relative to the machine screen.

The Rule of 180: In the machine interface, locate your design settings and rotate the file 180 degrees.

• Visual Check: The text "BOSS LADY" should look upside down on your screen.
• Logic Check: Imagine the hoodie hanging on a body. The "bottom" of the letters must point toward the "bottom" (waistband) of the hoodie.

Practical Tip: Use the "Trace" function. Watch the laser or needle path. Does the top of the "B" stitch closest to the neck hole? If yes, you are good.

Setup that keeps you out of trouble (even when you’re busy)

Inputting the right numbers is about finding the "Sweet Spot"—the balance between speed and safety.

Recommended Parameters (The "Sweet Spot"):

• Stitch Count: 8,500 stitches (Medium density).
• Speed: 500 - 600 SPM (Stitches Per Minute).
  • Expert Note: While the machine can go faster, bulky items oscillate (wobble) at high speeds. 500 SPM ensures crisp columns and prevents thread breaks.
• Needle: Size 75/11 Ballpoint.

When using magnetic embroidery hoops on heavy garments, resisting the urge to run at 1000 SPM is crucial. The extra minute you save is not worth the 15 minutes required to fix a bird's nest.

Setup Checklist (The "Go/No-Go" Decision):

• Rotation Check: Is the design rotated 180°? (Yes/No)
• Speed Limit: Is speed cap set to 500-600 SPM? (Yes/No)
• Trace Test: Did the presser foot clear all plastic magnetic edges during the trace? (Listen for a click—if it hits, stop).
• Bulk Check: Is the hood pulled forward, ensuring it won't fall back under the needles?




Run the job like a shop owner, not a gambler: monitor the first letters and life for drag

Once stitching begins, do not walk away. The first 60 seconds are your diagnostic window.

Sensory Monitoring:

• Listen: You want a rhythmic thump-thump. A sharp snap means a thread break. A grinding noise means the hoop is hitting the pantograph arm.
• Look: Watch the "B" in "BOSS." Is the fabric push-pulling? If you see gaps between the outline and the fill, the stabilizer isn't doing its job.
• Feel: Gently touch the hoodie (away from the needle). It should not feel like it's being yanked; it should float.

The upside-down drape significantly reduces the "tug of war" between the garment weight and the motor, ensuring the satin stitches align perfectly.

Pro tip pulled from the comments: explain your process—and you’ll get repeat clients

Transparency is a marketing tool. A viewer commented thanking the creator for the explanation. Use this in your business.

When a customer asks, "Why is your embroidery more expensive than the kiosk at the mall?", you explain: "I use specialized magnetic framing to prevent fabric damage, and I slow-stitch to ensure the gold thread doesn't fray."

You aren't just selling a hoodie; you are selling care.

The “why” behind the upside-down method: fabric physics, clearance, and stitch consistency

Let’s formalize the logic so you can apply it to other garments (like tote bags or backpacks).

1) The Bulk Clearance Principle

Embroidery machines have a "throat" depth. If your fabric mass exceeds this depth, friction occurs. Friction = Distortion. Upside-down hooping is simply Mass Displacement—moving the mass to the open air (operator side) rather than the confined space (machine side).

2) The Stabilizer Decision Matrix

The video implies a tear-away/cut-away choice. Don't guess. Use this decision tree:

Decision Tree: Hoodie Fabric Field Guide

• Scenario A: The 50/50 Standard (Jerzees NuBlend)
  • Texture: Smooth, stable.
  • Solution: Firm Tear-Away + Spray Adhesive. (Good for boxy logos).
• Scenario B: High-Stretch Performance (Nike Therma-FIT)
  • Texture: Stretchy, slippery.
  • Solution: Cut-Away Mesh (Must-have). Tear-away will fail here.
• Scenario C: High-Loft Fleece (Carhartt Heavyweight)
  • Texture: Thick, fuzzy.
  • Solution: Magnetic Frame (to clamp) + Cut-Away + Water Soluble Topper (to prevent sinking).

3) Reducing Operator Error

magnetic frames for embroidery machine setups remove the variable of "How tight did I screw the hoop?" Uniform pressure leads to uniform tension, which leads to uniform stitch quality.

Clean removal and finishing: unhoop carefully, then trim tie-offs like you’re shipping to a boutique

The job isn't done when the machine stops. The "Finish" is what the customer feels.

The Finishing Protocol

1. Release: Slide the magnetic top frame off (don't rip the hoodie out).
2. Tear/Cut: Remove the excess stabilizer. If using Tear-Away, support the stitches with one hand while tearing with the other to avoid distorting the letters.
3. Topper Removal: Tear off the large chunks of water-soluble film. Use a damp paper towel or steam iron to dissolve the tiny bits trapped in the gold thread.
4. The "Tail" Hunt: Flip the hoodie inside out. Trim the bobbin tails close. A customer should never feel a scratchy thread bundle against their skin.

Operation Checklist (Post-Production):

• Orientation: Is the "BOSS LADY" text reading correctly when the hoodie is held up?
• Texture: Is the gold thread smooth (no loops)?
• Solubles: is all topping removed?
• Marks: Are there any oil spots or hoop marks? (Steam them out now).




If something goes wrong: hoodie snag symptoms you can diagnose in 60 seconds

Troubleshooting should be systematic, starting with the cheapest fix.

The upgrade path (without the hard sell): when tools start paying you back

Manual workarounds (like using clips for bulk) work for 5 hoodies. They do not work for 500. If you find yourself dreading hoodie orders, diagnose your bottleneck:

1. The "Hoop Burn" Bottleneck: If you waste time steaming out rings or rejecting garments:

• Solution: Level 2 Upgrade. Switch to 8x13 mighty hoop sizes or SEWTECH Magnetic Frames. This is a safety upgrade for your garments and your wrists.

2. The Speed Bottleneck: If you are turning away bulk orders because your single-needle machine takes too long per thread change:

• Solution: Level 3 Upgrade. A multi-needle platform (implied by the mighty hoops for ricoma em 1010 context) allows you to set up 10 colors and walk away.

3. The Consistency Bottleneck: If you struggle with alignment on thick items:

• Solution: Level 1 Upgrade. Standardize your station. Use a Hooping Station + Magnetic Hoops to ensure every "BOSS LADY" lands exactly 3 inches below the collar.

One last shop-floor reminder: gold thread on black shows everything—so keep it simple and controlled

Embroidery is a game of variables. You cannot control the humidity or the hoodie manufacturer, but you can control your process.

1. Prep: Check the tag, prep the inputs.
2. Hold: Use magnetic force for consistency.
3. Path: Hoop upside down to clear the drag.
4. Pace: Slow down to 500 SPM.

By mastering this workflow, you turn the scary "Gold on Black" request into your shop's signature premium offering.

FAQ

• Q: How do I stop a Ricoma EM-1010 embroidery machine from scuffing or dragging when embroidering a thick hoodie?
  A: Hoop the hoodie upside down with the hood opening facing the operator to keep bulk out of the throat area and prevent pantograph drag.
  • Re-hoop with the hood pulled forward so the heavy hood hangs toward the front, not behind the needle bar.
  • Run a Trace and watch/listen for any rubbing before stitching.
  • Support the garment weight on the table so it is not pulling on the hoop.
  • Success check: During Trace, there is no “scuff-scuff” sound and the pantograph moves freely without resistance.
  • If it still fails: Stop and re-check that no hood mass is trapped between the needle case area and the machine body.
• Q: What consumables should be prepped before embroidering gold thread lettering on a black fleece hoodie on a multi-needle embroidery machine?
  A: Use water-soluble topper, temporary spray adhesive, and a fresh 75/11 ballpoint needle as the baseline to prevent sinking, shifting, and thread-break marathons.
  • Apply water-soluble topping on top of the fleece to keep satin stitches from sinking.
  • Bond backing to the hoodie with temporary spray adhesive to reduce shifting/flagging.
  • Change to a fresh needle (75/11 ballpoint was used as the reference setup for this type of blend fleece job).
  • Success check: The first satin letters look smooth and raised (not buried in fleece) with no early thread breaks.
  • If it still fails: Upgrade stabilizer choice (often moving from tear-away to cut-away helps on more distortable hoodies).
• Q: How do I rotate a “BOSS LADY” design 180° on a Ricoma EM-1010 control panel when hooping a hoodie upside down?
  A: Rotate the design 180° in the machine interface so the lettering appears upside down on the screen before stitching.
  • Set the design rotation to 180° in the design settings.
  • Use Trace and verify the stitch path matches the garment orientation (top of letters should stitch nearest the neck opening).
  • Do a quick logic check by imagining the hoodie worn: the “bottom” of letters must point toward the waistband.
  • Success check: When unhooped and held normally, the text reads correctly and is not inverted.
  • If it still fails: Stop immediately and re-Trace—do not “hope it fixes itself” once stitching starts.
• Q: What speed and needle are a safe starting point on a multi-needle embroidery machine for gold thread on a thick hoodie to reduce thread breaks?
  A: Slow down to 500–600 SPM and use a 75/11 ballpoint needle to keep bulky fleece from wobbling and snapping thread.
  • Set the speed cap to 500–600 SPM for the job (especially on thick, heavy garments).
  • Monitor the first 60 seconds closely and adjust only after confirming stable stitching.
  • Confirm the needle is fresh; if the change date is unknown, replace it before the run.
  • Success check: The machine sounds like a steady rhythmic “thump-thump,” not sharp “snaps,” and the satin columns stay crisp.
  • If it still fails: Check for excessive tension or a burr in the thread path (generally follow the machine manual for tension baselines).
• Q: How do I know if hooping and stabilizer are correct when a hoodie shows gaps between outline and fill during embroidery?
  A: Treat gaps between outline and fill as fabric shifting/flagging and increase stabilization before continuing the run.
  • Stop and add more stabilization (use spray adhesive to prevent backing/fabric slip).
  • Consider switching to a smaller hoop area to reduce fabric movement.
  • Re-run Trace after adjustments to confirm the garment is not tugging or bouncing.
  • Success check: The outline and fill stay registered with no visible separation as the first letters sew.
  • If it still fails: Reassess stabilizer type (cut-away is often the next step on more stretchy or high-loft hoodies).
• Q: What should I check during the first 60 seconds when embroidering a hoodie on a multi-needle embroidery machine to prevent a bird’s nest or hoop strike?
  A: Do not walk away—use the first minute as a diagnostic window for sound, movement, and drag.
  • Listen for abnormal sounds: a sharp snap indicates a thread break; grinding can indicate hoop/pantograph contact.
  • Look at the first letter for push-pull or shifting that signals flagging.
  • Lightly feel (safely away from the needle) whether the hoodie is being yanked instead of “floating.”
  • Success check: Clean stitch formation with stable fabric and no clicking/striking during movement.
  • If it still fails: Stop and re-check clearance (bulk forward), rotation, and that the presser foot clears magnetic hoop edges during Trace.
• Q: What safety steps should be followed around the needle bar and moving pantograph on a multi-needle embroidery machine when hooping and running hoodies?
  A: Keep hands, snips, and loose sleeves completely clear of the needle bar and pantograph because multi-needle machines have high torque and can grab fabric fast.
  • Tie back or secure hoodie sleeves and strings before starting.
  • Keep trimming tools off the machine bed during operation.
  • Stop the machine before reaching near the needle area to adjust fabric or remove debris.
  • Success check: Nothing loose can reach the moving carriage during Trace or stitching.
  • If it still fails: Pause and reset the workspace—most “accidents” come from rushing setup, not from the machine “acting up.”
• Q: What magnet safety rules should be followed when using an 8x13 magnetic hoop for embroidering thick hoodies?
  A: Treat magnetic hoops as industrial pinch hazards—slide magnets apart and keep them away from pacemakers and sensitive cards/devices.
  • Slide the magnetic parts apart; do not pry upward where fingers can get trapped.
  • Keep magnets away from pacemakers, insulin pumps, and credit cards.
  • Keep hands clear of the pinch zone when snapping the frame together.
  • Success check: The frame closes securely without skin contact or sudden “slam” onto fingers.
  • If it still fails: Slow down and reposition hands—controlled placement is safer than forcing alignment.
