Stop Hand-Drawing FSL Grids: The Floriani Wave Fill Trick That Builds a Clean Freestanding Lace Foundation Fast

The "No-Collapse" Grid: A Master Class in Digitizing Freestanding Lace (FSL)

If you have ever watched a freestanding lace (FSL) design disintegrate the moment you washed away the stabilizer, you know the specific heartbreak of structural failure. You spent hours digitizing lines manually, but physics won. The threads slipped, the grid collapsed, and the design turned into a tangle.

Digitizing lace is not just drawing; it is engineering. You are building a fabric from nothing but thread and tension.

The method Brad Martin shares in his Floriani walkthrough is more than a software trick—it is a structural shortcut. By manipulating the Wave Fill tool to act as a supportive rebar, you can create a bulletproof FSL foundation in minutes rather than hours.

As someone who has overseen thousands of hours of production embroidery, I am going to walk you through this process with a focus on the physical reality of the stitch-out—where the needle meets the stabilizer—and how to equip your shop to handle it without frustration.

The Physics of Lace: Why "Line Drawing" Fails

Freestanding lace is unforgiving because there is no fabric cushion. Every stitch relies on the friction of the stitch before it. When you manually digitize lines (the "Old Way"), you often create jump stitches or unconnected endpoints. Once the stabilizer dissolves, those unconnected points release tension, and the design unravels.

Brad’s insight uses Wave Fill because of its algorithm: it creates a continuous travel line along the perimeter.

Think of this like pouring a concrete foundation. You don't just pour cement; you build a frame (the perimeter travel) and lay down rebar (the grid). Wave Fill assists by generating that "frame" automatically, ensuring the structure is tied together before you even add the decorative layer.

Phase 1: The "Invisible" Prep (Materials & Safety)

Before we click a single mouse button, we must address the physical setup. Software cannot fix a bad physical combination. Lace places immense stress on your machine's reciprocator because of the high stitch count in a small area.

The Hidden Consumables List

Do not start without these specific tools:

• Needle: 75/11 Sharp (Not Ballpoint). You need to pierce the fibrous water-soluble stabilizer (WSS) cleanly, not push it aside.
• Thread: 40wt Polyester of Rayon. This method relies on the standard thickness of 40wt thread to create friction at the intersections. Thinner 60wt thread may require a density adjustment (tightening to 2.5mm).
• Stabilizer: Heavy Weight Water Soluble (Fibrous). Avoid the thin plastic "topper" film; it will perforate and rip instantly.

Warning: Mechanical Safety. FSL generates heat. If you are stitching multiple lace ornaments in a single run (e.g., a massive 5x7 or 8x12 hoop full), pause your machine every 20 minutes. The friction of the needle passing through dense stiffener can melt the thread or overheat the needle bar assembly.

Prep Checklist (Pre-Digitizing)

• Stabilizer Choice: Confirm you are using fibrous/fabric-type water-soluble stabilizer (not cling wrap style).
• Shape Analysis: Ensure your vector/artwork is a closed loop with no gaps.
• Machine Prep: Clean the bobbin area. FSL creates "lint snow." A piece of lint under the tension spring will ruin the grid tension instantly.
• Bobbin Match: For FSL, use the same thread in the bobbin as the top if you want the back to look identical to the front.


Phase 2: The Structural Workflow (The Software Steps)

Step 1: The Base Object & Wave Fill Application

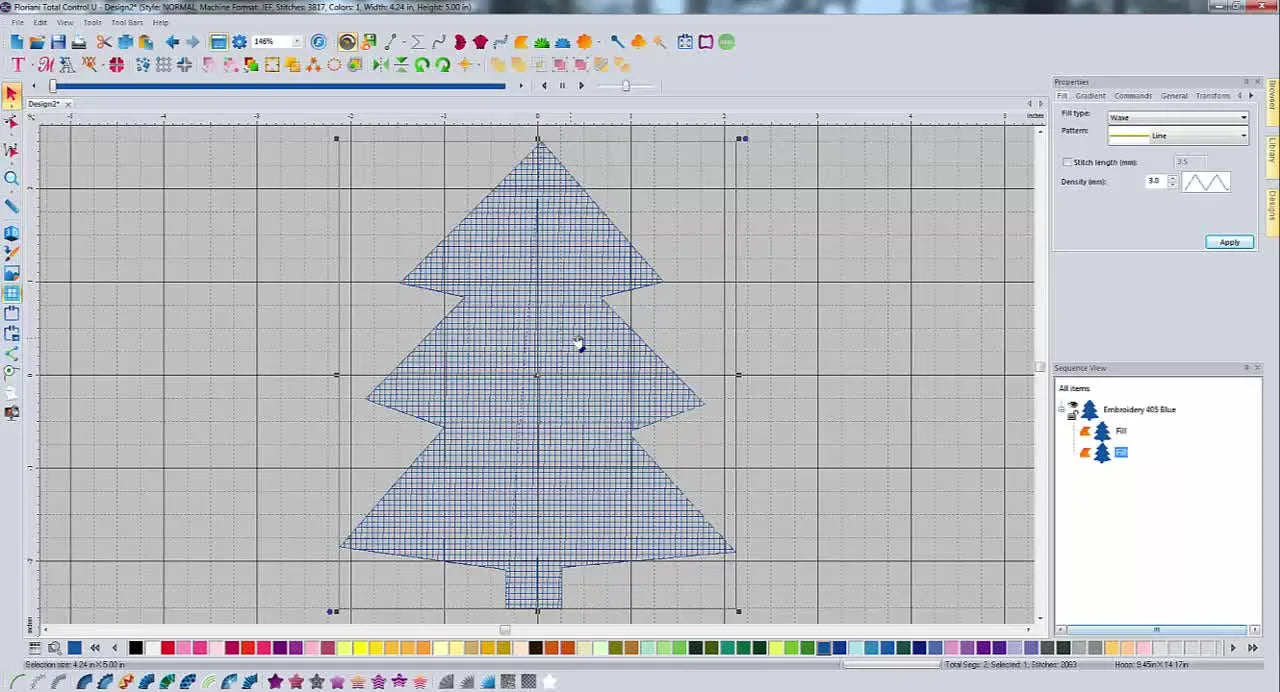

We start with a simple shape. In the video, Brad uses a Christmas tree. The goal is to fill this shape not with a solid block of color, but with a manipulated grid.

1. Import/Draw your shape.
2. Select the shape and apply Wave Fill (in Floriani Total Control U or equivalent).

Why Wave Fill? Look closely at the screen. You will see a wavy pattern, but more importantly, look at the edge. There is a straight run of stitching traveling around the border. That is your anchor.

Step 2: The "Straightening" Hack (Node Editing)

This is the "Aha!" moment. Wave Fill wants to be curved, but we need a straight grid. We are going to force the software to obey geometry.

1. Select the Shape Edit Tool (Node Edit).
2. Locate the Inclination Line (the dotted line with nodes/handles inside the shape).
3. Right-click and Delete the midpoint nodes on that wave line.
4. Remove points until the inclination line snaps to a straight, horizontal bar.






Sensory Check: When you hit "Apply" or "Generate," the fill inside the tree should instantly snap from chaotic waves to perfectly straight, horizontal bars (ladder rungs).

Step 3: Setting the Density (The "Rebar" Spacing)

A standard fill density (usually 0.4mm) is solid. We need air.

1. Change Density to 3.0mm. (Note: If your software uses points, this is roughly 12-15 points. You want broad spacing).
2. Move the Green Start Point to the top tip.
3. Move the Red Stop Point to the bottom center.




Why 3.0mm? This provides enough space for the perpendicular layer to weave in later without creating a "cardboard" effect.

Setup Checklist (The Horizontal Layer)

• Inclination: Is the line perfectly straight with no Bezier curves?
• Density: Set to 3.0mm (or open grid spacing).
• Entry/Exit: Start at Top, Stop at Bottom (this prevents long drag lines across the lace).
• Visual Check: Do you see the continuous travel run along the edge? (Essential).

Phase 3: The Cross-Hatch & perimeter Lock

Step 4: The Perpendicular Layer

Lace requires a grid (X and Y axis) to hold tension.

1. Copy the object.
2. Paste it directly on top (Do not move it).
3. Important: Do not rotate the object. Instead, select the Shape Edit Tool on the new copy.
4. Rotate the Inclination Line 90 degrees so it is vertical.




Step 5: Fixing the "Wobbly" Vertical Lines

When you rotate the inclination of a wave fill, the Bezier handles (the little "paddles" attached to the nodes) often stay curved.

1. Zoom in on your vertical inclination line.
2. Drag the Bezier handles in until the line is perfectly straight.
3. Regenerate Stitches.


The Result: You should now see a perfect checkboard grid. The horizontal thread lays down, and the vertical thread lays on top. The friction between these two layers at the intersection points is what holds the lace together.

Step 6: The Steel Border (Steil Stitch)

The grid is the floor; the border is the walls. Without walls, the floor slides out.

1. Select the entire design.
2. Add a Steil Stitch (a controlled satin/column stitch) border.
3. This stitch wraps over the raw edges of your grid, locking them permanently.


Phase 4: The Stitch-Out Strategy (Where 90% of Failures Happen)

You have a perfect file. Now you have to tackle the physical variables. The number one enemy of FSL is stabilizer shifting.

Water-soluble stabilizer is slippery. It stretches. If it moves even 1mm during the stitch-out, your vertical grid lines will miss the horizontal ones, and you will get a pile of thread spaghetti.

The "Hoop Burn" vs. "Slippage" Dilemma

Traditional inner/outer ring hoops rely on friction and screw tension. To hold slippery WSS tight enough for lace, you have to crank the screw so tight it can distort the stabilizer before you even start (the "drum skin" effect becomes warped).

This is where the industry implies a specific tool class. Many professionals search for hooping for embroidery machine solutions specifically because traditional hoops struggle here.

The Solution Ladder (Trigger -> Option):

1. The Trigger: You tighten your hoop, but the stabilizer slips inward as the needle pounds the dense FSL grid, causing the outline to misalign.
2. The Upgrade Criteria: If you are fighting slippery stabilizer or noticing "puckering" at the edges of your lace.
3. The Toolbox Upgrade:
   • Level 1 (Technique): Wrap the inner ring of your standard hoop with veterinary tape (Coban) to increase grip.
   • Level 2 (Tool): Switch to magnetic embroidery hoop systems (like the MaggieFrame or Sewtech magnetic series).
   • Why Magnets? They provide clamping force straight down rather than pulling outward. This holds the WSS perfectly flat without the warping torque of a screw mechanism. For FSL, where grid alignment is mathematical, flat clamping is non-negotiable.

Warning: Magnet Safety. Magnetic hoops are industrial tools. They use Neodymium magnets with crushing force.
* Pinch Hazard: Keep fingers clear of the clamping zone. They will snap together instantly.
* Medical Safety: Keep magnets at least 6 inches away from pacemakers or insulin pumps.

Operation Checklist (The Final "Go" Flight Check)

• Hooping: Stabilizer is "Drum Tight" (Taut). When tapped, it should sound like a crisp thump, not a dull thud.
• Needle: New 75/11 Sharp installed.
• Speed: Reduce machine speed. FSL is dense. Run at 600-700 SPM (Stitches Per Minute). Running at 1000+ SPM creates vibration that can shift the stabilizer.
• Observation: Watch the first layer (horizontal). If it looks loose or loopy, stop immediately. Check top tension.

Decision Tree: Stabilizer & Workflow Logic

Use this logic flow to determine your setup based on your production volume.

Start: What is the Project Volume?

• Scenario A: One-off Hobby Project (1-5 units)
  • Stabilizer: 2 Layers of Heavy WSS.
  • Hoop: Standard hoop (wrapped with friction tape recommended).
  • Risk: High. Watch the machine like a hawk.
• Scenario B: Small Batch / Gifts (6-20 units)
  • Stabilizer: 2 Layers Heavy WSS + Floating a scrap layer if needed.
  • Hoop: magnetic embroidery hoops strongly recommended to save hand strain and ensure consistent tension.
  • Optimization: Batch distinct designs to fill the hoop (sorting by color).
• Scenario C: Commercial Production (50+ units)
  • Problem: Single-needle changes take longer than the stitching.
  • Solution: Multi-Needle Platform (SEWTECH/Ricoma/etc.).
  • Workflow: Use a hooping station for embroidery machine to pre-hoop the next run while the machine stitches. This eliminates downtime.

Troubleshooting: Examining the Autopsy

If your lace failed, do not guess. Look at the corpse of the embroidery.

The Commercial Reality: Scaling Up

Brad’s tutorial is excellent for mastering the logic of FSL. But as you move from "making a snowflake" to "selling 50 sets of snowflakes," your bottleneck shifts from software to hardware.

Digitizing the grid correctly (Wave Fill + Straight Inclination + Cross-hatch) solves the structural problem. But solving the efficiency problem requires looking at your bench.

If you find yourself spending more time fighting the hoop screw than stitching, or if your wrists ache from wrenching WSS taut, terms like magnetic hooping station are your gateways to understanding efficient production. The goal is to let the machine do the work, so you can focus on the next design.

Master the grid, lock the border, and clamp it tight. That is how you build lace that lasts.
