Stop Hand-Cutting Appliqué: Turn a PES File into Perfect ScanNCut Cuts (and Avoid the Two Traps That Waste Hours)

Appliqué is supposed to feel “fun and creative.” It’s that magical technique where fabric meets thread to create texture and depth. But in real life? It often feels like a high-stakes craft exam: print a paper template, hand-cut three tricky shapes with scissors, realize one is slightly too small, and then watch in horror as your machine's satin stitch misses the edge, leaving raw fabric fraying all over your hard work.

This workflow fixes that. It turns the process from "guessing game" into "digital precision."

In this comprehensive guide, I’m rebuilding the exact process shown in the tutorial: taking a PES embroidery design in Brother PE-DESIGN, tagging the placement outlines as Appliqué Material, sending it to a USB drive, and letting a Brother ScanNCut carve your appliqué pieces with robotic accuracy.

As a veteran of the embroidery floor, I will also address the "invisible" frustrations that tutorials often skip—like why your file might be invisible to the cutter, the vital importance of "overlap insurance," and how to manage the physical variable that ruins more projects than software ever does: Hooping.

Don’t Panic: If the ScanNCut Can’t “See” Your PES File, It’s Usually One Setting (Not a Broken Machine)

If you’ve ever loaded a USB stick into your cutting machine, navigated to the folder, and stared at an empty window, you know that specific sinking feeling. You know the files are there. You just put them there. But the machine is acting blind.

Here’s the calming truth: the ScanNCut isn’t looking for “any PES file.” It’s looking for specific metadata. It needs a PES file that has been coded so the cutting computer recognizes which specific outlines are meant to become cut lines. It filters out the satin stitches, the decorative fills, and the underlay, looking only for the cut path.

In this workflow, that coding is done inside PE-DESIGN by assigning a special color attribute called Appliqué Material to the placement stitch objects. If that specific attribute isn’t applied, the ScanNCut treats the file as "embroidery only" and ignores it to protect you from cutting your nice satin stitch data.

A Note on Hardware Compatibility: One common question is, "Does this work on older models like the ScanNCut2 (CM350)?" The workflow here is demonstrated on a ScanNCut CM550DX. Most modern Brother cutters can read PES files if the firmware is up to date. However, always treat this as "likely but not guaranteed." Before spending hours digitizing, check your machine's manual under "PES Compatibility."

The “Hidden Prep” Pros Do First: File Hygiene, Fabric Reality, and a Clean Cutting Plan

Amateurs rush to the software. Pros rush to the prep table. Before you click a single mouse button, you need to set your physical environment up for success. Cutting fabric is a physics problem—if the fabric shifts on the mat by even a millimeter, your perfect digital file will result in a ruined piece.

The "Hidden" Consumables List

The video mentions the basics, but here is what you actually need to survive this process:

• Adhesive Spray (e.g., 505 / 606): Mats lose stickiness. A light mist refreshes the grip.
• High-Tack Tape (Painter's Tape): To tape down the edges of the fabric on the mat for extra security.
• Fabric Starch (e.g., Terial Magic): If your fabric is flimsy (like rayon), stiffen it before cutting.
• Sharp Fine-Point Tweezers: For weeding intricate cuts without fraying the edges.
• A "Sacrificial" Scraps Bin: Never test on your final garment fabric.

Two expert habits that prevent rework

1. Metric-Driven Insurance: Satin borders are forgiving, but they aren't magic. A cut that is exactly the size of the placement line is actually too small. You need "Pull Compensation" for cutting—which we call "Overlap." The video correctly identifies this margin.
2. The "Master File" Protocol: Never save your cutting data over your original embroidery file. Once you convert lines to "Appliqué Material," you alter the file's sewing logic. Always Fork your save.

Prep Checklist: The "Clean Start" Protocol

• File Safety: Confirm you have the original _MASTER.pes saved in a read-only folder.
• Media Check: Use a USB drive under 8GB if possible (older machines struggle with large partitions) and ensure it's formatted to FAT32.
• Mat Tactility: Touch your cutting mat. It should feel strictly tacky, like a fresh Post-it note. If it feels dusty or smooth, clean it or use tape/spray.
• Blade Check: Unscrew your blade cap. Is there tiny fabric lint jamming the swivel? Blow it out.
• Fabric Ironing: Iron your appliqué fabric flat. Zero wrinkles. A wrinkle becomes a snag in the machine.


Make PE-DESIGN Speak “ScanNCut”: Import the PES and Tag Placement Stitches as Appliqué Material

This is the core translation step. We are teaching the software to say, "Hey Cutter, ignore the flowers and the text; just look at this specific line."

1) Import the design in PE-DESIGN

• Open PE-DESIGN.
• Choose From Folder (or Import).
• Navigate to your USB or hard drive.
• Double-click the design to load it into the workspace.

Sensory Check: You should see the design centered on the grid workspace.

2) Find the placement stitches and assign “Appliqué Material”

An appliqué design usually has three layers: Placement (running stitch), Tackdown (zig-zag or running), and Cover (Satin). We need the Placement line.

• Locate: On the left side "Sewing Order" pane, scroll to the top. Usually, the first color block is the placement line.
• Select: Click that first object.
• Attribute: On the right-side "Sewing Attributes" or "Color" pane, look for the special specific effect or color setting.
• Action: Change the color/attribute to Appliqué Material. In PE-DESIGN, this often looks like a specific icon (a pair of scissors or a distinct tag) depending on your version.

Efficiency Hack:

• Click the first placement object.
• Hold the Control (Ctrl) key.
• Click the placement objects for other parts of the design (if it's a multi-piece appliqué).
• Apply Appliqué Material to all of them at once.

Visual Confirmation: The color swatch in the sewing order usually shifts to a distinct "Appliqué" icon (often yellow/gray) indicating it is no longer just thread data—it is now cutting data.

Warning: Mechanical Safety
When working with cutting machines and removing fabric, keep fingers clear of the blade housing even when stopped. The blade is microscopially sharp.
Furthermore, when using sharp scissors or tweezers to lift corner tabs, always cut away from your body. A slipped tool on a sticky mat can lead to a nasty puncture wound.

Export Without Regret: Send to USB (and Why I Recommend a New File Name)

We need to get the data out of the computer and into the machine.

• Click the Home tab.
• Choose Send → Send to USB Media.
• Select the correct drive letter.
• Crucial Step: Wait a full 5 seconds after the progress bar finishes before pulling the drive. Corrupt headers happen when you pull too fast.


The Golden Rule of Naming: A commenter asked, “When you save, do you overwrite your original or save with a new name?”

Start this habit today: Never overwrite the source.

• Flower_Design_MASTER.pes (Contains standard thread colors)
• Flower_Design_CUT_READY.pes (Contains Appliqué Material tags)

Why? Because next year, when you want to stitch that flower directly onto a towel without appliqué, you will hate yourself for deleting the original thread data.

On the Brother ScanNCut (CM550DX Workflow): Load the PES from USB and Pull in Parts A, B, and C

Now, move to the cutting station. You are about to bridge the digital and physical worlds.

1) Retrieve the file

• On the ScanNCut touchscreen, tap Pattern.
• Select Saved Data.
• Tap the USB icon.
• Select your _CUT_READY.pes file.

Success Metric: The machine should display the individual vector shapes (the outlines) from your file. If it shows nothing, the "Appliqué Material" tag wasn't saved correctly in Step 3.

2) Select and add each appliqué part

Complex appliqués have multiple pieces. The machine identifies them often as Part A, B, C, etc.

• Select Part A → Tap OK → Tap Set.
• Don't Cut Yet. Tap Add on the screen to go back.
• Select Part B → OK → Set.
• Repeat for Part C.

Visual Check: Your layout screen should now look like a "nest" of outlines.

Setup Checklist: The "Pre-Flight" Inspection

• Inventory: Are Parts A, B, and C all visible on screen?
• Clearance: Are any shapes touching the red boundary line? (The machine will refuse to cut if they touch the "No Cut" zone).
• Adhesion: Press the fabric down on the mat again. Use a brayer (roller) or a credit card to squeegee out air bubbles.
• Tool: Have your stylus ready for precise dragging.

The 1 mm Rule That Saves Appliqué: Resize Each Piece So Satin Stitch Actually Covers the Edge

This is the single most important step in this tutorial. This separates "Homemade" from "Pro."

Standard placement lines are exact. But fabric shrinks, shifts, and frays. If you cut the fabric exactly to the line, the satin stitch (which has width) might miss the edge, leaving a visible gap of fabric or raw threads.

The Fix:

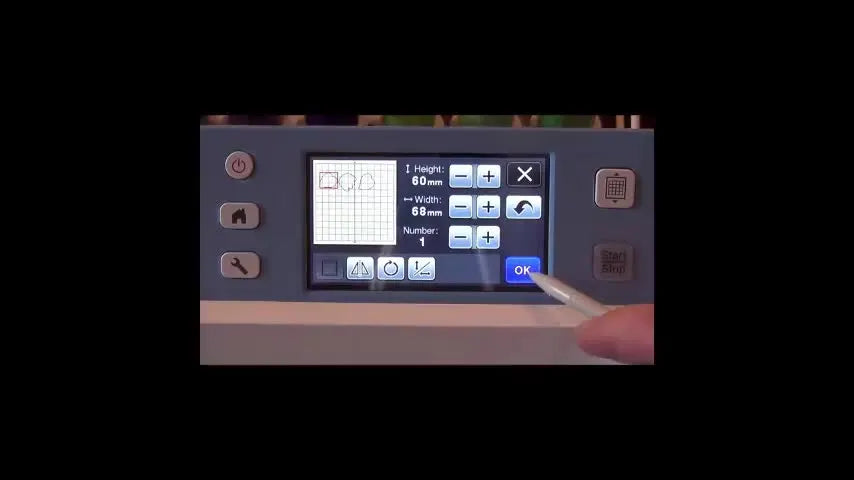

• Tap Edit Menu (on the ScanNCut).
• Select a piece.
• Tap Resize.
• Add +1 mm (or roughly 0.04 inches) to the Dimensions.
• Repeat for all pieces.

Why 1 mm? 1 mm provides just enough "meat" for the satin stitch to bite into. It creates an overlap. When the needle swings left and right, it will land firmly on the appliqué fabric and the background fabric, encapsulating the raw edge perfectly.

• Troubleshooting:* If the machine beeps and refuses to resize, the shape is likely too close to the edge of the virtual mat. Move it to the center, resize it, then move it back.

Use the Scan Feature Like a Pro: Scan the Fabric Mat, Then Drag Cut Lines Exactly Where You Want Them

This is the machine's superpower. Why guess where the fabric is?

• Tap OK to exit Edit mode.
• Tap the Scan Icon (looks like a scanner bed).
• Press Start.

Sensory Experience: You will hear the machine whir as it feeds the mat all the way in and pulls it back out. It is taking a high-res photo of your messy mat.

The Layout Strategy: Once the scan finishes, the background of your screen becomes the photo of your fabric.

• Fussy Cutting: If your fabric has a cute rose print, drag the "Part A" outline directly over the rose.
• Scrap Saving: Drag the shapes into tight corners to use every inch of expensive fabric.
• Grainline: Rotate pieces to align with the fabric grain if necessary to prevent stretching.


Execute the Cut Cleanly: Start/Stop, Finish, and Peel Without Stretching Your Fabric

The moment of truth.

• Tap OK.
• Select Cut.
• Check your blade depth (Standard Blade setting usually 3-4 for cotton, but always test).
• Press the Start/Stop button.


Auditory Check: Listen for a consistent "zipping" sound. If you hear tearing, dragging, or a rhythmic "thump-thump," hit Stop immediately—your fabric is lifting or the blade is dull.

The Removal Technique: When finished, adhere to the "Negative Space First" rule:

1. Peel away the excess fabric skeleton first.
2. Use a spatula tool to lift the appliqué pieces. Do not pull them. Pulling distorts the bias of the fabric, changing that circle into an oval that won't fit your embroidery.


Operation Checklist: Post-Cut Review

• Clean Edges: pick up Part A. Are the edges sharp, or are they fuzzy/frayed? (Fuzzy = Blade too dull or fabric not stiff enough).
• Geometric Integrity: Lay the cut piece on a flat surface. Does it lie flat? If it curls, you pulled too hard removing it.
• Identification: Label your pieces immediately with sticky notes (A, B, C) so you don't confuse them at the embroidery machine.

When the Cut Isn’t Complete: The Real Culprit Is Often Open Vectors in the Digitizing

Sometimes, you go to peel the fabric, and one corner is still attached. It’s annoying.

The video explains the cause: Open Vectors. Digitizers sometimes leave a tiny microscopic gap between the start and end point of a line. The cutting machine is a robot—it stops exactly where the line stops. It cannot "guess" the gap closed.

The Solution:

• Immediate: Use small embroidery scissors to snip the connection. Don't tear it! Tearing creates a tuition of loose threads that will poke through your satin stitch.
• Long term: Fix the file in PE-DESIGN by checking for "Close Point" or "Close Shape" on your outline vectors.


A Quick Decision Tree: Fabric Type → Stabilizer Strategy (So Your Appliqué Embroidery Doesn’t Pucker Later)

You have perfect cuts. Now, don't ruin them with bad stabilization during the embroidery phase. The #1 enemy of appliqué is "Pucker"—where the fabric ripples around the design.

Use this decision tree to choose your foundation:

• Scenario A: Standard Cotton / Woven Shirt
  • Risk: Moderate puckering.
  • Solution: Iron-on Tearaway on the back of the shirt, plus Spray Adhesive on the appliqué piece.
• Scenario B: Stretchy T-Shirt / Knit
  • Risk: High distortion (The "Donut" effect).
  • Solution: Fusible Mesh (No-Show Mesh) Cutaway stabilizer. Do not use tearaway; the stitches will rip right through it as the shirt stretches.
• Scenario C: Towel / Fleece (High Pile)
  • Risk: Stitches sinking and getting lost.
  • Solution: Water Soluble Topper (Solvy) on top of the appliqué fabric + Medium Cutaway on the back.
• Scenario D: The Appliqué Fabric Itself is Flimsy (Silk/Rayon)
  • Solution: Iron a lightweight fusible interfacing (like Shape-Flex) onto the back of the appliqué fabric before cutting it on the ScanNCut. This creates a "paper-like" stability.

The Hooping Reality Nobody Mentions: Appliqué Quality Lives or Dies in the Hoop

We need to talk about the elephant in the room. You can cut the perfect shape, but if you hoop your garment crookedly, or if the hoop tension pulls the fabric out of shape, the appliqué placement line will be an oval, and your perfectly circular cut fabric... won't fit.

Common frustrations include:

• Hoep Burn: That shiny, crushed ring left on delicate fabrics by standard plastic hoops.
• Wrist Strain: physically fighting to screw the hoop tight enough on thick garments (like Carhartt jackets).
• Slippage: The fabric loosening mid-stitch, causing outlines to misalign.

This is where the difference between hobbyist and professional tools becomes obvious. For many embroiderers, upgrading to a magnetic embroidery hoop is the fastest way to solve these physical constraints. Unlike screw-tightened plastic hoops that distort the fabric grain, magnetic hoops clamp straight down. This allows you to adjust the fabric without "un-hooping," ensuring the grain is perfectly straight before you stitch that placement line.

Warning: Magnetic Safety Hazard
Pacemakers: Magnetic hoops use industrial-grade neodymium magnets. They are incredibly strong. Keep them at least 10 inches away from pacemakers.
Pinch Hazard: Do not place your fingers between the top and bottom frames. They snap together with enough force to cause severe blood blisters or bruising. Handle with intent.

If you run Brother machines, specifically looking for magnetic embroidery hoops for brother ensures you get the correct attachment brackets for your specific arm width. A properly matched magnetic frame essentially eliminates "Hoop Burn" because it doesn't crush the fabric fibers against a ridge—it holds them flat with vertical pressure.

Comment-Driven “Gotchas” (So You Don’t Lose an Afternoon)

Real advice from the trenches based on user feedback:

“I followed the steps, but my files don’t show up.”

Diagnosis: You likely exported the whole design without changing the specific attribute of the placement line. Fix: Go back to PE-DESIGN. Select the outline. Confirm the color attribute is "Appliqué Material." Save as a new name (e.g., Design_V2.pes). Try again.

“My satin stitch still missed the edge, even with +1 mm!”

Diagnosis: This is usually a stabilization issue, not a cutting issue. The fabric in the hoop shrank inward under the tension of the stitches. Fix: Use a heavier stabilizer (switch from Tearaway to Cutaway) or create a tighter hoop.

“Should I overwrite the original?”

Verdict: No. Always keep a "Master" and a "Production" file. Future You will thank Present You.

The Upgrade Path (When You’re Ready): From “It Works” to “I Can Produce This All Day”

If you are doing one appliqué T-shirt for a grandchild, the standard tools are fine. But if you start taking orders—say, 50 school spirit hoodies—your bottlenecks will shift.

Here is how to diagnose when you need to upgrade your toolset:

1. The Bottleneck: "I spend more time hooping than stitching."
   • The Fix: A brother magnetic embroidery frame allows for near-instant hooping. You slide the garment in, snap the magnets, and go. It cuts changeover time by 50%.
2. The Bottleneck: "My placement is crooked across different shirt sizes."
   • The Fix: Consistency requires a system. Terms like hooping station for embroidery refer to physical boards that hold your hoop and garment in the exact same spot every time. This ensures the logo is always 4 inches down from the collar, regardless of whether it's a Small or XXL.
3. The Bottleneck: "My wrists hurt."
   • The Fix: This is serious. Repetitive Strain Injury (RSI) is real in this industry. A how to use magnetic embroidery hoop workflow reduces the torque and grip strength required to secure garments, protecting your hands for the long haul.
4. The Bottleneck: "I can't stitch fast enough."
   • The Fix: If you are consistently needing to produce volumes where single-needle thread changes are killing your profit margin, it is time to look at multi-needle machines (Part of the SEWTECH ecosystem). But optimize your hooping workflow first—that is the cheapest way to gain speed.

Final Reality Check: What “Perfect Appliqué” Actually Means

If you execute this workflow correctly, you should achieve:

• A PES file visible to the ScanNCut.
• Efficiency by cutting Parts A, B, and C in one pass.
• Zero "raw edge" visible due to the strategic +1mm overlap.
• A clean, "store-bought" look that manual scissors simply cannot replicate.

Remember: The machine provides the precision, but you provide the logic. Check your stabilizers, watch your overlaps, and respect the magnets. Now, go cut something beautiful.

FAQ

• Q: Why does a Brother ScanNCut CM550DX show an empty screen when a PES file is on the USB drive?
  A: The Brother ScanNCut CM550DX usually hides the PES file because the placement outline is not tagged as “Appliqué Material” metadata in Brother PE-DESIGN.
  • Reopen the PES file in Brother PE-DESIGN and select the placement (running stitch) objects in the Sewing Order.
  • Change the selected objects’ attribute/color to Appliqué Material, then save as a new file name (do not overwrite the master).
  • Send the updated file to USB and wait a few seconds after the progress bar finishes before unplugging.
  • Success check: The ScanNCut screen shows separate outline shapes/parts (A, B, C) instead of showing nothing.
  • If it still fails: Confirm the USB drive is FAT32 and check the ScanNCut manual/firmware notes for PES compatibility on the specific model.
• Q: What supplies should be on the table before cutting appliqué fabric on a Brother ScanNCut (to prevent shifting and wasted cuts)?
  A: Gather the “hidden consumables” first—fabric cutting is often ruined by mat grip and fabric movement, not the file.
  • Refresh grip with a light mist of adhesive spray (e.g., 505/606) if the mat feels weak.
  • Tape fabric edges down with painter’s tape for extra security, especially on corners.
  • Stiffen flimsy fabric with starch (e.g., Terial Magic) before placing it on the mat.
  • Success check: The fabric feels firmly held (tacky like a fresh Post-it) and does not slide when lightly rubbed.
  • If it still fails: Clean the mat, re-burnish fabric down with a brayer/credit card, and inspect the blade area for lint buildup.
• Q: How do I set the appliqué placement outline to “Appliqué Material” in Brother PE-DESIGN so ScanNCut cuts only the fabric shapes?
  A: Tag only the placement outline objects as Appliqué Material so the cutter recognizes cut paths instead of embroidery stitches.
  • Identify the placement line (usually the first color block in Sewing Order) and select that object.
  • Multi-select other placement outlines (Ctrl-click) for multi-piece appliqué and apply Appliqué Material to all at once.
  • Save a separate cut file name (for example, keep a MASTER file and a CUT_READY file).
  • Success check: The Sewing Order shows the appliqué/cut indicator for those outline objects (not normal thread-only color blocks).
  • If it still fails: Recheck that only the placement outlines were tagged (not satin/fill), then resend to USB.
• Q: Why should appliqué pieces be resized by +1 mm on a Brother ScanNCut before cutting, even if the placement line is accurate?
  A: Add +1 mm to each appliqué piece so the satin stitch fully covers the fabric edge after real-world shrink/shift.
  • Open Edit on the ScanNCut, select each piece, and use Resize to add +1 mm (about 0.04") to dimensions.
  • Resize all pieces (Part A, Part B, Part C) consistently before cutting.
  • Move the shape away from the virtual mat edge if the machine refuses to resize, then move it back.
  • Success check: After embroidery, no raw edge or “gap” is visible outside the satin border.
  • If it still fails: Treat it as a stabilization/hooping issue—fabric can draw inward under stitch tension, so upgrade stabilizer choice rather than increasing cut size blindly.
• Q: What does a Brother ScanNCut “incomplete cut” (one corner still attached) usually mean for the PES outline file?
  A: An incomplete cut commonly indicates an open vector (a tiny gap where the outline is not fully closed).
  • Snip the tiny connection with small scissors instead of tearing the fabric.
  • Inspect and correct the outline in Brother PE-DESIGN using a close-shape/close-point type function (wording varies by version).
  • Re-export the corrected cut-ready PES to USB as a new version.
  • Success check: The appliqué piece lifts cleanly as a complete shape with no “tabs” still holding it to the fabric.
  • If it still fails: Check blade condition and blade housing lint—dragging/tearing sounds can also indicate lift or dullness.
• Q: What stabilizer should be used for appliqué embroidery on knit T-shirts versus woven cotton, to prevent puckering after cutting with ScanNCut?
  A: Match stabilizer to fabric type—knits generally need cutaway, while wovens may tolerate tearaway depending on risk.
  • Use fusible mesh (no-show mesh) cutaway for stretchy knit T-shirts; avoid tearaway on knits.
  • Use iron-on tearaway for standard woven cotton/shirts, and use spray adhesive to secure the appliqué piece.
  • Add water-soluble topper on high-pile items (towels/fleece) so stitches don’t sink.
  • Success check: The stitched area lies flat with no ripples (“pucker”) around the appliqué edge after stitching.
  • If it still fails: Increase stabilization (often switching from tearaway to cutaway helps) and re-check hooping tension/straight grain before blaming the cut size.
• Q: What are the key safety risks when using Brother ScanNCut blades and neodymium magnetic embroidery hoops during appliqué production?
  A: Treat both the cutting blade and magnetic hoops as serious hazards—prevent cuts, punctures, and pinch injuries.
  • Keep fingers clear of the ScanNCut blade housing, even when the machine is stopped; handle tweezers/scissors cutting away from the body.
  • Keep neodymium magnetic embroidery hoops at least 10 inches away from pacemakers and medical devices.
  • Place hands on the outside edges when closing magnetic hoops to avoid pinch points between frames.
  • Success check: Fabric can be lifted/removed and hoops can be closed without any “snap-on” finger pinch incidents or near-miss slips.
  • If it still fails: Slow the workflow down and stage tools (spatula, tweezers, scissors) before starting—rushing is the common root cause of injuries.
• Q: When appliqué placement lines stitch crooked or fabric slips in the hoop, should the workflow upgrade be technique changes, magnetic embroidery hoops, or a multi-needle machine?
  A: Follow a tiered fix: optimize technique first, then upgrade hooping tools, and only then consider a multi-needle machine for throughput.
  • Level 1: Re-hoop with straight grain, verify stabilizer choice, and reduce fabric distortion before stitching the placement line.
  • Level 2: Switch to a magnetic embroidery hoop to reduce hoop burn, reduce slippage, and speed changeovers (often a major bottleneck).
  • Level 3: If production volume is consistently limited by thread changes and stitch time, evaluate a multi-needle system (after hooping is stable).
  • Success check: Placement stitches land consistently where the cut pieces fit without forcing, across multiple garments and sizes.
  • If it still fails: Add a repeatable positioning system (for example, a hooping station approach) and audit the process step-by-step before investing in higher capacity.
