Stop Hand-Cutting Appliqué: A Clean, Repeatable Brother Luminaire “My Connection” Workflow to ScanNCut DX

If you’ve ever hand-cut an appliqué piece, laid it into the placement stitch… and realized it’s 1–2 mm off (or worse, you trimmed too much and frayed the edge), you already know the sinking feeling. The machine did the hard part perfectly, but the scissors ruined the finish.

This workflow fixes that friction.

In this tutorial, based on insights from Cindy Hogan and Heather Banks, we demonstrate Brother’s My Connection feature. This tech—exclusive to specific ScanNCut DX models paired with a wirelessly connected Luminaire embroidery machine—ensures your appliqué fabric is cut from the actual digital cut data embedded in the embroidery design. The result is what you saw in the video: the fabric drops into the stitched outline with the satisfying precision of a puzzle piece, with no manual trimming and no guessing.

The “Don’t Panic” Primer: What Brother My Connection Actually Does (and What It Doesn’t)

Think of My Connection not as a permanent bridge, but as a digital clipboard. It allows the Brother ScanNCut DX SDX325 and SDX330D to communicate with a wirelessly connected Brother Luminaire embroidery machine (XP1/XP2).

Here is the mental model you need to avoid frustration:

1. The "Buffer" Rule: The Luminaire sends the cut data into a temporary pocket on the ScanNCut side. Sending a new file will overwrite the last one immediately.
2. The Data Split: The ScanNCut can retrieve two types of data: Appliqué parts (a badge-style outline for cutting fabric) or Embroidery data (scanning the visual icon).

If you’re building a production habit, treat My Connection like a “one-job courier,” not a storage hard drive.

The Hidden Prep Pros Do First: Color Tags, Fabric Backing, and a Clean Cutting Surface

Before you touch the “Transfer” button on your screen, you must get the physical variables right. In 20 years of embroidery, 90% of "software failures" I've seen were actually "physics failures."

1) Confirm the appliqué pieces are tagged as “APPLIQUE MATERIAL”

Software logic is binary. On the Luminaire, the appliqué portions must be assigned the specific color function APPLIQUE MATERIAL (identifiable by a scissors icon).

• The Trap: If you import a third-party design (PES), it might just look like "Red" or "Blue." The machine won't see it as cut data. You must manually change that color step to APPLIQUE MATERIAL in the Luminaire's edit screen for the ScanNCut to "see" it.


2) Prep fabric with an iron-on appliqué contact sheet

This is non-negotiable for clean cuts. You cannot simply throw raw cotton on a sticky mat.

• The Consumable: Use a fusible web (like HeatnBond Lite or OESD Appliqué Fuse). Iron it to the wrong side of your fabric.
• The Action: Peel the paper backing off before placing it on the mat. You want the shiny adhesive side exposed (facing down onto the project later), but for cutting, the fabric side faces up on the mat.


3) Start with a mat that grips evenly

They use a Standard Tack Adhesive Mat.

• The Sensory Check: Touch your mat. It should feel tacky, like strong painter's tape, but not gooey. If it has "bald spots" where it doesn't stick, your fabric will drag, and the cut will be ruined.
• The Secret Tool: Use a brayer (rubber roller) or a squeegee tool to press the fabric down. Air bubbles are the enemy of precision.


Warning (Mechanical Safety): Keep fingers clear of the blade path and never reach under the carriage while the ScanNCut is operating. The auto blade housing moves with surprising speed and force; it can pinch fingers or catch loose clothing instantly.

Prep Checklist (Do this OR Fail)

• Software Lineup: Does the design show the "Scissors Icon" next to the appliqué color step?
• Fabric Physics: Is the fusible backing ironed on securely with no bubbles?
• Paper Removal: Did you peel the paper backing off the fusible web?
• Mat Hygiene: Is the mat sticky enough to hold the fabric firm against the blade's drag?
• Blade Check: Unscrew the blade cap and check for tiny fabric lint clumps from previous cuts.

Luminaire XP1/XP2: Picking the Built-In Appliqué Design Without Guessing

On the Luminaire home screen, the workflow is specific:

1. Touch Embroidery.
2. Choose Category 1.
3. Choose Subcategory 5 (zentangle-style designs).
4. Select Design 002 (a floral design where the flower contains specific appliqué stitch data).
5. Touch Set to place it on the Embroidery Edit screen.

In this demo, they do not need to adjust the design because Brother's built-in files already have the correct "Appliqué Material" attributes assigned.

The One-File Reality: Wireless “Transfer to ScanNCut” and the Overwrite Trap

From the Luminaire layout screen:

1. Touch the Memory key.
2. Select the Transfer to ScanNCut Machine icon (it looks like a cutter).
3. When prompted, confirm Transfer.

The Cognitive Anchor: The Luminaire warns you that this will override the last file sent. Visualize this as a single-slot mailbox. If you sent a file yesterday and didn't cut it, it's gone now.

Pro Tip: If you are running a project with multiple distinct appliqué shapes (e.g., a flower, a leaf, and a stem), you must transfer and cut them one by one in a loop: Transfer A → Retrieve/Cut A → Transfer B → Retrieve/Cut B.

ScanNCut SDX330D/SDX325: Retrieving the Right Data (Appliqué Badge vs Embroidery Flower)

On the ScanNCut home screen, the retrieval process separates the pros from the confused:

1. Touch the left navigation arrow to find My Connection.
2. Touch My Connection.
3. Touch Retrieve.
4. Choose Wireless LAN Device.
5. Critical Decision: Select the Appliqué part (the badge/shape icon).
   • Why? The "Flower" icon retrieves the embroidery look for drawing/printing. The "Badge" icon retrieves the cutting data derived from the Appliqué Material tag.
6. Touch OK, then Set.






Hardware Reality Check: This specific "My Connection" button is firmware-locked to the ScanNCut DX SDX325 and SDX330D. If you have an SDX225 or SDX125, you cannot use this direct "ping" method; you must save the FCM file to a USB or transfer via CanvasWorkspace.

The Mat-Loading Habit That Saves Your Corners (and Your Sanity)

After placing the fabric right-side up on the Standard Mat, utilize the "Level Hand" technique to prevent crooked loading.

• The Action: Place the mat between the guide grooves.
• The Support: Place your hand flat under the bottom of the mat to lift it level with the feed mouth. Gravity is your enemy here; if the mat droops, it hits the rollers at an angle.
• The Button: Once the mat is flush against the rollers, press Load.


Background Scan: The Fastest Way to Stop Counting Grid Squares

This is the killer feature of the ScanNCut. Instead of guessing where your fabric scrap is, you see it.

1. Touch Background Scan.
2. Press Start.

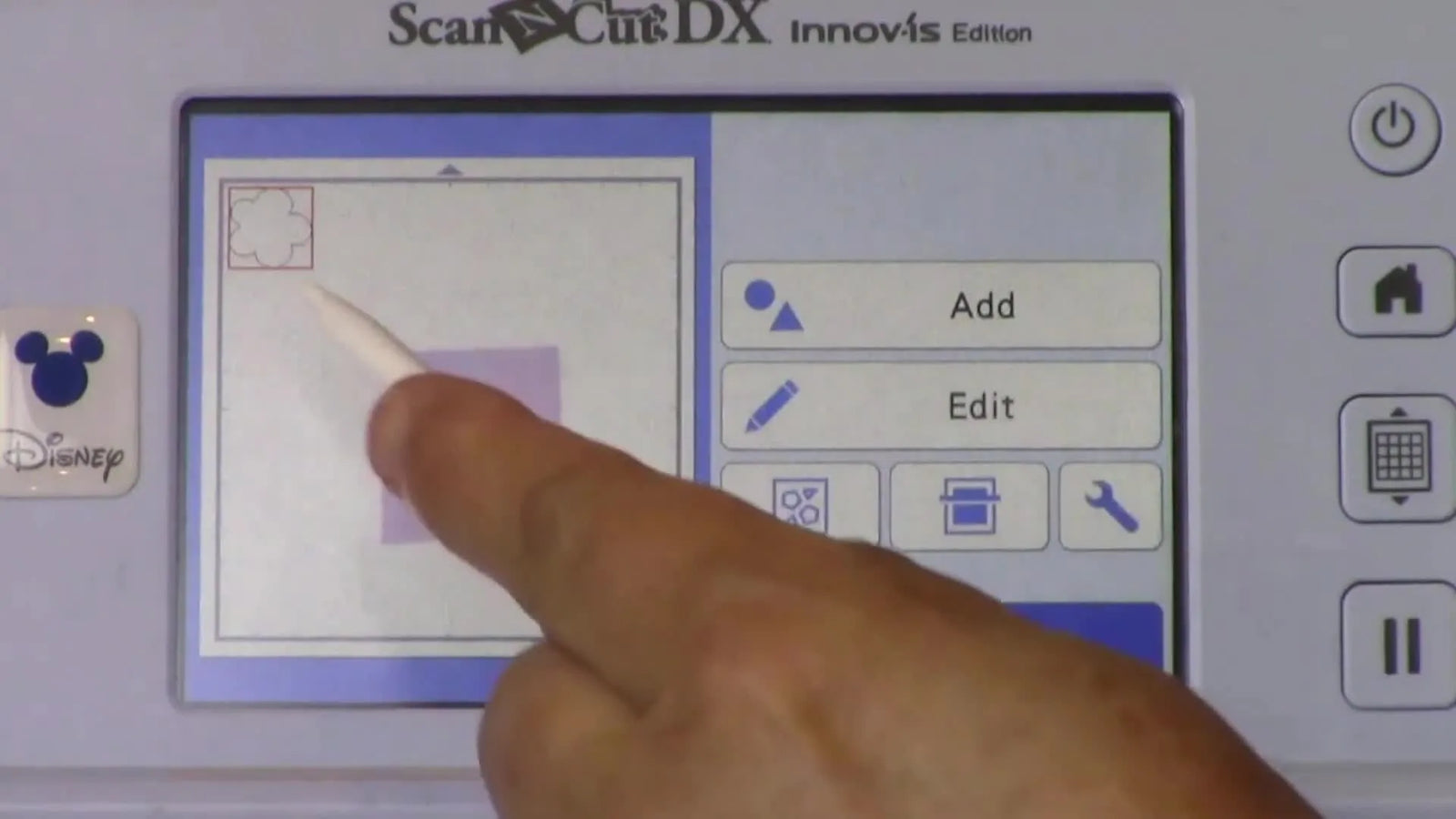

3. The Alignment: On the screen, use the stylus to drag your cut design directly over the image of your fabric scrap.

Visual Cue: Ensure there is at least a 2mm margin of fabric visible around your cut line on all sides. Don't cut right on the edge of the fabric glue; the blade might slip.

Setup Checklist (Before you cut)

• Data Retrieval: Did you select the "Appliqué/Badge" icon (not the flower icon)?
• Level Load: Did the mat load straight? (If not, unload and retry. Don't risk it.)
• Visual Confirmation: Can you see the fabric clearly on the screen via Background Scan?
• Buffer Zone: Is the design placed away from the frayed edges of your fabric scrap?

Cut Settings That Make or Break Fabric: Half Cut OFF, Speed 5, Pressure Auto

On the Cut screen, click the wrench icon to open settings. These are your "Safe Mode" settings for fabric with backing:

• Half Cut: OFF
  • The "Why": Half Cut is for vinyl (cutting the sticker, leaving the backing). For appliqué, we need to cut through the fabric and the fusible backing completely. If you leave this ON, you will get a stringy, uncut mess.
• Cut Speed: 5
  • Experience: Start slow. Fabric drags. Slower speeds allow the blade to swivel accurately on sharp corners.
• Cut Pressure: Auto
  • The DX series sensors are excellent, but we verify with a test cut.


The Test Cut Ritual: Save Material, Save Time, Save Your Blade

Never trust a machine blindly. Add a small Test Cut (triangle or square) via the test button.

1. Move the test shape to a scrap corner of the fabric.
2. Press Start.
3. The "Weed" Test: Try to peel the test triangle off the mat with your spatula.
   • Pass: It lifts cleanly with crisp edges.
   • Fail: It is still connected by threads (increase pressure) or the backing didn't cut (turn Half Cut OFF).


Operation Checklist (The sequence that keeps you out of trouble)

• Setting Verification: Is Half Cut strictly OFF?
• Test Run: Did the test square weed cleanly?
• Blade Clearance: Is the fabric laid flat so the housing won't catch a wrinkle?
• Execution: Press Start.
• Removal: Use a spatula to lift the fabric. Do not pull by hand, or you will stretch the bias.

Final Assembly: Dropping the Cut Appliqué Into the Placement Stitch

The embroidery workflow on your Luminaire/Choice of machine:

1. Stitch the Placement Line (the outline on your garment).
2. Stop the machine.
3. The Drop: Place your pre-cut fabric inside the lines.
4. Iron it down (using a mini-iron) to fuse the backing.
5. Stitch the Tack-down and Satin/Cover stitches.

In the demo, the red flower fits perfectly. No scissors near the hoop. No risk of snipping the garment.

Why This Works So Cleanly (and How to Keep It Clean on Real Projects)

When the appliqué piece is generated from the embroidery design’s own digital backbone, you are executing the same geometry the placement stitch expects. However, physical reality can still introduce errors.

Expert Insight: Stabilizer and hooping are the variables that ruin perfect cuts.

• If your base fabric (the t-shirt) is hooped loosely, the placement stitches will distort (shrink inward) as they sew.
• Even if your ScanNCut shape is perfect, it won't fit a distorted outline.

This is where the concept of hooping for embroidery machine becomes critical. If you are struggling with alignment, the issue is rarely the cutter; it is usually the stability of the fabric in the hoop.

Troubleshooting the Top Failures

Decision Tree: Choosing a Stabilizer + Hooping Path for Appliqué

Use this logic flow to determine your setup:

1. What is your base fabric?

• Stable (Denim, Canvas, Quilting Cotton): Use Tear-away or Cut-away. Standard hooping is usually sufficient.
• Unstable (T-shirts, Knits, Spandex): YOU MUST USE Cut-away stabilizer (Mesh). To stop the fabric from stretching while hooping, consider using a magnetic frame.

2. Are you experiencing "Hoop Burn"?

• Symptom: The ring of the hoop leaves a permanent crush mark on delicate velvet or performance wear.
• Solution: This is a mechanical pressure issue. Professionals switch to magnetic embroidery hoops for these fabrics because they hold by downward magnetic force rather than friction, eliminating the "crush" ring.

3. Are you scaling production (10+ items)?

• If you are doing team jerseys with appliqué numbers, standard hoops are slow. Magnetic frames allow you to hoop broad textiles without un-screwing and re-screwing the outer ring every time.

Warning (Magnet Safety): High-quality magnetic hoops use industrial Neodymium magnets. They are incredibly strong. Keep them away from pacemakers, insulin pumps, and credit cards. Watch your fingers—they snap together with enough force to pinch blood blisters!

The Upgrade Path: Where Time Is Really Lost in This Workflow

The video proves the cutting side can be automated. In real shops, the time loss now shifts to the embroidery preparation side.

Level 1: The Hooping Bottleneck If you speed up your cutting but spend 5 minutes wrestling a sweatshirt into a hoop, you haven't optimized your workflow. Many users find that once they master My Connection, they naturally look for magnetic hoops for brother luminaire. These tools allow you to "slap and snap" the garment, keeping the grainline straight—which is essential for the appliqué piece to fit the placement or tacked-down outline correctly.

Level 2: Consistency Tools For those moving into small business territory, consistency is king. Using a brother luminaire magnetic hoop isn't just about speed; it's about identical tension on every shirt. If T-shirt #1 is stretched tight and T-shirt #5 is loose, the appliqué transfer we just learned won't look the same on both.

Level 3: The Station Solution If you are doing bulk appliqué patches or uniforms, holding the hoop while aligning the shirt is a third hand you don't have. Tools like an embroidery hooping station or the industry-standard hoopmaster hooping station hold the bottom frame static, allowing you to slide the garment on perfectly straight. Combining this with brother embroidery hoops that are magnetically coupled creates a production line rhythm that matches the speed of your ScanNCut.

A Final Reality Check: What “Easy” Looks Like After Practice

One comment on the video summed it up perfectly: the demo creates a "happy path" that ignores real-world friction.

Your First Attempt:

• Expect to waste one piece of fabric.
• Expect to forget to turn Half Cut OFF.
• This is normal.

Your Tenth Attempt: You will seamlessly transfer the file, stick the fabric to the mat with a roller, and have the cut piece ready before the embroidery machine finishes the placement stitch. When you reach that state, the only variability left is your hooping. That is why the smartest upgrades you can make are usually the ones that make your physical foundation—stabilizers and hoops—rock solid.

FAQ

• Q: Why does Brother Luminaire XP1/XP2 “Transfer to ScanNCut” not send any appliqué cut data to Brother ScanNCut SDX325/SDX330D My Connection?
  A: The appliqué steps in Brother Luminaire XP1/XP2 must be tagged as APPLIQUE MATERIAL (scissors icon) or Brother ScanNCut will not receive cuttable badge data.
  • Open the color/step list on Brother Luminaire XP1/XP2 and confirm the appliqué step shows the scissors icon (APPLIQUE MATERIAL), not just a normal color.
  • Edit the imported design step (common with third-party PES files) and change that specific step to APPLIQUE MATERIAL.
  • Transfer again using Luminaire Memory → Transfer to ScanNCut Machine.
  • Success check: Brother ScanNCut SDX325/SDX330D shows a badge/shape option to retrieve (not only the embroidery “flower” view).
  • If it still fails: Verify Brother ScanNCut SDX325/SDX330D is retrieving the Appliqué/Badge icon (not the flower icon) inside My Connection → Retrieve.
• Q: Why did Brother Luminaire XP1/XP2 overwrite the previous job after using “Transfer to ScanNCut,” and how do I avoid losing the last appliqué file?
  A: Brother My Connection works like a single-slot buffer—sending a new file replaces the last one immediately.
  • Treat each transfer as “send once, cut immediately” instead of storage.
  • Run multi-shape projects in a loop: Transfer A → Retrieve/Cut A → Transfer B → Retrieve/Cut B.
  • Do not transfer a new job until the current appliqué piece is already cut.
  • Success check: The appliqué piece you expect is the one that appears right away when Brother ScanNCut SDX325/SDX330D taps My Connection → Retrieve.
  • If it still fails: Re-transfer from Brother Luminaire XP1/XP2 and cut right away before doing any other transfers.
• Q: When Brother ScanNCut SDX325/SDX330D retrieves My Connection data, should the Appliqué “badge” icon or the Embroidery “flower” icon be selected for cutting fabric?
  A: Select the Appliqué/Badge icon to retrieve true cutting outlines; the “flower” icon is for the embroidery visual data, not fabric cutting.
  • On Brother ScanNCut SDX325/SDX330D, go to My Connection → Retrieve → Wireless LAN Device.
  • Tap the badge/shape appliqué option (not the flower).
  • Tap OK → Set, then proceed to Background Scan and placement.
  • Success check: The on-screen shape behaves like a cut line you can place over the fabric image (not just an embroidery preview).
  • If it still fails: Go back to Brother Luminaire XP1/XP2 and confirm the appliqué step is tagged APPLIQUE MATERIAL (scissors icon).
• Q: Why does appliqué fabric not cut through on Brother ScanNCut SDX325/SDX330D when using fusible web backing, and what settings fix it?
  A: Turn Half Cut OFF because appliqué must cut through fabric and fusible backing completely.
  • Open the wrench/settings on the cut screen and set Half Cut: OFF.
  • Start with Cut Speed: 5 and Cut Pressure: Auto, then run a Test Cut.
  • Weed the test shape with a spatula before committing to the full design.
  • Success check: The test triangle/square lifts cleanly with crisp edges and the backing is fully separated.
  • If it still fails: Clean lint from the blade housing and repeat the test cut before changing anything else.
• Q: Why are the corners of appliqué fabric chewed or frayed after cutting on Brother ScanNCut SDX325/SDX330D?
  A: Chewed corners usually come from a dull/dirty blade path or uneven mat grip causing fabric drag.
  • Clean the blade housing (tiny lint clumps can ruin corners) and re-seat the blade cap.
  • Use a brayer/squeegee to press fabric flat onto a Standard Tack mat with even grip (remove air bubbles).
  • Replace or recondition the mat if it has “bald spots” where tack is missing.
  • Success check: Corners look crisp after a small test cut, and the fabric does not shift when you try lifting a corner gently.
  • If it still fails: Slow down workflow and re-check fabric prep (fusible web bonded flat, no wrinkles) before cutting again.
• Q: What is the safest way to load the Brother ScanNCut SDX325/SDX330D mat straight to prevent crooked cuts and damaged mat corners?
  A: Use the “level hand” loading habit so the mat feeds squarely into the rollers instead of drooping.
  • Place the mat between the guide grooves and support the bottom with a flat hand to keep it level.
  • Push until the mat is flush against the rollers, then press Load.
  • If the mat starts angled, unload and retry—do not force it.
  • Success check: The mat enters smoothly without catching, and Background Scan shows the fabric aligned predictably on-screen.
  • If it still fails: Inspect the mat edge for damage and confirm nothing is lifting (wrinkled fabric can cause the housing to catch).
• Q: What safety precautions should be followed around the Brother ScanNCut SDX325/SDX330D auto blade during appliqué cutting?
  A: Keep hands and loose clothing away from the blade path because the carriage moves fast and can pinch or snag unexpectedly.
  • Keep fingers clear of the cutting area and never reach under the carriage while operating.
  • Stop the machine before adjusting material, removing scraps, or checking the blade.
  • Use a spatula tool for removal instead of pulling by hand to avoid sudden slips.
  • Success check: Hands stay outside the moving carriage zone for the entire cut cycle, and material removal happens only after the machine fully stops.
  • If it still fails: Pause and restart the job only after the workspace is clear and sleeves/jewelry are secured.
• Q: If Brother Luminaire XP1/XP2 appliqué shapes are cut perfectly on Brother ScanNCut SDX325/SDX330D but still do not fit the placement stitch, what is the best fix path from hooping technique to magnetic frames to production upgrades?
  A: Fix hooping/stabilization first (fabric distortion is the usual cause), then consider magnetic frames for consistent tension, and only then consider capacity upgrades.
  • Improve stabilization and hooping so the base fabric is held firmly and does not distort during the placement line.
  • If hoop marks or inconsistent tension are recurring, switch to a magnetic embroidery frame approach because it holds with downward force instead of hoop friction (often reduces hoop burn and speeds loading).
  • If volume is growing and prep time dominates, standardize the process with consistent hooping tools, then evaluate higher-throughput equipment.
  • Success check: The placement stitch outline remains true (not pulled/shrunk), and the pre-cut appliqué drops in cleanly without fighting the edges.
  • If it still fails: Re-check that the cut data came from the actual APPLIQUE MATERIAL steps and confirm the garment is not being stretched during hooping.
