Stop Hand-Cutting Appliqué: A Brother Luminaire XP1 + ScanNCut DX Workflow That Actually Stays Aligned

If you have ever tried to cut an intricate appliqué shape by hand inside the hoop with curved scissors, you know the specific anxiety it brings. Your hand cramps, you hold your breath, and one tiny slip of the blade can slice your base fabric, ruining two hours of work in a split second.

The workflow we are analyzing today—combining Embrilliance Essentials, CanvasWorkspace, a Brother ScanNCut DX, and the Brother Luminaire XP1—is the antidote to that anxiety. It is the sophisticated “cut first, stitch second” method that separates hobbyist crafting from professional production.

And yes: it scales. Once you stop treating every quilt block like a fragile science experiment and start treating it like a manufacturing process, you can churn out placemats, seasonal sets, and team gear without burning out your wrists. The secret isn't just the machine; it's the order of operations.

The Calm-Down Moment: What This Brother Luminaire XP1 + ScanNCut DX Appliqué Workflow Solves

Let’s diagnose the real problem: appliqué usually fails when alignment and fabric control fight each other.

The “Black Cat” block design shown in this workflow (Designs by JuJu) solves that friction by decoupling the cutting from the stitching:

• Data Flow: You send the embroidery design to the Luminaire XP1 wirelessly (eliminating the USB jog).
• Cut Precision: You send the SVG cut file to the ScanNCut via CanvasWorkspace.
• Pre-Work: You cut the cat shape before you ever stitch the placement line.
• Fusion: You fuse the pre-cut shape in the hoop, meaning it literally cannot drift while the needle is moving.

If you are currently struggling with traditional hooping for embroidery machine techniques that rely on you manually trimming fabric while it is under tension in the machine, this workflow effectively deletes the hardest step. It replaces manual dexterity with digital precision.

The “Hidden” Prep Pros Do First: Files, Fabric Grain, and Stabilizer Choices That Prevent Puckers

Before you even touch a power button, you must perform the "Mental Setup." Experienced stitchers do this automatically; beginners skip it and pay the price in puckered fabric.

1. The Physics of the Hoop vs. Design The design shown is 5 13/16" x 7 3/8". It is loaded onto a 9x14 hoop. Why this matters: You need ample "safe space" around your design. If your needle gets too close to the hoop edge, you risk flagging (fabric bouncing) or distortion.

2. The "Float" Strategy In this video, No-Show Mesh stabilizer is hooped, while the batting and fabrics are floated. Sensory Check: When you hoop the stabilizer, tap it. It should sound like a tight drum skin—a distinct "thump," not a dull thud. If it ripples, re-hoop.

3. Layer Architecture Understand the sandwich you are building:

• Base: No-Show Mesh stabilizer (Hooped).
• Loft: Batting (Floated & Tacked).
• Background: Purple fabric (Floated & Tacked).
• Feature: Black cat appliqué backed with Heat n Bond Lite (Fused).

That "hoop the stabilizer, float the rest" approach is the core of modern appliqué. This is exactly where a floating embroidery hoop mindset protects your fabric—by floating the expensive velvet or quilting cotton, you ensure it is never stretched or crushed by the hoop rings, keeping the grain line perfectly straight.

Prep Checklist (do this before you open software)

The "Mise-en-place" for your studio.

• Data: Embroidery file (PES/DST) and Cut file (SVG) separated and accessible.
• Software: Embrilliance Essentials and CanvasWorkspace (Web) logged in.
• Hardware: Both ScanNCut and Luminaire XP1 powered on and fully cycled through startup (listen for the calibration wizz-click).
• Material: Appliqué fabric backed with Heat n Bond Lite (paper liner still on).
• Stabilizer: No-Show Mesh cut 2 inches larger than the hoop on all sides.
• Hidden Consumables: A fresh rotary blade (for cutting batting), curved snips, and a mini-iron ready near the machine.

Warning: Eye Safety. Embroidery needles can shatter if they hit a hoop or thick seam. Shards fly at bullet speed. Always wear glasses or safety specs when the machine is running at high speeds (800+ SPM).

Wireless Transfer Without the USB Dance: Sending from Embrilliance Essentials to the Brother Luminaire XP1

If you are still walking a USB stick back and forth between your computer and your machine, you are leaking productivity. In Embrilliance Essentials, the transfer is seamless:

1) Open: Launch Embrilliance Essentials. 2) Load: Drag-and-drop the design. 3) Route: Go to Utility > Send to Solaris XP1 (This works for the Brother Luminaire XP1 as well). 4) Sanitize: Name the file without spaces. (e.g., CatBlock_01 instead of Cat Block 01).

• Why: Older machine operating systems often choke on spaces or special characters, causing the file to "vanish."

5) Send: Click transfer.

Crucial Technical Detail: The wireless transfer usually fails if the machine is asleep or in the middle of a boot sequence. Ensure the machine is at the home screen.

If you are building a production routine where time is money, minimizing file handling is key. This efficiency is often why studios upgrade to a dedicated hooping station for embroidery setup near the computer—to create a "Cockpit" where design, data transfer, and hooping happen in one fluid motion.

Make the Cut File the Smart Way: CanvasWorkspace Flip Horizontal for Heat n Bond–Backed Fabric

This step is the number one cause of failed cuts for beginners. You must account for the physics of the adhesive.

Since you have applied Heat n Bond to the back of your fabric, you must place the fabric pretty-side down on the cutting mat to cut it cleanly. The Logic: If you cut face-down, you are cutting a mirror image. Therefore, you must flip the digital file to match.

The Protocol: 1) Import: In CanvasWorkspace (Web), Click New > SVG Import. 2) Verify: Check the size (6.21" x 4.21"). Do not resize this unless you also resized the embroidery file! 3) The Flip: Go to Edit > Flip Horizontal.

• Visual Check: The cat's tail should now point the opposite direction of your finished design.

4) Transfer: Send via ScanNCut Transfer.

ScanNCut DX Mat Loading: The Corner Alignment That Makes the Sensor Happy

The ScanNCut is a robot with cameras; it needs clear visual data.

1) Placement: Place fabric face down (Paper backing UP). 2) Adhesion: Use a brayer (roller) or a scraper tool.

• Sensory Anchor (Sound): Roll firmly until you hear the "crackle" of the paper backing bonding to the tack of the mat. If it’s silent, it’s not stuck.

3) Loading: Align the mat edge with the roller guides. 4) Alignment: The video emphasizes tight top-corner alignment.

The "Background Scan" Safety Net: Once data is retrieved, run a Background Scan. You will see a photo of your fabric on the screen. Use the stylus to drag the cat shape onto the fabric. Leave at least a 1/4 inch margin from the fabric edge to ensure the blade doesn't slip off.

Most errors happen here because users trust their eyes rather than the scanner. Always scan.

The Settings That Save Your Fabric: Half Cut OFF, Speed 5, Pressure Auto

The ScanNCut DX series has "Auto Blade" technology, but it isn't psychic. It needs constraints.

The "Fabric-Killer" Setting:

• Half Cut: Must be OFF.
  • Why: Half Cut is for vinyl (cutting the sticker, leaving the backing). If you leave this ON for fabric, it won't cut all the way through, and you will tear your appliqué when trying to remove it.

The Safe Zone Settings:

• Cut Speed: 5. (Going faster increases the risk of the blade dragging the fabric).
• Cut Pressure: Auto.


Setup Checklist (right before you press Start)

The "Pilot's Check" before cutting.

• Data: Cut file retrieved from cloud server.
• Visual: Background scan is visible; design is centered with safety margins.
• Critical Setting: Half Cut is OFF.
• Speed: Set to 5 (verified).
• Physics: Fabric is burnished down; no air bubbles trapped under the paper backing.
• Blade: Blade holder is clear of debris.


When Fabric Won’t Stick to the ScanNCut Mat: The High-Humidity Fix That Actually Works

The video documents a real-world failure: the fabric lifts during the cut.

The Science of Adhesion: High humidity (mentioned as 80–90% in the video) creates a microscopic layer of moisture on the mat, neutralizing the adhesive. It’s like trying to put a sticker on a wet window.

The Field Repair:

1. Abort: Stop the machine immediately.
2. Replace: Do not reuse the mangled piece. Grab fresh fabric.
3. Reinforce: Use Painter’s Tape (Masking Tape) to secure the corners and edges of the fabric to the mat.
   • Note: Do not tape over the area where the blade will cut (it gums up the blade). Just tape the perimeter.

Avoid the Glue Stick: The creator rightly advises against glue sticks for this specific issue, as they create a gummy residue that is hard to clean. Tape is the cleaner, safer fix for humidity issues.

The Embroidery Stack on the Brother Luminaire XP1: Hooped No-Show Mesh, Floated Batting, Then Background Fabric

Now we move to the embroidery machine. This requires a specific tactile approach.

The Setup:

• Needle: Organ 75/11 (Sharp/Embroidery point).
• Bobbin: 60 or 90 wt (Pre-wound bobbins are consistent).

The "Float and Tack" Sequence:

1. Placement Stitch: The machine sews the outline of the block directly onto the stabilizer.
2. Float Batting: Lay the batting over the lines.
3. Tack Down: The machine stitches the batting down.
4. Trim: Remove the hoop. Do not pop the stabilizer out. Use curved scissors to trim the batting close to the stitch line.
5. Float Fabric: Lay the purple background fabric over the batting. Tack and trim again if necessary (though in this block, the purple is the background).

The Pain Point: This process involves handling the hoop, removing it, trimming, and putting it back. If you struggle with hoop burn (permanent rings on fabric) or wrist pain from the clamping mechanism, this is the moment to audit your tools.

This scenario is exactly where magnetic embroidery hoops become a production necessity rather than a luxury. By using magnets instead of screws, you eliminate hoop burn on delicate velvets and drastically reduce the time it takes to "float" layers, as the strong magnets hold floated layers firmly without needing spray adhesive.

Warning: Magnetic Safety. Powerful magnetic hoops (like those from SEWTECH) can pinch fingers severely. Do not place them near pacemakers. Slide the magnets apart; do not try to pull them apart vertically.

The Needle +/- Preview Trick: Confirm You’re About to Tack Down (Not Just Place)

Mistaking a "Placement Line" for a "Tack Down" is a classic rookie error. You lay your fabric, press start, and realized too late that the machine wasn't sewing it down—it was just tracing a line you can't see anymore.

The Pro Habit: Use the Needle +/- button on the Luminaire interface. Action: Advance the stitch simulator forward/backward. Check: Watch the screen. Is the next step a single run (Placement) or a zigzag/double-run (Tack Down)?

In this video, the creator confirms the purple fabric step is a tack-down. This confirmation takes 3 seconds and saves 20 minutes of unpicking.

Fuse the Pre-Cut Appliqué Inside the Hoop: Heat n Bond Lite, No Steam, No Drama

Here is the payoff. You have a perfect black cat shape cut by the ScanNCut.

1. Placement: Machine stitches the cat outline on the purple fabric.
2. Align: Peel the paper backing off your pre-cut cat. Place it inside the stitched lines. It fits like a puzzle piece.

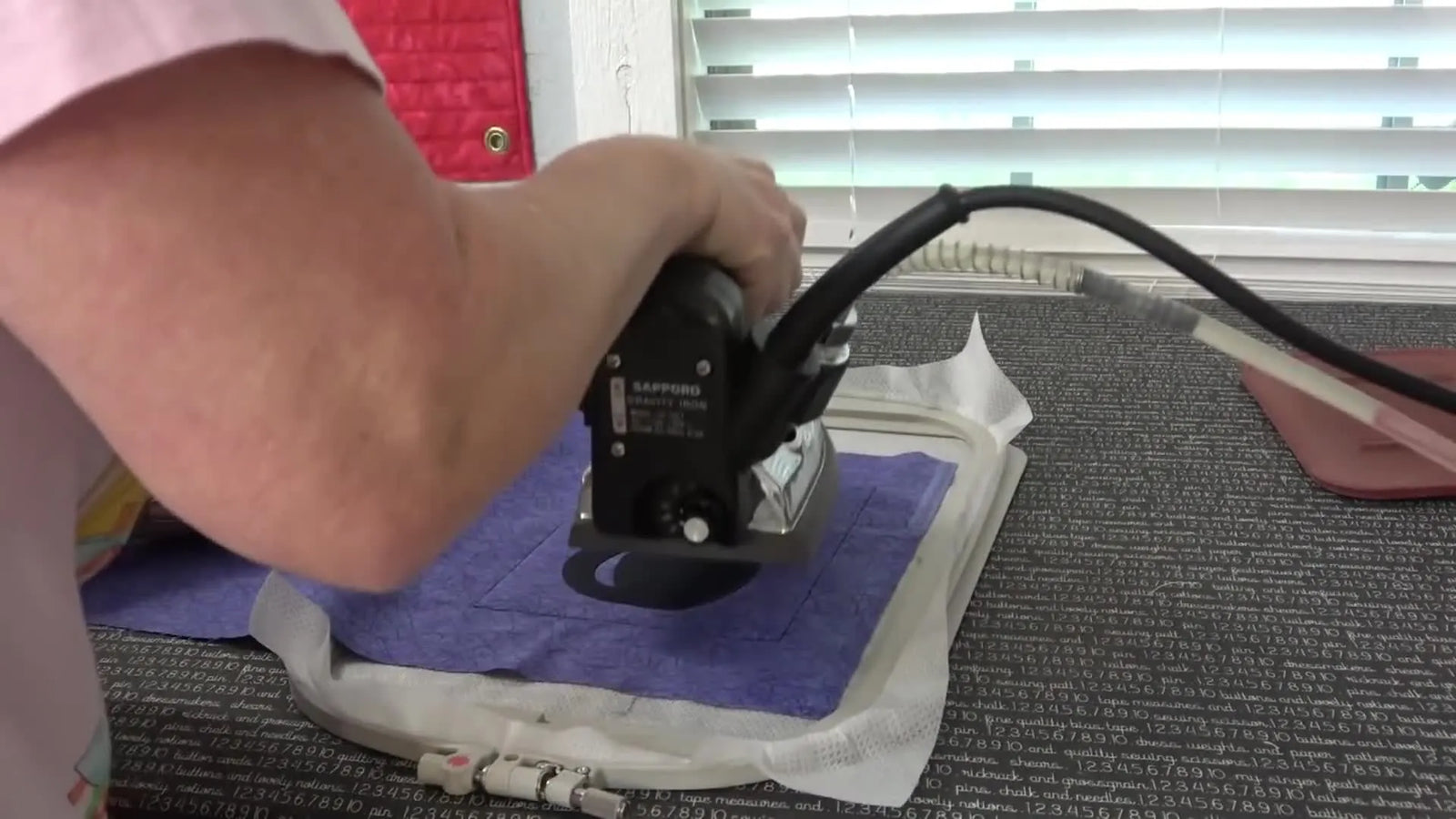

3. Fuse: Use a small craft iron inside the hoop.
   • Temp: Medium-High.
   • Time: 3-5 seconds to set, 10 seconds to bond.
   • CRITICAL: No Steam. Steam expands fibers and ruins the adhesive bond.

Why Magnetic Hoops Help Here: If you are using a vast embroidery magnetic hoop, you often have more flat surface area and lower profile edges, making it easier to maneuver a small iron inside the hoop without burning your knuckles on plastic hoop screws.

Satin Stitch Details and Thread Changes: Black Outline, Neon Green Eyes, Pink Nose

With the fabric fused, the machine can now run the high-density satin stitches. Because the fabric is fused, it cannot push or pull (rippling).

The Thread Palette:

• Outline: Black Satin.
• Eyes: Neon Green (Sweet Pea IncrediThread).
• Nose: Pink (Madeira Poly).

Tension Check: Look at the back of your hoop after the satin stitch. You should see about 1/3 white bobbin thread down the center of the satin column. If you see top thread on the bottom, tighten top tension. If you see only bobbin thread on top, loosen top tension.

Jump Threads That Get Caught: Trim From the “Destination” Side First

This is a micro-optimization that changes your finishing quality.

When the machine jumps from the Left Eye to the Right Eye, it leaves a connecting thread. The Mistake: Cutting close to the start point. The Fix: Trim the thread at the destination (where the needle just landed) first. Why: The machine locks stitches at the start. If you pull the jump thread towards the start, you get a clean cut. If you pull it away, you might unravel the lock stitch.

Production Tip: Stop the machine after the first 3-5 stitches of a new color. Trim the starting tail immediately. This prevents the "bird's nest" of tails getting sewn over by later fills.

Operation Checklist (The habits that keep the stitch-out clean)

• Emergency Stop: Keep hand near the start/stop button for the first 100 stitches.
• Preview: Use Needle +/- to verify Placement vs. Tack-down.
• Overlap: Ensure batting/fabric overlaps placement lines by at least 0.5".
• Hoop Care: When removing the hoop for trimming, support the arm. Never force it.
• Fusion: Iron the appliqué with NO STEAM.
• Tails: Trim jump threads early; cut from the destination side.

Decision Tree: Stabilizer + Layer Strategy for Appliqué Blocks

Don't guess. Use this logic flow to determine your stack.

• Scenario A: The block is sturdy (Quilting Cotton).
  • Action: Hoop No-Show Mesh. Float the cotton.
  • Result: Stable, soft finish.
• Scenario B: The block is stretchy (T-Shirt/Knit).
  • Action: Hoop Mesh. Use Fusible Weblon on the back of the knit to stop stretch. Float or Hoop (depending on stretch).
  • Result: No distortion.
• Scenario C: You want a "Quilted" Puffy Look.
  • Action: Float Batting first. Tack down. Trim. Then float Fabric.
  • Result: High-loft look (as shown in the video).
• Scenario D: Appliqué fabric is fray-prone (Silk/Satin).
  • Action: You MUST use Heat n Bond (Fusible).
  • Result: Keeps edges sealed under the satin stitch.

Compatibility Questions From the Comments (Answered Like a Shop Owner Would)

Q: Can I do this on an older ScanNCut (CM650)? A: Yes. The interface is clunkier, and the scanner is slower, but the .SVG file logic is identical. Pro Tip: Older blades wear out faster. Check your blade sharply if upgrading from a CM series.

Q: Can I use a Brother Dream Machine? A: Yes. The Dream Machine (XV8500D) is the predecessor to the Luminaire and shares the same large hoop capabilities necessary for placemats.

Q: Why wireless transfer? A: Embrilliance supports wireless to Luminaire/Solaris. For others (Stellaire/Essence), you may still need a USB or use Brother's specific "Design Database Transfer" software.

The Upgrade Path: Faster Hooping, Less Fatigue, Cleaner Results

The workflow above is solid. But if you start doing this for profit (50+ shirts or 20+ placemats), your body and your machine will hit a wall. Here is how you upgrade intelligently.

Level 1: The "Burn" Fix If you see "hoop burn" (shiny rings) on your fabric or struggle to tighten screws:

• Solution: magnetic hoop for brother compatible frames.
• Why: Magnets apply even vertical pressure. No twisting. No burn.

Level 2: The "Volume" Fix If you are producing team jerseys or uniform batches:

• Solution: A standardized hoopmaster hooping station combined with magnetic fixtures.
• Why: It guarantees the logo is in the exact same spot on Shirt #1 and Shirt #50 without measuring every time.

Level 3: The "Profit" Fix If you are waiting 10 minutes for a single-needle machine to change colors:

• Solution: SEWTECH Multi-Needle Machines.
• Why: A multi-needle machine (like a 10-needle or 15-needle) holds all your thread colors at once. It trims automatically. It runs faster. You press start and walk away to do other work. That is how a hobby becomes a business.

Final Reality Check: What “Perfect Appliqué” Really Comes Down To

This tutorial looks easy not because the user is "talented," but because the workflow is disciplined.

1. Prep: Files are flipped properly.
2. Tooling: The mat is burnished; the blade is clean.
3. Physics: The layers are floated to prevent distortion.
4. Heat: The appliqué is fused (No steam!).
5. Hygiene: Jump threads are managed actively.

Adopt these five habits, upgrade your tools when the volume demands it, and you will get the same result: a perfectly stitched block that looks like it came from a high-end factory.

FAQ

• Q: How do I flip a Brother ScanNCut DX SVG correctly in CanvasWorkspace when appliqué fabric is backed with Heat n Bond Lite?
  A: Flip the SVG horizontally in CanvasWorkspace before sending, because Heat n Bond Lite forces the fabric to be cut pretty-side down.
  • Import: Create a new CanvasWorkspace project and SVG Import the cut file.
  • Verify: Confirm the file size matches the embroidery design (do not resize unless the embroidery file was also resized).
  • Flip: Use Edit > Flip Horizontal, then transfer with ScanNCut Transfer.
  • Success check: The on-screen shape appears mirrored (for example, the cat’s tail points the opposite direction compared to the final stitched design).
  • If it still fails: Re-check that the fabric was placed face down (paper backing up) on the mat before cutting.
• Q: What ScanNCut DX settings prevent fabric appliqué from not cutting through when Half Cut is accidentally ON?
  A: Turn Half Cut OFF, then cut at Speed 5 with Pressure Auto to avoid partial cuts and fabric tearing during removal.
  • Disable: Confirm Half Cut = OFF before pressing Start.
  • Set: Choose Cut Speed 5 and Cut Pressure Auto.
  • Confirm: Run a Background Scan and position the shape with at least a 1/4" margin from the fabric edge.
  • Success check: The appliqué shape lifts cleanly from the mat as a fully separated piece (no hanging fibers or uncut bridges).
  • If it still fails: Stop and check for debris in the blade holder and re-burnish the fabric to the mat.
• Q: How do I fix Brother ScanNCut DX fabric lifting off the cutting mat in high humidity (80–90%) without using a glue stick?
  A: Use painter’s tape to secure the perimeter of the fabric to the mat—this is a clean fix when humidity neutralizes the mat adhesive.
  • Abort: Stop the cut immediately to prevent shifting and shredding.
  • Replace: Start with a fresh piece of fabric (don’t reuse the mangled one).
  • Reinforce: Tape the corners and edges only; keep tape out of the blade path.
  • Success check: During the cut, the fabric stays flat with no corner curl or drift when the blade changes direction.
  • If it still fails: Burnish more firmly with a brayer/scraper until the paper backing “crackles” against the mat.
• Q: What is the correct Brother Luminaire XP1 hooping stack for appliqué blocks using No-Show Mesh stabilizer, floated batting, and floated background fabric?
  A: Hoop No-Show Mesh only, then float and tack the batting and background fabric in sequence to avoid distortion and hoop marks.
  • Hoop: Mount No-Show Mesh stabilizer in the hoop (cut larger than the hoop all around).
  • Stitch/Tack: Sew the placement outline, float batting, tack it down, then trim batting close to the stitch line (without removing stabilizer from the hoop).
  • Float/Tack: Float the background fabric, then tack it down as required by the design.
  • Success check: The hooped stabilizer feels drum-tight and makes a clear “thump” when tapped (not a dull thud or ripples).
  • If it still fails: Re-hoop the stabilizer tighter and ensure the design is not positioned too close to the hoop edge to reduce flagging/distortion.
• Q: How do I use the Brother Luminaire XP1 Needle +/- preview to avoid confusing a placement line with a tack-down stitch?
  A: Use Needle +/- to preview the next step on-screen and confirm the machine is about to sew a tack-down (not just trace a placement line).
  • Pause: Before pressing Start after placing fabric, open the stitch preview using Needle +/-.
  • Compare: Look for a tack-down pattern (zigzag/double-run) versus a simple single-run placement outline.
  • Commit: Only proceed when the preview shows the tack-down for the fabric layer you just positioned.
  • Success check: The next stitched step visibly anchors the fabric layer so it cannot shift when you lightly tug the edge.
  • If it still fails: Stop immediately and re-check the design step order on-screen before continuing.
• Q: What is the correct Brother Luminaire XP1 bobbin-back tension check after satin stitches on appliqué outlines?
  A: Aim to see about 1/3 white bobbin thread centered on the back of the satin column as the quick tension confirmation.
  • Inspect: After the satin stitch section, flip the hoop and examine the underside of the satin columns.
  • Adjust: If top thread shows on the bottom, tighten top tension; if only bobbin thread shows on top, loosen top tension.
  • Re-test: Stitch a small section again after each adjustment rather than changing multiple variables at once.
  • Success check: The underside shows a consistent centered bobbin line (not top thread flooding the back or bobbin pulling to the front).
  • If it still fails: Confirm bobbin weight consistency (60 or 90 wt) and that the thread path is correctly seated.
• Q: What safety steps prevent needle shatter injuries on a Brother Luminaire XP1 when stitching fast near hoop edges, and what is the magnetic hoop pinch risk?
  A: Wear eye protection at higher speeds and keep clearance from hoop edges; handle magnetic hoops by sliding magnets apart to avoid finger pinches.
  • Protect: Wear glasses/safety specs when running fast (800+ SPM) to guard against flying needle shards.
  • Position: Keep the design with ample safe space inside the hoop so the needle cannot strike the frame.
  • Handle magnets: If using a magnetic hoop, slide magnets apart—do not pull straight up; keep away from pacemakers.
  • Success check: No needle contact marks on the hoop/frame and no sudden “tick” impact sounds during stitching.
  • If it still fails: Slow down, re-center the design in the hoop, and verify the hoop is fully seated/locked before restarting.
