Stop “Hairline” Clipart From Failing in Hatch: A CorelDraw X5 Workflow That Builds Satin-Friendly Lines

From Screen to Stitch: The "Thicken First" Protocol for Flawless Embroidery Design

If you’ve ever bought gorgeous Dover clipart, opened it up, and immediately felt that sinking feeling in your gut—“This is way too fine to digitize”—you’re not imagining it. You are experiencing the fundamental disconnect between Graphic Design (pixels on a screen) and Embroidery Engineering (physical thread on fabric).

Thin, elegant lines that look crisp in a JPEG preview often turn into what we call "thread soup"—weak satin columns, messy edges, and frustration. Donna’s CorelDraw X5 workflow provides a classic real-world fix: don't just trace it; thicken it.

Here is your master guide to converting fragile clipart into production-ready embroidery files, blending software precision with the physical realities of the machine.

The Physics of Failure: Why Beautiful Art Can Stitch Like a Disaster

The core problem is simple: Thread has physical mass. A standard 40-weight embroidery thread is roughly 0.4mm thick. If your clipart lines are thinner than the thread itself, your machine physically cannot form a stable satin stitch.

Two common failure modes show up fast:

1. Pixelation from bitmaps (JPEGs): Zoom in. If you see "steps" or jagged squares, your digitizing software will try to turn those steps into stitches. This sounds like a machine gun stuttering and leads to thread breaks.
2. Structural Anarchy: Even if the line is smooth, if it is too narrow (under 1mm), the satin stitch will have no "body." It will sink into the fabric, disappear, or worst of all, pull out during washing.

Donna briefly opens the wrong app (Hatch) at the start, which is a perfect accidental lesson: the cleanest results start before you digitize—inside your vector artwork preparation.

Phase 1: The "Clean Room" Prep (CorelDraw X5)

Before you touch "Quick Trace," take 60 seconds to set yourself up like a production digitizer. We are not just drawing; we are engineering a blueprint for a machine.

The Golden Rule: Decide what the embroidery needs, not what the art looks like. If the final stitch-out needs a satin border with presence, you must build enough stroke width into the art to support it.

Veteran Insights:

• Source Material Matters: Donna specifically chooses the EPS file from the Dover CD. EPS (Vector) scales without losing quality. JPEG (Bitmap) degrades every time you resize it.
• The "Satin Safety Zone": For a clean satin stitch, aim for a column width of 1.5mm to 3mm. Anything under 1mm is the "Danger Zone" for beginners.

PREP CHECKLIST: The "Go/No-Go" Decision

• File Audit: Do you have an EPS/Vector version? (If yes, use it. If no, prepare for extra cleanup).
• Zoom Inspection: Zoom in to 400%. Do edges look like stairs (pixels) or smooth curves?
• The "Squint Test": Squint your eyes at the screen. Do the fine lines disappear? If they do, they will disappear on the fabric too.
• Hidden Consumables: Check your desk. Do you have temporary adhesive spray and a fresh 75/11 needle? You will need them later.


Phase 2: Import & Isolation

Donna’s workflow is straightforward but critical:

1. Locate the EPS.
2. Open in CorelDraw.
3. Isolate.

If you are building a design library, proper file hygiene saves hours later. Save a "Source" file and a "Production" file. Never overwrite your original.

Phase 3: Quick Trace & The "Ghost" Layer

Donna selects the image and uses Trace Bitmap → Quick Trace. CorelDraw might prompt to reduce the bitmap size. Accept it.

The Pro Move: After tracing, she drags the new vector away from the original bitmap to compare them side-by-side.

• Left (Original): Jagged, pixelated, "noisy."
• Right (Vector): Smooth, flowing, mathematical.

The "Ghost Layer" Hazard

Beginning digitizers often forget to delete the original image. This leaves a "ghost" layer underneath your vector. When you export to modern software like Hatch, it might try to digitize both layers, causing double-stitching and birdnesting.

Warning: The Bitmap Trap
Always delete the original bitmap layer immediately after a successful trace. Leaving it creates a "hidden" layer that can cause needle deflection or file corruption when you export to your machine format.

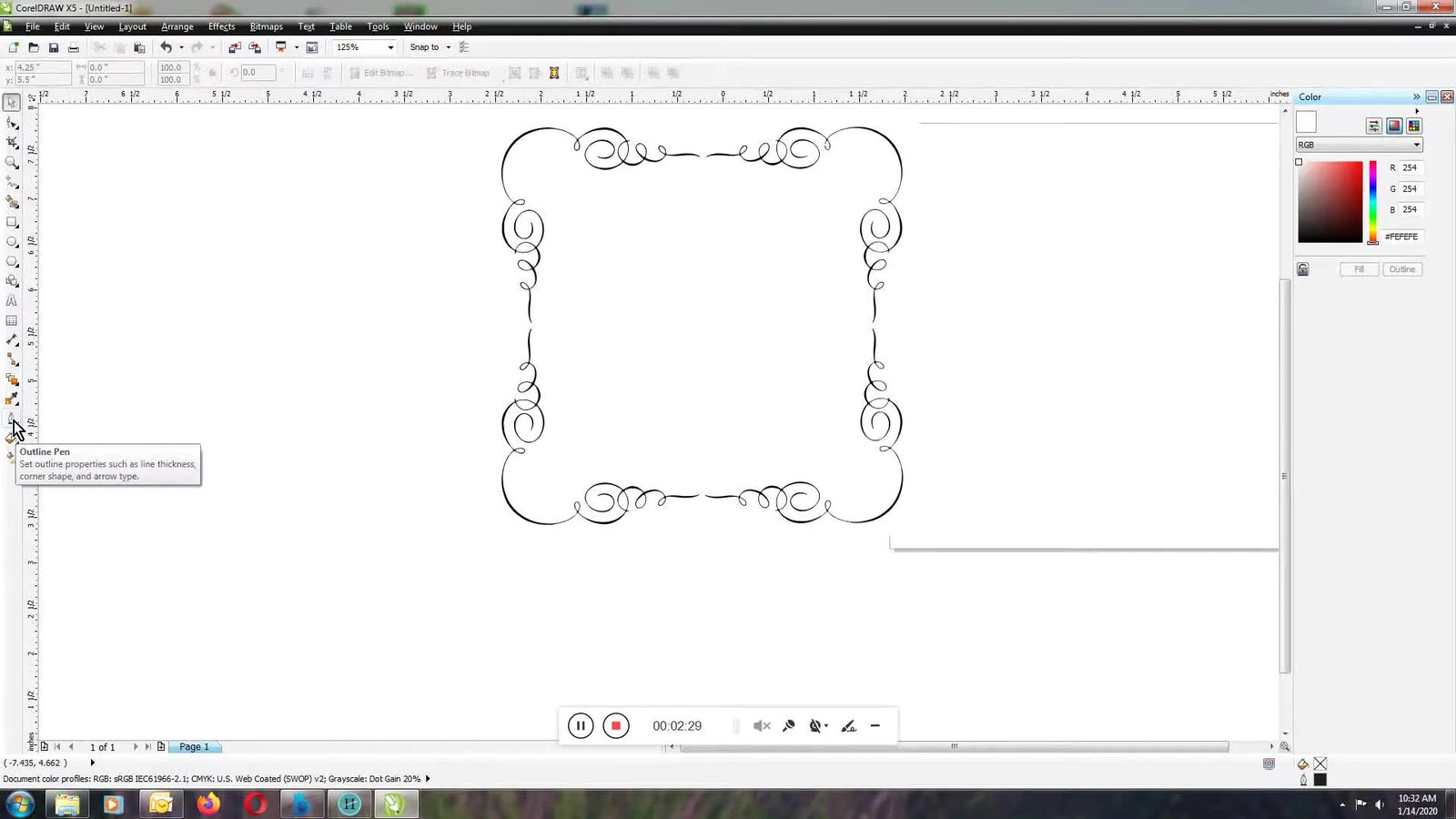

Phase 4: structural Reinforcement (The Outline Pen)

This is the heart of the tutorial. We are not just coloring; we are adding structural integrity. Donna opens the Outline Pen dialog to test stroke widths.

The Testing Sequence (and *Why* it Matters):

• Test 1: 2.0 pt (approx 0.7mm). This is thin. On stable cotton, it might work. On terry cloth, it will vanish.
• Test 2: 4.0 pt (approx 1.4mm). Robust. Good for towels or fleece, but might look "clunky" on delicate items.
• Test 3: 2.0 pt (The Decision). She returns to 2pt for this specific design.

Cognitive Anchor: Think of these points as "Fabric Clearance."

• Low Points (Thin): Only for smooth, flat fabrics (Dress shirts, Quilting cotton).
• High Points (Thick): Required for textured fabrics (Polos, Hoodies, Towels).

Donna points out a common confusion: You aren't creating a separate outline stroke to stitch over the design; you are expanding the actual shape of the object so the satin stitch has a wider foundation.

Phase 5: The Visual Confirmation

Donna chooses 2pt. Why? Because it balances visual elegance with machine stitchability.

How to judge "Just Right":

• Too Thin: The preview looks spindly. The machine will make a high-pitched whining sound as it struggles to form tiny satins.
• Too Thick: The design looks like a blob. Tight curves will overlap, causing "bulletproof" stiff spots on the embroidery.
• Just Right: The lines are distinct. There is clear "white space" between the scrolls.




Phase 6: The Physical Translation (From Software to Machine)

You have engineered a better file. Now, you must execute the embroidery. This is where 50% of beginners fail—not because of the file, but because of the setup.

The Sampling Reality

A "2pt" thickened line is still relatively delicate. If your fabric shifts even 1mm during stitching, your satin column will miss its registration marks.

Scenario: You are testing this design on a scrap of jersey knit (t-shirt material).

• The Risk: The fabric stretches. The thickened line distorts.
• The Fix: Stabilization and Hooping.

This is where your choice of tools dictates your success rate. Standard plastic hoops are fine for stiff cotton, but for production runs or slippery fabrics, they introduce "hoop burn" (friction marks) and uneven tension.

The Upgrade Path: When to Switch Tools

If you find yourself fighting with screws and struggling to get perfectly flat tension, this is the trigger to upgrade your workflow.

• Level 1 (Technique): Use spray adhesive to stick fabric to stabilizer.
• Level 2 (Tooling): Many professionals switch to a magnetic embroidery hoop. Unlike friction hoops, these clamp the fabric vertically, preventing distortion and hoop burn.
• Level 3 (Production): If you are running 50+ of these designs, dragging a single-needle machine is painful. This is when a SEWTECH multi-needle machine becomes an investment in sanity and speed.

Warning: Magnetic Safety
magnetic embroidery frame systems use industrial-strength magnets (Neodymium). They are incredibly powerful.
* Pinch Hazard: Keep fingers clear of the snapping zone.
* Medical Safety: Keep away from pacemakers and implanted devices.
* Electronics: Keep away from credit cards and hard drives.

SETUP CHECKLIST: The "Pre-Flight" Check

• Vector Safety: Did you delete the underlying bitmap image?
• Stroke Width: Is the narrowest part of your design at least 1-1.5mm wide?
• Stabilizer Match: (See Decision Tree below).
• Hoop Tension: Fabric should sound like a drum when tapped (taut, not stretched). If using a magnetic hoop, check that the magnets are seated fully.

Decision Tree: Fabric vs. Stabilizer Strategy

Before you press "Start," verify your combo:

1. Is the fabric stretchy? (T-shirt, Performance Wear)
   • YES: Use Cutaway Stabilizer. (Tearaway will result in gap-filled broken satins).
   • NO: Go to step 2.
2. Is the fabric textured/fluffy? (Towel, Fleece)
   • YES: Use Tearaway + Water Soluble Topper. (The topper keeps your 2pt satin from sinking).
   • NO: Go to step 3.
3. Is it standard flat cotton?
   • YES: Medium Tearaway is perfect.

Troubleshooting: Symptoms & Cures

If the stitch-out fails, don't blame the machine immediately. Check the physics.

Final Thoughts: The Expert Mindset

Donna’s tutorial is a specific fix for a specific problem, but it teaches a universal truth: Trust your eyes, not the default settings.

Don't assume "Hairline" is stitchable. It never is. Don't assume the first hoop attempt will be perfect. It rarely is.

If you are just starting, focus on mastering the "Thicken First" workflow in CorelDraw. Once you are confident in your files, look at your physical workflow. Are you spending more time fighting the hoop than stitching? Researching how to use magnetic embroidery hoop systems or upgrading to a dedicated hooping station for machine embroidery are the logical next steps to turn your hobby into a professional production line.

Now, go clear that "thread soup" and stitch something solid.

OPERATION CHECKLIST: The First Run

Monitor your first Stitch-Out with these senses:

• Listen: Is the machine sound rhythmic (Good) or banging (Bad)?
• Look: Is the bobbin thread showing slightly on the back (1/3 width)?
• Feel: Are the satin stitches smooth to the touch, or rough and loopy?
• Inspect: Did the corners stay sharp, or did they blob together? (If blobbing, reduce density or thickness).

FAQ

• Q: In CorelDRAW X5, why do traced clipart embroidery outlines stitch as jagged edges when the original JPEG/bitmap layer is still in the file?
  A: Delete the original bitmap immediately after a successful trace, because hidden bitmap “ghost” layers can cause double-stitching and messy edges.
  • Drag the new vector away from the original to compare smooth vector vs. pixelated bitmap.
  • Delete the original bitmap layer (do not just hide it) before exporting to digitizing software.
  • Save two files: a “Source” version (original) and a “Production” version (clean vector).
  • Success check: The workspace shows only clean vector shapes, with no underlying photo/bitmap when you click-select.
  • If it still fails… Re-import the EPS (vector) version instead of a JPEG and re-trace/clean again.
• Q: In CorelDRAW X5, what satin-stitch line width is a safe starting point to avoid “thread soup” when digitizing thin Dover EPS clipart?
  A: Build your artwork so the narrowest satin column is typically about 1.5–3.0 mm; avoid anything under 1.0 mm because it often will not hold as satin.
  • Inspect at 400% zoom to confirm edges are smooth, not pixel “stairs.”
  • Use Outline Pen tests (for example 2.0 pt vs 4.0 pt) to thicken the actual shapes, not just add a decorative stroke.
  • Prioritize clear white space between scrolls so tight curves do not overlap.
  • Success check: On-screen lines look distinct (not spindly), and small gaps remain visible between neighboring elements.
  • If it still fails… Increase the outline thickness one step and re-test on the actual fabric type (flat cotton vs. towel/knit behaves differently).
• Q: What needle and adhesive “hidden consumables” should be on the table before running a delicate satin-outline embroidery test stitch-out?
  A: Use a fresh 75/11 needle and temporary adhesive spray as a practical baseline, because small satins fail fast when the setup slips.
  • Replace the needle before testing fine outlines (a dull needle can worsen shredding and skips).
  • Lightly bond fabric to stabilizer with temporary spray to reduce micro-shifts during stitching.
  • Run the first stitch-out on a scrap of the same fabric, not a different substitute.
  • Success check: Stitching sounds rhythmic and steady, without sudden punching/banging or repeated thread snapping.
  • If it still fails… Try a smaller needle (70/10) or reduce speed (the blog notes 600 SPM as a troubleshooting move) and re-check satin width.
• Q: How tight should fabric be in an embroidery hoop to prevent gaps between satin outline and fill when stitching delicate thickened lines?
  A: Hoop fabric taut like a drum (taut, not stretched), because even 1 mm of shifting can create visible gaps on delicate satin work.
  • Tap the hooped fabric and adjust until it gives a drum-like sound and feel.
  • Avoid over-stretching knits; aim for flat and supported rather than “pulled.”
  • Match stabilizer to fabric: cutaway for stretchy knits; tearaway + water-soluble topper for towels/fleece; medium tearaway for flat cotton.
  • Success check: The outline stays registered to the fill with no “daylight” gaps after stitching.
  • If it still fails… Upgrade the holding method (technique first, then consider a magnetic hoop if slipping or hoop burn keeps happening).
• Q: What stabilizer should be used for embroidery satin outlines on stretchy T-shirt jersey versus towels/fleece versus flat cotton?
  A: Use the fabric-based decision tree: cutaway for stretchy knits, tearaway + water-soluble topper for textured/fluffy fabrics, and medium tearaway for standard flat cotton.
  • Choose cutaway on T-shirts/performance wear to prevent broken, gap-filled satins.
  • Add water-soluble topping on towels/fleece to stop satin stitches from sinking.
  • Keep tearaway for stable cotton where distortion risk is low.
  • Success check: Satin columns sit on top of the fabric (not sinking) and edges look continuous without gaps.
  • If it still fails… Re-check hooping (drum-tight) and confirm the narrowest satin width is not in the under-1.0 mm danger zone.
• Q: What causes embroidery thread breaks or shredding when digitizing thin satin columns, and what is the fastest fix sequence?
  A: The fastest path is: widen the satin column first, then adjust needle and speed, because too-narrow satins are structurally unstable.
  • Thicken the outline (for example move from a 2 pt test to a thicker setting) so the satin has “body.”
  • Swap to a smaller needle (70/10) if shredding continues on fine details.
  • Lower machine speed (the blog suggests 600 SPM as a troubleshooting step) to reduce stress on thread.
  • Success check: The machine runs without repeated snapping, and the satin surface feels smooth rather than rough/loopy.
  • If it still fails… Inspect for a leftover bitmap/ghost layer causing double-stitching, and re-check stabilizer choice for the fabric.
• Q: What safety precautions are required when using a magnetic embroidery hoop or magnetic embroidery frame with industrial-strength neodymium magnets?
  A: Keep fingers, medical implants, and sensitive items away from the snap zone—neodymium magnets can pinch hard and interfere with devices.
  • Keep fingers clear when closing the frame; let magnets seat straight down rather than sliding.
  • Keep magnetic frames away from pacemakers and implanted medical devices.
  • Keep magnetic frames away from credit cards and hard drives.
  • Success check: The magnets seat fully with even contact, and the fabric is clamped without needing forceful re-positioning.
  • If it still fails… Stop and re-seat the magnets carefully; do not “fight” the closure—re-hoop to avoid sudden snapping.
• Q: When do embroidery hooping problems justify upgrading from technique changes to a magnetic hoop, and then to a SEWTECH multi-needle embroidery machine?
  A: Upgrade in layers: fix stabilization/hooping technique first, switch to a magnetic hoop when hoop burn or uneven tension persists, and consider a multi-needle machine when volume makes single-needle workflow painfully slow.
  • Apply Level 1 technique: use temporary spray adhesive and correct stabilizer for the fabric to reduce shifting.
  • Move to Level 2 tooling: use a magnetic hoop when screw hoops cause repeated hoop burn, distortion, or inconsistent tension.
  • Move to Level 3 production: consider a multi-needle setup when running 50+ pieces makes constant rethreading and slow changeovers the bottleneck.
  • Success check: Setup time drops, registration stays consistent, and you stop “fighting the hoop” on repeat runs.
  • If it still fails… Re-check the design engineering step (minimum satin width and clean vector-only artwork) before assuming hardware is the root cause.
