Mastering Napkin Placement: The "Center Meiers" Method & Beyond

A Field Guide to Precision, Repeatability, and Scaling Your Workflow

If you have ever stared at a napkin corner thinking, "It looks centered… until it stitches," you are not alone. Corner placements are where good embroiderers lose perfectly good blanks—because the human eye is optimistic, and fabric is fluid mechanics in disguise.

In my 20 years on the production floor, I have seen more rework caused by placement anxiety than by machine failure. The "Center Meiers Placement Guide" method detailed in this white paper is not just a plastic tool; it is a logic gate. It allows you to preview the design directly on the project, effectively transferring a "True Center" with a target sticker.

This guide will take you from the basic mechanics to the professional nuances of fabric stability, aiming to eliminate the "why is it crooked?" moment forever.

The Logic of Symmetry: Why the Grid Beats the Tape Measure

The workflow utilizes three distinct layers working in concert: a transparent grid guide, a printed paper template of your design, and a crosshair target sticker.

Why does this work better than a ruler? Mirror Symmetry. The tool forces you to ignore the "feel" of the center and rely on the math of the grid. When the zero-point is aligned with the corner, and both napkin edges hit the exact same number on the grid (e.g., the 3-inch mark on both the left and right axes), your placement is mathematically centered.

If you are building a consistent production workflow, this is the kind of repeatable placement logic that pairs beautifully with a dedicated hooping station for embroidery—because placement becomes a controlled variable, not a guessing game.

Phase 1: The Pre-Flight Preparation

Before you touch the napkin, you must prepare your assets. This is where 80% of placement errors are born. A "close enough" paper template results in a "close enough" embroidery, which usually means "ruined."

1. The Parallax Correction (Trimming the Paper)

You must trim your printed design template specifically to remove visual noise.

• The Action: Cut around your printed design close to the perimeter.
• The Nuance: If you are placing a design near an existing raised detail (like a hemstitch, a pocket, or a lace border), cut dead on the ink line.
• The Why: If you leave white space, your eye cannot judge the distance between the ink and the fabric edge. By trimming flush, you eliminate parallax error—the visual distortion that happens when you look at two layers from an angle.


2. The Physics of Fabric Shift

Fabric is not paper; it is a flexible grid of fibers under tension. When you slide a guide over a napkin, you generate friction. This friction creates "micro-drag," stretching the fabric diagonally by 1–2mm. When you lift the guide, the fabric relaxes, and your center moves.

• The Sensory Anchor: Lay the napkin flat. Smooth it once. Now, assume the "Hands-Off" position. Let the fibers relax for 5 seconds before placing the guide. The fabric must be in a "neutral state"—neither compressed nor stretched—before you mark it.

Hidden Consumables Setup

Novices often forget the "Invisible Tool Kit." Ensure you have these ready:

• Target Stickers: (Do not reuse them; adhesive memory fails).
• Water-Soluble Pen: For backup marking.
• Sharp Appliqué Scissors: For precision paper trimming.
• Adhesive Remover: (In case a sticker leaves residue).

Prep Checklist: The "Go/No-Go" Inspection

• Paper template is trimmed flush to the design perimeter.
• Target stickers are fresh (tacky, not dry).
• Napkin is pressed, cool to the touch (heat expands fibers), and resting in a neutral state.
• You have positively identified the design's "Up" arrow orientation.


Phase 2: Instrument Calibration (Loading the Guide)

This step is counter-intuitive for beginners. We are building a "sandwich" where the sticker manages the fabric, and the paper manages your eyes.

Step A: The Sticker (The Back)

• Flip the guide over.
• Insert the target sticker into the diagonal slots on the back.
• Audio Check: You should hear the sticker crinkle slightly as it slides into the retention slots. It needs to be flat against the plastic.

Step B: The Arrow Orientation (Use the Compass)

• Horizontal Designs: Sticker arrow points UP, parallel to the short edge.
• Vertical Designs: Sticker arrow points UP, parallel to the long edge.

This arrow is your "North Star." If you ignore it, you will stitch a diamond when you wanted a square.

Warning: Mechanical Safety
Keep scissors, rotary cutters, and other sharp tools strictly controlled. When working over a machine or a hooping station, a dropped pair of scissors can gouge the machine bed or slice a $50 magnetic hoop mat. Always cut paper templates away from your embroidery zone.

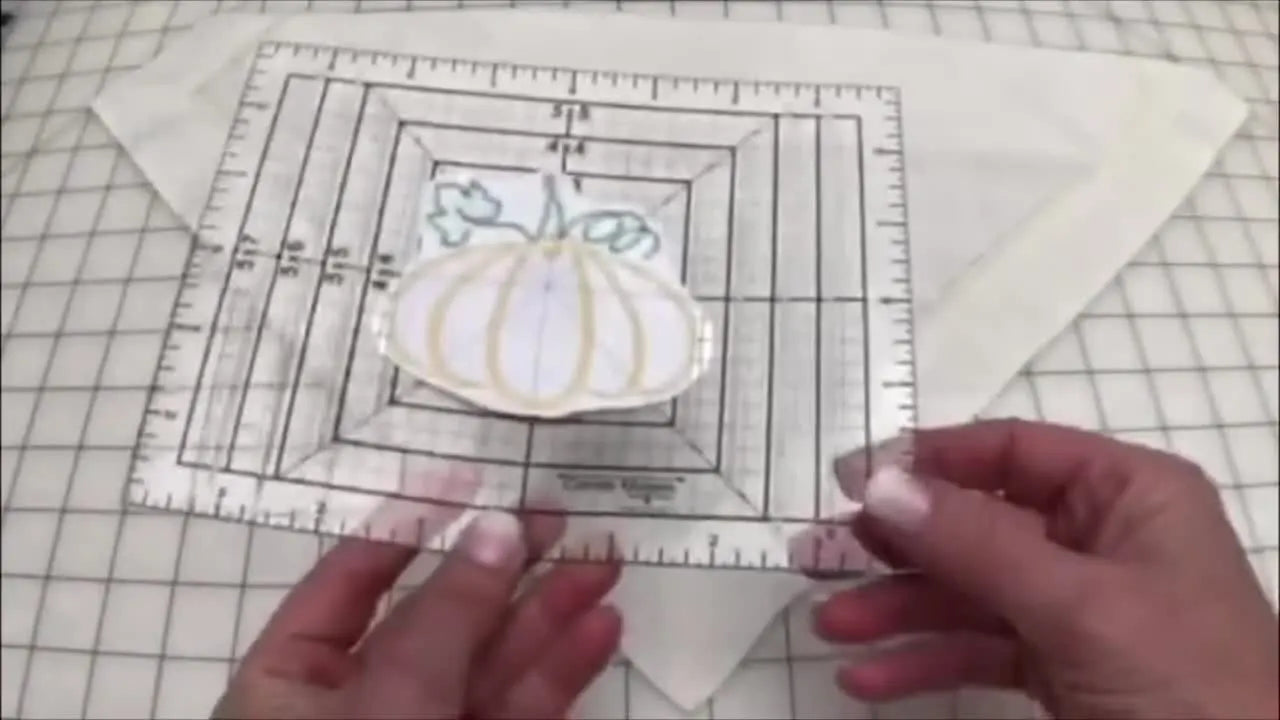

Step C: The Simulation (The Front)

• Flip the guide right-side up.
• Slide your trimmed paper template into the slots on the front/top.
• Visual Check: Align the printed crosshairs on the paper with the plastic crosshairs of the guide. They must superimpose perfectly.


Phase 3: The "Number 3" Symmetry Lock

In the video demonstration, the design is placed diagonally. This is the classic "Napkin Corner" placement.

The Algorithm

1. Place the loaded guide onto the napkin corner.
2. Point the Zero/Center directly at the corner tip.
3. The Symmetry Check: Look at the grid numbers on the left and right edges of the napkin.
   • Example: If the left edge of the napkin crosses the grid at the Number 3 mark, the right edge must also cross at the Number 3 mark.
4. Expert Tip: Do not just look; measure the clearance. Ensure the center point is at least 1.5 inches (approx. 4cm) from the corner tip to ensure the hoop does not strike the machine's presser foot or throat plate during stitching.


The Sensory confirmation

When the numbers match, the placement is mathematically locked. You should feel a sense of certainty. If you feel hesitation, stop. Re-measure.

Phase 4: The Transfer

Once aligned:

1. Press: Apply firm, direct downward pressure on the center of the design. You are activating the pressure-sensitive adhesive on the sticker.
2. Lift: Lift the plastic guide straight up like a helicopter taking off.
   • Bad Technique: Peeling it off like a page. This drags the sticker sideways.
   • Good Technique: Vertical lift. The sticker stays on the fabric; the guide leaves cleanly.




Phase 5: The Alignment Paths (Camera vs. Manual)

Path A: The Camera Assist (High-End)

If you own a machine with an intelligent camera, hoop the fabric roughly centered. Use the machine's interface to scan the sticker. The machine will calculate the rotation and offset automatically.

Path B: The Manual Axis (Standard)

For machines without cameras, we need to manually transfer the grid to the hoop.

1. Use a heat-erasable or water-soluble pen to mark the four axes (North, South, East, West) at the edge of the sticker.
2. These lines transform your fabric into a grid that matches the notches on your hoop.


Professionals often search for a hooping station for machine embroidery to mechanize this step. By using a station, you align the hoop's notches to a master grid, ensuring that "North" on your fabric is exactly "North" on your hoop.

Phase 6: Hooping Strategy & Stabilization

The tutorial demonstrates using Sticky Stabilizer. Achieving perfect tension here is critical.

The "Drum Skin" Myth

• Novice Mistake: Pulling the fabric until it screams. This stretches the weave. When you unhoop, the fabric snaps back, and your design puckers.
• Master Technique: The fabric should be taut but neutral.
  • Tactile Test: Run your finger over the floated fabric. It should feel smooth like a bedsheet, not tight like a tennis racquet.




Operation Checklist: The Pre-Stitch Verification

• Fabric is floated on stabilizer, smoothed from the center outward to remove air pockets.
• The needle is physically aligned with the center crosshair of the target sticker.
• CRITICAL: You have removed the target sticker before hitting "Start."
• Excess fabric is folded away from the embroidery field (to prevent specific unwanted stitching).

Warning: Sticky Residue Risk
Remove the target sticker immediately after aligning the needle. Stitching through the sticker creates a gummy residue on the needle shaft. This leads to skipped stitches, shredded thread, and potential damage to the rotary hook.

Advanced Handling: Vertical Designs

For fork/knife/spoon layouts:

1. Rotate the guide 90 degrees.
2. Re-verify the Sticker: Ensure the arrow now points along the long edge.
3. Use the guide's vertical rulers to ensure the design is parallel to the napkin hem.




The Stabilizer Decision Tree

Novices guess; experts select. Use this decision matrix to determine the correct stabilization method for your specific napkin type.

The Scale-Up: moving from Hobby to Production

Once you master placement, the bottleneck shifts. The human wrist cannot manually screw-tighten hoops for 50 napkins without fatigue. Fatigue leads to errors.

Scenario A: "My placement is perfect, but I have 'Hoop Burn'."

Diagnosis: Traditional hoops rely on friction and pressure, which crushes delicate linen fibers, leaving permanent "burn" rings. The Solution: Upgrade to magnetic embroidery hoops.

• Why: They use vertical magnetic force, not friction. They hold fabric gently but firmly evenly around the perimeter, eliminating hoop burns and reducing wrist strain.

Scenario B: "I have an order for 100 napkins, and hooping takes longer than stitching."

Diagnosis: You are manually measuring every single piece. The Solution: Implement a fixed embroidery hooping system (like the hoopmaster hooping station or similar fixture).

• Why: You set the jig once. Every subsequent napkin slides into the exact same stop-point. Repeatability increases by 400%.

Scenario C: "I can't change threads fast enough."

Diagnosis: Your single-needle machine is the throttle. The Solution: This is the trigger point for a Multi-Needle Machine (like the SEWTECH high-value series).

• Why: Combined with magnetic hoops and a valid placement guide, you move from "crafting" to "manufacturing."

Warning: Magnetic Field Safety
If you upgrade to magnetic hoops, treat them with extreme respect. These use Neodymium industrial magnets.
* Pinch Hazard: They can snap together with enough force to break a finger. Slide them apart; never pry.
* Medical limits: Keep them at least 6 inches away from pacemakers or insulin pumps.

Troubleshooting: Quick Fixes for Common Failures

The Professional Finish

The difference between a "homemade" napkin and a "professional" napkin is consistency. When you follow the full workflow—trim template, load sticker on back, load paper on front, align symmetrically, set sticker, then hoop—you remove the variable of "luck."

Final Setup Checklist (Repeatability Protocol)

• Target sticker arrow matches the specific design orientation (Vertical vs. Horizontal).
• Guide Zero-point is locked to the corner tip.
• Symmetry numbers (e.g., "3") are identical on left and right edges.
• Fabric is floated on sticky stabilizer without tension.
• Final Safety: Sticker is removed, and throat plate clearance is verified.

By respecting the physics of the fabric and upgrading your tooling (from guides to magnetic hoops) as you scale, you ensure that every corner you stitch is sharp, centered, and profitable.

FAQ

• Q: What consumables and tools are required for the Center Meiers napkin placement guide workflow before marking a napkin corner?
  A: Prepare the “invisible tool kit” first, because missing one item is a common reason placement looks right but stitches wrong.
  • Gather: fresh target stickers (do not reuse), a water-soluble pen (backup marks), sharp appliqué scissors (template trimming), and adhesive remover (residue cleanup).
  • Press: the napkin, then let it cool to the touch before placing the guide (heat can expand fibers).
  • Confirm: the design “Up” arrow orientation on the paper template before loading anything.
  • Success check: the sticker feels tacky (not dry) and the paper template is trimmed tight to the design edge with minimal/no white border.
• Q: How do you prevent parallax error when trimming a paper embroidery placement template for napkin corner alignment?
  A: Trim the printed paper template close to the design perimeter to remove “white space” that tricks the eye.
  • Cut: around the design as close as practical; for raised edges (hemstitch, lace, pockets), cut exactly on the ink line.
  • Align: the printed crosshairs on the paper perfectly to the guide’s plastic crosshairs before placing on fabric.
  • Re-check: orientation before committing pressure to the sticker.
  • Success check: when the template is against the napkin edge, the distance from ink to fabric edge is easy to judge without guessing.
  • If it still fails: reprint and re-trim; “close enough” templates usually produce “close enough” (often ruined) results.
• Q: How do you stop napkin fabric shifting 1–2 mm when sliding a placement guide over linen or cotton napkins?
  A: Put the napkin into a neutral, relaxed state before the guide touches it—micro-drag from friction is a very common cause of diagonal drift.
  • Smooth: the napkin once, then move to a “hands-off” position.
  • Wait: about 5 seconds to let fibers relax before placing the guide.
  • Place: the guide gently without rubbing it around; avoid repeated repositioning that stretches the weave.
  • Success check: after lifting the guide, the napkin corner still lies flat with no diagonal “skew” or stretched look.
  • If it still fails: reduce sliding motions and re-seat using a single deliberate placement, then commit pressure and lift vertically.
• Q: How do you use the Center Meiers “Number 3” symmetry check to center a diagonal napkin corner embroidery placement?
  A: Lock the placement by matching the grid numbers on both napkin edges—this removes “eye-balling” from the process.
  • Point: the guide Zero/Center directly at the napkin corner tip.
  • Match: the left and right napkin edges to the same grid number (example: both edges hit the “3” mark).
  • Verify: clearance by keeping the center point at least 1.5 inches (about 4 cm) from the corner tip to avoid hoop-to-machine contact during stitching.
  • Success check: both edges intersect identical grid numbers and the placement feels “certain,” not questionable.
  • If it still fails: stop and re-measure before transferring—hesitation is usually a sign the symmetry lock is not truly matched.
• Q: How do you prevent a napkin embroidery design from tilting left/right when transferring a Center Meiers target sticker to fabric?
  A: Use a straight-up “helicopter lift” after pressing—peeling the guide sideways is the most common reason the sticker drifts.
  • Press: firm, direct downward pressure to activate the pressure-sensitive adhesive.
  • Lift: the plastic guide straight up vertically (do not peel like a page).
  • Stabilize: if needed, lightly secure the fabric edge with a small piece of tape before lifting to reduce movement.
  • Success check: the target sticker stays exactly where pressed, with crosshair alignment unchanged after the guide is removed.
  • If it still fails: slow down the lift and confirm the sticker is seated flat in the back retention slots before starting.
• Q: How do you avoid needle gunk, shredded thread, or skipped stitches caused by stitching through a napkin target sticker?
  A: Remove the target sticker immediately after aligning the needle to the center crosshair—starting with the sticker still on is a common (and fixable) mistake.
  • Align: move the needle to the sticker’s center crosshair first.
  • Remove: peel off the sticker before pressing “Start.”
  • Clean: if stitching already happened through the sticker, wipe the needle with rubbing alcohol and replace the needle if needed.
  • Success check: the needle runs clean with no gummy buildup and thread stops shredding during the next test stitch.
  • If it still fails: re-check the full pre-stitch checklist and consider whether adhesive residue remains on the needle shaft.
• Q: How do you prevent puckering when floating a napkin on sticky stabilizer for machine embroidery hooping?
  A: Do not stretch the napkin; lay it down neutral and let the sticky stabilizer hold it—over-tension is a primary cause of puckering after unhooping.
  • Float: lay the napkin onto hooped sticky stabilizer and smooth from the center outward to remove air pockets.
  • Avoid: pulling the fabric tight (the “drum skin” feel is the wrong target).
  • Add: a basting stitch file on slippery synthetics to control shifting.
  • Success check: the floated napkin feels smooth like a bedsheet (taut but neutral), not tight like a tennis racquet.
  • If it still fails: switch stabilization strategy (for example, fusible mesh cutaway for loose weave) and hoop fabric + stabilizer together.
• Q: When napkin corner embroidery placement is accurate but production suffers from hoop burn or slow hooping, what is the best upgrade path: technique, magnetic hoops, or multi-needle embroidery machine?
  A: Use a staged upgrade: fix technique first, then upgrade hooping hardware for hoop burn and speed, then upgrade machine when thread changes become the bottleneck.
  • Level 1 (Technique): correct sticker transfer (vertical lift), neutral float on sticky stabilizer, and use symmetry-number matching for repeatability.
  • Level 2 (Tooling): choose magnetic embroidery hoops when traditional hoops crush delicate linen and leave permanent hoop burn rings.
  • Level 3 (Capacity): choose a multi-needle embroidery machine when thread-change time limits output more than stitching time.
  • Success check: rework drops (fewer tilted/off-center pieces) and hooping time per napkin becomes consistent across a run.
  • If it still fails: add a fixed hooping fixture/system to remove manual measuring from each napkin and reduce fatigue-driven mistakes.
