Stop Guessing Thread Colors in Wilcom Hatch: Build a Custom .TCH Chart That Matches the Spools You Actually Own

Visualizing Reality: The Master Guide to Custom Thread Charts in Wilcom Hatch

If you have ever stared at the default thread palettes in Wilcom Hatch and thought, "None of these match the spools sitting on my shelf," you are not being picky—you are struggling with the disconnect between digital theory and physical reality.

In my 20 years of running embroidery production floors, I have learned that a custom thread chart is not just an aesthetic preference. It is a production asset. When your screen doesn't match your inventory, you introduce a "translation layer" where errors happen. You pick a blue on screen, grab a slightly different blue from the rack, and suddenly the corporate logo is rejected because the gradient looks muddy.

In this master-class tutorial, we are going to walk through a method demonstrated by Donna from ThreadTreasures Embroidery. We will bridge the gap between software and hardware, showing you how to inject your actual inventory (be it Marathon, Floriani, or Metro) directly into Hatch.

But we won't stop at the software. As any seasoned digitizer knows, accurate color on screen means nothing if your physical hoop tension ruins the light reflection on the satin stitch. We will cover the full ecosystem of color accuracy—from the .TCH file to the tension of your hoop.

The "Why": Why a Custom Chart is Your First Line of Defense

When you digitize with a palette that doesn't exist in your shop, you are forced into one of three expensive behaviors:

1. The Mental Drift: You substitute colors on the fly ("I'll just use the darker blue later"). By the time you reach the machine, you've forgotten the plan.
2. Inventory Bloat: You buy specific threads to match the design file, ignoring the 500 spools you already own.
3. The "Sample" Loop: You stitch it out, realize the sheen or contrast is wrong, and have to re-thread and re-stitch.

Donna’s use case is the industry standard for intermediate to advanced shops: a "Mixed Inventory." She owns Marathon polyester, Marathon rayon, Floriani, and Metro threads. She needs a single "source of truth" in her software that reflects exactly what is physically available to thread onto the machine.

Phase 1: The "Pre-Flight" Preparation

Creating a custom chart via the backend file system is faster than manual entry, but it requires precision. We are going to edit a system resource file. If this sounds intimidating, don't worry—we will set up safety rails.

The Hidden Consumables

Before we start, ensure you have these "digital consumables" ready:

• A Plain Text Editor: Do not use Microsoft Word or Pages. They add hidden formatting code that will corrupt the file. Use Notepad (Windows) or TextEdit (Mac, in Plain Text mode).
• Clean Source Data: Your thread values (Name, Code, RGB) in a text file.
• The RGB 255 Rule: Wilcom Hatch operates on standard 8-bit color. No RGB value can exceed 255. If your source data has a "260" (which is mathematically impossible in strictly standard RGB but appears in some raw data dumps), the import will fail.

Prep Checklist (Do not proceed until all checked):

• Confirm Hatch is installed and closed (or minimized).
• Open your source thread data text file.
• Scan the data: Ensure no RGB value is >255.
• Verify you have read/write access to your Program Files folder (usually admin rights).
• Decide on a chart name (e.g., "MyShop_Poly").


Warning: You are about to edit a .TCH (Thread Chart) file in the system directory. A typo here can crash the palette loader. Always make a copy of the default file before editing, or strictly follow the "create new" method below to avoid damaging existing charts.

Phase 2: Create the "Container" in Hatch

We cannot simply drop a file into the folder and hope Hatch sees it. We must ask Hatch to "bless" the file creation first.

1. Open Hatch.
2. Navigate to Software Settings > Manage Thread Charts.
3. Click Create.
4. Enter your precise chart name (Donna uses “Donna”).
5. Click OK.

At this specific moment, Hatch has generated a "skeleton" file. It exists, but it has no bones—it is 0 KB of data.

Checkpoint (Visual Confirmation):

• In the "Manage Thread Charts" list, you see your new name.
• The list of threads on the right side is completely empty.




Phase 3: The Data Injection

This is where we bypass hours of manual typing. We are going to use the clipboard to perform a "brain transplant" on that empty file.

Step A: Secure the Data

Donna uses a prepared text file converted from her Embird database. This is critical: The format usually requires Code, Brand, Description, R, G, B.

1. Open your clean source text file.
2. Select All (Ctrl + A).
3. Copy (Ctrl + C).






Step B: Locate the Target

We need to find where Hatch lives.

1. Open Windows File Explorer.
2. Navigate to the Hatch installation path. Usually: C:Program Files (x86)WilcomHatch Embroidery Software [Version]RES.
3. Look for the RES (Resource) folder.
4. Find the file named Donna.TCH (or your chosen name).

Sensory Check: Look at the File Size column. It should say 0 KB or 1 KB. This confirms it is the empty skeleton we just created.

Step C: The Transplant

1. Right-click Donna.TCH and choose Open with > Notepad.
2. It should be empty (or contain just a header).
3. Paste your copied data.
4. Save (Ctrl + S) and Close.

The Vital Verification: Immediately look at the file size in Explorer again.

• Before: 0 KB.
• After: 19 KB (or larger, depending on your list).

If the number didn't jump, you didn't save, or you pasted empty space. This "digital weight" is your proof of life.

Warning: If you leave the file open in Notepad and try to run Hatch, you may get a "File in Use" error. Always close the text editor completely before returning to the embroidery software.

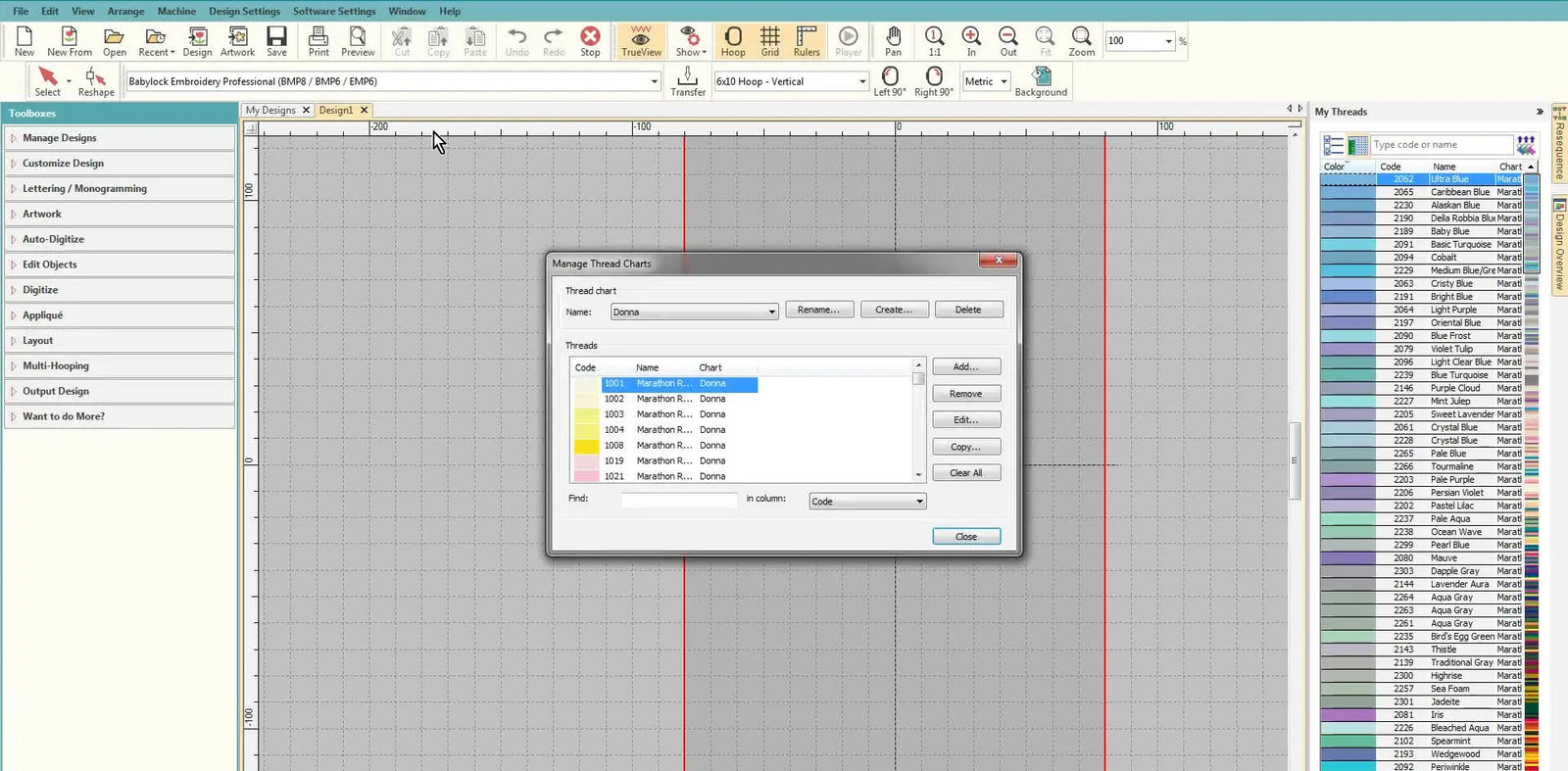

Phase 4: Activation and Verification

Now we return to the Hatch interface to see if the brain transplant worked.

1. Go back to Manage Thread Charts. You should populate the view.
2. Close the settings and go to your main design workspace.
3. Open the My Threads docker (usually on the right).
4. Click the dropdown menu regarding thread charts.
5. Select “Donna” (or your chart name).

Sensory Check: Instead of the generic "Color 1, Color 2," you should now see "Marathon Poly 1145," "Floriani 200," etc. The visual palette on the screen should shift to match the actual RGB values of your threads.

Phase 5: Bridging Software to Hardware – The "Reality Gap"

You now have perfect digital color. But here is the hard truth of embroidery: Software color is theoretical; Stitch color is physical.

You can have the perfect matching thread code in Hatch, but if your fabric is unstable or your hooping is loose, the stitches will sink, twist, or bury themselves, altering how the light hits the thread. A "perfect match" red looks dark maroon if it is buried in deep pile fleece.

To ensure your physical output matches your new digital chart, you must stabilize the "canvas."

The Role of Hooping in Color Perception

If you are struggling with a process called hooping for embroidery machine, where you manually tighten screws and pull fabric, you are introducing variables. Inconsistent tension changes the "loft" of the satin stitch.

• Too loose: Stitches look sloppy and reflect light poorly (dull color).
• Too tight: "Hoop burn" creates a shiny ring that distracts from the embroidery color.

The Professional Solution: Magnetic Stability

For consistent color presentation, especially on production runs, the industry is moving toward magnetic embroidery hoops.

Unlike traditional rings that require manual muscle and guessing, magnetic frames snap the fabric into a perfectly flat plane without forcing the fibers.

• No Hoop Burn: Because they don't grind two plastic rings together, you preserve the fabric texture.
• Even Tension: The magnets apply vertical pressure, creating that "drum-skin" feel that is essential for the thread to sit on top of the fabric, ensuring the color you chose in Hatch is the color you see on the shirt.

For those running bulk orders, a hooping station for embroidery paired with magnetic frames is the ultimate upgrade. It ensures that every single shirt is hooped at the exact same tension and location. If you see terms like machine embroidery hooping station in professional forums, this is why—it's about removing the "human error" from the canvas setup.

Warning: Magnetic Safety
Embroidery hoops magnetic systems use industrial-grade neodymium magnets. They are incredibly strong.
* Pinch Hazard: Keep fingers clear of the snapping zone.
* Medical Devices: Keep at least 6 inches away from pacemakers.
* Electronics: Do not place near credit cards or hard drives.

Troubleshooting: When The Dot-TCH Fails

If your chart doesn't load, use this structured diagnosis logic. Do not guess; verify.

Decision Tree: Do You Need Software or Hardware?

Sometimes we obsess over the software chart when the problem is mechanical. Use this tree to decide your next move.

Scenario A: "I can't find the right green on my screen."

• Root Cause: Digital Catalog.
• Action: Follow the tutorial above. Build a .TCH file for your specific thread brand.

Scenario B: "The screen looks right, but the sew-out looks dull/gappy."

• Root Cause: Physical Absorption.Thread is sinking into the fabric.
• Action:
  1. Use a Topper (Solvy) to keep stitches aloft.
  2. Check Tension settings.
  3. Upgrade to magnetic embroidery hoops to prevent fabric distortion.

Scenario C: "I spend more time changing threads than sewing."

• Root Cause: Capacity Bottleneck.
• Action: A custom chart won't fix this. You are hitting the limits of a single-needle workflow.
  • Level 1: Pre-plan color stops better in Hatch.
  • Level 2: Upgrade mechanism. Consider SEWTECH multi-needle embroidery machines or similar pro-sumer models that hold 10+ colors. This physically matches the "Digital Palette" concept you just built.

Final Review: Your New Workflow

By creating a custom thread chart, you have removed the "guessing game" from your design process. But remember, the digital file is just a blueprint.

To master the craft, you must respect the physics.

1. Trust your Data: Use your custom Donna.TCH chart.
2. Respect the Material: Choose the right backing.
3. Secure the Canvas: Use modern tools like magnetic hooping station setups to ensure your physical fabric is as precise as your digital design.

Operation Success Checklist:

• Software: Custom chart is active in "My Threads."
• Hardware: Selected hoop matches the design size (avoid using a giant hoop for a tiny logo).
• Visual: Scroll down the list—do you see "Marathon" (or your brand) names?
• Safety: Source text file is backed up in the cloud, not just on the local C: drive.

Now, thread up and stitch with confidence. The colors are finally yours.

FAQ

• Q: What plain text editor should be used to edit a Wilcom Hatch .TCH thread chart file without corrupting formatting?
  A: Use a plain text editor like Windows Notepad (or Mac TextEdit in Plain Text mode) and avoid Word/Pages.
  • Open the editor first, then open the .TCH file from the Hatch RES folder.
  • Paste only clean text data (no rich-text formatting, no smart quotes).
  • Save and fully close the editor before reopening Hatch.
  • Success check: Hatch loads the chart without crashing and the thread list shows real names/codes instead of blanks.
  • If it still fails: Re-copy the source data from a known-clean text file and re-paste to eliminate hidden characters.
• Q: How do I confirm the new Wilcom Hatch custom thread chart “skeleton” .TCH file was created correctly before pasting thread data?
  A: Create the chart inside Hatch first, then verify the file exists and the thread list is empty.
  • Open Hatch > Software Settings > Manage Thread Charts > Create, then enter the chart name and click OK.
  • Confirm the new chart name appears in the Manage Thread Charts list.
  • Confirm the right-side thread list is completely empty (that is expected at this stage).
  • Success check: Windows Explorer shows the matching .TCH file and the file size is about 0 KB or 1 KB.
  • If it still fails: Re-create the chart name in Hatch (do not just drop a file into the folder and expect Hatch to detect it).
• Q: How do I know the Wilcom Hatch .TCH “data injection” paste actually saved correctly in the RES folder?
  A: Use Windows Explorer file size as proof—0 KB should jump to a much larger size after saving.
  • Open the target .TCH (the one you just created in Hatch) with Notepad.
  • Paste the copied thread rows, then Save (Ctrl+S) and close Notepad.
  • Re-check the file size in Explorer immediately after saving.
  • Success check: File size increases (example shown: from 0 KB to around 19 KB, depending on list length).
  • If it still fails: Confirm you pasted real data (not blank lines) and you have permission to write in Program Files (try running Notepad as Administrator).
• Q: What causes a Wilcom Hatch custom thread chart to show neon/wrong colors after importing RGB values?
  A: The RGB data is often in the wrong scale—Hatch expects standard 8-bit RGB where each value is 0–255.
  • Inspect the source thread data and confirm no RGB value exceeds 255.
  • Look for values like “0.9” that indicate a different scaling method and convert them to the 0–255 range before pasting.
  • Re-paste the corrected data into the same .TCH file, save, and reload the chart in Hatch.
  • Success check: The on-screen palette shifts to believable thread tones and matches the intended RGB mapping.
  • If it still fails: Re-check the source file for inconsistent formats (mixed decimals and 0–255 integers) and clean it in a plain text editor.
• Q: What should I do if Wilcom Hatch crashes on load after editing a .TCH thread chart file?
  A: Treat it as file corruption from hidden formatting and rebuild the text cleanly.
  • Stop guessing and remove the edited .TCH content (restore from a backup copy if available).
  • Re-open the source data in a plain text editor and remove hidden characters (tabs/smart quotes are common culprits).
  • Paste clean text back into the .TCH and save, then reopen Hatch.
  • Success check: Hatch opens normally and Manage Thread Charts displays the populated list without crashing.
  • If it still fails: Create a brand-new chart container in Hatch (new name), then repeat the paste-and-save process using only clean text.
• Q: How do I prevent a “File in Use” problem when loading a Wilcom Hatch thread chart after editing the .TCH in Notepad?
  A: Close Notepad completely before returning to Hatch so Hatch can read the .TCH file.
  • Save the .TCH file (Ctrl+S).
  • Close the .TCH tab/window and exit Notepad fully.
  • Return to Hatch and open Manage Thread Charts or My Threads to select the chart.
  • Success check: Hatch loads the chart without any lock/error message and the chart appears selectable.
  • If it still fails: Confirm no other editor or sync tool is holding the file open, then retry after closing those apps.
• Q: What safety precautions are required when using neodymium magnetic embroidery hoops near pacemakers and fingers?
  A: Treat magnetic embroidery hoops as pinch hazards and keep them away from medical devices and sensitive electronics.
  • Keep fingers clear of the snapping zone when the magnets engage (pinch hazard).
  • Keep magnetic hoops at least 6 inches away from pacemakers and similar medical devices.
  • Avoid placing magnetic hoops near credit cards or hard drives.
  • Success check: Hooping can be done repeatedly without finger pinches and without bringing magnets near restricted devices.
  • If it still fails: Switch to a slower, two-handed handling method and stage the hoop parts on a stable surface before snapping together.
• Q: If Wilcom Hatch thread colors look correct on screen but the embroidery sew-out looks dull or gappy, what is the step-by-step fix path before upgrading to SEWTECH multi-needle embroidery machines?
  A: Follow a staged workflow: stabilize first, then reduce hooping variability, then consider capacity upgrades if thread changes are the bottleneck.
  • Apply a topper (such as Solvy) when stitches are sinking into fabric and losing sheen.
  • Check tension settings (adjust cautiously; a safe starting point may vary—use the machine manual as the reference).
  • Reduce hooping distortion by upgrading from manual screw hoops to magnetic embroidery hoops for more even tension and less hoop burn.
  • Success check: Satin stitches sit on top of the fabric with better light reflection, and repeated hoopings look consistent across samples.
  • If it still fails: If the main pain is constant re-threading and color-stop downtime rather than stitch quality, plan production around fewer changes or move up to a multi-needle workflow (for example, SEWTECH multi-needle embroidery machines).
