Stop Guessing, Start Hitting Center: The Vivilux Laser Hooping Trick That Makes T-Shirts Behave

If you’ve ever hooped a T-shirt, stepped back, and thought, “That’s… not centered,” you’re not alone. In the professional embroidery world, we call this "drift," and it accounts for nearly 40% of production waste in start-up shops. Most placement mistakes aren't character flaws; they are physics problems. Knit fabric acts like a fluid—it shifts, hoops slide on smooth tables, and human eyes are notoriously bad at judging geometric centers on moving curves.

In Ballyhoo Creations’ review of the Vivilux 3-in-1 rechargeable laser system, Lucy demonstrates a simple, repeatable workflow that turns placement into a “bullseye” moment. The logic is sound: use a printed template to find the design center, mark it with a positioning sticker, and use a laser crosshair to lock that sticker to the hoop’s grid.

I am going to rebuild that method into a "White Paper" standard operating procedure (SOP). We will add safety margins, sensory checkpoints, and the "don't learn this the hard way" details that separate a hobbyist from a production manager.

The Calm-Down Truth About Vivilux Laser Placement: It’s Not Magic—It’s Repeatability

The Vivilux system is a wireless, rechargeable laser that uses screw-on brass heads to project three patterns: a dot, a line, or crosshairs. The real win isn’t that it’s “high tech”—it’s that it establishes a Fixed Reference Point (FRP).

In cognitive psychology, we know that "eyeballing" fatigues the decision-making part of your brain. By using a laser, you offload that cognitive load to the tool. Lucy makes a vital distinction: using a laser as a “needle drop” indicator on a single-needle machine is redundant (just look at the needle). Where the laser becomes a production asset is:

• Free-motion embroidery/quilting: The dot acts as a predicted path.
• Hooping and floating: It creates a "phantom grid" on top of your fabric.

If you are building a consistent workflow for hooping for embroidery machine setups, you need an external standard that doesn't move when your fabric does.

Swap the Vivilux Brass Heads Without Cross-Threading (Dot, Line, Crosshair)

The device uses interchangeable brass heads to shape the light. The threads on these are fine brass—soft metal. Misthreading them is an expensive mistake.

The Expert Protocol:

1. Remove: Unscrew the current head counter-clockwise.
2. Seat: Place the new head gently against the threads. Rotate it backwards (counter-clockwise) until you feel a tiny "click." That is the threads aligning.
3. Secure: Screw clockwise until "finger tight." Do not use pliers.

Checkpoint: Turn the laser on. The projection shape changes immediately (dot → line → crosshair). Sensory Check: The head should spin smoothly with zero resistance. If you feel "gritty" friction, stop immediately—you are cross-threading.

Expected Outcome:

• Dot: Precision visibility for free-motion.
• Line: Seam allowance or text alignment.
• Crosshair: The "Master Coordinate" for centering.

Warning (Safety): Keep fingers clear of the needle area when testing alignment near the presser foot. Never reach under the needle bar while the machine is powered on. A servo motor can drive a needle through a finger bone in a fraction of a second.

The “Hidden” Prep Before You Try Laser Hooping on a T-Shirt (Template + Stabilizer + Surface)

The video assumes you are ready to go, but 90% of hooping failures happen before the laser is even turned on. The interaction between your stabilizer and your knit fabric is critical.

The "Physics" of the Setup

• The Stabilizer: For T-shirts, you are likely "floating" the shirt. This requires a Sticky Tear-Away or a standard Tear-Away with temporary spray adhesive.
  • Expert Note: For dense designs (>10,000 stitches), floating on just tear-away is risky. I recommend floating the shirt on sticky stabilizer, but slipping a piece of Fusible No-Show Mesh (Cutaway) inside the shirt first. This gives you the stability of cutaway with the convenience of floating.
• The Surface: You need a high-friction surface for the hoop, but a low-friction surface for the rest of the garment.

The Pro-Level Prep

If you are comparing this manual method to a mechanical embroidery hooping station, think of the laser as a "visual jig." It works, but only if your table is flat.

1. De-lint the Hoop: If using sticky stabilizer, ensure the inner hoop is clean. Old adhesive causes uneven grip.
2. Center Logic: Decide now—are you measuring down from the collar (variable) or up from the hem? Pick one and stick to it.

Prep Checklist (Go / No-Go Criteria):

• Laser charged (Red light off, Green light on/charged).
• Crosshair head installed and focused (twist lens to sharpen).
• Stabilizer is drum-tight in the hoop (tap it; it should sound like a bongo).
• Paper template printed at 100% scale (measure the reference square!).
• Work surface clears 2 feet in all directions.


The Table-Top “Bullseye” Method: Mark Design Center with a Sticker Using the Vivilux Crosshair

This is the heart of the workflow. We are separating the "Finding Center" step from the "Hooping" step.

The Workflow:

1. Elevation: Place the laser on an elevated stand (Lucy uses a canister).
   • Why: Height increases the projected footprint of the crosshair, covering more fabric area.
2. Templating: Lay your T-shirt flat. Place your paper template where you want the design.
3. Visual Lock: Adjust the shirt/template until the laser crosshair perfectly bisects the template's center lines.
4. The Tag: Remove the paper carefully. Place a positioning sticker (e.g., a "snowman" sticker or red arrow) exactly at the crosshair intersection.

Checkpoint: The laser green light should hit the exact center of your sticker. Sensory Check: The shirt should be relaxed. If you see "ripples" radiating from the sticker, the fabric is under tension and will pucker later.

Expected Outcome: You now have a physical anchor on the garment. The laser has done its job of transferring your intent to the fabric.

Lock the Hoop Grid to the Laser Crosshair (So the Hoop Doesn’t Drift While You Float)

Here is the physics problem: Hoops on smooth tables slide. If the hoop moves 2mm while you are placing the shirt, your design is crooked.

The Workflow:

1. Hoop your sticky stabilizer. Score the paper with a pin (don't slash the stabilizer) and peel to reveal the adhesive.
2. Place the hoop under the stationary laser.
3. The Alignment: Move the hoop until the laser crosshair aligns perfectly with the plastic grid marks on the inner hoop ring.
4. The Anchor: Use painter's tape or tacky putty to tape the hoop frame to the table.

Checkpoint: Bump the table gently. Does the hoop move? If yes, more tape. Transformation Point: If you find yourself doing floating embroidery hoop techniques daily, taping the hoop becomes tedious. This is often the trigger point where professionals look for magnetic solutions that grip the machine arms directly (more on this later).

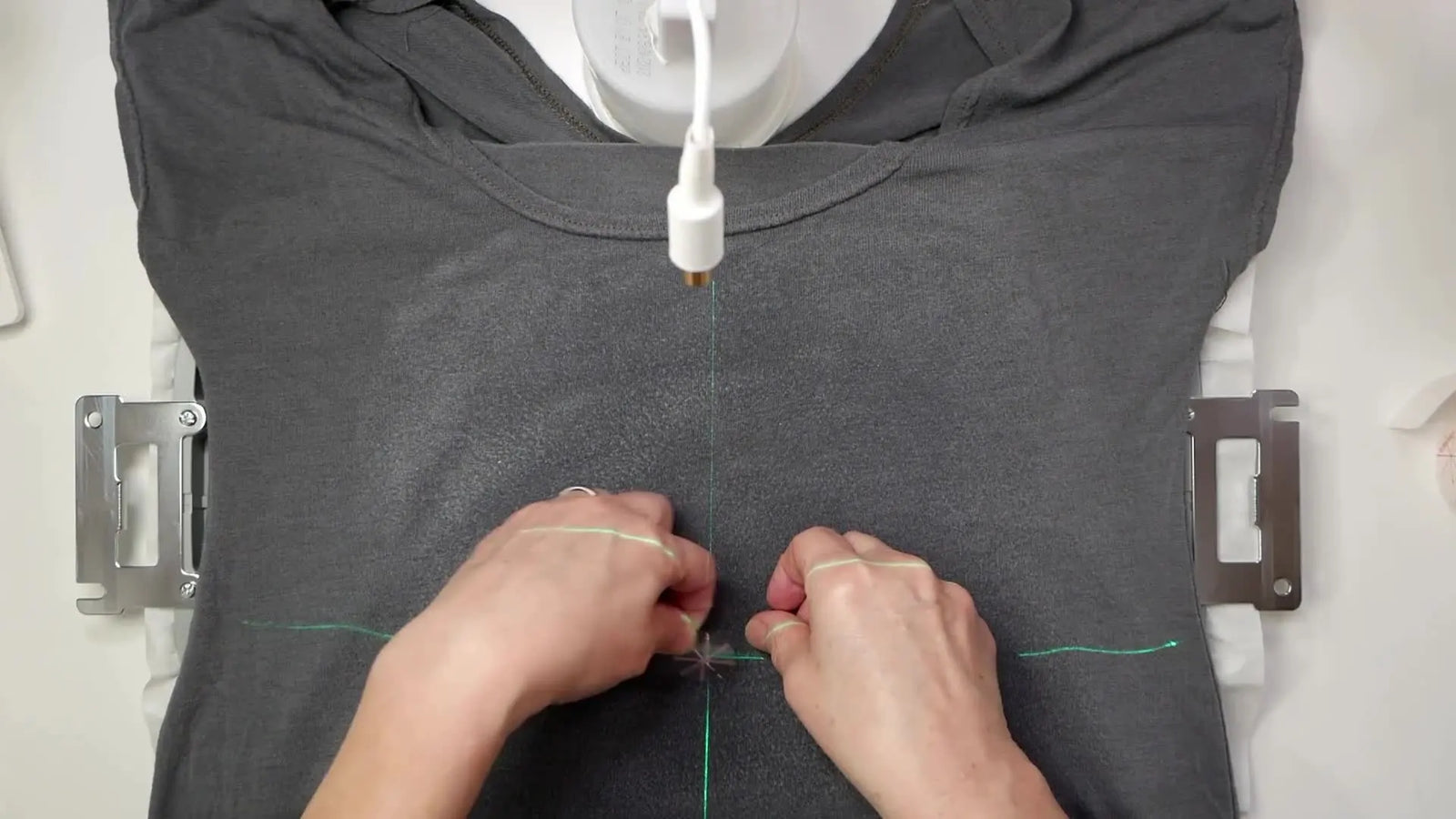

Float the T-Shirt onto Sticky Stabilizer and Hit Center on the First Try

This is the "Moment of Truth." You are marrying the fabric (with the sticker) to the stabilizer (aligned to laser).

The Workflow:

1. Fold the bottom of the shirt up so you can see the target area.
2. Hover the shirt over the hoop. Align the Sticker Center to the Laser Crosshair.
3. The Press: Press down exactly at the sticker first.
4. The Smooth: Smooth the fabric outward from the center. Do not pull.

Expert Insight (The "Cookie Dough" Rule): Treat knit fabric like rolled cookie dough. If you pull it to fit, it will snap back when baked (or stitched). Just smooth it down.

Checkpoint: The laser crosshair passes through the sticker center AND the hoop grid marks. Troubleshooting: If the laser hits the sticker but the hoop grid is off, your hoop moved. Start over.

If your sticky stabilizer is weak, the shirt will creep. This is why many shops prefer a sticky hoop for embroidery machine approach or specific magnetic frames that hold strong without adhesive residue.

The “Tacky Hack” That Stops Vivilux Wobble on Curved Sewing Machines

Vibration is the enemy of lasers. A vibrating laser line creates a blurry "zone" rather than a sharp guide.

The Fix:

• Purchase "Removable Mounting Putty" (Blue Tack/Tacky Putty).
• Apply a generous "wad" to the battery box and the mounting arm.
• Press firmly onto the side of the machine head.

Checkpoint: Run the machine at 600 SPM (Stitches Per Minute). The laser line should remain steady. Warning: While great for single-needle home machines, do not use putty on multi-needle commercial machines. The violent XY movement of the pantograph can shake the putty loose. If a 3oz laser falls into a moving hoop running at 1000 SPM, you risk shattering the laser, breaking the needle, and damaging the hook timing.

Laser Line as a Seam Allowance Guide: Dial in 3/8" Without Tape, LEGO, or Guessing

For sewists, the "Line" head is a game changer for seam consistency.

The Setup:

1. Switch to the Line head.
2. Lower your needle into the fabric at the desired position.
3. Measure from the needle to the right (e.g., 3/8" or 5/8").
4. Rotate the laser head until the line projects exactly at that measurement mark, parallel to the feed dogs.

Checkpoint: Feed 6 inches of scrap fabric. The edge should ride the light beam like a rail. Expected Outcome: Perfectly consistent seam allowances without sticky residue from tape guides on your needle plate.

Coverstitch Straightness Without Bed Markings: Why the Laser Feels Like Cheating (In a Good Way)

Coverstitch machines are notorious for having poor bed markings.

The Application:

• Project the laser line in front of the presser foot.
• Align it with the hem fold.
• Visual Anchor: Instead of watching the needles (which causes eye fatigue), watch the laser line entering the foot.

result: This eliminates the "hem wander" where your stitching falls off the raw edge of the fabric underneath.

Pleats Without Marking Tools: The “5 Stitches, Pleat & Repeat” Rhythm

This is a lesson in "Batch Processing." Instead of marking 50 pleats with chalk, use the laser as a dynamic ruler.

The Process:

1. Set laser to Crosshair.
2. Align the horizontal line with where the fold should land.
3. Rhythm: Sew fixed stitches -> Fold fabric to line -> Sew fixed stitches.

Checkpoint: Measure the first 3 pleats. If they differ by more than 1mm, your folding technique needs adjustment, not the laser.

Clean Corners Every Time: Use the Crosshair to Nail the 1/4" Pivot Point

Quilters know the pain of pivoting too early or too late.

The Hack:

• Adjust the crosshair so the intersection is exactly 1/4" in front of the needle drop.
• The Trigger: When the raw edge of your fabric hits the horizontal laser line, stop. Needle down. Pivot.

Expected Outcome: Perfect 90-degree corners with precise 1/4" seam allowances, critical for piecing blocks.

Setup Choices That Separate “Hobby Success” from “Repeatable Results” (Stabilizer + Hooping Decision Tree)

Lucy’s method works, but as a Transformation Editor, I need to give you the "Decision Matrix" to know when to use this versus when to upgrade your tools.

Decision Tree: Fabric vs. Tooling

1. The Variable: Is the fabric slippery or bulky (e.g., Performance wear, Carhartt jackets)?
   • Yes: Sticky stabilizer will fail. The weight of the jacket pulls it off the adhesive.
   • Solution: You need mechanical grip. Magnetic Hoops are the standard here. They clamp the fabric firmly without the "burn" marks of traditional hoop rings.
2. The Variable: Are you doing a production run (20+ shirts)?
   • Yes: The Laser/Sticker method is too slow (approx. 3-4 minutes per shirt prep).
   • Solution: You need a rigid station. Professionals use specific machine embroidery hoops compatible with station jigs to drop load time to 30 seconds.
3. The Variable: Are you fighting "Hoop Burn"?
   • Yes: Traditional hoops crush velvet or delicate knits.
   • Solution: babylock magnetic hoops (or generic equivalents for your machine) use flat force, not friction, eliminating burn marks.

Warning (Magnets): If you upgrade to magnetic hoops, be aware they use N52 Neodymium magnets. They can pinch skin severely. Keep them away from pacemakers, magnetic stripe cards, and ensure you slide them apart rather than prying them.

Comment-Driven Pro Tips: The Stuff Viewers Asked (and What I’d Do in a Real Studio)

A good technician anticipates the questions. Here are the field notes from the comments section, verified against industry standards.

Pro Tip: The "Crossover" Tool

"I bought it for quilting… now I want it for embroidery." This is common. Precision tools have high ROI (Return on Investment) because they solve fundamental geometry problems, regardless of the craft.

Watch Out: The Multi-Needle Trap

A viewer asked about mounting this on a 6-needle or 10-needle machine.

• My Verdict: Be very careful. The mounting surface on multi-needle machines is often plastic shrouding that vibrates intensely. Only mount the laser to the solid metal chassis if possible. Do not use putty; use industrial double-sided foam tape VHB.

Health Check: Laser Safety

The Vivilux is a Class 3R laser standard (usually <5mW). It is safe for incidental viewing of the reflection.

• Rule: Never look into the aperture.
• Fatigue: Red lasers can cause visual fatigue faster than Green lasers. If you have a choice, Green is often sharper to the human eye in bright studio lighting.

The "Cat Factor"

It sounds funny, but it's a shop hazard. Cats love lasers. A cat jumping onto your embroidery module to catch the "red dot" while the machine is running can result in a $500 repair bill (knocked timing) or injury to the pet.

The Upgrade Path When You’re Done Fighting Fabric: Faster Hooping, Less Rework, More Output

Once you master the laser, you will hit a speed limit. The laser is accurate, but manual hooping is slow. Here is your growth path:

Level 1: The "Sticky" Phase (Current)

You use the laser and sticky stabilizer.

• Pain Point: Residue on needles, fabric shifting, slow prep.
• Cost: Low.

Level 2: The Tool Upgrade (Magnetic Hoops)

You replace the plastic hoops with magnetic embroidery hoops.

• Benefit: You no longer fight the inner ring. You float the backing, lay the shirt, drop the magnetic top frame. The laser still helps with center alignment, but the clamping takes 2 seconds, not 2 minutes.
• Search Intent: If you own a Brother or Baby Lock, look specifically for compatible frames.

Level 3: The Production Station

You are doing 50 shirts a week.

• Benefit: You move to a "station" workflow (like the hoopmaster hooping station or similar alternatives). These physical jigs replace the need for the laser alignment because the jig holds the shirt in the exact same spot every time.
• Top Tier: If you are searching for hoop master embroidery hooping station pricing and balking at the cost, consider that this is usually the stepping stone to buying a multi-needle machine (like SEWTECH models), where the hoops and stations differ significantly from home machines.

Operation Checklist: Run This Before You Hit Start (So the Laser Helps Instead of Distracts)

Print this and tape it to your machine.

The "Pre-Flight" Check:

• Laser Pattern: Confirmed correct pattern (Crosshair for placement, Line for sewing).
• Stability: Hoop is taped down or magnetically secured to table so it cannot drift.
• Alignment: Sticker center matches Hoop Grid matches Laser Crosshair (The "Triple Lock").
• Fabric Tension: Fabric acts like a "skin" on the stabilizer—no ripples, no stretching.
• clearance: Laser unit is mounted securely and clears the path of the embroidery arm movement.
• Safety: Room clear of pets/children.

The Bottom Line: Where Vivilux Shines—and Where You Shouldn’t Expect Miracles

Lucy’s verdict is correct: The Vivilux laser is a high-value "phantom limb" for your embroidery process. It holds the center point so your hands don't have to.

However, a laser cannot fix bad stabilization. It cannot fix a hoop that destroys fabric texture. Use the laser to solve the Geometry problem. Use proper backing and upgraded hoops (like Magnetics) to solve the Physics problem. Combine them, and you have professional results.

FAQ

• Q: How do I swap the Vivilux 3-in-1 rechargeable laser brass heads (dot/line/crosshair) without cross-threading the soft brass threads?
  A: Start the threads backwards first, then tighten only finger-tight—brass cross-threads easily, and this is a common mistake.
  • Remove: Unscrew the current head counter-clockwise.
  • Seat: Place the new head on the threads and rotate counter-clockwise until a small “click” is felt (thread start aligns).
  • Secure: Turn clockwise until finger tight; do not use pliers.
  • Success check: The head spins on smoothly with zero gritty resistance and the projection changes immediately to the selected pattern.
  • If it still fails: Stop immediately if it feels gritty—back off and re-seat to avoid permanent thread damage.
• Q: What stabilizer setup is a safe starting point for floating a T-shirt onto sticky backing when using the Vivilux crosshair placement method?
  A: Float the shirt on sticky tear-away (or tear-away with temporary spray adhesive), and add fusible no-show mesh cutaway inside the shirt for extra support on dense designs.
  • Choose: Use sticky tear-away for floating, or tear-away plus temporary spray adhesive when sticky is not available.
  • Reinforce: For dense designs (over 10,000 stitches), slip fusible no-show mesh (cutaway) inside the shirt first, then float onto sticky.
  • Prep: Clean lint/old adhesive from the inner hoop so grip stays even.
  • Success check: The hooped stabilizer is “drum-tight”—tap it and it sounds like a bongo.
  • If it still fails: If the shirt still creeps on the adhesive, move to stronger mechanical holding (often magnetic frames) instead of relying on stickiness alone.
• Q: How do I verify the “Triple Lock” alignment (Vivilux crosshair + positioning sticker + hoop grid marks) before floating a T-shirt onto sticky stabilizer?
  A: Do not press the shirt down until the laser crosshair hits the sticker center and also matches the hoop’s grid marks at the same time.
  • Align: Center the paper template under the laser, then place the positioning sticker exactly at the crosshair intersection.
  • Set: Slide the hooped stabilizer under the stationary laser and align the crosshair to the hoop grid marks.
  • Press: Hover the shirt, line up sticker center to the crosshair, then press down at the sticker first and smooth outward (do not pull).
  • Success check: The crosshair passes through the sticker center AND the hoop grid marks with the fabric relaxed and ripple-free.
  • If it still fails: If the laser hits the sticker but the hoop grid is off, the hoop moved—restart and anchor the hoop to the table before trying again.
• Q: How do I stop an embroidery hoop from drifting on a smooth table during Vivilux laser alignment when floating a T-shirt?
  A: Physically anchor the hoop frame to the table so a 1–2 mm slide cannot happen while placing the garment.
  • Tape: Use painter’s tape (or tacky putty) to secure the hoop frame to the tabletop after aligning the hoop grid to the laser crosshair.
  • Test: Bump the table gently on purpose to confirm nothing shifts.
  • Re-check: Verify the laser crosshair still lines up with the hoop grid marks before placing the shirt.
  • Success check: A gentle bump does not change crosshair-to-grid alignment.
  • If it still fails: Add more tape/anchoring, or consider a holding method that clamps more securely (often magnetic solutions) if daily taping becomes the bottleneck.
• Q: What causes puckers when floating a knit T-shirt onto sticky stabilizer, even when Vivilux laser placement is centered?
  A: The most common cause is fabric tension—knit fabric was pulled instead of relaxed and smoothed from the center outward.
  • Relax: Lay the shirt flat and ensure the target area is not stretched before pressing to adhesive.
  • Press: Press down exactly at the center sticker first to “pin” the true location.
  • Smooth: Smooth outward from center like “cookie dough”—do not pull the knit to make it fit.
  • Success check: No ripples radiate from the sticker area and the fabric lies flat like skin on the stabilizer.
  • If it still fails: Re-do the float with less handling, and reassess stabilization choice for the design density (sticky + optional fusible mesh inside for heavier stitch counts).
• Q: Is it safe to test Vivilux laser alignment near the needle area on an embroidery or sewing machine, and what is the minimum safe habit?
  A: Keep fingers out of the needle zone whenever the machine is powered on—never reach under the needle bar during alignment checks.
  • Power awareness: Treat the machine as live whenever it is on; a servo motor can drive the needle instantly.
  • Position hands: Adjust the laser and fabric from the side, not under the needle path.
  • Verify clearance: Confirm the laser unit is mounted securely and will not interfere with moving parts.
  • Success check: Alignment can be confirmed without any hand entering the needle/presser-foot danger area.
  • If it still fails: Turn the machine off before making any adjustment that would put fingers close to the needle bar area.
• Q: What magnetic hoop safety rules apply when upgrading to N52 neodymium magnetic embroidery hoops for faster clamping and less hoop burn?
  A: Handle magnetic hoops like pinch hazards—slide magnets apart, protect fingers, and keep magnets away from sensitive devices.
  • Slide: Slide magnetic parts apart instead of prying to reduce sudden snap-back.
  • Protect: Keep fingertips out of the closing path to prevent severe pinches.
  • Separate: Keep magnetic hoops away from pacemakers and magnetic stripe cards.
  • Success check: The magnetic frame closes in a controlled way with no finger pinch and the fabric is held evenly without hoop burn marks.
  • If it still fails: If handling feels unsafe or uncontrollable, stop and review the hoop’s handling method in the machine/hoop instructions before continuing.
• Q: When is the Vivilux laser + sticky stabilizer method too slow for production runs, and what is the practical upgrade path for faster hooping?
  A: If T-shirt prep time stays around 3–4 minutes per piece or rework is frequent, move from technique optimization to a faster holding/loading system.
  • Level 1 (technique): Improve table anchoring, triple-lock alignment, and smoothing (lowest cost).
  • Level 2 (tool): Upgrade to magnetic hoops to eliminate inner-ring fighting and speed clamping to seconds.
  • Level 3 (workflow): Use a rigid hooping station/jig for repeat placement and faster load times (often ~30 seconds).
  • Success check: Placement is repeatable with fewer restarts and a clear reduction in prep time per garment.
  • If it still fails: If volume continues to rise (e.g., dozens of shirts weekly), consider moving to a multi-needle production workflow where stations and compatible frames are designed for throughput.
