Stop Guessing Placement: Centering T-Shirt Embroidery with an Embrilliance Template and a Magnetic Hoop That Snaps on Straight

If you’ve ever finished a T-shirt and then noticed the design is 1/4 inch off-center (or slightly tilted), you know the sinking feeling in your stomach. The stitch-out might be perfect—good tension, no loopies—but the placement makes it look “homemade” in the worst way.

The good news is you don’t need a laser alignment system or a $5,000 industrial jig to get professional-looking alignment. The method in this tutorial is simple, repeatable, and forgiving. It relies on two immutable laws of physics: pressed creases don’t lie, and long lines are easier to see than dots.

By pressing a true center crease, using a printed template, transferring crosshair points, and extending them with a ruler, you create a visual guide that your magnetic hoop can’t ignore. Done right, this becomes a fast routine you can trust—especially when you’re hooping knit shirts that love to shift, stretch, and lie to your eyes.

Placement Panic Is Normal—Here’s the Calm Rule for Centering a T-Shirt Chest Design

When placement goes wrong on a T-shirt, it is rarely because you “can’t eyeball” or lack talent. It is because knits are fluid. They move like water. Seams aren’t always symmetrical, and small paper templates can drift millimeters while you reach for your marking pen.

This workflow fixes that anxiety by giving you two independent references:

1. The Physical Anchor: A pressed vertical center crease on the shirt.
2. The Visual Guide: A large, drawn crosshair on the fabric that you align directly to the hoop’s frame marks.

That second reference is the secret sauce. It’s what prevents the classic “it looked straight in the hoop but looks crooked on the body” problem. By drawing the lines on the fabric, you are locking the placement to the grain of the shirt, not just hoping the hoop is straight relative to the room.

The Hidden Prep Pros Do First: Embrilliance Print Template + Heat-Erase Pen + Mini Iron

Before you touch the actual hoop, set yourself up so you’re not improvising mid-process. Organization here is the difference between a relaxing afternoon and a stressful one.

From the tutorial, the core tools are:

• Software: A printed paper template generated from Embrilliance (or your preferred software) using the print function. Ensure the crosshair points are enabled.
• Marking: Heat-erase pens (like FriXion or generic equivalents).
• Heat: A handheld mini iron (essential for pressing precise creases without flattening the whole shirt).
• Measurement: A clear quilting ruler (to connect dots into long, straight lines).
• Hardware: A rectangular magnetic embroidery hoop/frame (white, with clear metal notch/bracket markings).

Hidden Consumables (Don't start without these):

• Spray Adhesive (Temporary): If you aren't using sticky-back stabilizer, a light mist of 505 spray prevents the shirt from rippling.
• Spare Needles (75/11 Ballpoint): T-shirts require ballpoint needles to push fibers aside rather than piercing and cutting them.

If you are learning how to use magnetic embroidery hoop systems for the first time, take a moment to practice the "snap" action on a scrap piece of fabric. Magnetic frames are incredibly efficient, but they require a different hand motion than traditional screw-tight hoops. You need to verify your finger placement is safe before you focus on the shirt alignment.

Prep Checklist (Pre-Flight Protocol):

• Template Check: Print the design template at 100% scale (measure the scale bar to confirm).
• Crosshair Visibility: Ensure the center crosshairs extend to the edge of the paper cutout.
• Pen Test: Scribble your heat-erase pen on the inside hem of the shirt to ensure it marks clearly and erases fully with the iron.
• Heat Ready: Plug in and preheat the mini iron to a "Cotton" setting so it’s ready for the crease.
• Clear The Deck: Remove magnets, scissors, or loose metal from your immediate workspace so the magnetic hoop doesn't grab them unexpectedly.


Warning: High-Force Pinch Hazard. Keep your fingers strictly on the outside edges of the top frame when closing a magnetic hoop. The magnets snap down with significant force—enough to bruise skin or worse. Never place your thumb between the top and bottom frames.

The “Seam Match” Fold: Pressing a True Center Line on a Cotton T-Shirt

The video starts with the absolute gold standard for T-shirt centering: The Fold. Do not guess where the center is based on the neck tag. Neck tags are often sewn off-center.

What you do (exactly as shown):

1. Lay Flat: Lay the T-shirt flat on your table.
2. Vertical Fold: Fold it in half vertically (hot dog style).
3. Seam Alignment: Carefully line up the shoulder seams and the armpit seams. This is crucial—ignore the bottom hem; focus on the armpits and shoulders to find the true center of the chest.
4. Press: Use the mini iron to press a sharp crease only down the chest area where the design will go. You don't need to crease the whole shirt.
5. Reveal: Unfold the shirt.

This crease becomes your “truth line.” Even if the manufacturing was slightly sloppy, this line represents the visual center of the garment when worn.

Expected outcome: When you unfold the shirt, you should see a crisp, distinct vertical valley that runs straight through the chest area.

Expert note (why this works): Knit fabric relaxes and skews when handled. Without a physical crease, your eye will try to align the hoop to the collar or hem, both of which are curved and unreliable. A pressed crease gives you a straight line on a curved surface.

The Four-Point Transfer: Marking Embrilliance Crosshairs Without Letting the Paper Drift

Next, the host aligns the printed template to the shirt’s pressed center crease and transfers the template’s crosshair points. This is where accuracy matters most.

What you do (as demonstrated):

1. Position: Place the paper template on the shirt.
2. Align: Match the template’s printed vertical center line directly on top of your ironed crease.
3. Mark: Using the heat-erase pen, poke through the paper at the absolute center, and then at the North, South, East, and West crosshair tips.




Checkpoint: Before you poke holes, re-check that the template’s center line is still sitting exactly on the crease. Knits like to grab paper—if you slide the paper, the shirt might bunch underneath. Lift and place; don't drag.

Expected outcome: When you lift the template, you should see five distinct dots on the shirt: one center, and four directional guides.

If you are currently shopping and comparing different magnetic embroidery hoops, look specifically for frames with high-contrast, permanent reference marks printed or molded onto the brackets. These marks are essential for the next step—they act as the "sights" on a rifle, letting you aim your drawn crosshair perfectly.

The Ruler Move That Prevents Crooked Placement: Drawing Long Crosshairs on the Shirt

This is the step that saves projects. Most beginners stop at the dots. But a single dot cannot tell you if your hoop is rotated 3 degrees clockwise. A 10-inch line can.

What you do (as shown):

1. Remove: Take the paper template away.
2. Connect: Use the clear quilting ruler to connect the center dot to the top/bottom dots (vertical) and side dots (horizontal).
3. Extend: Draw a long vertical line (follow the crease) and a long horizontal line.


Checkpoint: The ruler should sit cleanly on the fabric without the knit bunching underneath. Sensory Check: Run your hand lightly over the shirt before laying the ruler down. It should feel relaxed, not pulled taut.

Expected outcome: You will have a bold, easy-to-see crosshair that extends well beyond where the design will stitch.

Expert insight (why long lines beat small marks): A short mark can look “straight enough” inside the hoop. But a line that runs from the neck to the sternum makes any tilt immediately obvious. This is the "Carpenter's Logic"—snap a long chalk line, and you can't fail.

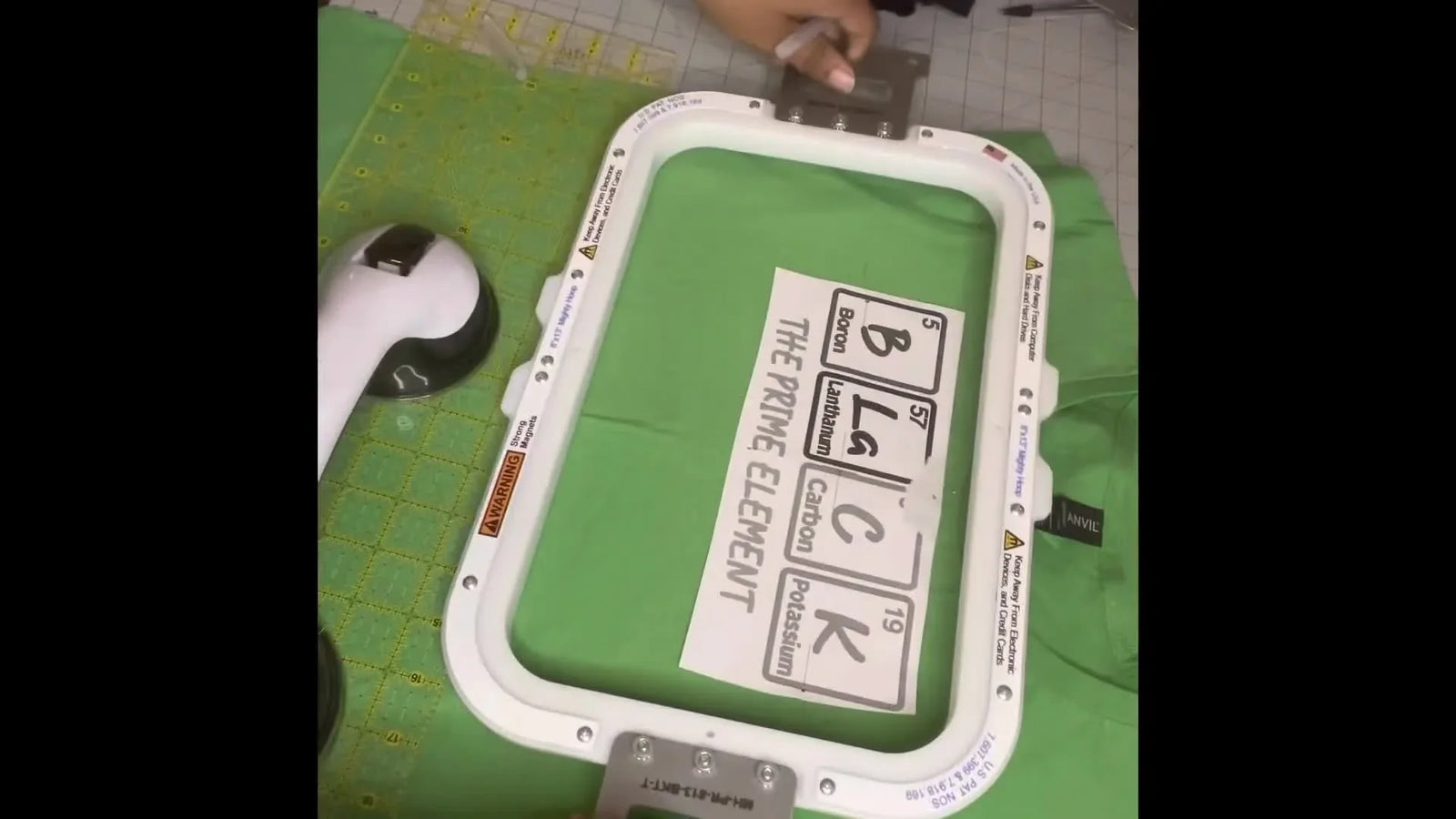

The Snap-On Alignment: Matching Magnetic Hoop Brackets to Your Crosshair Lines

Now you are ready to hoop. This is where the magnetic system shines compared to traditional screw hoops, which tend to distort the fabric as you tighten them.

What the host does:

1. Base: Place the bottom part of the magnetic frame inside the shirt. Smooth the shirt over it.
2. Align: Hover the top frame over the fabric. Don't snap it yet.
3. Match: Visually align the metal notch/bracket markings on the top frame with your drawn crosshair lines on the shirt.
4. Snap: Once perfectly aligned, lower the top frame to let the magnets engage. Listen for the distinct "CLICK" of the magnets locking.










Checkpoints (don’t skip these):

• Vertical Veracity: Does the drawn vertical line run straight through the top and bottom notches of the hoop?
• Horizontal Harmony: Does the drawn horizontal line match the side notches?
• Tension Test: Tap the fabric gently. It should feel firm but not like a drum skin. If it rings like a specialized drum, it's too tight for a T-shirt and will pucker later.

Expected outcome: The hoop is fully engaged, the shirt is trapped evenly, and your drawn lines form a perfect "+" that aligns with the mechanical marks on the hoop.

If you are struggling with hoop burn (those shiny rings left by standard hoops) or wrist pain from tightening screws, switching to a magnetic embroidery frame is the fastest anatomical and quality upgrade you can make. It eliminates the "tug of war" that ruins knits.

Setup Checklist (The "Walk-Away" Protocol):

• Engagement: Run your fingers around the rim to ensure the magnetic top is fully seated and not hovering on a wrinkle.
• Crosshair Re-Check: Did the lines shift during the snap? If yes, pop it off and redo. It takes 5 seconds to re-hoop magnetically.
• Clearance: Check under the hoop. Is the back of the shirt bunched up? Pull it clear.
• Slack: Ensure the rest of the shirt is supported on the table, not dragging the hoop down with its weight.

Warning: Magnetic Field Safety. These hoops contain powerful Neodymium magnets. They can disrupt pacemakers and ICDs. Keep the hoop at least 6 inches away from any implanted medical device. Also, keep credit cards and hotel keys away, or they will be demagnetized instantly.

The “Why It Works” (and How to Avoid Hoop Burn, Stretch, and Wavy Lettering)

The video shows the mechanics; here is the embroidery science underneath—and how to ensure your perfectly centered design doesn't warp after the first wash.

1) Knits distort when you pull them

A cotton T-shirt is a knit structure (interlocking loops). When you tug it to get it tight in a standard hoop, you stretch those loops open. You stitch your design on stretched loops. When you un-hoop, the loops relax, and your design shrinks and puckers. Magnetic hoops clamp vertically (downward pressure) rather than pulling radially, which preserves the fabric's resting state.

2) Stabilization is the unspoken hero

The tutorial focuses on placement, but in production, stabilizer choice determines longevity. You cannot rely on Tearaway stabilizer for T-shirts; the stitches will pull through eventually.

Use this decision tree to choose your consumables before you hoop:

Decision Tree: T-Shirt Fabric $\rightarrow$ Stabilizer Strategy

• Standard Cotton Tee (Gildan/Hanes):
  • Base: Medium Weight Cutaway (2.5oz).
  • Adhesion: Light 505 spray to keep shirt from sliding on backing.
• Thin/Vintage Blend Tee:
  • Base: No-Show Mesh (PolyMesh) Cutaway. It is softer against the skin and doesn't show a "badge" outline.
  • Top: Water Soluble Topping (Solvy) to prevent stitches sinking into the loose knit.
• Performance/Spandex Knit:
  • Base: Fusible No-Show Mesh. Iron it on to stop the stretch before hooping.
• Heavyweight Hoodie:
  • Base: Heavy Cutaway or two layers of Medium Cutaway.

As a practical upgrade, investing in the correct SEWTECH Stabilizer (specifically No-Show Mesh for tees) is cheaper than replacing a ruined garment. It’s the difference between a "craft project" and "retail quality."

Fix It Fast: Crooked Placement, Shifting Templates, and Marks That Won’t Disappear

The video calls out crooked placement, but let's expand that into a diagnostic table for when things go wrong.

The Clean Finish: Erasing Heat-Erase Pen Lines the Safe Way

At the end, the host runs the mini iron over the drawn lines and they disappear instantly. This is the "magic trick" moment, but handle it with care.

What to do: After embroidery is complete and you have un-hooped the shirt, place it on your ironing mat. Use the mini iron (no steam) and glide over the crosshairs.

Expected outcome: The crosshair lines vanish instantly, leaving the shirt looking pristine.

Expert finishing tip: Do not leave the iron in one spot. Polyester threads can melt, and some cotton reliability dyes can shift under intense localized heat. Keep the iron moving.

When You’re Doing This for Orders: Speed, Consistency, and the Right Upgrade Path

If you’re making one shirt for a grandchild, this method feels like a precision ritual. But if you have an order for 20 team shirts, this "measure-mark-hoop" process ensures every single player has their logo in the exact same spot. Consistency is what customers pay for.

Here is a realistic look at how to scale this workflow:

1. Level 1: The Bottleneck Breaker.
   If your main frustration is "I have to re-hoop three times to get it straight," a Magnetic Hoop is your first upgrade. The visual confirmation alone saves you 5 minutes per shirt.
2. Level 2: The Physical Relief.
   If your hands hurt or you are struggling to hoop thick sweatshirts, magnetic frames reduce the physical force required. There is no screw to tighten, no inner ring to force.
3. Level 3: The Production Shift.
   If you are spending all your time changing threads and waiting for a single needle to finish, it might be time to look at a SEWTECH Multi-Needle Machine. Combined with magnetic hoops, you can hoop the next shirt while the machine stitches the current one, effectively doubling your output (and potential profit).

To build a truly repeatable station, many professionals use a hooping station for embroidery. This is essentially a jig that holds your hoop and shirt in the exact same spot every time.

When researching tools to speed up your workflow, you might see terms like mighty hoop or the hoop master embroidery hooping station. These are well-known industry standards. However, savvy business owners often find that compatible systems (like Sewtech's magnetic series) offer the same magnetic locking power and alignment precision at a price point that allows you to buy more hoops for the same budget—drastically improving your production flow.

Operation Checklist (Final Go/No-Go):

• Visual Verify: Are the drawn lines still perfectly aligned with the hoop marks?
• Clearance: Is the excess shirt fabric folded out of the way? (Use clips if necessary).
• Bobbin Check: Do you have enough bobbin thread for the whole design?
• Trace: Run a trace on your machine to ensure the needle won't hit the metal magnetic frame.


If you take only one habit from this tutorial, make it this: Trust the crease, not your eyes. Your eyes can be tricked by a drooping neckline; a pressed crease and a magnetic clamp are absolute.

FAQ

• Q: How do I center an embroidery design on a cotton T-shirt chest when the neck tag is off-center?
  A: Use a seam-matched fold to press a true vertical center crease, then align everything to that crease (not the tag).
  • Fold: Fold the T-shirt vertically and match shoulder seams + armpit seams before pressing.
  • Press: Use a mini iron to press a sharp crease only in the chest/design area.
  • Align: Place the printed template center line directly on the pressed crease before marking.
  • Success check: After unfolding, the crease is crisp and straight through the chest area where the design will stitch.
  • If it still fails: Re-fold and re-press focusing on shoulder/armpit seams (ignore the bottom hem for centering).
• Q: How do I stop an Embrilliance printed embroidery placement template from drifting on a knit T-shirt while marking crosshairs?
  A: Transfer only the center + four crosshair points, and re-check alignment to the pressed crease before every poke.
  • Position: Lay the paper template on the shirt and match the template’s vertical center line to the ironed crease.
  • Mark: Poke through the paper at the center, then North/South/East/West crosshair tips with a heat-erase pen.
  • Re-check: Lift and place the template if it shifts—do not drag the paper across the knit.
  • Success check: When the template lifts off, there are five distinct dots (center + 4 directions) with no fabric bunching.
  • If it still fails: Add a light mist of temporary spray adhesive when not using sticky-back stabilizer to reduce rippling/shifting.
• Q: How do I prevent a T-shirt embroidery design from looking straight in the hoop but crooked when worn using a magnetic embroidery hoop frame?
  A: Draw long crosshair lines on the fabric (not just dots) and align those long lines to the magnetic hoop bracket/notch marks before snapping.
  • Connect: Use a clear quilting ruler to connect the transferred dots into a vertical and horizontal line.
  • Extend: Draw the lines long enough that any tilt is obvious before hooping.
  • Align: Hover the magnetic top frame and match hoop bracket/notch marks to the drawn crosshair lines, then snap straight down.
  • Success check: The drawn “+” runs cleanly through the hoop’s top/bottom and left/right reference marks with no visible rotation.
  • If it still fails: Pop the magnetic frame off and re-hoop—magnetic re-hooping should take seconds and is safer than forcing a “close enough” angle.
• Q: What is the correct fabric tightness for hooping a knit T-shirt with a rectangular magnetic embroidery hoop to avoid puckers and wavy lettering?
  A: Clamp the shirt firm but not drum-tight, and avoid pushing or sliding fabric while the magnets snap.
  • Smooth: Lay the shirt relaxed over the bottom frame; do not stretch the knit to “make it tight.”
  • Snap: Lower the top frame straight down—do not slide it across the fabric.
  • Tap-test: Gently tap the hooped area and confirm it feels stable but does not “ring” like a drum skin.
  • Success check: The fabric is evenly trapped, the surface looks flat (no ripples), and the crosshair lines stay aligned after snapping.
  • If it still fails: Lift the top frame, smooth outward from the center, and snap again without shifting the shirt.
• Q: What stabilizer setup should I use for T-shirt embroidery to prevent stitch sinking and long-term distortion after stitching?
  A: Match the stabilizer to the T-shirt type before hooping; T-shirts generally need cutaway support (not tearaway).
  • Choose: Use medium cutaway for standard cotton tees; use no-show mesh cutaway for thin/vintage tees; use fusible no-show mesh for performance/spandex knits; use heavy cutaway (or double medium) for hoodies.
  • Add: Use water-soluble topping on thin/vintage tees to reduce stitch sinking into loose knit.
  • Hold: Use a light mist of temporary spray adhesive if needed to prevent the shirt from sliding on the backing.
  • Success check: The fabric lies flat during stitching and the design does not look “wavy” or puckered after un-hooping.
  • If it still fails: Re-check hooping tightness (too tight causes relaxation puckers) and confirm the knit wasn’t stretched during hooping.
• Q: What are the safety rules for closing a magnetic embroidery hoop frame to avoid finger injuries?
  A: Keep fingers on the outside edges only and never place a thumb between the top and bottom frames while snapping closed.
  • Position: Hold the top frame by the outer rim—avoid the inner edge where the pinch happens.
  • Lower: Hover to align first, then lower straight down once alignment is correct.
  • Clear: Remove loose metal tools (scissors, clips, spare magnets) from the area so the hoop doesn’t grab them unexpectedly.
  • Success check: The frame closes with a distinct “click” and no skin is near the closing gap.
  • If it still fails: Practice the snap motion on scrap fabric until hand placement is automatic before hooping an actual garment.
• Q: When should I upgrade from technique fixes to a magnetic hoop or a SEWTECH multi-needle embroidery machine for T-shirt orders?
  A: Upgrade based on the bottleneck: re-hooping/alignment errors → magnetic hoop; physical strain → magnetic hoop; thread-change downtime → SEWTECH multi-needle.
  • Diagnose: Track what costs the most time—re-hooping for straightness, hand/wrist fatigue, or waiting on single-needle thread changes.
  • Level 1: Switch to a magnetic hoop when alignment takes multiple attempts or hoop burn/wrist pain is common.
  • Level 2: Add more magnetic frames to keep garments staged and reduce setup interruptions between shirts.
  • Level 3: Consider a SEWTECH multi-needle machine when production is limited by thread changes and single-needle stitch time.
  • Success check: The same design lands in the same spot across multiple shirts with fewer re-hoops and a smoother workflow.
  • If it still fails: Add a hooping station/jig to make placement repeatable before scaling order volume further.
